Sayfa 0-42 - Isuzu EPC

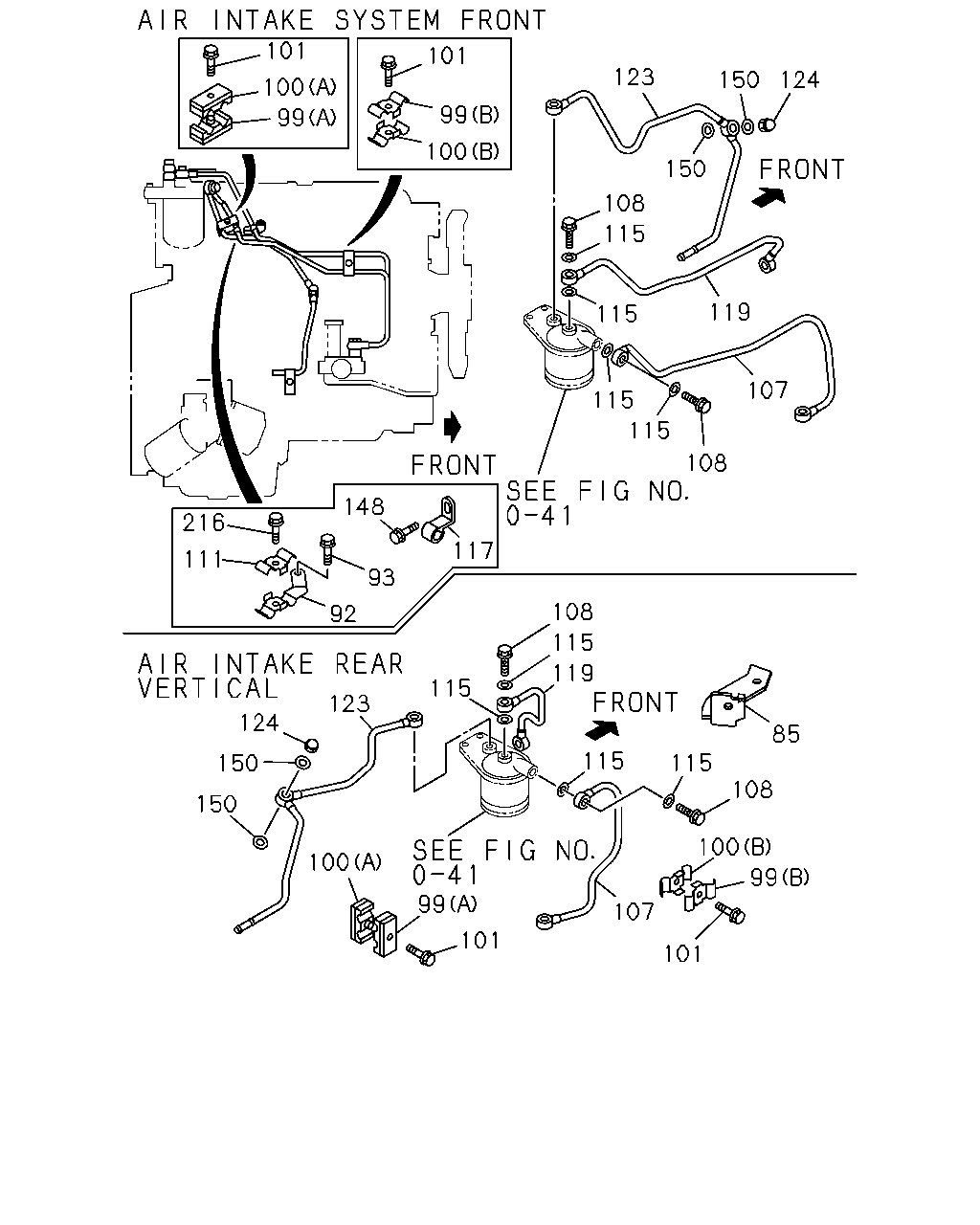

0-42 — FUEL PUMP AND PIPE (#45819) — 163 parça

101 101 123 150 124 100 99 99 100 150 108 115 119 115 107 115 115 108 148 216 117 111 93 108 92 115 119 115 123 124 85 115 115 150 108 150 100 100 99 99 107 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	03.454 BRACKET; ACCEL CABLE,FUEL FILTER AIR INTAKE REAR VERTICAL<KJ3> T=2.3	8-94454-963-2	01	1	9312-	●
92	03.162 BRACKET; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC>	8-97064-282-0	01	1	9312-	●
92	03.162 BRACKET; FUEL PIPE	8-97085-387-2	01	1	9312-9510		●
93	03.162 BOLT; PIPE BRKT AIR INTAKE SYSTEM FRONT<6PC> 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9312-	●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (A) ID=6 & 7.5	8-94107-500-0	01	1	9312-9401	●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9312-9401	●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9312-9401	●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9402-	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9402-	●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25	9-09716-114-0	02	1	9312-9401	●
99	03.162 CLIP; "A",FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9402-	●
99	03.162 CLIP; "A",FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	03	1	9312-9402		●
99	03.162 CLIP; "A",FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	01	1	9403-9510		●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (A) ID=6 & 7.5	8-94107-499-0	01	1	9312-9401	●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9312-9401	●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9312-9401	●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9402-	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9402-	●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9312-9401	●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9402-	●
100	03.162 CLIP; "B",FUEL PIPE 03.330 (A) ID=6.1 & 9.6	8-97016-322-0	01	1	9312-9510		●
100	03.162 CLIP; "B",FUEL PIPE 01.516 (B)	8-97020-736-1	01	1	9312-9502		●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9503-		●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9312-9401	●
101	03.162 BOLT; FUEL CLIP AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9402-	●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9402-	●
101	03.162 BOLT; FUEL CLIP 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9312-9510		●
101	03.162 BOLT; FUEL CLIP 03.405 (B) M6X35 FLANGE	0-28080-635-0	01	1	9312-9402		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE REAR VERTICAL<KJ3>	8-94141-127-0	01	1	9312-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE SYSTEM FRONT<6PC>	8-97020-408-0	01	1	9312-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97080-924-0	01	1	9312-9510		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97088-046-3	01	1	9511-		●
108	03.162 BOLT; JOINT,FUEL FILTER M14X29 EYE-BOLT	9-09906-325-1	02	1	9312-	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9312-		●
111	03.162 CLIP; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> ID=10 & 10 L=25	9-09716-114-0	01	1	9312-	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-9406	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502		●
117	03.162 CLIP; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC>	9-09916-621-1	01	1	9312-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE REAR VERTICAL<KJ3>	5-15411-851-0	01	1	9312-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE SYSTEM FRONT<6PC>	8-97020-409-0	01	1	9312-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97080-925-1	01	1	9312-9510		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9511-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE REAR VERTICAL<KJ3>	8-97025-146-0	01	1	9312-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE SYSTEM FRONT<6PC>	8-97025-132-1	01	1	9312-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97070-345-3	01	1	9312-9510		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97118-894-1	01	1	9511-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97087-196-0	01	1	9312-		●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9312-9406	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9503-	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502		●
148	03.162 BOLT; BRKT AIR INTAKE SYSTEM FRONT<6PC> 01.540 M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9312-	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9312-9406	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502		●
216	03.162 BOLT; CLIP,FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9312-	●

108 115 123 115 124 150 119 150 159 142 115 115 92 108 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	03.162 BRACKET; FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC>	8-97064-282-0	01	1	9312-	●
92	03.162 BRACKET; FUEL PIPE	8-97085-387-2	01	1	9312-9510		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE REAR VERTICAL<KJ3>	8-94141-127-0	01	1	9312-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE SYSTEM FRONT<6PC>	8-97020-408-0	01	1	9312-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97080-924-0	01	1	9312-9510		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97088-046-3	01	1	9511-		●
108	03.162 BOLT; JOINT,FUEL FILTER M14X29 EYE-BOLT	9-09906-325-1	02	1	9312-	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9312-		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-9406	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE REAR VERTICAL<KJ3>	5-15411-851-0	01	1	9312-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE SYSTEM FRONT<6PC>	8-97020-409-0	01	1	9312-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97080-925-1	01	1	9312-9510		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9511-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE REAR VERTICAL<KJ3>	8-97025-146-0	01	1	9312-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE SYSTEM FRONT<6PC>	8-97025-132-1	01	1	9312-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97070-345-3	01	1	9312-9510		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97118-894-1	01	1	9511-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97087-196-0	01	1	9312-		●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9312-9406	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9503-	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502		●
142	03.162 CLIP; FUEL PIPE 03.145 ID=7 L=16	9-09524-622-0	01	1	9312-9510		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9312-9406	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502		●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9312-9510		●

37 220 37 221 100 37 101 123 37 220 99 100 100 145 145 99 101 221 99 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	03.162 CLIP; FUEL HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	9312-		●
37	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	9312-		●
37	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	9511-		●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9312-		●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (A) ID=6 & 7.5	8-94107-500-0	01	1	9312-9401	●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9312-9401	●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9312-9401	●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9402-	●
99	03.162 CLIP; "A",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-359-0	01	1	9402-	●
99	03.162 CLIP; "A",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25	9-09716-114-0	02	1	9312-9401	●
99	03.162 CLIP; "A",FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9402-	●
99	03.162 CLIP; "A",FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	03	1	9312-9402		●
99	03.162 CLIP; "A",FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	01	1	9403-9510		●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (A) ID=6 & 7.5	8-94107-499-0	01	1	9312-9401	●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE REAR VERTICAL<KJ3> (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9312-9401	●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9312-9401	●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9402-	●
100	03.162 CLIP; "B",FUEL PIPE (A) ID=6.0 & 9.5	8-94100-360-0	01	1	9402-	●
100	03.162 CLIP; "B",FUEL PIPE AIR INTAKE SYSTEM FRONT<6PC> (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9312-9401	●
100	03.162 CLIP; "B",FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	01	1	9402-	●
100	03.162 CLIP; "B",FUEL PIPE 03.330 (A) ID=6.1 & 9.6	8-97016-322-0	01	1	9312-9510		●
100	03.162 CLIP; "B",FUEL PIPE 01.516 (B)	8-97020-736-1	01	1	9312-9502		●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9503-		●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9312-9401	●
101	03.162 BOLT; FUEL CLIP AIR INTAKE SYSTEM FRONT<6PC> 04.054 M6X25 W/LK WASHER	0-50040-625-0	01	1	9402-	●
101	03.162 BOLT; FUEL CLIP 04.054 M6X25 W/LK WASHER	0-50040-625-0	02	1	9402-	●
101	03.162 BOLT; FUEL CLIP 04.686 (A) M6X25 FLANGE	0-28080-625-0	01	1	9312-9510		●
101	03.162 BOLT; FUEL CLIP 03.405 (B) M6X35 FLANGE	0-28080-635-0	01	1	9312-9402		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE REAR VERTICAL<KJ3>	8-97025-146-0	01	1	9312-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE SYSTEM FRONT<6PC>	8-97025-132-1	01	1	9312-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97070-345-3	01	1	9312-9510		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97118-894-1	01	1	9511-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97087-196-0	01	1	9312-		●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9503-		●
220	03.163 HOSE; FUEL (A)	8-97087-227-1	01	1	9312-		●
220	03.163 HOSE; FUEL (B)	8-97087-228-1	01	1	9312-		●
220	03.163 HOSE; FUEL (C) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9511-		●
221	03.163 BOLT; FUEL PIPE 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	02	1	9312-9711		●
221	03.163 BOLT; FUEL PIPE 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9712-		●
221	03.163 BOLT; FUEL PIPE (B) M6X40 FLANGE	0-28680-640-0	01	1	9503-		●

108 115 115 119 115 115 108 107 37 220 124 150 150 37 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	03.162 CLIP; FUEL HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	9312-		●
37	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	9312-		●
37	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	9511-		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE REAR VERTICAL<KJ3>	8-94141-127-0	01	1	9312-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL AIR INTAKE SYSTEM FRONT<6PC>	8-97020-408-0	01	1	9312-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97080-924-0	01	1	9312-9510		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97088-046-3	01	1	9511-		●
108	03.162 BOLT; JOINT,FUEL FILTER M14X29 EYE-BOLT	9-09906-325-1	02	1	9312-	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9312-		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9312-9406	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9407-9502		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE REAR VERTICAL<KJ3>	5-15411-851-0	01	1	9312-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU AIR INTAKE SYSTEM FRONT<6PC>	8-97020-409-0	01	1	9312-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97080-925-1	01	1	9312-9510		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9511-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE REAR VERTICAL<KJ3>	8-97025-146-0	01	1	9312-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF AIR INTAKE SYSTEM FRONT<6PC>	8-97025-132-1	01	1	9312-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97070-345-3	01	1	9312-9510		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97118-894-1	01	1	9511-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97087-196-0	01	1	9312-		●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9312-9406	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9503-	●	●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9407-9502		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9312-9406	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9407-9502		●
220	03.163 HOSE; FUEL (A)	8-97087-227-1	01	1	9312-		●
220	03.163 HOSE; FUEL (B)	8-97087-228-1	01	1	9312-		●
220	03.163 HOSE; FUEL (C) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9511-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
