0-41 — FUEL FILTER AND BRACKET (#45818) — 72 parça

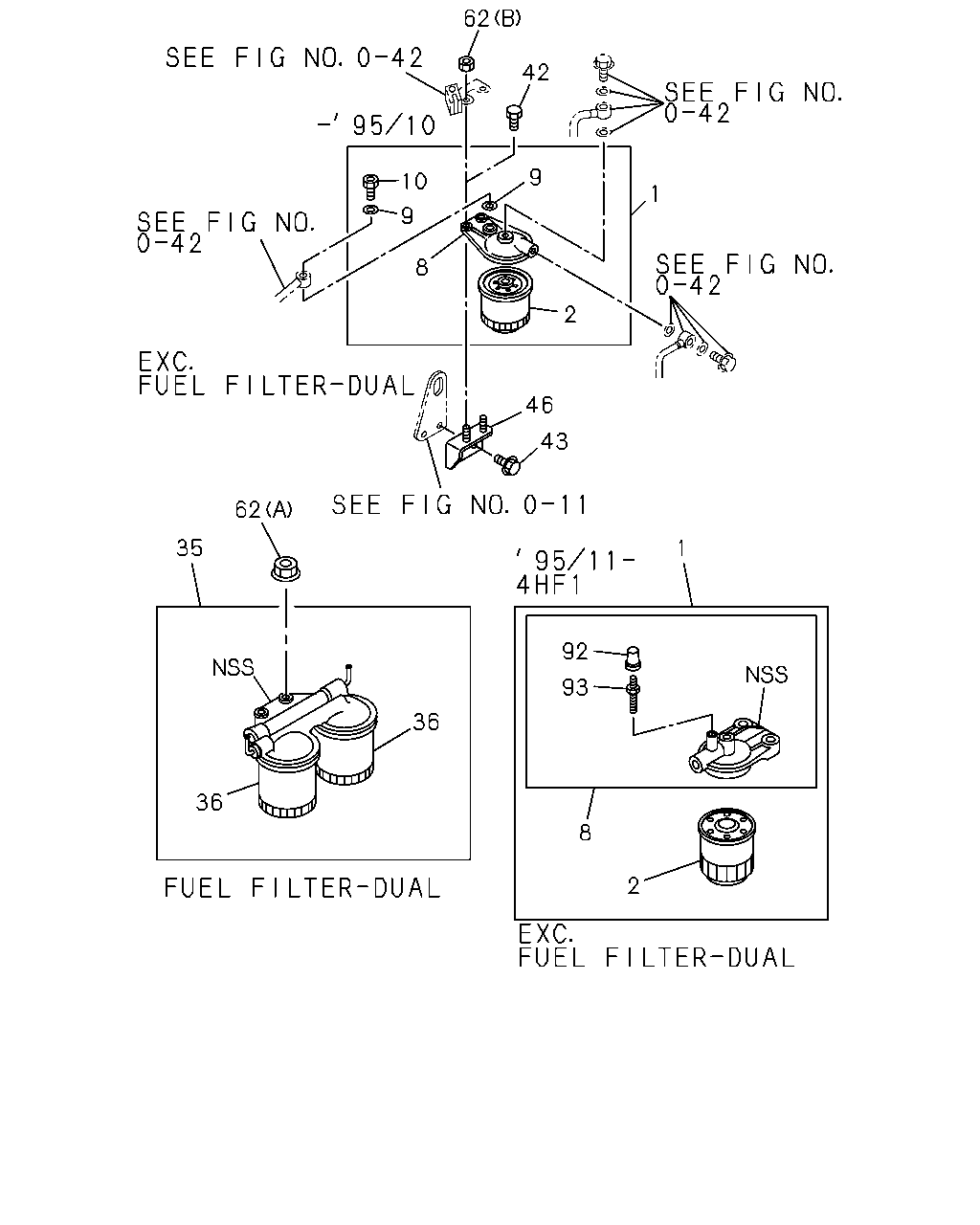

çizim 68181
62 42 9 10 1 9 8 2 46 43 62 35 1 92 93 36 36 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 9312- ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-97070-865-0 01 1 9312- ● ●
1 03.890 FILTER ASM; FUEL 8-94151-745-1 01 1 9312-9707 ●
1 03.890 FILTER ASM; FUEL 8-97179-854-0 01 1 9708- ●
1 03.890 FILTER ASM; FUEL 8-94370-620-3 01 1 9312-9510 ●
1 03.890 FILTER ASM; FUEL 8-97117-333-0 01 1 9511-9702 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-1 01 1 9703- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 9312- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94246-908-0 01 1 9312- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-94151-744-0 01 1 9312-9707 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-94370-621-3 01 1 9312-9510 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97116-125-0 01 1 9511-9702 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-0 01 1 9703-9707 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-0 01 1 9708- ● ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94254-730-0 01 1 9312- ● ●
8 03.890 COVER; FUEL FILTER 5-13212-075-1 01 1 9312-9406 ● ●
8 03.890 COVER; FUEL FILTER 5-13212-075-1 01 1 9407-9502 ●
8 03.890 COVER; FUEL FILTER 5-13212-075-1 01 1 9503-9510 ● ●
8 03.890 COVER; FUEL FILTER 5-13212-075-1 01 1 9511-9707 ●
8 03.890 COVER; FUEL FILTER 8-94132-948-0 01 1 9708- ●
8 03.890 COVER; FUEL FILTER 5-13212-075-1 01 1 9407-9502 ●
8 03.890 COVER; FUEL FILTER 8-97126-076-0 01 1 9511-9702 ●
8 03.890 COVER; FUEL FILTER 8-97172-543-1 01 1 9703- ●
9 03.890 GASKET; EYE JOINT
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 ID=14.2 OD=23.0 		9-09572-014-0 02 1 9312-9707 ●
9 03.890 GASKET; EYE JOINT
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 9708- ●
9 03.890 GASKET; EYE JOINT
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 9312-9510 ●
10 03.890 VALVE; OVERFLOW,FUEL FILTER
03.164 		9-13260-056-2 01 1 9312-9502 ●
10 03.890 VALVE; OVERFLOW,FUEL FILTER
03.164 		9-13260-056-2 01 1 9503-9510 ● ●
10 03.890 VALVE; OVERFLOW,FUEL FILTER
03.164 		9-13260-056-2 01 1 9511-9707 ●
10 03.890 VALVE; OVERFLOW,FUEL FILTER 1-13260-047-0 01 1 9708- ●
10 03.890 VALVE; OVERFLOW,FUEL FILTER
03.164 		9-13260-056-2 01 1 9312-9502 ●
35 03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 9312- ● ●
36 03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 9312- ● ●
42 03.890 BOLT; FUEL FILTER
03.613 M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9312- ●
43 03.890 BOLT; BRKT
00.029 M12X28 FLANGE 		0-28181-228-0 02 1 9712- ●
46 03.890 BRACKET 8-94313-323-1 01 1 9312- ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 9312- ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 9312- ● ●
62 03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9312- ●
92 03.417 CAP; FUEL FILTER 8-97117-109-0 02 1 9511-9702 ●
92 03.417 CAP; FUEL FILTER 8-97172-548-0 01 1 9703- ●
93 03.890 CONNECTOR; FUEL FILTER 8-97143-658-0 01 1 9511-9702 ●
93 03.890 CONNECTOR; FUEL FILTER 8-97172-546-1 01 1 9703- ●
çizim 70712
62 62 1 1 8 66 56 2 2 2 41
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) 		8-97070-864-0 01 1 9312- ● ●
1 03.890 FILTER ASM; FUEL
EXC. FUEL FILTER DUAL(S6B) 		8-97070-865-0 01 1 9312- ● ●
1 03.890 FILTER ASM; FUEL 8-94151-745-1 01 1 9312-9707 ●
1 03.890 FILTER ASM; FUEL 8-97179-854-0 01 1 9708- ●
1 03.890 FILTER ASM; FUEL 8-94370-620-3 01 1 9312-9510 ●
1 03.890 FILTER ASM; FUEL 8-97117-333-0 01 1 9511-9702 ●
1 03.890 FILTER ASM; FUEL 8-97171-451-1 01 1 9703- ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) 01.836 		8-94144-613-0 02 1 9312- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94246-908-0 01 1 9312- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-94151-744-0 01 1 9312-9707 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-94370-621-3 01 1 9312-9510 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97116-125-0 01 1 9511-9702 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-0 01 1 9703-9707 ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97172-549-0 01 1 9708- ● ●
8 03.890 COVER; FUEL FILTER
EXC. FUEL FILTER DUAL(S6B) 		8-94254-730-0 01 1 9312- ● ●
8 03.890 COVER; FUEL FILTER 5-13212-075-1 01 1 9312-9406 ● ●
8 03.890 COVER; FUEL FILTER 5-13212-075-1 01 1 9407-9502 ●
8 03.890 COVER; FUEL FILTER 5-13212-075-1 01 1 9503-9510 ● ●
8 03.890 COVER; FUEL FILTER 5-13212-075-1 01 1 9511-9707 ●
8 03.890 COVER; FUEL FILTER 8-94132-948-0 01 1 9708- ●
8 03.890 COVER; FUEL FILTER 5-13212-075-1 01 1 9407-9502 ●
8 03.890 COVER; FUEL FILTER 8-97126-076-0 01 1 9511-9702 ●
8 03.890 COVER; FUEL FILTER 8-97172-543-1 01 1 9703- ●
41 03.890 BRACKET; FUEL FILTER 8-97103-345-1 01 1 9312- ●
56 03.890 PLUG; FUEL FILTER
FUEL FILTER DUAL(S6B) 		5-13226-001-0 01 1 9511-9711 ● ●
62 03.895 NUT; FUEL FILTER
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 9312- ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 9312- ● ●
62 03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9312- ●
66 03.890 GASKET; PLUG,FUEL FILTER
FUEL FILTER DUAL(S6B) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9511-9711 ● ●
