0-36 — TURBOCHARGER SYSTEM (#45815) — 26 parça

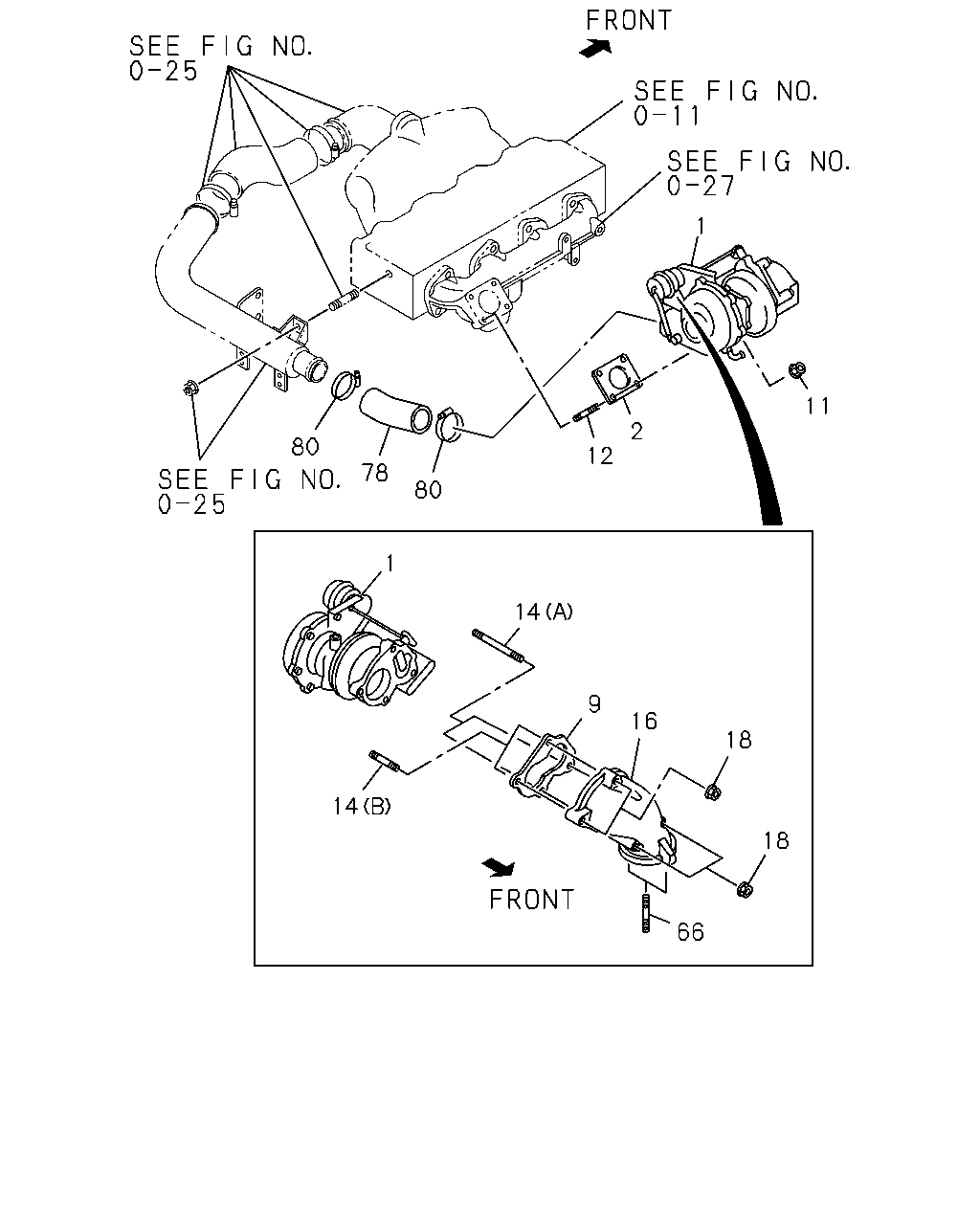

çizim 68147
1 11 2 80 12 78 80 1 14 9 16 18 14 18 66
BalonParca AdiParca NoAdetTipApplied Date
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-97176-080-1 01 1 9607-9711
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51> 		8-97176-080-1 01 1 9712-
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-94433-605-0 01 1 9607-9711
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> 		8-94433-605-0 01 1 9712-
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-94433-604-0 01 1 9607-9711
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> 		8-94433-604-0 01 1 9712-
11 03.342 NUT; TURBOCHARGER
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 03.604 M8 FLANGE 		8-94170-486-0 04 1 9607-9610
11 03.342 NUT; TURBOCHARGER
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 03.613 M8 FLANGE 		8-97161-607-0 04 1 9611-9711
11 03.342 NUT; TURBOCHARGER
TURBOCHARGER<K51> 03.613 M8 FLANGE 		8-97161-607-0 04 1 9712-
12 03.342 STUD; TURBOCHARGER
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> M8X20 L=31 		8-97104-508-1 04 1 9607-9711
12 03.342 STUD; TURBOCHARGER
TURBOCHARGER<K51> M8X20 L=31 		8-97104-508-1 04 1 9712-
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (A) M8X105 L=116 		8-94362-047-0 02 1 9607-9711
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURBOCHARGER<K51> (A) M8X105 L=116 		8-94362-047-0 02 1 9712-
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (B) M8X43 L=54 		8-97104-507-1 02 1 9607-9711
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURBOCHARGER<K51> (B) M8X41 L=52 		8-97188-452-0 02 1 9712-
16 03.609 ADAPTER; EXH PIPE
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-97176-079-0 01 1 9607-9711
16 03.609 ADAPTER; EXH PIPE
TURBOCHARGER<K51> 		8-97176-079-0 01 1 9712-
18 03.613 NUT; EXH PIPE
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 03.604 M8 FLANGE 		8-94170-486-0 04 1 9607-9610
18 03.613 NUT; EXH PIPE
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> M8 FLANGE 		8-97161-607-0 04 1 9611-9711
18 03.613 NUT; EXH PIPE
TURBOCHARGER<K51> M8 FLANGE 		8-97161-607-0 04 1 9712-
66 03.342 STUD; EXH PIPE
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9607-9711
66 03.342 STUD; EXH PIPE
TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING 		5-09302-008-1 02 1 9712-
78 03.342 HOSE; INL PIPE,TURBOCHARGER
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-97176-146-0 01 1 9607-9711
78 03.342 HOSE; INL PIPE,TURBOCHARGER
TURBOCHARGER<K51> 		8-97176-146-0 01 1 9712-
80 03.407 CLIP; CONN HOSE,TURBOCHARGER
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> ID=45.5-56.5 		8-97131-943-0 02 1 9607-9711
80 03.407 CLIP; CONN HOSE,TURBOCHARGER
TURBOCHARGER<K51> ID=45.5-56.5 		8-97131-943-0 02 1 9712-
