◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#45813) — 349 parça

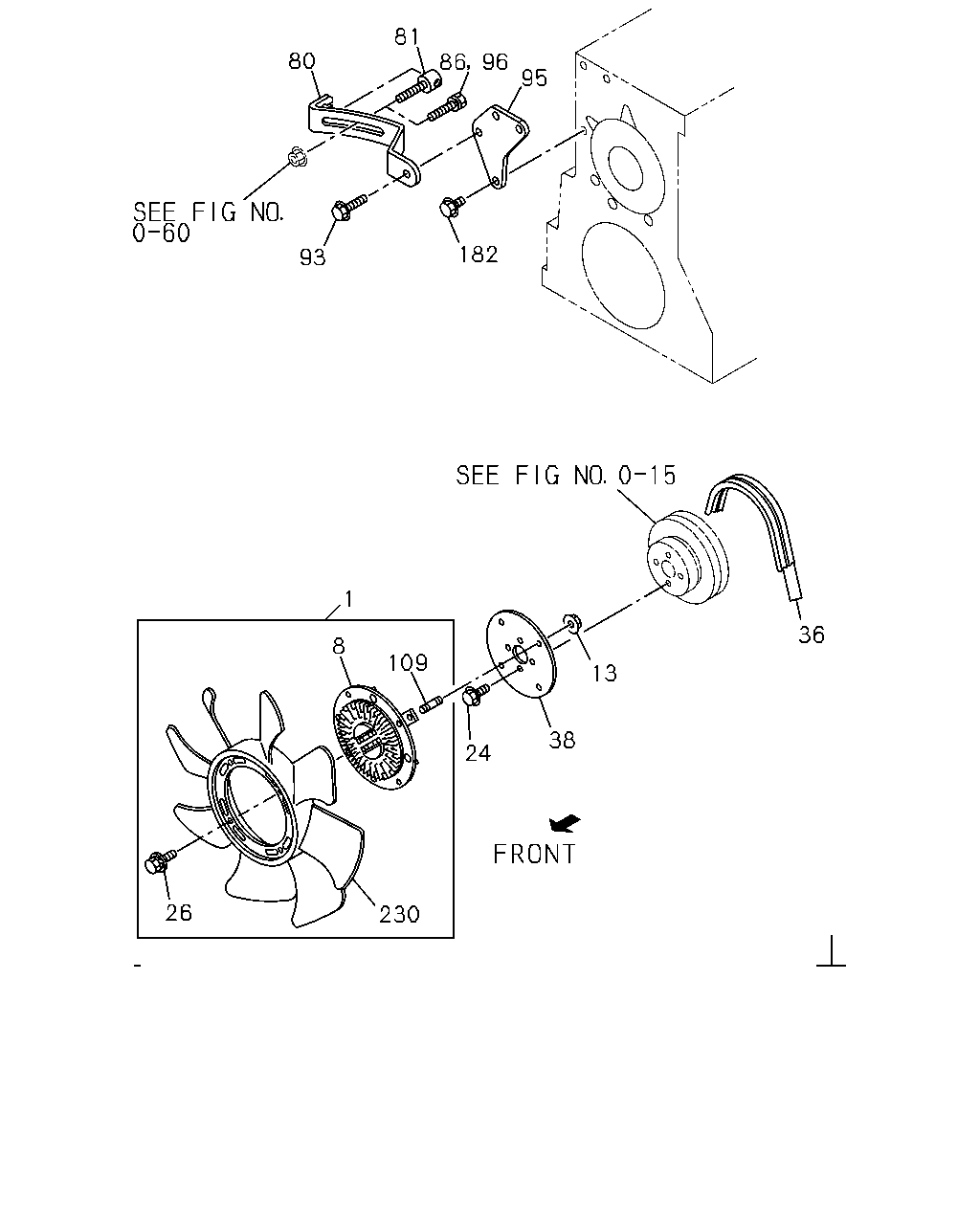

çizim 68153
81 80 86 96 95 182 93 1 36 8 109 13 38 24 26 230
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.064 FAN; COOLING 8-97081-738-0 01 1 9312-9505 ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9506-9606 ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9607- ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-97129-769-0 01 1 9607- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> OD=390 		8-94239-651-0 01 1 9312-9606 ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390 		8-94239-651-0 01 1 9607- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> OD=390 		5-13660-285-0 01 1 9312-9606 ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390 		5-13660-285-0 01 1 9607- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97118-158-0 01 1 9312- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> 		8-94367-363-1 01 1 9312- ●
1 01.064 FAN; COOLING 8-97088-813-1 01 1 9312-9411 ●
1 01.064 FAN; COOLING 8-97123-906-0 01 1 9412-9503 ●
1 01.064 FAN; COOLING 8-97129-772-1 01 1 9504- ●
8 01.064 CLUTCH; COOLING FAN
01.055 		8-97094-661-0 01 1 9312-9505 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9506-9606 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9607- ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> 		8-97129-735-0 01 1 9607- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-94244-409-0 01 1 9312-9606 ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 		8-94244-409-0 01 1 9607- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97095-204-0 01 1 9312-9406 ●
8 01.064 CLUTCH; COOLING FAN 8-97088-803-0 01 1 9312-9411 ●
8 01.064 CLUTCH; COOLING FAN 8-97123-948-0 01 1 9412-9503 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 9504- ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 9312- ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9312- ●
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 9312- ●
24 01.062 BOLT; FAN
FAN FLUID DRIVE<KA3> 08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9312-9401 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9402- ●
24 01.062 BOLT; FAN
FAN FLUID DRIVE<KA3> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9312- ●
24 01.062 BOLT; FAN
EXC. FAN FLUID DRIVE<KA3> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9312-9711 ●
24 01.062 BOLT; FAN
EXC. FAN FLUID DRIVE<KA3> M8X16 FLANGE 		0-28080-816-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU 8-97094-725-0 04 1 9312-9505 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9312-9406 ●
26 01.062 BOLT; FAN TO CLU
03.670 M6X20 FLANGE 		0-28080-620-0 04 1 9312-9503 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9504-9505 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9506-9510 ● ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9511-9606 ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9511-9606 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9607- ●
26 01.062 BOLT; FAN TO CLU
TURBOCHARGER<K51> 		8-94389-764-0 04 1 9607- ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9607- ●
36 01.066 BELT; COOLING FAN
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9312-9511 ● ●
36 01.066 BELT; COOLING FAN
EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
REFRIGERATOR CHASSIS(V4R) L=1221 		8-97062-480-0 01 1 9401-9711 ●
36 01.066 BELT; COOLING FAN
EXC. REFRIGERATOR CHASSIS(V4R) L=1196 		1-13671-216-1 01 1 9312-9711 ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9712- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970147011) 		8-97014-252-1 01 1 9312-9409 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9410-9706 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9707- ●
38 01.062 SPACER; FAN
EXC. FAN FLUID DRIVE<KA3> 01.064 		9-13642-078-0 01 1 9312- ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9312-9405 ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9312-9405 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9406-9407 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9408-9502 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9503- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9503- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9406-9502 ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9312- ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) EXC. REFRIGERATOR CHASSIS(V4R) 		8-94157-836-1 01 1 9312-9711 ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9712- ●
80 02.317 PLATE; ADJ
EXC. REFRIGERATOR CHASSIS(V4R), GENERATOR 24V40A(6MN) 		8-94129-602-0 01 1 9312-9711 ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V40A(6MN) 		8-94129-602-0 01 1 9712- ●
80 02.317 PLATE; ADJ 8-97061-466-1 01 1 9312-9702 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9703- ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97086-228-1 01 1 9312- ●
86 01.073 BOLT; ADJ
AIR CONDITIONER MANUAL CONT(C60) M8X120 FLANGE 		8-97062-091-1 01 1 9312-9502 ●
93 02.317 BOLT; ADJ PLATE BRKT
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9312-9606 ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9607- ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9312- ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312- ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
EXC. REFRIGERATOR CHASSIS(V4R) 03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9312-9406 ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9407-9510 ●
96 02.317 BOLT; ADJ PLATE
EXC. REFRIGERATOR CHASSIS(V4R) 03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9511-9711 ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9712- ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60) M8X40 W/WASHER 		8-97011-792-4 01 1 9312-9502 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X120 FLANGE 		8-97062-091-1 01 1 9503-9701 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 9702- ●
109 01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27 		9-04110-618-0 04 1 9312- ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 9407- ●
182 01.062 BOLT; BRKT
00.004 M8X32 FLANGE 		0-28080-832-0 03 1 9312-9510 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 9511- ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9312-9606 ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9607- ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 		8-97094-660-0 01 1 9607- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		5-13660-300-0 01 1 9312-9606 ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064 		5-13660-300-0 01 1 9607- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97077-619-0 01 1 9312- ●
230 01.055 FAN; COOLING 8-97078-662-1 01 1 9312- ●

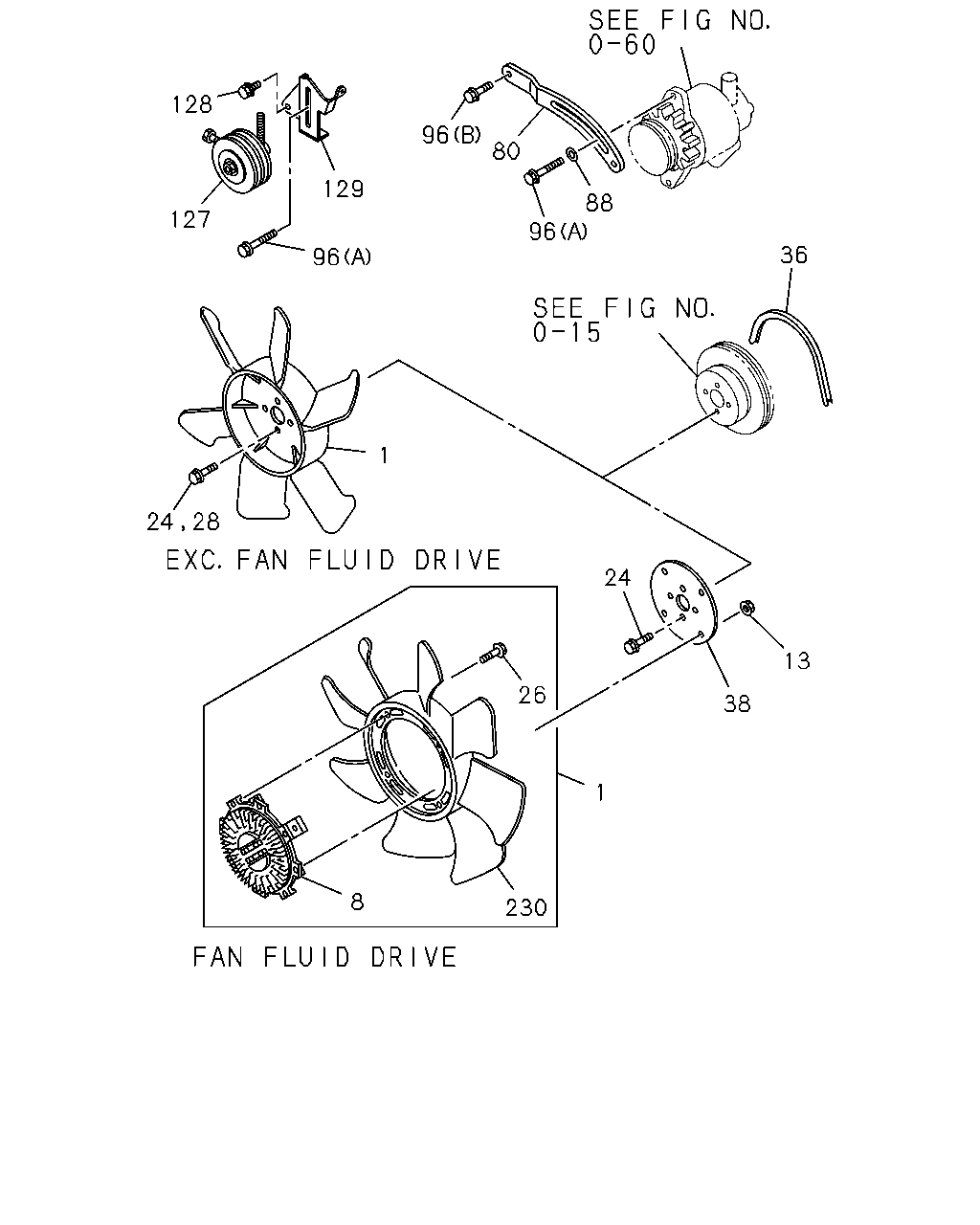

çizim 69029
128 96 80 129 88 127 96 36 96 1 24 28 24 13 26 38 1 8 230
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.064 FAN; COOLING 8-97081-738-0 01 1 9312-9505 ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9506-9606 ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9607- ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-97129-769-0 01 1 9607- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> OD=390 		8-94239-651-0 01 1 9312-9606 ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390 		8-94239-651-0 01 1 9607- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> OD=390 		5-13660-285-0 01 1 9312-9606 ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390 		5-13660-285-0 01 1 9607- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97118-158-0 01 1 9312- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> 		8-94367-363-1 01 1 9312- ●
1 01.064 FAN; COOLING 8-97088-813-1 01 1 9312-9411 ●
1 01.064 FAN; COOLING 8-97123-906-0 01 1 9412-9503 ●
1 01.064 FAN; COOLING 8-97129-772-1 01 1 9504- ●
8 01.064 CLUTCH; COOLING FAN
01.055 		8-97094-661-0 01 1 9312-9505 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9506-9606 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9607- ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> 		8-97129-735-0 01 1 9607- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-94244-409-0 01 1 9312-9606 ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 		8-94244-409-0 01 1 9607- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97095-204-0 01 1 9312-9406 ●
8 01.064 CLUTCH; COOLING FAN 8-97088-803-0 01 1 9312-9411 ●
8 01.064 CLUTCH; COOLING FAN 8-97123-948-0 01 1 9412-9503 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 9504- ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 9312- ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9312- ●
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 9312- ●
24 01.062 BOLT; FAN
FAN FLUID DRIVE<KA3> 08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9312-9401 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9402- ●
24 01.062 BOLT; FAN
FAN FLUID DRIVE<KA3> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 04 1 9312- ●
24 01.062 BOLT; FAN
EXC. FAN FLUID DRIVE<KA3> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9312-9711 ●
24 01.062 BOLT; FAN
EXC. FAN FLUID DRIVE<KA3> M8X16 FLANGE 		0-28080-816-0 04 1 9712- ●
26 01.062 BOLT; FAN TO CLU 8-97094-725-0 04 1 9312-9505 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9312-9406 ●
26 01.062 BOLT; FAN TO CLU
03.670 M6X20 FLANGE 		0-28080-620-0 04 1 9312-9503 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9504-9505 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9506-9510 ● ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9511-9606 ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9511-9606 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9607- ●
26 01.062 BOLT; FAN TO CLU
TURBOCHARGER<K51> 		8-94389-764-0 04 1 9607- ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9607- ●
28 01.062 BOLT; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> M6X45 W/LK WASHER 		0-50040-645-0 04 1 9312- ●
28 01.062 BOLT; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> M8X16 FLANGE 		0-28080-816-0 04 1 9801-9804 ●
36 01.066 BELT; COOLING FAN
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9312-9511 ● ●
36 01.066 BELT; COOLING FAN
EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
REFRIGERATOR CHASSIS(V4R) L=1221 		8-97062-480-0 01 1 9401-9711 ●
36 01.066 BELT; COOLING FAN
EXC. REFRIGERATOR CHASSIS(V4R) L=1196 		1-13671-216-1 01 1 9312-9711 ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9712- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970147011) 		8-97014-252-1 01 1 9312-9409 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9410-9706 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9707- ●
38 01.062 SPACER; FAN
EXC. FAN FLUID DRIVE<KA3> 01.064 		9-13642-078-0 01 1 9312- ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9312-9405 ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9312-9405 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9406-9407 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9408-9502 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9503- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9503- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9406-9502 ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9312- ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) EXC. REFRIGERATOR CHASSIS(V4R) 		8-94157-836-1 01 1 9312-9711 ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9712- ●
80 02.317 PLATE; ADJ
EXC. REFRIGERATOR CHASSIS(V4R), GENERATOR 24V40A(6MN) 		8-94129-602-0 01 1 9312-9711 ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V40A(6MN) 		8-94129-602-0 01 1 9712- ●
80 02.317 PLATE; ADJ 8-97061-466-1 01 1 9312-9702 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9703- ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9312-9506 ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9507-9711 ● ●
88 02.317 WASHER; PL,ADJ PLATE
EXC. REFRIGERATOR CHASSIS(V4R) 07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9507-9711 ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9712- ● ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9312- ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312- ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
EXC. REFRIGERATOR CHASSIS(V4R) 03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9312-9406 ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9407-9510 ●
96 02.317 BOLT; ADJ PLATE
EXC. REFRIGERATOR CHASSIS(V4R) 03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9511-9711 ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9712- ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60) M8X40 W/WASHER 		8-97011-792-4 01 1 9312-9502 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X120 FLANGE 		8-97062-091-1 01 1 9503-9701 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 9702- ●
127 01.062 PULLEY ASM; IDLE,FAN
REFRIGERATOR CHASSIS(V4R) 2-GROOVE 		8-97061-045-0 01 1 9401-9711 ●
128 01.062 BOLT; BRKT TO GEAR CASE
REFRIGERATOR CHASSIS(V4R) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9401-9711 ●
129 01.060 BRACKET; IDLE PULLEY,FAN
REFRIGERATOR CHASSIS(V4R) 		8-94413-330-0 01 1 9401-9711 ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9312-9606 ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9607- ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 		8-97094-660-0 01 1 9607- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		5-13660-300-0 01 1 9312-9606 ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064 		5-13660-300-0 01 1 9607- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97077-619-0 01 1 9312- ●
230 01.055 FAN; COOLING 8-97078-662-1 01 1 9312- ●

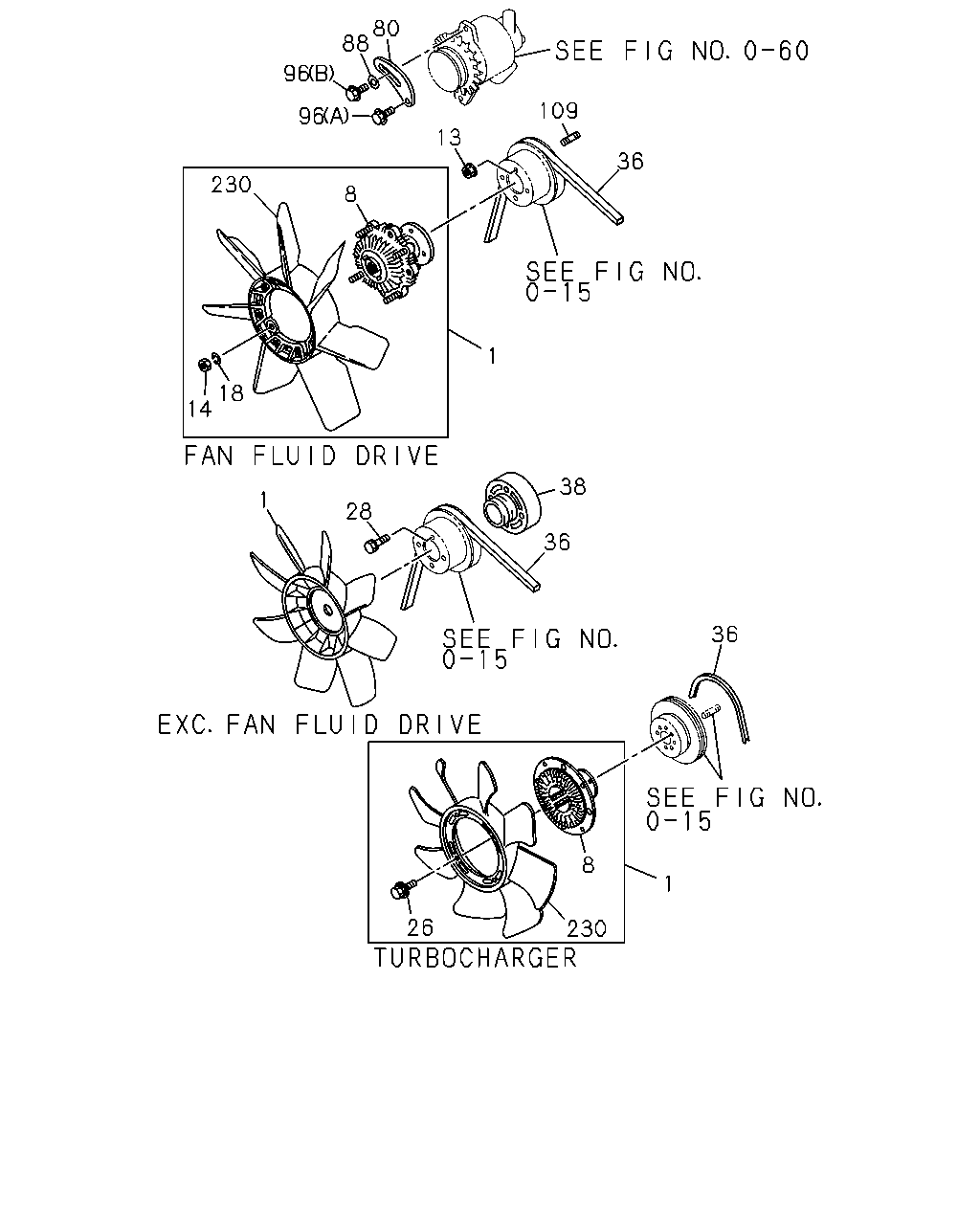

çizim 70640
80 88 96 109 96 13 36 230 8 1 18 14 38 1 28 36 36 8 1 26 230
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.064 FAN; COOLING 8-97081-738-0 01 1 9312-9505 ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9506-9606 ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9607- ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-97129-769-0 01 1 9607- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> OD=390 		8-94239-651-0 01 1 9312-9606 ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390 		8-94239-651-0 01 1 9607- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> OD=390 		5-13660-285-0 01 1 9312-9606 ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390 		5-13660-285-0 01 1 9607- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97118-158-0 01 1 9312- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> 		8-94367-363-1 01 1 9312- ●
1 01.064 FAN; COOLING 8-97088-813-1 01 1 9312-9411 ●
1 01.064 FAN; COOLING 8-97123-906-0 01 1 9412-9503 ●
1 01.064 FAN; COOLING 8-97129-772-1 01 1 9504- ●
8 01.064 CLUTCH; COOLING FAN
01.055 		8-97094-661-0 01 1 9312-9505 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9506-9606 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9607- ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> 		8-97129-735-0 01 1 9607- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-94244-409-0 01 1 9312-9606 ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 		8-94244-409-0 01 1 9607- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97095-204-0 01 1 9312-9406 ●
8 01.064 CLUTCH; COOLING FAN 8-97088-803-0 01 1 9312-9411 ●
8 01.064 CLUTCH; COOLING FAN 8-97123-948-0 01 1 9412-9503 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 9504- ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 9312- ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9312- ●
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 9312- ●
14 01.062 NUT; FAN TO CLU
FAN FLUID DRIVE<KA3> 00.413 M6 		9-09110-506-0 04 1 9312-9606 ●
14 01.062 NUT; FAN TO CLU
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 00.413 M6 		9-09110-506-0 04 1 9607- ●
18 01.062 WASHER; FAN TO CLU
FAN FLUID DRIVE<KA3> 00.206 ID=6.1 		9-09150-506-0 04 1 9312-9606 ●
18 01.062 WASHER; FAN TO CLU
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 00.206 ID=6.1 		9-09150-506-0 04 1 9607- ●
26 01.062 BOLT; FAN TO CLU 8-97094-725-0 04 1 9312-9505 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9312-9406 ●
26 01.062 BOLT; FAN TO CLU
03.670 M6X20 FLANGE 		0-28080-620-0 04 1 9312-9503 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9504-9505 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9506-9510 ● ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9511-9606 ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9511-9606 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9607- ●
26 01.062 BOLT; FAN TO CLU
TURBOCHARGER<K51> 		8-94389-764-0 04 1 9607- ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9607- ●
28 01.062 BOLT; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> M6X45 W/LK WASHER 		0-50040-645-0 04 1 9312- ●
28 01.062 BOLT; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> M8X16 FLANGE 		0-28080-816-0 04 1 9801-9804 ●
36 01.066 BELT; COOLING FAN
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9312-9511 ● ●
36 01.066 BELT; COOLING FAN
EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
REFRIGERATOR CHASSIS(V4R) L=1221 		8-97062-480-0 01 1 9401-9711 ●
36 01.066 BELT; COOLING FAN
EXC. REFRIGERATOR CHASSIS(V4R) L=1196 		1-13671-216-1 01 1 9312-9711 ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9712- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970147011) 		8-97014-252-1 01 1 9312-9409 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9410-9706 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9707- ●
38 01.062 SPACER; FAN
EXC. FAN FLUID DRIVE<KA3> 01.064 		9-13642-078-0 01 1 9312- ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9312-9405 ●
38 01.062 SPACER; FAN 5-13642-078-0 01 1 9312-9405 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		5-13642-078-0 01 1 9406-9407 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9408-9502 ●
38 01.062 SPACER; FAN
FAN FLUID DRIVE<KA3> 		8-97108-643-0 01 1 9503- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9503- ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9406-9502 ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9312- ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) EXC. REFRIGERATOR CHASSIS(V4R) 		8-94157-836-1 01 1 9312-9711 ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9712- ●
80 02.317 PLATE; ADJ
EXC. REFRIGERATOR CHASSIS(V4R), GENERATOR 24V40A(6MN) 		8-94129-602-0 01 1 9312-9711 ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V40A(6MN) 		8-94129-602-0 01 1 9712- ●
80 02.317 PLATE; ADJ 8-97061-466-1 01 1 9312-9702 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9703- ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9312-9506 ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9507-9711 ● ●
88 02.317 WASHER; PL,ADJ PLATE
EXC. REFRIGERATOR CHASSIS(V4R) 07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9507-9711 ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9712- ● ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9312- ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312- ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
EXC. REFRIGERATOR CHASSIS(V4R) 03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9312-9406 ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9407-9510 ●
96 02.317 BOLT; ADJ PLATE
EXC. REFRIGERATOR CHASSIS(V4R) 03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9511-9711 ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9712- ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60) M8X40 W/WASHER 		8-97011-792-4 01 1 9312-9502 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X120 FLANGE 		8-97062-091-1 01 1 9503-9701 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 9702- ●
109 01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27 		9-04110-618-0 04 1 9312- ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 9407- ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9312-9606 ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9607- ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 		8-97094-660-0 01 1 9607- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		5-13660-300-0 01 1 9312-9606 ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064 		5-13660-300-0 01 1 9607- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97077-619-0 01 1 9312- ●
230 01.055 FAN; COOLING 8-97078-662-1 01 1 9312- ●

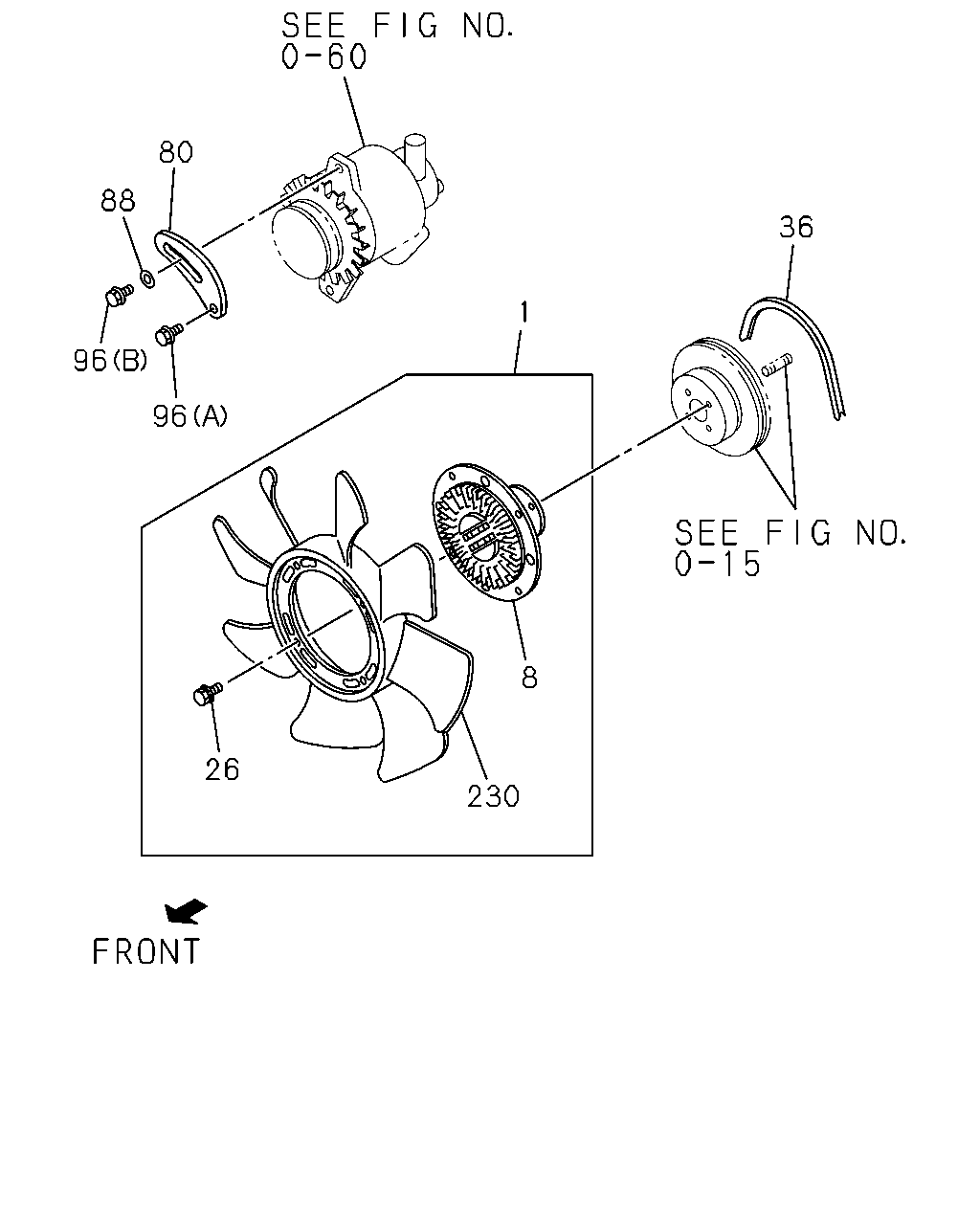

çizim 71131
80 88 36 1 96 96 8 26 230
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.064 FAN; COOLING 8-97081-738-0 01 1 9312-9505 ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9506-9606 ●
1 01.064 FAN; COOLING
OD=410 		8-97129-769-0 01 1 9607- ●
1 01.064 FAN; COOLING
TURBOCHARGER<K51> OD=410 		8-97129-769-0 01 1 9607- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> OD=390 		8-94239-651-0 01 1 9312-9606 ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390 		8-94239-651-0 01 1 9607- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> OD=390 		5-13660-285-0 01 1 9312-9606 ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390 		5-13660-285-0 01 1 9607- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97118-158-0 01 1 9312- ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> 		8-94367-363-1 01 1 9312- ●
1 01.064 FAN; COOLING 8-97088-813-1 01 1 9312-9411 ●
1 01.064 FAN; COOLING 8-97123-906-0 01 1 9412-9503 ●
1 01.064 FAN; COOLING 8-97129-772-1 01 1 9504- ●
8 01.064 CLUTCH; COOLING FAN
01.055 		8-97094-661-0 01 1 9312-9505 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9506-9606 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-735-0 01 1 9607- ●
8 01.064 CLUTCH; COOLING FAN
TURBOCHARGER<K51> 		8-97129-735-0 01 1 9607- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-94244-409-0 01 1 9312-9606 ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 		8-94244-409-0 01 1 9607- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97095-204-0 01 1 9312-9406 ●
8 01.064 CLUTCH; COOLING FAN 8-97088-803-0 01 1 9312-9411 ●
8 01.064 CLUTCH; COOLING FAN 8-97123-948-0 01 1 9412-9503 ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 9504- ●
26 01.062 BOLT; FAN TO CLU 8-97094-725-0 04 1 9312-9505 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9312-9406 ●
26 01.062 BOLT; FAN TO CLU
03.670 M6X20 FLANGE 		0-28080-620-0 04 1 9312-9503 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9504-9505 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9506-9510 ● ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9511-9606 ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9511-9606 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9607- ●
26 01.062 BOLT; FAN TO CLU
TURBOCHARGER<K51> 		8-94389-764-0 04 1 9607- ●
26 01.062 BOLT; FAN TO CLU
FLOOR REMOTE SHIFT<M11> 		8-94389-764-0 04 1 9607- ●
36 01.066 BELT; COOLING FAN
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9312-9511 ● ●
36 01.066 BELT; COOLING FAN
EXC. EURO2 SPECIFICATION<7AF> L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9512-9701 ●
36 01.066 BELT; COOLING FAN
REFRIGERATOR CHASSIS(V4R) L=1221 		8-97062-480-0 01 1 9401-9711 ●
36 01.066 BELT; COOLING FAN
EXC. REFRIGERATOR CHASSIS(V4R) L=1196 		1-13671-216-1 01 1 9312-9711 ●
36 01.066 BELT; COOLING FAN
L=1196 		1-13671-216-1 01 1 9712- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970147011) 		8-97014-252-1 01 1 9312-9409 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9410-9706 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9707- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9312- ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) EXC. REFRIGERATOR CHASSIS(V4R) 		8-94157-836-1 01 1 9312-9711 ●
80 02.317 PLATE; ADJ
GENERATOR 24V40A(6MN) 		8-94157-836-1 01 1 9712- ●
80 02.317 PLATE; ADJ
EXC. REFRIGERATOR CHASSIS(V4R), GENERATOR 24V40A(6MN) 		8-94129-602-0 01 1 9312-9711 ●
80 02.317 PLATE; ADJ
EXC. GENERATOR 24V40A(6MN) 		8-94129-602-0 01 1 9712- ●
80 02.317 PLATE; ADJ 8-97061-466-1 01 1 9312-9702 ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 9703- ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9312-9506 ● ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9507-9711 ● ●
88 02.317 WASHER; PL,ADJ PLATE
EXC. REFRIGERATOR CHASSIS(V4R) 07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9507-9711 ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9712- ● ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9312- ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312- ● ●
96 02.317 BOLT; ADJ PLATE
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9312- ●
96 02.317 BOLT; ADJ PLATE
EXC. REFRIGERATOR CHASSIS(V4R) 03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9312-9406 ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9407-9510 ●
96 02.317 BOLT; ADJ PLATE
EXC. REFRIGERATOR CHASSIS(V4R) 03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9511-9711 ●
96 02.317 BOLT; ADJ PLATE
03.613 (B) M10X30 W/LK&PL WASHER 		0-50141-030-0 01 1 9712- ●
96 02.317 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60) M8X40 W/WASHER 		8-97011-792-4 01 1 9312-9502 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X120 FLANGE 		8-97062-091-1 01 1 9503-9701 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 9702- ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9312-9606 ●
230 01.055 FAN; COOLING
01.064 		8-97094-660-0 01 1 9607- ●
230 01.055 FAN; COOLING
TURBOCHARGER<K51> 01.064 		8-97094-660-0 01 1 9607- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		5-13660-300-0 01 1 9312-9606 ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064 		5-13660-300-0 01 1 9607- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 		8-97077-619-0 01 1 9312- ●
230 01.055 FAN; COOLING 8-97078-662-1 01 1 9312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
