0-32 — WATER PIPING; ENGINE (#45812) — 44 parça

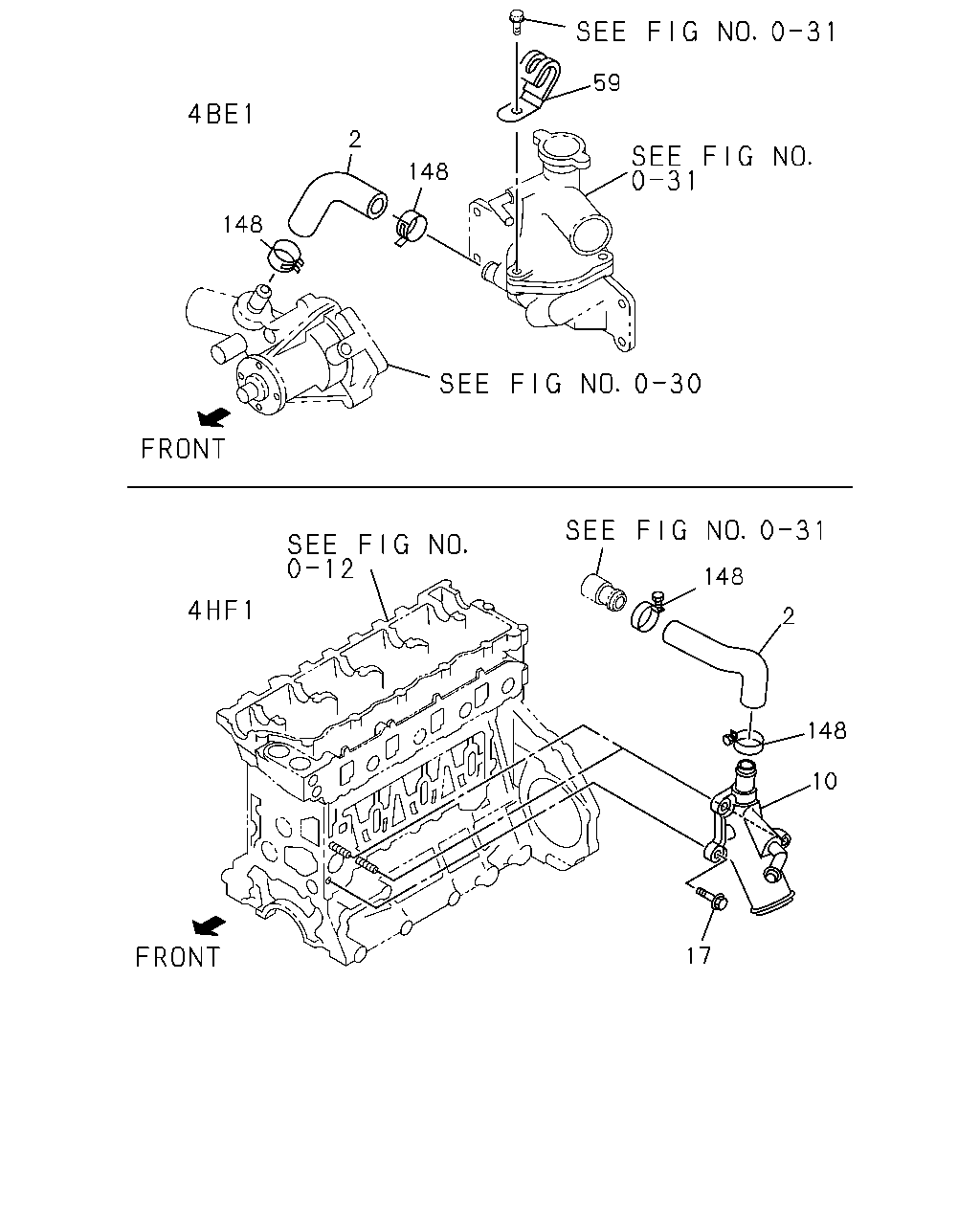

59 2 148 148 148 2 148 10 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	9312-	●	●
2	01.097 HOSE; WATER,BY-PASS	8-94129-649-0	01	1	9312-			●
2	01.097 HOSE; WATER,BY-PASS	8-94313-455-3	01	1	9312-9501				●
2	01.097 HOSE; WATER,BY-PASS	8-97087-597-1	01	1	9502-				●
10	01.153 PIPE; SUCTION	8-97033-717-3	01	1	9312-9501				●
10	01.153 PIPE; SUCTION	8-97100-815-5	01	1	9502-9808				●
10	01.153 PIPE; SUCTION	8-97216-157-0	01	1	9809-				●
17	01.153 BOLT; SUCTION PIPE 03.415 M8X48 FLANGE	8-94458-473-1	01	1	9312-				●
59	01.150 CLIP; HARNESS,WATER OUTLET PIPE 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9312-			●
148	01.097 CLIP; BYPASS HOSE	8-97011-095-0	02	1	9312-			●
148	01.097 CLIP; BYPASS HOSE 03.417 ID=30	9-09915-315-1	02	1	9312-				●

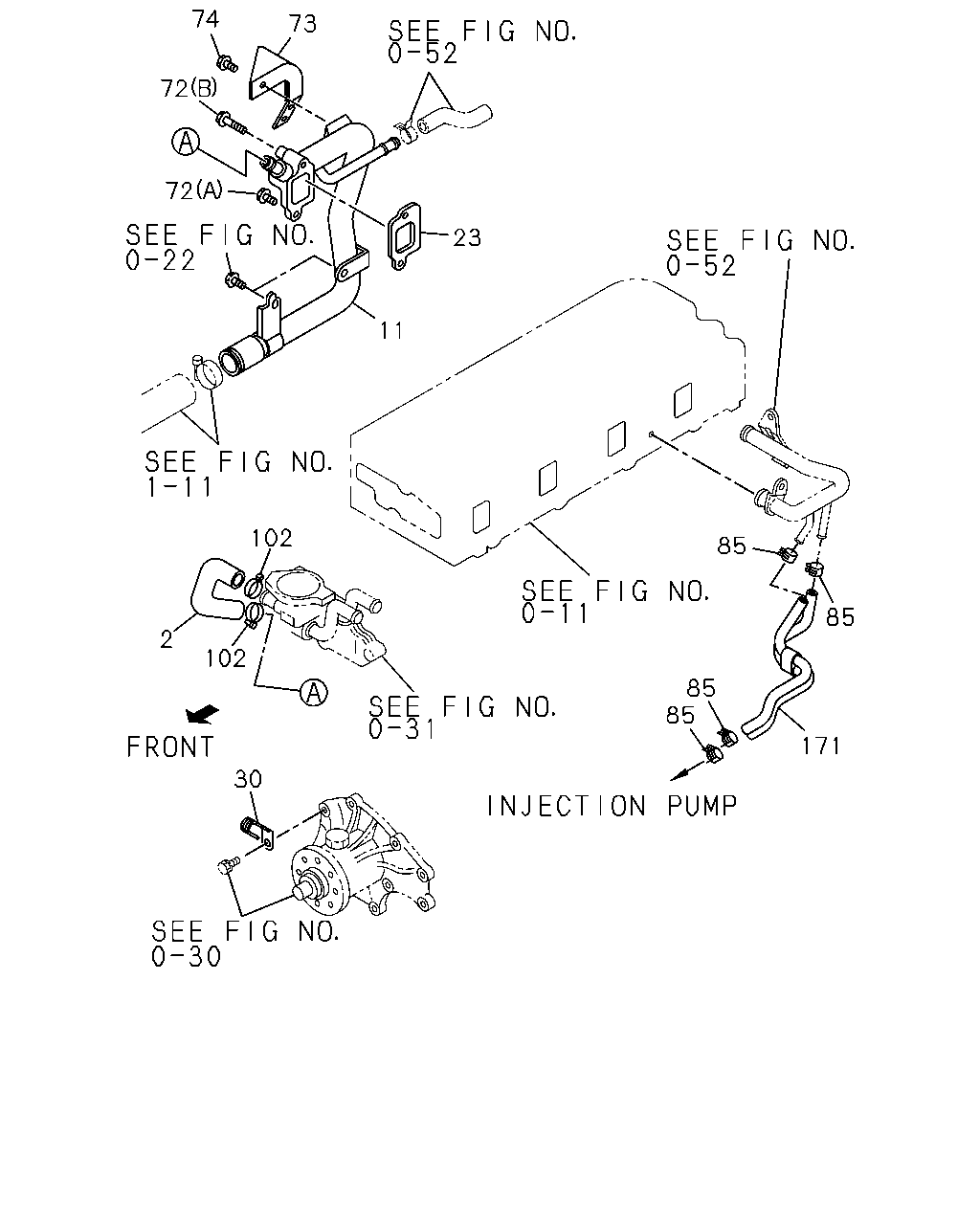

74 73 72 72 23 11 102 85 85 2 102 85 85 171 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	9312-	●	●
2	01.097 HOSE; WATER,BY-PASS	8-94129-649-0	01	1	9312-			●
2	01.097 HOSE; WATER,BY-PASS	8-94313-455-3	01	1	9312-9501				●
2	01.097 HOSE; WATER,BY-PASS	8-97087-597-1	01	1	9502-				●
11	01.097 PIPE; INL,WATER PUMP	8-97063-639-2	01	1	9312-	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4>	8-97063-639-2	01	1	9312-		●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>	8-97070-871-1	01	1	9312-9801		●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>	8-97070-871-1	01	1	9802-		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9312-	●	●
30	01.150 CLIP; HARNESS 02.559 ID=12	5-09700-331-0	01	1	9312-	●	●
72	00.206 BOLT; WATER PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9312-	●	●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9312-	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-0	01	1	9312-	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	9312-	●	●
85	01.240 CLIP; RUBBER,WAX CSD 03.162 ID=15.5	8-94221-519-0	04	1	9312-	●
102	01.252 CLIP; WATER HOSE 01.166 ID=20.8	8-94125-862-0	02	1	9312-	●	●
171	01.240 HOSE; RUBBER,WAX CSD	8-97089-269-0	01	1	9312-9710	●
171	01.240 HOSE; RUBBER,WAX CSD	8-97189-478-0	01	1	9711-	●

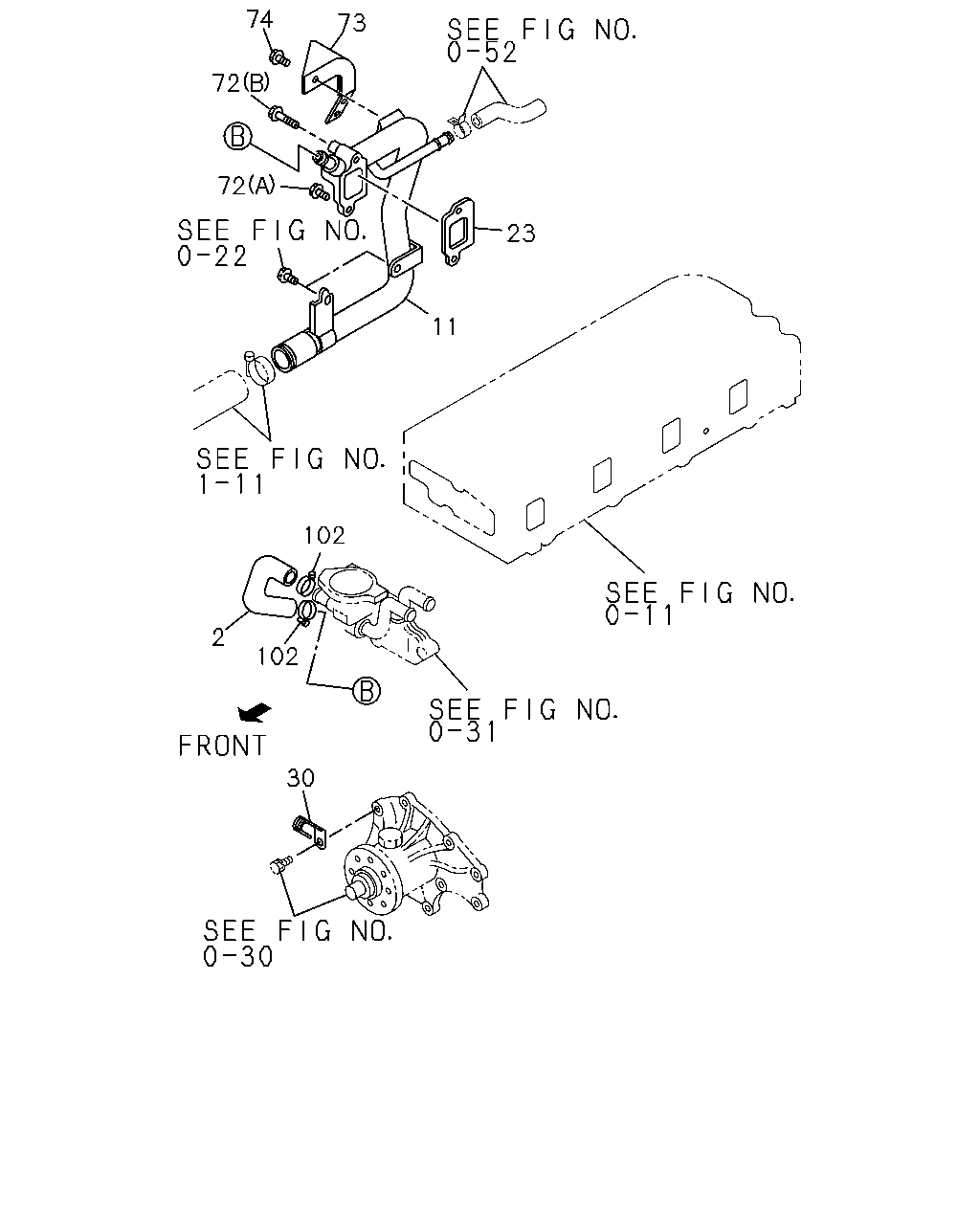

74 73 72 72 23 11 102 2 102 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	9312-	●	●
2	01.097 HOSE; WATER,BY-PASS	8-94129-649-0	01	1	9312-			●
2	01.097 HOSE; WATER,BY-PASS	8-94313-455-3	01	1	9312-9501				●
2	01.097 HOSE; WATER,BY-PASS	8-97087-597-1	01	1	9502-				●
11	01.097 PIPE; INL,WATER PUMP	8-97063-639-2	01	1	9312-	●
11	01.097 PIPE; INL,WATER PUMP OIL COOLER<KC4>	8-97063-639-2	01	1	9312-		●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>	8-97070-871-1	01	1	9312-9801		●
11	01.097 PIPE; INL,WATER PUMP EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>	8-97070-871-1	01	1	9802-		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9312-	●	●
30	01.150 CLIP; HARNESS 02.559 ID=12	5-09700-331-0	01	1	9312-	●	●
72	00.206 BOLT; WATER PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9312-	●	●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9312-	●	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-0	01	1	9312-	●	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	9312-	●	●
102	01.252 CLIP; WATER HOSE 01.166 ID=20.8	8-94125-862-0	02	1	9312-	●	●
