0-28 — VENTILATION SYSTEM (#45809) — 59 parça

13 12 65 51 50 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	9312-	●	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9312-	●	●
50	03.265 HOSE; PCV EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97030-535-0	01	1	9601-9601	●
50	03.265 HOSE; PCV AIR INTAKE SYSTEM FRONT<6PC>	8-97049-423-1	01	1	9312-9601	●	●
50	03.265 HOSE; PCV EXC. EURO2 SPECIFICATION<7AF>	8-97049-423-1	01	1	9601-9601	●	●
50	03.265 HOSE; PCV AIR INTAKE SYSTEM FRONT<6PC>	8-97049-423-2	01	1	9602-	●	●
50	03.265 HOSE; PCV AIR INTAKE REAR VERTICAL<KJ3>	8-97107-740-0	01	1	9312-9404		●
50	03.265 HOSE; PCV AIR INTAKE REAR VERTICAL<KJ3>	8-97107-740-0	01	1	9405-9606	●	●
50	03.265 HOSE; PCV AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>	8-97107-740-2	01	1	9607-	●	●
50	03.265 HOSE; PCV AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51>	8-97176-145-2	01	1	9607-		●
51	03.265 CLIP; PCV HOSE ID=20.4	8-94121-113-0	02	1	9601-9601	●	●
51	03.265 CLIP; PCV HOSE ID=20.4	8-94121-113-0	02	1	9705-	●	●
51	03.265 CLIP; PCV HOSE DBL CAB&SHORT(NK**WC) ID=20.4	8-94121-113-0	02	1	9312-9405	●		●	●
51	03.265 CLIP; PCV HOSE SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) SMALL DUAL RR TIRE&SHORT(NKN6SC) ID=20.4	8-94121-113-0	02	1	9312-9405		●
51	03.265 CLIP; PCV HOSE ID=20.4	8-94121-113-0	02	1	9406-9510	●	●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9312-	●	●

43 44 44 44 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
43	03.278 HOSE; PCV AIR INTAKE REAR VERTICAL<KJ3> L=235	8-94479-574-0	01	1	9312-	●
43	03.278 HOSE; PCV AIR INTAKE SYSTEM FRONT<6PC>	8-97025-382-0	01	1	9312-	●
43	03.278 HOSE; PCV	8-97093-534-0	01	1	9312-9510		●
43	03.278 HOSE; PCV	8-97113-088-1	01	1	9511-9606		●
43	03.278 HOSE; PCV	8-97139-586-3	01	1	9607-		●
44	03.278 CLIP; HOSE,PCV 06.672 (A) ID=21	8-94242-034-0	02	1	9312-	●
44	03.278 CLIP; HOSE,PCV (B) ID=21	8-94322-748-1	01	1	9312-	●
44	03.278 CLIP; HOSE,PCV 03.417 (A) ID=25	8-94342-958-0	01	1	9312-9510		●
44	03.278 CLIP; HOSE,PCV 01.252 (B) ID=22.7	8-94466-382-0	01	1	9312-9510		●
44	03.278 CLIP; HOSE,PCV 01.252 (B) ID=22.7	8-94466-382-0	02	1	9511-		●

13 12 65 51 50 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	9312-	●	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9312-	●	●
50	03.265 HOSE; PCV EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97030-535-0	01	1	9601-9601	●
50	03.265 HOSE; PCV AIR INTAKE SYSTEM FRONT<6PC>	8-97049-423-1	01	1	9312-9601	●	●
50	03.265 HOSE; PCV EXC. EURO2 SPECIFICATION<7AF>	8-97049-423-1	01	1	9601-9601	●	●
50	03.265 HOSE; PCV AIR INTAKE SYSTEM FRONT<6PC>	8-97049-423-2	01	1	9602-	●	●
50	03.265 HOSE; PCV AIR INTAKE REAR VERTICAL<KJ3>	8-97107-740-0	01	1	9312-9404		●
50	03.265 HOSE; PCV AIR INTAKE REAR VERTICAL<KJ3>	8-97107-740-0	01	1	9405-9606	●	●
50	03.265 HOSE; PCV AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>	8-97107-740-2	01	1	9607-	●	●
50	03.265 HOSE; PCV AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER<K51>	8-97176-145-2	01	1	9607-		●
51	03.265 CLIP; PCV HOSE ID=20.4	8-94121-113-0	02	1	9601-9601	●	●
51	03.265 CLIP; PCV HOSE ID=20.4	8-94121-113-0	02	1	9705-	●	●
51	03.265 CLIP; PCV HOSE DBL CAB&SHORT(NK**WC) ID=20.4	8-94121-113-0	02	1	9312-9405	●		●	●
51	03.265 CLIP; PCV HOSE SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) SMALL DUAL RR TIRE&SHORT(NKN6SC) ID=20.4	8-94121-113-0	02	1	9312-9405		●
51	03.265 CLIP; PCV HOSE ID=20.4	8-94121-113-0	02	1	9406-9510	●	●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9312-	●	●

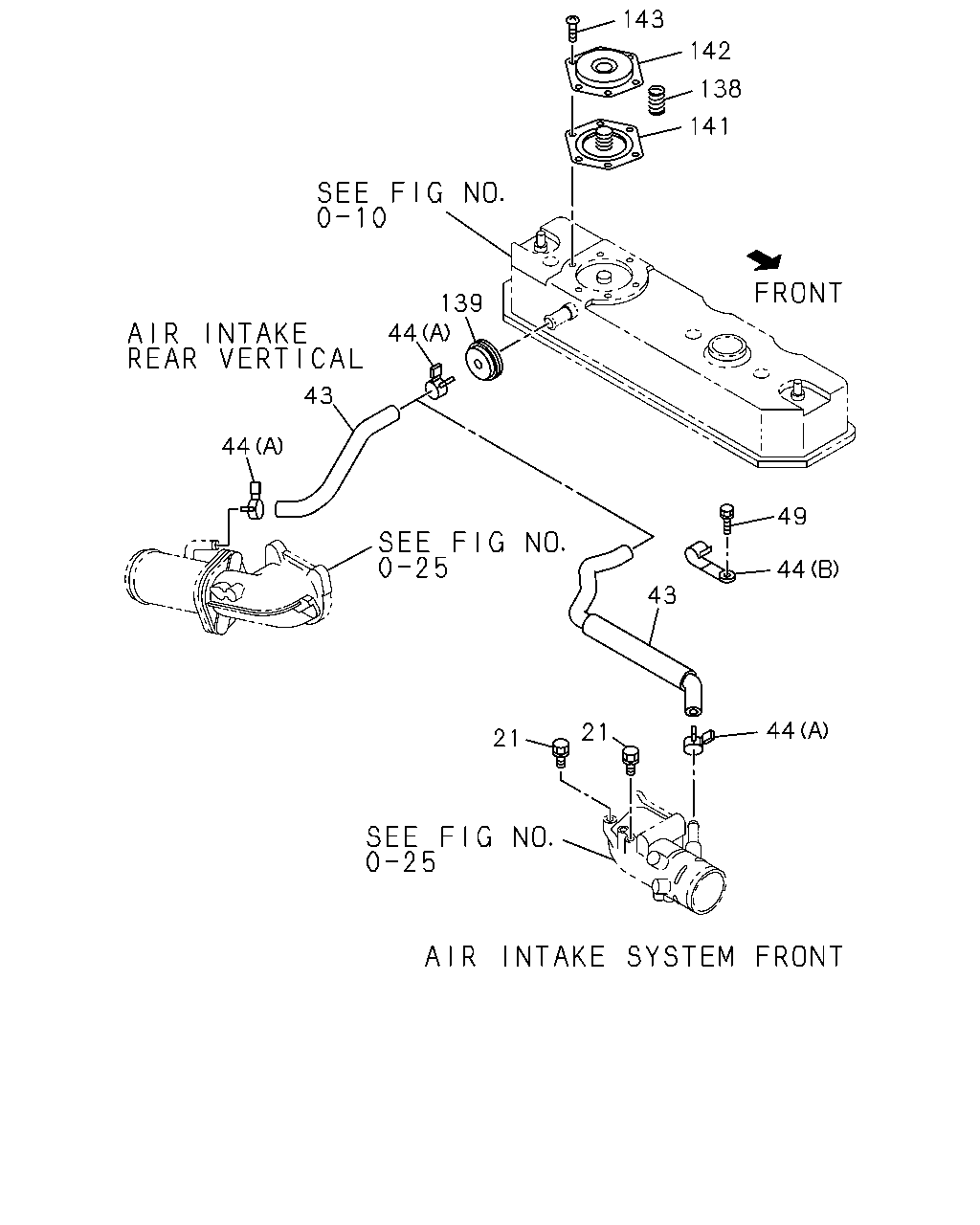

143 142 138 141 139 44 43 44 49 44 43 44 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
21	03.275 BOLT; CLIP AIR INTAKE SYSTEM FRONT<6PC> 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9402-	●
43	03.278 HOSE; PCV AIR INTAKE REAR VERTICAL<KJ3> L=235	8-94479-574-0	01	1	9312-	●
43	03.278 HOSE; PCV AIR INTAKE SYSTEM FRONT<6PC>	8-97025-382-0	01	1	9312-	●
43	03.278 HOSE; PCV	8-97093-534-0	01	1	9312-9510		●
43	03.278 HOSE; PCV	8-97113-088-1	01	1	9511-9606		●
43	03.278 HOSE; PCV	8-97139-586-3	01	1	9607-		●
44	03.278 CLIP; HOSE,PCV 06.672 (A) ID=21	8-94242-034-0	02	1	9312-	●
44	03.278 CLIP; HOSE,PCV (B) ID=21	8-94322-748-1	01	1	9312-	●
44	03.278 CLIP; HOSE,PCV 03.417 (A) ID=25	8-94342-958-0	01	1	9312-9510		●
44	03.278 CLIP; HOSE,PCV 01.252 (B) ID=22.7	8-94466-382-0	01	1	9312-9510		●
44	03.278 CLIP; HOSE,PCV 01.252 (B) ID=22.7	8-94466-382-0	02	1	9511-		●
49	03.278 BOLT; PCV HOSE CLIP 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9312-	●
138	00.423 SPRING; DIAPH,VENTILATOR	8-94108-358-0	01	1	9712-	●
139	00.413 SEAL; RUBBER,PCV HOSE	8-94104-696-0	01	1	9312-	●
141	01.745 DIAPHRAGM ASM	8-94110-111-0	01	1	9312-	●
142	01.745 COVER; PCV	1-14362-002-0	01	1	9312-	●
143	01.745 SCREW; PCV COVER 02.067 M5X10 PAN-HD	9-93490-510-0	06	1	9312-	●
