Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#45807) — 317 parça

138 115 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 03.430 (C) ID=6 & 6	8-94400-853-0	01	1	9312-9404	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 03.430 (C) ID=6 & 6	8-94400-853-0	01	1	9312-9404		●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 03.430 (C) ID=6 & 6	8-94400-853-0	01	1	9405-9703	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.430 (C) ID=6 & 6	8-94400-853-0	01	1	9704-9706	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.483 (C) ID=6 & 6	8-94463-708-0	01	1	9707-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9312-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9312-9703	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9704-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 03.278 (B) ID=37	8-94481-468-0	01	1	9312-	●	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> 03.417	8-94417-173-1	01	1	9312-	●	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94311-856-0	01	1	9312-			●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94479-568-1	01	1	9312-			●
138	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC>	8-97093-092-0	01	1	9312-			●
138	03.265 PIPE; INL	8-97044-648-0	01	1	9312-9804				●
138	03.265 PIPE; INL	8-97180-566-1	01	1	9805-				●

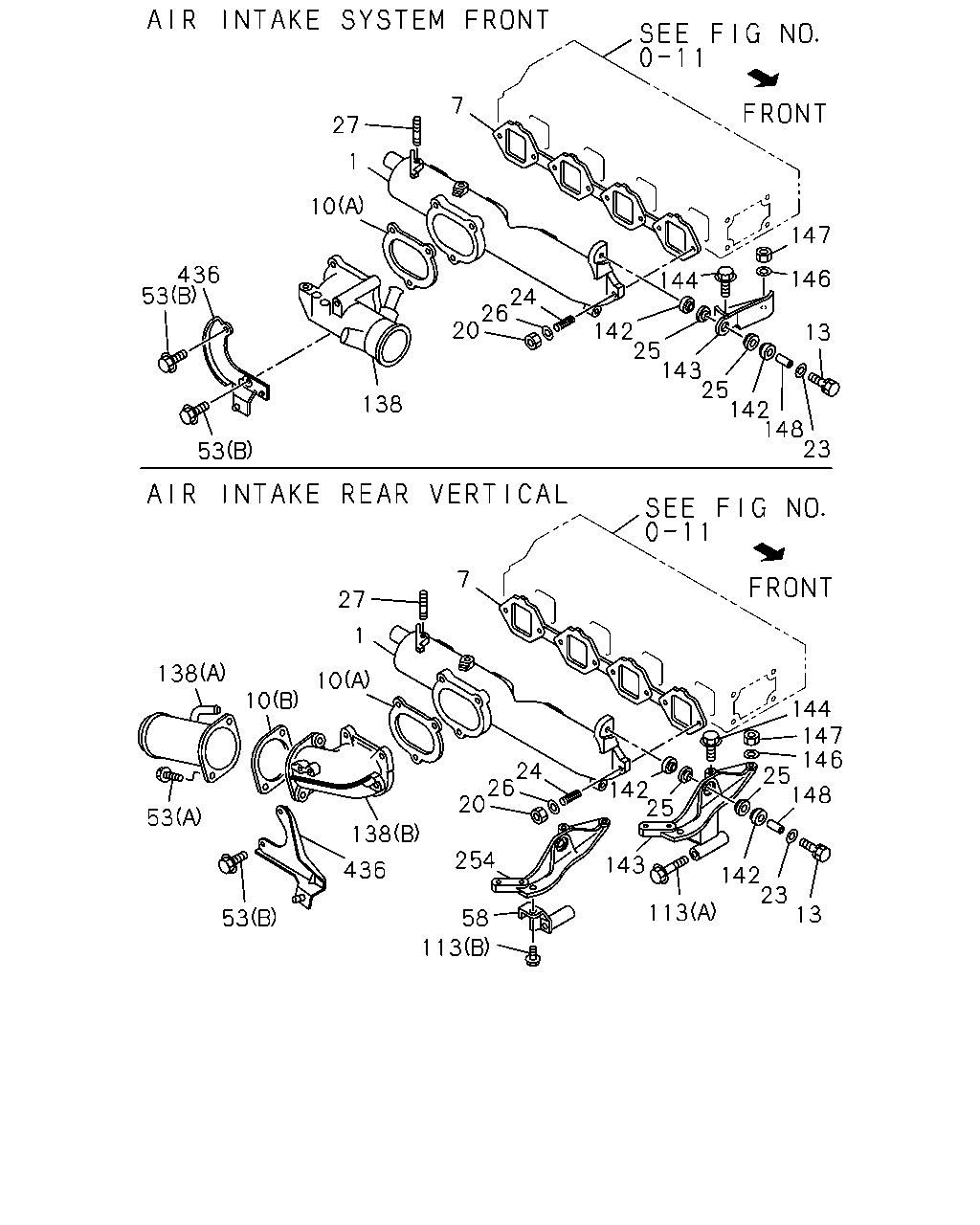

7 27 1 10 147 144 436 53 146 24 26 20 142 25 143 25 142 148 23 13 138 53 7 27 1 138 10 10 144 147 146 25 148 24 26 20 142 25 53 138 254 143 436 142 23 13 113 58 53 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-689-1	01	1	9512-9701	●
1	03.265 MANIFOLD; INL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97147-920-0	01	1	9702-9711	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97147-920-0	01	1	9712-	●
1	03.265 MANIFOLD; INL	8-97107-744-0	01	1	9312-9511	●	●
1	03.265 MANIFOLD; INL EXC. EURO2 SPECIFICATION<7AF>	8-97107-744-1	01	1	9512-	●	●
1	03.265 MANIFOLD; INL AIR INTAKE REAR VERTICAL<KJ3>	8-97064-280-1	01	1	9312-			●
1	03.265 MANIFOLD; INL AIR INTAKE SYSTEM FRONT<6PC>	8-97064-281-0	01	1	9312-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A)	8-97066-741-1	01	1	9312-9511	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97066-741-1	01	1	9512-	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C)	8-94116-988-0	01	1	9312-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> (B)	8-97144-623-0	04	1	9512-9711	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION<7AF> (B)	8-97144-623-0	04	1	9712-	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51>,EURO2 SPECIFICATION<7AF> (C)	8-97035-883-0	01	1	9610-	●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.270 (A) ID=64X89	8-94370-677-0	01	1	9312-			●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) AIR INTAKE REAR VERTICAL<KJ3> 03.270 (B) ID=66	8-94370-678-0	01	1	9312-			●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C)	8-97035-883-0	01	1	9312-9511	●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51> (C)	8-97035-883-0	01	1	9512-9609	●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION<7AF> (D)	8-97144-622-0	01	1	9512-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-	●	●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-			●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510				●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-	●	●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9312-			●
20	03.275 NUT; INL MANIF AIR INTAKE REAR VERTICAL<KJ3> 00.002 M8	9-09110-508-0	02	1	9312-			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-				●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-	●	●
23	03.275 WASHER; PL,INL MANIF OD=28.6	8-94155-884-1	01	1	9312-			●
24	03.278 SPRING; INL MANIF 03.275	5-09580-105-0	08	1	9312-			●
25	03.288 SEAT; SPRING,INL MANIF AIR INTAKE REAR VERTICAL<KJ3>	5-14129-008-0	02	1	9312-9510			●
25	03.288 SEAT; SPRING,INL MANIF	5-14129-008-0	02	1	9511-			●
26	03.275 WASHER; PL,SPRING SEAT 06.172 ID=12.5	9-09164-512-0	08	1	9312-			●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	01	1	9312-9708	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 03.901 M8X25 L=37	9-04110-825-0	01	1	9312-9708		●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4> 03.901 M8X25 L=37	9-04110-825-0	02	1	9709-9801		●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 M8X25 L=37	9-04110-825-0	02	1	9802-		●
27	03.275 STUD; INL MANIF 00.219 M8X35 L=46	9-09630-034-1	01	1	9312-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 00.219 M8X35 L=46	9-09630-034-1	01	1	9312-		●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4> 03.901 M8X25 L=37	9-04110-825-0	02	1	9312-9708		●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	01	1	9709-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 03.901 M8X25 L=37	9-04110-825-0	01	1	9709-		●
27	03.275 STUD; INL MANIF 03.162 M6X20 L=29	9-04110-620-0	01	1	9312-			●
53	03.602 BOLT; INL PIPE EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9607-9609		●
53	03.602 BOLT; INL PIPE EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9610-9711		●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9712-		●
53	03.602 BOLT; INL PIPE AIR INTAKE REAR VERTICAL<KJ3> 09.173 (A) M10X25 W/LK WASHER	0-50051-025-0	02	1	9312-			●
53	03.602 BOLT; INL PIPE AIR INTAKE REAR VERTICAL<KJ3> 00.029 (B) M10X35 W/LK&PL WASHER	0-50151-035-0	03	1	9312-			●
53	03.602 BOLT; INL PIPE AIR INTAKE SYSTEM FRONT<6PC> 00.029 (B) M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9312-			●
53	03.602 BOLT; INL PIPE 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9606				●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9607-				●
58	03.275 STAY; INL MANIF REFRIGERATOR CHASSIS(V4R)	5-14119-024-0	01	1	9401-9711			●
113	03.275 BOLT; STAY AIR INTAKE REAR VERTICAL<KJ3> (A) M10X80 W/LK WASHER	0-50041-080-0	01	1	9312-			●
113	03.275 BOLT; STAY REFRIGERATOR CHASSIS(V4R) 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	01	1	9401-9711			●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> 03.417	8-94417-173-1	01	1	9312-	●	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94311-856-0	01	1	9312-			●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94479-568-1	01	1	9312-			●
138	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC>	8-97093-092-0	01	1	9312-			●
138	03.265 PIPE; INL	8-97044-648-0	01	1	9312-9804				●
138	03.265 PIPE; INL	8-97180-566-1	01	1	9805-				●
142	03.275 RUBBER; MTG,INL MANIF TO BRKT 03.463	8-94255-643-1	02	1	9312-			●
143	03.273 BRACKET; INL MANIF FRT AIR INTAKE REAR VERTICAL<KJ3>	8-94362-911-0	01	1	9312-			●
143	03.273 BRACKET; INL MANIF FRT AIR INTAKE SYSTEM FRONT<6PC>	8-94129-708-2	01	1	9312-			●
144	03.275 BOLT; BRKT FIX 06.525 M10X32 W/LK WASHER	0-50041-032-0	01	1	9312-9803			●
144	03.275 BOLT; BRKT FIX 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9804-			●
146	03.275 WASHER; LK,BRKT 00.002 ID=10.2	9-09150-510-0	01	1	9312-			●
147	03.275 NUT; BRKT 00.002 M10	9-09110-510-0	01	1	9312-			●
148	03.275 BUSHING; SPACER,INL MANIF TO BRK OD=12 L=20.5	8-94255-642-1	01	1	9312-			●
254	01.277 BRACKET; FAN GUIDE,TOP REFRIGERATOR CHASSIS(V4R) 03.273	8-94129-880-0	01	1	9401-9711			●
436	03.162 BRACKET; FUEL CUT AIR INTAKE REAR VERTICAL<KJ3>	8-97029-837-1	01	1	9312-			●
436	03.162 BRACKET; FUEL CUT AIR INTAKE SYSTEM FRONT<6PC>	8-97049-305-1	01	1	9312-			●

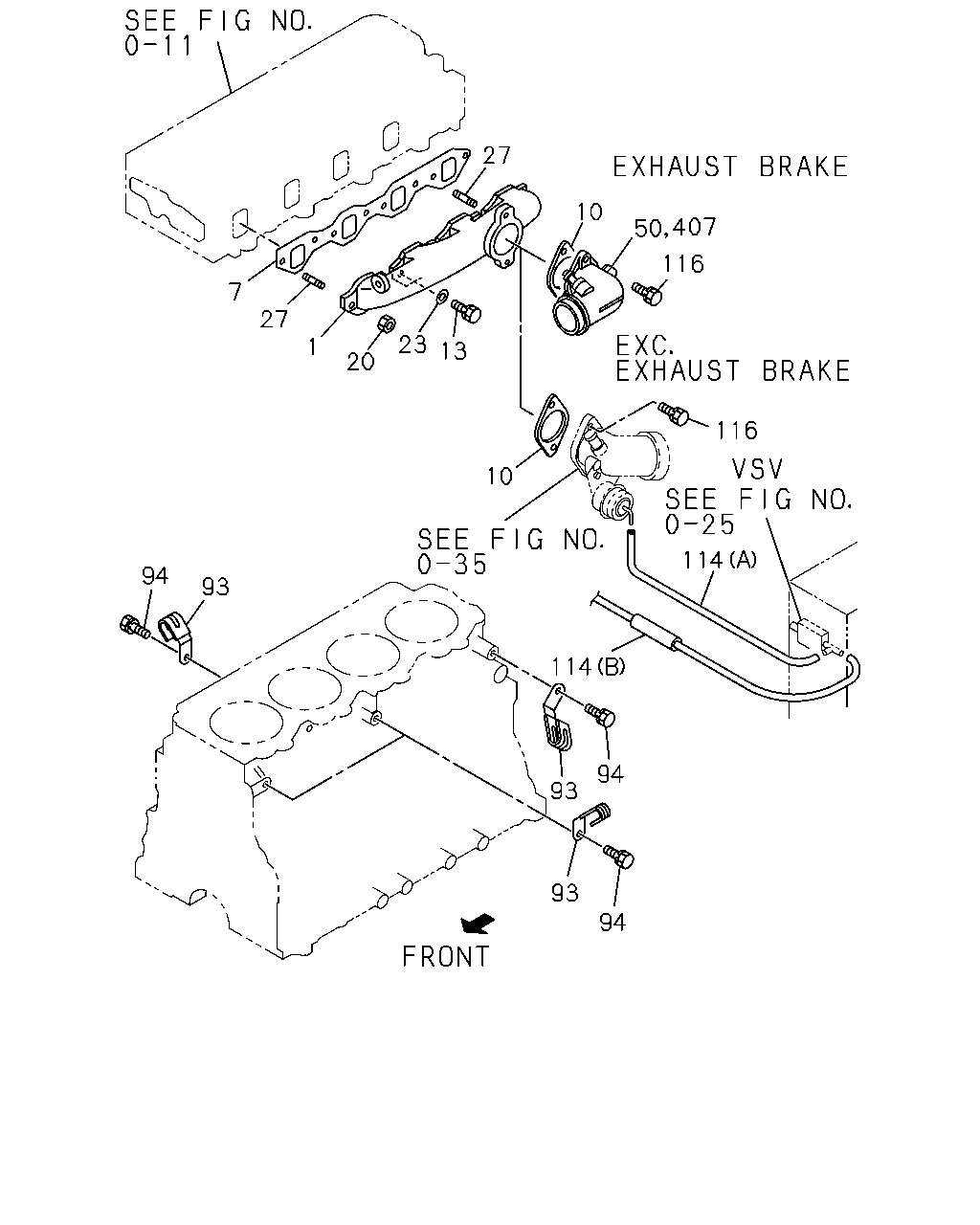

27 50 407 1 116 10 116 7 27 114 23 20 13 93 94 93 94 93 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-689-1	01	1	9512-9701	●
1	03.265 MANIFOLD; INL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97147-920-0	01	1	9702-9711	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97147-920-0	01	1	9712-	●
1	03.265 MANIFOLD; INL	8-97107-744-0	01	1	9312-9511	●	●
1	03.265 MANIFOLD; INL EXC. EURO2 SPECIFICATION<7AF>	8-97107-744-1	01	1	9512-	●	●
1	03.265 MANIFOLD; INL AIR INTAKE REAR VERTICAL<KJ3>	8-97064-280-1	01	1	9312-			●
1	03.265 MANIFOLD; INL AIR INTAKE SYSTEM FRONT<6PC>	8-97064-281-0	01	1	9312-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A)	8-97066-741-1	01	1	9312-9511	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97066-741-1	01	1	9512-	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C)	8-94116-988-0	01	1	9312-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> (B)	8-97144-623-0	04	1	9512-9711	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION<7AF> (B)	8-97144-623-0	04	1	9712-	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51>,EURO2 SPECIFICATION<7AF> (C)	8-97035-883-0	01	1	9610-	●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.270 (A) ID=64X89	8-94370-677-0	01	1	9312-			●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) AIR INTAKE REAR VERTICAL<KJ3> 03.270 (B) ID=66	8-94370-678-0	01	1	9312-			●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C)	8-97035-883-0	01	1	9312-9511	●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51> (C)	8-97035-883-0	01	1	9512-9609	●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION<7AF> (D)	8-97144-622-0	01	1	9512-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-	●	●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-			●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510				●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-	●	●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9312-			●
20	03.275 NUT; INL MANIF AIR INTAKE REAR VERTICAL<KJ3> 00.002 M8	9-09110-508-0	02	1	9312-			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-				●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-	●	●
23	03.275 WASHER; PL,INL MANIF OD=28.6	8-94155-884-1	01	1	9312-			●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	01	1	9312-9708	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 03.901 M8X25 L=37	9-04110-825-0	01	1	9312-9708		●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4> 03.901 M8X25 L=37	9-04110-825-0	02	1	9709-9801		●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 M8X25 L=37	9-04110-825-0	02	1	9802-		●
27	03.275 STUD; INL MANIF 00.219 M8X35 L=46	9-09630-034-1	01	1	9312-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 00.219 M8X35 L=46	9-09630-034-1	01	1	9312-		●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4> 03.901 M8X25 L=37	9-04110-825-0	02	1	9312-9708		●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	01	1	9709-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 03.901 M8X25 L=37	9-04110-825-0	01	1	9709-		●
27	03.275 STUD; INL MANIF 03.162 M6X20 L=29	9-04110-620-0	01	1	9312-			●
50	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8>	8-97078-858-0	01	1	9312-	●	●
93	02.559 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9312-9406	●	●
94	02.559 BOLT 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9312-9406	●	●
94	02.559 BOLT EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9607-9610		●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9607-				●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> L=1320	8-97096-148-1	01	1	9312-9703	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> L=1320	8-97096-148-1	01	1	9704-	●	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 08.962 (A) L=430 SERVICED BY L=3000	0-04740-300-0	01	1	9704-		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1200	8-97180-275-0	01	1	9704-		●
116	03.275 BOLT; MANIF TO INL PIPE 09.173 M10X25 W/LK WASHER	0-50051-025-0	02	1	9312-9606	●	●
116	03.275 BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> 09.173 M10X25 W/LK WASHER	0-50051-025-0	02	1	9607-9706	●	●
116	03.275 BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9707-	●	●
407	03.265 PIPE; INL,REAR AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	9312-9404		●
407	03.265 PIPE; INL,REAR AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	9405-9606	●	●
407	03.265 PIPE; INL,REAR AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	9607-	●	●

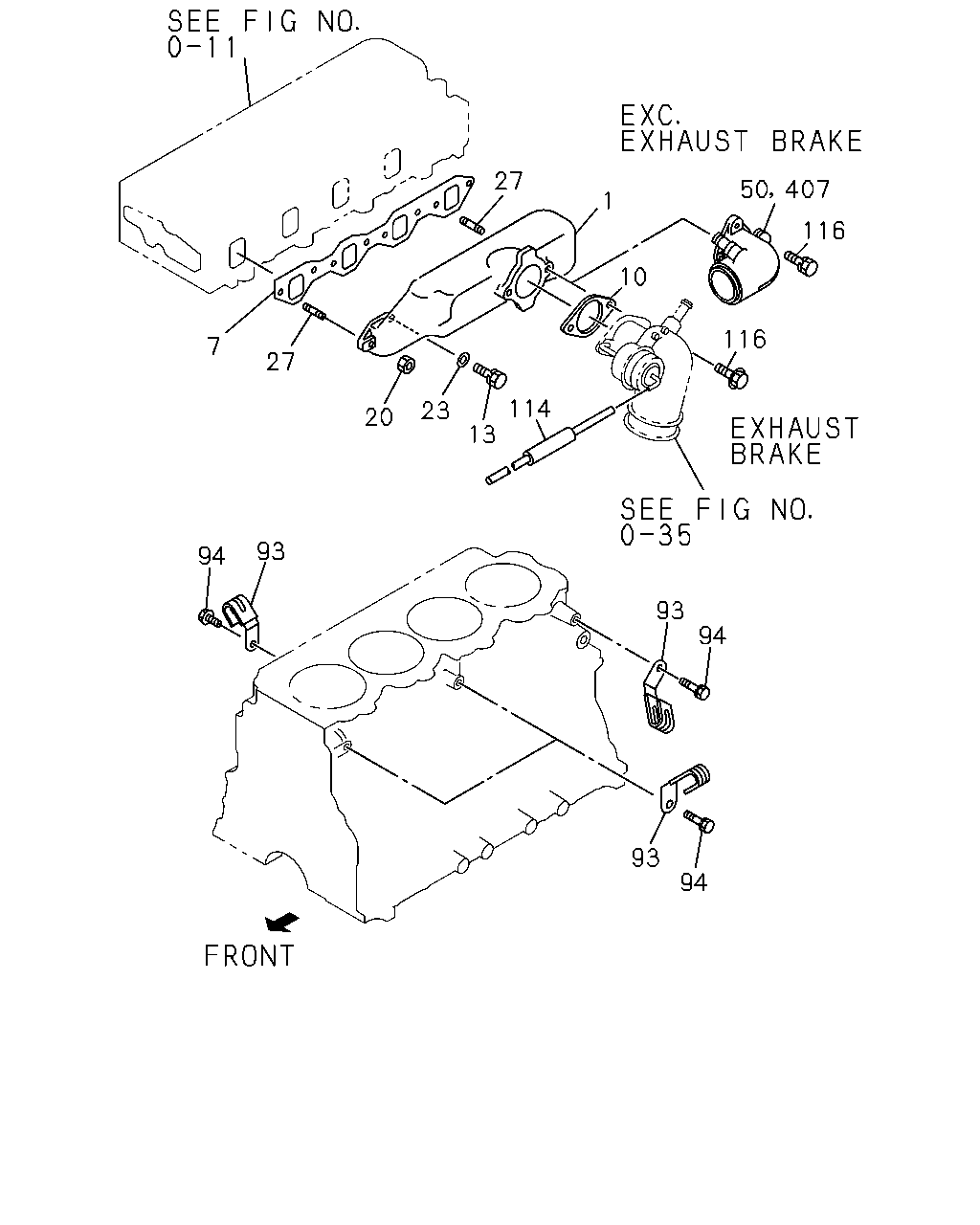

27 10 116 7 27 23 1 13 20 116 10 114 94 93 114 94 93 93 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-689-1	01	1	9512-9701	●
1	03.265 MANIFOLD; INL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97147-920-0	01	1	9702-9711	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97147-920-0	01	1	9712-	●
1	03.265 MANIFOLD; INL	8-97107-744-0	01	1	9312-9511	●	●
1	03.265 MANIFOLD; INL EXC. EURO2 SPECIFICATION<7AF>	8-97107-744-1	01	1	9512-	●	●
1	03.265 MANIFOLD; INL AIR INTAKE REAR VERTICAL<KJ3>	8-97064-280-1	01	1	9312-			●
1	03.265 MANIFOLD; INL AIR INTAKE SYSTEM FRONT<6PC>	8-97064-281-0	01	1	9312-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A)	8-97066-741-1	01	1	9312-9511	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97066-741-1	01	1	9512-	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C)	8-94116-988-0	01	1	9312-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> (B)	8-97144-623-0	04	1	9512-9711	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION<7AF> (B)	8-97144-623-0	04	1	9712-	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51>,EURO2 SPECIFICATION<7AF> (C)	8-97035-883-0	01	1	9610-	●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.270 (A) ID=64X89	8-94370-677-0	01	1	9312-			●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) AIR INTAKE REAR VERTICAL<KJ3> 03.270 (B) ID=66	8-94370-678-0	01	1	9312-			●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C)	8-97035-883-0	01	1	9312-9511	●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51> (C)	8-97035-883-0	01	1	9512-9609	●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION<7AF> (D)	8-97144-622-0	01	1	9512-	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-	●	●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-			●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510				●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-	●	●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9312-			●
20	03.275 NUT; INL MANIF AIR INTAKE REAR VERTICAL<KJ3> 00.002 M8	9-09110-508-0	02	1	9312-			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-				●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9312-	●	●
23	03.275 WASHER; PL,INL MANIF OD=28.6	8-94155-884-1	01	1	9312-			●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	01	1	9312-9708	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 03.901 M8X25 L=37	9-04110-825-0	01	1	9312-9708		●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4> 03.901 M8X25 L=37	9-04110-825-0	02	1	9709-9801		●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 M8X25 L=37	9-04110-825-0	02	1	9802-		●
27	03.275 STUD; INL MANIF 00.219 M8X35 L=46	9-09630-034-1	01	1	9312-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 00.219 M8X35 L=46	9-09630-034-1	01	1	9312-		●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4> 03.901 M8X25 L=37	9-04110-825-0	02	1	9312-9708		●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	01	1	9709-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 03.901 M8X25 L=37	9-04110-825-0	01	1	9709-		●
27	03.275 STUD; INL MANIF 03.162 M6X20 L=29	9-04110-620-0	01	1	9312-			●
93	02.559 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9312-9406	●	●
94	02.559 BOLT 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9312-9406	●	●
94	02.559 BOLT EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9607-9610		●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9607-				●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> L=1320	8-97096-148-1	01	1	9312-9703	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> L=1320	8-97096-148-1	01	1	9704-	●	●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 08.962 (A) L=430 SERVICED BY L=3000	0-04740-300-0	01	1	9704-		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1200	8-97180-275-0	01	1	9704-		●
116	03.275 BOLT; MANIF TO INL PIPE 09.173 M10X25 W/LK WASHER	0-50051-025-0	02	1	9312-9606	●	●
116	03.275 BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> 09.173 M10X25 W/LK WASHER	0-50051-025-0	02	1	9607-9706	●	●
116	03.275 BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9707-	●	●

346 13 260 306 346 20 306 2 13 28 131 507 603 2 222 336 229 324 283 138 283 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL	8-97033-719-1	01	1	9312-9510				●
2	03.407 COVER; INL AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8>	8-97122-604-1	01	1	9511-				●
2	03.407 COVER; INL AIR INTAKE SYSTEM FRONT<6PC> EXHAUST BRAKE<NF8>	8-97146-864-2	01	1	9712-				●
2	03.407 COVER; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8>	8-97122-603-1	01	1	9712-				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97109-049-4	01	1	9511-9608				●
2	03.407 COVER; INL AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97146-866-2	01	1	9609-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-	●	●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-			●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510				●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-	●	●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9312-			●
20	03.275 NUT; INL MANIF AIR INTAKE REAR VERTICAL<KJ3> 00.002 M8	9-09110-508-0	02	1	9312-			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-				●
28	03.278 BOLT; CHAMBER EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9803-				●
53	03.602 BOLT; INL PIPE EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9607-9609		●
53	03.602 BOLT; INL PIPE EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9610-9711		●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9712-		●
53	03.602 BOLT; INL PIPE AIR INTAKE REAR VERTICAL<KJ3> 09.173 (A) M10X25 W/LK WASHER	0-50051-025-0	02	1	9312-			●
53	03.602 BOLT; INL PIPE AIR INTAKE REAR VERTICAL<KJ3> 00.029 (B) M10X35 W/LK&PL WASHER	0-50151-035-0	03	1	9312-			●
53	03.602 BOLT; INL PIPE AIR INTAKE SYSTEM FRONT<6PC> 00.029 (B) M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9312-			●
53	03.602 BOLT; INL PIPE 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9606				●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9607-				●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	9511-				●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> 03.417	8-94417-173-1	01	1	9312-	●	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94311-856-0	01	1	9312-			●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94479-568-1	01	1	9312-			●
138	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC>	8-97093-092-0	01	1	9312-			●
138	03.265 PIPE; INL	8-97044-648-0	01	1	9312-9804				●
138	03.265 PIPE; INL	8-97180-566-1	01	1	9805-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97084-938-2	01	1	9511-				●
229	03.278 SCREW; VENTILATION VLV 16.345 M4X8 TAPPING	0-71080-408-0	06	1	9312-9510				●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	12	1	9511-9710				●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9711-9711				●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	12	1	9712-				●
260	03.278 CAP; RUBBER EXHAUST BRAKE<NF8> 01.780 ID=4	8-94217-809-0	01	1	9511-9704				●
260	03.278 CAP; RUBBER TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 01.780 ID=4	8-94217-809-0	01	1	9705-9711		●
260	03.278 CAP; RUBBER EXHAUST BRAKE<NF8> 01.780 ID=4	8-94217-809-0	01	1	9705-9711				●
260	03.278 CAP; RUBBER TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 01.780 ID=4	8-94217-809-0	01	1	9712-		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9712-				●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	9511-				●
306	03.265 BOLT; VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9704-		●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	9511-				●
306	03.265 BOLT; VLV (B)	8-97088-145-0	02	1	9511-9607				●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97180-546-0	01	1	9805-				●
336	03.415 VALVE; VENTILATION 03.270	8-97010-548-0	01	1	9312-9510				●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9511-				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9312-9510				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9511-				●
507	03.415 ORIFICE	8-97088-649-0	01	1	9511-				●
603	03.278 CHAMBER; THROTTLE EXHAUST BRAKE<NF8>	8-97162-186-0	01	1	9511-9802				●
603	03.278 CHAMBER; THROTTLE EXHAUST BRAKE<NF8>	8-97204-780-0	01	1	9803-				●

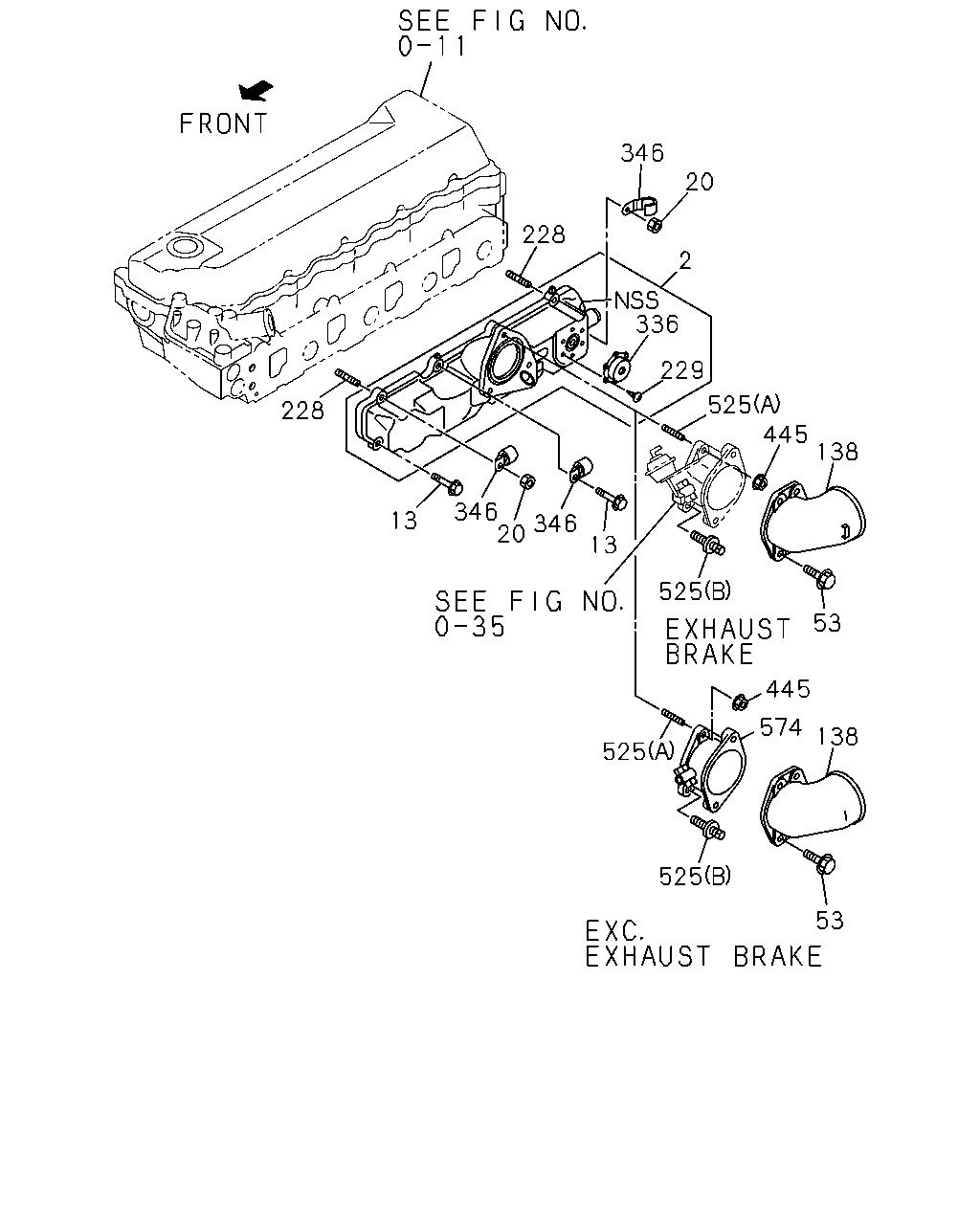

346 20 228 2 336 229 525 228 445 138 346 346 20 13 13 525 53 445 574 138 525 525 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL	8-97033-719-1	01	1	9312-9510				●
2	03.407 COVER; INL AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8>	8-97122-604-1	01	1	9511-				●
2	03.407 COVER; INL AIR INTAKE SYSTEM FRONT<6PC> EXHAUST BRAKE<NF8>	8-97146-864-2	01	1	9712-				●
2	03.407 COVER; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8>	8-97122-603-1	01	1	9712-				●
2	03.407 COVER; INL EXHAUST BRAKE<NF8>	8-97109-049-4	01	1	9511-9608				●
2	03.407 COVER; INL AIR INTAKE REAR VERTICAL<KJ3> EXHAUST BRAKE<NF8>	8-97146-866-2	01	1	9609-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9312-	●	●
13	03.275 BOLT; INL MANIF 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-			●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	07	1	9312-9510				●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9511-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-	●	●
20	03.275 NUT; INL MANIF M8 FLANGE	5-14129-011-0	08	1	9312-			●
20	03.275 NUT; INL MANIF AIR INTAKE REAR VERTICAL<KJ3> 00.002 M8	9-09110-508-0	02	1	9312-			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-				●
53	03.602 BOLT; INL PIPE EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9607-9609		●
53	03.602 BOLT; INL PIPE EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9610-9711		●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9712-		●
53	03.602 BOLT; INL PIPE AIR INTAKE REAR VERTICAL<KJ3> 09.173 (A) M10X25 W/LK WASHER	0-50051-025-0	02	1	9312-			●
53	03.602 BOLT; INL PIPE AIR INTAKE REAR VERTICAL<KJ3> 00.029 (B) M10X35 W/LK&PL WASHER	0-50151-035-0	03	1	9312-			●
53	03.602 BOLT; INL PIPE AIR INTAKE SYSTEM FRONT<6PC> 00.029 (B) M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9312-			●
53	03.602 BOLT; INL PIPE 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9606				●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9607-				●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> 03.417	8-94417-173-1	01	1	9312-	●	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94311-856-0	01	1	9312-			●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> (B)	8-94479-568-1	01	1	9312-			●
138	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC>	8-97093-092-0	01	1	9312-			●
138	03.265 PIPE; INL	8-97044-648-0	01	1	9312-9804				●
138	03.265 PIPE; INL	8-97180-566-1	01	1	9805-				●
228	03.407 STUD; INL COVER 00.413 M8X30 L=41	8-97016-313-0	02	1	9312-9510				●
229	03.278 SCREW; VENTILATION VLV 16.345 M4X8 TAPPING	0-71080-408-0	06	1	9312-9510				●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	12	1	9511-9710				●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9711-9711				●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	12	1	9712-				●
336	03.415 VALVE; VENTILATION 03.270	8-97010-548-0	01	1	9312-9510				●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9511-				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9312-9510				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9511-				●
445	03.275 NUT; THROTTLE BODY TO MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510				●
525	03.275 STUD; CONT VLV 01.428 (A) M8X20 L=38	8-97021-431-0	02	1	9312-9510				●
525	03.275 STUD; CONT VLV 03.270 (B)	8-97033-689-0	01	1	9312-9510				●
574	03.275 SPACER; INL PIPE EXC. EXHAUST BRAKE<NF8>	8-97093-288-0	01	1	9312-9510				●

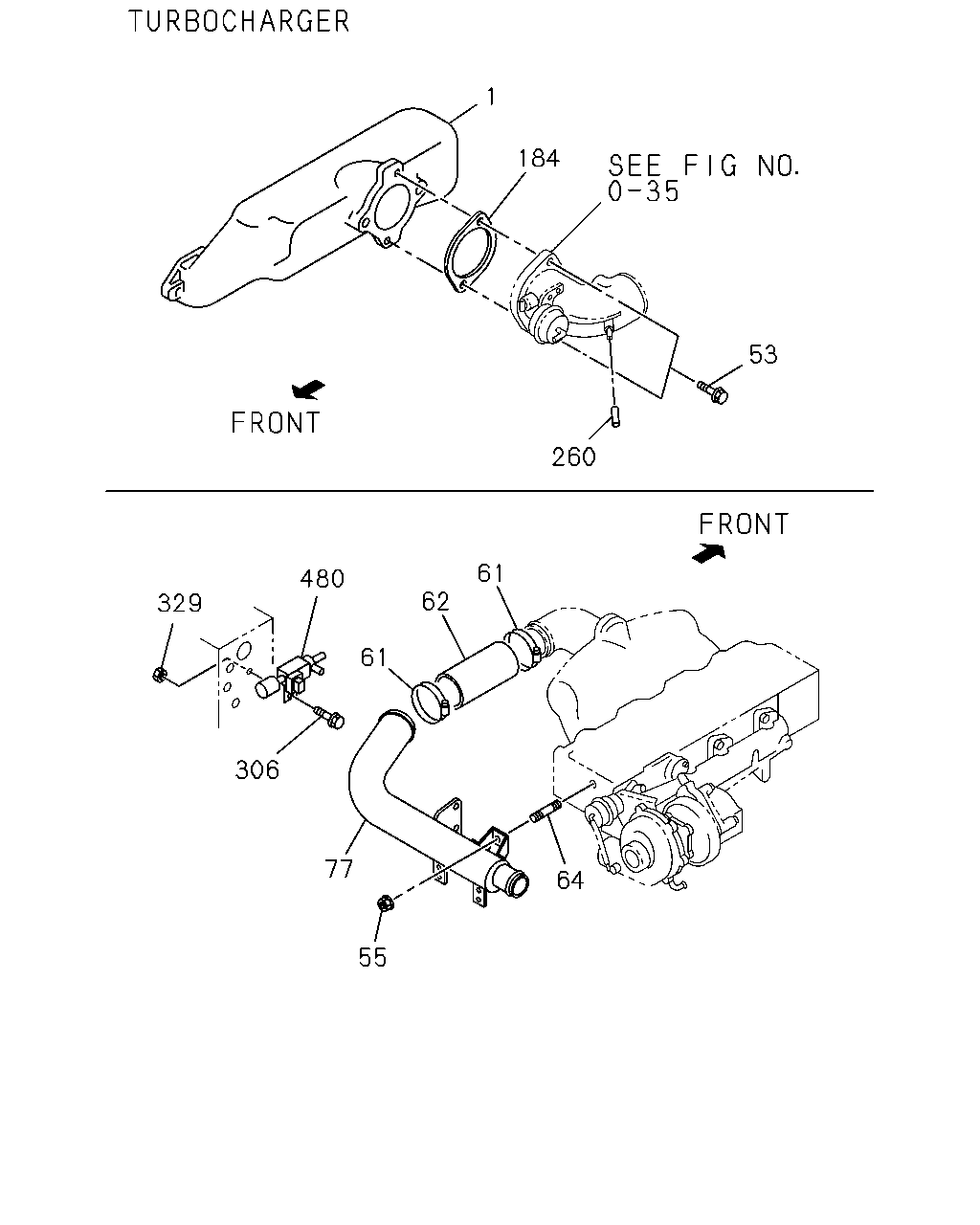

1 184 53 260 61 480 62 329 61 306 77 64 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-689-1	01	1	9512-9701	●
1	03.265 MANIFOLD; INL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97147-920-0	01	1	9702-9711	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF>	8-97147-920-0	01	1	9712-	●
1	03.265 MANIFOLD; INL	8-97107-744-0	01	1	9312-9511	●	●
1	03.265 MANIFOLD; INL EXC. EURO2 SPECIFICATION<7AF>	8-97107-744-1	01	1	9512-	●	●
1	03.265 MANIFOLD; INL AIR INTAKE REAR VERTICAL<KJ3>	8-97064-280-1	01	1	9312-			●
1	03.265 MANIFOLD; INL AIR INTAKE SYSTEM FRONT<6PC>	8-97064-281-0	01	1	9312-			●
53	03.602 BOLT; INL PIPE EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9607-9609		●
53	03.602 BOLT; INL PIPE EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9610-9711		●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	9712-		●
53	03.602 BOLT; INL PIPE AIR INTAKE REAR VERTICAL<KJ3> 09.173 (A) M10X25 W/LK WASHER	0-50051-025-0	02	1	9312-			●
53	03.602 BOLT; INL PIPE AIR INTAKE REAR VERTICAL<KJ3> 00.029 (B) M10X35 W/LK&PL WASHER	0-50151-035-0	03	1	9312-			●
53	03.602 BOLT; INL PIPE AIR INTAKE SYSTEM FRONT<6PC> 00.029 (B) M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9312-			●
53	03.602 BOLT; INL PIPE 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9312-9606				●
53	03.602 BOLT; INL PIPE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9607-				●
55	03.407 NUT; INL PIPE EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 07.633 M8 FLANGE	0-91150-108-0	01	1	9611-9711		●
55	03.407 NUT; INL PIPE TURBOCHARGER<K51> 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-		●
61	03.273 CLIP; CONNECTOR HOSE EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 03.417 ID=58-79	8-94126-771-0	02	1	9607-9711		●
61	03.273 CLIP; CONNECTOR HOSE TURBOCHARGER<K51> 03.417 ID=58-79	8-94126-771-0	02	1	9712-		●
62	03.265 HOSE; CONNECTOR EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51>	8-97176-147-0	01	1	9607-9711		●
62	03.265 HOSE; CONNECTOR TURBOCHARGER<K51>	8-97176-147-0	01	1	9712-		●
64	03.275 STUD; INL PIPE EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 03.417 M8X14 L=26	9-04110-814-0	01	1	9611-9711		●
64	03.275 STUD; INL PIPE TURBOCHARGER<K51> 03.417 M8X14 L=26	9-04110-814-0	01	1	9712-		●
77	03.265 PIPE; INL,INT SHUTTER TO INL MAN EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51>	8-97176-076-0	01	1	9607-9711		●
77	03.265 PIPE; INL,INT SHUTTER TO INL MAN TURBOCHARGER<K51>	8-97176-076-0	01	1	9712-		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 03.406	8-97035-883-0	01	1	9607-9711		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51> 03.406	8-97035-883-0	01	1	9712-		●
260	03.278 CAP; RUBBER EXHAUST BRAKE<NF8> 01.780 ID=4	8-94217-809-0	01	1	9511-9704				●
260	03.278 CAP; RUBBER TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 01.780 ID=4	8-94217-809-0	01	1	9705-9711		●
260	03.278 CAP; RUBBER EXHAUST BRAKE<NF8> 01.780 ID=4	8-94217-809-0	01	1	9705-9711				●
260	03.278 CAP; RUBBER TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 01.780 ID=4	8-94217-809-0	01	1	9712-		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9712-				●
306	03.265 BOLT; VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9704-		●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	9511-				●
306	03.265 BOLT; VLV (B)	8-97088-145-0	02	1	9511-9607				●
329	03.280 NUT; VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9704-		●
480	03.314 VALVE ASM; VAC SW TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.670	8-94144-597-1	01	1	9704-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
