Sayfa 0-22 - Isuzu EPC

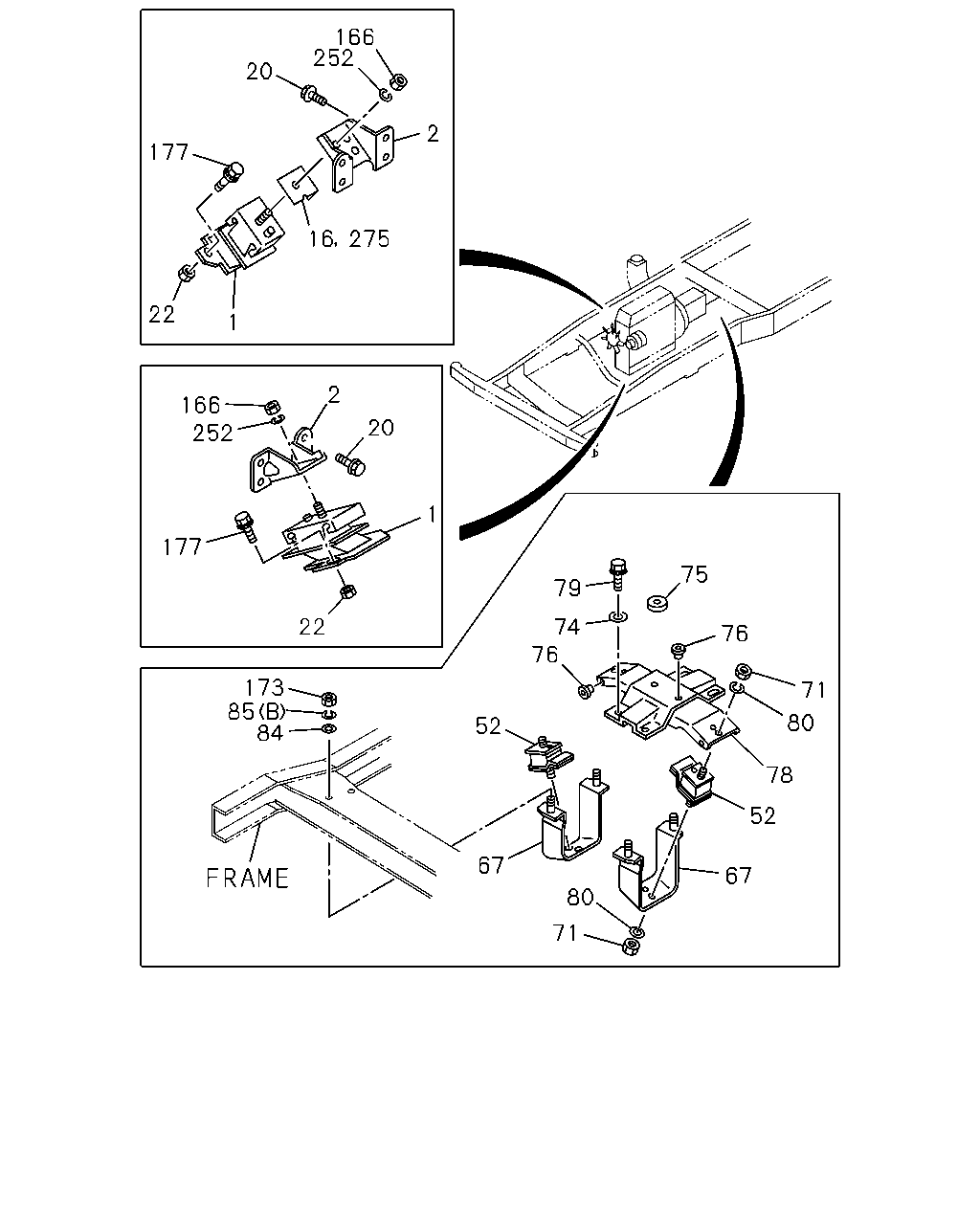

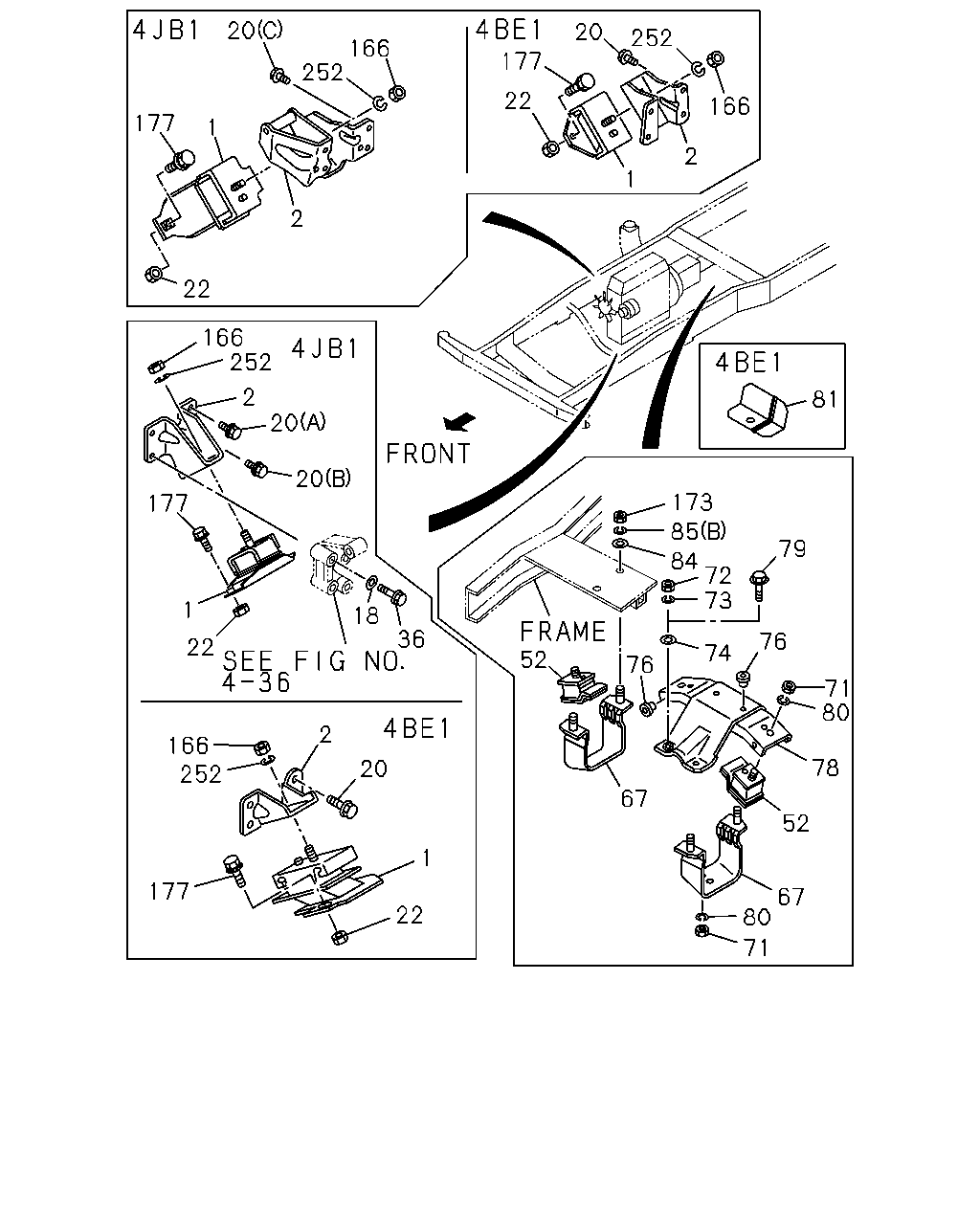

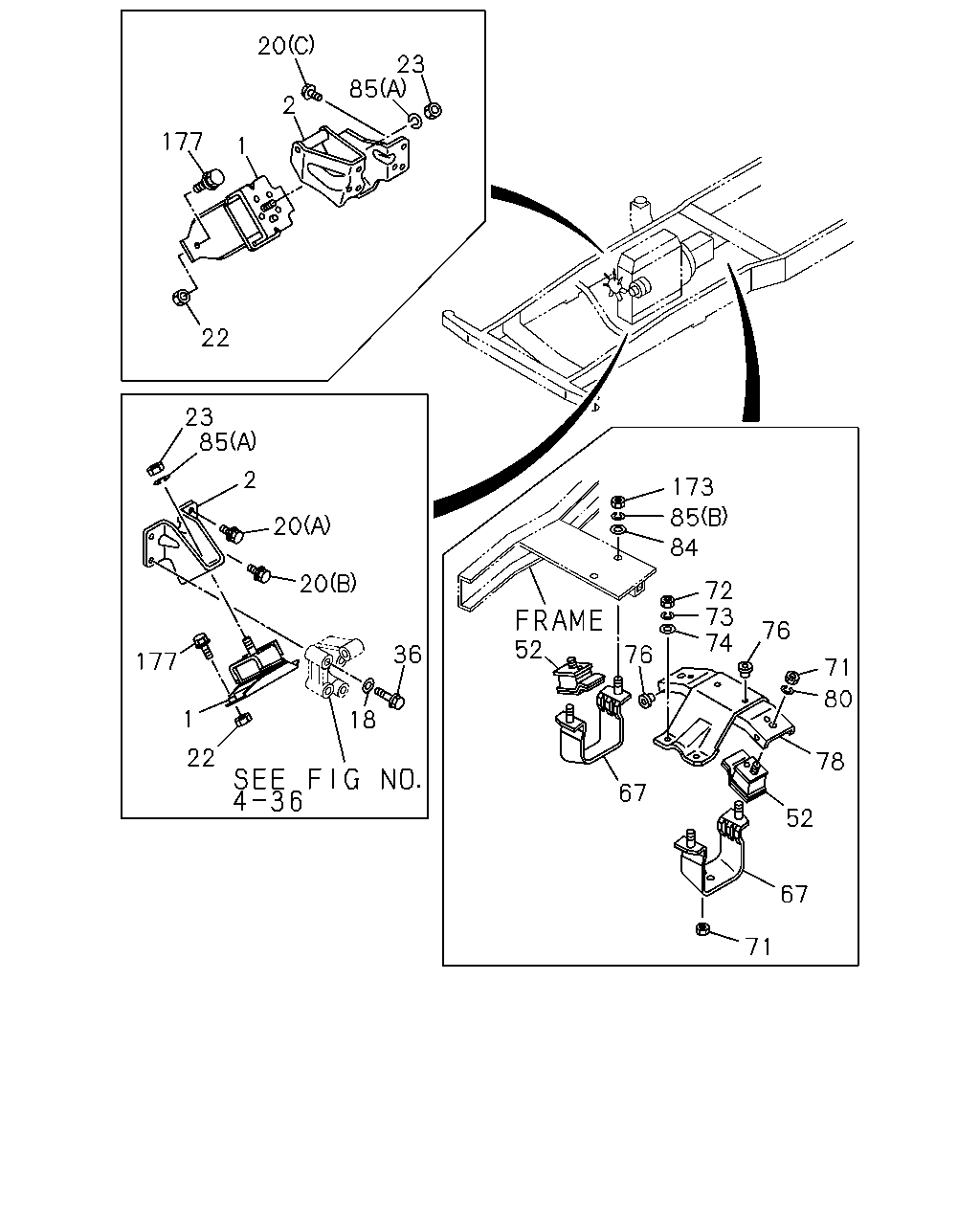

0-22 — ENGINE MOUNTING (#45806) — 294 parça

20 20 252 166 252 177 22 166 177 1 2 1 2 22 166 252 2 81 20 20 173 177 85 79 84 72 73 1 18 36 76 22 74 52 76 71 80 2 166 252 78 20 67 52 1 177 67 80 22 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-123-0	01	1	9312-9711	●	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-123-0	01	1	9712-	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-122-0	01	1	9312-9711	●	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-122-0	01	1	9712-	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-621-0	01	1	9312-	●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-620-0	01	1	9312-	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97106-759-0	01	1	9312-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97092-068-0	01	1	9312-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-971-0	01	1	9312-9506				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-0	01	1	9507-				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-970-0	01	1	9312-9506				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-0	01	1	9507-				●
2	00.029 FOOT; ENG	8-94122-052-1	01	1	9312-	●	●
2	00.029 FOOT; ENG	8-97073-922-1	01	1	9312-	●	●
2	00.029 FOOT; ENG	8-94172-338-1	01	1	9312-			●
2	00.029 FOOT; ENG	8-94157-826-0	01	1	9312-			●
2	00.029 FOOT; ENG	8-94311-118-2	02	1	9312-9507				●
2	00.029 FOOT; ENG	8-97119-225-1	02	1	9508-9605				●
2	00.029 FOOT; ENG	8-97145-013-0	02	1	9606-				●
18	00.002 WASHER; PL,ENG FOOT POWER STEERING<N40> 00.029 ID=10.5 OD=22 T=4	1-09503-045-0	02	1	9312-9403	●	●
20	00.029 BOLT; ENG FOOT 02.277 (C) M10X22 W/LK WASHER	0-50041-022-0	03	1	9312-9403	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 02.277 (C) M10X22 W/LK WASHER	0-50041-022-0	03	1	9312-9403		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	05	1	9404-9406	●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	9312-9406	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	9312-9406		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	05	1	9407-	●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	9407-9708	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	9407-9708		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	01	1	9709-9801		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	01	1	9802-		●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9312-	●	●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	01	1	9312-9406		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9404-9502		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9407-9502		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9503-9510		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9503-9510		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9511-9708		●
20	00.029 BOLT; ENG FOOT FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9511-9708		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9709-9711		●
20	00.029 BOLT; ENG FOOT EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9709-9711		●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9712-		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9712-		●
20	00.029 BOLT; ENG FOOT FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9406		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9406		●
20	00.029 BOLT; ENG FOOT EXC. POWER STEERING<N40> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9406		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9404-9404		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9407-9510		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9511-9708		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9511-9708		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9709-9711		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9712-		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	01	1	9312-9510		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 00.034 (C) M10X28	8-94329-952-1	01	1	9511-9708		●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	9709-	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	9709-		●
20	00.029 BOLT; ENG FOOT 00.002 (A),(B),(C) M10X22	8-94313-465-0	08	1	9312-			●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	9312-				●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	02	1	9312-9608	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	9609-	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	04	1	9312-9608	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 09.011 M10	9-09110-410-0	04	1	9312-9608				●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	04	1	9609-	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 M10 FLANGE	0-91150-210-0	04	1	9609-				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 M12	9-99110-412-0	02	1	9502-				●
36	00.002 BOLT; MTG RUBBER POWER STEERING<N40> 00.785 M10X65	5-09030-024-1	02	1	9312-9403	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	9312-	●	●	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	9312-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	9312-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	02	1	9312-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94384-214-0	01	1	9312-				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94384-213-0	01	1	9312-				●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 09.011 M10	9-09110-410-0	04	1	9312-9407	●	●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	9408-	●	●	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	04	1	9312-	●	●
73	00.002 WASHER; LK,CUSHION RUBBER TO FRA ID=10.2	9-09150-610-0	04	1	9312-	●	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9312-	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	04	1	9312-	●	●	●	●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-1	01	1	9312-	●	●
78	00.029 BRACKET; ENG MTG,RR	8-94112-891-1	01	1	9312-			●	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS 00.029 M10X28 W/LK WASHER	0-50041-028-0	04	1	9312-9409			●	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS 00.029 M10X28 W/LK WASHER	0-50041-028-0	04	1	9410-9501			●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS EXC. FIRE TRUCK CHASSIS(V4F) 00.029 M10X28 W/LK WASHER	0-50041-028-0	04	1	9410-9501				●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9502-9609			●	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9610-9711			●	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9712-			●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS EXC. FIRE TRUCK CHASSIS(V4F) 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9712-				●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS FIRE TRUCK CHASSIS(V4F) 09.171 M10X35 W/LK WASHER	0-50041-035-0	04	1	9410-9501				●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS FIRE TRUCK CHASSIS(V4F) 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9712-				●
80	00.002 WASHER; LK,SUPPORT RUBBER TO BRK ID=10.2	9-09150-510-0	04	1	9312-9407	●	●	●	●
81	00.029 PROTECTOR; HEAT,ENG MTG	8-94112-893-1	01	1	9312-			●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9312-	●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME 06.515 (A) ID=12.2	9-09150-612-0	02	1	9312-	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME (B) ID=10.2	9-09150-610-0	04	1	9312-	●	●	●	●
166	00.002 NUT; SUPPORT RUBBER 05.816 M12	9-99110-412-0	02	1	9312-9406		●	●	●
166	00.002 NUT; SUPPORT RUBBER 05.816 M12	9-99110-412-0	02	1	9407-		●	●
166	00.002 NUT; SUPPORT RUBBER 05.816 M12	9-99110-412-0	02	1	9407-				●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9312-	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) M10X32.5	8-97090-761-0	04	1	9312-	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5	8-94468-733-1	04	1	9312-	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9312-				●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9312-9406		●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9407-9501		●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9502-		●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9407-9501				●

20 23 85 2 177 1 22 23 85 2 173 85 20 84 20 72 73 74 76 52 36 76 177 71 80 1 18 22 78 67 52 67 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-123-0	01	1	9312-9711	●	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-123-0	01	1	9712-	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-122-0	01	1	9312-9711	●	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-122-0	01	1	9712-	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-621-0	01	1	9312-	●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-620-0	01	1	9312-	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97106-759-0	01	1	9312-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97092-068-0	01	1	9312-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-971-0	01	1	9312-9506				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-0	01	1	9507-				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-970-0	01	1	9312-9506				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-0	01	1	9507-				●
2	00.029 FOOT; ENG	8-94122-052-1	01	1	9312-	●	●
2	00.029 FOOT; ENG	8-97073-922-1	01	1	9312-	●	●
2	00.029 FOOT; ENG	8-94172-338-1	01	1	9312-			●
2	00.029 FOOT; ENG	8-94157-826-0	01	1	9312-			●
2	00.029 FOOT; ENG	8-94311-118-2	02	1	9312-9507				●
2	00.029 FOOT; ENG	8-97119-225-1	02	1	9508-9605				●
2	00.029 FOOT; ENG	8-97145-013-0	02	1	9606-				●
18	00.002 WASHER; PL,ENG FOOT POWER STEERING<N40> 00.029 ID=10.5 OD=22 T=4	1-09503-045-0	02	1	9312-9403	●	●
20	00.029 BOLT; ENG FOOT 02.277 (C) M10X22 W/LK WASHER	0-50041-022-0	03	1	9312-9403	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 02.277 (C) M10X22 W/LK WASHER	0-50041-022-0	03	1	9312-9403		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	05	1	9404-9406	●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	9312-9406	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	9312-9406		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	05	1	9407-	●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	9407-9708	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	9407-9708		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	01	1	9709-9801		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	01	1	9802-		●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9312-	●	●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	01	1	9312-9406		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9404-9502		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9407-9502		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9503-9510		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9503-9510		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9511-9708		●
20	00.029 BOLT; ENG FOOT FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9511-9708		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9709-9711		●
20	00.029 BOLT; ENG FOOT EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9709-9711		●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9712-		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9712-		●
20	00.029 BOLT; ENG FOOT FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9406		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9406		●
20	00.029 BOLT; ENG FOOT EXC. POWER STEERING<N40> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9406		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9404-9404		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9407-9510		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9511-9708		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9511-9708		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9709-9711		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9712-		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	01	1	9312-9510		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 00.034 (C) M10X28	8-94329-952-1	01	1	9511-9708		●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	9709-	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	9709-		●
20	00.029 BOLT; ENG FOOT 00.002 (A),(B),(C) M10X22	8-94313-465-0	08	1	9312-			●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	9312-				●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	02	1	9312-9608	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	9609-	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	04	1	9312-9608	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 09.011 M10	9-09110-410-0	04	1	9312-9608				●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	04	1	9609-	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 M10 FLANGE	0-91150-210-0	04	1	9609-				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 M12	9-99110-412-0	02	1	9502-				●
23	00.002 NUT; SUPPORT RUBBER,ENG FOOT 05.816 M12	9-99110-412-0	02	1	9312-	●
36	00.002 BOLT; MTG RUBBER POWER STEERING<N40> 00.785 M10X65	5-09030-024-1	02	1	9312-9403	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	9312-	●	●	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	9312-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	9312-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	02	1	9312-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94384-214-0	01	1	9312-				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94384-213-0	01	1	9312-				●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 09.011 M10	9-09110-410-0	04	1	9312-9407	●	●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	9408-	●	●	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 09.011 M10	9-09110-410-0	04	1	9312-	●	●
73	00.002 WASHER; LK,CUSHION RUBBER TO FRA ID=10.2	9-09150-610-0	04	1	9312-	●	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9312-	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	04	1	9312-	●	●	●	●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-1	01	1	9312-	●	●
78	00.029 BRACKET; ENG MTG,RR	8-94112-891-1	01	1	9312-			●	●
80	00.002 WASHER; LK,SUPPORT RUBBER TO BRK ID=10.2	9-09150-510-0	04	1	9312-9407	●	●	●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9312-	●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME 06.515 (A) ID=12.2	9-09150-612-0	02	1	9312-	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME (B) ID=10.2	9-09150-610-0	04	1	9312-	●	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9312-	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) M10X32.5	8-97090-761-0	04	1	9312-	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5	8-94468-733-1	04	1	9312-	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9312-				●

166 252 20 2 177 16 275 22 1 2 166 252 20 1 177 75 79 22 74 76 76 173 85 84 71 80 52 78 52 67 67 80 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-123-0	01	1	9312-9711	●	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-123-0	01	1	9712-	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-122-0	01	1	9312-9711	●	●
1	00.027 RUBBER; ENG FOOT,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97085-122-0	01	1	9712-	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-621-0	01	1	9312-	●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-620-0	01	1	9312-	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97106-759-0	01	1	9312-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97092-068-0	01	1	9312-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-971-0	01	1	9312-9506				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-0	01	1	9507-				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-970-0	01	1	9312-9506				●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-0	01	1	9507-				●
2	00.029 FOOT; ENG	8-94122-052-1	01	1	9312-	●	●
2	00.029 FOOT; ENG	8-97073-922-1	01	1	9312-	●	●
2	00.029 FOOT; ENG	8-94172-338-1	01	1	9312-			●
2	00.029 FOOT; ENG	8-94157-826-0	01	1	9312-			●
2	00.029 FOOT; ENG	8-94311-118-2	02	1	9312-9507				●
2	00.029 FOOT; ENG	8-97119-225-1	02	1	9508-9605				●
2	00.029 FOOT; ENG	8-97145-013-0	02	1	9606-				●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT 00.027	8-94365-486-0	01	1	9503-				●
20	00.029 BOLT; ENG FOOT 02.277 (C) M10X22 W/LK WASHER	0-50041-022-0	03	1	9312-9403	●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 02.277 (C) M10X22 W/LK WASHER	0-50041-022-0	03	1	9312-9403		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	05	1	9404-9406	●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	9312-9406	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	9312-9406		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	05	1	9407-	●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	9407-9708	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	9407-9708		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	01	1	9709-9801		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 00.034 (C) M10X28	8-94329-952-1	01	1	9802-		●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9312-	●	●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	01	1	9312-9406		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9404-9502		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9407-9502		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9503-9510		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9503-9510		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9511-9708		●
20	00.029 BOLT; ENG FOOT FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9511-9708		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9709-9711		●
20	00.029 BOLT; ENG FOOT EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9709-9711		●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9712-		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 02.277 M10X22 W/LK WASHER	0-50041-022-0	03	1	9712-		●
20	00.029 BOLT; ENG FOOT FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9406		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9406		●
20	00.029 BOLT; ENG FOOT EXC. POWER STEERING<N40> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9406		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9404-9404		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9407-9510		●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9511-9708		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	03	1	9511-9708		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9709-9711		●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	02	1	9712-		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	01	1	9312-9510		●
20	00.029 BOLT; ENG FOOT EXC. OIL COOLER<KC4>,FRT INDEPENDENT SUSPENSION(6PP) 00.034 (C) M10X28	8-94329-952-1	01	1	9511-9708		●
20	00.029 BOLT; ENG FOOT 00.034 (C) M10X28	8-94329-952-1	02	1	9709-	●
20	00.029 BOLT; ENG FOOT OIL COOLER<KC4> 00.034 (C) M10X28	8-94329-952-1	02	1	9709-		●
20	00.029 BOLT; ENG FOOT 00.002 (A),(B),(C) M10X22	8-94313-465-0	08	1	9312-			●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	9312-				●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	02	1	9312-9608	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	9609-	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	04	1	9312-9608	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 09.011 M10	9-09110-410-0	04	1	9312-9608				●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	04	1	9609-	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 M10 FLANGE	0-91150-210-0	04	1	9609-				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 M12	9-99110-412-0	02	1	9502-				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	9312-	●	●	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	9312-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	9312-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	02	1	9312-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94384-214-0	01	1	9312-				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-94384-213-0	01	1	9312-				●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 09.011 M10	9-09110-410-0	04	1	9312-9407	●	●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	9408-	●	●	●	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9312-	●	●	●	●
75	00.683 SPACER; ENG TO TRANS FIRE TRUCK CHASSIS(V4F) 09.011 OD=32 T=6.0	8-94416-693-0	04	1	9410-				●
76	00.002 STOPPER; ENG MTG RUBBER 00.027	8-94111-904-0	04	1	9312-	●	●	●	●
78	00.029 BRACKET; ENG MTG,RR	8-94133-393-1	01	1	9312-	●	●
78	00.029 BRACKET; ENG MTG,RR	8-94112-891-1	01	1	9312-			●	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS 00.029 M10X28 W/LK WASHER	0-50041-028-0	04	1	9312-9409			●	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS 00.029 M10X28 W/LK WASHER	0-50041-028-0	04	1	9410-9501			●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS EXC. FIRE TRUCK CHASSIS(V4F) 00.029 M10X28 W/LK WASHER	0-50041-028-0	04	1	9410-9501				●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9502-9609			●	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9610-9711			●	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9712-			●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS EXC. FIRE TRUCK CHASSIS(V4F) 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9712-				●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS FIRE TRUCK CHASSIS(V4F) 09.171 M10X35 W/LK WASHER	0-50041-035-0	04	1	9410-9501				●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS FIRE TRUCK CHASSIS(V4F) 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9712-				●
80	00.002 WASHER; LK,SUPPORT RUBBER TO BRK ID=10.2	9-09150-510-0	04	1	9312-9407	●	●	●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9312-	●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME 06.515 (A) ID=12.2	9-09150-612-0	02	1	9312-	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME (B) ID=10.2	9-09150-610-0	04	1	9312-	●	●	●	●
166	00.002 NUT; SUPPORT RUBBER 05.816 M12	9-99110-412-0	02	1	9312-9406		●	●	●
166	00.002 NUT; SUPPORT RUBBER 05.816 M12	9-99110-412-0	02	1	9407-		●	●
166	00.002 NUT; SUPPORT RUBBER 05.816 M12	9-99110-412-0	02	1	9407-				●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9312-	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) M10X32.5	8-97090-761-0	04	1	9312-	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) M10X37.5	8-94468-733-1	04	1	9312-	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9312-				●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9312-9406		●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9407-9501		●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9502-		●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9407-9501				●
275	00.029 PROTECTOR; HEAT,ENG FOOT 00.027	8-94365-486-0	01	1	9312-9502				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
