Sayfa 0-12 - Isuzu EPC

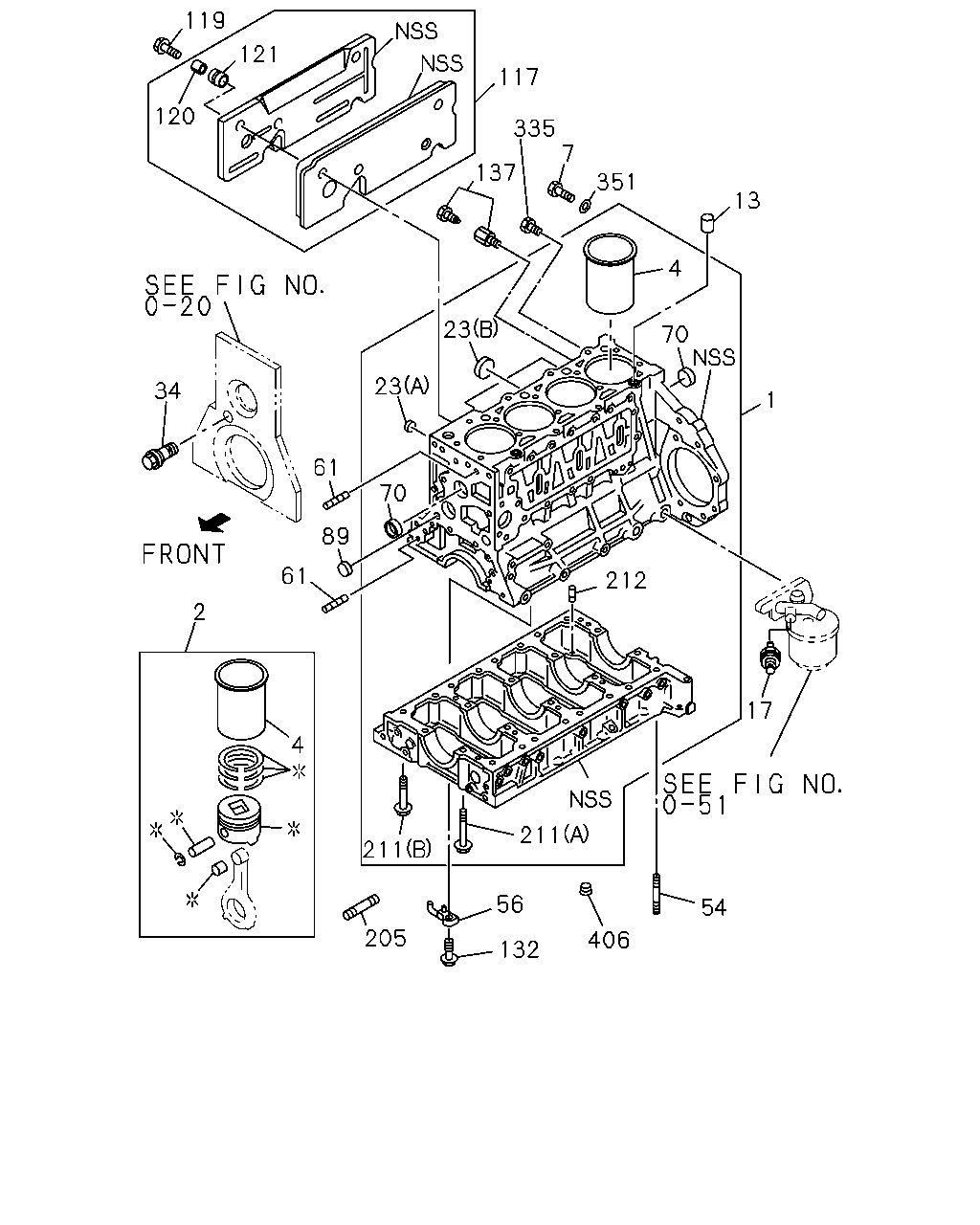

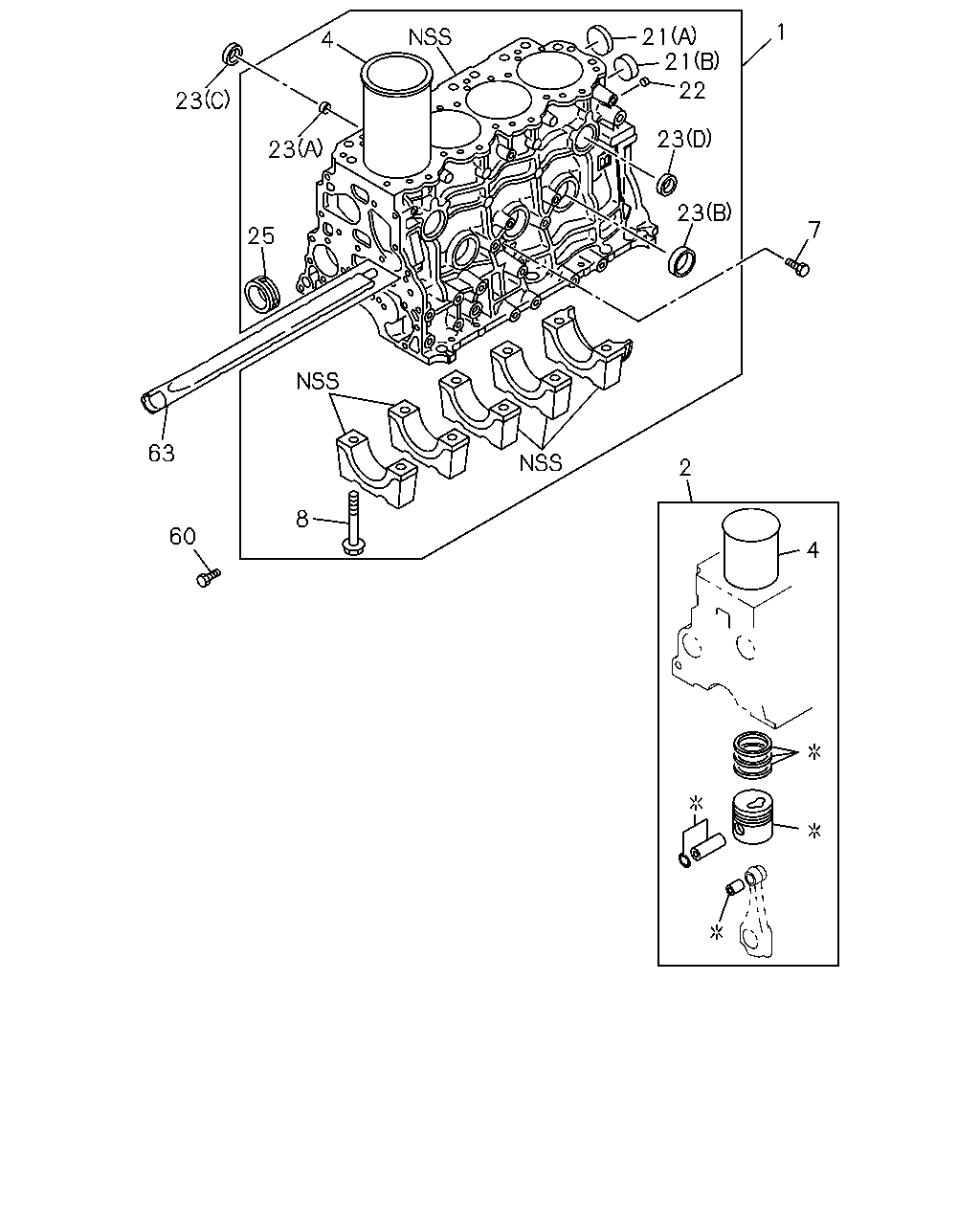

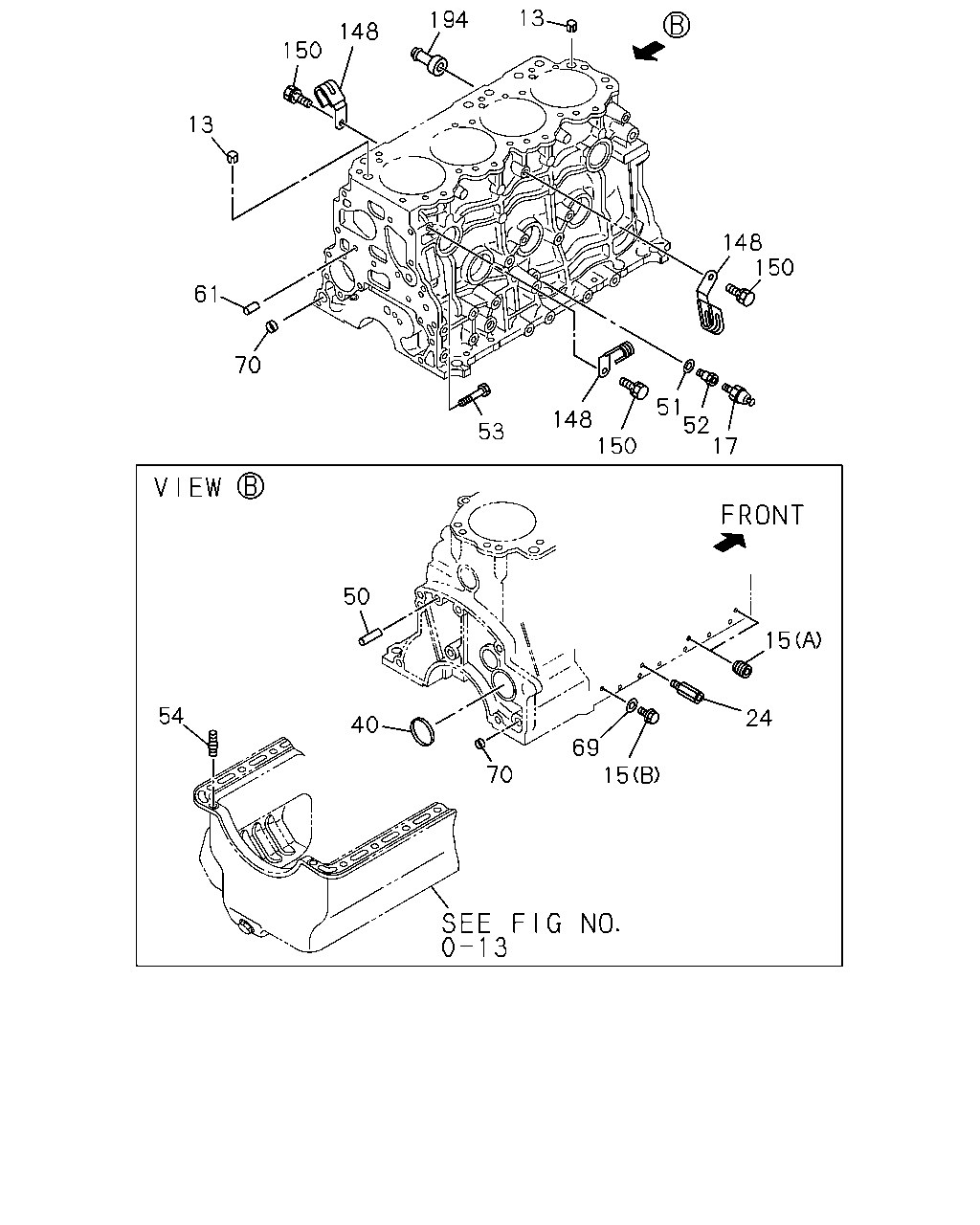

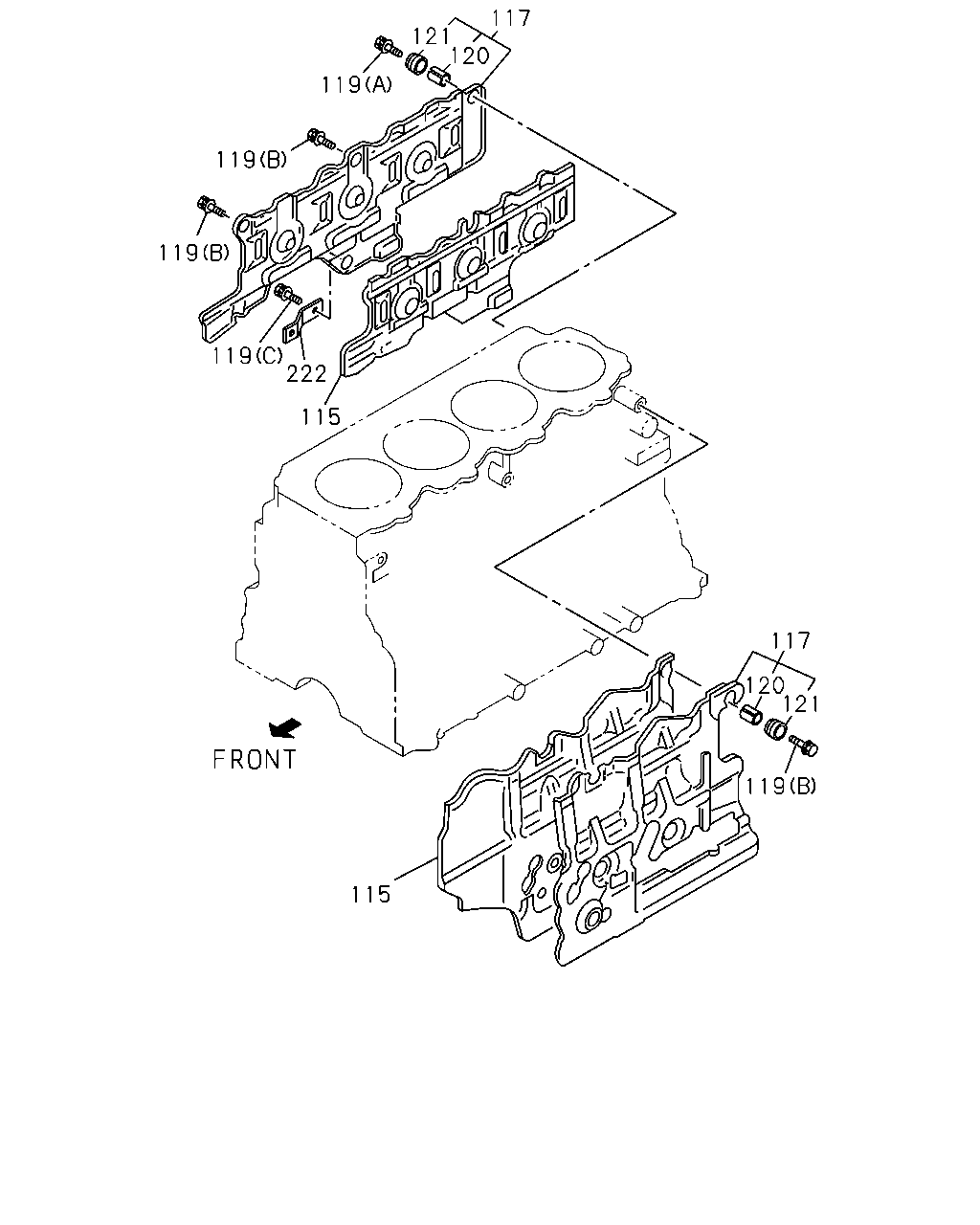

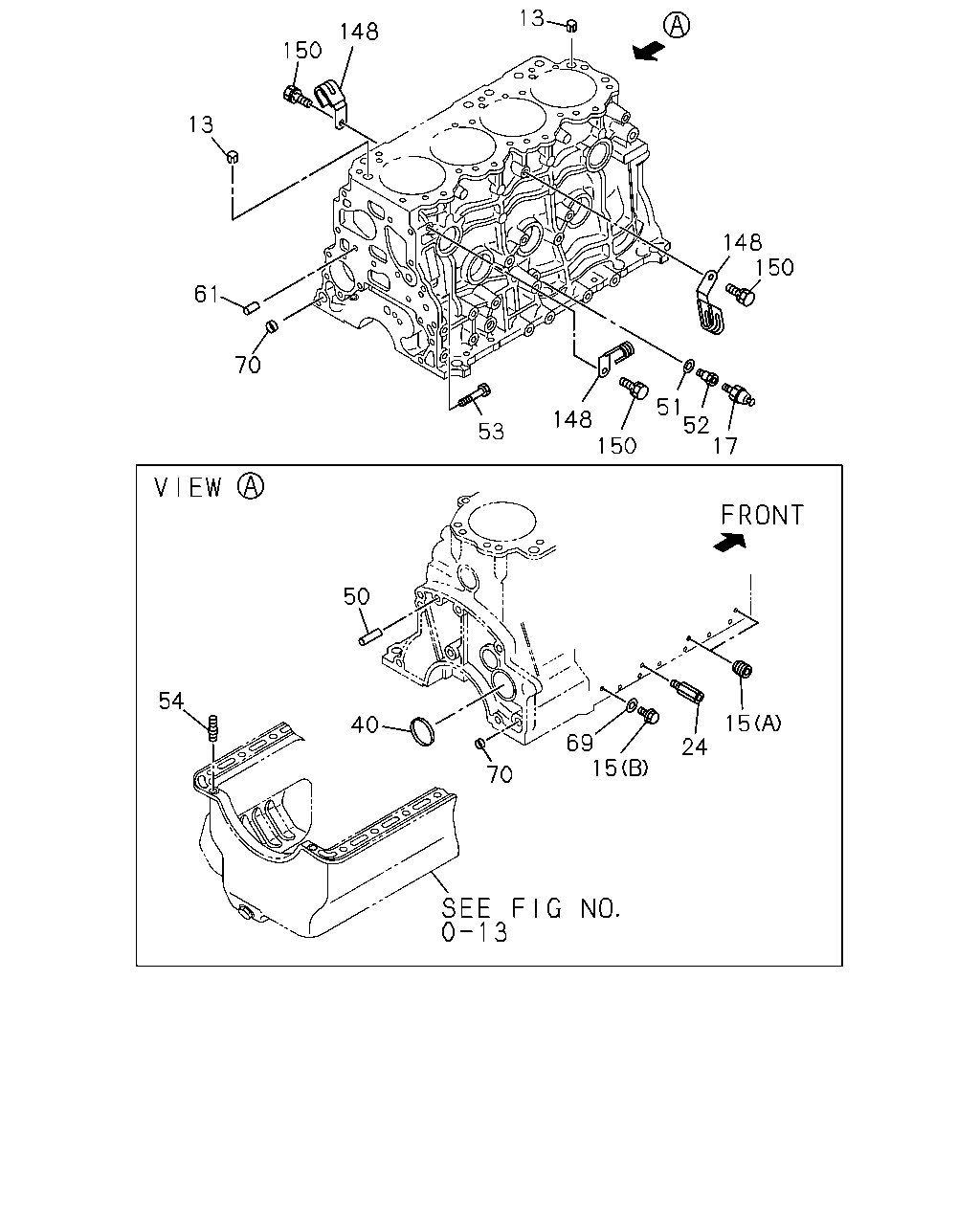

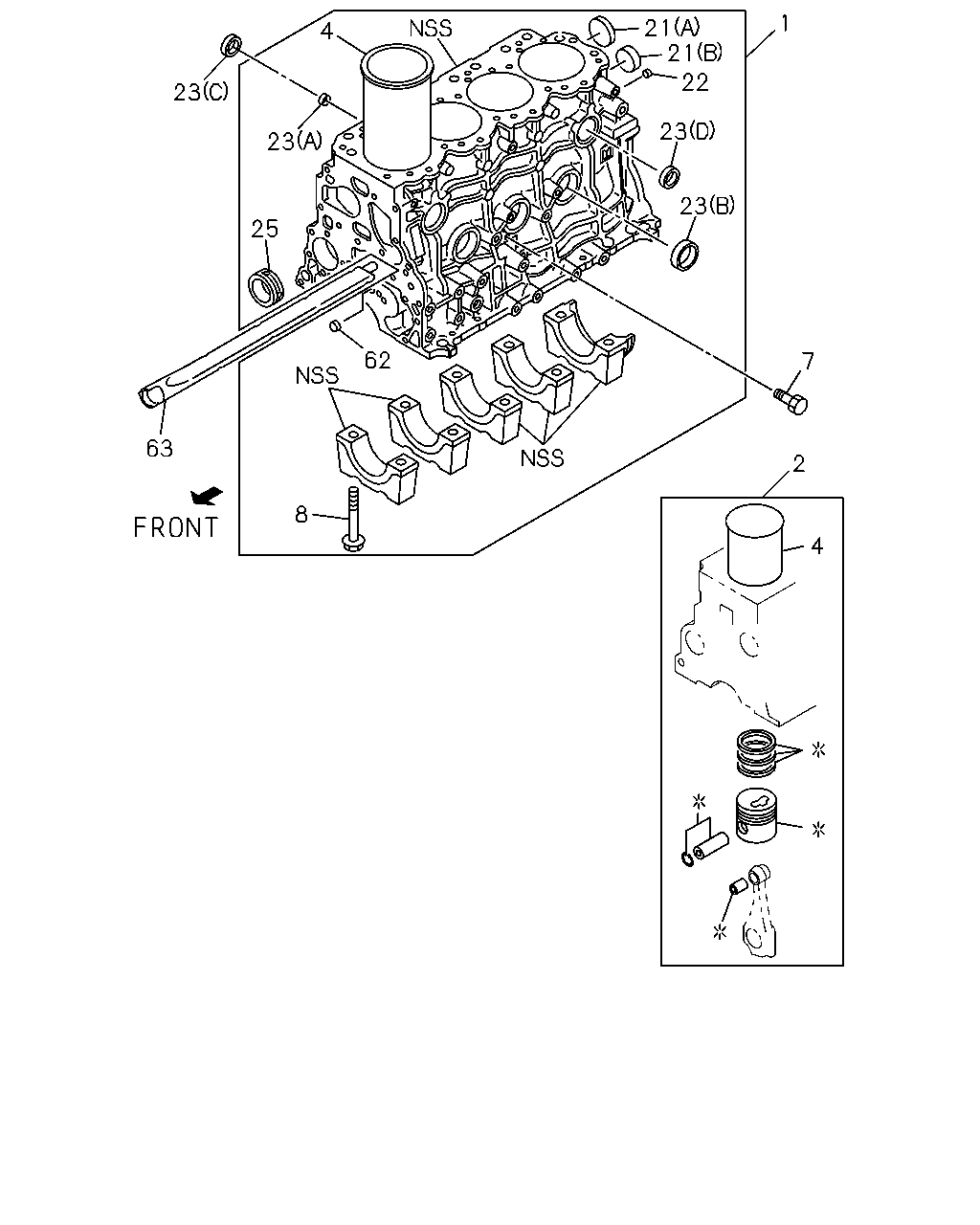

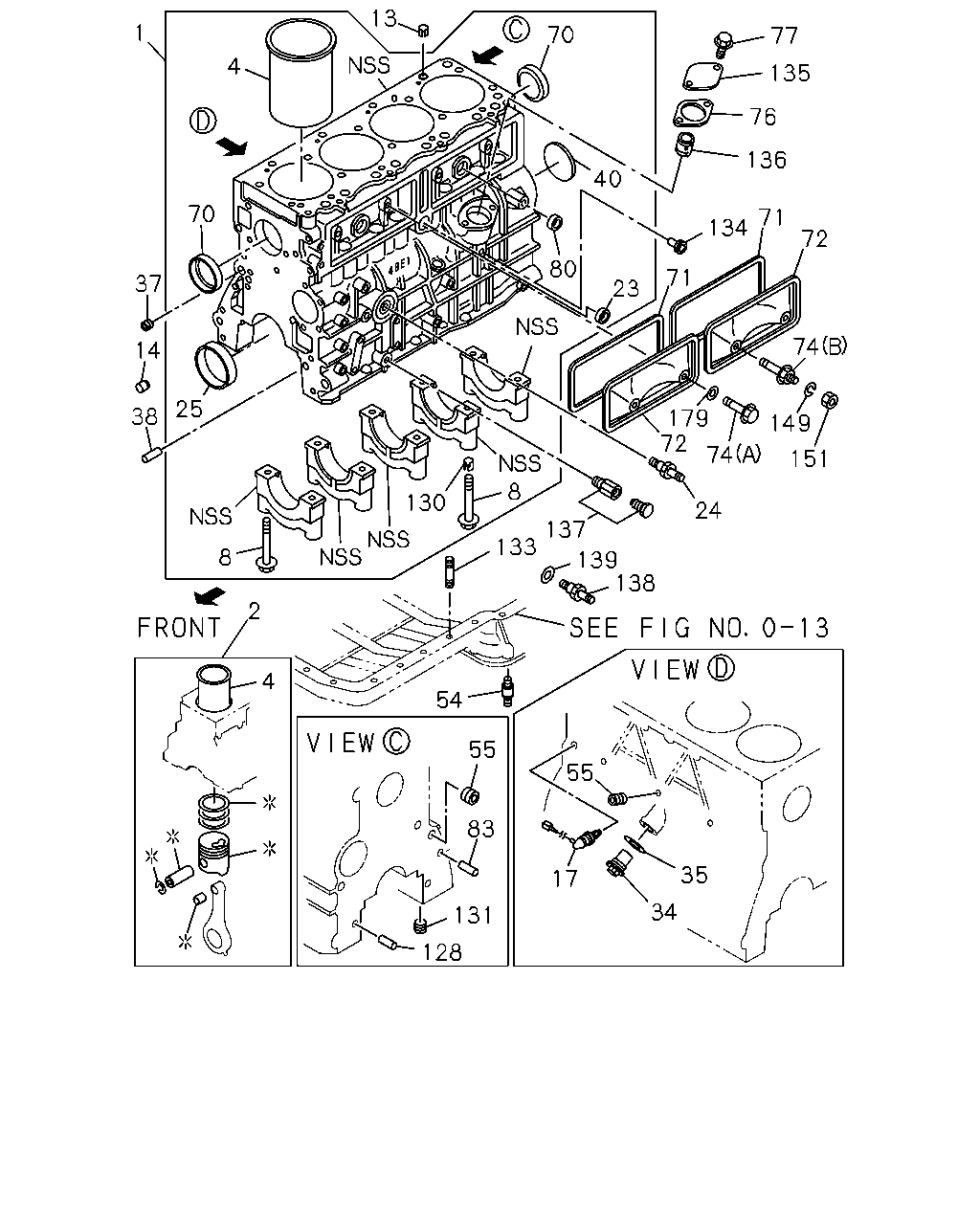

0-12 — CYLINDER BLOCK (#45801) — 791 parça

13 1 70 77 4 135 76 136 40 70 71 134 72 80 71 37 23 74 14 25 38 179 72 149 74 151 8 130 24 137 133 8 139 138 2 4 54 55 55 83 35 17 34 131 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9312-	●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9312-		●
1	00.033 BLOCK ASM; CYL	8-97017-152-1	01	1	9312-			●
1	00.033 BLOCK ASM; CYL	8-97092-832-0	01	1	9312-9312				●
1	00.033 BLOCK ASM; CYL	8-97049-465-7	01	1	9401-9401				●
1	00.033 BLOCK ASM; CYL	8-97103-761-1	01	1	9402-9410				●
1	00.033 BLOCK ASM; CYL	8-97119-775-0	01	1	9411-9510				●
1	00.033 BLOCK ASM; CYL	8-97074-833-6	01	1	9511-9604				●
1	00.033 BLOCK ASM; CYL	8-97146-438-5	01	1	9605-9711				●
1	00.033 BLOCK ASM; CYL	8-97163-853-2	01	1	9712-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-205-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-206-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-207-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-208-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-205-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-206-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-207-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-208-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9712-9802	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9712-9802	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9712-9802	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-177-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-178-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-179-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-180-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-181-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=1	5-87813-181-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=1	5-87813-181-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-182-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=2	5-87813-182-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=2	5-87813-182-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-183-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=3	5-87813-183-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=3	5-87813-183-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-184-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=4	5-87813-184-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=4	5-87813-184-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=1	5-87813-193-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=1	5-87813-193-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=2	5-87813-194-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=2	5-87813-194-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=3	5-87813-195-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=3	5-87813-195-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=4	5-87813-196-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=4	5-87813-196-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-177-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-177-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-178-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-178-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-179-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-179-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-180-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-180-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-160-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-160-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-161-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-161-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-162-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-162-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-163-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-163-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-336-0	04	1	9511-9704				●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9705-9711				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-337-0	04	1	9511-9704				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9705-9711				●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9712-				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9712-				●
2	00.030 LINER SET; ENG CYL TAIWAN EQUIPMENT(RWV) 00.094 GRADE=1X	5-87813-334-0	04	1	9312-9510				●
2	00.030 LINER SET; ENG CYL TAIWAN EQUIPMENT(RWV) 00.094 GRADE=3X	5-87813-335-0	04	1	9312-9510				●
2	00.030 LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(RWV) 00.094 GRADE=1X	5-87813-332-0	04	1	9312-9510				●
2	00.030 LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(RWV) 00.094 GRADE=3X	5-87813-333-0	04	1	9312-9510				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-715-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-716-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-717-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-718-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-719-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-720-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-721-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-722-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9312-				●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9312-	●	●
8	00.056 BOLT; BRG CAP M16X119	1-09000-469-1	10	1	9312-			●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9312-	●	●
13	00.293 DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9312-			●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9312-				●
14	00.206 DOWEL; TIMING GEAR CASE TO C/BL OD=11 L=8	9-11229-058-1	01	1	9312-			●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9312-9406	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9503-9711	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9712-	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97078-086-0	01	1	9312-			●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502				●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9712-				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9312-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9312-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9312-9606	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	02	1	9607-9711		●
23	00.034 CUP; SEALING,C/BL FRT & RR TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	02	1	9712-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9607-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9312-9406	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9503-	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9312-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9312-				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502				●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9312-	●	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94107-560-0	01	1	9312-9510			●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9312-	●	●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9312-	●	●
25	00.539 METAL; CM/SHF FRONT	9-11691-048-0	01	1	9312-			●
25	00.539 METAL; CM/SHF CENTER & REAR	9-11693-035-0	02	1	9312-			●
34	01.609 VALVE; OIL RELIEF	8-97023-339-0	01	1	9312-			●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	9312-				●
35	01.609 GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9312-			●
37	01.531 PLUG; OIL GALLERY	8-97025-440-0	02	1	9312-			●
38	00.206 PIN; TIMING GEAR CASE OD=10 L=50	9-08151-050-0	01	1	9312-			●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9312-	●	●
40	00.034 CUP; SEALING,C/BL RR OD=67	8-94344-462-0	01	1	9312-			●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9312-9403	●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	08	1	9404-9410	●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9411-	●	●
54	01.428 STUD; OIL PAN TO BLOCK NOISE PACK FOR CHINESE REGULATION<6QX> M8X41.5	5-11369-101-0	07	1	9312-9406			●
54	01.428 STUD; OIL PAN TO BLOCK FAN FLUID DRIVE<KA3> M8X41.5	5-11369-101-0	07	1	9407-9510			●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	9312-9510				●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=32	9-04110-820-0	04	1	9405-9604				●
55	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	06	1	9312-			●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9312-	●	●
70	00.034 CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9312-			●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9312-				●
71	00.443 GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94367-368-1	02	1	9312-			●
72	00.439 COVER; TAPPET CHAMBER	8-97028-525-0	02	1	9312-			●
74	00.443 BOLT; COVER TO C/BL (A) M8X56 FLANGE	8-94367-530-1	03	1	9312-			●
74	00.443 BOLT; COVER TO C/BL (B) M8X56	8-94367-531-1	01	1	9312-			●
76	01.724 GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-668-0	01	1	9312-			●
77	01.653 BOLT; COVER TO C/BL 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9312-			●
80	00.034 CUP; SEALING,TAPPET CHAMBER OD=32	1-09600-012-1	02	1	9312-			●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=18	9-08151-018-0	02	1	9312-			●
128	00.056 PIN; STRAIGHT,OIL SEAL RET 08.939 OD=8 L=16	9-08150-816-0	02	1	9312-			●
130	00.056 DOWEL; BRG CAP	5-11257-001-1	01	1	9312-			●
131	00.034 PLUG; TAPER,C/BL PT3/8	9-99205-517-0	01	1	9312-			●
133	00.446 STUD; BED PLATE	9-04100-840-0	04	1	9312-9510			●
133	00.446 STUD; BED PLATE	9-04100-840-0	04	1	9706-9708			●
133	00.446 STUD; BED PLATE 03.275 M8X40 L=52	9-04110-840-0	04	1	9709-			●
134	01.531 PLUG; OIL PUMP	8-94105-114-2	01	1	9312-			●
135	01.723 COVER; OIL PUMP	8-94254-920-0	01	1	9312-			●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94105-115-1	01	1	9312-			●
137	00.034 COCK; DRAIN,WATER	1-09680-025-0	01	1	9312-9312			●	●
137	00.034 COCK; DRAIN,WATER	1-09680-025-0	01	1	9401-			●
138	01.531 NIPPLE; OIL RETURN,VAC PUMP EXC. REFRIGERATOR CHASSIS(V4R) 03.280	5-09744-015-2	01	1	9312-9711			●
138	01.531 NIPPLE; OIL RETURN,VAC PUMP 03.280	5-09744-015-2	01	1	9712-			●
139	03.280 GASKET; NIPPLE,VAC PUMP OIL RETU EXC. REFRIGERATOR CHASSIS(V4R) 08.929 ID=14.2 OD=20.0	9-09571-614-0	01	1	9312-9711			●
139	03.280 GASKET; NIPPLE,VAC PUMP OIL RETU 08.929 ID=14.2 OD=20.0	9-09571-614-0	01	1	9712-			●
149	01.540 WASHER; LK,CLIP,HARNESS 00.002 ID=8.2	9-09150-508-0	01	1	9312-9402			●
149	01.540 WASHER; LK,CLIP,HARNESS EXC. REFRIGERATOR CHASSIS(V4R) 00.002 ID=8.2	9-09150-508-0	01	1	9403-9406			●
149	01.540 WASHER; LK,CLIP,HARNESS 00.002 ID=8.2	9-09150-508-0	01	1	9407-9510			●
149	01.540 WASHER; LK,CLIP,HARNESS EXC. REFRIGERATOR CHASSIS(V4R) 00.002 ID=8.2	9-09150-508-0	01	1	9511-9711			●
149	01.540 WASHER; LK,CLIP,HARNESS 00.002 ID=8.2	9-09150-508-0	01	1	9712-			●
149	01.540 WASHER; LK,CLIP,HARNESS REFRIGERATOR CHASSIS(V4R) 00.002 ID=10.2	9-09150-510-0	01	1	9403-9711			●
151	02.313 NUT; CLIP HARNESS EXC. REFRIGERATOR CHASSIS(V4R) 02.559 M8	9-09110-408-0	01	1	9312-9312			●
151	02.313 NUT; CLIP HARNESS 02.559 M8	9-09110-408-0	01	1	9401-9402			●
151	02.313 NUT; CLIP HARNESS EXC. REFRIGERATOR CHASSIS(V4R) 02.559 M8	9-09110-408-0	01	1	9403-9711			●
151	02.313 NUT; CLIP HARNESS 02.559 M8	9-09110-408-0	01	1	9712-			●
179	03.278 GASKET; COVER TO BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=8.2 OD=17	9-09572-008-0	04	1	9312-			●

117 121 120 119 119 119 119 222 115 117 120 121 119 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D
115	00.034 RUBBER; SPACE EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-688-2	01	1	9512-9711	●
115	00.034 RUBBER; SPACE EURO2 SPECIFICATION<7AF>	8-97141-688-2	01	1	9712-	●
115	00.034 RUBBER; SPACE EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-687-0	01	1	9610-9711	●
115	00.034 RUBBER; SPACE EURO2 SPECIFICATION<7AF>	8-97141-687-0	01	1	9712-	●
117	00.030 COVER ASM; C/BL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-686-0	01	1	9610-9711	●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-686-0	01	1	9712-	●
117	00.030 COVER ASM; C/BL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-685-1	01	1	9610-9711	●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-685-1	01	1	9712-	●
117	00.030 COVER ASM; C/BL	8-97075-841-3	01	1	9312-9408		●
117	00.030 COVER ASM; C/BL	8-97118-347-0	01	1	9409-9510		●
119	00.034 BOLT; COVER FIX EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9712-9804	●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9805-	●
119	00.034 BOLT; COVER FIX EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9712-	●
119	00.034 BOLT; COVER FIX EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> (A) M10X28	8-94329-952-1	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (A) M10X28	8-94329-952-1	01	1	9712-	●
119	00.034 BOLT; COVER FIX EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9610-9711	●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9712-	●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9312-9405		●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9406-9510		●
120	00.034 BUSHING; MTG RUBBER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> OD=13 T=9.5	8-94140-427-1	06	1	9702-9711	●
120	00.034 BUSHING; MTG RUBBER EURO2 SPECIFICATION<7AF> OD=13 T=9.5	8-94140-427-1	06	1	9712-	●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	04	1	9312-9510		●
121	00.034 RUBBER; MTG,COVER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> OD=22	8-94140-428-1	06	1	9702-9711	●
121	00.034 RUBBER; MTG,COVER EURO2 SPECIFICATION<7AF> OD=22	8-94140-428-1	06	1	9712-	●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	04	1	9312-9510		●
222	00.340 BRACKET; COVER,C/BL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-94460-512-0	01	1	9610-9711	●
222	00.340 BRACKET; COVER,C/BL EURO2 SPECIFICATION<7AF>	8-94460-512-0	01	1	9712-	●

13 148 150 13 148 150 61 70 51 52 17 148 150 53 50 54 15 40 69 15 24 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9312-	●	●
13	00.293 DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9312-			●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9312-				●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9312-	●	●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9312-	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9312-9406	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9503-9711	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9712-	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97078-086-0	01	1	9312-			●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502				●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9712-				●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9312-	●	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94107-560-0	01	1	9312-9510			●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9312-	●	●
40	00.034 CUP; SEALING,C/BL RR OD=67	8-94344-462-0	01	1	9312-			●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9312-	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9312-	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-94167-750-2	01	1	9603-9711	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EURO2 SPECIFICATION<7AF>	8-94167-750-2	01	1	9712-	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-1	01	1	9312-9602	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-1	01	1	9603-9609		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. EURO2 SPECIFICATION<7AF>	8-94167-749-1	01	1	9610-9708	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. EURO2 SPECIFICATION<7AF>	8-94167-749-2	01	1	9709-	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-2	01	1	9709-		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9312-9403	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9404-	●	●
53	00.862 BOLT; REAMER M10X60	8-94200-831-2	01	1	9312-9403		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9312-9403	●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	08	1	9404-9410	●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9411-	●	●
54	01.428 STUD; OIL PAN TO BLOCK NOISE PACK FOR CHINESE REGULATION<6QX> M8X41.5	5-11369-101-0	07	1	9312-9406			●
54	01.428 STUD; OIL PAN TO BLOCK FAN FLUID DRIVE<KA3> M8X41.5	5-11369-101-0	07	1	9407-9510			●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	9312-9510				●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=32	9-04110-820-0	04	1	9405-9604				●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9312-	●	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9312-				●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9312-	●	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9312-9502		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9312-	●	●
70	00.034 CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9312-			●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9312-				●
148	02.313 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9407-	●	●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9407-	●	●

1 21 21 4 22 23 23 23 23 7 25 63 2 8 60 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9312-	●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9312-		●
1	00.033 BLOCK ASM; CYL	8-97017-152-1	01	1	9312-			●
1	00.033 BLOCK ASM; CYL	8-97092-832-0	01	1	9312-9312				●
1	00.033 BLOCK ASM; CYL	8-97049-465-7	01	1	9401-9401				●
1	00.033 BLOCK ASM; CYL	8-97103-761-1	01	1	9402-9410				●
1	00.033 BLOCK ASM; CYL	8-97119-775-0	01	1	9411-9510				●
1	00.033 BLOCK ASM; CYL	8-97074-833-6	01	1	9511-9604				●
1	00.033 BLOCK ASM; CYL	8-97146-438-5	01	1	9605-9711				●
1	00.033 BLOCK ASM; CYL	8-97163-853-2	01	1	9712-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-205-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-206-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-207-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-208-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-205-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-206-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-207-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-208-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9712-9802	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9712-9802	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9712-9802	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-177-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-178-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-179-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-180-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-181-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=1	5-87813-181-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=1	5-87813-181-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-182-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=2	5-87813-182-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=2	5-87813-182-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-183-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=3	5-87813-183-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=3	5-87813-183-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-184-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=4	5-87813-184-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=4	5-87813-184-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=1	5-87813-193-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=1	5-87813-193-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=2	5-87813-194-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=2	5-87813-194-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=3	5-87813-195-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=3	5-87813-195-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=4	5-87813-196-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=4	5-87813-196-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-177-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-177-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-178-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-178-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-179-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-179-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-180-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-180-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-160-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-160-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-161-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-161-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-162-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-162-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-163-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-163-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-336-0	04	1	9511-9704				●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9705-9711				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-337-0	04	1	9511-9704				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9705-9711				●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9712-				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9712-				●
2	00.030 LINER SET; ENG CYL TAIWAN EQUIPMENT(RWV) 00.094 GRADE=1X	5-87813-334-0	04	1	9312-9510				●
2	00.030 LINER SET; ENG CYL TAIWAN EQUIPMENT(RWV) 00.094 GRADE=3X	5-87813-335-0	04	1	9312-9510				●
2	00.030 LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(RWV) 00.094 GRADE=1X	5-87813-332-0	04	1	9312-9510				●
2	00.030 LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(RWV) 00.094 GRADE=3X	5-87813-333-0	04	1	9312-9510				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-715-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-716-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-717-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-718-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-719-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-720-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-721-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-722-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9312-				●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9312-9502		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9503-	●	●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9401-				●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9312-	●	●
8	00.056 BOLT; BRG CAP M16X119	1-09000-469-1	10	1	9312-			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9312-	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9312-	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9312-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9312-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9312-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9312-9606	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	02	1	9607-9711		●
23	00.034 CUP; SEALING,C/BL FRT & RR TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	02	1	9712-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9607-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9312-9406	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9503-	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9312-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9312-				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502				●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9312-	●	●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9312-	●	●
25	00.539 METAL; CM/SHF FRONT	9-11691-048-0	01	1	9312-			●
25	00.539 METAL; CM/SHF CENTER & REAR	9-11693-035-0	02	1	9312-			●
60	01.531 BOLT; OIL JET 04.520 M16X8 PLUG	9-09661-005-0	01	1	9312-9503		●
60	01.531 BOLT; OIL JET 04.105 M16X12	9-99202-316-0	01	1	9504-9606		●
60	01.531 BOLT; OIL JET EXC. TURBOCHARGER<K51> 04.105 M16X12	9-99202-316-0	01	1	9607-		●
63	01.153 DUCT; WATER,C/BL	8-94456-794-2	01	1	9312-	●
63	01.153 DUCT; WATER,C/BL	8-94419-436-1	01	1	9312-		●

1 21 21 4 22 23 23 23 23 25 62 7 63 2 8 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9312-	●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9312-		●
1	00.033 BLOCK ASM; CYL	8-97017-152-1	01	1	9312-			●
1	00.033 BLOCK ASM; CYL	8-97092-832-0	01	1	9312-9312				●
1	00.033 BLOCK ASM; CYL	8-97049-465-7	01	1	9401-9401				●
1	00.033 BLOCK ASM; CYL	8-97103-761-1	01	1	9402-9410				●
1	00.033 BLOCK ASM; CYL	8-97119-775-0	01	1	9411-9510				●
1	00.033 BLOCK ASM; CYL	8-97074-833-6	01	1	9511-9604				●
1	00.033 BLOCK ASM; CYL	8-97146-438-5	01	1	9605-9711				●
1	00.033 BLOCK ASM; CYL	8-97163-853-2	01	1	9712-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-205-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-206-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-207-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-208-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-205-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-206-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-207-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-208-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9712-9802	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9712-9802	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9712-9802	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-177-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-178-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-179-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-180-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-181-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=1	5-87813-181-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=1	5-87813-181-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-182-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=2	5-87813-182-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=2	5-87813-182-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-183-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=3	5-87813-183-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=3	5-87813-183-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-184-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=4	5-87813-184-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=4	5-87813-184-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=1	5-87813-193-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=1	5-87813-193-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=2	5-87813-194-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=2	5-87813-194-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=3	5-87813-195-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=3	5-87813-195-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=4	5-87813-196-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=4	5-87813-196-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-177-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-177-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-178-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-178-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-179-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-179-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-180-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-180-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-160-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-160-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-161-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-161-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-162-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-162-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-163-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-163-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-336-0	04	1	9511-9704				●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9705-9711				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-337-0	04	1	9511-9704				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9705-9711				●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9712-				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9712-				●
2	00.030 LINER SET; ENG CYL TAIWAN EQUIPMENT(RWV) 00.094 GRADE=1X	5-87813-334-0	04	1	9312-9510				●
2	00.030 LINER SET; ENG CYL TAIWAN EQUIPMENT(RWV) 00.094 GRADE=3X	5-87813-335-0	04	1	9312-9510				●
2	00.030 LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(RWV) 00.094 GRADE=1X	5-87813-332-0	04	1	9312-9510				●
2	00.030 LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(RWV) 00.094 GRADE=3X	5-87813-333-0	04	1	9312-9510				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-715-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-716-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-717-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-718-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-719-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-720-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-721-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-722-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9312-				●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9312-9502		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9503-	●	●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9401-				●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9312-	●	●
8	00.056 BOLT; BRG CAP M16X119	1-09000-469-1	10	1	9312-			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9312-	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9312-	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9312-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9312-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9312-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9312-9606	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	02	1	9607-9711		●
23	00.034 CUP; SEALING,C/BL FRT & RR TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	02	1	9712-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9607-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9312-9406	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9503-	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9312-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9312-				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502				●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	9312-	●	●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9312-	●	●
25	00.539 METAL; CM/SHF FRONT	9-11691-048-0	01	1	9312-			●
25	00.539 METAL; CM/SHF CENTER & REAR	9-11693-035-0	02	1	9312-			●
62	00.034 CUP; SEALING,C/BL FRT EUROPEAN BASIC EQUIPMENT(EK4) OD=14	5-11219-011-0	01	1	9312-9506	●
62	00.034 CUP; SEALING,C/BL FRT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) OD=14	5-11219-011-0	01	1	9507-9711	●
62	00.034 CUP; SEALING,C/BL FRT EURO2 SPECIFICATION<7AF> OD=14	5-11219-011-0	01	1	9712-	●
63	01.153 DUCT; WATER,C/BL	8-94456-794-2	01	1	9312-	●
63	01.153 DUCT; WATER,C/BL	8-94419-436-1	01	1	9312-		●

13 194 148 150 13 148 150 61 70 51 52 17 148 150 53 50 15 54 24 40 69 15 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9312-	●	●
13	00.293 DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9312-			●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9312-				●
15	01.531 PLUG; OIL GALLERY (A) PT1/8	1-09605-050-0	02	1	9312-	●	●
15	01.531 PLUG; OIL GALLERY 03.001 (B) M14X14	8-94152-613-0	01	1	9312-	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9312-9406	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9503-9711	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9712-	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97078-086-0	01	1	9312-			●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502				●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9712-				●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	9312-	●	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94107-560-0	01	1	9312-9510			●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9312-	●	●
40	00.034 CUP; SEALING,C/BL RR OD=67	8-94344-462-0	01	1	9312-			●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9312-	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9312-	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-94167-750-2	01	1	9603-9711	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EURO2 SPECIFICATION<7AF>	8-94167-750-2	01	1	9712-	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-1	01	1	9312-9602	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-1	01	1	9603-9609		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. EURO2 SPECIFICATION<7AF>	8-94167-749-1	01	1	9610-9708	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B EXC. EURO2 SPECIFICATION<7AF>	8-94167-749-2	01	1	9709-	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-749-2	01	1	9709-		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9312-9403	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9404-	●	●
53	00.862 BOLT; REAMER M10X60	8-94200-831-2	01	1	9312-9403		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9312-9403	●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	08	1	9404-9410	●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9411-	●	●
54	01.428 STUD; OIL PAN TO BLOCK NOISE PACK FOR CHINESE REGULATION<6QX> M8X41.5	5-11369-101-0	07	1	9312-9406			●
54	01.428 STUD; OIL PAN TO BLOCK FAN FLUID DRIVE<KA3> M8X41.5	5-11369-101-0	07	1	9407-9510			●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	9312-9510				●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=32	9-04110-820-0	04	1	9405-9604				●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9312-	●	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9312-				●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9312-	●	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9312-9502		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9312-	●	●
70	00.034 CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9312-			●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9312-				●
148	02.313 CLIP; HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9407-	●	●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9407-	●	●
194	00.439 PIPE; OIL DRAIN,C/BL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51>	8-97137-781-0	01	1	9607-9711		●
194	00.439 PIPE; OIL DRAIN,C/BL TURBOCHARGER<K51>	8-97137-781-0	01	1	9712-		●

119 121 117 120 335 7 137 351 13 4 23 70 23 34 1 61 70 89 61 212 2 17 4 211 211 56 54 205 406 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97043-280-0	01	1	9312-	●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9312-		●
1	00.033 BLOCK ASM; CYL	8-97017-152-1	01	1	9312-			●
1	00.033 BLOCK ASM; CYL	8-97092-832-0	01	1	9312-9312				●
1	00.033 BLOCK ASM; CYL	8-97049-465-7	01	1	9401-9401				●
1	00.033 BLOCK ASM; CYL	8-97103-761-1	01	1	9402-9410				●
1	00.033 BLOCK ASM; CYL	8-97119-775-0	01	1	9411-9510				●
1	00.033 BLOCK ASM; CYL	8-97074-833-6	01	1	9511-9604				●
1	00.033 BLOCK ASM; CYL	8-97146-438-5	01	1	9605-9711				●
1	00.033 BLOCK ASM; CYL	8-97163-853-2	01	1	9712-				●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-205-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-206-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-207-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-208-0	04	1	9312-9510	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-205-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-206-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-207-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-208-0	04	1	9511-9511	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9512-9803	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-205-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-206-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-207-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EXC. EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-208-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=1	5-87813-209-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9712-9802	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=2	5-87813-210-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9712-9802	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=3	5-87813-211-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9512-9711	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9712-9802	●
2	00.030 LINER SET; ENG CYL EURO2 SPECIFICATION<7AF> 00.094 GRADE=4	5-87813-212-0	04	1	9804-	●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-177-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-178-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-179-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-180-0	04	1	9312-9510		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-181-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=1	5-87813-181-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=1	5-87813-181-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-182-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=2	5-87813-182-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=2	5-87813-182-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-183-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=3	5-87813-183-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=3	5-87813-183-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-184-0	04	1	9511-9606		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 00.094 GRADE=4	5-87813-184-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=4	5-87813-184-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=1	5-87813-193-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=1	5-87813-193-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=2	5-87813-194-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=2	5-87813-194-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=3	5-87813-195-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=3	5-87813-195-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> GRADE=4	5-87813-196-0	04	1	9607-9711		●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=4	5-87813-196-0	04	1	9712-		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-177-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=1	5-87813-177-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-178-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=2	5-87813-178-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-179-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=3	5-87813-179-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-180-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL EXC. EURO1 SPECIFICATION<6YW> 00.094 GRADE=4	5-87813-180-0	04	1	9511-9711		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-160-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1	5-87813-160-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-161-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=2	5-87813-161-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-162-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3	5-87813-162-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-163-0	04	1	9312-9801			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=4	5-87813-163-0	01	1	9802-			●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-336-0	04	1	9511-9704				●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9705-9711				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-337-0	04	1	9511-9704				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9705-9711				●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9712-				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9712-				●
2	00.030 LINER SET; ENG CYL TAIWAN EQUIPMENT(RWV) 00.094 GRADE=1X	5-87813-334-0	04	1	9312-9510				●
2	00.030 LINER SET; ENG CYL TAIWAN EQUIPMENT(RWV) 00.094 GRADE=3X	5-87813-335-0	04	1	9312-9510				●
2	00.030 LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(RWV) 00.094 GRADE=1X	5-87813-332-0	04	1	9312-9510				●
2	00.030 LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(RWV) 00.094 GRADE=3X	5-87813-333-0	04	1	9312-9510				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9312-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9312-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-715-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-716-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-717-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-718-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-719-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-720-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-721-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-722-0	04	1	9312-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9312-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9312-				●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9312-9502		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9503-	●	●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9401-				●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9312-	●	●
13	00.293 DOWEL; C/BL TO HD OD=16	8-94148-079-0	02	1	9312-			●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9312-				●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9312-9406	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9503-9711	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9712-	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97078-086-0	01	1	9312-			●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9407-9502				●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9712-				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	9312-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	9312-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9312-9606	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	02	1	9607-9711		●
23	00.034 CUP; SEALING,C/BL FRT & RR TURBOCHARGER<K51> (C) OD=36	5-11219-018-0	02	1	9712-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	9607-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9312-9406	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9503-	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=28	5-11219-014-0	01	1	9312-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9312-				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9407-9502				●
34	01.609 VALVE; OIL RELIEF	8-97023-339-0	01	1	9312-			●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	9312-				●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9312-9403	●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	08	1	9404-9410	●	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	9411-	●	●
54	01.428 STUD; OIL PAN TO BLOCK NOISE PACK FOR CHINESE REGULATION<6QX> M8X41.5	5-11369-101-0	07	1	9312-9406			●
54	01.428 STUD; OIL PAN TO BLOCK FAN FLUID DRIVE<KA3> M8X41.5	5-11369-101-0	07	1	9407-9510			●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	9312-9510				●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=32	9-04110-820-0	04	1	9405-9604				●
56	01.519 JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9312-				●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9312-	●	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9312-				●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9312-	●	●
70	00.034 CUP; SEALING,FRT & RR OD=60	1-09600-052-0	02	1	9312-			●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9312-				●
89	00.034 CUP; SEALING,OIL GALLERY 03.265 OD=20	9-11219-192-0	03	1	9312-				●
117	00.030 COVER ASM; C/BL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-686-0	01	1	9610-9711	●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-686-0	01	1	9712-	●
117	00.030 COVER ASM; C/BL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-685-1	01	1	9610-9711	●
117	00.030 COVER ASM; C/BL EURO2 SPECIFICATION<7AF>	8-97141-685-1	01	1	9712-	●
117	00.030 COVER ASM; C/BL	8-97075-841-3	01	1	9312-9408				●
117	00.030 COVER ASM; C/BL	8-97118-347-0	01	1	9409-9510				●
119	00.034 BOLT; COVER FIX EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9712-9804	●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 00.206 (C) M8X10 FLANGE	0-28080-810-0	01	1	9805-	●
119	00.034 BOLT; COVER FIX EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> 11.377 (C) M10X20 W/LK WASHER	0-50041-020-0	01	1	9712-	●
119	00.034 BOLT; COVER FIX EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> (A) M10X28	8-94329-952-1	01	1	9610-9711	●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (A) M10X28	8-94329-952-1	01	1	9712-	●
119	00.034 BOLT; COVER FIX EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9610-9711	●
119	00.034 BOLT; COVER FIX EURO2 SPECIFICATION<7AF> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	9712-	●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	9312-9405				●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9406-9510				●
120	00.034 BUSHING; MTG RUBBER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> OD=13 T=9.5	8-94140-427-1	06	1	9702-9711	●
120	00.034 BUSHING; MTG RUBBER EURO2 SPECIFICATION<7AF> OD=13 T=9.5	8-94140-427-1	06	1	9712-	●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	04	1	9312-9510				●
121	00.034 RUBBER; MTG,COVER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> OD=22	8-94140-428-1	06	1	9702-9711	●
121	00.034 RUBBER; MTG,COVER EURO2 SPECIFICATION<7AF> OD=22	8-94140-428-1	06	1	9712-	●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	04	1	9312-9510				●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9312-				●
137	00.034 COCK; DRAIN,WATER	1-09680-025-0	01	1	9312-9312			●	●
137	00.034 COCK; DRAIN,WATER	1-09680-025-0	01	1	9401-			●
205	01.428 STUD; PUMP HOLE 00.206 M8X18 L=29	8-97028-541-0	01	1	9405-9510				●
205	01.428 STUD; PUMP HOLE M8X18 L=30	9-04110-818-0	01	1	9405-9510				●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	9312-				●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	9312-				●
212	01.428 PIN; CRANKCASE 00.206 L=22	8-94483-674-0	02	1	9312-9604				●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	9605-				●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	04	1	9312-9312				●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	9401-9611				●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	9612-				●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	9401-9602				●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-				●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	9312-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
