0-11 — CYLINDER HEAD (#45800) — 581 parça

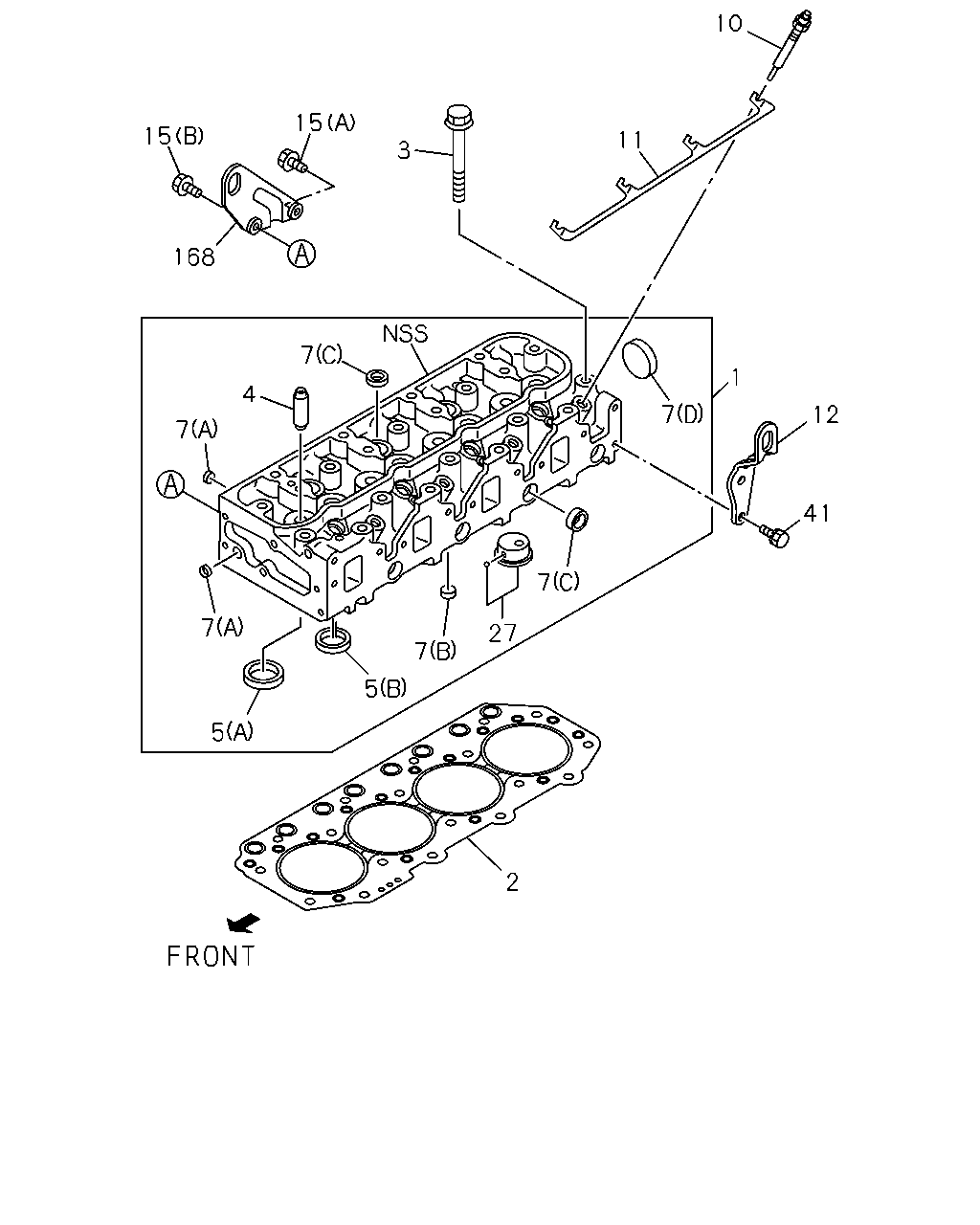

çizim 66634
10 15 15 11 3 168 7 1 4 12 7 7 41 7 7 27 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL 8-97089-280-1 01 1 9312-9511 ●
1 00.269 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<7AF> 		8-97089-280-1 01 1 9512- ●
1 00.269 HEAD ASM; CYL
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 		8-97120-278-0 01 1 9512-9711 ●
1 00.269 HEAD ASM; CYL
EURO2 SPECIFICATION<7AF> 		8-97120-278-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> EXC. OIL COOLER<KC4> 		8-97109-642-0 01 1 9511-9711 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-97109-642-0 01 1 9712-9801 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-97109-642-0 01 1 9802- ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-97176-424-0 01 1 9607-9607 ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-94343-290-0 01 1 9608-9609 ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-97176-424-1 01 1 9610-9711 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97176-424-1 01 1 9712- ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-94327-269-0 01 1 9312-9606 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 		8-94327-269-0 01 1 9607-9708 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,EURO1 SPECIFICATION<6YW> 		8-94327-269-0 01 1 9709-9711 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EURO1 SPECIFICATION<6YW> 		8-97120-178-0 01 1 9511-9711 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97120-178-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-94431-523-0 01 1 9312-9510 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW> 		8-94431-523-0 01 1 9511-9708 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>, EURO1 SPECIFICATION<6YW> 		8-94431-523-0 01 1 9709-9711 ●
1 00.269 HEAD ASM; CYL 8-94478-114-0 01 1 9312-9603 ●
1 00.269 HEAD ASM; CYL 8-97141-822-0 01 1 9604- ●
1 00.269 HEAD ASM; CYL 8-97033-149-2 01 1 9312-9412 ●
1 00.269 HEAD ASM; CYL 8-97126-145-0 01 1 9501-9510 ●
1 00.269 HEAD ASM; CYL 8-97095-664-7 01 1 9511-9604 ●
1 00.269 HEAD ASM; CYL 8-97146-520-2 01 1 9605- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.95 1-NOTCH 		8-94418-919-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.00 2-NOTCH 		8-94418-920-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.05 3-NOTCH 		8-94418-921-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.05 WO/NOTCH 		8-97048-347-0 01 1 9312-9312 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 WO/NOTCH 		8-97107-566-0 01 1 9401-9409 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9410- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.10 1-NOTCH 		8-97048-348-0 01 1 9312-9312 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.75 1-NOTCH 		8-97107-567-0 01 1 9401-9409 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9410- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.15 2-NOTCH 		8-97048-349-0 01 1 9312-9312 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.80 2-NOTCH 		8-97107-568-0 01 1 9401-9409 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9410- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9312-9502 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9503-9510 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KD ENGINE<7MB> M11X122 		8-94455-667-0 18 1 9503-9510 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9511-9701 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702-9705 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9706-9706 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KD ENGINE<7MB> M11X122 		8-97133-416-0 18 1 9706-9706 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KD ENGINE<7MB> M11X122 		8-97133-416-0 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9712- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> M11X122 		8-94455-667-0 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
KD ENGINE<7MB> M11X122 		8-94247-355-1 18 1 9503-9510 ●
3 00.293 BOLT; CYL HD TO BLOCK
KD ENGINE<7MB> M11X122 		8-94247-355-1 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X25,M12X115 L=153 		8-94367-436-0 01 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M12X102 		8-94367-437-0 04 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M12X115 		8-94367-438-0 13 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9312- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9312- ● ●
4 00.283 GUIDE; VLV 5-11721-001-0 08 1 9312- ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 9312- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9312-9607 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHUST 		8-94130-559-0 04 1 9607-9805 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHUST 		8-94130-559-0 04 1 9607-9805 ●
5 00.253 SEAT; VLV INSERT
(B) EXHUST 		8-94130-559-0 04 1 9806- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94130-558-0 04 1 9312-9606 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (A) INLET 		8-94130-558-0 04 1 9607- ●
5 00.253 SEAT; VLV INSERT
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (A) INLET 		8-94431-521-0 04 1 9607-9711 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (A) INLET 		8-94431-521-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (B) EXHUST 		8-94431-522-0 04 1 9607-9711 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (B) EXHUST 		8-94431-522-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		1-11715-034-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(B) EXHUST 		5-11711-028-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94399-148-0 04 1 9312-9412 ●
5 00.253 SEAT; VLV INSERT 8-97088-460-0 04 1 9501-9510 ●
5 00.253 SEAT; VLV INSERT 8-94394-127-0 04 1 9511- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94399-153-0 04 1 9312-9412 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94396-172-0 04 1 9501- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9312-9708 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 06 1 9312-9708 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 07 1 9709-9801 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 07 1 9802- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9312- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 9312- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9312- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 07 1 9312-9708 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9709- ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 06 1 9709- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 07 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=20 		9-11129-128-0 02 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9312-9406 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9407-9502 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9503- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-1 12 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9407-9502 ●
10 02.270 PLUG; GLOW
NGK 		8-97043-744-1 04 1 9312- ●
10 02.270 PLUG; GLOW 8-94133-759-7 04 1 9312- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 9410- ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9312-9406 ● ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9407-9504 ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9505- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9312- ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9407-9504 ●
11 02.251 CONNECTOR; GLOW PLUG 8-94368-252-0 01 1 9312-9602 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9603- ●
11 02.251 CONNECTOR; GLOW PLUG
T=1.0 		8-94133-760-0 01 1 9312-9602 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 9603- ●
11 02.251 CONNECTOR; GLOW PLUG
L=354 		5-19732-002-1 01 1 9312-9612 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97168-879-0 01 1 9701- ●
11 02.251 CONNECTOR; GLOW PLUG 8-94399-608-2 01 1 9312-9508 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9509- ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 9312- ● ●
12 00.004 HANGER; ENG,RR 8-94255-644-1 01 1 9312- ●
12 00.004 HANGER; ENG,RR 8-97071-960-0 01 1 9312- ●
15 00.004 BOLT; HANGER,FRT
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9708 ● ●
15 00.004 BOLT; HANGER,FRT
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9607-9607 ● ●
15 00.004 BOLT; HANGER,FRT
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9709- ● ●
15 00.004 BOLT; HANGER,FRT
00.029 (B) M10X28 W/LK WASHER 		0-50041-028-0 01 1 9312-9803 ● ●
15 00.004 BOLT; HANGER,FRT
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9804- ● ●
15 00.004 BOLT; HANGER,FRT
EXC. REFRIGERATOR CHASSIS(V4R) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9312-9510 ●
15 00.004 BOLT; HANGER,FRT
11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9511- ●
15 00.004 BOLT; HANGER,FRT
M10X18 FLANGE 		0-28181-018-0 02 1 9312-9402 ●
15 00.004 BOLT; HANGER,FRT
01.540 M10X20 FLANGE 		0-28181-020-0 02 1 9403-9606 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9607- ●
27 00.253 PLUG; HOT 8-97089-278-0 04 1 9312-9511 ●
27 00.253 PLUG; HOT
EXC. EURO2 SPECIFICATION<7AF> 		8-97089-278-0 04 1 9512-9802 ●
27 00.253 PLUG; HOT
EXC. EURO2 SPECIFICATION<7AF> 		8-97089-278-0 04 1 9804- ●
27 00.253 PLUG; HOT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 		8-97120-280-0 04 1 9512-9711 ●
27 00.253 PLUG; HOT
EURO2 SPECIFICATION<7AF> 		8-97120-280-0 04 1 9712- ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9312- ● ●
41 09.181 BOLT; ENG HANGER
00.029 M12X28 FLANGE 		0-28181-228-0 02 1 9312-9711 ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 9312- ● ●
168 00.004 HANGER; ENG,FRT
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97087-057-1 01 1 9312-9510 ●
168 00.004 HANGER; ENG,FRT 8-97087-057-1 01 1 9511- ●
168 00.004 HANGER; ENG,FRT
(A) 		8-94334-929-2 01 1 9312-9406 ●
168 00.004 HANGER; ENG,FRT
(B) 		8-97104-515-1 01 1 9407- ●

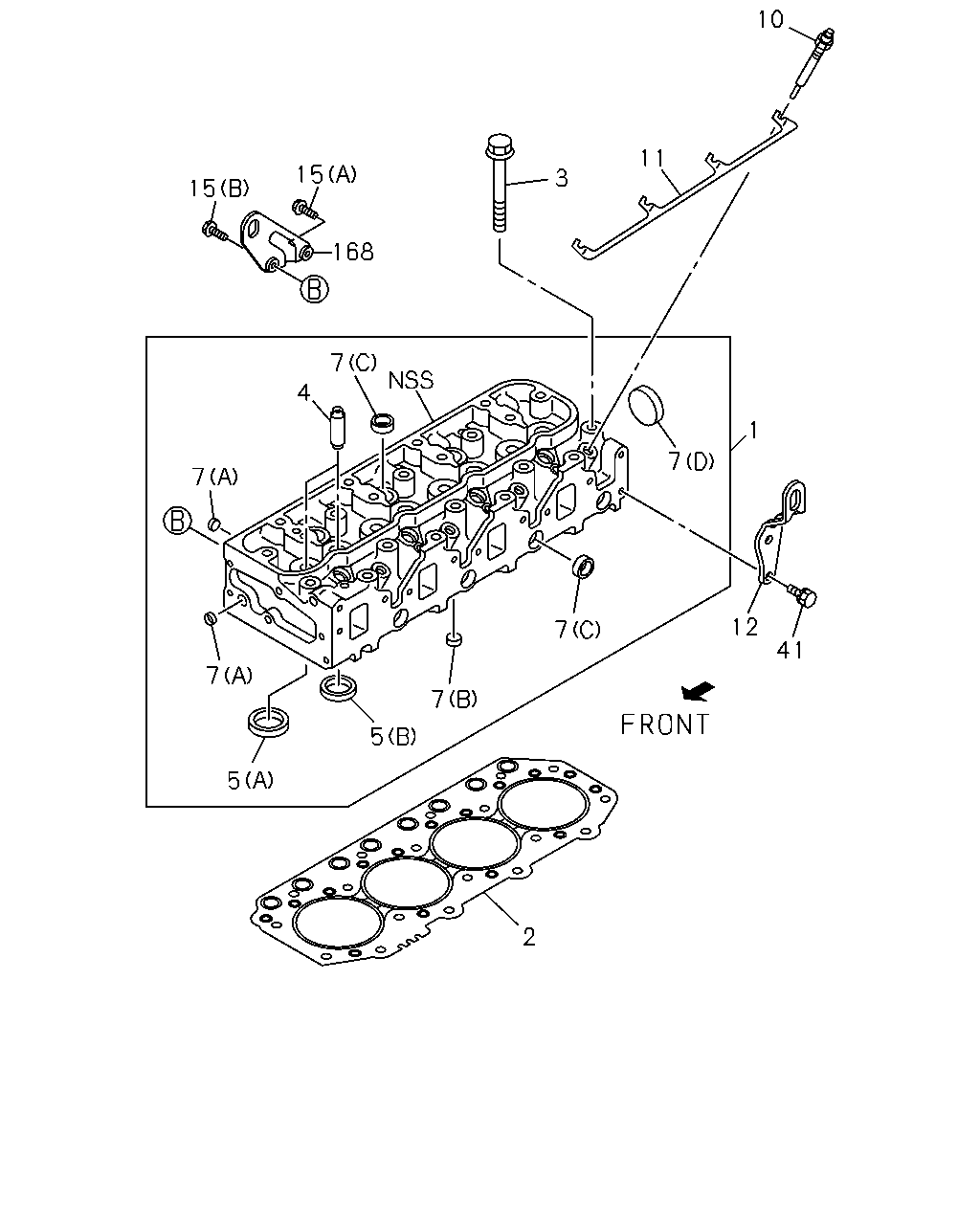

çizim 67442
10 11 15 3 15 168 7 4 1 7 7 12 7 41 7 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL 8-97089-280-1 01 1 9312-9511 ●
1 00.269 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<7AF> 		8-97089-280-1 01 1 9512- ●
1 00.269 HEAD ASM; CYL
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 		8-97120-278-0 01 1 9512-9711 ●
1 00.269 HEAD ASM; CYL
EURO2 SPECIFICATION<7AF> 		8-97120-278-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> EXC. OIL COOLER<KC4> 		8-97109-642-0 01 1 9511-9711 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-97109-642-0 01 1 9712-9801 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-97109-642-0 01 1 9802- ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-97176-424-0 01 1 9607-9607 ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-94343-290-0 01 1 9608-9609 ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-97176-424-1 01 1 9610-9711 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97176-424-1 01 1 9712- ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-94327-269-0 01 1 9312-9606 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 		8-94327-269-0 01 1 9607-9708 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,EURO1 SPECIFICATION<6YW> 		8-94327-269-0 01 1 9709-9711 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EURO1 SPECIFICATION<6YW> 		8-97120-178-0 01 1 9511-9711 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97120-178-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-94431-523-0 01 1 9312-9510 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW> 		8-94431-523-0 01 1 9511-9708 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>, EURO1 SPECIFICATION<6YW> 		8-94431-523-0 01 1 9709-9711 ●
1 00.269 HEAD ASM; CYL 8-94478-114-0 01 1 9312-9603 ●
1 00.269 HEAD ASM; CYL 8-97141-822-0 01 1 9604- ●
1 00.269 HEAD ASM; CYL 8-97033-149-2 01 1 9312-9412 ●
1 00.269 HEAD ASM; CYL 8-97126-145-0 01 1 9501-9510 ●
1 00.269 HEAD ASM; CYL 8-97095-664-7 01 1 9511-9604 ●
1 00.269 HEAD ASM; CYL 8-97146-520-2 01 1 9605- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.95 1-NOTCH 		8-94418-919-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.00 2-NOTCH 		8-94418-920-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.05 3-NOTCH 		8-94418-921-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.05 WO/NOTCH 		8-97048-347-0 01 1 9312-9312 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 WO/NOTCH 		8-97107-566-0 01 1 9401-9409 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9410- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.10 1-NOTCH 		8-97048-348-0 01 1 9312-9312 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.75 1-NOTCH 		8-97107-567-0 01 1 9401-9409 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9410- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.15 2-NOTCH 		8-97048-349-0 01 1 9312-9312 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.80 2-NOTCH 		8-97107-568-0 01 1 9401-9409 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9410- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9312-9502 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9503-9510 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KD ENGINE<7MB> M11X122 		8-94455-667-0 18 1 9503-9510 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9511-9701 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702-9705 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9706-9706 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KD ENGINE<7MB> M11X122 		8-97133-416-0 18 1 9706-9706 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KD ENGINE<7MB> M11X122 		8-97133-416-0 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9712- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> M11X122 		8-94455-667-0 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
KD ENGINE<7MB> M11X122 		8-94247-355-1 18 1 9503-9510 ●
3 00.293 BOLT; CYL HD TO BLOCK
KD ENGINE<7MB> M11X122 		8-94247-355-1 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X25,M12X115 L=153 		8-94367-436-0 01 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M12X102 		8-94367-437-0 04 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M12X115 		8-94367-438-0 13 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9312- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9312- ● ●
4 00.283 GUIDE; VLV 5-11721-001-0 08 1 9312- ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 9312- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9312-9607 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHUST 		8-94130-559-0 04 1 9607-9805 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHUST 		8-94130-559-0 04 1 9607-9805 ●
5 00.253 SEAT; VLV INSERT
(B) EXHUST 		8-94130-559-0 04 1 9806- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94130-558-0 04 1 9312-9606 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (A) INLET 		8-94130-558-0 04 1 9607- ●
5 00.253 SEAT; VLV INSERT
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (A) INLET 		8-94431-521-0 04 1 9607-9711 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (A) INLET 		8-94431-521-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (B) EXHUST 		8-94431-522-0 04 1 9607-9711 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (B) EXHUST 		8-94431-522-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		1-11715-034-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(B) EXHUST 		5-11711-028-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94399-148-0 04 1 9312-9412 ●
5 00.253 SEAT; VLV INSERT 8-97088-460-0 04 1 9501-9510 ●
5 00.253 SEAT; VLV INSERT 8-94394-127-0 04 1 9511- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94399-153-0 04 1 9312-9412 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94396-172-0 04 1 9501- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9312-9708 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 06 1 9312-9708 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 07 1 9709-9801 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 07 1 9802- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9312- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 9312- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9312- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 07 1 9312-9708 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9709- ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 06 1 9709- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 07 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=20 		9-11129-128-0 02 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9312-9406 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9407-9502 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9503- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-1 12 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9407-9502 ●
10 02.270 PLUG; GLOW
NGK 		8-97043-744-1 04 1 9312- ●
10 02.270 PLUG; GLOW 8-94133-759-7 04 1 9312- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 9410- ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9312-9406 ● ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9407-9504 ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9505- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9312- ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9407-9504 ●
11 02.251 CONNECTOR; GLOW PLUG 8-94368-252-0 01 1 9312-9602 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9603- ●
11 02.251 CONNECTOR; GLOW PLUG
T=1.0 		8-94133-760-0 01 1 9312-9602 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 9603- ●
11 02.251 CONNECTOR; GLOW PLUG
L=354 		5-19732-002-1 01 1 9312-9612 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97168-879-0 01 1 9701- ●
11 02.251 CONNECTOR; GLOW PLUG 8-94399-608-2 01 1 9312-9508 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9509- ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 9312- ● ●
12 00.004 HANGER; ENG,RR 8-94255-644-1 01 1 9312- ●
12 00.004 HANGER; ENG,RR 8-97071-960-0 01 1 9312- ●
15 00.004 BOLT; HANGER,FRT
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9708 ● ●
15 00.004 BOLT; HANGER,FRT
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9607-9607 ● ●
15 00.004 BOLT; HANGER,FRT
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9709- ● ●
15 00.004 BOLT; HANGER,FRT
00.029 (B) M10X28 W/LK WASHER 		0-50041-028-0 01 1 9312-9803 ● ●
15 00.004 BOLT; HANGER,FRT
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9804- ● ●
15 00.004 BOLT; HANGER,FRT
EXC. REFRIGERATOR CHASSIS(V4R) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9312-9510 ●
15 00.004 BOLT; HANGER,FRT
11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9511- ●
15 00.004 BOLT; HANGER,FRT
M10X18 FLANGE 		0-28181-018-0 02 1 9312-9402 ●
15 00.004 BOLT; HANGER,FRT
01.540 M10X20 FLANGE 		0-28181-020-0 02 1 9403-9606 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9607- ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9312- ● ●
41 09.181 BOLT; ENG HANGER
00.029 M12X28 FLANGE 		0-28181-228-0 02 1 9312-9711 ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 9312- ● ●
168 00.004 HANGER; ENG,FRT
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97087-057-1 01 1 9312-9510 ●
168 00.004 HANGER; ENG,FRT 8-97087-057-1 01 1 9511- ●
168 00.004 HANGER; ENG,FRT
(A) 		8-94334-929-2 01 1 9312-9406 ●
168 00.004 HANGER; ENG,FRT
(B) 		8-97104-515-1 01 1 9407- ●

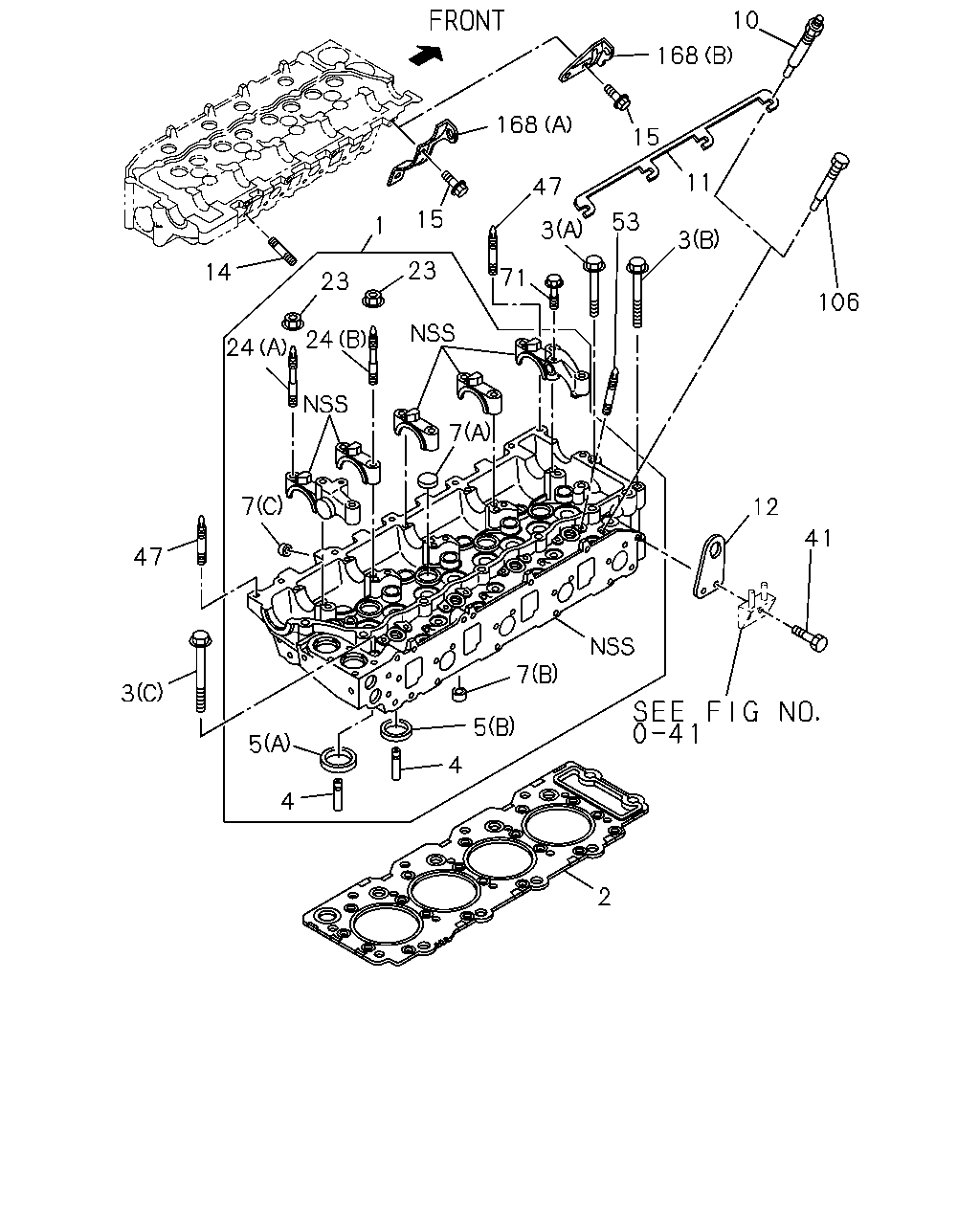

çizim 68393
10 168 168 15 11 47 15 53 1 3 3 23 14 71 23 106 24 24 7 7 12 41 47 7 3 5 5 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL 8-97089-280-1 01 1 9312-9511 ●

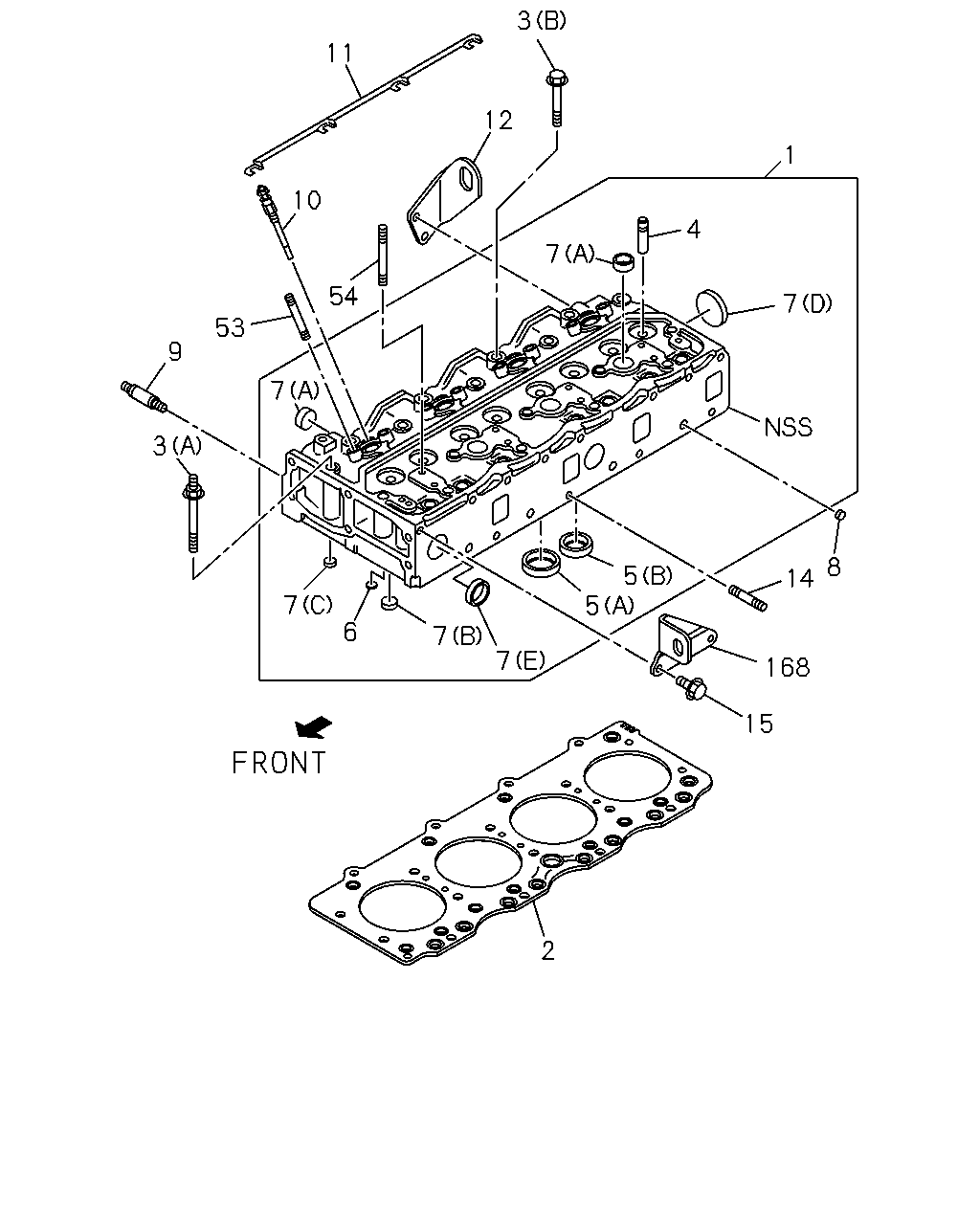

1 00.269 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<7AF> 		8-97089-280-1 01 1 9512- ●
1 00.269 HEAD ASM; CYL
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 		8-97120-278-0 01 1 9512-9711 ●
1 00.269 HEAD ASM; CYL
EURO2 SPECIFICATION<7AF> 		8-97120-278-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> EXC. OIL COOLER<KC4> 		8-97109-642-0 01 1 9511-9711 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-97109-642-0 01 1 9712-9801 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-97109-642-0 01 1 9802- ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-97176-424-0 01 1 9607-9607 ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-94343-290-0 01 1 9608-9609 ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-97176-424-1 01 1 9610-9711 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97176-424-1 01 1 9712- ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-94327-269-0 01 1 9312-9606 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 		8-94327-269-0 01 1 9607-9708 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,EURO1 SPECIFICATION<6YW> 		8-94327-269-0 01 1 9709-9711 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EURO1 SPECIFICATION<6YW> 		8-97120-178-0 01 1 9511-9711 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97120-178-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-94431-523-0 01 1 9312-9510 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW> 		8-94431-523-0 01 1 9511-9708 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>, EURO1 SPECIFICATION<6YW> 		8-94431-523-0 01 1 9709-9711 ●
1 00.269 HEAD ASM; CYL 8-94478-114-0 01 1 9312-9603 ●
1 00.269 HEAD ASM; CYL 8-97141-822-0 01 1 9604- ●
1 00.269 HEAD ASM; CYL 8-97033-149-2 01 1 9312-9412 ●
1 00.269 HEAD ASM; CYL 8-97126-145-0 01 1 9501-9510 ●
1 00.269 HEAD ASM; CYL 8-97095-664-7 01 1 9511-9604 ●
1 00.269 HEAD ASM; CYL 8-97146-520-2 01 1 9605- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.95 1-NOTCH 		8-94418-919-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.00 2-NOTCH 		8-94418-920-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.05 3-NOTCH 		8-94418-921-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.05 WO/NOTCH 		8-97048-347-0 01 1 9312-9312 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 WO/NOTCH 		8-97107-566-0 01 1 9401-9409 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9410- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.10 1-NOTCH 		8-97048-348-0 01 1 9312-9312 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.75 1-NOTCH 		8-97107-567-0 01 1 9401-9409 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9410- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.15 2-NOTCH 		8-97048-349-0 01 1 9312-9312 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.80 2-NOTCH 		8-97107-568-0 01 1 9401-9409 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9410- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9312-9502 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9503-9510 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KD ENGINE<7MB> M11X122 		8-94455-667-0 18 1 9503-9510 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9511-9701 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702-9705 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9706-9706 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KD ENGINE<7MB> M11X122 		8-97133-416-0 18 1 9706-9706 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KD ENGINE<7MB> M11X122 		8-97133-416-0 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9712- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> M11X122 		8-94455-667-0 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
KD ENGINE<7MB> M11X122 		8-94247-355-1 18 1 9503-9510 ●
3 00.293 BOLT; CYL HD TO BLOCK
KD ENGINE<7MB> M11X122 		8-94247-355-1 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X25,M12X115 L=153 		8-94367-436-0 01 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M12X102 		8-94367-437-0 04 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M12X115 		8-94367-438-0 13 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9312- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9312- ● ●
4 00.283 GUIDE; VLV 5-11721-001-0 08 1 9312- ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 9312- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9312-9607 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHUST 		8-94130-559-0 04 1 9607-9805 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHUST 		8-94130-559-0 04 1 9607-9805 ●
5 00.253 SEAT; VLV INSERT
(B) EXHUST 		8-94130-559-0 04 1 9806- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94130-558-0 04 1 9312-9606 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (A) INLET 		8-94130-558-0 04 1 9607- ●
5 00.253 SEAT; VLV INSERT
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (A) INLET 		8-94431-521-0 04 1 9607-9711 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (A) INLET 		8-94431-521-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (B) EXHUST 		8-94431-522-0 04 1 9607-9711 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (B) EXHUST 		8-94431-522-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		1-11715-034-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(B) EXHUST 		5-11711-028-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94399-148-0 04 1 9312-9412 ●
5 00.253 SEAT; VLV INSERT 8-97088-460-0 04 1 9501-9510 ●
5 00.253 SEAT; VLV INSERT 8-94394-127-0 04 1 9511- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94399-153-0 04 1 9312-9412 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94396-172-0 04 1 9501- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9312-9708 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 06 1 9312-9708 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 07 1 9709-9801 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 07 1 9802- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9312- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 9312- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9312- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 07 1 9312-9708 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9709- ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 06 1 9709- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 07 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=20 		9-11129-128-0 02 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9312-9406 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9407-9502 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9503- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-1 12 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9407-9502 ●
10 02.270 PLUG; GLOW
NGK 		8-97043-744-1 04 1 9312- ●
10 02.270 PLUG; GLOW 8-94133-759-7 04 1 9312- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 9410- ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9312-9406 ● ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9407-9504 ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9505- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9312- ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9407-9504 ●
11 02.251 CONNECTOR; GLOW PLUG 8-94368-252-0 01 1 9312-9602 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9603- ●
11 02.251 CONNECTOR; GLOW PLUG
T=1.0 		8-94133-760-0 01 1 9312-9602 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 9603- ●
11 02.251 CONNECTOR; GLOW PLUG
L=354 		5-19732-002-1 01 1 9312-9612 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97168-879-0 01 1 9701- ●
11 02.251 CONNECTOR; GLOW PLUG 8-94399-608-2 01 1 9312-9508 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9509- ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 9312- ● ●
12 00.004 HANGER; ENG,RR 8-94255-644-1 01 1 9312- ●
12 00.004 HANGER; ENG,RR 8-97071-960-0 01 1 9312- ●
14 03.275 STUD; EXH MANIF
M8X85 L=100 		9-09830-177-0 04 1 9312- ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 04 1 9312-9405 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9406- ●
15 00.004 BOLT; HANGER,FRT
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9708 ● ●
15 00.004 BOLT; HANGER,FRT
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9607-9607 ● ●
15 00.004 BOLT; HANGER,FRT
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9709- ● ●
15 00.004 BOLT; HANGER,FRT
00.029 (B) M10X28 W/LK WASHER 		0-50041-028-0 01 1 9312-9803 ● ●
15 00.004 BOLT; HANGER,FRT
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9804- ● ●
15 00.004 BOLT; HANGER,FRT
EXC. REFRIGERATOR CHASSIS(V4R) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9312-9510 ●
15 00.004 BOLT; HANGER,FRT
11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9511- ●
15 00.004 BOLT; HANGER,FRT
M10X18 FLANGE 		0-28181-018-0 02 1 9312-9402 ●
15 00.004 BOLT; HANGER,FRT
01.540 M10X20 FLANGE 		0-28181-020-0 02 1 9403-9606 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9607- ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 9312- ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 9312- ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 9312- ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9312- ● ●
41 09.181 BOLT; ENG HANGER
00.029 M12X28 FLANGE 		0-28181-228-0 02 1 9312-9711 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9312-9510 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 04 1 9511-9606 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9607- ●
47 00.413 STUD; CYL HD
M8X65 L=76 		8-94321-032-0 02 1 9607-9608 ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 9609- ●
53 03.332 STUD; INJ NOZZLE
M8X66 L=90 		1-09300-014-0 08 1 9312- ●
53 03.332 STUD; INJ NOZZLE
M8X68.5 L=90 		8-97014-415-1 08 1 9312-9705 ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 9706- ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9312- ●
106 00.293 PLUG; GLOW PLUG HOLE
EXC. FAST GLOW SYSTEM<KM6> 02.270 		1-11119-018-0 04 1 9511-9711 ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 9312- ● ●
168 00.004 HANGER; ENG,FRT
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97087-057-1 01 1 9312-9510 ●
168 00.004 HANGER; ENG,FRT 8-97087-057-1 01 1 9511- ●
168 00.004 HANGER; ENG,FRT
(A) 		8-94334-929-2 01 1 9312-9406 ●
168 00.004 HANGER; ENG,FRT
(B) 		8-97104-515-1 01 1 9407- ●
çizim 70696
3 11 12 1 10 4 7 54 7 53 9 7 3 8 5 14 7 6 5 7 7 168 15 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL 8-97089-280-1 01 1 9312-9511 ●
1 00.269 HEAD ASM; CYL
EXC. EURO2 SPECIFICATION<7AF> 		8-97089-280-1 01 1 9512- ●
1 00.269 HEAD ASM; CYL
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 		8-97120-278-0 01 1 9512-9711 ●
1 00.269 HEAD ASM; CYL
EURO2 SPECIFICATION<7AF> 		8-97120-278-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> EXC. OIL COOLER<KC4> 		8-97109-642-0 01 1 9511-9711 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-97109-642-0 01 1 9712-9801 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-97109-642-0 01 1 9802- ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-97176-424-0 01 1 9607-9607 ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-94343-290-0 01 1 9608-9609 ●
1 00.269 HEAD ASM; CYL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-97176-424-1 01 1 9610-9711 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97176-424-1 01 1 9712- ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-94327-269-0 01 1 9312-9606 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. EURO1 SPECIFICATION<6YW> 		8-94327-269-0 01 1 9607-9708 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,EURO1 SPECIFICATION<6YW> 		8-94327-269-0 01 1 9709-9711 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EURO1 SPECIFICATION<6YW> 		8-97120-178-0 01 1 9511-9711 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97120-178-0 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-94431-523-0 01 1 9312-9510 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,EURO1 SPECIFICATION<6YW> 		8-94431-523-0 01 1 9511-9708 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>, EURO1 SPECIFICATION<6YW> 		8-94431-523-0 01 1 9709-9711 ●
1 00.269 HEAD ASM; CYL 8-94478-114-0 01 1 9312-9603 ●
1 00.269 HEAD ASM; CYL 8-97141-822-0 01 1 9604- ●
1 00.269 HEAD ASM; CYL 8-97033-149-2 01 1 9312-9412 ●
1 00.269 HEAD ASM; CYL 8-97126-145-0 01 1 9501-9510 ●
1 00.269 HEAD ASM; CYL 8-97095-664-7 01 1 9511-9604 ●
1 00.269 HEAD ASM; CYL 8-97146-520-2 01 1 9605- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.95 1-NOTCH 		8-94418-919-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.00 2-NOTCH 		8-94418-920-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.05 3-NOTCH 		8-94418-921-0 01 1 9312- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.05 WO/NOTCH 		8-97048-347-0 01 1 9312-9312 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 WO/NOTCH 		8-97107-566-0 01 1 9401-9409 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9410- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.10 1-NOTCH 		8-97048-348-0 01 1 9312-9312 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.75 1-NOTCH 		8-97107-567-0 01 1 9401-9409 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9410- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=2.15 2-NOTCH 		8-97048-349-0 01 1 9312-9312 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.80 2-NOTCH 		8-97107-568-0 01 1 9401-9409 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9410- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9312-9502 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9503-9510 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KD ENGINE<7MB> M11X122 		8-94455-667-0 18 1 9503-9510 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9511-9701 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9702-9705 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9706-9706 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KD ENGINE<7MB> M11X122 		8-97133-416-0 18 1 9706-9706 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. KD ENGINE<7MB> M11X122 		8-97133-416-0 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9712- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> M11X122 		8-94455-667-0 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
KD ENGINE<7MB> M11X122 		8-94247-355-1 18 1 9503-9510 ●
3 00.293 BOLT; CYL HD TO BLOCK
KD ENGINE<7MB> M11X122 		8-94247-355-1 18 1 9706-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X25,M12X115 L=153 		8-94367-436-0 01 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M12X102 		8-94367-437-0 04 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M12X115 		8-94367-438-0 13 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9312- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9312- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9312- ● ●
4 00.283 GUIDE; VLV 5-11721-001-0 08 1 9312- ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 9312- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9312-9607 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHUST 		8-94130-559-0 04 1 9607-9805 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (B) EXHUST 		8-94130-559-0 04 1 9607-9805 ●
5 00.253 SEAT; VLV INSERT
(B) EXHUST 		8-94130-559-0 04 1 9806- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94130-558-0 04 1 9312-9606 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> (A) INLET 		8-94130-558-0 04 1 9607- ●
5 00.253 SEAT; VLV INSERT
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (A) INLET 		8-94431-521-0 04 1 9607-9711 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (A) INLET 		8-94431-521-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> (B) EXHUST 		8-94431-522-0 04 1 9607-9711 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> (B) EXHUST 		8-94431-522-0 04 1 9712- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		1-11715-034-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(B) EXHUST 		5-11711-028-0 04 1 9312- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-94399-148-0 04 1 9312-9412 ●
5 00.253 SEAT; VLV INSERT 8-97088-460-0 04 1 9501-9510 ●
5 00.253 SEAT; VLV INSERT 8-94394-127-0 04 1 9511- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94399-153-0 04 1 9312-9412 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-94396-172-0 04 1 9501- ●
6 00.253 PLUG; PLATE
OD=11.9 		9-09660-034-0 04 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9312-9708 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 06 1 9312-9708 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 07 1 9709-9801 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) OD=22 		1-09600-011-2 07 1 9802- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9312- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 9312- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9312- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 07 1 9312-9708 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9709- ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (C) OD=22 		1-09600-011-2 06 1 9709- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 07 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=20 		9-11129-128-0 02 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9312-9406 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9407-9502 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9503- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-1 12 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 9312- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9407-9502 ●
8 00.253 CUP; SEALING,WATER JACKET
OD=12.5 		9-11129-601-0 04 1 9312- ●
9 03.275 STUD; INL MANIF
M8X62 		5-14129-005-2 08 1 9312- ●
10 02.270 PLUG; GLOW
NGK 		8-97043-744-1 04 1 9312- ●
10 02.270 PLUG; GLOW 8-94133-759-7 04 1 9312- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 9410- ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9312-9406 ● ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9407-9504 ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9505- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9312- ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9407-9504 ●
11 02.251 CONNECTOR; GLOW PLUG 8-94368-252-0 01 1 9312-9602 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9603- ●
11 02.251 CONNECTOR; GLOW PLUG
T=1.0 		8-94133-760-0 01 1 9312-9602 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 9603- ●
11 02.251 CONNECTOR; GLOW PLUG
L=354 		5-19732-002-1 01 1 9312-9612 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97168-879-0 01 1 9701- ●
11 02.251 CONNECTOR; GLOW PLUG 8-94399-608-2 01 1 9312-9508 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9509- ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 9312- ● ●
12 00.004 HANGER; ENG,RR 8-94255-644-1 01 1 9312- ●
12 00.004 HANGER; ENG,RR 8-97071-960-0 01 1 9312- ●
14 03.275 STUD; EXH MANIF
M8X85 L=100 		9-09830-177-0 04 1 9312- ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 04 1 9312-9405 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9406- ●
15 00.004 BOLT; HANGER,FRT
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9708 ● ●
15 00.004 BOLT; HANGER,FRT
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9607-9607 ● ●
15 00.004 BOLT; HANGER,FRT
01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9709- ● ●
15 00.004 BOLT; HANGER,FRT
00.029 (B) M10X28 W/LK WASHER 		0-50041-028-0 01 1 9312-9803 ● ●
15 00.004 BOLT; HANGER,FRT
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9804- ● ●
15 00.004 BOLT; HANGER,FRT
EXC. REFRIGERATOR CHASSIS(V4R) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9312-9510 ●
15 00.004 BOLT; HANGER,FRT
11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9511- ●
15 00.004 BOLT; HANGER,FRT
M10X18 FLANGE 		0-28181-018-0 02 1 9312-9402 ●
15 00.004 BOLT; HANGER,FRT
01.540 M10X20 FLANGE 		0-28181-020-0 02 1 9403-9606 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9607- ●
53 03.332 STUD; INJ NOZZLE
M8X66 L=90 		1-09300-014-0 08 1 9312- ●
53 03.332 STUD; INJ NOZZLE
M8X68.5 L=90 		8-97014-415-1 08 1 9312-9705 ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 9706- ●
54 00.349 STUD; ROCKER ARM
M8X79 L=92 		5-09300-065-0 03 1 9312- ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 9312- ● ●
168 00.004 HANGER; ENG,FRT
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97087-057-1 01 1 9312-9510 ●
168 00.004 HANGER; ENG,FRT 8-97087-057-1 01 1 9511- ●
168 00.004 HANGER; ENG,FRT
(A) 		8-94334-929-2 01 1 9312-9406 ●
168 00.004 HANGER; ENG,FRT
(B) 		8-97104-515-1 01 1 9407- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
