Sayfa 0-10 - Isuzu EPC

0-10 — CYLINDER HEAD COVER (#45799) — 344 parça

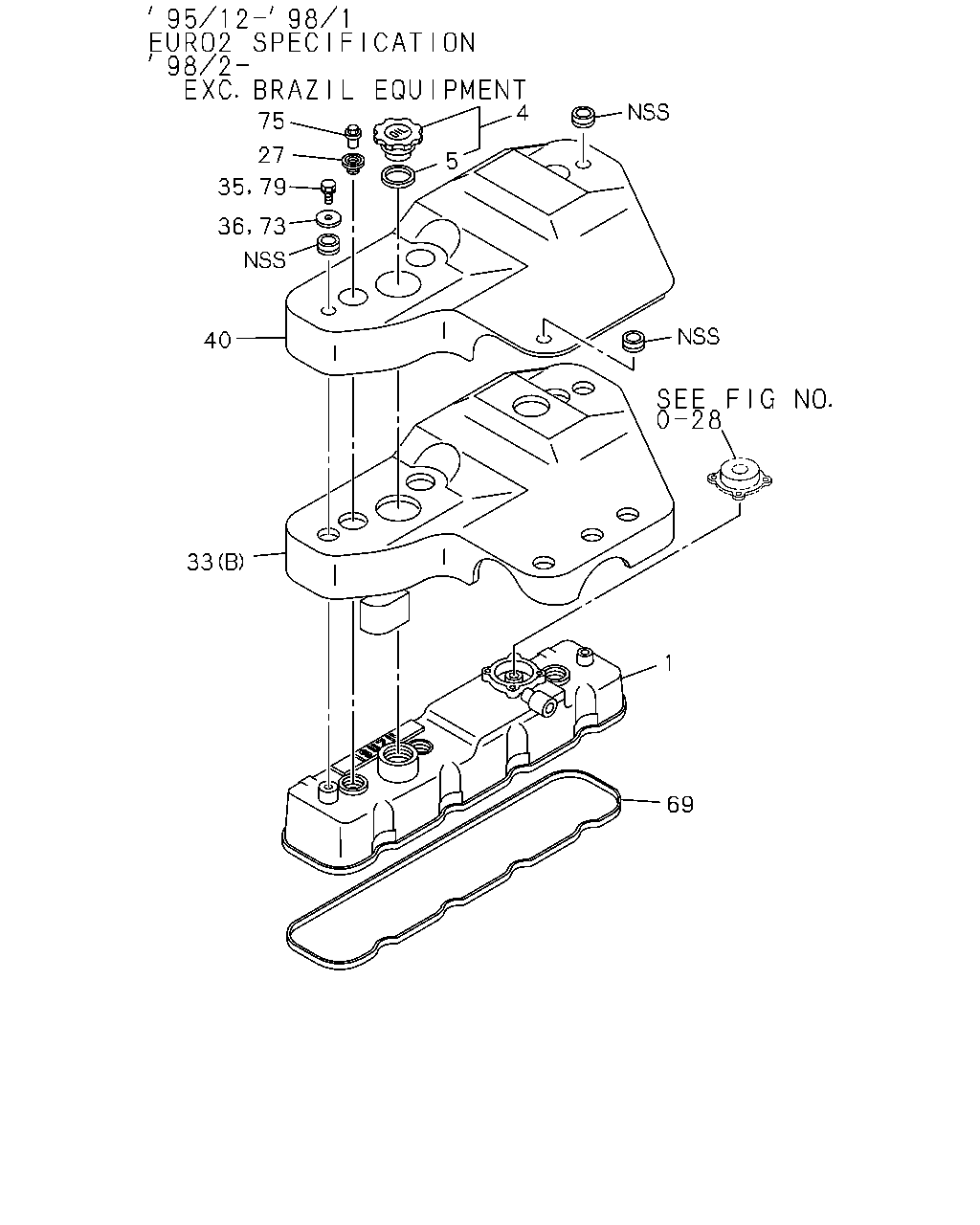

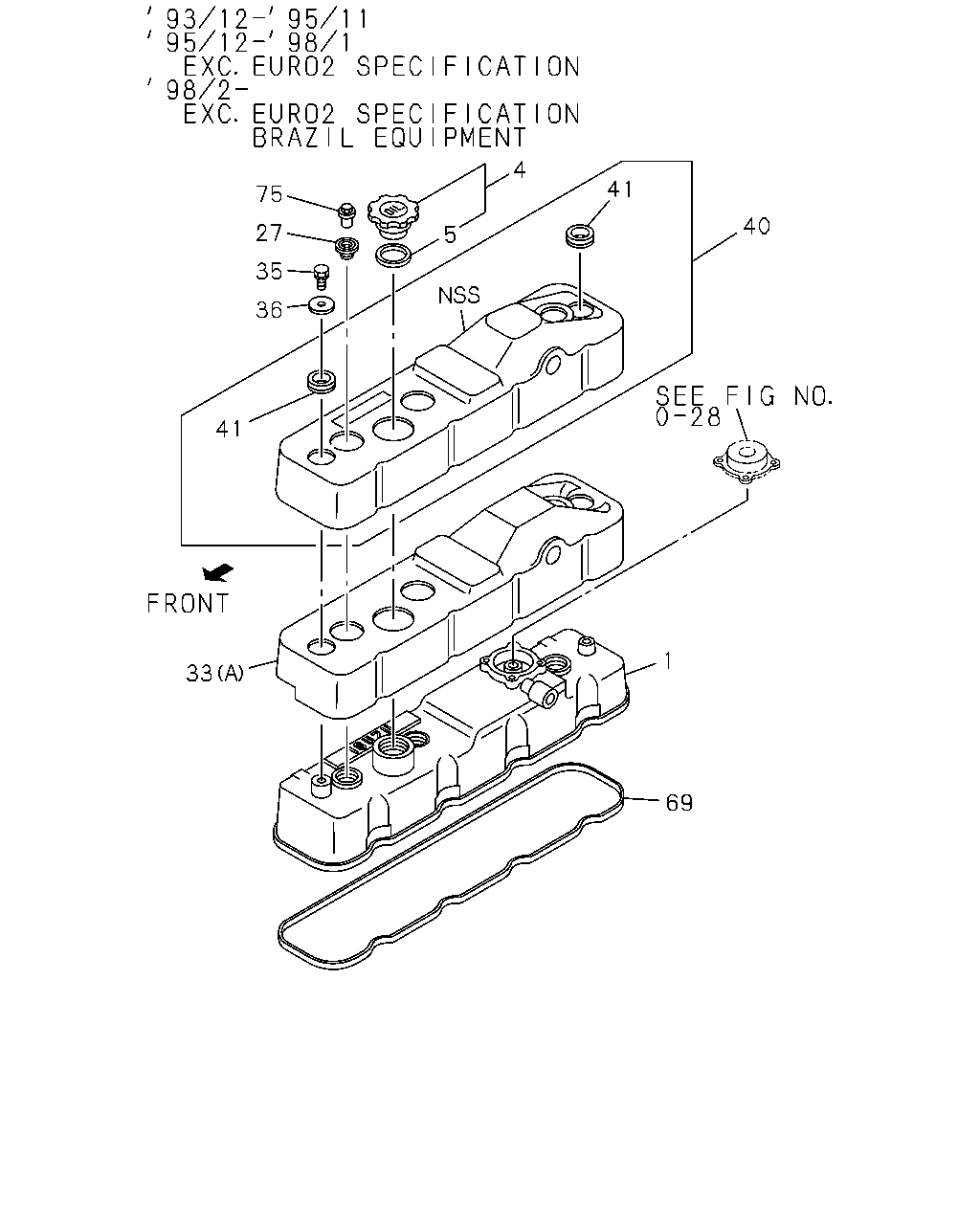

4 41 75 40 27 5 35 36 41 1 33 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9312-	●	●
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9312-			●
1	00.386 COVER; CYL HD	8-97092-072-2	01	1	9312-9401				●
1	00.386 COVER; CYL HD	8-97102-511-2	01	1	9402-9510				●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9511-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9312-9406	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9407-9502	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9503-9801	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9802-	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9407-9502				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9312-9406	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9407-9502	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9503-9801	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9802-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9407-9502				●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.413 ID=20.0	8-94153-051-0	03	1	9312-9501	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5	8-94202-456-3	03	1	9502-	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.413	9-11179-030-0	03	1	9312-			●
33	00.386 RUBBER; SPACE,CYL HD COVER (A)	8-94133-734-6	01	1	9312-9511	●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-94133-734-6	01	1	9512-9701	●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-97147-921-0	01	1	9702-9801	●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-97147-921-0	01	1	9802-	●
33	00.386 RUBBER; SPACE,CYL HD COVER EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) (A)	8-97147-921-0	01	1	9802-	●
33	00.386 RUBBER; SPACE,CYL HD COVER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> (B)	8-97141-691-0	01	1	9512-9601	●
33	00.386 RUBBER; SPACE,CYL HD COVER EURO2 SPECIFICATION<7AF> (B)	8-97141-691-1	01	1	9602-9801	●
33	00.386 RUBBER; SPACE,CYL HD COVER EURO2 SPECIFICATION<7AF> EXC. BRAZIL EQUIPMENT(RWF) (B)	8-97141-691-2	01	1	9802-	●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X14	0-20800-814-0	02	1	9312-9601	●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X14	0-20800-814-0	02	1	9602-9706	●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9707-9801	●
35	00.293 BOLT; NOISE SHIELD COVER TAIWAN EQUIPMENT(RWV) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9802-9802	●
35	00.293 BOLT; NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9802-9802	●
35	00.293 BOLT; NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> BRAZIL EQUIPMENT(RWF) EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9803-9803	●
35	00.293 BOLT; NOISE SHIELD COVER TAIWAN EQUIPMENT(RWV) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-	●
35	00.293 BOLT; NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-	●
35	00.293 BOLT; NOISE SHIELD COVER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	9512-9601	●
35	00.293 BOLT; NOISE SHIELD COVER 03.415 M8X35 FLANGE	0-28080-835-0	13	1	9312-9510				●
35	00.293 BOLT; NOISE SHIELD COVER 03.275 M8X30 FLANGE	0-28080-830-0	13	1	9511-9606				●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9607-				●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9312-9601	●
36	00.413 WASHER; PL,NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9602-9801	●
36	00.413 WASHER; PL,NOISE SHIELD COVER TAIWAN EQUIPMENT(RWV) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9802-9802	●
36	00.413 WASHER; PL,NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9802-9802	●
36	00.413 WASHER; PL,NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> BRAZIL EQUIPMENT(RWF) EURO2 SPECIFICATION<7AF> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9803-9803	●
36	00.413 WASHER; PL,NOISE SHIELD COVER TAIWAN EQUIPMENT(RWV) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9804-	●
36	00.413 WASHER; PL,NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9804-	●
40	00.386 COVER	8-94133-732-2	01	1	9312-9511	●
40	00.386 COVER EXC. EURO2 SPECIFICATION<7AF>	8-94133-732-2	01	1	9512-9801	●
40	00.386 COVER TAIWAN EQUIPMENT(RWV)	8-94133-732-2	01	1	9802-9802	●
40	00.386 COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF)	8-94133-732-2	01	1	9802-9802	●
40	00.386 COVER SGL CAB&MIDDLE(NK**SF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> BRAZIL EQUIPMENT(RWF) EURO2 SPECIFICATION<7AF>	8-94133-732-2	01	1	9803-9803	●
40	00.386 COVER TAIWAN EQUIPMENT(RWV)	8-94133-732-2	01	1	9804-	●
40	00.386 COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF)	8-94133-732-2	01	1	9804-	●
40	00.386 COVER EURO2 SPECIFICATION<7AF>	8-97141-690-2	01	1	9602-9801	●
40	00.386 COVER EURO2 SPECIFICATION<7AF> EXC. BRAZIL EQUIPMENT(RWF)	8-97141-690-3	01	1	9802-	●
40	00.386 COVER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-690-0	01	1	9512-9601	●
40	00.386 COVER	8-94365-033-0	01	1	9312-			●
40	00.386 COVER	8-97092-074-3	01	1	9312-9510				●
41	00.413 GROMMET; HD COVER,OUTER	8-94256-959-0	02	1	9312-9511	●
41	00.413 GROMMET; HD COVER,OUTER EXC. EURO2 SPECIFICATION<7AF>	8-94256-959-0	02	1	9512-9801	●
41	00.413 GROMMET; HD COVER,OUTER TAIWAN EQUIPMENT(RWV)	8-94256-959-0	02	1	9802-9802	●
41	00.413 GROMMET; HD COVER,OUTER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF)	8-94256-959-0	02	1	9802-9802	●
41	00.413 GROMMET; HD COVER,OUTER SGL CAB&MIDDLE(NK**SF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> BRAZIL EQUIPMENT(RWF) EURO2 SPECIFICATION<7AF>	8-94256-959-0	02	1	9803-9803	●
41	00.413 GROMMET; HD COVER,OUTER TAIWAN EQUIPMENT(RWV)	8-94256-959-0	02	1	9804-	●
41	00.413 GROMMET; HD COVER,OUTER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF)	8-94256-959-0	02	1	9804-	●
41	00.413 GROMMET; HD COVER,OUTER	1-19389-004-0	03	1	9312-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-535-0	01	1	9512-9605	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94247-903-1	01	1	9312-9502	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97118-768-0	01	1	9503-9511	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF>	8-97118-768-0	01	1	9512-9605	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97161-131-0	01	1	9606-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94462-559-0	01	1	9312-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97019-846-1	01	1	9312-9510				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	9511-				●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9312-	●	●
75	00.413 NUT; CAP,HD COVER M8 CAP NUT OD=22	8-94340-192-0	03	1	9312-			●

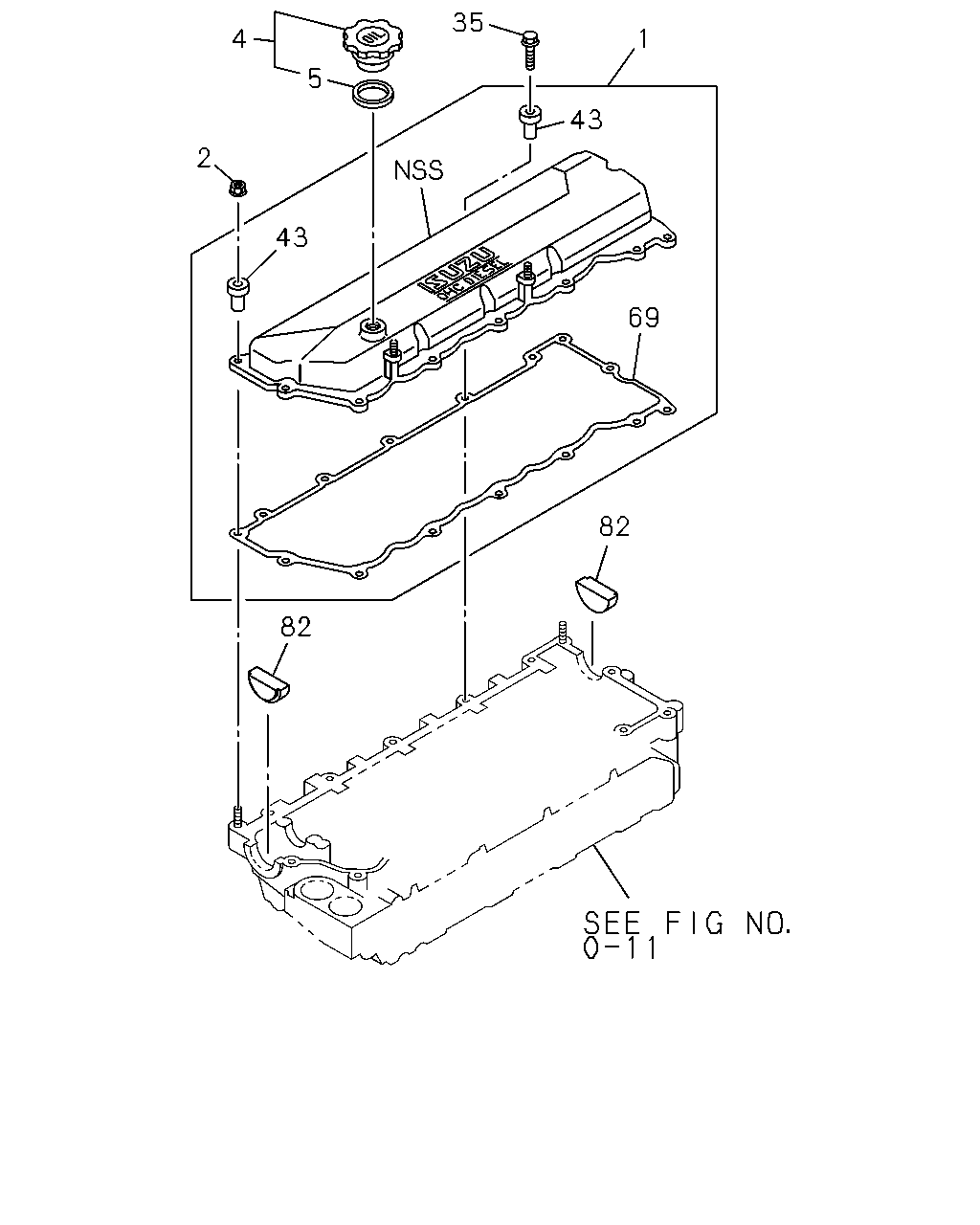

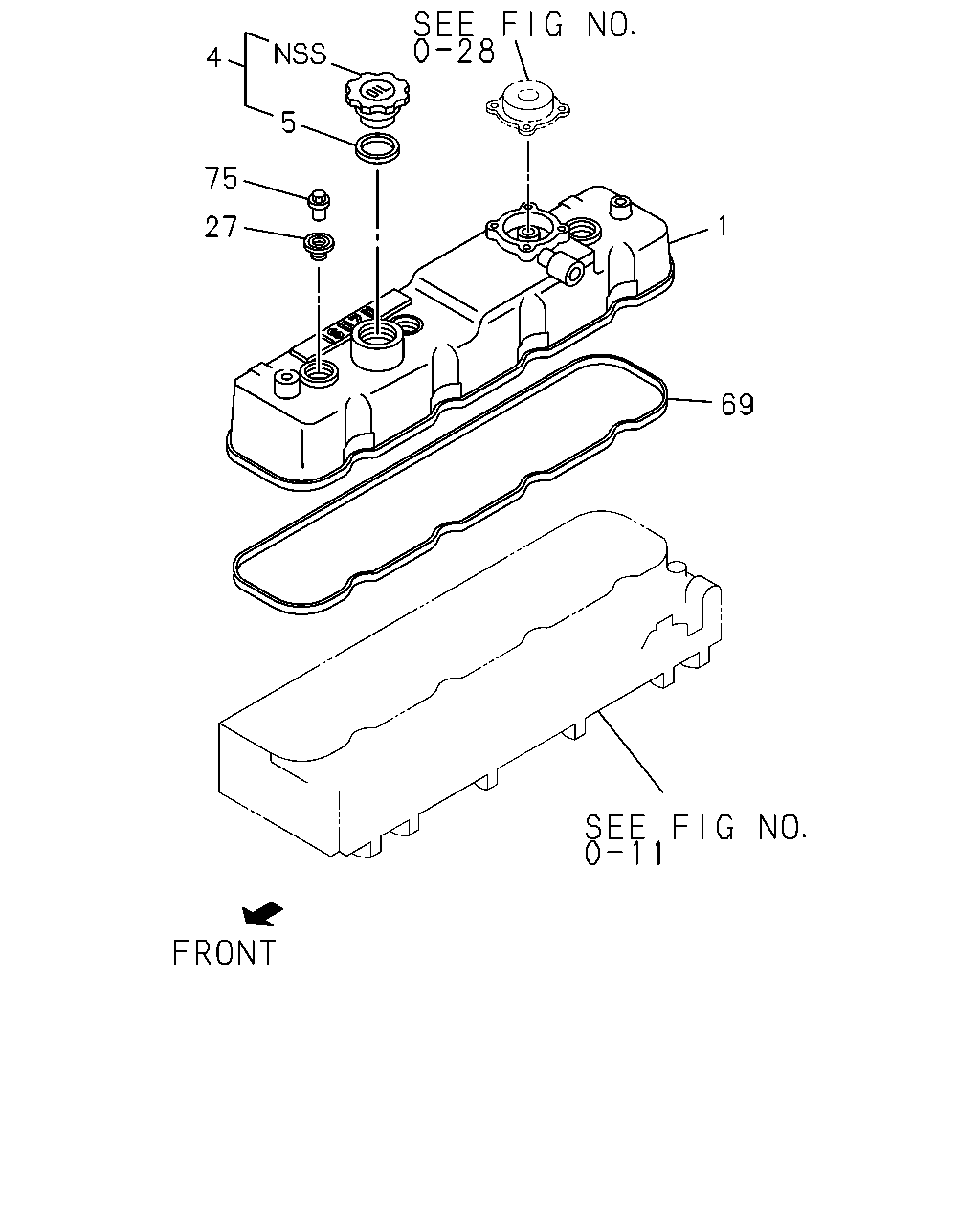

4 5 75 1 27 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9312-	●	●
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9312-			●
1	00.386 COVER; CYL HD	8-97092-072-2	01	1	9312-9401				●
1	00.386 COVER; CYL HD	8-97102-511-2	01	1	9402-9510				●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9511-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9312-9406	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9407-9502	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9503-9801	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9802-	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9407-9502				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9312-9406	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9407-9502	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9503-9801	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9802-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9407-9502				●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.413 ID=20.0	8-94153-051-0	03	1	9312-9501	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5	8-94202-456-3	03	1	9502-	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.413	9-11179-030-0	03	1	9312-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-535-0	01	1	9512-9605	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94247-903-1	01	1	9312-9502	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97118-768-0	01	1	9503-9511	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF>	8-97118-768-0	01	1	9512-9605	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97161-131-0	01	1	9606-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94462-559-0	01	1	9312-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97019-846-1	01	1	9312-9510				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	9511-				●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9312-	●	●
75	00.413 NUT; CAP,HD COVER M8 CAP NUT OD=22	8-94340-192-0	03	1	9312-			●

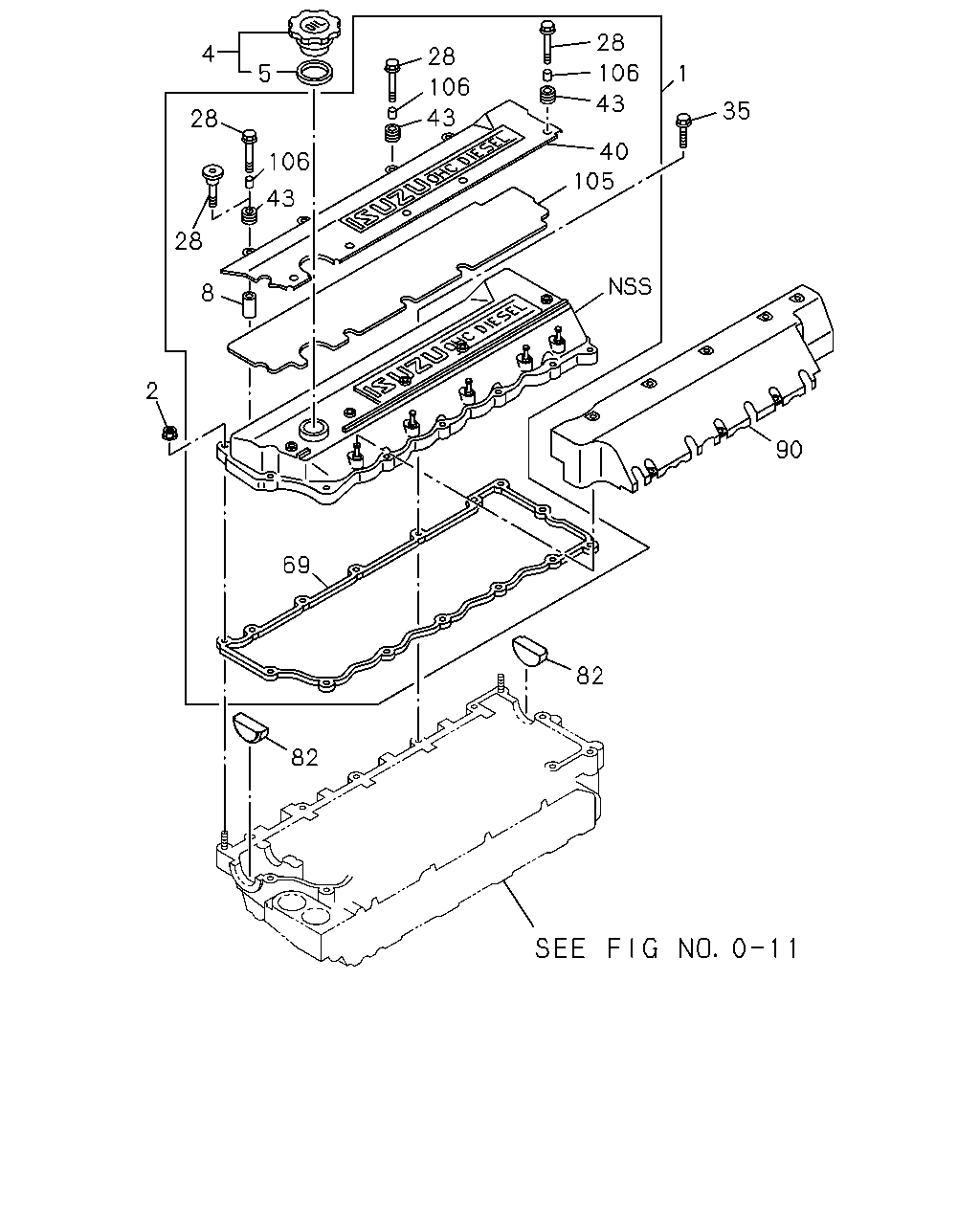

28 4 28 106 5 1 106 43 35 43 28 40 106 105 43 28 8 2 90 69 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9312-	●	●
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9312-			●
1	00.386 COVER; CYL HD	8-97092-072-2	01	1	9312-9401				●
1	00.386 COVER; CYL HD	8-97102-511-2	01	1	9402-9510				●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9511-				●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9312-9406	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9407-9502	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9503-9801	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9802-	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9407-9502				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9312-9406	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9407-9502	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9503-9801	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9802-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9407-9502				●
8	00.413 SPACER; HD COVER	8-97092-076-0	04	1	9312-9510				●
28	00.413 BOLT; HD COVER M6X42	8-97102-101-0	02	1	9402-9510				●
28	00.413 BOLT; HD COVER M6X45	8-97127-606-0	02	1	9501-9510				●
28	00.413 BOLT; HD COVER M6X20	8-97127-607-0	03	1	9501-9510				●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X14	0-20800-814-0	02	1	9312-9601	●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X14	0-20800-814-0	02	1	9602-9706	●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9707-9801	●
35	00.293 BOLT; NOISE SHIELD COVER TAIWAN EQUIPMENT(RWV) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9802-9802	●
35	00.293 BOLT; NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9802-9802	●
35	00.293 BOLT; NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> BRAZIL EQUIPMENT(RWF) EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9803-9803	●
35	00.293 BOLT; NOISE SHIELD COVER TAIWAN EQUIPMENT(RWV) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-	●
35	00.293 BOLT; NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-	●
35	00.293 BOLT; NOISE SHIELD COVER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	9512-9601	●
35	00.293 BOLT; NOISE SHIELD COVER 03.415 M8X35 FLANGE	0-28080-835-0	13	1	9312-9510				●
35	00.293 BOLT; NOISE SHIELD COVER 03.275 M8X30 FLANGE	0-28080-830-0	13	1	9511-9606				●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9607-				●
40	00.386 COVER	8-94133-732-2	01	1	9312-9511	●
40	00.386 COVER EXC. EURO2 SPECIFICATION<7AF>	8-94133-732-2	01	1	9512-9801	●
40	00.386 COVER TAIWAN EQUIPMENT(RWV)	8-94133-732-2	01	1	9802-9802	●
40	00.386 COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF)	8-94133-732-2	01	1	9802-9802	●
40	00.386 COVER SGL CAB&MIDDLE(NK**SF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> BRAZIL EQUIPMENT(RWF) EURO2 SPECIFICATION<7AF>	8-94133-732-2	01	1	9803-9803	●
40	00.386 COVER TAIWAN EQUIPMENT(RWV)	8-94133-732-2	01	1	9804-	●
40	00.386 COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF)	8-94133-732-2	01	1	9804-	●
40	00.386 COVER EURO2 SPECIFICATION<7AF>	8-97141-690-2	01	1	9602-9801	●
40	00.386 COVER EURO2 SPECIFICATION<7AF> EXC. BRAZIL EQUIPMENT(RWF)	8-97141-690-3	01	1	9802-	●
40	00.386 COVER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-690-0	01	1	9512-9601	●
40	00.386 COVER	8-94365-033-0	01	1	9312-			●
40	00.386 COVER	8-97092-074-3	01	1	9312-9510				●
43	00.413 RUBBER; MTG,HD COVER,OUTER 00.034 OD=22	8-94140-428-1	02	1	9312-			●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-97092-075-0	09	1	9312-9412				●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-97092-075-0	07	1	9501-9510				●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	9511-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-535-0	01	1	9512-9605	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94247-903-1	01	1	9312-9502	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97118-768-0	01	1	9503-9511	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF>	8-97118-768-0	01	1	9512-9605	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97161-131-0	01	1	9606-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94462-559-0	01	1	9312-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97019-846-1	01	1	9312-9510				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	9511-				●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	9312-				●
90	00.386 COVER; NOZZLE,INJ	8-97036-411-1	01	1	9312-9510				●
105	00.386 INSULATOR; HD COVER	8-97092-303-1	01	1	9312-9510				●
106	00.386 RETAINER; HD COVER	8-97092-314-0	09	1	9312-9401				●
106	00.386 RETAINER; HD COVER	8-97092-314-0	07	1	9402-9412				●
106	00.386 RETAINER; HD COVER	8-97092-314-0	05	1	9501-9510				●

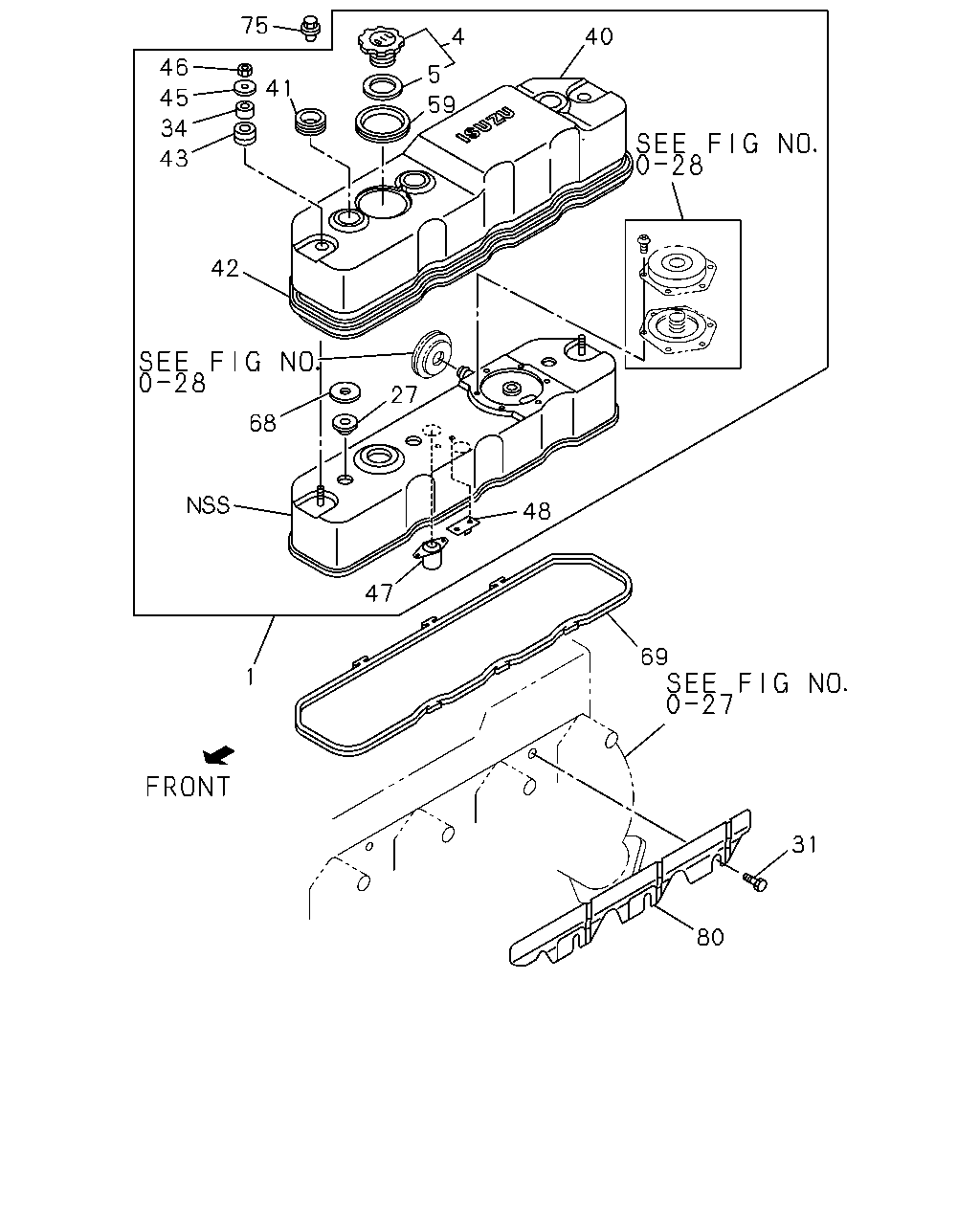

75 40 4 46 5 41 45 59 34 43 42 27 68 48 47 69 1 31 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9312-	●	●
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9312-			●
1	00.386 COVER; CYL HD	8-97092-072-2	01	1	9312-9401				●
1	00.386 COVER; CYL HD	8-97102-511-2	01	1	9402-9510				●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9511-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9312-9406	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9407-9502	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9503-9801	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9802-	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9407-9502				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9312-9406	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9407-9502	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9503-9801	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9802-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9407-9502				●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.413 ID=20.0	8-94153-051-0	03	1	9312-9501	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5	8-94202-456-3	03	1	9502-	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.413	9-11179-030-0	03	1	9312-			●
31	00.413 BOLT; HEAT PROTECTOR 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9312-			●
34	00.413 BUSHING; MTG RUBBER,CYL HD COVER 00.034 OD=13 T=9.5	8-94140-427-1	02	1	9312-			●
40	00.386 COVER	8-94133-732-2	01	1	9312-9511	●
40	00.386 COVER EXC. EURO2 SPECIFICATION<7AF>	8-94133-732-2	01	1	9512-9801	●
40	00.386 COVER TAIWAN EQUIPMENT(RWV)	8-94133-732-2	01	1	9802-9802	●
40	00.386 COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF)	8-94133-732-2	01	1	9802-9802	●
40	00.386 COVER SGL CAB&MIDDLE(NK**SF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> BRAZIL EQUIPMENT(RWF) EURO2 SPECIFICATION<7AF>	8-94133-732-2	01	1	9803-9803	●
40	00.386 COVER TAIWAN EQUIPMENT(RWV)	8-94133-732-2	01	1	9804-	●
40	00.386 COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF)	8-94133-732-2	01	1	9804-	●
40	00.386 COVER EURO2 SPECIFICATION<7AF>	8-97141-690-2	01	1	9602-9801	●
40	00.386 COVER EURO2 SPECIFICATION<7AF> EXC. BRAZIL EQUIPMENT(RWF)	8-97141-690-3	01	1	9802-	●
40	00.386 COVER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-690-0	01	1	9512-9601	●
40	00.386 COVER	8-94365-033-0	01	1	9312-			●
40	00.386 COVER	8-97092-074-3	01	1	9312-9510				●
41	00.413 GROMMET; HD COVER,OUTER	8-94256-959-0	02	1	9312-9511	●
41	00.413 GROMMET; HD COVER,OUTER EXC. EURO2 SPECIFICATION<7AF>	8-94256-959-0	02	1	9512-9801	●
41	00.413 GROMMET; HD COVER,OUTER TAIWAN EQUIPMENT(RWV)	8-94256-959-0	02	1	9802-9802	●
41	00.413 GROMMET; HD COVER,OUTER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF)	8-94256-959-0	02	1	9802-9802	●
41	00.413 GROMMET; HD COVER,OUTER SGL CAB&MIDDLE(NK**SF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> BRAZIL EQUIPMENT(RWF) EURO2 SPECIFICATION<7AF>	8-94256-959-0	02	1	9803-9803	●
41	00.413 GROMMET; HD COVER,OUTER TAIWAN EQUIPMENT(RWV)	8-94256-959-0	02	1	9804-	●
41	00.413 GROMMET; HD COVER,OUTER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF)	8-94256-959-0	02	1	9804-	●
41	00.413 GROMMET; HD COVER,OUTER	1-19389-004-0	03	1	9312-			●
42	00.413 SEAL; RUBBER,HD COVER,OUTER	5-19389-006-1	01	1	9312-			●
43	00.413 RUBBER; MTG,HD COVER,OUTER 00.034 OD=22	8-94140-428-1	02	1	9312-			●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-97092-075-0	09	1	9312-9412				●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-97092-075-0	07	1	9501-9510				●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	9511-				●
45	00.413 WASHER; LK,HD COVER,OUTER 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	9312-			●
46	00.413 NUT; HD COVER,OUTER 02.559 M8	9-09110-408-0	02	1	9312-			●
47	01.745 FLOAT; HD COVER	1-11179-094-0	02	1	9312-			●
48	00.293 PLATE; BAFFLE,CYL HD COVER	1-11179-099-0	01	1	9312-			●
59	00.413 GROMMET; OIL FILLER 01.758 ID=50 OD=67	5-11173-021-1	01	1	9312-			●
68	00.413 WASHER; CAP NUT,HD COVER	9-11179-105-0	03	1	9312-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-535-0	01	1	9512-9605	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94247-903-1	01	1	9312-9502	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97118-768-0	01	1	9503-9511	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF>	8-97118-768-0	01	1	9512-9605	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97161-131-0	01	1	9606-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94462-559-0	01	1	9312-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97019-846-1	01	1	9312-9510				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	9511-				●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9312-	●	●
75	00.413 NUT; CAP,HD COVER M8 CAP NUT OD=22	8-94340-192-0	03	1	9312-			●
80	00.413 PROTECTOR; HEAT,SEAL RUBBER REFRIGERATOR CHASSIS(V4R) (B)	8-94463-146-0	01	1	9401-9711			●
80	00.413 PROTECTOR; HEAT,SEAL RUBBER EXC. REFRIGERATOR CHASSIS(V4R) (A)	8-97011-062-0	01	1	9312-9711			●
80	00.413 PROTECTOR; HEAT,SEAL RUBBER (A)	8-97011-062-0	01	1	9712-			●

4 75 27 5 40 33 1 69 35 79 36 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9312-	●	●
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9312-			●
1	00.386 COVER; CYL HD	8-97092-072-2	01	1	9312-9401				●
1	00.386 COVER; CYL HD	8-97102-511-2	01	1	9402-9510				●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9511-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9312-9406	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9407-9502	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9503-9801	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9802-	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9407-9502				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9312-9406	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9407-9502	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9503-9801	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9802-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9407-9502				●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.413 ID=20.0	8-94153-051-0	03	1	9312-9501	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5	8-94202-456-3	03	1	9502-	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.413	9-11179-030-0	03	1	9312-			●
33	00.386 RUBBER; SPACE,CYL HD COVER (A)	8-94133-734-6	01	1	9312-9511	●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-94133-734-6	01	1	9512-9701	●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-97147-921-0	01	1	9702-9801	●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. EURO2 SPECIFICATION<7AF> (A)	8-97147-921-0	01	1	9802-	●
33	00.386 RUBBER; SPACE,CYL HD COVER EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) (A)	8-97147-921-0	01	1	9802-	●
33	00.386 RUBBER; SPACE,CYL HD COVER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> (B)	8-97141-691-0	01	1	9512-9601	●
33	00.386 RUBBER; SPACE,CYL HD COVER EURO2 SPECIFICATION<7AF> (B)	8-97141-691-1	01	1	9602-9801	●
33	00.386 RUBBER; SPACE,CYL HD COVER EURO2 SPECIFICATION<7AF> EXC. BRAZIL EQUIPMENT(RWF) (B)	8-97141-691-2	01	1	9802-	●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X14	0-20800-814-0	02	1	9312-9601	●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X14	0-20800-814-0	02	1	9602-9706	●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9707-9801	●
35	00.293 BOLT; NOISE SHIELD COVER TAIWAN EQUIPMENT(RWV) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9802-9802	●
35	00.293 BOLT; NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9802-9802	●
35	00.293 BOLT; NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> BRAZIL EQUIPMENT(RWF) EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9803-9803	●
35	00.293 BOLT; NOISE SHIELD COVER TAIWAN EQUIPMENT(RWV) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-	●
35	00.293 BOLT; NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-	●
35	00.293 BOLT; NOISE SHIELD COVER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	9512-9601	●
35	00.293 BOLT; NOISE SHIELD COVER 03.415 M8X35 FLANGE	0-28080-835-0	13	1	9312-9510				●
35	00.293 BOLT; NOISE SHIELD COVER 03.275 M8X30 FLANGE	0-28080-830-0	13	1	9511-9606				●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9607-				●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9312-9601	●
36	00.413 WASHER; PL,NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9602-9801	●
36	00.413 WASHER; PL,NOISE SHIELD COVER TAIWAN EQUIPMENT(RWV) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9802-9802	●
36	00.413 WASHER; PL,NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9802-9802	●
36	00.413 WASHER; PL,NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> BRAZIL EQUIPMENT(RWF) EURO2 SPECIFICATION<7AF> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9803-9803	●
36	00.413 WASHER; PL,NOISE SHIELD COVER TAIWAN EQUIPMENT(RWV) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9804-	●
36	00.413 WASHER; PL,NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9804-	●
40	00.386 COVER	8-94133-732-2	01	1	9312-9511	●
40	00.386 COVER EXC. EURO2 SPECIFICATION<7AF>	8-94133-732-2	01	1	9512-9801	●
40	00.386 COVER TAIWAN EQUIPMENT(RWV)	8-94133-732-2	01	1	9802-9802	●
40	00.386 COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF)	8-94133-732-2	01	1	9802-9802	●
40	00.386 COVER SGL CAB&MIDDLE(NK**SF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> BRAZIL EQUIPMENT(RWF) EURO2 SPECIFICATION<7AF>	8-94133-732-2	01	1	9803-9803	●
40	00.386 COVER TAIWAN EQUIPMENT(RWV)	8-94133-732-2	01	1	9804-	●
40	00.386 COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF)	8-94133-732-2	01	1	9804-	●
40	00.386 COVER EURO2 SPECIFICATION<7AF>	8-97141-690-2	01	1	9602-9801	●
40	00.386 COVER EURO2 SPECIFICATION<7AF> EXC. BRAZIL EQUIPMENT(RWF)	8-97141-690-3	01	1	9802-	●
40	00.386 COVER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-690-0	01	1	9512-9601	●
40	00.386 COVER	8-94365-033-0	01	1	9312-			●
40	00.386 COVER	8-97092-074-3	01	1	9312-9510				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-535-0	01	1	9512-9605	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94247-903-1	01	1	9312-9502	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97118-768-0	01	1	9503-9511	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF>	8-97118-768-0	01	1	9512-9605	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97161-131-0	01	1	9606-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94462-559-0	01	1	9312-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97019-846-1	01	1	9312-9510				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	9511-				●
73	00.413 WASHER; PL,HD COVER EURO2 SPECIFICATION<7AF> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9602-9801	●
73	00.413 WASHER; PL,HD COVER EURO2 SPECIFICATION<7AF> EXC. BRAZIL EQUIPMENT(RWF) 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	9802-	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	9312-	●	●
75	00.413 NUT; CAP,HD COVER M8 CAP NUT OD=22	8-94340-192-0	03	1	9312-			●
79	00.293 BOLT; COVER EURO2 SPECIFICATION<7AF> 08.900 M8X14	0-20800-814-0	02	1	9602-9711	●
79	00.293 BOLT; COVER EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9712-9801	●
79	00.293 BOLT; COVER EURO2 SPECIFICATION<7AF> EXC. BRAZIL EQUIPMENT(RWF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9802-	●
79	00.293 BOLT; COVER EURO2 SPECIFICATION<7AF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9602-9801	●
79	00.293 BOLT; COVER EURO2 SPECIFICATION<7AF> EXC. BRAZIL EQUIPMENT(RWF) 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9802-	●

35 4 1 5 43 2 43 69 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD	8-94476-696-0	01	1	9312-	●	●
1	00.386 COVER; CYL HD	8-97063-303-0	01	1	9312-			●
1	00.386 COVER; CYL HD	8-97092-072-2	01	1	9312-9401				●
1	00.386 COVER; CYL HD	8-97102-511-2	01	1	9402-9510				●
1	00.386 COVER; CYL HD	8-97113-025-2	01	1	9511-				●
2	00.413 NUT; COVER,HD 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9312-9406	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9407-9502	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9503-9801	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9802-	●	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	9407-9502				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9312-9406	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9407-9502	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9503-9801	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9802-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	9407-9502				●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X14	0-20800-814-0	02	1	9312-9601	●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X14	0-20800-814-0	02	1	9602-9706	●
35	00.293 BOLT; NOISE SHIELD COVER EXC. EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9707-9801	●
35	00.293 BOLT; NOISE SHIELD COVER TAIWAN EQUIPMENT(RWV) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9802-9802	●
35	00.293 BOLT; NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9802-9802	●
35	00.293 BOLT; NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> BRAZIL EQUIPMENT(RWF) EURO2 SPECIFICATION<7AF> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9803-9803	●
35	00.293 BOLT; NOISE SHIELD COVER TAIWAN EQUIPMENT(RWV) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-	●
35	00.293 BOLT; NOISE SHIELD COVER SGL CAB&MIDDLE(NK**SF) EURO2 SPECIFICATION<7AF> BRAZIL EQUIPMENT(RWF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-	●
35	00.293 BOLT; NOISE SHIELD COVER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	9512-9601	●
35	00.293 BOLT; NOISE SHIELD COVER 03.415 M8X35 FLANGE	0-28080-835-0	13	1	9312-9510				●
35	00.293 BOLT; NOISE SHIELD COVER 03.275 M8X30 FLANGE	0-28080-830-0	13	1	9511-9606				●
35	00.293 BOLT; NOISE SHIELD COVER 04.686 M8X30 FLANGE	0-28680-830-0	13	1	9607-				●
43	00.413 RUBBER; MTG,HD COVER,OUTER 00.034 OD=22	8-94140-428-1	02	1	9312-			●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-97092-075-0	09	1	9312-9412				●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-97092-075-0	07	1	9501-9510				●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	9511-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF>	8-97141-535-0	01	1	9512-9605	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94247-903-1	01	1	9312-9502	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97118-768-0	01	1	9503-9511	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO2 SPECIFICATION<7AF>	8-97118-768-0	01	1	9512-9605	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97161-131-0	01	1	9606-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94462-559-0	01	1	9312-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97019-846-1	01	1	9312-9510				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	9511-				●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	9312-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
