◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#45797) — 75 parça

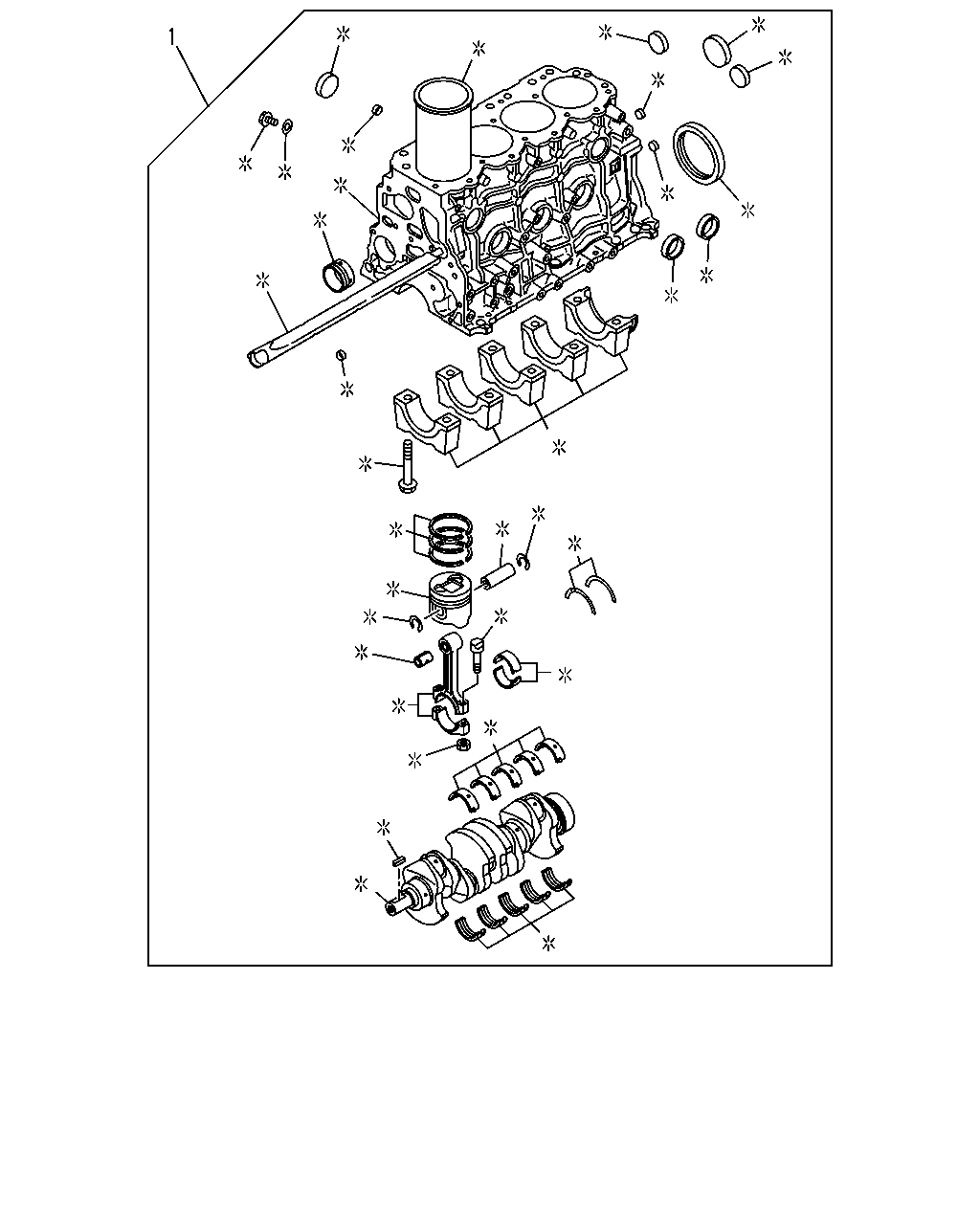

çizim 17487
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.033 ENGINE ASM; PARTIAL
EURO2 SPECIFICATION<7AF> 		5-87310-419-0 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL
EUROPEAN BASIC EQUIPMENT(EK4) 		5-87310-265-0 01 1 9312-9506 ●
1 00.033 ENGINE ASM; PARTIAL
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		5-87310-265-0 01 1 9507-9510 ●
1 00.033 ENGINE ASM; PARTIAL
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 		5-87310-265-1 01 1 9511-9711 ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-269-1 01 1 9312-9711 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. EURO2 SPECIFICATION<7AF> 		5-87310-269-1 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-268-0 01 1 9312-9510 ●
1 00.033 ENGINE ASM; PARTIAL
EURO1 SPECIFICATION<6YW> 		5-87310-350-0 01 1 9511-9606 ●
1 00.033 ENGINE ASM; PARTIAL
EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 		5-87310-350-0 01 1 9607-9711 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TURBOCHARGER<K51> 		5-87310-350-0 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		5-87310-423-0 01 1 9607-9711 ●
1 00.033 ENGINE ASM; PARTIAL
TURBOCHARGER<K51> 		5-87310-423-0 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL
EXC. EURO1 SPECIFICATION<6YW> 		5-87310-268-0 01 1 9511-9711 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-072-1 01 1 9312- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-360-0 01 1 9511-9604 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-421-2 01 1 9605-9711 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-493-1 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-279-2 01 1 9312-9408 ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-327-0 01 1 9409-9410 ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-349-0 01 1 9411-9506 ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-359-0 01 1 9507-9510 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TAIWAN EQUIPMENT(RWV) 		5-87310-275-2 01 1 9312-9408 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TAIWAN EQUIPMENT(RWV) 		5-87310-326-0 01 1 9409-9410 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TAIWAN EQUIPMENT(RWV) 		5-87310-348-0 01 1 9411-9506 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TAIWAN EQUIPMENT(RWV) 		5-87310-358-0 01 1 9507-9510 ●

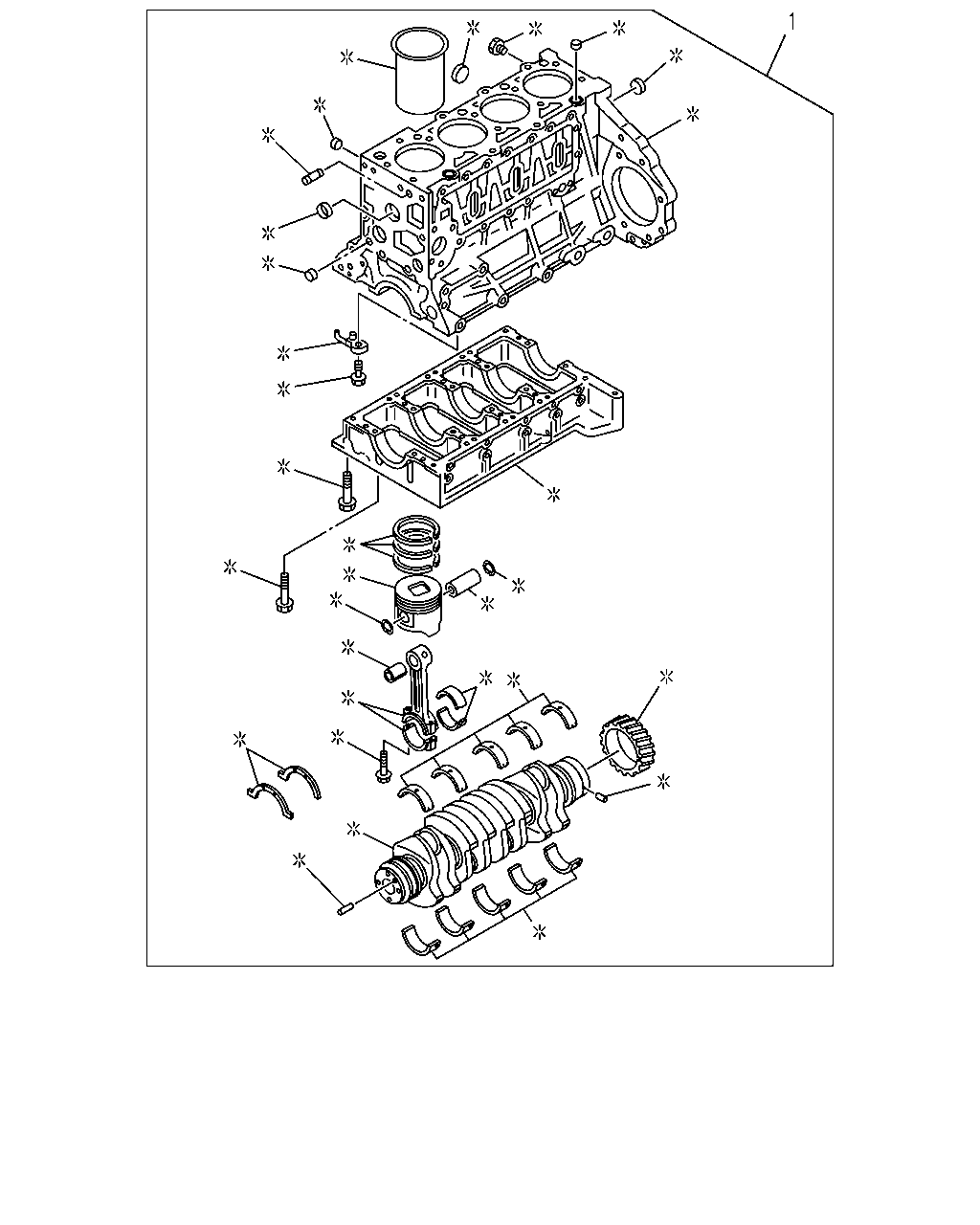

çizim 18220
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.033 ENGINE ASM; PARTIAL
EURO2 SPECIFICATION<7AF> 		5-87310-419-0 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL
EUROPEAN BASIC EQUIPMENT(EK4) 		5-87310-265-0 01 1 9312-9506 ●
1 00.033 ENGINE ASM; PARTIAL
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		5-87310-265-0 01 1 9507-9510 ●
1 00.033 ENGINE ASM; PARTIAL
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 		5-87310-265-1 01 1 9511-9711 ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-269-1 01 1 9312-9711 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. EURO2 SPECIFICATION<7AF> 		5-87310-269-1 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-268-0 01 1 9312-9510 ●
1 00.033 ENGINE ASM; PARTIAL
EURO1 SPECIFICATION<6YW> 		5-87310-350-0 01 1 9511-9606 ●
1 00.033 ENGINE ASM; PARTIAL
EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 		5-87310-350-0 01 1 9607-9711 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TURBOCHARGER<K51> 		5-87310-350-0 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		5-87310-423-0 01 1 9607-9711 ●
1 00.033 ENGINE ASM; PARTIAL
TURBOCHARGER<K51> 		5-87310-423-0 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL
EXC. EURO1 SPECIFICATION<6YW> 		5-87310-268-0 01 1 9511-9711 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-072-1 01 1 9312- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-360-0 01 1 9511-9604 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-421-2 01 1 9605-9711 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-493-1 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-279-2 01 1 9312-9408 ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-327-0 01 1 9409-9410 ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-349-0 01 1 9411-9506 ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-359-0 01 1 9507-9510 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TAIWAN EQUIPMENT(RWV) 		5-87310-275-2 01 1 9312-9408 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TAIWAN EQUIPMENT(RWV) 		5-87310-326-0 01 1 9409-9410 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TAIWAN EQUIPMENT(RWV) 		5-87310-348-0 01 1 9411-9506 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TAIWAN EQUIPMENT(RWV) 		5-87310-358-0 01 1 9507-9510 ●

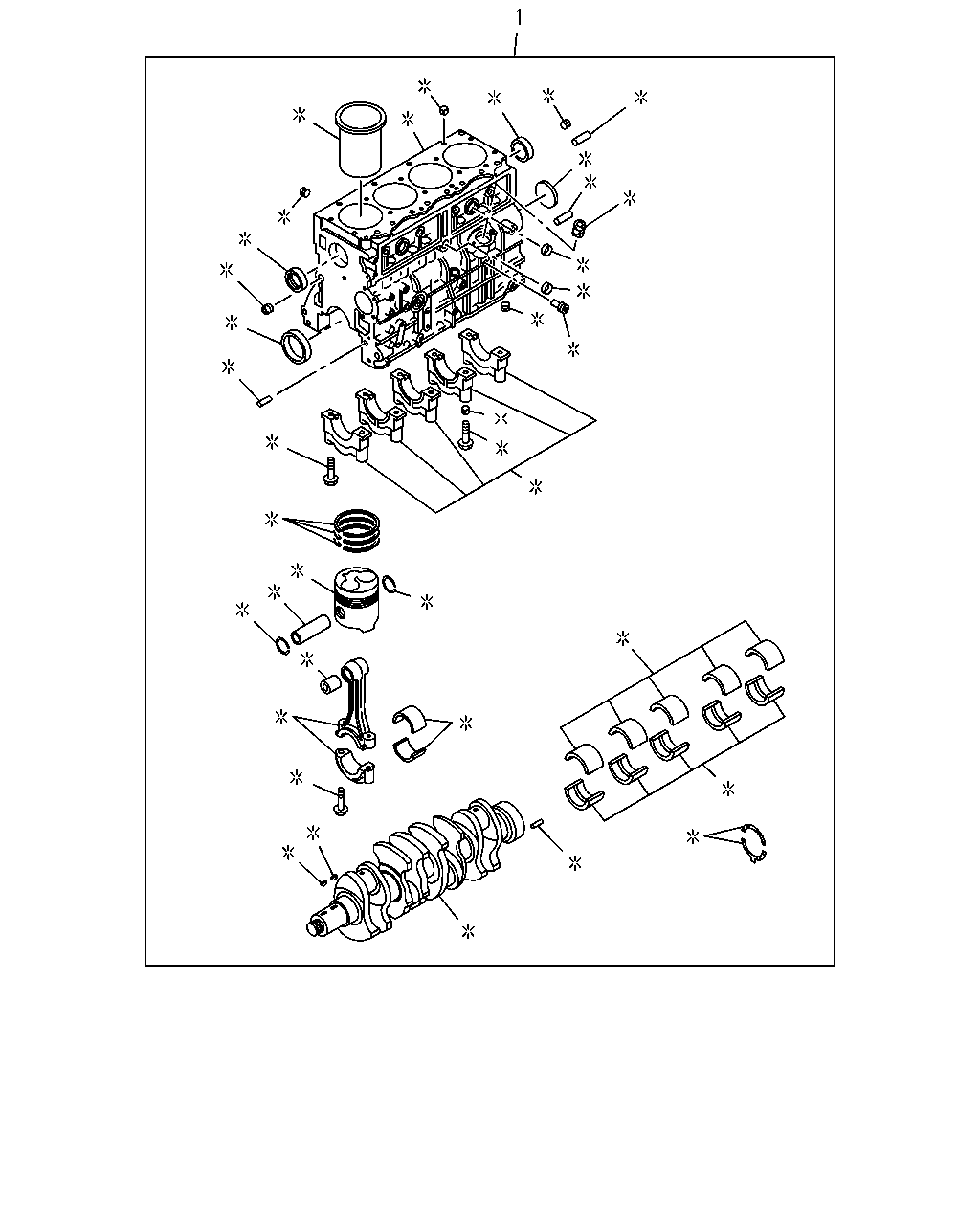

çizim 19080
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.033 ENGINE ASM; PARTIAL
EURO2 SPECIFICATION<7AF> 		5-87310-419-0 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL
EUROPEAN BASIC EQUIPMENT(EK4) 		5-87310-265-0 01 1 9312-9506 ●
1 00.033 ENGINE ASM; PARTIAL
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 		5-87310-265-0 01 1 9507-9510 ●
1 00.033 ENGINE ASM; PARTIAL
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. EURO2 SPECIFICATION<7AF> 		5-87310-265-1 01 1 9511-9711 ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-269-1 01 1 9312-9711 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. EURO2 SPECIFICATION<7AF> 		5-87310-269-1 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-268-0 01 1 9312-9510 ●
1 00.033 ENGINE ASM; PARTIAL
EURO1 SPECIFICATION<6YW> 		5-87310-350-0 01 1 9511-9606 ●
1 00.033 ENGINE ASM; PARTIAL
EURO1 SPECIFICATION<6YW> EXC. TURBOCHARGER<K51> 		5-87310-350-0 01 1 9607-9711 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TURBOCHARGER<K51> 		5-87310-350-0 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		5-87310-423-0 01 1 9607-9711 ●
1 00.033 ENGINE ASM; PARTIAL
TURBOCHARGER<K51> 		5-87310-423-0 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL
EXC. EURO1 SPECIFICATION<6YW> 		5-87310-268-0 01 1 9511-9711 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-072-1 01 1 9312- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-360-0 01 1 9511-9604 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-421-2 01 1 9605-9711 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-493-1 01 1 9712- ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-279-2 01 1 9312-9408 ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-327-0 01 1 9409-9410 ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-349-0 01 1 9411-9506 ●
1 00.033 ENGINE ASM; PARTIAL
TAIWAN EQUIPMENT(RWV) 		5-87310-359-0 01 1 9507-9510 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TAIWAN EQUIPMENT(RWV) 		5-87310-275-2 01 1 9312-9408 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TAIWAN EQUIPMENT(RWV) 		5-87310-326-0 01 1 9409-9410 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TAIWAN EQUIPMENT(RWV) 		5-87310-348-0 01 1 9411-9506 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TAIWAN EQUIPMENT(RWV) 		5-87310-358-0 01 1 9507-9510 ●
