9-30 — REAR BODY ASM AND MOUNTING (#45793) — 70 parça

1 1 44 45 18 45 17 47 47 17 42 41 45 40 18 37 42 44 35 36

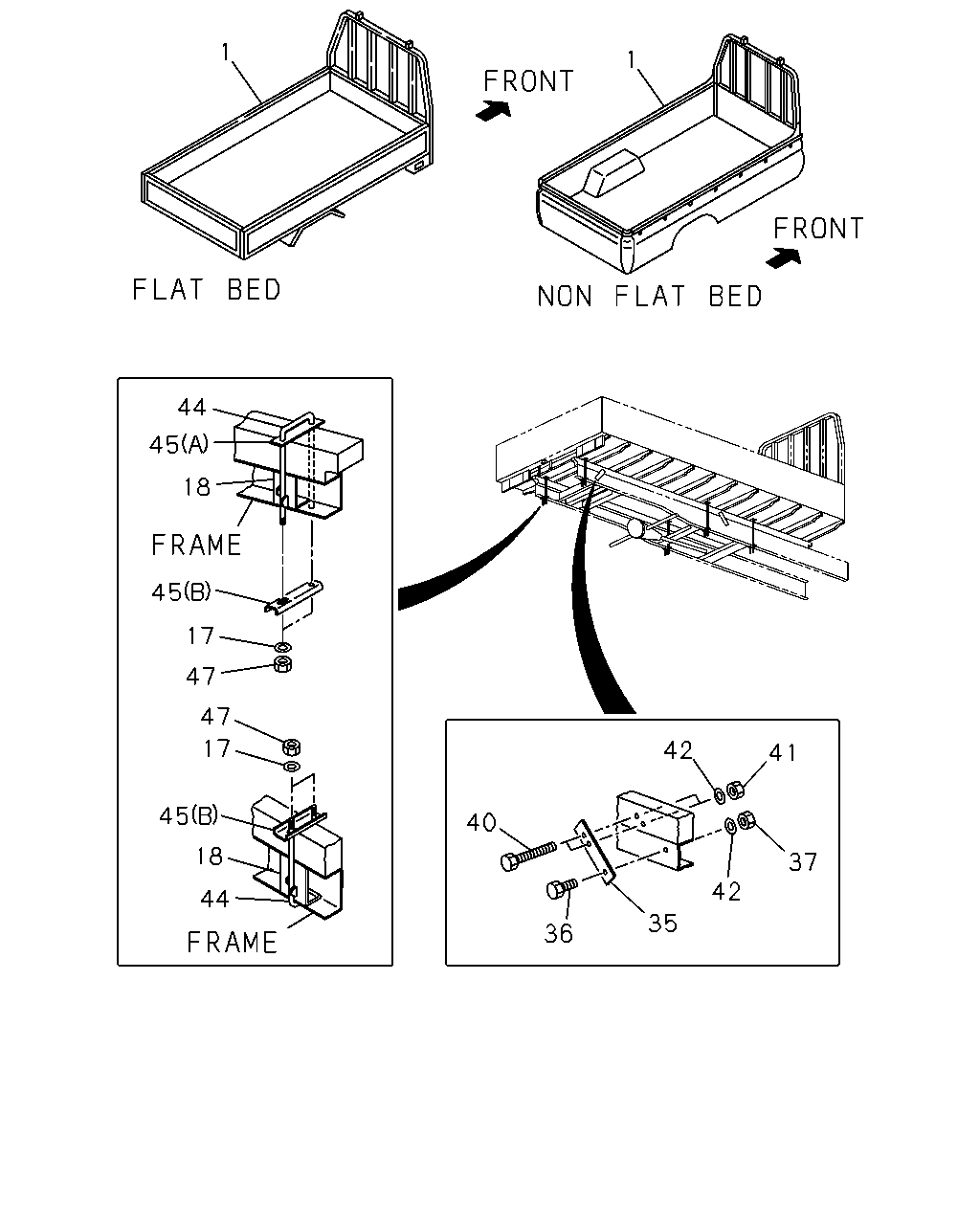

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ADRIATIC BLUE(730) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97098-219-0	01	1	9312-9510	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ADRIATIC BLUE(730) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97153-061-1	01	1	9511-9711	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ADRIATIC BLUE(730) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97158-927-1	01	1	9712-	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ARC WHITE(729) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97097-165-0	01	1	9312-9409	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97097-165-0	01	1	9410-9510	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97153-059-1	01	1	9511-9711	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> WHITE	8-97158-925-1	01	1	9712-	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97097-166-0	01	1	9312-9510	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6>	8-97153-060-1	01	1	9511-9711	●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR MARINE BLUE(890) AIR INTAKE REAR VERTICAL<KJ3> RR BODY FLAT BED<RS6> BLUE	8-97158-926-1	01	1	9712-	●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY NON FLAT BED(RS5)	8-97098-213-2	01	1	9312-9501		●
1	17.090 BODY ASM; REAR BODY COLOR ADRIATIC BLUE(730) RR BODY NON FLAT BED(RS5) BLUE	8-97154-217-0	01	1	9502-		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY NON FLAT BED(RS5)	8-97097-155-2	01	1	9312-9501		●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY NON FLAT BED(RS5) WHITE	8-97154-216-0	01	1	9502-		●
1	17.090 BODY ASM; REAR BODY COLOR CARDINAL RED(736) RR BODY NON FLAT BED(RS5)	8-97098-214-2	01	1	9312-9501		●
1	17.090 BODY ASM; REAR BODY COLOR CARDINAL RED(736) RR BODY NON FLAT BED(RS5) RED	8-97154-218-0	01	1	9502-		●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5)	8-97097-156-2	01	1	9312-9501		●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5) BLUE	8-97154-219-0	01	1	9502-		●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6>	8-97098-218-0	01	1	9312-9510			●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6>	8-97153-058-0	01	1	9511-9606			●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6>	8-97156-725-0	01	1	9607-9711			●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6>	8-97158-932-1	01	1	9712-			●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6>	8-97097-157-0	01	1	9312-9409			●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6>	8-97097-157-0	01	1	9410-9510			●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6>	8-97153-056-0	01	1	9511-9606			●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6>	8-97195-317-0	01	1	9607-9711			●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736) RR BODY FLAT BED<RS6>	8-97158-933-1	01	1	9712-			●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97097-158-0	01	1	9312-9510			●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97153-057-0	01	1	9511-9606			●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97156-724-0	01	1	9607-9711			●
1	17.090 BODY ASM; REAR 4JB1 ENG(RLF),4BE1 ENG(RLH) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6>	8-97158-931-1	01	1	9712-			●
17	17.447 WASHER; PL,U-BOLT RR BODY FLAT BED<RS6> 06.172 ID=12.5	9-09164-512-0	06	1	9312-	●
17	17.447 WASHER; PL,U-BOLT RR BODY FLAT BED<RS6> 00.029 ID=15 OD=26	9-09164-514-0	06	1	9312-			●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> H=161 B=50 D=52	5-53119-093-2	04	1	9312-	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> H=121 B=50 D=47.5	5-53119-094-2	02	1	9312-	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> H=161 B=50 D=68	5-53119-091-3	04	1	9312-			●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED<RS6> H=91 B=50 D=68	5-53119-092-3	02	1	9312-			●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6> L=215	8-97100-408-0	01	1	9312-9402	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6> L=215	8-97100-408-0	02	1	9403-	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6> L=185	9-53459-602-0	03	1	9312-9402	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6> L=185	9-53459-602-0	02	1	9403-	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED<RS6> L=185	9-53459-602-0	04	1	9312-			●
36	17.447 BOLT; FRAME RR BODY FLAT BED<RS6> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9312-	●		●
37	17.447 NUT; STOPPER TO FRAME RR BODY FLAT BED<RS6> 08.917 M10 FLANGE	0-91150-210-0	04	1	9312-	●		●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED<RS6> 03.708 M8X70	0-10805-870-0	08	1	9312-9705	●		●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED<RS6> 01.840 M8X70 FLANGE	0-28080-870-0	08	1	9706-	●		●
41	17.447 NUT; STOPPER TO RR BODY RR BODY FLAT BED<RS6> 03.023 M8 FLANGE	9-09130-408-0	08	1	9312-	●		●
42	17.447 WASHER; PL,STOPPER TO RR BODY RR BODY FLAT BED<RS6> 07.633 ID=8.4 OD=22	9-09164-708-0	08	1	9312-	●		●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=326	8-94151-368-0	04	1	9312-	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=280	8-94151-372-0	02	1	9312-	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=272	5-51171-007-1	02	1	9312-			●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED<RS6> L=345	8-94317-633-0	04	1	9312-			●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (B) L=115 B=40	9-61200-629-2	06	1	9312-	●
45	17.447 PLATE; U-BOLT 4BE1 ENG(RLH) RR BODY FLAT BED<RS6> (A) L=100 B=30	8-94148-715-0	06	1	9312-	●
45	17.447 PLATE; U-BOLT 4JB1 ENG(RLF) RR BODY FLAT BED<RS6> (A) L=100 B=30	8-94148-715-0	05	1	9312-	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (A) L=116 B=35	5-66900-203-0	06	1	9312-			●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED<RS6> (B) L=120 B=45	5-66900-204-3	06	1	9312-			●
47	17.447 NUT; U-BOLT RR BODY FLAT BED<RS6> M12	9-09130-412-0	12	1	9312-	●
47	17.447 NUT; U-BOLT RR BODY FLAT BED<RS6> 06.008 M14	9-09130-414-0	12	1	9312-			●

13 16 14 14 15 16 14 15 15

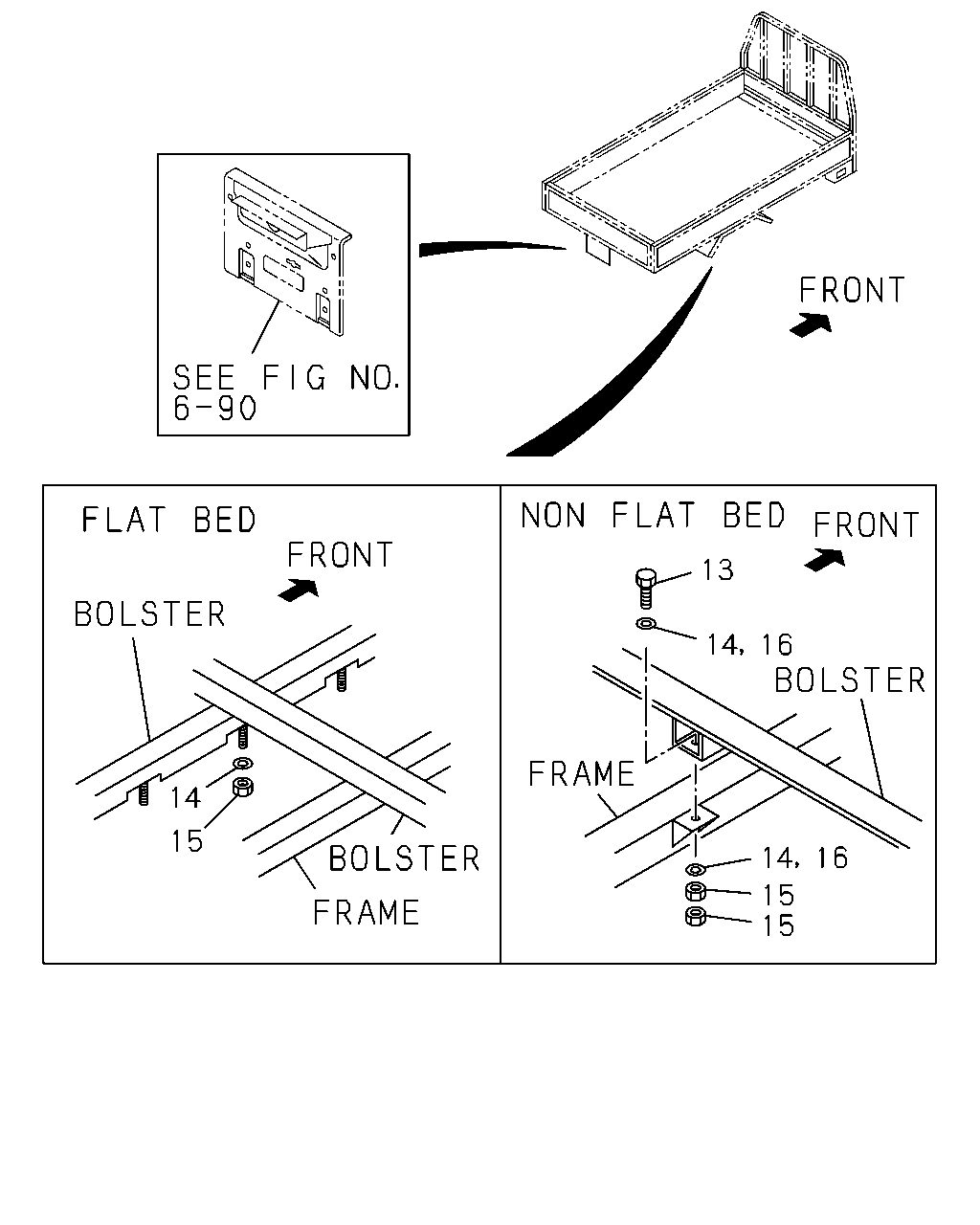

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
13	09.008 BOLT; RR BODY MTG RR BODY NON FLAT BED(RS5) M12X40	0-20801-240-0	08	1	9312-9705	●
13	09.008 BOLT; RR BODY MTG RR BODY NON FLAT BED(RS5) 09.003 M12X40 FLANGE	0-28681-240-0	08	1	9706-	●
13	09.008 BOLT; RR BODY MTG RR BODY FLAT BED<RS6> M8X100	8-97090-620-0	04	1	9312-9606		●
13	09.008 BOLT; RR BODY MTG RR BODY FLAT BED<RS6> M8X100	8-97090-620-0	02	1	9607-		●
14	09.011 WASHER; PL,RR BODY MTG RR BODY NON FLAT BED(RS5) 07.633 ID=12.5 OD=32	9-09164-712-0	14	1	9312-	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED<RS6> 06.760 ID=8.4 OD=22	9-09160-708-0	04	1	9312-9606		●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED<RS6> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	9607-		●
15	09.011 NUT; RR BODY MTG RR BODY NON FLAT BED(RS5) 05.816 M12	9-99110-412-0	16	1	9312-	●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED<RS6> M8 W/LK WASHER	8-97065-435-0	04	1	9312-9606		●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED<RS6> M8 W/LK WASHER	8-97065-435-0	02	1	9607-		●
16	09.011 WASHER; FRAME END,RR BODY RR BODY NON FLAT BED(RS5) ID=12.5 OD=26	9-09164-612-0	02	1	9312-	●
