◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#45791) — 80 parça

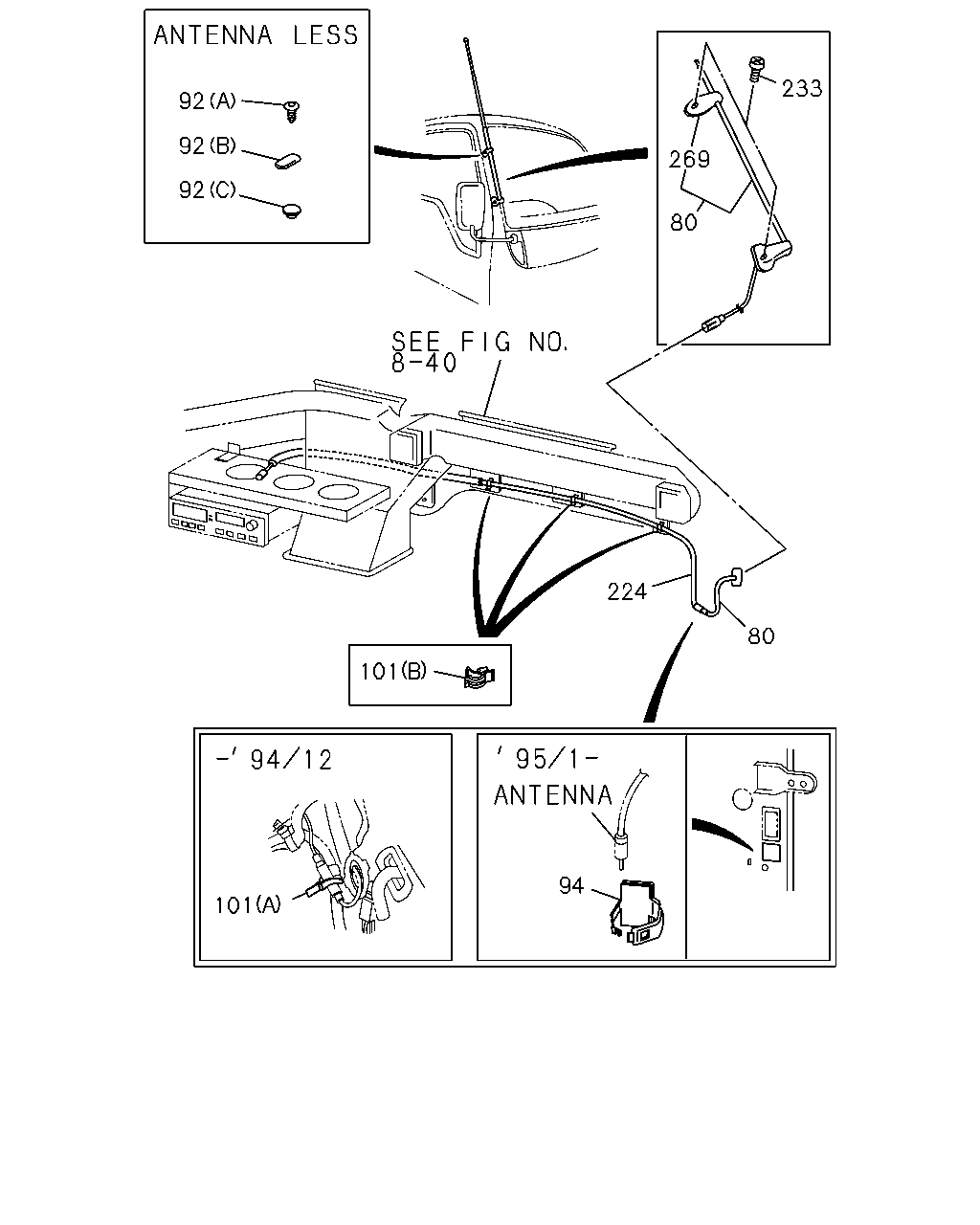

çizim 17081
233 92 92 269 92 80 224 80 101 94 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
80 09.645 ANTENNA
ANTENNA<U73> 		8-97070-022-2 01 1 9312-9809 ● ● ● ● ● ●
80 09.645 ANTENNA
ANTENNA<U73> 		8-97210-546-0 01 1 9810- ● ● ● ● ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8 		8-94279-921-0 01 1 9312- ● ● ● ● ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B) 		8-97088-275-2 01 1 9312-9404 ● ● ● ● ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B) 		8-97088-275-2 01 1 9405-9801 ● ● ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B) 		8-97088-275-2 01 1 9802- ● ● ● ● ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> 08.155 (A) OD=16 L=11 		1-76378-155-0 01 1 9405-9801 ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> 09.775 (C) 		8-94203-634-1 01 1 9405-9407 ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (C) 		1-09983-097-0 01 1 9408-9801 ● ●
94 09.656 CLIP; ANTENNA FEEDER
ANTENNA<U73> 		1-09987-155-0 01 1 9501- ● ● ● ● ● ●
101 09.649 CLIP; FEEDER TO BRKT
ANTENNA<U73> 03.162 (A) L=170 		5-09707-054-0 01 1 9312-9412 ● ● ● ● ● ●
101 09.649 CLIP; FEEDER TO BRKT
ANTENNA<U73> (B) ID=7 		8-97085-207-0 03 1 9312-9503 ● ● ● ● ● ●
101 09.649 CLIP; FEEDER TO BRKT
ANTENNA<U73> 04.342 (B) ID=7 		5-09707-053-0 03 1 9504- ● ● ● ● ● ●
224 09.647 CABLE; EXT,FEEDER
ANTENNA<U73> 		8-97041-980-1 01 1 9312-9412 ● ● ● ● ● ●
224 09.647 CABLE; EXT,FEEDER
ANTENNA<U73> 		8-97118-847-0 01 1 9501- ● ● ● ● ● ●
233 09.647 SCREW
ANTENNA<U73> M6X20 		8-97068-547-1 02 1 9312-9405 ● ● ● ● ● ●
233 09.647 SCREW
ANTENNA<U73> M6X20 		8-97068-547-2 01 1 9406-9411 ● ● ● ● ● ●
233 09.647 SCREW
ANTENNA<U73> M6X20 		8-97120-686-0 01 1 9412- ● ● ● ● ● ●
233 09.647 SCREW
ANTENNA<U73> 05.812 M6X16 		9-03486-616-0 01 1 9406-9411 ● ● ● ● ● ●
233 09.647 SCREW
ANTENNA<U73> M6X16 		8-97123-696-0 01 1 9412- ● ● ● ● ● ●
269 09.647 SUPPORT KIT; ANTENNA
ANTENNA<U73> 		8-97108-183-0 01 1 9712- ● ● ● ● ● ●

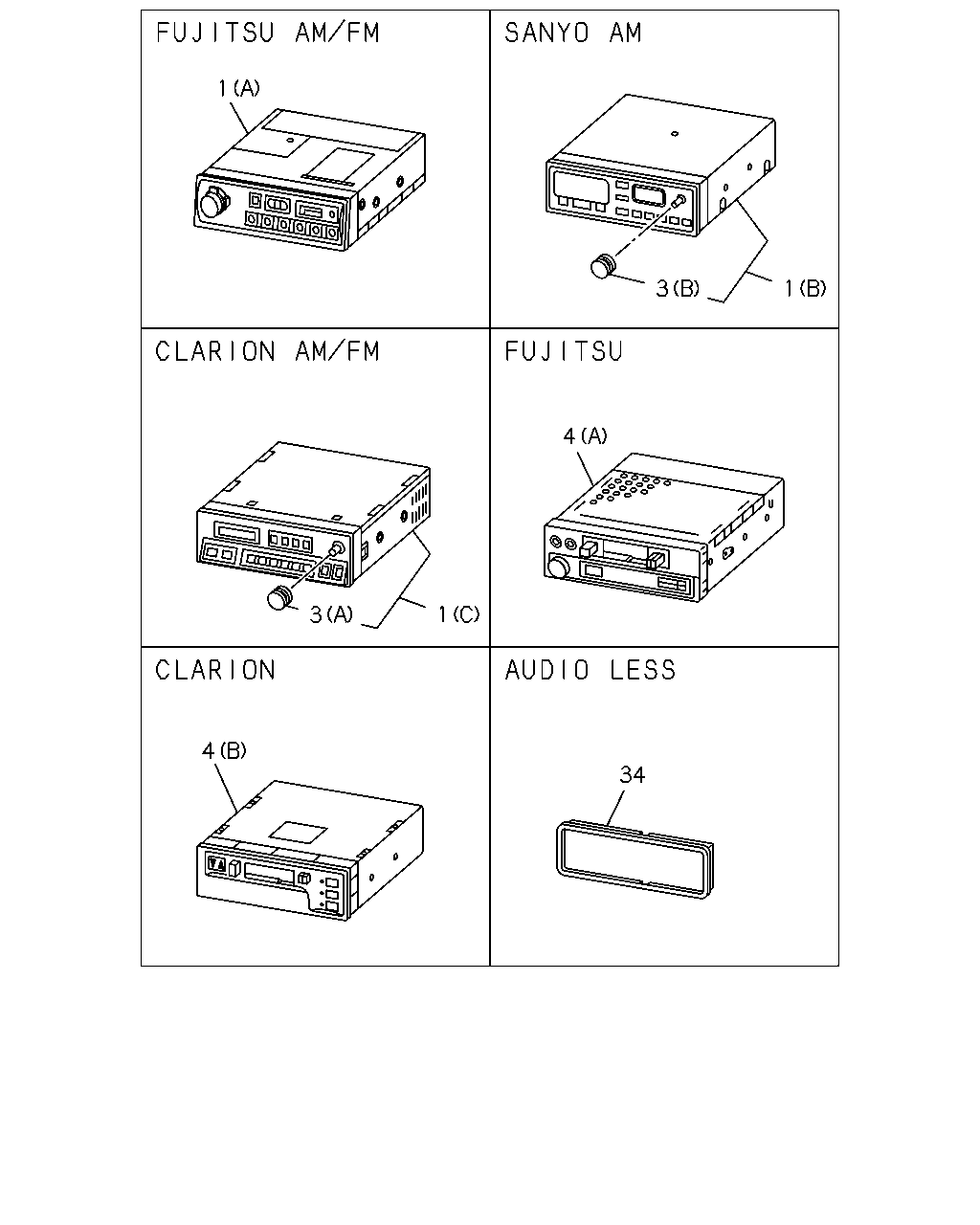

çizim 18487
1 1 3 4 1 3 4 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.650 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM 		8-97088-264-0 01 1 9312- ● ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM 		8-97088-266-0 01 1 9312- ● ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM 		8-97091-586-0 01 1 9312-9502 ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM 		8-97120-647-0 01 1 9503- ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM 		8-97091-587-0 01 1 9312-9509 ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM 		8-97120-649-0 01 1 9510- ● ● ● ● ●
3 09.649 ATTACH KIT; AM/FM RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO 		8-97093-557-0 01 1 9312- ● ● ● ● ● ●
3 09.649 ATTACH KIT; AM/FM RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> (A) CLARION 		8-97108-088-0 01 1 9312-9502 ● ● ● ● ●
3 09.649 ATTACH KIT; AM/FM RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (A) CLARION 		8-97108-088-0 01 1 9503-9509 ● ● ● ● ●
3 09.649 ATTACH KIT; AM/FM RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (A) CLARION 		8-97093-559-0 01 1 9503-9509 ● ● ● ● ●
3 09.649 ATTACH KIT; AM/FM RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> (A) CLARION 		8-97093-559-0 01 1 9510- ● ● ● ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU 		8-97088-290-0 01 1 9312- ● ● ● ● ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> (B) CLARION 		8-97088-291-0 01 1 9312- ● ● ● ● ●
34 09.650 COVER; RADIO HOLE
EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97856-203-3 01 1 9312-9502 ● ● ● ● ● ●
34 09.650 COVER; RADIO HOLE
EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97856-203-3 01 1 9503- ● ● ● ● ● ●
çizim 67772
222 116 222 171 222 5 48 117 221 49 221 48 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 09.647 HARNESS; EXT
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97131-327-0 02 1 9509- ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE> 		8-97048-675-0 02 1 9312-9508 ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE> 		8-97130-575-0 02 1 9509-9809 ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE> 		8-97207-696-0 02 1 9810- ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97048-670-0 02 1 9312-9508 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97130-574-0 02 1 9509-9612 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97169-451-0 02 1 9701-9809 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97207-695-0 02 1 9810- ● ● ● ● ●
49 09.655 SCREW; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14 		8-94279-325-0 06 1 9312- ● ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-325-3 01 1 9312- ● ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-324-3 01 1 9312- ● ● ● ● ● ●
117 16.165 SCREW; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14 		8-94279-325-0 06 1 9312- ● ● ● ● ● ●
171 09.650 COVER; SPEAKER
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97852-331-2 02 1 9312-9403 ● ● ● ● ● ●
171 09.650 COVER; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-331-4 02 1 9404- ● ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A) 		8-97852-327-4 02 1 9312- ● ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B) 		8-97852-601-1 02 1 9312- ● ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A) 		1-09987-144-0 02 1 9312- ● ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.345 (B) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9312-9705 ● ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 01.269 (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 9706- ● ● ● ● ● ●

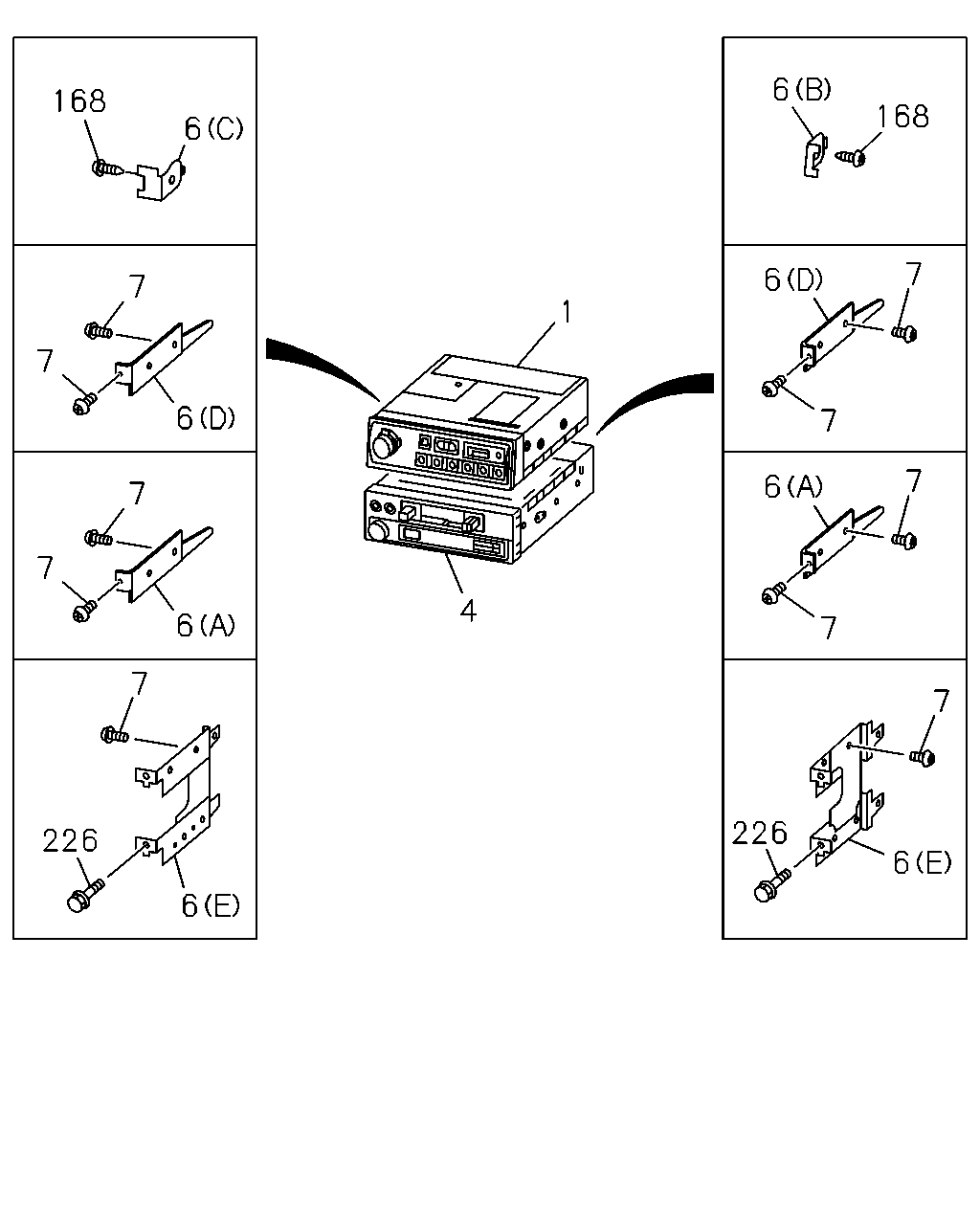

çizim 70745
6 168 168 6 7 6 7 1 7 6 7 7 6 7 7 4 6 7 7 7 226 226 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.650 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM 		8-97088-264-0 01 1 9312- ● ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM 		8-97088-266-0 01 1 9312- ● ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM 		8-97091-586-0 01 1 9312-9502 ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM 		8-97120-647-0 01 1 9503- ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM 		8-97091-587-0 01 1 9312-9509 ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM 		8-97120-649-0 01 1 9510- ● ● ● ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU 		8-97088-290-0 01 1 9312- ● ● ● ● ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> (B) CLARION 		8-97088-291-0 01 1 9312- ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2) RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A) 		8-97853-615-2 01 1 9312- ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2) RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A) 		8-97853-614-2 01 1 9312- ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (C) 		8-97108-200-0 01 1 9312-9312 ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (D) 		8-97857-877-0 01 1 9312-9312 ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (E) 		8-97859-104-1 01 1 9401- ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-97108-199-0 01 1 9312-9312 ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (D) 		8-97857-875-0 01 1 9312-9312 ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (E) 		8-97859-103-1 01 1 9401- ● ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM W/AMPLIFIER(RS2) RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9312- ● ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ),RADIO AM/FM W /CASSETTE 2 SPEAKERS(6VL) 08.852 M5X14 		8-94323-227-0 04 1 9312-9412 ● ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9312-9409 ● ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 08 1 9312- ● ● ● ● ● ●
168 09.645 SCREW; BRKT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 02 1 9312-9312 ● ● ● ● ● ●
226 09.647 BOLT; BRKT
RADIO AM W/AMPLIFIER(RS2) RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9312-9603 ● ● ● ● ● ●
226 09.647 BOLT; BRKT
RADIO AM W/AMPLIFIER(RS2) RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9604- ● ● ● ● ● ●
226 09.647 BOLT; BRKT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9410-9603 ● ● ● ● ● ●
226 09.647 BOLT; BRKT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9604- ● ● ● ● ● ●
