Sayfa 8-71 - Isuzu EPC

8-71 — COMPRESSOR; AIR CONDITIONING (#45788) — 249 parça

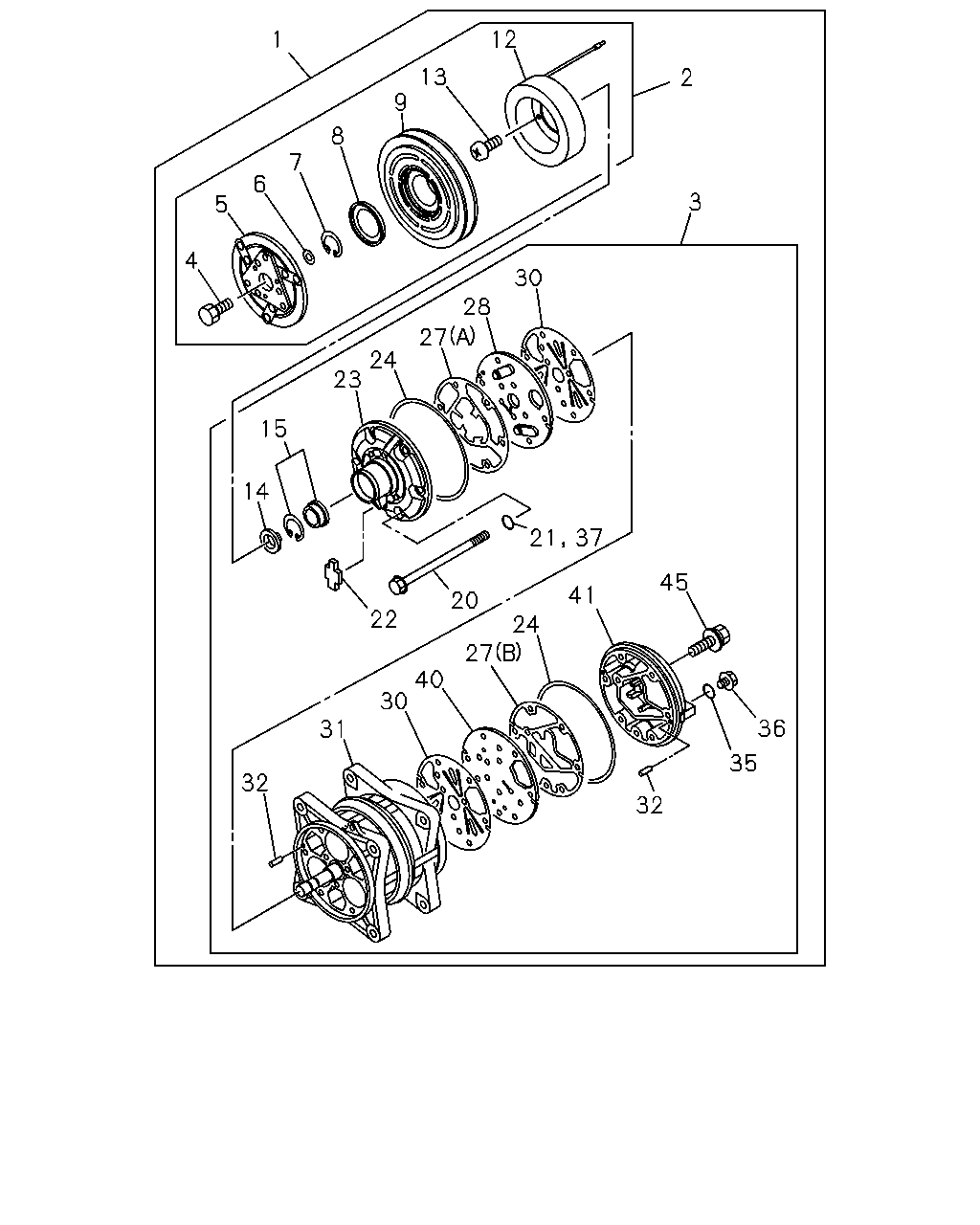

12 1 13 2 9 8 7 6 3 5 4 30 28 27 24 23 15 14 21 37 45 41 20 22 24 27 40 30 36 31 35 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.170 COMPRESSOR ASM; A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97072-662-3	01	1	9312-9506	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97072-662-3	01	1	9507-	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97035-238-3	01	1	9312-9402	●		●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97048-337-3	01	1	9312-9510				●
1	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97048-337-3	01	1	9511-9711			●	●
1	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97048-337-3	01	1	9712-	●		●	●		●
2	09.188 CLUTCH; MAGNET,A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-787-0	01	1	9312-9312	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97114-210-0	01	1	9312-9506	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97114-210-0	01	1	9507-	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60)	8-97081-399-0	01	1	9312-9402	●		●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97114-211-0	01	1	9312-9510				●
2	09.188 CLUTCH; MAGNET,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97114-211-0	01	1	9511-9711			●	●
2	09.188 CLUTCH; MAGNET,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97114-211-0	01	1	9712-	●		●	●		●
3	09.170 COMPRESSOR ASM; A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97081-383-0	01	1	9312-9312	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97114-232-0	01	1	9312-9506	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97114-232-0	01	1	9507-9507	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97138-168-0	01	1	9508-	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60)	8-97081-386-1	01	1	9312-9402	●		●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-384-1	01	1	9312-9312				●
3	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97114-223-0	01	1	9312-9507				●
3	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97138-166-0	01	1	9508-9510				●
3	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97138-166-0	01	1	9511-9711			●	●
3	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97138-166-0	01	1	9712-	●		●	●		●
4	09.181 BOLT; MAGNET CLU 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.186	8-94164-439-0	01	1	9312-9402	●	●	●	●	●	●
4	09.181 BOLT; MAGNET CLU 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.186	8-94164-439-0	01	1	9403-9506	●	●	●	●	●	●
4	09.181 BOLT; MAGNET CLU 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.186	8-94164-439-0	01	1	9507-	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-789-0	01	1	9312-9506	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-789-0	01	1	9507-	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-788-0	01	1	9312-9402	●		●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-788-0	01	1	9403-9510				●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-788-0	01	1	9511-9711			●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-788-0	01	1	9712-	●		●	●		●
6	09.181 SHIM; MAGNET CLU 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.1	8-94120-721-0	AR	1	9312-9402	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.1	8-94120-721-0	AR	1	9403-9506	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.1	8-94120-721-0	AR	1	9507-	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.3	8-94120-722-0	AR	1	9312-9402	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.3	8-94120-722-0	AR	1	9403-9506	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.3	8-94120-722-0	AR	1	9507-	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.5	8-94120-723-0	AR	1	9312-9402	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.5	8-94120-723-0	AR	1	9403-9506	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.5	8-94120-723-0	AR	1	9507-	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94120-724-0	01	1	9312-9402	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94120-724-0	01	1	9403-9506	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94120-724-0	01	1	9507-	●	●	●	●	●	●
8	09.181 COVER; PULLEY 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94120-725-0	01	1	9312-9402	●	●	●	●	●	●
8	09.181 COVER; PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94120-725-0	01	1	9403-9507				●
9	09.181 PULLEY; MAGNET CLU 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-791-0	01	1	9312-9506	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-791-0	01	1	9507-	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-790-0	01	1	9312-9402	●		●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-790-0	01	1	9403-9510				●
9	09.181 PULLEY; MAGNET CLU 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-790-0	01	1	9511-9711			●	●
9	09.181 PULLEY; MAGNET CLU 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-790-0	01	1	9712-	●		●	●		●
12	09.186 COIL; FIELD,MAGNET CLU 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-793-0	01	1	9312-9312	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97081-400-0	01	1	9312-9506	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97081-400-0	01	1	9507-	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-401-0	01	1	9312-9402	●		●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-401-0	01	1	9403-9510				●
12	09.186 COIL; FIELD,MAGNET CLU 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-401-0	01	1	9511-9711			●	●
12	09.186 COIL; FIELD,MAGNET CLU 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-401-0	01	1	9712-	●		●	●		●
13	09.186 SCREW; COIL FIELD 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.188	8-94120-727-0	03	1	9312-9402	●	●	●	●	●	●
13	09.186 SCREW; COIL FIELD 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.188	8-94120-727-0	03	1	9403-9506	●	●	●	●	●	●
13	09.186 SCREW; COIL FIELD 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.188	8-94120-727-0	03	1	9507-	●	●	●	●	●	●
14	09.172 FELT; SHAFT SEAL,CYL HD,FRT 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94441-395-0	01	1	9312-9402	●		●	●	●	●
15	09.175 SEAL; SHAFT 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-397-0	01	1	9312-9312	●	●	●	●	●	●
15	09.175 SEAL; SHAFT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-217-1	01	1	9312-9506	●	●	●	●	●	●
15	09.175 SEAL; SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-217-1	01	1	9507-	●	●	●	●	●	●
15	09.175 SEAL; SHAFT 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-397-0	01	1	9312-9402	●		●	●	●	●
20	09.174 BOLT; CMPR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-394-0	06	1	9312-9402	●	●	●	●	●	●
20	09.174 BOLT; CMPR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-394-0	06	1	9403-9506	●	●	●	●	●	●
20	09.174 BOLT; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-394-0	06	1	9507-	●	●	●	●	●	●
21	09.175 WASHER; COOLER CMPR 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.174	8-94466-678-0	06	1	9312-9402	●		●	●	●	●
22	09.172 FELT; CYL HD,FRT 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94441-396-0	01	1	9312-9402	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97034-782-0	01	1	9312-9312	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-215-0	01	1	9312-9506	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-215-0	01	1	9507-	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97034-782-0	01	1	9312-9402	●		●	●	●	●
24	09.172 GASKET; CMPR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-396-0	02	1	9312-9402	●	●	●	●	●	●
24	09.172 GASKET; CMPR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-396-0	02	1	9403-9506	●	●	●	●	●	●
24	09.172 GASKET; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-396-0	02	1	9507-	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97085-777-0	01	1	9312-9402	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97085-777-0	01	1	9403-9506	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97085-777-0	01	1	9507-	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97085-779-0	01	1	9312-9402	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97085-779-0	01	1	9403-9506	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97085-779-0	01	1	9507-	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-94466-687-0	01	1	9312-9312	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-136-0	01	1	9312-9402	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-136-0	01	1	9403-9506	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-136-0	01	1	9507-9507	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97135-796-0	01	1	9508-	●	●	●	●	●	●
30	09.172 VALVE; SUCTION 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-404-0	02	1	9312-9402	●	●	●	●	●	●
30	09.172 VALVE; SUCTION 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-404-0	02	1	9403-9506	●	●	●	●	●	●
30	09.172 VALVE; SUCTION 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-404-0	02	1	9507-9507	●	●	●	●	●	●
30	09.172 VALVE; SUCTION 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97134-755-0	02	1	9508-	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97081-389-0	01	1	9312-9312	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97114-234-0	01	1	9312-9506	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97114-234-0	01	1	9507-9507	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97138-175-0	01	1	9508-	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60)	8-97100-124-0	01	1	9312-9402	●		●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-125-0	01	1	9312-9507				●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97138-174-0	01	1	9508-9510				●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97138-174-0	01	1	9511-9711			●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97138-174-0	01	1	9712-	●		●	●		●
32	09.174 PIN; CMPR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94154-711-0	04	1	9312-9402	●	●	●	●	●	●
32	09.174 PIN; CMPR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94154-711-0	04	1	9403-9506	●	●	●	●	●	●
32	09.174 PIN; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94154-711-0	04	1	9507-	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-395-0	01	1	9312-9402	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-395-0	01	1	9403-9506	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-395-0	01	1	9507-	●	●	●	●	●	●
36	09.173 PLUG; CYL 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94164-473-0	01	1	9312-9402	●	●	●	●	●	●
36	09.173 PLUG; CYL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94164-473-0	01	1	9403-9506	●	●	●	●	●	●
36	09.173 PLUG; CYL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94164-473-0	01	1	9507-	●	●	●	●	●	●
37	09.172 GASKET; CMPR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.174	8-94466-678-0	06	1	9312-9506	●	●	●	●	●	●
37	09.172 GASKET; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.174	8-94466-678-0	06	1	9507-	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-94466-691-0	01	1	9312-9312	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-138-0	01	1	9312-9402	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-138-0	01	1	9403-9506	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-138-0	01	1	9507-9507	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97135-797-0	01	1	9508-	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-784-0	01	1	9312-9402	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-784-0	01	1	9403-9506	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-784-0	01	1	9507-	●	●	●	●	●	●
45	09.173 BOLT; PLATE TO CYL HD 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9312-9402	●	●	●	●	●	●
45	09.173 BOLT; PLATE TO CYL HD 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9403-9506	●	●	●	●	●	●
45	09.173 BOLT; PLATE TO CYL HD 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9507-	●	●	●	●	●	●

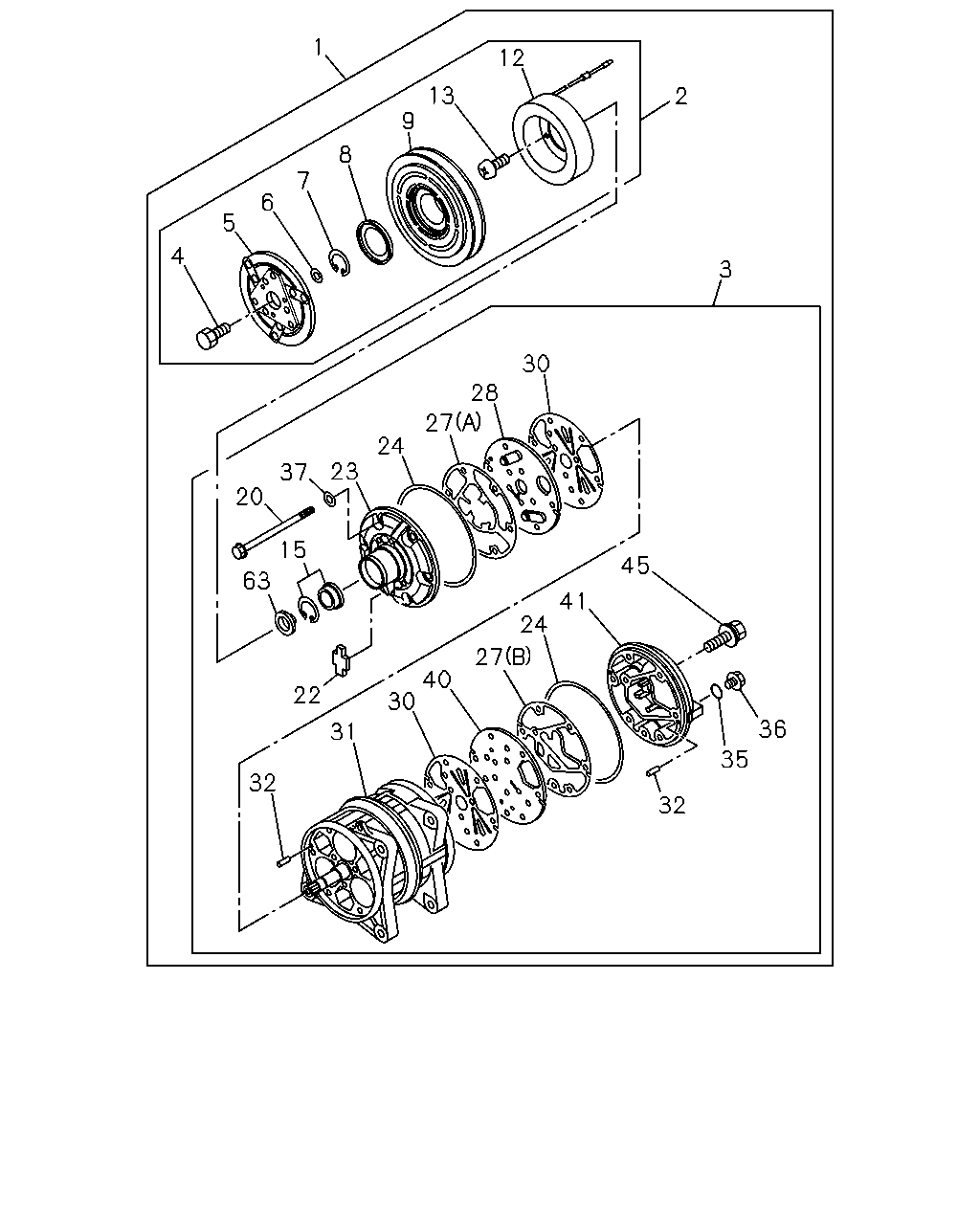

1 12 13 2 9 8 7 6 5 4 3 30 28 27 24 23 37 20 15 45 63 41 24 27 40 30 22 36 31 35 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.170 COMPRESSOR ASM; A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97072-662-3	01	1	9312-9506	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97072-662-3	01	1	9507-	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97035-238-3	01	1	9312-9402	●		●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97048-337-3	01	1	9312-9510				●
1	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97048-337-3	01	1	9511-9711			●	●
1	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ZEXEL	8-97048-337-3	01	1	9712-	●		●	●		●
2	09.188 CLUTCH; MAGNET,A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-787-0	01	1	9312-9312	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97114-210-0	01	1	9312-9506	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97114-210-0	01	1	9507-	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60)	8-97081-399-0	01	1	9312-9402	●		●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97114-211-0	01	1	9312-9510				●
2	09.188 CLUTCH; MAGNET,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97114-211-0	01	1	9511-9711			●	●
2	09.188 CLUTCH; MAGNET,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97114-211-0	01	1	9712-	●		●	●		●
3	09.170 COMPRESSOR ASM; A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97081-383-0	01	1	9312-9312	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97114-232-0	01	1	9312-9506	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97114-232-0	01	1	9507-9507	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97138-168-0	01	1	9508-	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60)	8-97081-386-1	01	1	9312-9402	●		●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-384-1	01	1	9312-9312				●
3	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97114-223-0	01	1	9312-9507				●
3	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97138-166-0	01	1	9508-9510				●
3	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97138-166-0	01	1	9511-9711			●	●
3	09.170 COMPRESSOR ASM; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97138-166-0	01	1	9712-	●		●	●		●
4	09.181 BOLT; MAGNET CLU 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.186	8-94164-439-0	01	1	9312-9402	●	●	●	●	●	●
4	09.181 BOLT; MAGNET CLU 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.186	8-94164-439-0	01	1	9403-9506	●	●	●	●	●	●
4	09.181 BOLT; MAGNET CLU 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.186	8-94164-439-0	01	1	9507-	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-789-0	01	1	9312-9506	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-789-0	01	1	9507-	●	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-788-0	01	1	9312-9402	●		●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-788-0	01	1	9403-9510				●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-788-0	01	1	9511-9711			●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-788-0	01	1	9712-	●		●	●		●
6	09.181 SHIM; MAGNET CLU 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.1	8-94120-721-0	AR	1	9312-9402	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.1	8-94120-721-0	AR	1	9403-9506	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.1	8-94120-721-0	AR	1	9507-	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.3	8-94120-722-0	AR	1	9312-9402	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.3	8-94120-722-0	AR	1	9403-9506	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.3	8-94120-722-0	AR	1	9507-	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.5	8-94120-723-0	AR	1	9312-9402	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.5	8-94120-723-0	AR	1	9403-9506	●	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) T=0.5	8-94120-723-0	AR	1	9507-	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94120-724-0	01	1	9312-9402	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94120-724-0	01	1	9403-9506	●	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94120-724-0	01	1	9507-	●	●	●	●	●	●
8	09.181 COVER; PULLEY 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94120-725-0	01	1	9312-9402	●	●	●	●	●	●
8	09.181 COVER; PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94120-725-0	01	1	9403-9507				●
9	09.181 PULLEY; MAGNET CLU 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-791-0	01	1	9312-9506	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-791-0	01	1	9507-	●	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-790-0	01	1	9312-9402	●		●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-790-0	01	1	9403-9510				●
9	09.181 PULLEY; MAGNET CLU 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-790-0	01	1	9511-9711			●	●
9	09.181 PULLEY; MAGNET CLU 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-790-0	01	1	9712-	●		●	●		●
12	09.186 COIL; FIELD,MAGNET CLU 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-793-0	01	1	9312-9312	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97081-400-0	01	1	9312-9506	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97081-400-0	01	1	9507-	●	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-401-0	01	1	9312-9402	●		●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-401-0	01	1	9403-9510				●
12	09.186 COIL; FIELD,MAGNET CLU 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-401-0	01	1	9511-9711			●	●
12	09.186 COIL; FIELD,MAGNET CLU 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-401-0	01	1	9712-	●		●	●		●
13	09.186 SCREW; COIL FIELD 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.188	8-94120-727-0	03	1	9312-9402	●	●	●	●	●	●
13	09.186 SCREW; COIL FIELD 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.188	8-94120-727-0	03	1	9403-9506	●	●	●	●	●	●
13	09.186 SCREW; COIL FIELD 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.188	8-94120-727-0	03	1	9507-	●	●	●	●	●	●
15	09.175 SEAL; SHAFT 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-397-0	01	1	9312-9312	●	●	●	●	●	●
15	09.175 SEAL; SHAFT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-217-1	01	1	9312-9506	●	●	●	●	●	●
15	09.175 SEAL; SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-217-1	01	1	9507-	●	●	●	●	●	●
15	09.175 SEAL; SHAFT 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-397-0	01	1	9312-9402	●		●	●	●	●
20	09.174 BOLT; CMPR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-394-0	06	1	9312-9402	●	●	●	●	●	●
20	09.174 BOLT; CMPR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-394-0	06	1	9403-9506	●	●	●	●	●	●
20	09.174 BOLT; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-394-0	06	1	9507-	●	●	●	●	●	●
22	09.172 FELT; CYL HD,FRT 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94441-396-0	01	1	9312-9402	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97034-782-0	01	1	9312-9312	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-215-0	01	1	9312-9506	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-215-0	01	1	9507-	●	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97034-782-0	01	1	9312-9402	●		●	●	●	●
24	09.172 GASKET; CMPR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-396-0	02	1	9312-9402	●	●	●	●	●	●
24	09.172 GASKET; CMPR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-396-0	02	1	9403-9506	●	●	●	●	●	●
24	09.172 GASKET; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-396-0	02	1	9507-	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97085-777-0	01	1	9312-9402	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97085-777-0	01	1	9403-9506	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97085-777-0	01	1	9507-	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97085-779-0	01	1	9312-9402	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97085-779-0	01	1	9403-9506	●	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97085-779-0	01	1	9507-	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-94466-687-0	01	1	9312-9312	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-136-0	01	1	9312-9402	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-136-0	01	1	9403-9506	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-136-0	01	1	9507-9507	●	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97135-796-0	01	1	9508-	●	●	●	●	●	●
30	09.172 VALVE; SUCTION 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-404-0	02	1	9312-9402	●	●	●	●	●	●
30	09.172 VALVE; SUCTION 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-404-0	02	1	9403-9506	●	●	●	●	●	●
30	09.172 VALVE; SUCTION 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-404-0	02	1	9507-9507	●	●	●	●	●	●
30	09.172 VALVE; SUCTION 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97134-755-0	02	1	9508-	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97081-389-0	01	1	9312-9312	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97114-234-0	01	1	9312-9506	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97114-234-0	01	1	9507-9507	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97138-175-0	01	1	9508-	●	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60)	8-97100-124-0	01	1	9312-9402	●		●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-125-0	01	1	9312-9507				●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97138-174-0	01	1	9508-9510				●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97138-174-0	01	1	9511-9711			●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97138-174-0	01	1	9712-	●		●	●		●
32	09.174 PIN; CMPR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94154-711-0	04	1	9312-9402	●	●	●	●	●	●
32	09.174 PIN; CMPR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94154-711-0	04	1	9403-9506	●	●	●	●	●	●
32	09.174 PIN; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94154-711-0	04	1	9507-	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-395-0	01	1	9312-9402	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-395-0	01	1	9403-9506	●	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-395-0	01	1	9507-	●	●	●	●	●	●
36	09.173 PLUG; CYL 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94164-473-0	01	1	9312-9402	●	●	●	●	●	●
36	09.173 PLUG; CYL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94164-473-0	01	1	9403-9506	●	●	●	●	●	●
36	09.173 PLUG; CYL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94164-473-0	01	1	9507-	●	●	●	●	●	●
37	09.172 GASKET; CMPR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.174	8-94466-678-0	06	1	9312-9506	●	●	●	●	●	●
37	09.172 GASKET; CMPR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.174	8-94466-678-0	06	1	9507-	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-94466-691-0	01	1	9312-9312	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-138-0	01	1	9312-9402	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-138-0	01	1	9403-9506	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-138-0	01	1	9507-9507	●	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97135-797-0	01	1	9508-	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-784-0	01	1	9312-9402	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-784-0	01	1	9403-9506	●	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97034-784-0	01	1	9507-	●	●	●	●	●	●
45	09.173 BOLT; PLATE TO CYL HD 4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9312-9402	●	●	●	●	●	●
45	09.173 BOLT; PLATE TO CYL HD 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9403-9506	●	●	●	●	●	●
45	09.173 BOLT; PLATE TO CYL HD 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9507-	●	●	●	●	●	●
63	09.175 COVER; CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.172	8-94441-395-0	01	1	9312-9312	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
