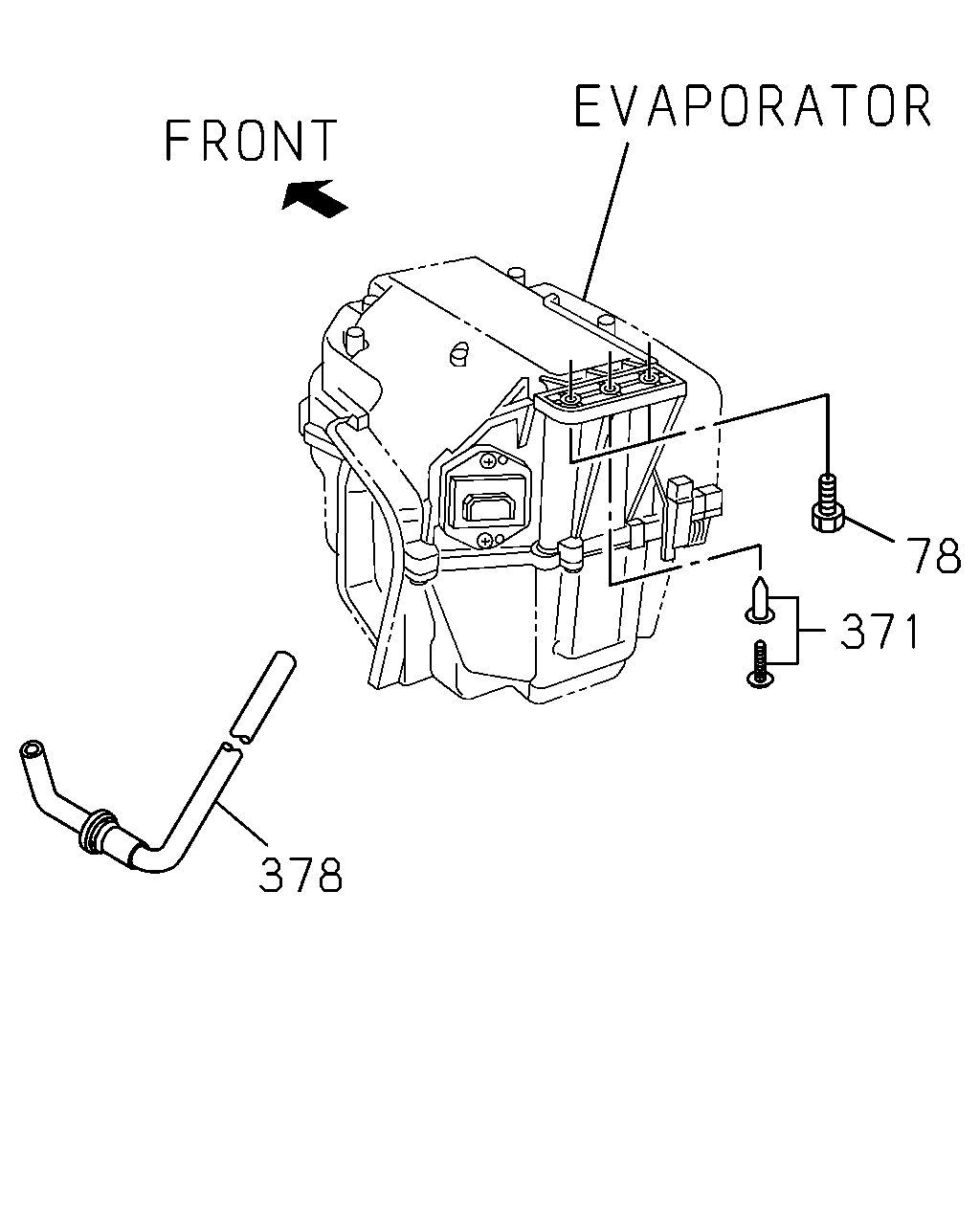

8-50 — AIR CONDITIONING SYSTEM; FRONT (#45785) — 108 parça

78 371 378

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20	0-28280-620-0	02	1	9312-9605	●	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9606-	●	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 16.335 M8X20 FLANGE	0-28280-820-0	01	1	9312-9404	●	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9405-9605	●	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9606-	●	●	●	●	●	●
371	09.211 CLIP; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 04.594 GRAY	8-94350-828-0	01	1	9312-9504	●	●	●	●	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97036-017-1	01	1	9312-	●	●	●	●	●	●

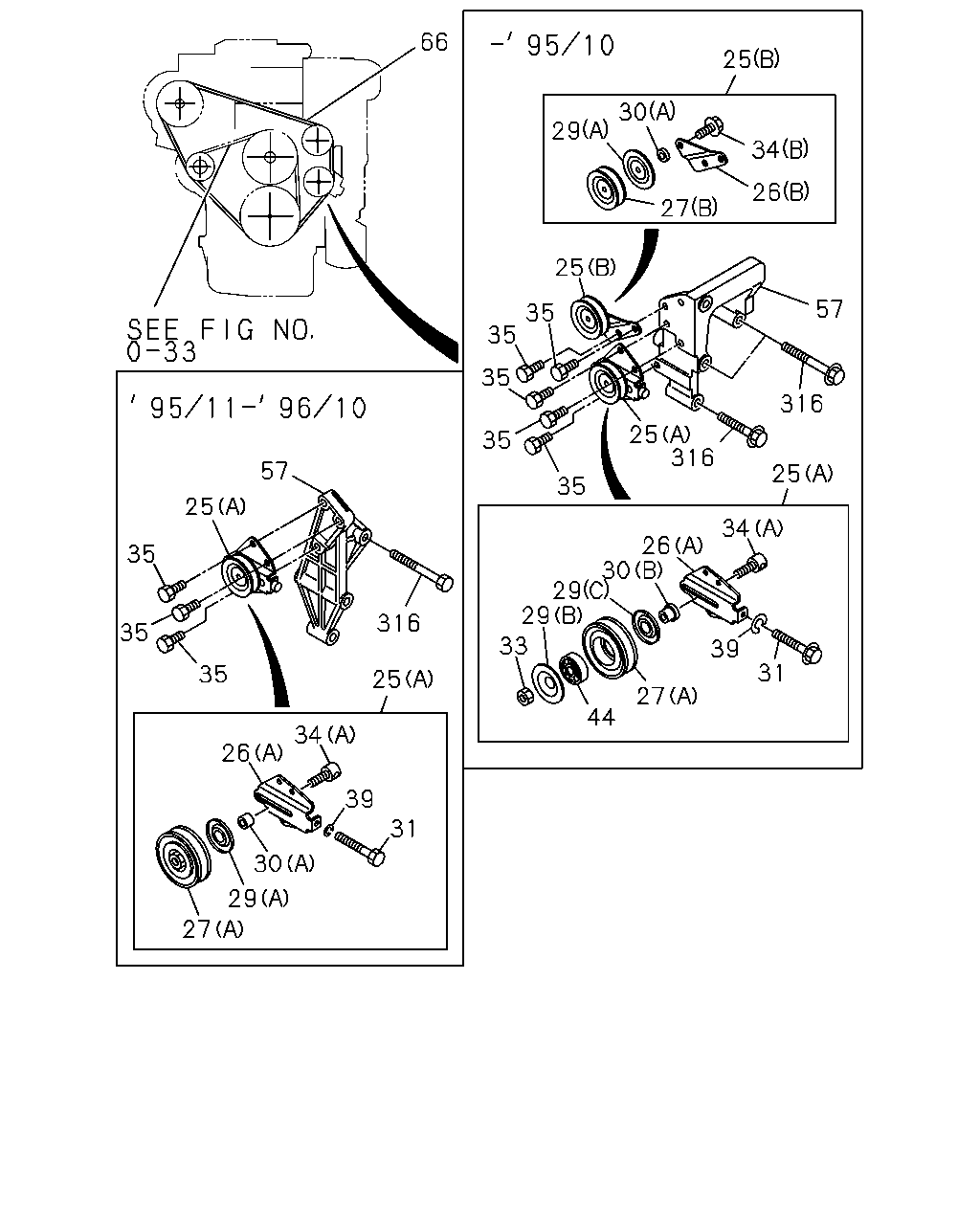

66 25 30 29 34 26 27 25 57 35 35 35 316 25 316 35 57 25 35 25 34 26 30 29 29 35 316 35 33 39 31 35 25 27 44 34 26 39 31 30 29 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D	F
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9312-9510			●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-1	01	1	9511-9610		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9611-9711		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9712-	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-873-0	01	1	9312-9510			●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-361-0	01	1	9312-9502		●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-633-0	01	1	9503-9510			●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-361-0	01	1	9511-9610		●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97060-362-0	01	1	9312-9510			●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-637-0	01	1	9503-9510			●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94200-984-1	01	1	9511-9610		●	●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	9-13663-606-0	01	1	9503-9510			●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	9-13369-603-0	01	1	9312-9510			●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	9-13369-603-0	01	1	9511-9610		●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-629-0	01	1	9503-9510			●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97126-630-0	01	1	9503-9510			●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94340-702-0	01	1	9312-9510			●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94340-702-0	01	1	9511-9610		●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-632-0	01	1	9503-9510			●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 06.665	8-94238-324-0	01	1	9312-9502		●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-638-0	01	1	9503-9510			●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 06.665	8-94238-324-0	01	1	9511-9610		●	●
33	09.181 NUT; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-639-0	01	1	9503-9510			●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-285-0	01	1	9312-9502		●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-631-0	01	1	9503-9510			●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-285-0	01	1	9511-9610		●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 (B) M10X30	0-28121-030-0	01	1	9312-9510			●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE	0-28080-816-0	05	1	9312-9510			●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9511-9610		●	●
39	09.181 WASHER; LK,ADJ BOLT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	1-83579-492-0	01	1	9312-9610		●	●
44	09.180 BEARING; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-636-0	01	1	9503-9510			●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	9312-9510			●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-809-0	01	1	9511-9511		●	●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97136-248-0	01	1	9512-9610		●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97014-702-2	01	1	9312-9407			●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9408-9510			●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9511-9706		●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9707-9711		●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9712-	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9511-9511		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE	0-28181-000-0	01	1	9503-9510			●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE	0-28181-000-0	01	1	9511-9610		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	9611-9711		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	9712-	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 M10X60 FLANGE	0-28181-060-0	02	1	9503-9510			●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE	0-28080-850-0	01	1	9511-9711		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE	0-28080-850-0	01	1	9712-	●	●	●	●

66 25 316 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D	F
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9312-9510			●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-1	01	1	9511-9610		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9611-9711		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9712-	●	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-873-0	01	1	9312-9510			●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97014-702-2	01	1	9312-9407			●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9408-9510			●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9511-9706		●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9707-9711		●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9712-	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9511-9511		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE	0-28181-000-0	01	1	9503-9510			●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X100 FLANGE	0-28181-000-0	01	1	9511-9610		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	9611-9711		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	9712-	●	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 M10X60 FLANGE	0-28181-060-0	02	1	9503-9510			●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE	0-28080-850-0	01	1	9511-9711		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE	0-28080-850-0	01	1	9712-	●	●	●	●

14 206 66 4 210 46 14 49 66 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D	F
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	02	1	9503-9510			●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	02	1	9511-9511		●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	9512-9711		●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	9712-	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	9503-9510			●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	9511-9711		●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	9712-	●	●	●	●
14	09.171 BOLT; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	9312-9510			●
14	09.171 BOLT; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	9511-9711		●	●
14	09.171 BOLT; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	9712-	●	●	●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97106-228-0	01	1	9407-9412		●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-030-0	01	1	9501-9510			●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-030-0	01	1	9511-9511		●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97136-247-0	01	1	9512-9603		●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	9604-9711		●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	9712-	●	●	●	●
49	09.171 COLLAR; BRKT,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94201-057-1	02	1	9312-9510			●
49	09.171 COLLAR; BRKT,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-94201-057-1	02	1	9511-9603		●	●
49	09.171 COLLAR; BRKT,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-059-0	02	1	9604-9711		●	●
49	09.171 COLLAR; BRKT,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-059-0	02	1	9712-	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97014-702-2	01	1	9312-9407			●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9408-9510			●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9511-9706		●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9707-9711		●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9712-	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9312-9406			●
206	09.242 BOLT; CLIP BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9409-9510			●
206	09.242 BOLT; CLIP BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9511-9711		●	●
206	09.242 BOLT; CLIP BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9712-	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9312-9510			●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9511-9711		●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9312-9406			●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9409-9510			●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9511-9711		●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9712-	●	●	●	●
