Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#45784) — 384 parça

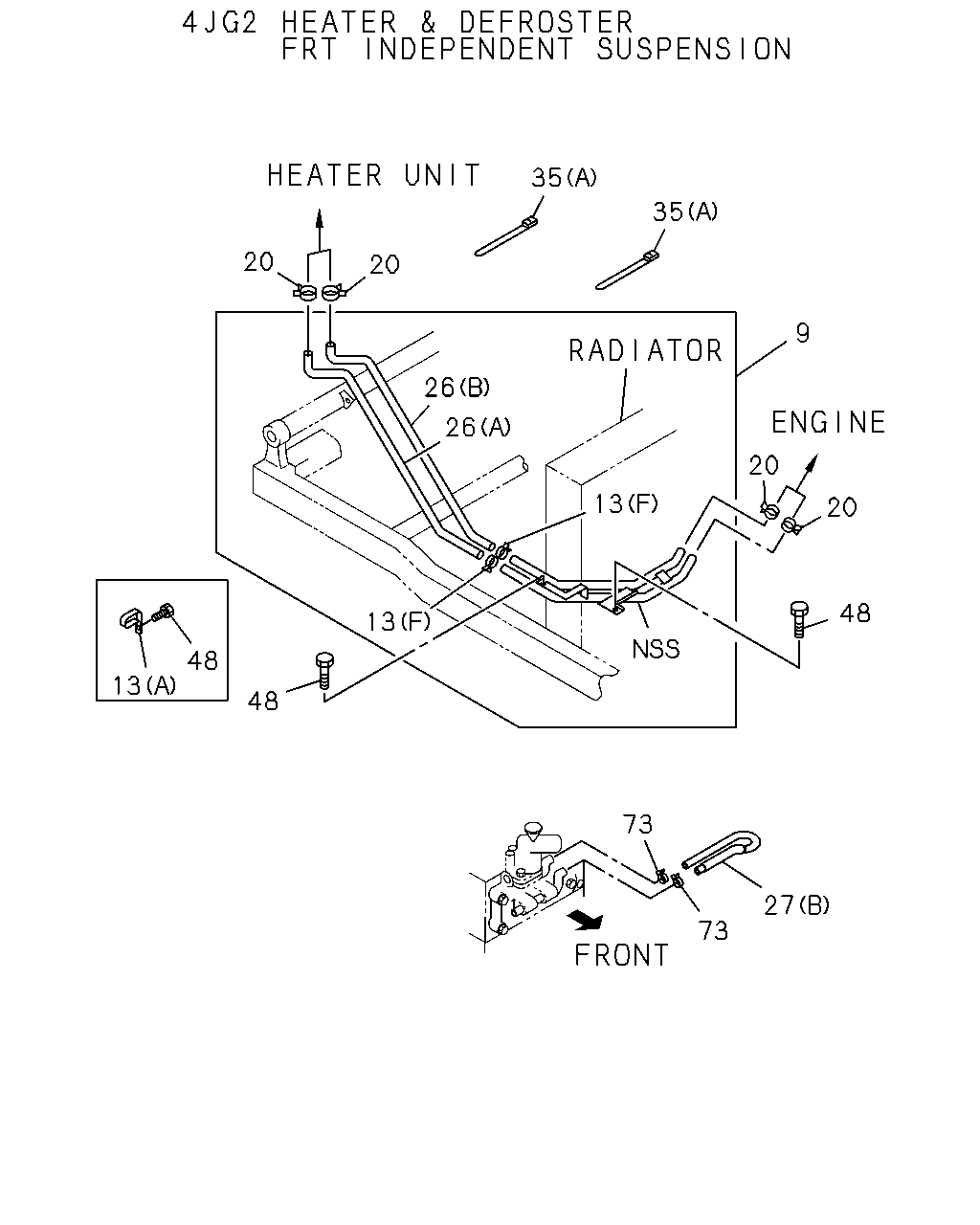

35 35 20 20 9 26 26 20 13 20 48 13 48 13 48 73 27 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP)	8-97129-194-0	01	1	9604-9611	●
9	08.846 PIPE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP)	8-97169-081-0	01	1	9612-	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=22	8-94382-401-0	02	1	9604-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A)	5-83574-006-0	01	1	9312-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) B=18	9-83651-948-1	01	1	9312-9402	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (B) B=18	9-83651-948-1	01	1	9403-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (B) B=18	9-83651-948-1	01	1	9712-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9312-9402	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9403-9506	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9507-9606	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9607-9711	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9607-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9712-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9712-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9312-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9712-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94480-291-0	01	1	9312-9405	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9406-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9712-	●		●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	02	1	9312-9606	●	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	02	1	9607-	●	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9607-	●		●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	04	1	9312-9510	●					●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	04	1	9511-	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97103-707-0	01	1	9604-	●
26	08.846 HOSE; HTR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97103-708-0	01	1	9604-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (B) L=610	8-97134-473-0	01	1	9507-9510	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (B) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9511-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97048-592-1	01	1	9312-9504	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9505-9510	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9511-9606	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97129-201-0	01	1	9511-9606	●					●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9607-9711	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97129-201-0	01	1	9607-9711	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97129-201-0	01	1	9712-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (D)	8-97107-952-1	01	1	9312-9504	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (D)	8-97129-244-0	01	1	9505-9711	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (D)	8-97129-244-0	01	1	9712-	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97187-050-0	01	1	9712-	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) OD=36	8-97036-023-6	01	1	9312-9502				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-470-0	01	1	9503-9510				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-470-1	01	1	9511-9611			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97169-079-0	01	1	9612-9710			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97185-290-0	01	1	9711-9711			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97185-290-0	01	1	9712-	●		●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9312-9606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9607-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9312-9404				●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9405-9711	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	9712-	●		●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9503-9510				●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9511-9711			●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9712-	●		●	●		●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9312-9312	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.656 M6X14	8-94479-695-1	02	1	9401-9410	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9411-9506	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9507-9606	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9607-9706	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	04	1	9401-9410	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	04	1	9411-9706	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9707-9711	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9712-9712	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9801-	●		●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9409	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9410-9502	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9503-	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9312-9409	●					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9410-9502	●					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9503-9510	●					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9511-	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312				●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.656 M6X14	8-94479-695-1	01	1	9401-9410	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	01	1	9401-9410				●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9411-9506	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9411-9506				●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9507-9510	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9507-9510				●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9511-9706	●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9511-9706			●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9707-9711	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9312-	●	●	●	●	●	●

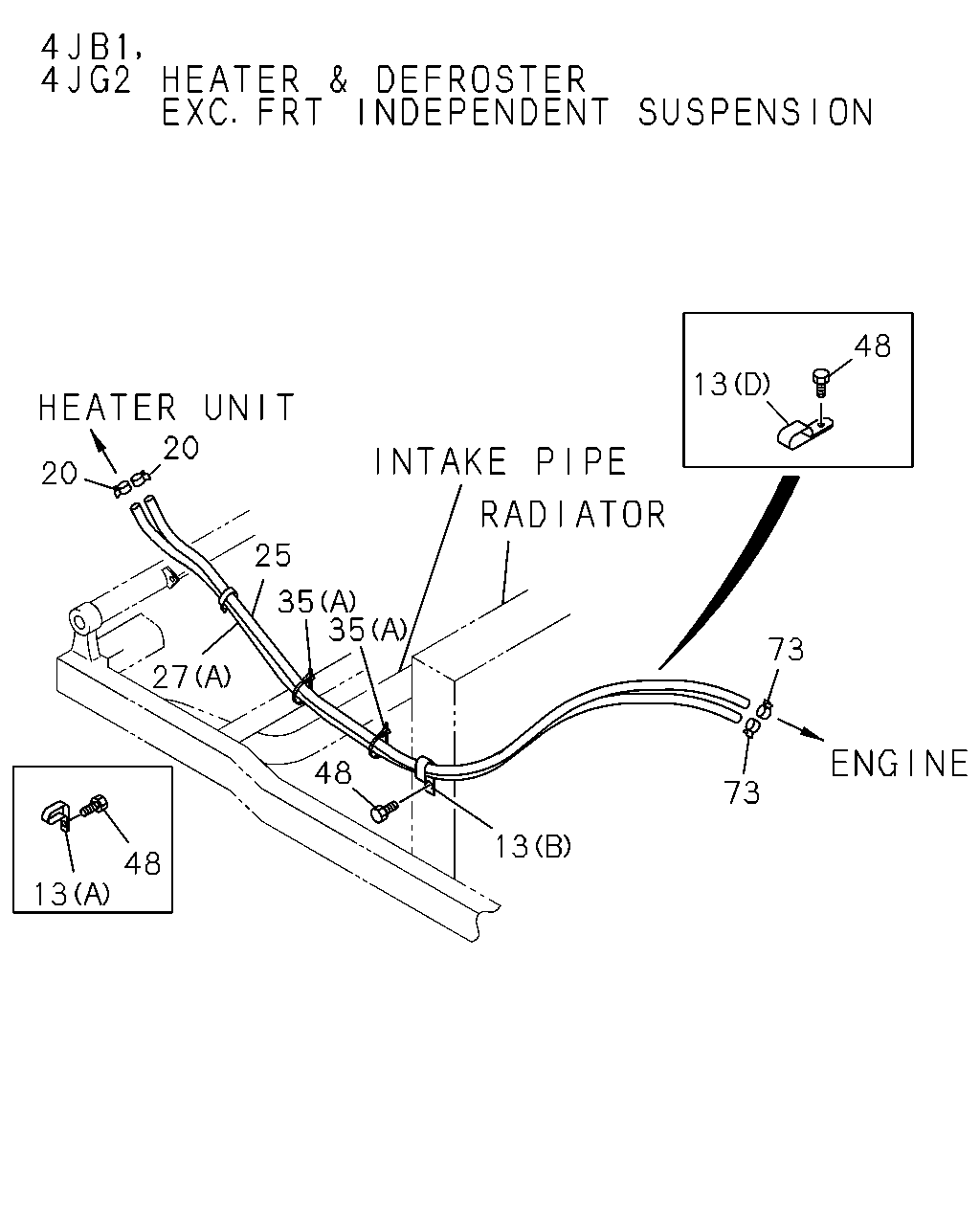

48 13 20 20 25 35 35 73 27 48 73 13 48 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=22	8-94382-401-0	02	1	9604-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A)	5-83574-006-0	01	1	9312-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) B=18	9-83651-948-1	01	1	9312-9402	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (B) B=18	9-83651-948-1	01	1	9403-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (B) B=18	9-83651-948-1	01	1	9712-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9312-9402	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9403-9506	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9507-9606	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9607-9711	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9607-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9712-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9712-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9312-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9712-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94480-291-0	01	1	9312-9405	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9406-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9712-	●		●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	02	1	9312-9606	●	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	02	1	9607-	●	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9607-	●		●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	04	1	9312-9510	●					●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	04	1	9511-	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41)	8-97036-024-2	01	1	9312-9504	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41)	8-97129-200-0	01	1	9505-9510	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41)	8-97129-200-0	01	1	9511-9606	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97129-200-0	01	1	9511-9606	●					●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41)	8-97129-200-0	01	1	9607-9711	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97129-200-0	01	1	9607-9711	●		●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97129-200-0	01	1	9712-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97107-953-1	01	1	9312-9504	●		●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-241-0	01	1	9505-9711	●		●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-241-0	01	1	9712-	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP)	8-97187-049-0	01	1	9712-	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (B) L=610	8-97134-473-0	01	1	9507-9510	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (B) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9511-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97048-592-1	01	1	9312-9504	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9505-9510	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9511-9606	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97129-201-0	01	1	9511-9606	●					●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9607-9711	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97129-201-0	01	1	9607-9711	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97129-201-0	01	1	9712-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (D)	8-97107-952-1	01	1	9312-9504	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (D)	8-97129-244-0	01	1	9505-9711	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (D)	8-97129-244-0	01	1	9712-	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97187-050-0	01	1	9712-	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) OD=36	8-97036-023-6	01	1	9312-9502				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-470-0	01	1	9503-9510				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-470-1	01	1	9511-9611			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97169-079-0	01	1	9612-9710			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97185-290-0	01	1	9711-9711			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97185-290-0	01	1	9712-	●		●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9312-9606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9607-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9312-9404				●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9405-9711	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	9712-	●		●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9503-9510				●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9511-9711			●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9712-	●		●	●		●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9312-9312	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.656 M6X14	8-94479-695-1	02	1	9401-9410	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9411-9506	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9507-9606	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9607-9706	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	04	1	9401-9410	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	04	1	9411-9706	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9707-9711	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9712-9712	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9801-	●		●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9409	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9410-9502	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9503-	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9312-9409	●					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9410-9502	●					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9503-9510	●					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9511-	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312				●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.656 M6X14	8-94479-695-1	01	1	9401-9410	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	01	1	9401-9410				●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9411-9506	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9411-9506				●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9507-9510	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9507-9510				●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9511-9706	●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9511-9706			●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9707-9711	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9312-	●	●	●	●	●	●

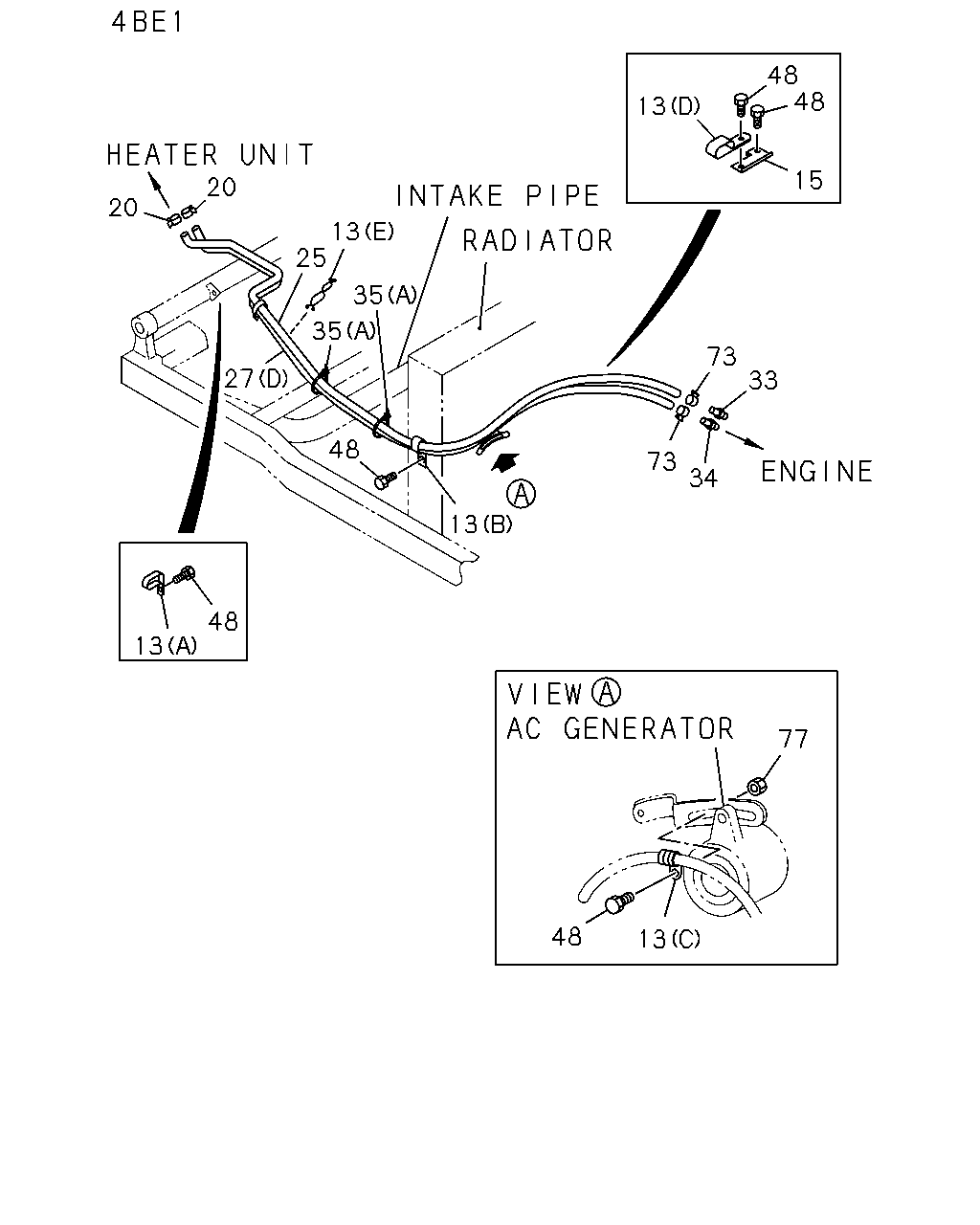

48 48 13 15 20 20 13 25 35 35 73 27 33 48 73 34 13 48 13 77 48 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=22	8-94382-401-0	02	1	9604-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A)	5-83574-006-0	01	1	9312-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) B=18	9-83651-948-1	01	1	9312-9402	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (B) B=18	9-83651-948-1	01	1	9403-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (B) B=18	9-83651-948-1	01	1	9712-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9312-9402	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9403-9506	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9507-9606	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9607-9711	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9607-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9712-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9712-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9312-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9712-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94480-291-0	01	1	9312-9405	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9406-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9712-	●		●	●	●
15	08.846 BRACKET; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97107-909-0	01	1	9312-9711	●		●	●	●	●
15	08.846 BRACKET; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97107-909-0	01	1	9712-	●		●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	02	1	9312-9606	●	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	02	1	9607-	●	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9607-	●		●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	04	1	9312-9510	●					●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	04	1	9511-	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41)	8-97036-024-2	01	1	9312-9504	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41)	8-97129-200-0	01	1	9505-9510	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41)	8-97129-200-0	01	1	9511-9606	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97129-200-0	01	1	9511-9606	●					●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41)	8-97129-200-0	01	1	9607-9711	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97129-200-0	01	1	9607-9711	●		●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97129-200-0	01	1	9712-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97107-953-1	01	1	9312-9504	●		●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-241-0	01	1	9505-9711	●		●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-241-0	01	1	9712-	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP)	8-97187-049-0	01	1	9712-	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (B) L=610	8-97134-473-0	01	1	9507-9510	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (B) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9511-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97048-592-1	01	1	9312-9504	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9505-9510	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9511-9606	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97129-201-0	01	1	9511-9606	●					●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9607-9711	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97129-201-0	01	1	9607-9711	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97129-201-0	01	1	9712-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (D)	8-97107-952-1	01	1	9312-9504	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (D)	8-97129-244-0	01	1	9505-9711	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (D)	8-97129-244-0	01	1	9712-	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97187-050-0	01	1	9712-	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) OD=36	8-97036-023-6	01	1	9312-9502				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-470-0	01	1	9503-9510				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-470-1	01	1	9511-9611			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97169-079-0	01	1	9612-9710			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97185-290-0	01	1	9711-9711			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97185-290-0	01	1	9712-	●		●	●		●
33	08.866 UNION; WATER HOSE,ENG OUT 4BE1 ENG(RLH) 01.540	9-09903-497-1	01	1	9312-9510	●		●	●	●	●
33	08.866 UNION; WATER HOSE,ENG OUT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9511-9711	●		●	●	●	●
33	08.866 UNION; WATER HOSE,ENG OUT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9712-	●		●	●	●
34	08.866 UNION; WATER HOSE,ENG IN 4BE1 ENG(RLH) 01.540	9-09903-497-1	01	1	9312-9510	●		●	●	●	●
34	08.866 UNION; WATER HOSE,ENG IN 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9511-9711	●		●	●	●	●
34	08.866 UNION; WATER HOSE,ENG IN 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9712-	●		●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9312-9606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9607-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9312-9404				●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9405-9711	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	9712-	●		●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9503-9510				●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9511-9711			●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9712-	●		●	●		●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9312-9312	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.656 M6X14	8-94479-695-1	02	1	9401-9410	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9411-9506	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9507-9606	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9607-9706	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	04	1	9401-9410	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	04	1	9411-9706	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9707-9711	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9712-9712	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9801-	●		●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9409	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9410-9502	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9503-	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9312-9409	●					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9410-9502	●					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9503-9510	●					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9511-	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312				●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.656 M6X14	8-94479-695-1	01	1	9401-9410	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	01	1	9401-9410				●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9411-9506	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9411-9506				●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9507-9510	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9507-9510				●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9511-9706	●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9511-9706			●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9707-9711	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9312-	●	●	●	●	●	●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9405-9711	●		●	●	●	●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-	●		●	●	●

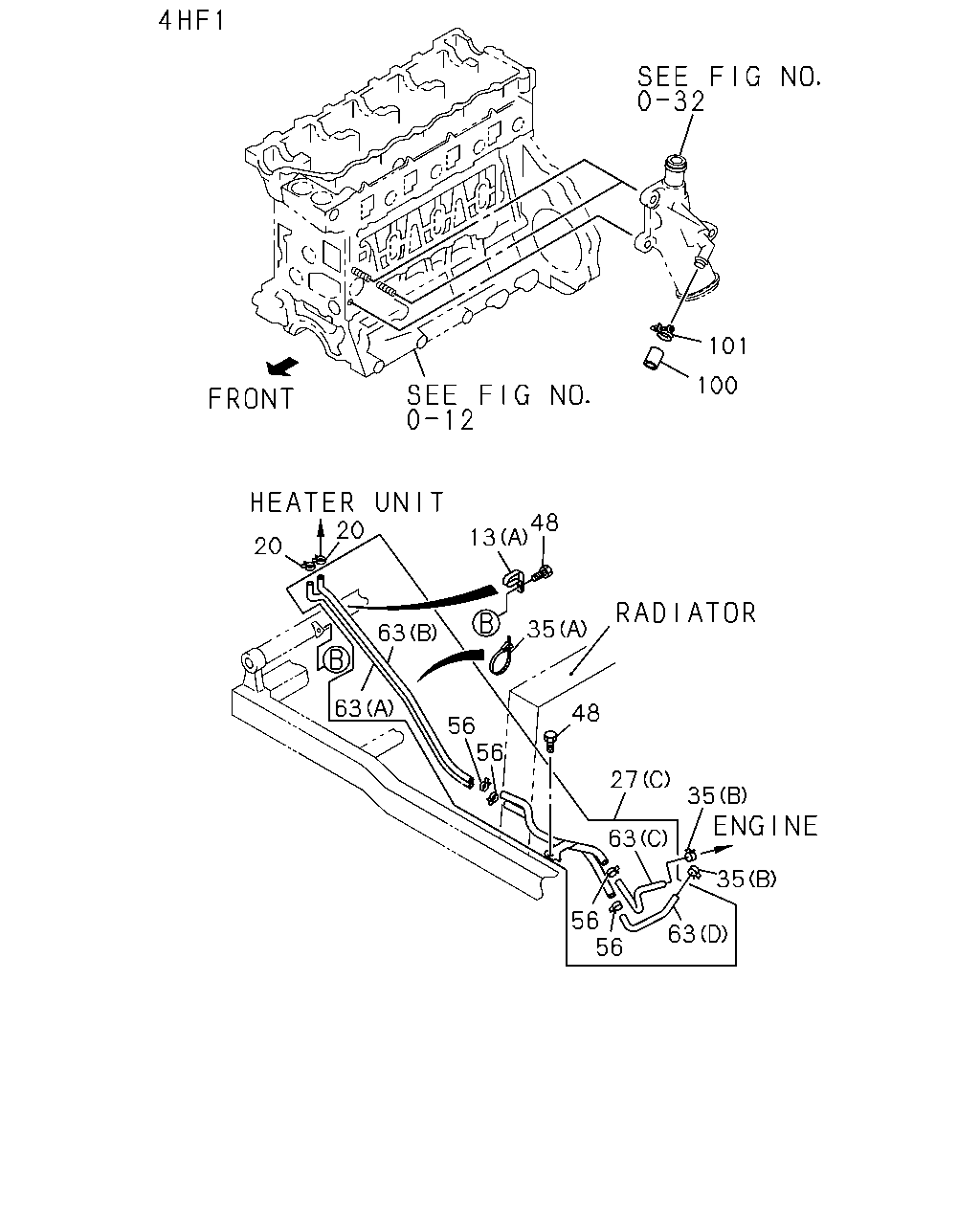

101 100 48 20 13 20 35 63 63 48 56 56 27 35 63 35 56 56 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=22	8-94382-401-0	02	1	9604-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A)	5-83574-006-0	01	1	9312-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) B=18	9-83651-948-1	01	1	9312-9402	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (B) B=18	9-83651-948-1	01	1	9403-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (B) B=18	9-83651-948-1	01	1	9712-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9312-9402	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9403-9506	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9507-9606	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9607-9711	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9607-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	5-83574-003-0	01	1	9712-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9712-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9312-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (E) L=116	8-94148-972-0	01	1	9712-	●		●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94480-291-0	01	1	9312-9405	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9406-9711	●		●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9712-	●		●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	02	1	9312-9606	●	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	02	1	9607-	●	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9607-	●		●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	04	1	9312-9510	●					●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 08.846 ID=22	8-94382-401-0	04	1	9511-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (B) L=610	8-97134-473-0	01	1	9507-9510	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (B) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9511-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97048-592-1	01	1	9312-9504	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9505-9510	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9511-9606	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97129-201-0	01	1	9511-9606	●					●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9607-9711	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97129-201-0	01	1	9607-9711	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97129-201-0	01	1	9712-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (D)	8-97107-952-1	01	1	9312-9504	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (D)	8-97129-244-0	01	1	9505-9711	●		●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) (D)	8-97129-244-0	01	1	9712-	●		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97187-050-0	01	1	9712-	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) OD=36	8-97036-023-6	01	1	9312-9502				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-470-0	01	1	9503-9510				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-470-1	01	1	9511-9611			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97169-079-0	01	1	9612-9710			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97185-290-0	01	1	9711-9711			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97185-290-0	01	1	9712-	●		●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9312-9606	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9607-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9312-9404				●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	01	1	9405-9711	●		●	●	●	●
35	08.852 CLIP; WATER HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	9712-	●		●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9503-9510				●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9511-9711			●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9712-	●		●	●		●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9312-9312	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.656 M6X14	8-94479-695-1	02	1	9401-9410	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9411-9506	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9507-9606	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9607-9706	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	04	1	9401-9410	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	04	1	9411-9706	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9707-9711	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9712-9712	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9801-	●		●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9409	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9410-9502	●		●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9503-	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9312-9409	●					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9410-9502	●					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9503-9510	●					●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9511-	●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9312				●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.656 M6X14	8-94479-695-1	01	1	9401-9410	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	01	1	9401-9410				●
48	09.262 BOLT; CLIP FIX 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9411-9506	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9411-9506				●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9507-9510	●					●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9507-9510				●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9511-9706	●
48	09.262 BOLT; CLIP FIX 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9511-9706			●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9707-9711	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●	●	●	●	●
56	08.846 CLAMP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	9312-9510				●
56	08.846 CLAMP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	9511-9711			●	●
56	08.846 CLAMP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	9712-	●		●	●		●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97095-830-0	01	1	9312-9502				●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97128-450-0	01	1	9503-9510				●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97128-450-0	01	1	9511-9711			●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97128-450-0	01	1	9712-	●		●	●		●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97095-831-0	01	1	9312-9502				●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-451-0	01	1	9503-9510				●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-451-0	01	1	9511-9711			●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-451-0	01	1	9712-	●		●	●		●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-832-0	01	1	9312-9502				●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97130-103-0	01	1	9503-9510				●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97130-103-0	01	1	9511-9711			●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97130-103-0	01	1	9712-	●		●	●		●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-833-0	01	1	9312-9502				●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97130-104-0	01	1	9503-9510				●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97130-104-0	01	1	9511-9711			●	●
63	08.846 HOSE; WATER 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97130-104-0	01	1	9712-	●		●	●		●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) 01.166	8-94107-793-0	01	1	9312-9510				●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) 01.166	8-94107-793-0	01	1	9511-9711			●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) 01.166	8-94107-793-0	01	1	9712-	●		●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) 01.166 ID=25	8-94233-115-0	01	1	9312-9510				●
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) 01.166 ID=25	8-94233-115-0	01	1	9511-9711			●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) 01.166 ID=25	8-94233-115-0	01	1	9712-	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
