◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#45782) — 61 parça
çizim 16223
361
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9312- ● ● ● ● ● ●

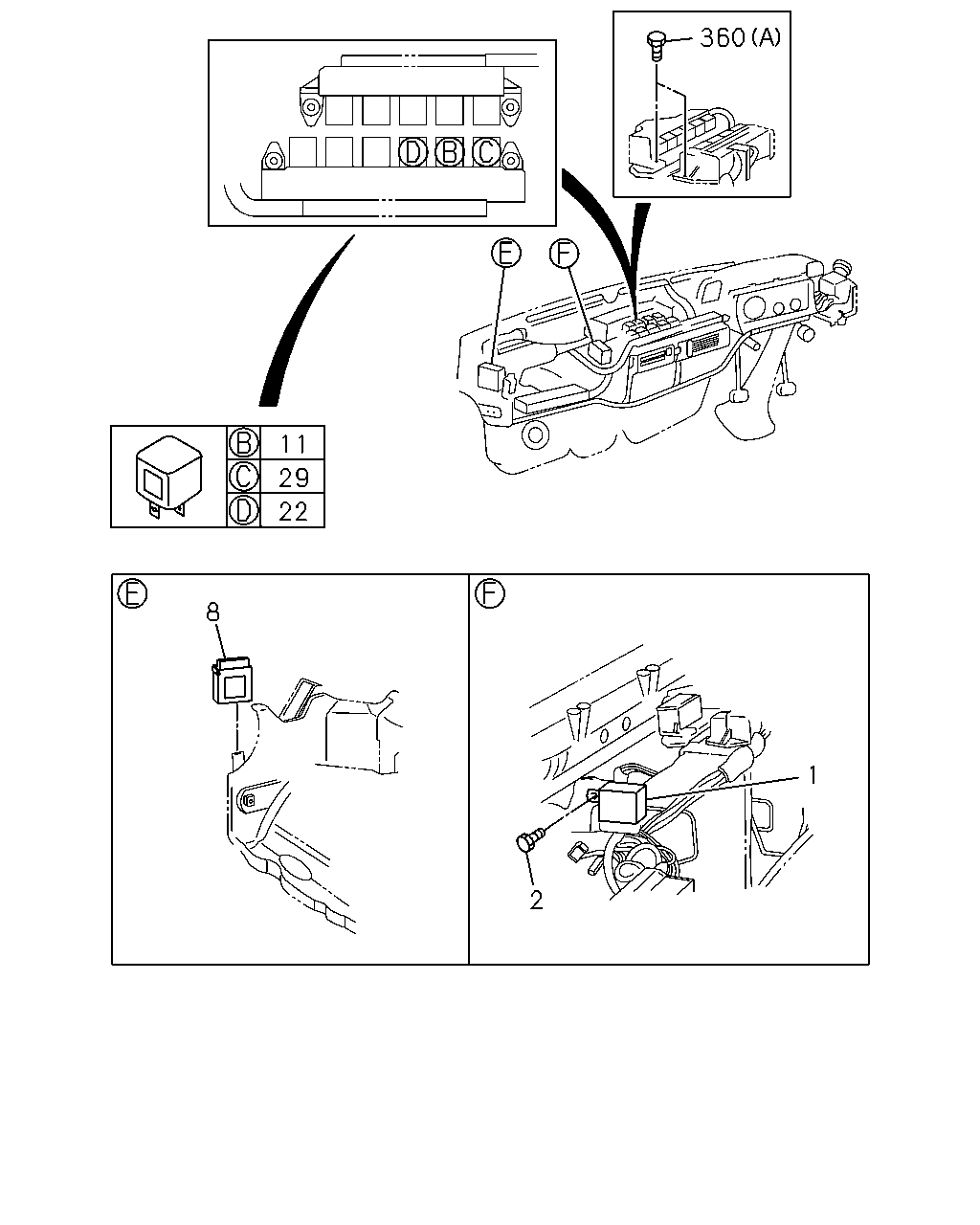

çizim 16381
360 11 29 22 8 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97086-509-1 01 1 9312- ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97086-508-1 01 1 9312- ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9312-9603 ● ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 9604- ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97855-014-0 01 1 9312-9510 ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97855-014-0 01 1 9511-9711 ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97855-186-0 01 1 9712- ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97855-015-0 01 1 9312-9711 ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97184-233-0 01 1 9712- ● ● ● ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9312- ● ● ● ● ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9312- ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9312- ● ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9312- ● ● ● ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9312- ● ● ● ● ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9312- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9312-9603 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9604-9704 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9705- ● ● ●
360 02.483 BOLT; RELAY BOX
4JB1 ENG(RLF),4BE1 ENG(RLH) 01.531 (B),(C) M8X25 FLANGE 		0-28080-825-0 03 1 9312-9503 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JB1 ENG(RLF),4BE1 ENG(RLH) 02.559 (B),(C) M8X25 FLANGE 		0-28680-825-0 03 1 9504-9506 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 02.559 (B),(C) M8X25 FLANGE 		0-28680-825-0 03 1 9507-9510 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.559 (B),(C) M8X25 FLANGE 		0-28680-825-0 03 1 9511- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
EXC. THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9705- ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9705- ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9312-9510 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9511-9711 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9712- ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.531 (B),(C) M8X25 FLANGE 		0-28080-825-0 04 1 9312-9503 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 02.559 (B),(C) M8X25 FLANGE 		0-28680-825-0 04 1 9504-9510 ●

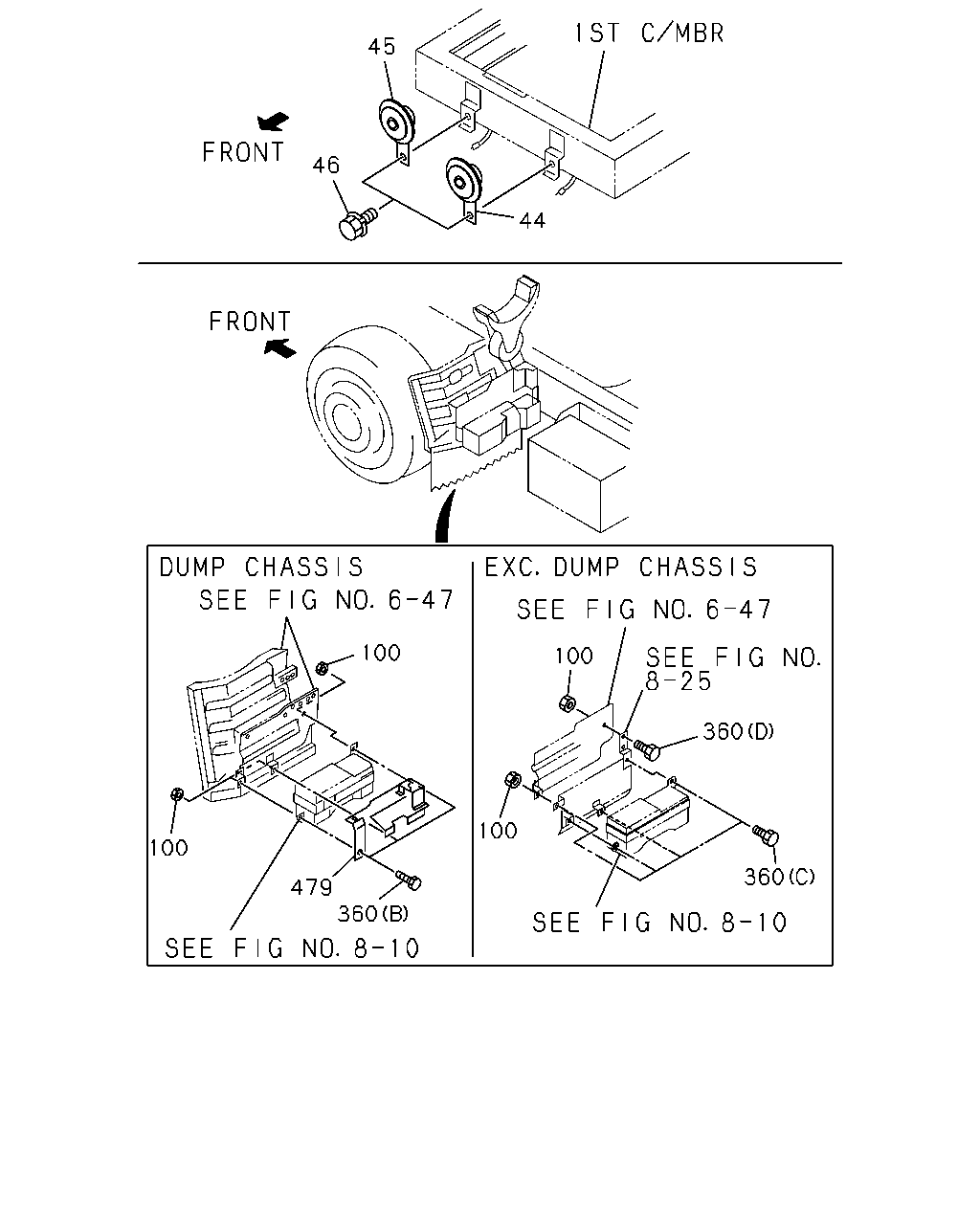

çizim 70965
45 46 44 100 100 360 100 100 360 479 360
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE> 		8-97091-305-0 01 1 9312-9404 ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE> 		8-97109-361-0 01 1 9405- ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE> 		8-97091-306-0 01 1 9312-9404 ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE> 		8-97109-363-0 01 1 9405- ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE> 		8-97091-303-0 01 1 9312-9404 ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 24V<7AE> 		8-97109-362-1 01 1 9405- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE> 		8-97091-307-0 01 1 9312-9404 ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) VOLTAGE 24V<7AE> 		8-97109-364-1 01 1 9405- ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 9312-9406 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN(6HG),DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9407- ● ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4JB1 ENG(RLF),4BE1 ENG(RLH) 07.633 M8 FLANGE 		0-91150-108-0 03 1 9312-9506 ● ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 07.633 M8 FLANGE 		0-91150-108-0 03 1 9507- ● ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9510 ●
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9511-9711 ● ●
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712- ● ● ● ●
360 02.483 BOLT; RELAY BOX
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9312-9603 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9604-9704 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9705- ● ● ●
360 02.483 BOLT; RELAY BOX
4JB1 ENG(RLF),4BE1 ENG(RLH) 01.531 (B),(C) M8X25 FLANGE 		0-28080-825-0 03 1 9312-9503 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JB1 ENG(RLF),4BE1 ENG(RLH) 02.559 (B),(C) M8X25 FLANGE 		0-28680-825-0 03 1 9504-9506 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 02.559 (B),(C) M8X25 FLANGE 		0-28680-825-0 03 1 9507-9510 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.559 (B),(C) M8X25 FLANGE 		0-28680-825-0 03 1 9511- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
EXC. THAILAND EQUIPMENT(PM9) 10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9705- ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9705- ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9312-9510 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9511-9711 ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9712- ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.531 (B),(C) M8X25 FLANGE 		0-28080-825-0 04 1 9312-9503 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 02.559 (B),(C) M8X25 FLANGE 		0-28680-825-0 04 1 9504-9510 ●
479 09.277 PROTECTOR; RELAY BOX
DUMP CHASSIS(V4D) 		8-97072-505-2 01 1 9312-9505 ●
479 09.277 PROTECTOR; RELAY BOX
DUMP CHASSIS(V4D) 		8-97114-263-0 01 1 9506- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
