◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#45780) — 123 parça
çizim 16160
29 30 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 16.263 SWITCH; DOOR 8-94272-915-0 02 1 9312-9403 ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-1 02 1 9404-9404 ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 01 1 9405- ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 02 1 9405- ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9312-9404 ● ● ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9405- ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9405- ● ●
257 16.081 COVER; HOLE,SW
02.485 (B) 		8-94310-890-0 01 1 9312-9409 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.778 (C) 		8-97047-694-1 01 1 9312-9409 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9507- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9412-9510 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9511-9711 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9405- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9405- ● ●

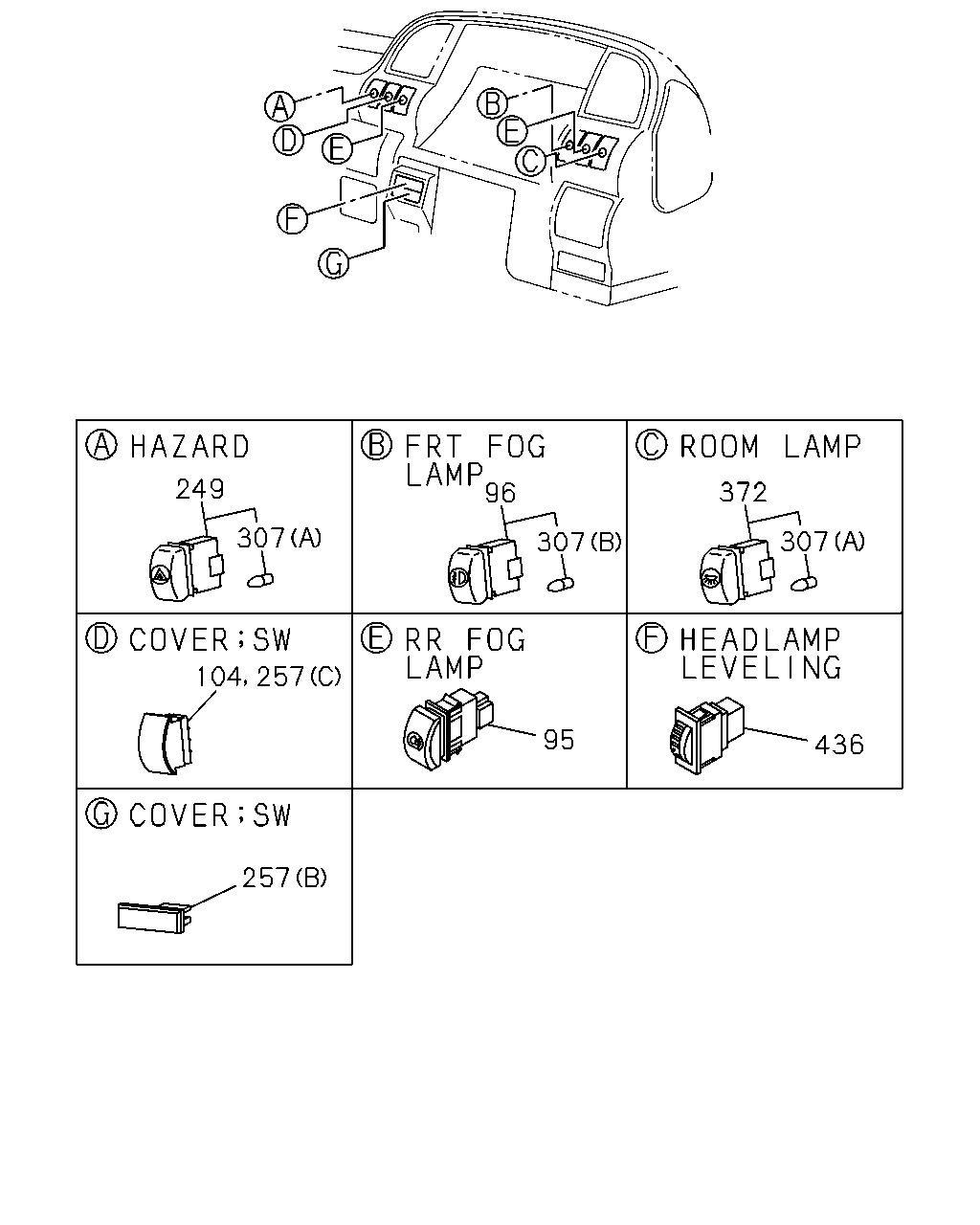

çizim 70968
249 372 96 307 307 307 104 257 95 436 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> 		8-97071-795-0 01 1 9507-9711 ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> 		8-97170-429-0 01 1 9712- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9312-9401 ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9402-9711 ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9402-9711 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 9712- ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 9712- ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97076-351-3 01 1 9312-9401 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97076-351-3 01 1 9402-9711 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> 		8-97076-351-3 01 1 9402-9711 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97170-441-0 01 1 9712- ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> 		8-97170-441-0 01 1 9712- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-97047-694-1 01 1 9312-9401 ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,FOG LAMP<T96> 		8-97047-694-1 01 1 9402-9510 ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,FOG LAMP<T96> 		8-97047-694-1 01 1 9511-9711 ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97076-344-2 01 1 9312-9703 ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97117-657-0 01 1 9704-9711 ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97136-691-1 01 1 9712-9807 ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97202-476-0 01 1 9808- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97076-345-2 01 1 9312-9703 ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97117-658-0 01 1 9704-9711 ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97136-690-0 01 1 9712-9807 ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97202-475-0 01 1 9808- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
02.485 (B) 		8-94310-890-0 01 1 9312-9409 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.778 (C) 		8-97047-694-1 01 1 9312-9409 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9507- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9412-9510 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9511-9711 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9405- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9405- ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9511-9703 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9511-9703 ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9704-9807 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9704-9807 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9704-9807 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96>,VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9704-9807 ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 02 1 9808- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (A) 14V 60MA 		8-97116-328-0 01 1 9511-9703 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> (A) 14V 60MA 		8-97116-328-0 01 1 9511-9703 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9511-9703 ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> VOLTAGE 24V<7AE> EXC. FOG LAMP<T96> (B) 28V 40MA 		8-97116-331-0 01 1 9511-9703 ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9704-9807 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 02 1 9808- ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (A) 28V 40MA 		8-97116-330-0 01 1 9511-9703 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> (A) 28V 40MA 		8-97116-330-0 01 1 9511-9703 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9808- ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
EXC. VOLTAGE 24V<7AE> 		8-97076-360-2 01 1 9312-9411 ● ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97076-360-2 01 1 9412-9703 ● ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97117-660-0 01 1 9704-9711 ● ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97136-692-0 01 1 9712- ● ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> 		8-97076-361-2 01 1 9312-9411 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97076-361-2 01 1 9412-9510 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97076-361-2 01 1 9511-9703 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97122-193-0 01 1 9704-9711 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 9712- ● ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97105-971-0 01 1 9507- ●

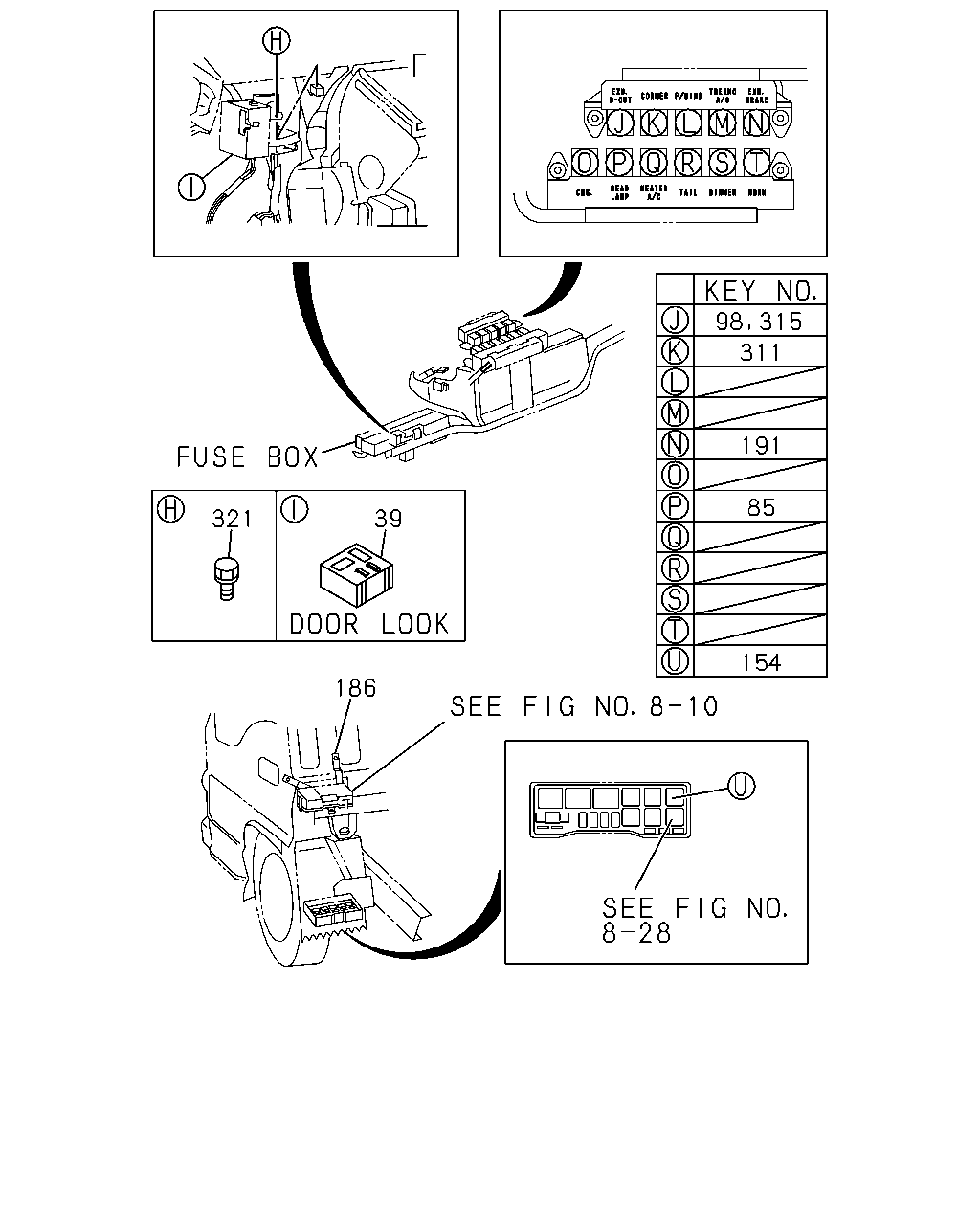

çizim 70969
98 315 311 191 85 321 39 154 186
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97063-658-0 01 1 9312-9705 ● ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97177-215-0 01 1 9706- ● ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97063-659-1 01 1 9312-9705 ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97177-214-0 01 1 9706- ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9312- ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9312- ● ● ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9711 ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9405 ● ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9405 ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) 		8-97088-652-1 01 1 9312-9510 ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) 		8-97135-422-1 01 1 9511-9711 ● ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) 		8-97135-422-1 01 1 9712- ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9312- ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9312- ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3), VOLTAGE24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9507- ● ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3) 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9506 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9507- ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9312- ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9707 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. THAILAND EQUIPMENT(PM9),FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9708-9711 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> EXC. THAILAND EQUIPMENT(PM9) 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9708-9711 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9312- ● ● ● ● ● ●

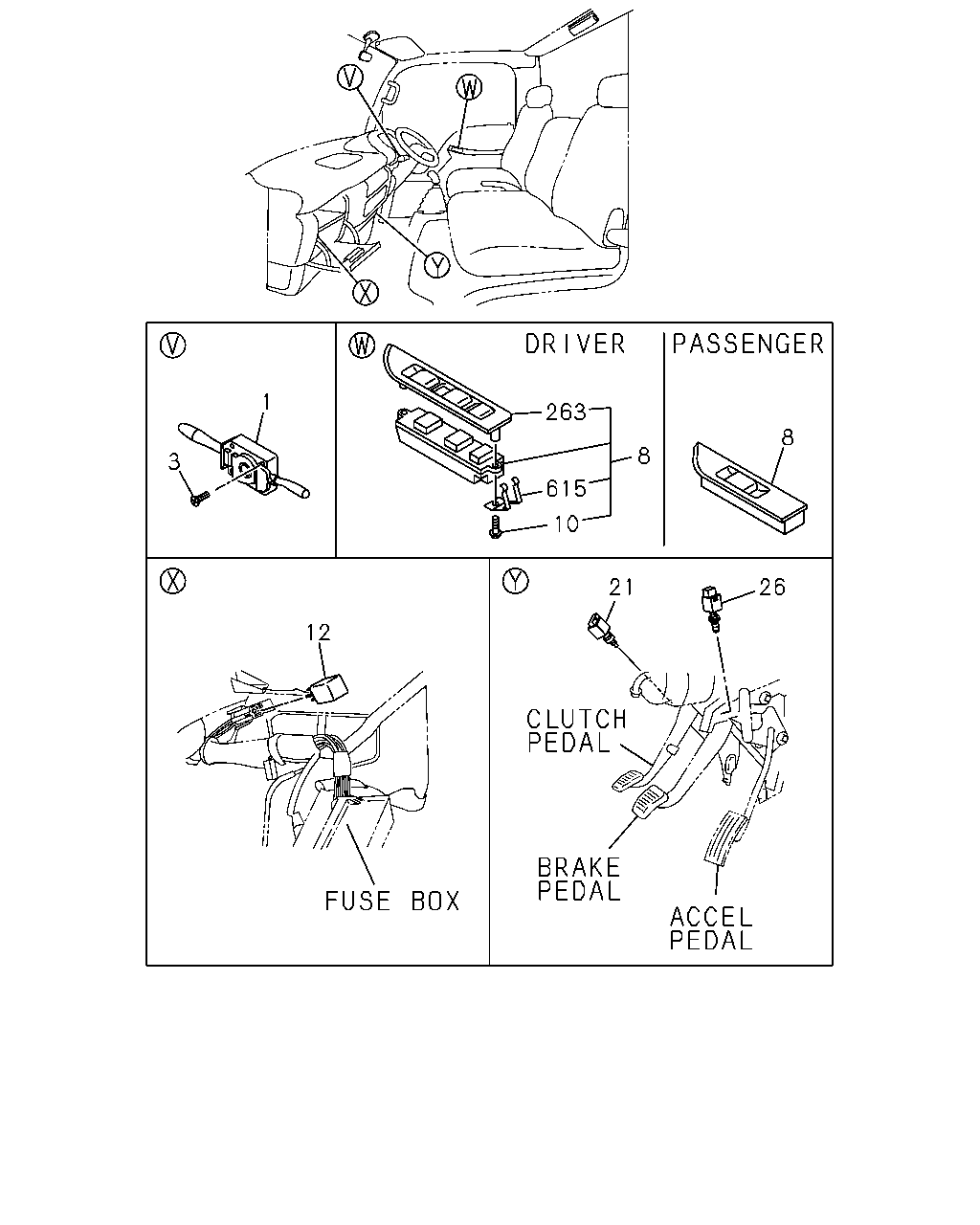

çizim 70970
1 263 8 8 3 615 10 21 26 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-217-1 01 1 9312- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97071-215-1 01 1 9312-9711 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97170-393-0 01 1 9712- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97071-216-1 01 1 9312-9711 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97170-394-0 01 1 9712- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97071-218-1 01 1 9312- ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9312- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97043-748-2 01 1 9312-9711 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97136-761-0 01 1 9712-9805 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-726-0 01 1 9806- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97073-930-2 01 1 9312-9611 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-337-0 01 1 9612-9711 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-343-0 01 1 9712- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97073-836-2 01 1 9312-9610 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-336-0 01 1 9611-9711 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-342-0 01 1 9712- ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9312- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9312- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9312- ● ● ● ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 9312- ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 04.054 		8-94368-343-0 01 1 9312- ● ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-235-0 01 1 9312-9711 ● ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 9712- ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 03.885 		8-97219-239-0 01 1 9312-9711 ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
