◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#45779) — 32 parça

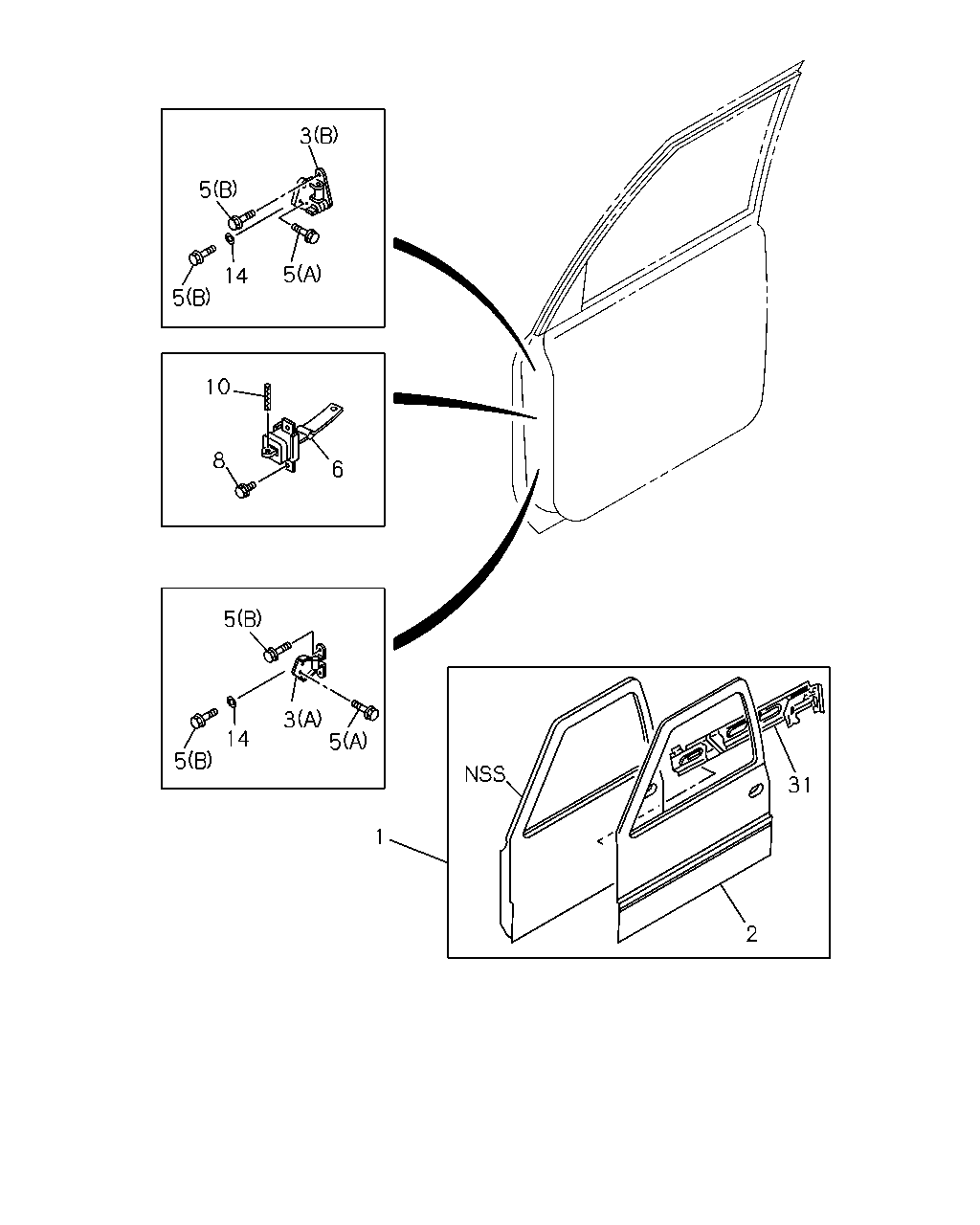

çizim 66044
3 5 5 14 5 10 8 6 5 5 14 3 5 1 2 31
BalonParca AdiParca NoAdetTipApplied Date
1 DOOR ASM; FRT,WO/TRIM 8-97045-950-3 01 1 9301-9308
1 DOOR ASM; FRT,WO/TRIM 8-97079-441-1 01 1 9309-9504
1 DOOR ASM; FRT,WO/TRIM 8-97100-015-0 01 1 9505-
1 DOOR ASM; FRT,WO/TRIM 8-97045-949-3 01 1 9301-9308
1 DOOR ASM; FRT,WO/TRIM 8-97079-440-1 01 1 9309-9504
1 DOOR ASM; FRT,WO/TRIM 8-97100-014-0 01 1 9505-
2 PANEL; FRT DOOR OUTER 8-94449-356-4 01 1 9301-
2 PANEL; FRT DOOR OUTER 8-94449-355-4 01 1 9301-
3 HINGE; DOOR FRT
(A) 		8-94155-314-0 01 1 9301-9606
3 HINGE; DOOR FRT
(A) 		8-97176-213-0 01 1 9607-
3 HINGE; DOOR FRT
(B) 		8-94230-392-2 01 1 9301-9606
3 HINGE; DOOR FRT
(B) 		8-97176-211-0 01 1 9607-
3 HINGE; DOOR FRT
(A) 		8-94155-315-0 01 1 9301-9606
3 HINGE; DOOR FRT
(A) 		8-97176-210-0 01 1 9607-
3 HINGE; DOOR FRT
(B) 		8-94230-393-2 01 1 9301-9606
3 HINGE; DOOR FRT
(B) 		8-97176-212-0 01 1 9607-
5 BOLT; HINGE
(A)(B) M8X23 FLANGE 		8-94174-559-2 16 1 9301-9308
5 BOLT; HINGE
(A) M8X23 FLANGE 		8-94174-559-2 08 1 9309-9506
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-97089-067-0 08 1 9507-
5 BOLT; HINGE
(B) M8X23 FLANGE 		8-97105-376-0 08 1 9309-
6 ARM; CHECK,FRT DOOR 8-97038-979-2 02 1 9301-
8 BOLT; CHECK ARM
M6X20 		0-28280-620-0 04 1 9301-9607
8 BOLT; CHECK ARM
M6X20 FLANGE 		0-28680-620-0 04 1 9608-
10 PIN; CHECK ARM 8-94111-468-0 02 1 9301-
14 WASHER; PL,HINGE
ID=8 OD=21 		8-94436-331-1 04 1 9301-9511
14 WASHER; PL,HINGE 8-97142-089-0 04 1 9512-
31 REINFORCEMENT; FRT DOOR 8-97088-617-0 01 1 9301-9308
31 REINFORCEMENT; FRT DOOR 8-97079-447-1 01 1 9309-9411
31 REINFORCEMENT; FRT DOOR 8-97113-009-0 01 1 9412-
31 REINFORCEMENT; FRT DOOR 8-97088-616-0 01 1 9301-9308
31 REINFORCEMENT; FRT DOOR 8-97079-446-1 01 1 9309-9411
31 REINFORCEMENT; FRT DOOR 8-97113-008-0 01 1 9412-
