◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#45778) — 105 parça

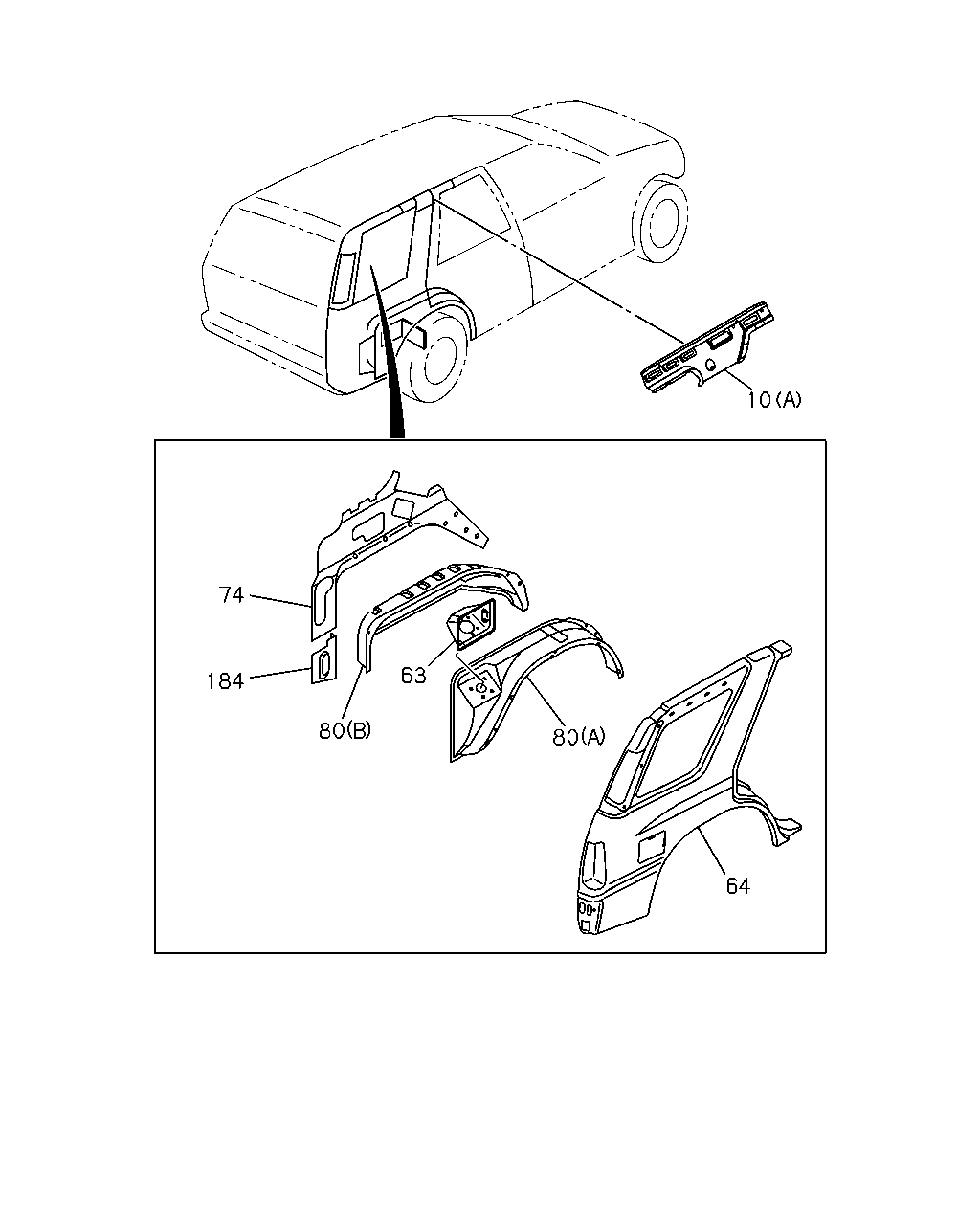

çizim 15963
10 74 184 80 63 80 64
BalonParca AdiParca NoAdetTipApplied Date
10 CLOSING; ROOF SIDE
(A) 		8-94326-985-3 01 1 9301-9504
10 CLOSING; ROOF SIDE
(A) 		8-97100-135-0 01 1 9505-
10 CLOSING; ROOF SIDE
(B) 		8-94337-419-0 01 1 9301-
10 CLOSING; ROOF SIDE
(A) 		8-94326-984-3 01 1 9301-9504
10 CLOSING; ROOF SIDE
(A) 		8-97100-095-0 01 1 9505-
10 CLOSING; ROOF SIDE
(B) 		8-94337-418-0 01 1 9301-
63 PANEL; FUEL FILLER RECESS 8-94316-499-5 01 1 9301-
64 PANEL; QUARTER OUTER 8-97045-799-0 01 1 9301-
64 PANEL; QUARTER OUTER 8-94326-964-6 01 1 9301-9308
64 PANEL; QUARTER OUTER 8-97089-242-1 01 1 9309-
74 PANEL; SIDE INNER,RR 8-94326-977-5 01 1 9301-
74 PANEL; SIDE INNER,RR 8-94326-976-3 01 1 9301-
80 PANEL; WHEEL HOUSE,INNER
(A) 		8-94316-574-3 01 1 9301-
80 PANEL; WHEEL HOUSE,INNER
(B) 		8-94316-582-0 01 1 9301-
80 PANEL; WHEEL HOUSE,INNER
(A) 		8-94316-573-4 01 1 9301-
80 PANEL; WHEEL HOUSE,INNER
(B) 		8-94316-581-0 01 1 9301-
184 PANEL; SIDE,INNER,LOW 8-94316-524-2 01 1 9301-
çizim 16812
10 35 372 33 34 396 5
BalonParca AdiParca NoAdetTipApplied Date
5 CLOSING ASM; A-POST 8-94471-149-0 01 1 9301-9308
5 CLOSING ASM; A-POST 8-94471-149-0 01 1 9309-9312
5 CLOSING ASM; A-POST 8-97103-536-0 01 1 9401-
5 CLOSING ASM; A-POST 8-94471-148-0 01 1 9301-9308
5 CLOSING ASM; A-POST 8-94471-148-0 01 1 9309-9312
5 CLOSING ASM; A-POST 8-97103-533-0 01 1 9401-
10 CLOSING; ROOF SIDE
(A) 		8-94326-985-3 01 1 9301-9504
10 CLOSING; ROOF SIDE
(A) 		8-97100-135-0 01 1 9505-
10 CLOSING; ROOF SIDE
(B) 		8-94337-419-0 01 1 9301-
10 CLOSING; ROOF SIDE
(A) 		8-94326-984-3 01 1 9301-9504
10 CLOSING; ROOF SIDE
(A) 		8-97100-095-0 01 1 9505-
10 CLOSING; ROOF SIDE
(B) 		8-94337-418-0 01 1 9301-
33 PANEL; CENTER PILLAR,OUTER 8-94326-934-2 01 1 9301-9308
33 PANEL; CENTER PILLAR,OUTER 8-97089-237-0 01 1 9309-
33 PANEL; CENTER PILLAR,OUTER 8-94326-933-2 01 1 9301-9308
33 PANEL; CENTER PILLAR,OUTER 8-97089-236-0 01 1 9309-
34 PANEL; CENTER PILLAR,INNER LWR 8-94327-247-3 01 1 9301-
34 PANEL; CENTER PILLAR,INNER LWR 8-94327-246-3 01 1 9301-
35 PANEL; CENTER PILLAR,INNER 8-97039-663-1 01 1 9301-
35 PANEL; CENTER PILLAR,INNER 8-97039-662-1 01 1 9301-
372 REINFORCEMENT; CENTER PILLAR 8-97084-251-0 01 1 9301-
372 REINFORCEMENT; CENTER PILLAR 8-97084-250-0 01 1 9301-
396 PANEL; SEAL PLATE 8-94326-950-4 01 1 9301-
396 PANEL; SEAL PLATE 8-94326-949-4 01 1 9301-
çizim 65366
278 278 278 398 224 224 278 278 398 276 334 274 275
BalonParca AdiParca NoAdetTipApplied Date
224 SCREW; COVER
M5X14 		8-94152-495-0 04 1 9301-
274 PANEL; EXT,TAIL GATE 8-94318-601-1 01 1 9301-
275 BOLT; EXT PANEL
M6X8 		8-94155-893-0 03 1 9301-
276 COVER; TAIL GATE INNER 8-97048-895-0 01 1 9301-
278 PATCH; WATER PROOF
(C) 		8-94379-555-0 02 1 9301-
278 PATCH; WATER PROOF
(A) D=45 T=0.08 		8-94440-896-0 01 1 9301-
278 PATCH; WATER PROOF
(B) OD=30 		8-97040-577-0 02 1 9301-
278 PATCH; WATER PROOF
EXC. AUTO DOOR LOCK<AU4>,RR WIPER<C25> (B) OD=30 		8-97040-577-0 01 1 9301-9401
334 BOLT; COVER
M6X8 		8-94155-893-0 07 1 9301-
398 STOPPER; HATCH GLASS 8-97048-894-0 01 1 9301-
398 STOPPER; HATCH GLASS 8-97048-893-0 01 1 9301-
çizim 65811
80 204 206 203 80 87 207 205
BalonParca AdiParca NoAdetTipApplied Date
80 PANEL; WHEEL HOUSE,INNER
(A) 		8-94316-574-3 01 1 9301-
80 PANEL; WHEEL HOUSE,INNER
(B) 		8-94316-582-0 01 1 9301-
80 PANEL; WHEEL HOUSE,INNER
(A) 		8-94316-573-4 01 1 9301-
80 PANEL; WHEEL HOUSE,INNER
(B) 		8-94316-581-0 01 1 9301-
87 REINFORCEMENT; SEAT BELT,RETRACTOR 8-94316-575-0 02 1 9301-
203 SUPPORT; SPARE TIRE BRKT 8-94371-073-2 01 1 9301-
204 BRACKET; SPARE TIRE STAY,UPR 8-94316-590-0 01 1 9301-9308
205 PATCH; SPARE TIRE STAY,UPR 8-94364-566-1 01 1 9301-9308
206 BRACKET; SPARE TIRE STAY,LWR 8-94320-956-0 01 1 9301-9308
207 PATCH; SPARE TIRE STAY,LWR 8-94364-567-1 01 1 9301-9308
çizim 65812
163 86 85 81 328 74 202 168
BalonParca AdiParca NoAdetTipApplied Date
74 PANEL; SIDE INNER,RR 8-94326-977-5 01 1 9301-
74 PANEL; SIDE INNER,RR 8-94326-976-3 01 1 9301-
81 PANEL; SIDE,INNER,FRT 8-94328-310-1 01 1 9301-
81 PANEL; SIDE,INNER,FRT 8-94328-309-1 01 1 9301-
85 CLOSING; ROCKER 8-94337-425-1 01 1 9301-
85 CLOSING; ROCKER 8-94337-424-1 01 1 9301-
86 PANEL; ROCKER OUTER 8-94337-423-4 01 1 9301-
86 PANEL; ROCKER OUTER 8-94337-422-4 01 1 9301-
163 PATCH; CAB CENTER MTG 8-94326-596-1 02 1 9301-
168 BOLT; BODY SIDE PANEL
M6X16 W/PL WASHER 		8-94199-279-0 08 1 9301-9307
168 BOLT; BODY SIDE PANEL
M8X18 		8-94478-122-0 08 1 9308-
202 REINFORCEMENT; SPARE TIRE BRKT 8-94328-791-1 01 1 9301-
328 BRACKET; RR SEAT STRIKER 8-94326-979-5 01 1 9301-
328 BRACKET; RR SEAT STRIKER 8-94326-978-5 01 1 9301-

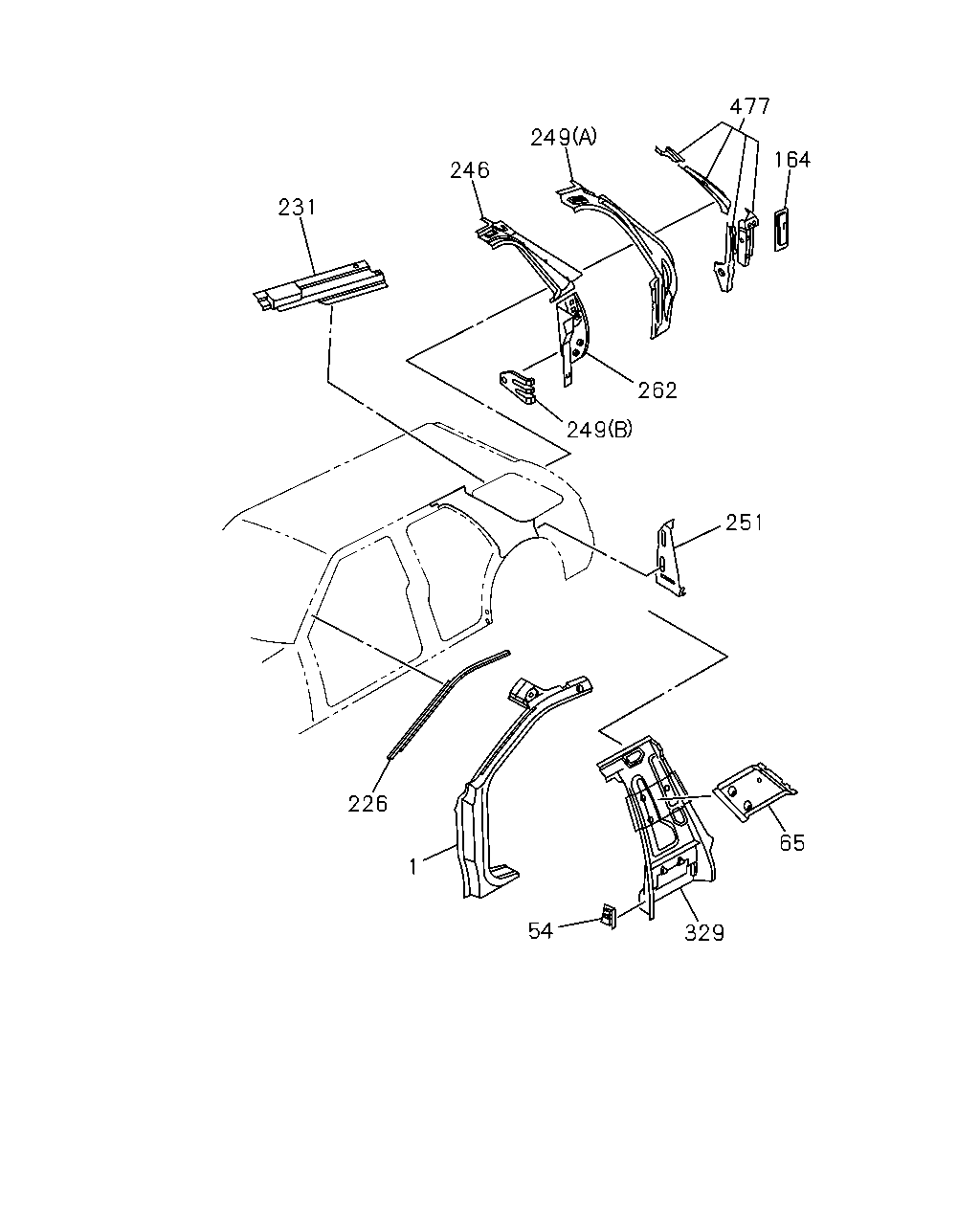

çizim 66011
65 329 54 1 226 251 249 262 164 477 249 246 231
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; A-POST OUTER ASM,UPR 8-94326-920-0 01 1 9301-9308
1 PANEL; A-POST OUTER ASM,UPR 8-97085-688-0 01 1 9309-
1 PANEL; A-POST OUTER ASM,UPR 8-94326-919-0 01 1 9301-9308
1 PANEL; A-POST OUTER ASM,UPR 8-97085-687-0 01 1 9309-
54 PATCH; DOOR STRIKER 8-97084-254-0 01 1 9301-
54 PATCH; DOOR STRIKER 8-97084-253-0 01 1 9301-
65 PANEL; QUARTER,INNER 8-94326-989-2 01 1 9301-
65 PANEL; QUARTER,INNER 8-94326-988-2 01 1 9301-
164 PLATE; SIDE PNL OUTER 8-94316-587-0 01 1 9301-9306
226 RAIL; DRIP,FRT PILLAR 8-94389-514-0 01 1 9301-
226 RAIL; DRIP,FRT PILLAR 8-94389-513-0 01 1 9301-
231 REINFORCEMENT; ROOF RAIL,SIDE 8-94326-991-0 01 1 9301-
231 REINFORCEMENT; ROOF RAIL,SIDE 8-94326-990-0 01 1 9301-
246 PANEL; RR PILLAR,INNER 8-94316-542-3 01 1 9301-
246 PANEL; RR PILLAR,INNER 8-94316-541-3 01 1 9301-
249 REINFORCEMENT; RR PILLAR
(A) 		8-94316-554-2 01 1 9301-9404
249 REINFORCEMENT; RR PILLAR
(A) 		8-97100-140-0 01 1 9405-
249 REINFORCEMENT; RR PILLAR
(B) 		8-94316-556-0 01 1 9301-
249 REINFORCEMENT; RR PILLAR
(A) 		8-94316-553-2 01 1 9301-9404
249 REINFORCEMENT; RR PILLAR
(A) 		8-97100-102-0 01 1 9405-
249 REINFORCEMENT; RR PILLAR
(B) 		8-94316-555-0 01 1 9301-
251 EXTENSION; QUARTER PILLAR LWR 8-94331-659-1 01 1 9301-
251 EXTENSION; QUARTER PILLAR LWR 8-94331-658-0 01 1 9301-
262 PANEL; PILLAR 8-97084-255-0 01 1 9301-
262 PANEL; PILLAR 8-97084-329-0 01 1 9301-
329 REINFORCEMENT; RR PILLAR OUTER 8-94326-969-0 01 1 9301-
329 REINFORCEMENT; RR PILLAR OUTER 8-94326-968-0 01 1 9301-
477 EXTENSION; RR PILLAR,OUTER 8-94316-486-0 01 1 9301-
477 EXTENSION; RR PILLAR,OUTER 8-94316-485-1 01 1 9301-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
