6-10 — ENGINE HOOD AND LOCK (#45776) — 27 parça
çizim 19553
2 18 17 18 128 129 128
BalonParca AdiParca NoAdetTipApplied Date
2 PANEL; ENG HOOD 8-94327-233-2 01 1 9301-9308
2 PANEL; ENG HOOD 8-97081-435-0 01 1 9309-
17 HINGE; ENG HOOD 8-94388-235-4 01 1 9301-
17 HINGE; ENG HOOD 8-94388-234-4 01 1 9301-
18 BOLT; HINGE
M8X16 		8-94139-492-0 08 1 9301-
128 SEAL; PLATFORM
AIR CONDITIONER(C60) (A) L=574 		8-94313-930-1 01 1 9301-
128 SEAL; PLATFORM
AIR CONDITIONER(C60) (B) L=201 		8-94313-931-0 01 1 9301-
129 CLIP; ENG HOOD SEAL
AIR CONDITIONER(C60) BLACK 		8-94104-935-0 07 1 9301-

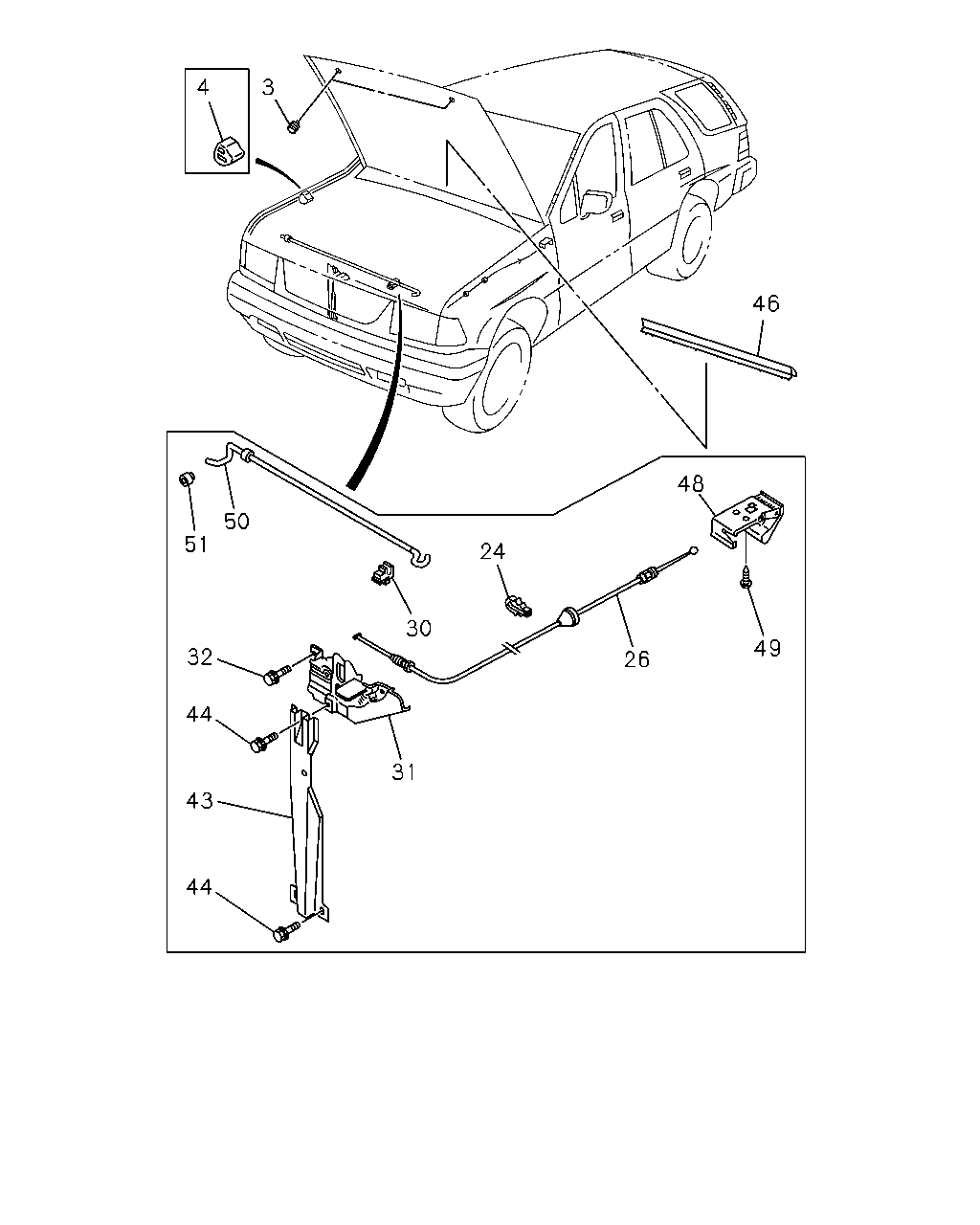

çizim 67655
4 3 46 48 49 26 24 30 31 44 43 44 32 51 50
BalonParca AdiParca NoAdetTipApplied Date
3 BUFFER; ENG HOOD,FRT 8-94237-385-0 02 1 9301-
4 REST; SIDE 8-94442-966-0 02 1 9301-
24 CLIP; CONT CABLE 8-94225-098-0 02 1 9301-
26 CABLE; ENG HOOD CONT 8-94455-461-2 01 1 9301-9307
26 CABLE; ENG HOOD CONT 8-97096-582-0 01 1 9308-9504
26 CABLE; ENG HOOD CONT 8-97106-130-0 01 1 9505-
30 CLIP; SUPPORT ROD,HOOD 8-94441-538-0 01 1 9301-
31 LOCK; ENG HOOD 8-94478-133-2 01 1 9301-
32 BOLT; HOOD LK
M6X18 		8-97071-681-0 02 1 9301-
43 STAY; ENG HOOD,FRT END 8-94434-818-3 01 1 9301-
44 BOLT; STAY,HOOD
M6X18 		8-97071-681-0 03 1 9301-
46 SEAL; ENG HOOD 8-94434-824-1 01 1 9301-
48 LEVER; ENG HOOD
GRAY 		8-94474-735-0 01 1 9301-9308
48 LEVER; ENG HOOD
GRAY 		8-97098-100-0 01 1 9309-9504
48 LEVER; ENG HOOD
BLACK 		8-97150-583-0 01 1 9505-
49 SCREW; LEVER,ENG HOOD OPENER
M5X10 		9-09829-185-0 02 1 9301-9308
49 SCREW; LEVER,ENG HOOD OPENER
M5X10 		8-94428-816-0 02 1 9309-
50 ROD; SUPPORT,ENG HOOD 8-97073-612-1 01 1 9301-
51 GROMMET; SUPPORT ROD 8-94220-508-2 01 1 9301-
