◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#45772) — 76 parça

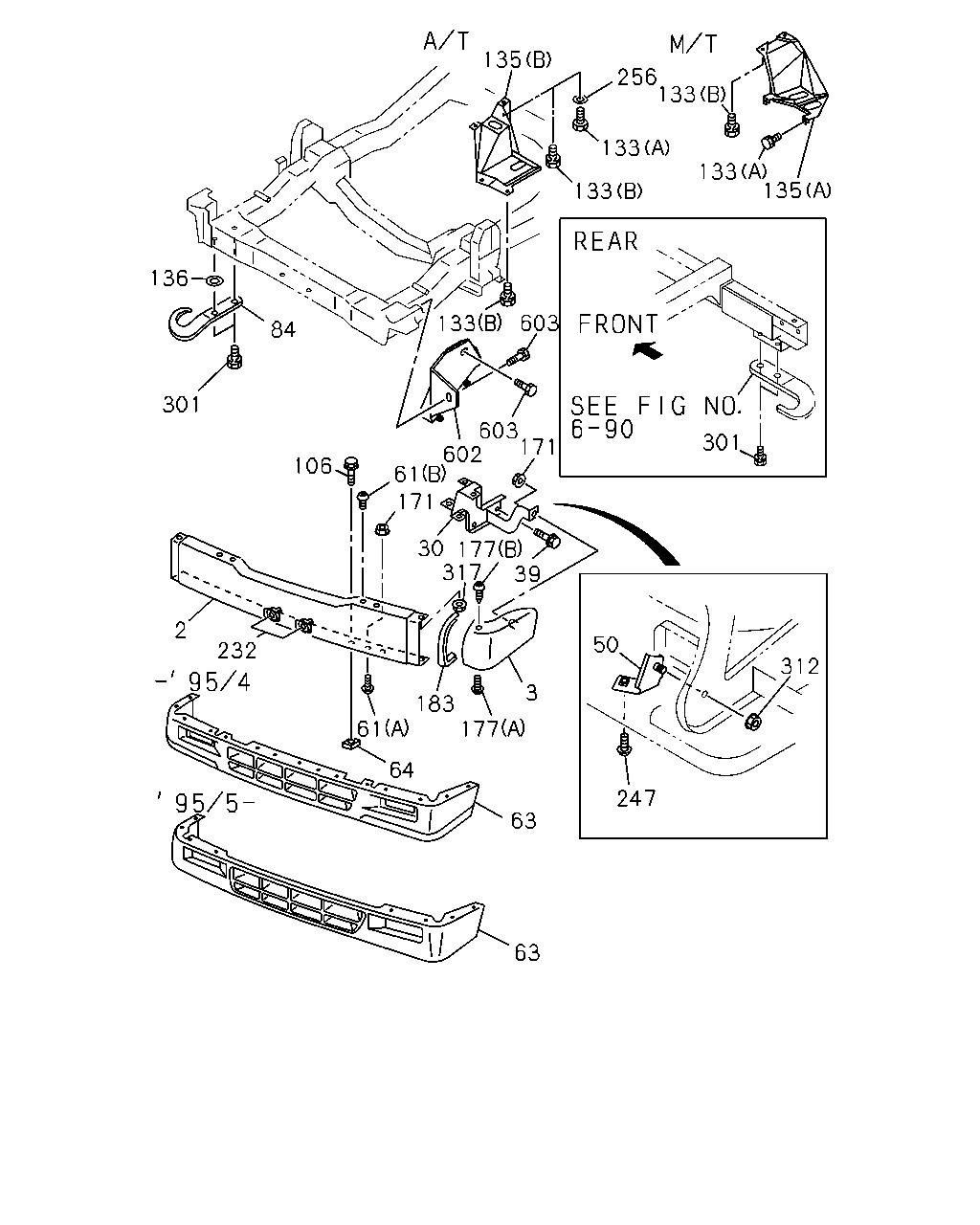

çizim 19552
135 256 133 133 133 133 135 301 312 247 50 63 63 177 3 183 61 64 232 2 317 39 177 30 171 61 106 602 603 171 603 133 84 301 136
BalonParca AdiParca NoAdetTipApplied Date
2 BUMPER; FRT,CENTER
FRT BUMPER CHROME(V46) PLATED 		8-97043-305-0 01 1 9301-9504
2 BUMPER; FRT,CENTER
FRT BUMPER CHROME(VB5) PLATED 		8-97043-305-0 01 1 9505-9607
2 BUMPER; FRT,CENTER
FRT BUMPER CHROME(VB5) PLATED 		8-97128-086-0 01 1 9608-
2 BUMPER; FRT,CENTER
EXC. FRT BUMPER CHROME(V46) BLACK 		8-97043-302-2 01 1 9301-9504
2 BUMPER; FRT,CENTER
EXC. FRT BUMPER CHROME(VB5) BLACK 		8-97043-302-2 01 1 9505-9511
2 BUMPER; FRT,CENTER
EXC. FRT BUMPER CHROME(VB5) BLACK 		8-97128-367-0 01 1 9512-
3 BUMPER; FRT,SIDE
FRT BUMPER CHROME(V46) PLATED 		8-94434-591-4 01 1 9301-9504
3 BUMPER; FRT,SIDE
FRT BUMPER CHROME(VB5) PLATED 		8-94434-591-4 01 1 9505-
3 BUMPER; FRT,SIDE
FRT BUMPER CHROME(V46) PLATED 		8-94434-590-4 01 1 9301-9504
3 BUMPER; FRT,SIDE
FRT BUMPER CHROME(VB5) PLATED 		8-94434-590-4 01 1 9505-
3 BUMPER; FRT,SIDE
EXC. FRT BUMPER CHROME(V46) BLACK 		8-97084-328-0 01 1 9301-9504
3 BUMPER; FRT,SIDE
EXC. FRT BUMPER CHROME(VB5) BLACK 		8-97084-328-0 01 1 9505-9511
3 BUMPER; FRT,SIDE
EXC. FRT BUMPER CHROME(VB5) BLACK 		8-97128-372-0 01 1 9512-
3 BUMPER; FRT,SIDE
EXC. FRT BUMPER CHROME(V46) BLACK 		8-97084-327-0 01 1 9301-9504
3 BUMPER; FRT,SIDE
EXC. FRT BUMPER CHROME(VB5) BLACK 		8-97084-327-0 01 1 9505-9511
3 BUMPER; FRT,SIDE
EXC. FRT BUMPER CHROME(VB5) BLACK 		8-97128-370-0 01 1 9512-
30 BRACKET; FRT BUMPER 8-97087-605-0 01 1 9301-
30 BRACKET; FRT BUMPER 8-97087-604-0 01 1 9301-
39 BOLT; BUMPER TO BODY
M12X30 FLANGE 		8-94475-424-0 04 1 9301-9509
39 BOLT; BUMPER TO BODY
M12X30 FLANGE 		0-28691-230-0 04 1 9510-
50 BRACKET; SUPPORT,BUMPER 8-94452-738-2 01 1 9301-9307
50 BRACKET; SUPPORT,BUMPER 8-97101-845-0 01 1 9308-9504
50 BRACKET; SUPPORT,BUMPER 8-97096-927-1 01 1 9505-
50 BRACKET; SUPPORT,BUMPER 8-94452-737-2 01 1 9301-9307
50 BRACKET; SUPPORT,BUMPER 8-97101-843-0 01 1 9308-9504
50 BRACKET; SUPPORT,BUMPER 8-97096-926-1 01 1 9505-
61 BOLT; BACK BAR
(A) M8X20 DACRO-COATING 		8-94241-821-0 04 1 9301-
61 BOLT; BACK BAR
FRT BUMPER CHROME(V46) (B) M8X20 CR-PLATING 		8-94241-804-0 04 1 9301-9504
61 BOLT; BACK BAR
FRT BUMPER CHROME(VB5) (B) M8X20 CR-PLATING 		8-94241-804-0 04 1 9505-
61 BOLT; BACK BAR
EXC. FRT BUMPER CHROME(V46) (B) M8X20 BLACK-HEAD 		8-94251-707-0 04 1 9301-9504
61 BOLT; BACK BAR
EXC. FRT BUMPER CHROME(VB5) (B) M8X20 BLACK-HEAD 		8-94251-707-0 04 1 9505-
63 AIR DAM; FRT BUMPER 8-97043-880-2 01 1 9301-9504
63 AIR DAM; FRT BUMPER
EXC. FRT BUMPER CHROME(VB5) BLACK 		8-97096-928-4 01 1 9505-
63 AIR DAM; FRT BUMPER
BODY COLOR CLARET RED MICA(731) FRT BUMPER CHROME(VB5) DARK RED 		8-97150-731-4 01 1 9505-
63 AIR DAM; FRT BUMPER
BODY COLOR EBONY BLACK(826) FRT BUMPER CHROME(VB5) BLACK 		8-97150-735-4 01 1 9505-
63 AIR DAM; FRT BUMPER
BODY COLOR IRON GRAY MET(849) FRT BUMPER CHROME(VB5) GRAY 		8-97151-772-4 01 1 9505-
63 AIR DAM; FRT BUMPER
BODY COLOR LT. SILVER MET(714),BODY COLOR CLARET RED MICA/LT. SILVER MET(767),BODY COLOR VIRIDIAN MICA/LT. SILVER MET(768),BODY COLOR CREAM WHITE/LT. SILVER MET(769),BODY COLOR EBONY BLACK/LT. SILVER MET(771),BODY COLOR STRATUS BLUE/LT. SILVER MET(781) FRT BUMPER CHROME(VB5) LIGHT SILVER 		8-97150-729-4 01 1 9505-9607
63 AIR DAM; FRT BUMPER
BODY COLOR LT. SILVER MET(714),BODY COLOR SPRUCE GREEN MICA/LT. SILVER MET(743),BODY COLOR CLARET RED MICA/LT. SILVER MET(767),BODY COLOR CREAM WHITE/LT.SILVER MET(769),BODY COLOR EBONY BLACK/LT. SILVERMET(771),BODY COLOR STRATUS BLUE/LT. SILVER MET(781) FRT BUMPER CHROME(VB5) LIGHT SILVER 		8-97150-729-4 01 1 9608-
64 NUT; CLIP 8-94471-330-2 15 1 9301-
84 HOOK 8-94183-262-0 01 1 9301-
106 BOLT; AIR DAM
M6X16 W/LK&PL WASHER 		0-50140-616-0 15 1 9301-9610
106 BOLT; AIR DAM
M6X16 FLANGE 		0-28680-616-0 15 1 9611-
133 BOLT; PROTECTOR FIX
A/T THM(RMQ) (B) M10X25 		8-94492-949-0 04 1 9301-9310
133 BOLT; PROTECTOR FIX
A/T THM(RMQ) (B) M10X28 W/LK&PL WASHER 		8-97104-788-0 04 1 9311-9601
133 BOLT; PROTECTOR FIX
A/T THM(RMQ) (B) M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9602-
133 BOLT; PROTECTOR FIX
A/T THM(RMQ) (A) M10X20 		0-20801-020-0 01 1 9602-
133 BOLT; PROTECTOR FIX
M/T MUA 5 SPEED(RMN) (A) M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9301-
133 BOLT; PROTECTOR FIX
M/T MUA 5 SPEED(RMN) (B) M10X25 		8-94492-949-0 02 1 9301-9310
133 BOLT; PROTECTOR FIX
M/T MUA 5 SPEED(RMN) (B) M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9311-
135 PROTECTOR; TRANSFER
A/T THM(RMQ) (B) 		8-97049-784-0 01 1 9301-
135 PROTECTOR; TRANSFER
M/T MUA 5 SPEED(RMN) (A) 		8-97019-355-1 01 1 9301-
136 WASHER; PL,HOOK
ID=12.5 		1-09503-021-0 02 1 9301-9504
171 NUT; BACK BAR
M8 W/LK WASHER 		8-94327-073-0 10 1 9301-
177 BOLT
FRT BUMPER CHROME(VB5) (B) M8X20 CR-PLATING 		8-94241-804-0 02 1 9505-
177 BOLT
FRT BUMPER CHROME(VB5) (A) M8X20 DACRO-COATING 		8-94241-821-0 06 1 9505-9511
177 BOLT
EXC. FRT BUMPER CHROME(VB5) (A) M8X20 DACRO-COATING 		8-94241-821-0 06 1 9512-
177 BOLT
FRT BUMPER CHROME(V46) (B) M8X20 CR-PLATING 		8-94241-804-0 02 1 9301-9504
177 BOLT
FRT BUMPER CHROME(VB5) (B) M8X20 CR-PLATING 		8-94241-804-0 02 1 9505-
177 BOLT
FRT BUMPER CHROME(V46) (A) M8X20 DACRO-COATING 		8-94241-821-0 02 1 9301-9408
177 BOLT
EXC. FRT BUMPER CHROME(V46) (A) M8X20 DACRO-COATING 		8-94241-821-0 02 1 9409-9504
177 BOLT
FRT BUMPER CHROME(VB5) (A) M8X20 DACRO-COATING 		8-94241-821-0 02 1 9505-
177 BOLT
EXC. FRT BUMPER CHROME(V46) (A) M8X20 DACRO-COATING 		8-94241-821-0 06 1 9301-9408
177 BOLT
EXC. FRT BUMPER CHROME(V46) (B) M8X20 BLACK-HEAD 		8-94251-707-0 02 1 9301-9504
177 BOLT
EXC. FRT BUMPER CHROME(VB5) (B) M8X20 BLACK-HEAD 		8-94251-707-0 02 1 9505-
183 FINISHER; FRT BUMPER 8-97088-631-0 02 1 9301-
232 NUT; EXPANSION,LICENSE PLATE
M6 EXPANSION NUT 		8-94215-358-1 02 1 9301-
247 SCREW; BUMPER TO AIR DAM
M6X16 TRUSS-HEAD 		8-94318-980-0 02 1 9301-
256 WASHER; PL
A/T THM(RMQ) ID=10.5 OD=26 		9-09164-710-0 01 1 9602-
301 BOLT; HOOK TO FRAME
M10X45 W/LK WASHER 		0-50041-045-0 04 1 9301-
312 NUT; BRKT
M6 W/DISHED WASHER 		8-94423-325-0 02 1 9301-
317 NUT; CENTER TO SIDE
M8 W/LK WASHER 		8-94327-073-0 04 1 9301-9408
317 NUT; CENTER TO SIDE
EXC. FRT BUMPER CHROME(V46) M8 W/LK WASHER 		8-94327-073-0 04 1 9409-9504
317 NUT; CENTER TO SIDE
M8 W/LK WASHER 		8-94327-073-0 04 1 9505-
602 BRACKET; FRT STABILIZER 8-97120-752-3 01 1 9512-
602 BRACKET; FRT STABILIZER 8-97120-751-3 01 1 9512-
603 BOLT; BRKT
M10X30 FLANGE 		0-28481-030-0 04 1 9512-
