Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

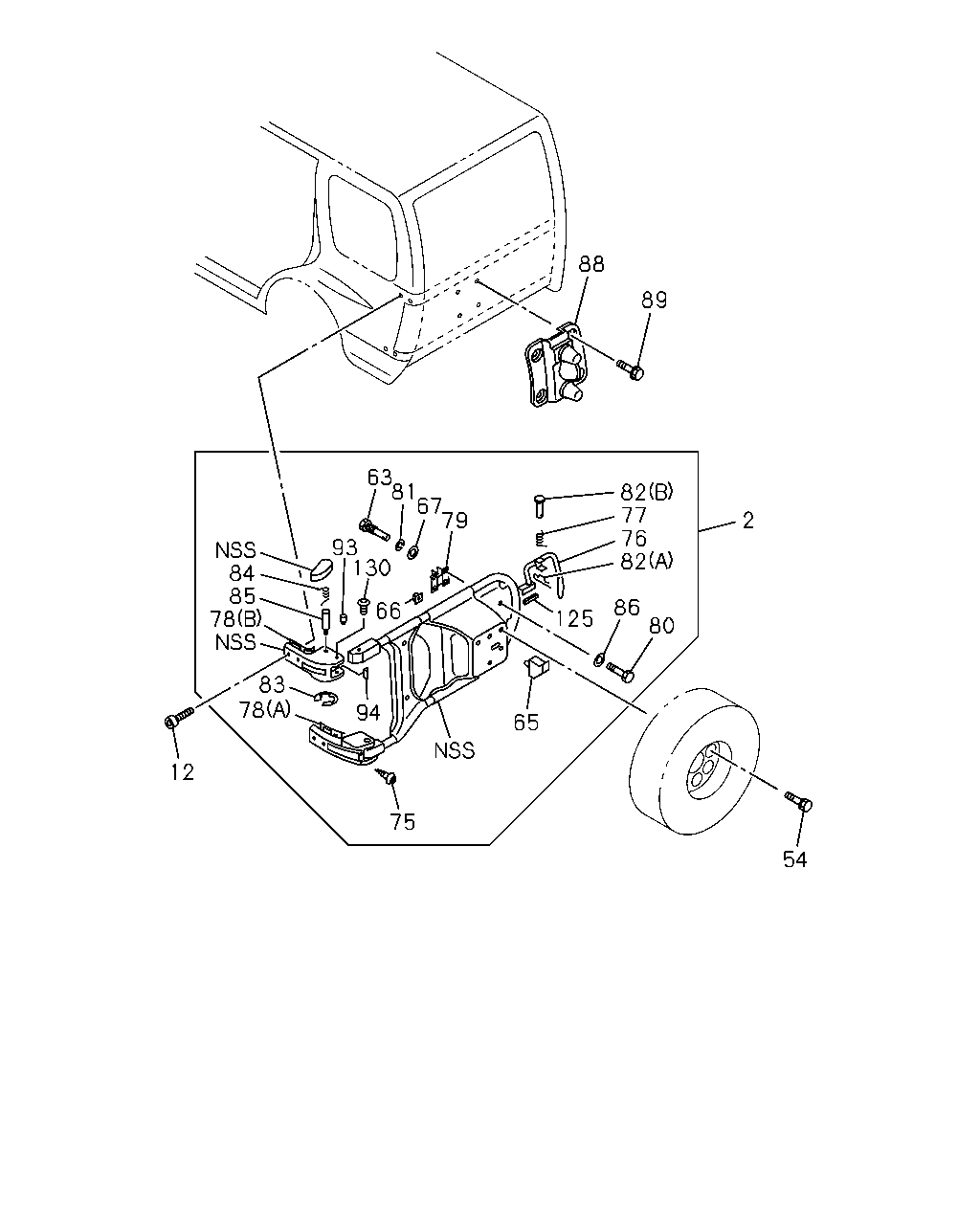

5-30 — SPARE TIRE CARRIER AND COVER
(#45769) — 49 parça
88
89
2
82
77
76
82
86
80
125
54
65
75
12
78
83
94
66
130
93
63
81
67
79
84
85
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CARRIER ASM; SPARE TIRE
8-97023-629-6
01
1
9301-9301
2
CARRIER ASM; SPARE TIRE
8-97087-226-0
01
1
9302-9306
2
CARRIER ASM; SPARE TIRE
8-97088-693-1
01
1
9307-9308
2
CARRIER ASM; SPARE TIRE
8-97091-526-5
01
1
9309-9402
2
CARRIER ASM; SPARE TIRE
8-97107-174-0
01
1
9403-9505
2
CARRIER ASM; SPARE TIRE
950522-
8-97116-547-1
01
1
9505-9511
2
CARRIER ASM; SPARE TIRE
8-97096-433-2
01
1
9512-
12
BOLT; SPARE TIRE CARRIER
8-97045-762-0
06
1
9301-9301
12
BOLT; SPARE TIRE CARRIER
8-97094-409-0
06
1
9302-9606
12
BOLT; SPARE TIRE CARRIER
8-97176-197-0
06
1
9607-
54
BOLT; SPARE TIRE MTG,STEEL WHEEL
8-94496-060-0
03
1
9301-9408
54
BOLT; SPARE TIRE MTG,STEEL WHEEL
8-97805-242-0
03
1
9409-
63
PIN; LK,SPARE TIRE
8-94495-143-1
01
1
9301-9505
65
SADDLE; SPARE TIRE
8-97808-117-0
01
1
9301-9505
65
SADDLE; SPARE TIRE
950522-
8-97126-242-0
01
1
9505-9511
65
SADDLE; SPARE TIRE
8-97135-525-1
01
1
9512-
66
NUT; SADDLE,SPARE TIRE
M8 FLANGE
0-91150-108-0
01
1
9301-
67
WASHER; RUB,SPARE TIRE LK PIN
8-94495-144-0
01
1
9301-9505
75
SCREW
8-97122-469-0
02
1
9505-
76
LEVER; LOCK
8-94389-958-3
01
1
9301-9308
76
LEVER; LOCK
8-97091-535-4
01
1
9309-9402
76
LEVER; LOCK
8-97107-176-0
01
1
9403-9505
76
LEVER; LOCK
950522-
8-97126-238-0
01
1
9505-
77
SPRING; LEVER
8-94389-954-1
01
1
9301-9505
77
SPRING; LEVER
950522-
8-97115-999-0
01
1
9505-
78
GASKET
(A)
8-94389-956-0
01
1
9301-9505
78
GASKET
(A)950522-
8-97126-240-0
01
1
9505-
78
GASKET
(B)
8-94389-957-2
01
1
9301-9505
78
GASKET
(B)950522-
8-97126-239-0
01
1
9505-
79
LOCK ASM
8-94389-808-1
01
1
9301-9505
79
LOCK ASM
950522-
8-97126-241-0
01
1
9505-
80
BOLT; LOCK
M10X25
8-94388-915-0
04
1
9301-
81
WASHER; PL,SPARE TIRE LK PIN
ID=17
9-09160-516-0
01
1
9301-9505
82
PIN
(A) L=27.7
1-09747-005-0
01
1
9301-
82
PIN
(B)
9-08223-841-0
01
1
9301-
83
RING; SNAP
ID=8
9-09185-408-0
01
1
9301-
84
SPRING; STOPPER
8-94389-955-2
01
1
9301-
85
STOPPER ASM
8-94389-809-3
01
1
9301-9505
85
STOPPER ASM
950522-
8-97126-237-0
01
1
9505-
86
WASHER; LOCK
8-94388-914-0
04
1
9301-
88
STRIKER; SPARE TIRE CARRIER
8-94370-814-3
01
1
9301-9308
88
STRIKER; SPARE TIRE CARRIER
8-97095-528-2
01
1
9309-9505
88
STRIKER; SPARE TIRE CARRIER
950529-
8-97126-246-0
01
1
9505-
89
BOLT; STRIKER
M8X20 FLANGE
8-94318-556-0
04
1
9301-
93
RUBBER; CAP
8-97015-037-1
01
1
9301-
94
RUBBER; STOPPER
8-97071-959-0
02
1
9301-9308
94
RUBBER; STOPPER
8-97102-216-0
01
1
9309-
125
RUBBER; CUSHION
8-97088-562-1
01
1
9301-
130
CAP
8-97113-343-0
01
1
9505-
