◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#45767) — 49 parça

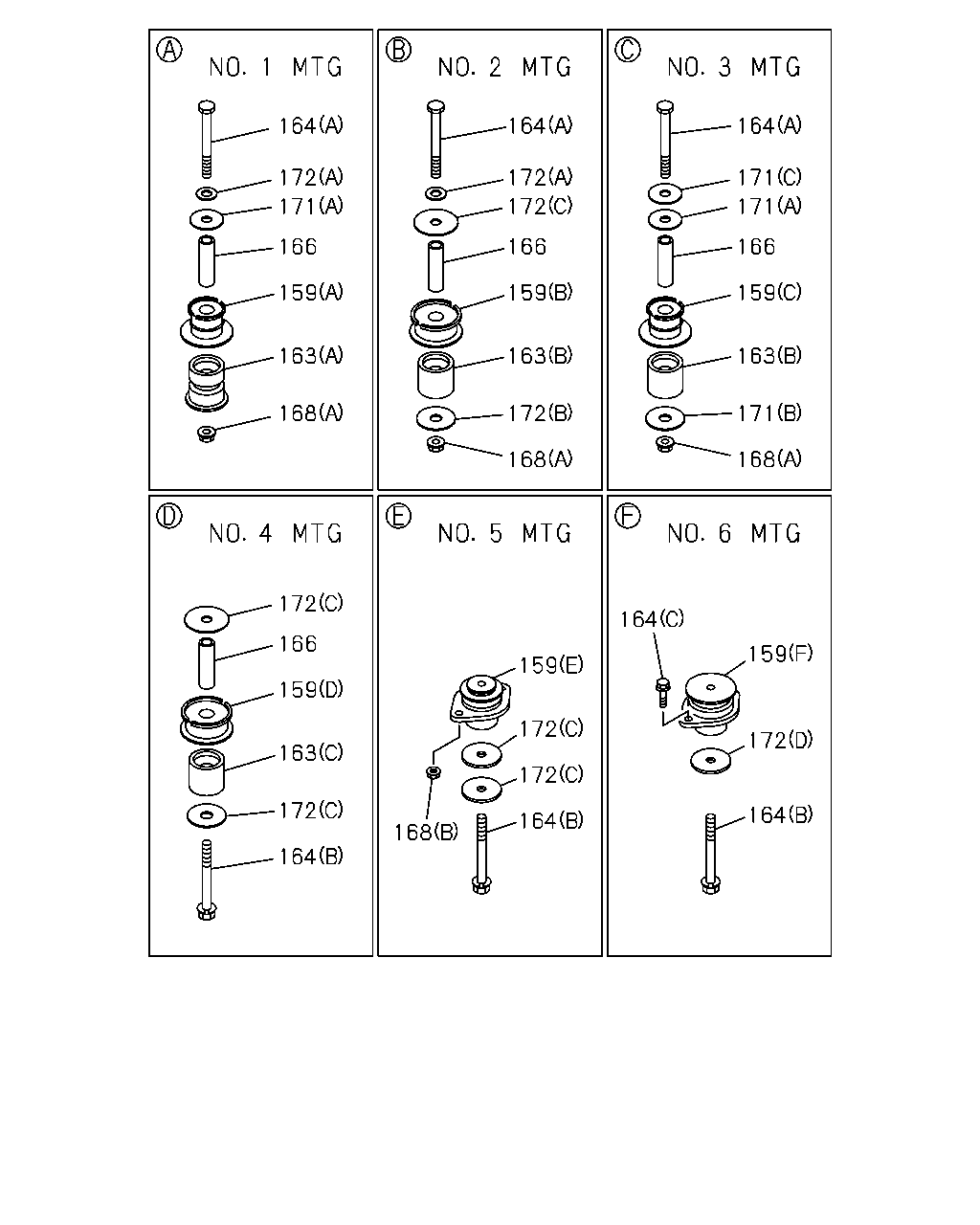

çizim 19478
164 172 171 166 159 163 168 168 172 163 159 166 172 172 164 164 171 171 166 159 163 171 168 164 159 172 164 168 164 172 172 159 164 172 163 159 166 172
BalonParca AdiParca NoAdetTipApplied Date
159 RUBBER; CUSHION,CAB MTG
(A) NO.1 		8-94325-155-2 02 1 9301-9511
159 RUBBER; CUSHION,CAB MTG
(A) NO.1 		8-97120-490-1 02 1 9512-
159 RUBBER; CUSHION,CAB MTG
(B) NO.2 		8-94238-774-0 02 1 9301-9511
159 RUBBER; CUSHION,CAB MTG
(B) NO.2 		8-97120-492-0 02 1 9512-
159 RUBBER; CUSHION,CAB MTG
(C) NO.3 		8-94325-158-2 02 1 9301-9511
159 RUBBER; CUSHION,CAB MTG
(C) NO.3 		8-97120-494-0 02 1 9512-
159 RUBBER; CUSHION,CAB MTG
(D) NO.4 		8-97045-939-0 02 1 9301-
159 RUBBER; CUSHION,CAB MTG
(E) NO.5 		8-97013-833-0 01 1 9301-
159 RUBBER; CUSHION,CAB MTG
(E) NO.5 		8-97013-832-0 01 1 9301-
159 RUBBER; CUSHION,CAB MTG
(F) NO.6 		8-94370-487-0 01 1 9301-
159 RUBBER; CUSHION,CAB MTG
(F) NO.6 		8-94370-484-0 01 1 9301-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 		8-94325-156-0 02 1 9301-9511
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) NO.1 		8-97120-491-1 02 1 9512-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2,NO.3 		8-94157-885-0 04 1 9301-9511
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) NO.2,NO.3 		8-97120-493-0 04 1 9512-
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) NO.4 		8-97045-940-0 02 1 9301-
164 BOLT; CUSHION RUBBER,CAB MTG
(A) NO.1, NO.2, NO.3 M10X125 		8-97042-439-1 06 1 9301-9504
164 BOLT; CUSHION RUBBER,CAB MTG
(A) NO.1, NO.2, NO.3 M10X120 		8-97122-607-0 06 1 9505-9508
164 BOLT; CUSHION RUBBER,CAB MTG
(A) NO.1, NO.2, NO.3 M10X120 		8-97134-968-0 06 1 9509-
164 BOLT; CUSHION RUBBER,CAB MTG
(B) NO.4, NO.5, NO.6 M10X100 		8-94318-911-2 06 1 9301-9302
164 BOLT; CUSHION RUBBER,CAB MTG
(B) NO.4, NO.5, NO.6 M10X102 		8-97091-599-0 06 1 9303-
164 BOLT; CUSHION RUBBER,CAB MTG
(C) NO.6 M10X20 FLANGE 		0-28081-020-0 04 1 9301-9408
164 BOLT; CUSHION RUBBER,CAB MTG
(C) NO.6 M10X20 FLANGE 		0-28681-020-0 04 1 9409-
166 PIECE; DIST,BODY MTG RUBBER
L=70 		8-97042-440-0 08 1 9301-9605
166 PIECE; DIST,BODY MTG RUBBER
L=70 		8-97148-478-0 08 1 9606-9701
166 PIECE; DIST,BODY MTG RUBBER
L=70 		8-97170-537-0 08 1 9702-
168 NUT; CUSHION RUBBER,BODY MTG
(A) M10 FLANGE 		0-91150-210-0 06 1 9301-
168 NUT; CUSHION RUBBER,BODY MTG
(B) M10 FLANGE 		0-91150-110-0 04 1 9301-
171 WASHER; BODY MTG RUBBER
(A) NO.1, NO.3 ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9301-
171 WASHER; BODY MTG RUBBER
(B) NO.3 ID=11 OD=62 T=2.9 		8-94223-176-0 02 1 9301-9408
171 WASHER; BODY MTG RUBBER
(B) NO.3 ID=11 OD=62 T=2.9 		8-97037-993-0 02 1 9409-
171 WASHER; BODY MTG RUBBER
(C) NO.3 OD=48 T=6.0 		8-94416-694-0 02 1 9301-
171 WASHER; BODY MTG RUBBER
(D) NO.4, NO.5, NO.6 ID=10.2 		9-09150-810-0 06 1 9301-9302
172 WASHER; BODY MTG RUBBER
(A) NO.1, NO.2 OD=32 T=6.0 		8-94416-693-0 04 1 9301-
172 WASHER; BODY MTG RUBBER
(B) NO.2 ID=11 OD=48 T=2.9 		8-94223-170-0 02 1 9301-
172 WASHER; BODY MTG RUBBER
(C) NO.2, NO.4, NO.5 ID=11 OD=62 T=2.9 		8-94223-176-0 10 1 9301-9408
172 WASHER; BODY MTG RUBBER
(C) NO.2, NO.4, NO.5 ID=11 OD=62 T=2.9 		8-97037-993-0 10 1 9409-
172 WASHER; BODY MTG RUBBER
(D) NO.6 ID=11 OD=75 T=6.0 		8-94338-455-0 02 1 9301-
çizim 67728
320 319 444 445 439 443 441 442 442 440
BalonParca AdiParca NoAdetTipApplied Date
319 GASKET; BODY MTG BOLT 8-94362-270-0 02 1 9301-
320 SCREW; BODY MTG GASKET
M6X20 TAPPING W/PL WASHER 		0-74100-620-0 04 1 9301-
439 ROD; CAB STOPPER 8-97107-903-0 01 1 9505-
439 ROD; CAB STOPPER 8-97107-902-0 01 1 9505-
440 BOLT; ROD
M14X30 W/LK&PL WASHER 		8-97109-675-0 04 1 9505-
441 BRACKET; CAB STOPPER 8-97107-905-1 02 1 9505-
442 BOLT; BRKT
(A) M8X23 FLANGE 		8-94174-559-2 04 1 9505-
442 BOLT; BRKT
(B) M14X85 FLANGE 		8-97022-802-2 02 1 9505-
443 CUSHION; CAB STOPPER 8-97107-906-3 02 1 9505-
444 EXTENSION; FRAME 8-97109-669-2 02 1 9505-
445 BOLT; EXTENSION
M6X16 FLANGE 		0-28480-616-0 04 1 9505-
