5-01 — FRAME AND OTHER PARTS (#45766) — 53 parça

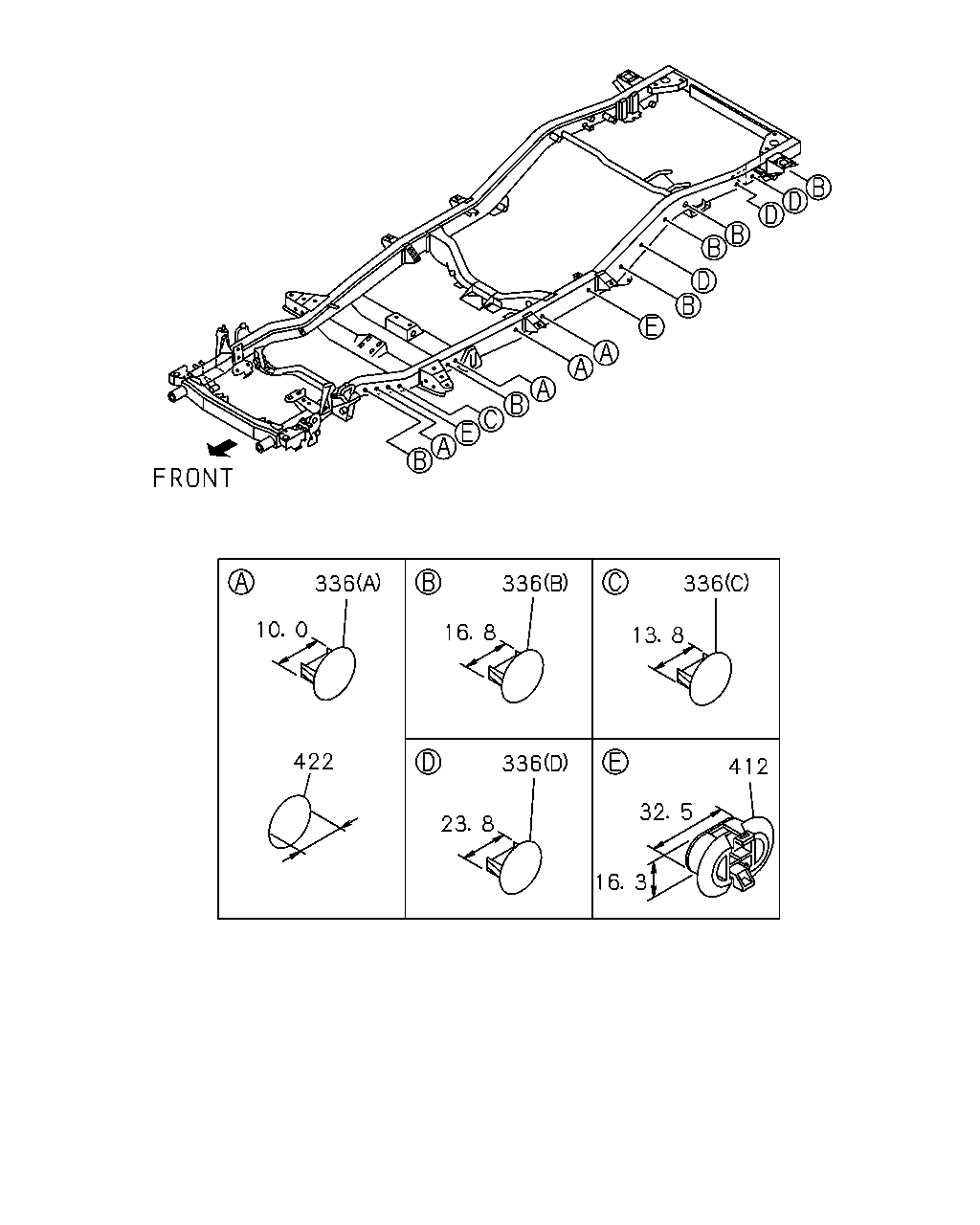

çizim 19477
336 336 336 412 336 422
BalonParca AdiParca NoAdetTipApplied Date
336 PLUG; HOLE
(A) OD=40 BLACK 		8-97806-918-0 08 1 9301-9511
336 PLUG; HOLE
(A) OD=40 BLACK 		8-97806-918-0 07 1 9512-
336 PLUG; HOLE
(B) OD=30 BLACK 		8-97806-920-0 12 1 9301-9612
336 PLUG; HOLE
(B) OD=30 BLACK 		8-97806-920-0 10 1 9701-
336 PLUG; HOLE
(C) OD=27 GRAY 		8-97071-775-0 02 1 9301-
336 PLUG; HOLE
(D) OD=33 BLUE 		8-97806-919-0 03 1 9301-
412 PLUG; TIE DOWN HOLE 8-97071-716-0 04 1 9301-
422 SEAL; HOLE
OD=50 		8-94241-235-0 01 1 9512-
çizim 67765
1 43 130 43 105 105 101 41 101 43 43 14 4 16 163 15 335 16 2 5 15 335 4 204 43 43
BalonParca AdiParca NoAdetTipApplied Date
1 FRAME ASM
A/T THM(RMQ) 		8-97064-266-4 01 1 9301-9308
1 FRAME ASM
A/T THM(RMQ) 		8-97101-030-1 01 1 9309-9504
1 FRAME ASM
A/T THM(RMQ) 		8-97096-891-4 01 1 9505-9508
1 FRAME ASM
A/T THM(RMQ) 		8-97137-549-0 01 1 9509-9511
1 FRAME ASM
A/T THM(RMQ) 		8-97137-554-1 01 1 9512-
1 FRAME ASM
M/T MUA 5 SPEED(RMN) 		8-97064-265-4 01 1 9301-9308
1 FRAME ASM
M/T MUA 5 SPEED(RMN) 		8-97101-027-1 01 1 9309-9504
1 FRAME ASM
M/T MUA 5 SPEED(RMN) 		8-97096-890-4 01 1 9505-9508
1 FRAME ASM
M/T MUA 5 SPEED(RMN) 		8-97137-548-0 01 1 9509-9511
1 FRAME ASM
M/T MUA 5 SPEED(RMN) 		8-97137-553-1 01 1 9512-
2 MEMBER; CROSS,1ST 8-94386-909-0 01 1 9301-9504
2 MEMBER; CROSS,1ST 8-97107-189-6 01 1 9505-9511
2 MEMBER; CROSS,1ST 8-97113-341-1 01 1 9512-
4 NUT; 1ST C/MBR TO S/MBR
M10 FLANGE 		8-94383-595-0 04 1 9301-
5 MEMBER; CROSS,SUSPENSION 8-94386-912-0 01 1 9301-
14 BOLT; TRANS MTG MBR,FRAME
M12X25 		8-94498-772-0 08 1 9301-9610
14 BOLT; TRANS MTG MBR,FRAME
M12X25 		8-97166-861-0 08 1 9611-
15 BRACKET; BODY MTG,FRT 8-94472-365-2 01 1 9301-9504
15 BRACKET; BODY MTG,FRT 8-97107-162-0 01 1 9505-
15 BRACKET; BODY MTG,FRT 8-94472-364-2 01 1 9301-9504
15 BRACKET; BODY MTG,FRT 8-97107-161-0 01 1 9505-
16 BOLT; 1ST C/MBR TO S/MBR
M10X83 FLANGE 		8-97805-841-0 04 1 9301-
41 BRACKET; CENTER BRG,FRAME SIDE 8-97065-252-0 01 1 9301-
43 BRACKET; CAB MTG,RR
(A) 		8-94386-937-0 01 1 9301-
43 BRACKET; CAB MTG,RR
(A) 		8-94386-936-0 01 1 9301-
43 BRACKET; CAB MTG,RR
(B) 		8-94386-935-0 02 1 9301-
43 BRACKET; CAB MTG,RR
(C) 		8-94386-944-0 01 1 9301-
43 BRACKET; CAB MTG,RR
(C) 		8-94386-943-0 01 1 9301-
101 BRACKET; RR SPR,FRT 8-94386-982-1 01 1 9301-
101 BRACKET; RR SPR,FRT 8-94386-981-1 01 1 9301-
105 BRACKET; RR SPR,RR 8-94386-987-1 01 1 9301-
105 BRACKET; RR SPR,RR 8-94386-986-1 01 1 9301-
130 MEMBER; CROSS,END 8-94386-927-1 01 1 9301-9511
130 MEMBER; CROSS,END 8-97121-200-0 01 1 9512-
163 BRACKET; LINK ARM 8-94498-721-2 01 1 9301-9504
163 BRACKET; LINK ARM 8-97114-305-0 01 1 9505-
163 BRACKET; LINK ARM 8-94498-720-2 01 1 9301-9504
163 BRACKET; LINK ARM 8-97114-304-0 01 1 9505-
204 MEMBER; CROSS,TRANS MTG 8-97066-419-0 01 1 9301-9504
204 MEMBER; CROSS,TRANS MTG 8-97119-367-0 01 1 9505-9511
204 MEMBER; CROSS,TRANS MTG 8-97126-259-3 01 1 9512-
335 PATCH; 1ST C/MBR
UPPER 		8-94386-946-0 01 1 9301-9504
335 PATCH; 1ST C/MBR
LOWER 		8-94386-948-0 01 1 9301-9504
335 PATCH; 1ST C/MBR
UPPER 		8-94386-945-0 01 1 9301-9504
335 PATCH; 1ST C/MBR
LOWER 		8-94386-947-0 01 1 9301-9504
