2 |

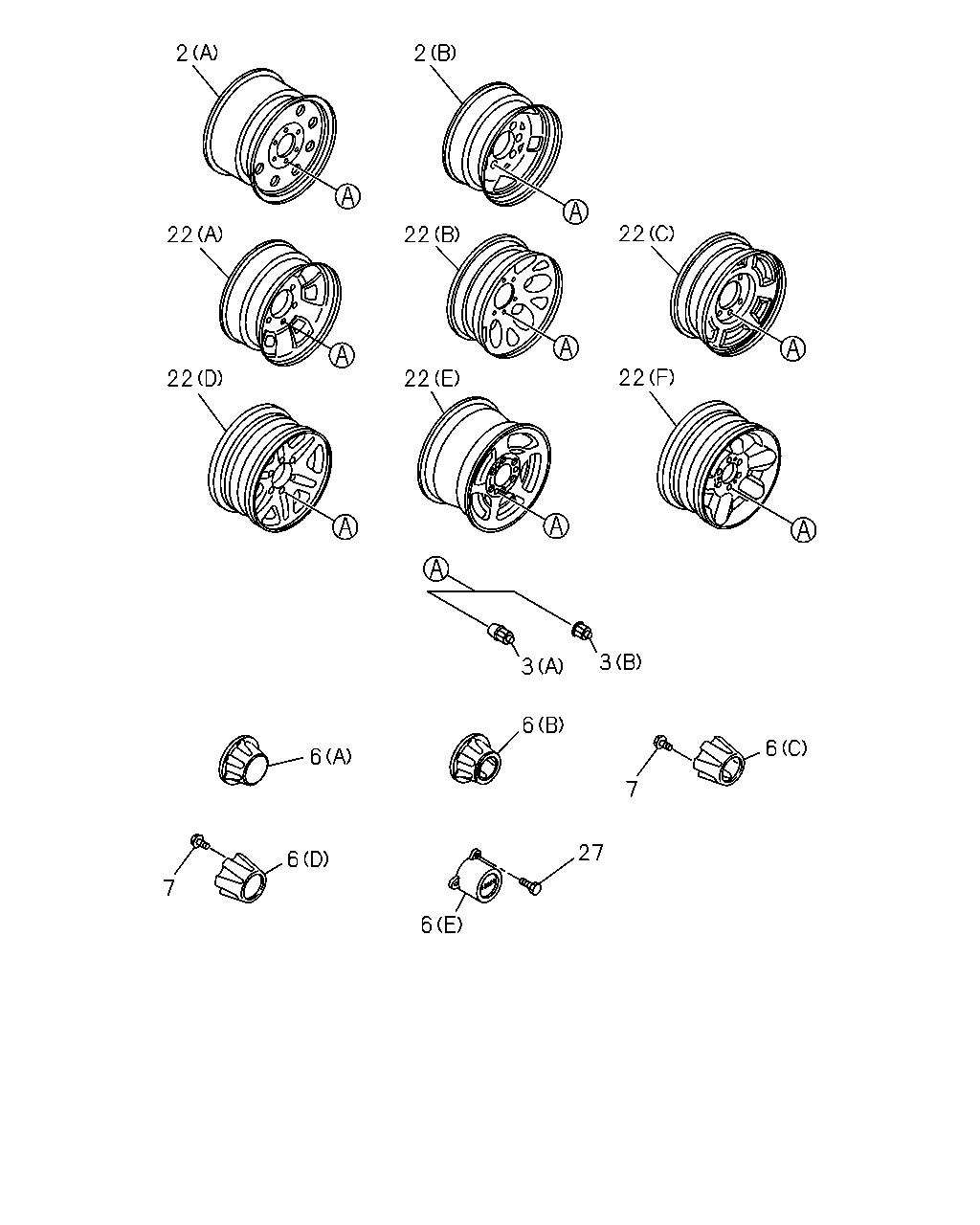

WHEEL; DISC
FRT&RR P225/75R15 15X6JJ(9RZ)
(A)
OFF SET=7.5
|
8-97064-537-0 |
05 |
1 |
9301-9511 |
| |
2 |
WHEEL; DISC
FRT&RR P225/75R16 16X6JJ(9VV)
(B)
|
8-97102-273-1 |
05 |
1 |
9512- |
| |
3 |
NUT; WHEEL,FRT AXLE
FRT&RR P225/75R15 15X6JJ(9RZ)
(A)
M12 H=40
|
8-97129-440-0 |
24 |
1 |
9506-9511 |
| |
3 |
NUT; WHEEL,FRT AXLE
FRT&RR P225/75R16 16X6JJ(9VV)
(A)
M12 H=40
|
8-97129-440-1 |
24 |
1 |
9512- |
| |
3 |
NUT; WHEEL,FRT AXLE
FRT&RR P225/75R15 15X6JJ(9RZ)
HUB CAP STYLED WHEEL MARK LESS(6UX)
(A)
M12 H=40
|
8-97061-708-0 |
24 |
1 |
9301-9503 |
| |
3 |
NUT; WHEEL,FRT AXLE
FRT&RR P225/75R15 15X6JJ(9RZ)
(A)
M12 H=40
|
8-97061-708-0 |
24 |
1 |
9505-9505 |
| |
3 |
NUT; WHEEL,FRT AXLE
FRT&RR P225/75R15 15X6JJ(9RZ)
HUB CAP STYLED WHEEL MARK LESS(6UX)
(A)
M12 H=40
|
8-97129-440-0 |
24 |
1 |
9504-9504 |
| |
3 |
NUT; WHEEL,FRT AXLE
FRT&RR P225/75R15 15X6JJ(9RZ)
EXC. HUB CAP STYLED WHEEL MARK LESS(6UX)
(B)
M12 H=30.5
|
8-97073-118-0 |
24 |
1 |
9301-9308 |
| |
3 |
NUT; WHEEL,FRT AXLE
FRT&RR P225/75R15 15X6JJ AL(9UD)
(B)
M12 H=30.5
|
8-97073-118-0 |
24 |
1 |
9301-9308 |
| |
3 |
NUT; WHEEL,FRT AXLE
FRT&RR P225/75R15 15X6JJ(9RZ)
EXC. HUB CAP STYLED WHEEL MARK LESS(6UX)
(B)
M12 H=30.5
|
8-97073-118-0 |
24 |
1 |
9309-9408 |
| |
3 |
NUT; WHEEL,FRT AXLE
FRT&RR P225/75R15 15X6JJ AL(9UD),FRT&RR P245/70R16
16X7.5JJ AL(9VS)
(B)
M12 H=30.5
|
8-97073-118-0 |
24 |
1 |
9309-9408 |
| |
3 |
NUT; WHEEL,FRT AXLE
FRT&RR P225/75R15 15X6JJ AL(9UD),FRT&RR P245/70R16
16X7.5JJ AL(9VS),FRT&RR P245/70R16 16X7.5JJ AL(9WN)
(B)
M12 H=30.5
|
8-97073-118-0 |
24 |
1 |
9409-9504 |
| |
3 |
NUT; WHEEL,FRT AXLE
FRT&RR P245/70R16 16X7.5JJ AL(APQ),FRT&RR
P225/75R15 15X6JJ AL(9UD),FRT&RR P245/70R16 16X7.5JJ AL(9VS)
(B)
M12 H=30.5
|
8-97073-118-0 |
24 |
1 |
9505-9511 |
| |
3 |
NUT; WHEEL,FRT AXLE
FRT&RR P245/70R16 16X7JJ AL 5 SPOKE(AQF),FRT&RR
P225/75R16 16X6JJ AL(9VW),FRT&RR P245/70R16 16X7JJ
AL(9VY)
(B)
M12 H=30.5
|
8-97073-118-0 |
24 |
1 |
9512-9608 |
| |
3 |
NUT; WHEEL,FRT AXLE
FRT&RR P245/70R16 16X7JJ AL 5 SPOKE(AQF),FRT&RR
P225/75R16 16X6JJ AL(9VW),FRT&RR P245/70R16 16X7JJ
AL(9VY)
(B) 960826-
M12 H=30.5
|
8-97176-091-0 |
24 |
1 |
9608- |
| |
6 |
CAP; WHEEL
FRT&RR P245/70R16 16X7.5JJ AL(9VS)
WIDE TIRE<6NZ>
HUB CAP ALUMI WHEEL(6UY)
(D)FRONT
|
8-97046-295-0 |
02 |
1 |
9409-9511 |
| |
6 |
CAP; WHEEL
FRT&RR P245/70R16 16X7.5JJ AL(9WN)
WIDE TIRE<6NZ>
HUB CAP ALUMI WHEEL(6UY)
(C)FRONT
W/HOLE
|
8-94485-732-0 |
02 |
1 |
9409-9504 |
| |
6 |
CAP; WHEEL
FRT&RR P245/70R16 16X7.5JJ AL(APQ)
WIDE TIRE<6NZ>
HUB CAP ALUMI WHEEL(6UY)
(C)FRONT
W/HOLE
|
8-94485-732-0 |
02 |
1 |
9505-9511 |
| |
6 |
CAP; WHEEL
HUB CAP ALUMI WHEEL(7LK)
(D)
WO/HOLE
|
8-97127-048-0 |
04 |
1 |
9512- |
| |
6 |
CAP; WHEEL
HUB CAP ALUMI WHEEL(6UY)
(D)FRONT
|
8-97045-305-0 |
02 |
1 |
9301-9308 |
| |
6 |
CAP; WHEEL
HUB CAP ALUMI WHEEL(6UY)
EXC. WIDE TIRE<6NZ>
(D)FRONT
|
8-97045-305-0 |
02 |
1 |
9309-9511 |
| |
6 |
CAP; WHEEL
HUB CAP ALUMI WHEEL(6UY)
(D)REAR
|
8-97045-306-0 |
02 |
1 |
9301-9511 |
| |
6 |
CAP; WHEEL
HUB CAP STYLED WHEEL(7LJ)
(B)
|
8-97133-596-0 |
04 |
1 |
9512- |
| |
6 |
CAP; WHEEL
HUB CAP STYLED WHEEL MARK LESS(6UX)
(B)
W/HOLE
|
8-97038-977-0 |
02 |
1 |
9301-9511 |
| |
6 |
CAP; WHEEL
HUB CAP ALUMI(6ZR)
(E)FRONT
|
8-97127-044-0 |
02 |
1 |
9512- |
| |
6 |
CAP; WHEEL
HUB CAP STYLED WHEEL MARK LESS(6UX)
(A)
WO/HOLE
|
8-97038-978-0 |
02 |
1 |
9301-9511 |
| |
6 |
CAP; WHEEL
HUB CAP ALUMI(6ZR)
(E) REAR
|
8-97127-046-0 |
02 |
1 |
9512- |
| |
6 |
CAP; WHEEL
WIDE TIRE<6NZ>
HUB CAP ALUMI WHEEL(6UY)
(D)FRONT
|
8-97046-295-0 |
02 |
1 |
9309-9408 |
| |
7 |
SCREW; HUB CAP
HUB CAP ALUMI WHEEL(6UY)
M6X20
|
9-03910-620-0 |
12 |
1 |
9301-9511 |
| |
7 |
SCREW; HUB CAP
HUB CAP ALUMI WHEEL(7LK)
M6X20
|
9-03910-620-0 |
12 |
1 |
9512- |
| |
22 |
WHEEL; DISC,AL
FRT&RR P225/75R15 15X6JJ AL(9UD)
(A)
OFF SET=7.5
|
8-97083-074-0 |
05 |
1 |
9301-9511 |
| |
22 |
WHEEL; DISC,AL
FRT&RR P245/70R16 16X7JJ AL 5 SPOKE(AQF)
(F)
|
8-97102-843-0 |
05 |
1 |
9512- |
| |
22 |
WHEEL; DISC,AL
FRT&RR P245/70R16 16X7.5JJ AL(9WN)
(C)
OFFSET=-5.0
|
8-97107-004-0 |
05 |
1 |
9409-9504 |
| |
22 |
WHEEL; DISC,AL
FRT&RR P245/70R16 16X7.5JJ AL(APQ)
(C)
|
8-97069-540-1 |
05 |
1 |
9505-9511 |
| |
22 |
WHEEL; DISC,AL
FRT&RR P245/70R16 16X7JJ AL(9VY)
(E)
|
8-97102-276-2 |
05 |
1 |
9512- |
| |
22 |
WHEEL; DISC,AL
FRT&RR P245/70R16 16X7.5JJ AL(9VS)
(B)
OFFSET=-5.0
|
8-97094-462-0 |
05 |
1 |
9309-9511 |
| |
22 |
WHEEL; DISC,AL
FRT&RR P225/75R16 16X6JJ AL(9VW)
(D)
|
8-97102-274-2 |
05 |
1 |
9512- |
| |
27 |
BOLT; COVER
HUB CAP ALUMI(6ZR)
M6X16 W/FLANGE
|
8-97807-546-0 |
12 |
1 |
9512- |
