◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#45761) — 83 parça

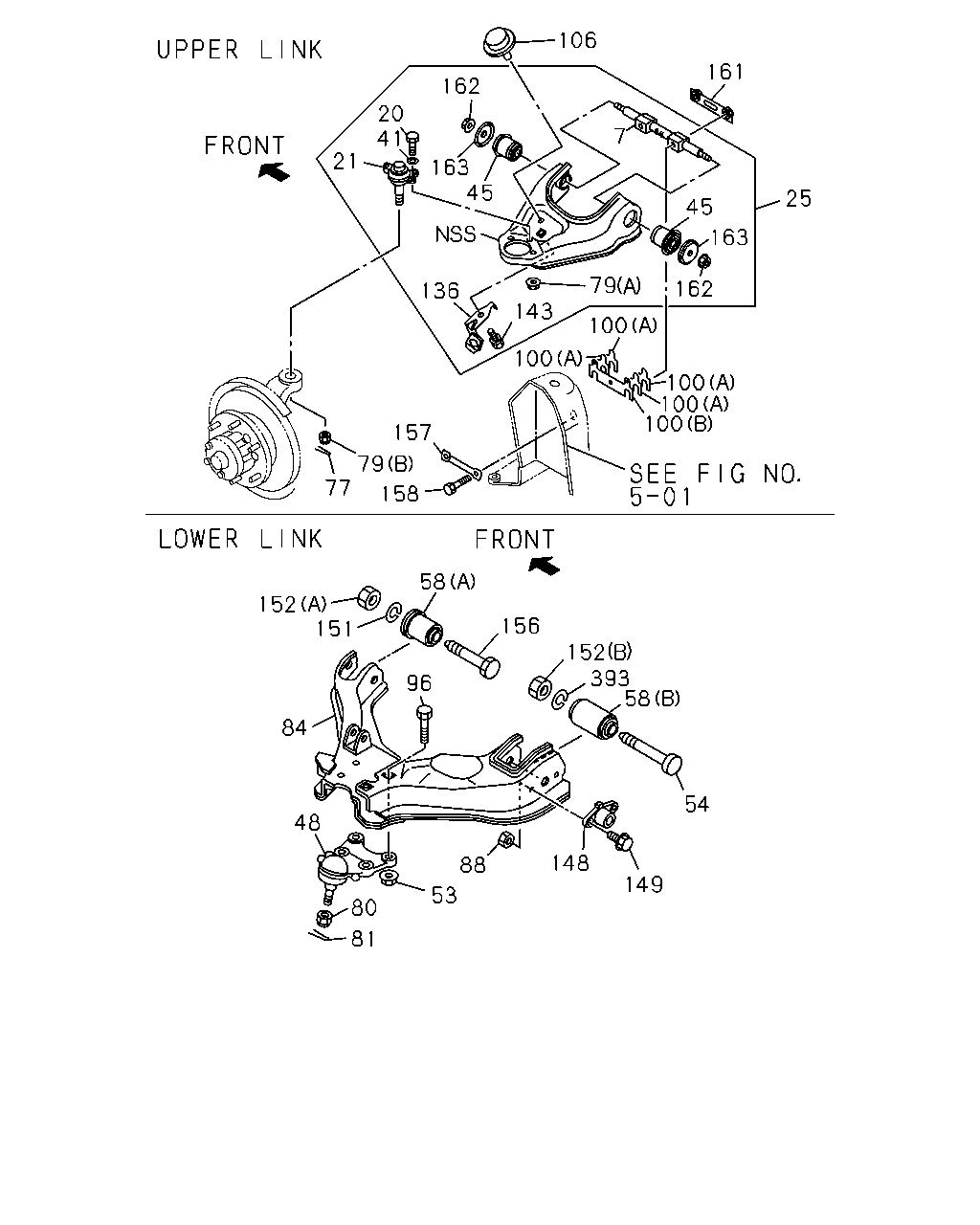

çizim 19750
106 161 25 45 163 162 79 100 100 143 136 45 163 162 20 41 21 157 79 77 158 100 100 100 58 152 151 96 84 48 80 81 53 88 148 149 54 58 393 152 156 7
BalonParca AdiParca NoAdetTipApplied Date
7 PIN; FULCRUM,UPR LINK 8-94173-352-2 02 1 9301-9511
7 PIN; FULCRUM,UPR LINK 8-94381-234-3 02 1 9512-
20 BOLT; UPR LINK END TO UPR LINK 8-94478-727-0 08 1 9301-9511
20 BOLT; UPR LINK END TO UPR LINK
M10X30 		8-97010-129-0 06 1 9512-
21 JOINT ASM; BALL,UPR CONT ARM 8-94459-453-4 02 1 9301-9511
21 JOINT ASM; BALL,UPR CONT ARM 8-94374-424-0 02 1 9512-
25 ARM; UPR CONT 8-97073-727-2 01 1 9301-9511
25 ARM; UPR CONT 8-94374-419-5 01 1 9512-
25 ARM; UPR CONT 8-97073-726-2 01 1 9301-9511
25 ARM; UPR CONT 8-94374-418-5 01 1 9512-
41 WASHER; LK,UPR LINK END TO UPR LINK
ID=8.2 		9-09150-808-0 08 1 9301-9511
45 BUSHING; UPR LINK,FRT 8-94408-840-3 04 1 9301-
48 JOINT ASM; BALL,LWR CONT ARM 8-94459-465-2 02 1 9301-
53 NUT; LWR LINK
M12 FLANGE 		0-91150-212-0 08 1 9301-
54 PIN; FULCRUM,LWR LINK 8-94437-212-1 02 1 9301-
58 BUSHING; LWR LINK
(A) ID=16 L=55.6 		8-94408-841-1 02 1 9301-9511
58 BUSHING; LWR LINK
(A) 		8-97018-165-0 02 1 9512-
58 BUSHING; LWR LINK
(B) ID=18.2 OD=44.1 L=85.2 		8-94408-842-0 02 1 9301-9511
58 BUSHING; LWR LINK
(B) ID=18.2 OD=44.1 L=85.2 		8-97018-166-1 02 1 9512-
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		9-08113-028-0 02 1 9301-
79 NUT; UPR LINK END TO KNUCKLE
(A) M8 FLANGE 		5-09440-010-0 08 1 9301-9511
79 NUT; UPR LINK END TO KNUCKLE
(A) M10 FLANGE 		8-94383-595-0 06 1 9512-
79 NUT; UPR LINK END TO KNUCKLE
(B) M14 SLOTTED 		8-94124-556-0 02 1 9301-
80 NUT; LWR LINK END TO KNUCKLE
M18 SLOTTED 		9-99116-418-0 02 1 9301-
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=3.7 L=30 		9-08114-030-0 02 1 9301-
84 ARM; LWR CONT 8-94367-913-0 01 1 9301-9511
84 ARM; LWR CONT 8-97126-093-1 01 1 9512-
84 ARM; LWR CONT 8-94367-912-0 01 1 9301-9511
84 ARM; LWR CONT 8-97126-092-1 01 1 9512-
88 NUT; LWR LINK
M12 FLANGE 		0-91150-212-0 04 1 9301-
96 BOLT; LWR LINK
M12X35 		9-92061-235-0 08 1 9301-9406
96 BOLT; LWR LINK
M12X50 		9-92061-250-0 08 1 9407-9602
96 BOLT; LWR LINK
M12X35 		9-92061-235-0 08 1 9603-
100 SHIM; UPR LINK TO FRAME
(A) T=0.40 		8-94227-053-1 AR 1 9301-
100 SHIM; UPR LINK TO FRAME
(A) T=1.60 		8-94227-054-2 AR 1 9301-
100 SHIM; UPR LINK TO FRAME
(A) T=3.20 		8-94241-885-3 AR 1 9301-
100 SHIM; UPR LINK TO FRAME
(B) T=1.60 		8-94408-859-2 AR 1 9301-9511
100 SHIM; UPR LINK TO FRAME
(B) T=3.20 		8-94381-376-1 AR 1 9512-
100 SHIM; UPR LINK TO FRAME
(B) T=3.20 		8-94408-860-2 AR 1 9301-9511
100 SHIM; UPR LINK TO FRAME
(B) T=1.60 		8-94381-377-1 AR 1 9512-
106 RUBBER; REBOUND,STRUT 8-94173-376-0 02 1 9301-9511
106 RUBBER; REBOUND,STRUT 8-94374-432-0 02 1 9512-
136 BRACKET; FLEX HOSE,FRT BRAKE 8-97072-703-1 01 1 9301-9511
136 BRACKET; FLEX HOSE,FRT BRAKE 8-94387-605-1 01 1 9512-
136 BRACKET; FLEX HOSE,FRT BRAKE 8-97072-702-1 01 1 9301-9511
136 BRACKET; FLEX HOSE,FRT BRAKE 8-94387-604-1 01 1 9512-
143 BOLT; BRKT,FLEX HOSE,FRT BRAKE
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9301-
148 ARM; LWR LINK 8-94435-413-0 02 1 9301-
149 BOLT; ARM TO LWR CONT ARM
M12X38 FLANGE 		8-94429-997-0 04 1 9301-9410
149 BOLT; ARM TO LWR CONT ARM
M12X37 FLANGE 		8-94382-104-1 04 1 9411-
151 WASHER; LK,LWR LINK TO FRT C/MBR
ID=16.2 		9-09150-616-0 02 1 9301-
152 NUT; LWR LINK TO FRT C/MBR
(A) M16 		8-94478-728-0 02 1 9301-
152 NUT; LWR LINK TO FRT C/MBR
(B) M18 		8-94478-729-0 02 1 9301-
156 PIN; FULCRUM,FRT SUSPENSION
M16X91 		8-94173-359-0 02 1 9301-
157 PLATE; UPR LINK TO FRAME 8-94407-719-1 02 1 9301-9511
157 PLATE; UPR LINK TO FRAME 8-94382-920-1 02 1 9512-
158 BOLT; UPR LINK TO FRAME
M14X65 		8-94478-730-0 04 1 9301-
161 NUT ASM; UPR LINK TO FRAME
M14 		8-94478-731-0 02 1 9301-9511
161 NUT ASM; UPR LINK TO FRAME 8-94381-235-0 02 1 9512-
162 NUT; FULCRUM PIN TO UPR ARM
M14 FLANGE 		8-94137-483-0 04 1 9301-
163 PLATE; FULCRUM PIN,UPR LINK 8-94407-707-0 04 1 9301-
393 WASHER; PL
ID=18.2 		9-09150-818-0 02 1 9301-9409
393 WASHER; PL
ID=19 OD=36 		9-09164-618-0 02 1 9410-
çizim 66558
14 65 17 18 17 65 62 60 68 76 103 105 104
BalonParca AdiParca NoAdetTipApplied Date
14 NUT; S/ABS,UPR 8-97077-728-0 02 1 9301-9511
14 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 9512-
17 BUSHING; RUBBER,S/ABS 8-97077-725-0 04 1 9301-9511
17 BUSHING; RUBBER,S/ABS 8-97036-284-0 04 1 9512-
18 WASHER; CENTERING,S/ABS 8-97077-724-0 02 1 9301-9511
18 WASHER; CENTERING,S/ABS 8-97036-285-0 02 1 9512-
60 BOLT; S/ABS TO LWR LINK
M12X50 		0-10811-250-0 02 1 9301-
62 ABSORBER ASM; SHOCK,FRT 8-97044-862-1 02 1 9301-9511
62 ABSORBER ASM; SHOCK,FRT 8-97133-838-0 02 1 9512-9608
62 ABSORBER ASM; SHOCK,FRT 8-97161-170-0 02 1 9608-
65 WASHER; S/ABS 8-97077-723-0 04 1 9301-9511
65 WASHER; S/ABS
ID=10.8 		8-97036-286-0 04 1 9512-
68 BUSHING; S/ABS 8-97077-726-0 02 1 9301-9511
76 WASHER; LK,S/ABS TO LWR LINK
ID=12.2 		9-09150-512-0 02 1 9301-
103 NUT; S/ABS TO LWR LINK
M12 		9-99111-512-0 02 1 9301-
104 RUBBER; BUMPER,STRUT 8-94173-375-0 01 1 9301-9511
104 RUBBER; BUMPER,STRUT 8-97130-347-0 01 1 9512-
104 RUBBER; BUMPER,STRUT 8-94173-374-0 01 1 9301-9511
104 RUBBER; BUMPER,STRUT 8-97130-346-0 01 1 9512-
105 BOLT; STRUT BAR TO LWR LINK
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9301-
