4-42 — POWER STEERING OIL PUMP (#45760) — 21 parça

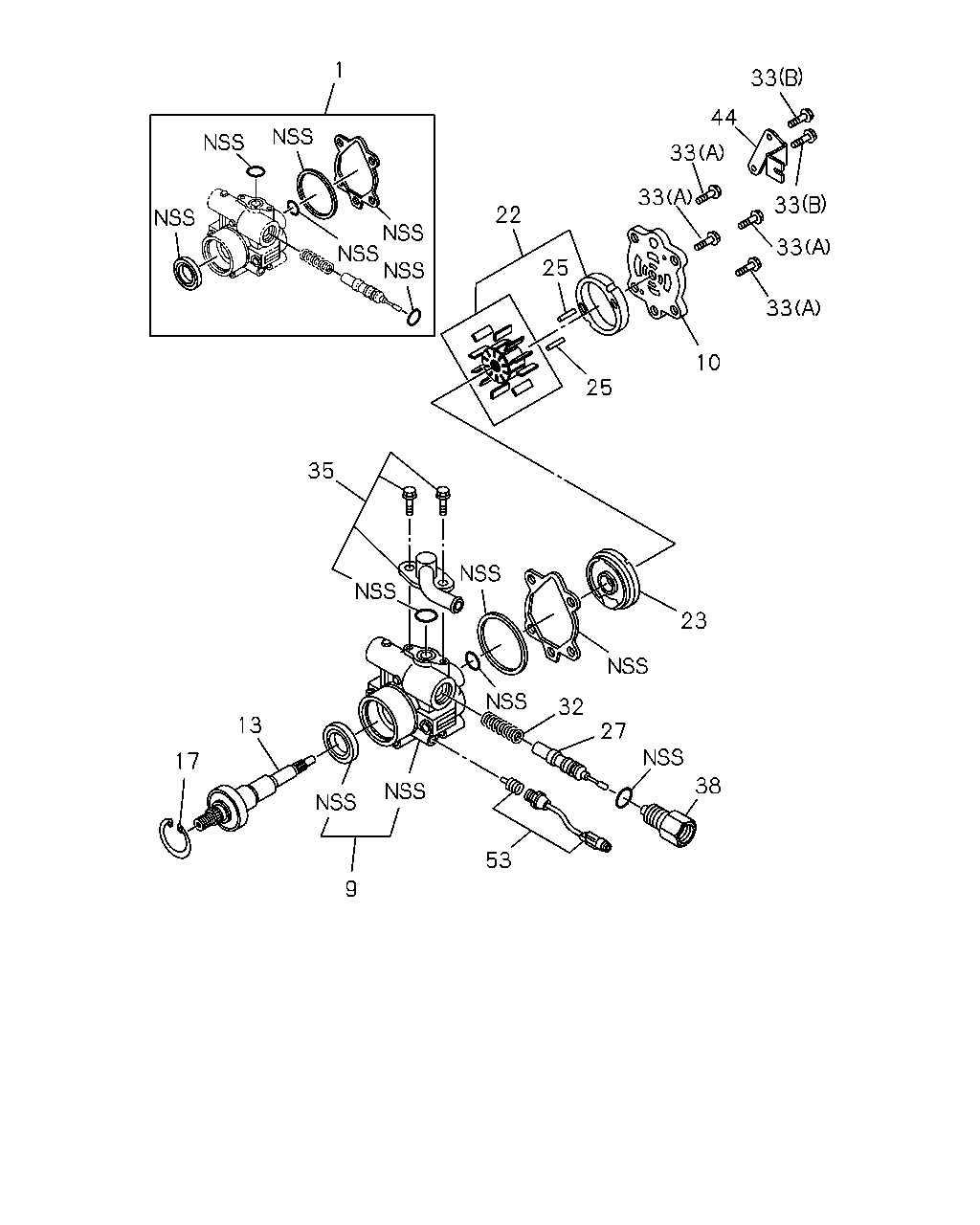

çizim 66371
1 22 25 25 10 33 33 33 33 44 33 33 35 23 32 27 38 53 9 17 13
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 8-97063-969-0, B = 8-97083-110-5 		8-97081-867-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: B = 8-97083-110-5 		8-97100-391-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-97063-969-0 		8-97081-848-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: B = 8-97083-110-5 		8-97102-303-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 8-97063-969-0 		8-97081-852-0 01 1 -
13 SHAFT KIT; RET
ASM PART: B = 8-97083-110-5 		8-97102-304-0 01 1 -
17 RING; RET
ASM PART: A = 8-97063-969-0, B = 8-97083-110-5 		8-97081-855-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-97063-969-0 		8-97064-619-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: B = 8-97083-110-5 		8-97105-104-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97063-969-0 		8-97081-850-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: B = 8-97083-110-5 		8-97105-103-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 8-97063-969-0, B = 8-97083-110-5 		8-97081-859-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 8-97063-969-0, B = 8-97083-110-5 		8-97081-857-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 8-97063-969-0, B = 8-97083-110-5 		8-97064-987-0 01 1 -
33 BOLT; COVER
(A) ASM PART: A = 8-97063-969-0, B = 8-97083-110-5 		8-97081-847-0 04 1 -
33 BOLT; COVER
(B) ASM PART: B = 8-97083-110-5 		8-97081-863-0 02 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 8-97063-969-0 		8-97081-866-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: B = 8-97083-110-5 		8-97087-216-0 01 1 -
38 CONNECTOR; OIL PUMP
ASM PART: A = 8-97063-969-0, B = 8-97083-110-5 		8-97081-865-0 01 1 -
44 BRACKET; OIL PUMP,P/S & EDS
ASM PART: B = 8-97083-110-5 		8-97081-862-0 01 1 -
53 SWITCH KIT; PRESSURE
ASM PART: A = 8-97063-969-0, B = 8-97083-110-5 		8-97081-864-1 01 1 -
