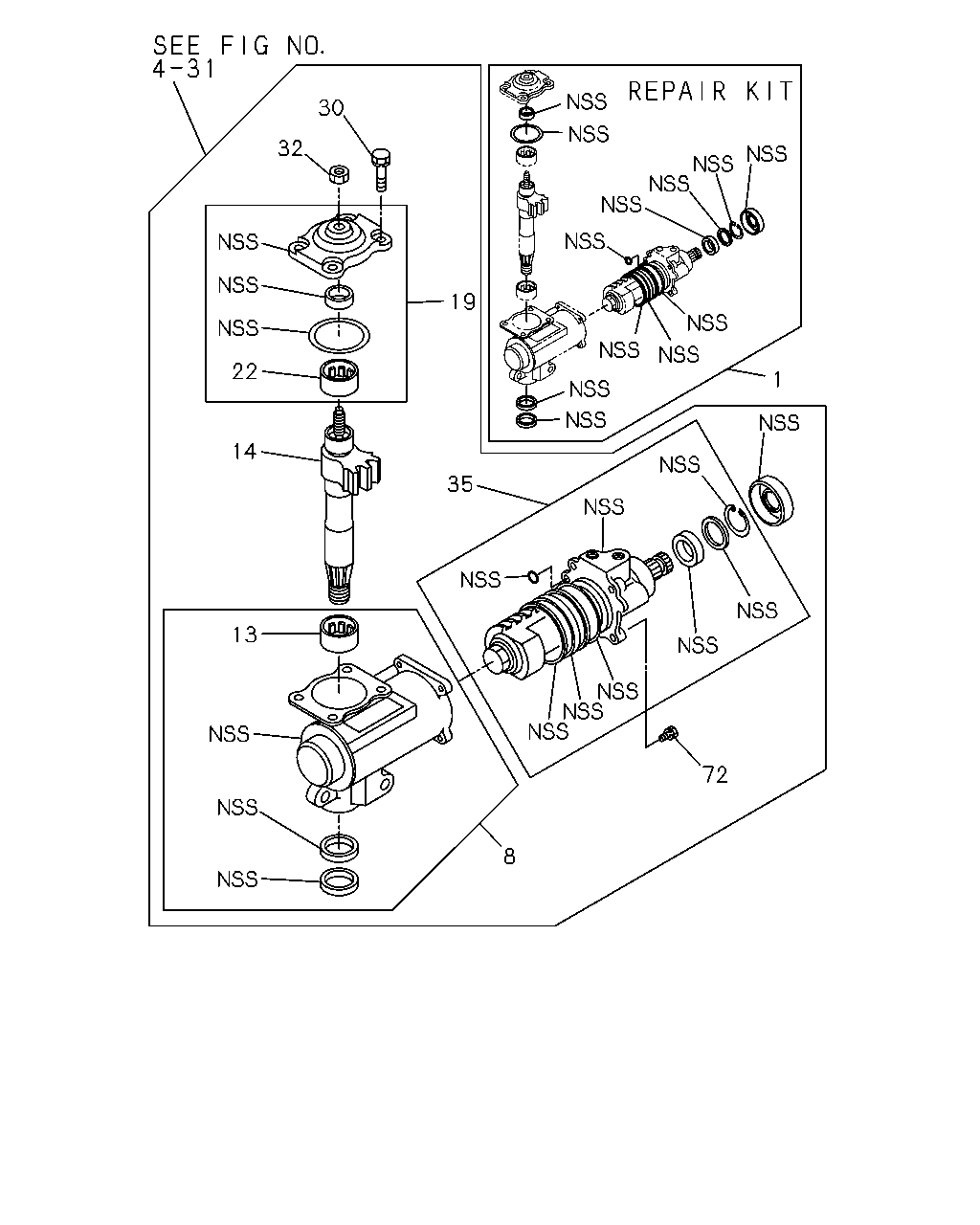

4-40 — STEERING UNIT (#45759) — 17 parça

30 32 19 22 14 13 8 72 35 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-94388-921-0	8-97014-666-0	01	1	-
1	REPAIR KIT; STRG UNIT,1 YEAR ASM PART: B = 8-97101-354-1, C = 8-97102-289-0	8-97029-945-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: A = 8-94388-921-0	8-94443-357-1	01	1	-
8	BOX ASM; STRG UNIT ASM PART: C = 8-97102-289-0	8-97029-939-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: B = 8-97101-354-1	8-97103-779-0	01	1	-
13	BEARING; SHAFT,BOX SIDE,STRG UNIT ASM PART: A = 8-94388-921-0, B = 8-97101-354-1, C = 8-97102-289-0	8-94240-933-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: A = 8-94388-921-0	8-94443-362-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: B = 8-97101-354-1, C = 8-97102-289-0	8-97029-941-0	01	1	-
19	COVER; SIDE STRG UNIT ASM PART: A = 8-94388-921-0	8-94443-361-1	01	1	-
19	COVER; SIDE STRG UNIT ASM PART: B = 8-97101-354-1, C = 8-97102-289-0	8-97029-942-0	01	1	-
22	BEARING; SHAFT,COVER SIDE,STRG UNIT ASM PART: A = 8-94388-921-0, B = 8-97101-354-1, C = 8-97102-289-0	8-94240-939-0	01	1	-
30	BOLT; COVER STRG UNIT M10X22 ASM PART: A = 8-94388-921-0, B = 8-97101-354-1, C = 8-97102-289-0	9-01911-022-0	04	1	-
32	NUT; ADJ SCREW,STRG UNIT ASM PART: A = 8-94388-921-0	8-94240-938-0	01	1	-
32	NUT; ADJ SCREW,STRG UNIT ASM PART: B = 8-97101-354-1, C = 8-97102-289-0	8-97029-944-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: A = 8-94388-921-0	8-97018-514-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 8-97101-354-1, C = 8-97102-289-0	8-97102-696-1	01	1	-
72	BOLT; HSG FIX STRG UNIT M10X22 ASM PART: A = 8-94388-921-0, B = 8-97101-354-1, C = 8-97102-289-0	9-01911-022-0	04	1	-
