8-16 — WIRING HARNESS CONNECTOR (#45756) — 55 parça

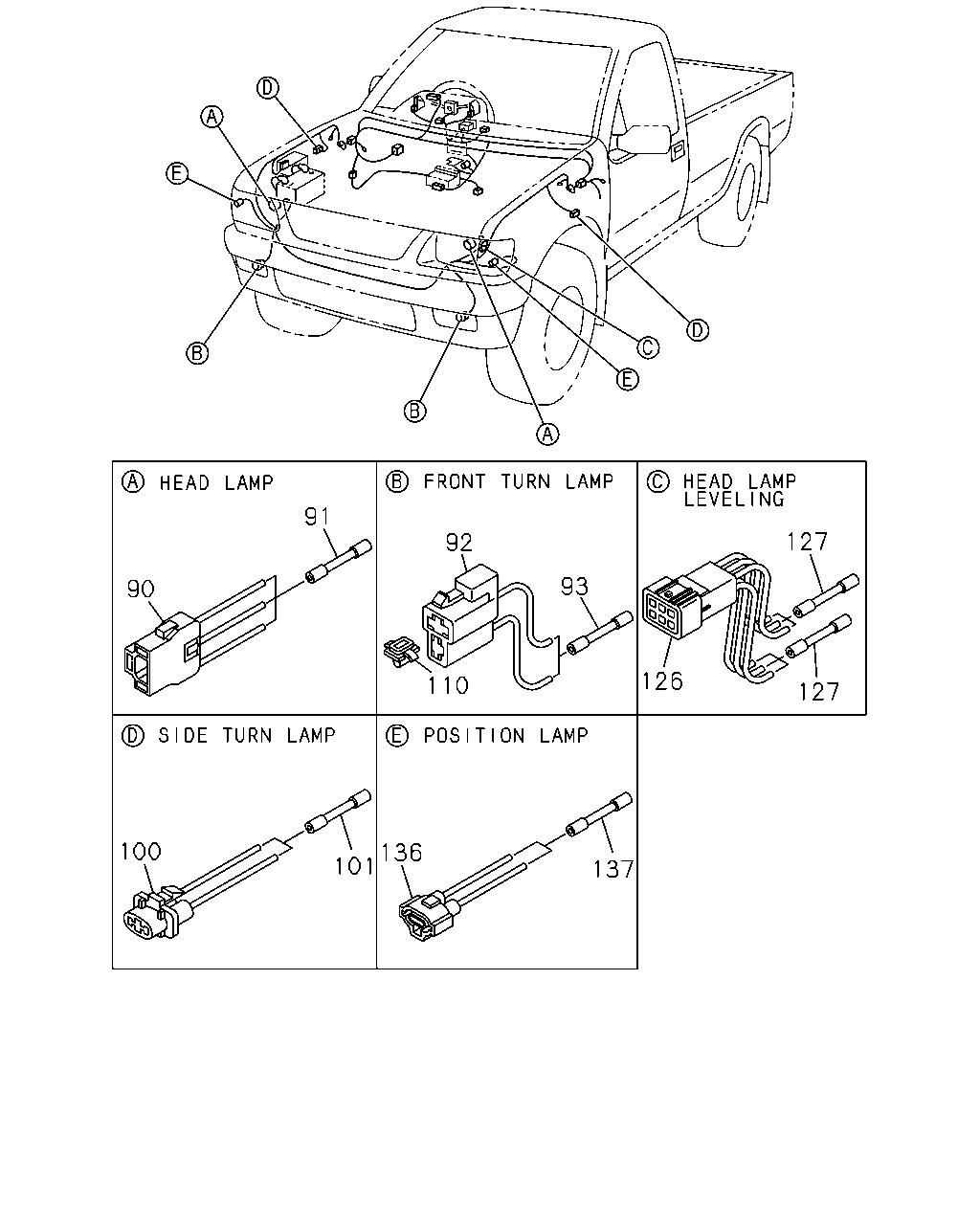

çizim 73463
91 127 92 93 90 126 110 127 100 136 101 137
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
90 02.483 CONNECTOR; HEAD LAMP 8-97200-202-0 01 1 9804- ● ● ● ● ● ● ● ●
90 02.483 CONNECTOR; HEAD LAMP 8-97200-201-0 01 1 9804- ● ● ● ● ● ● ● ●
91 02.483 TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804- ● ● ● ● ● ● ● ●
91 02.483 TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 AR 1 9804- ● ● ● ● ● ● ● ●
92 02.483 CONNECTOR; FRT TURN LAMP 8-97192-985-0 02 1 9804- ● ● ● ● ● ● ● ●
93 02.483 TERMINAL; JOINT,FRT TURN LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804- ● ● ● ● ● ● ● ●
93 02.483 TERMINAL; JOINT,FRT TURN LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 AR 1 9804- ● ● ● ● ● ● ● ●
100 02.483 CONNECTOR; SIDE TURN LAMP 8-97174-886-0 AR 1 9804- ● ● ● ● ● ● ● ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804- ● ● ● ● ● ● ● ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 AR 1 9804- ● ● ● ● ● ● ● ●
110 02.483 CLIP; CONNECTOR
02.559 L=15 		8-94315-436-1 AR 1 9804- ● ● ● ● ● ● ● ●
126 02.483 CONNECTOR; HEAD LAMP LEVELING
UNITED KINGDOM EQUIPMENT(EK3) 		8-97200-614-0 02 1 9804-9909 ● ● ● ●
126 02.483 CONNECTOR; HEAD LAMP LEVELING
UNITED KINGDOM EQUIPMENT(EK3) 		8-97200-614-0 02 1 9910- ● ● ● ● ●
127 02.483 TERMINAL; JOINT,HEAD LAMP LEVELI
UNITED KINGDOM EQUIPMENT(EK3) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804-9909 ● ● ● ●
127 02.483 TERMINAL; JOINT,HEAD LAMP LEVELI
UNITED KINGDOM EQUIPMENT(EK3) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9910- ● ● ● ● ●
136 02.483 CONNECTOR; POSITION LAMP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97200-205-0 02 1 9804-0109 ● ● ● ● ● ● ● ●
136 02.483 CONNECTOR; POSITION LAMP
22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97200-205-0 02 1 0110- ● ● ● ● ● ● ● ●
136 02.483 CONNECTOR; POSITION LAMP
6VD1 ENG(RLV) 		8-97200-203-0 01 1 9804- ● ● ● ● ● ●
136 02.483 CONNECTOR; POSITION LAMP
6VD1 ENG(RLV) 		8-97200-204-0 01 1 9804- ● ● ● ● ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804-0109 ● ● ● ● ● ● ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 4JA1 ENG(RLE),4JB1 ENG(RLF) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 0110- ● ● ● ● ● ● ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 AR 1 9804-0109 ● ● ● ● ● ● ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 4JA1 ENG(RLE),4JB1 ENG(RLF) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 AR 1 0110- ● ● ● ● ● ● ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
6VD1 ENG(RLV) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804- ● ● ● ● ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
6VD1 ENG(RLV) WIRE SIZE=2.0 USE TIN PLATE 		8-97169-475-0 AR 1 9804- ● ● ● ● ● ●

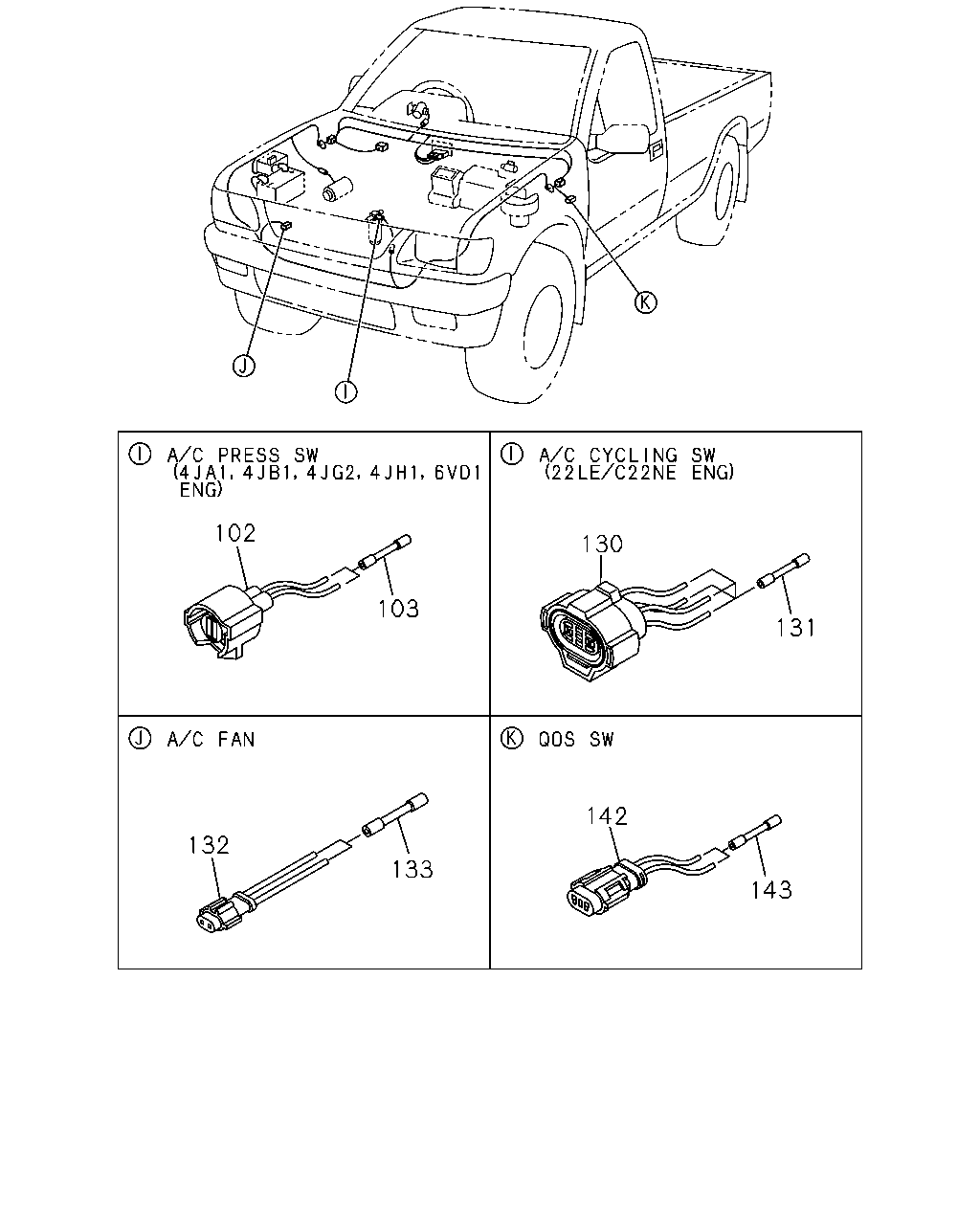

çizim 73686
102 130 103 131 142 132 133 143
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
102 02.483 CONNECTOR; A/C PRESS SW
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97174-883-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
102 02.483 CONNECTOR; A/C PRESS SW
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97174-883-0 01 1 9910-0109 ● ● ● ● ● ● ● ●
102 02.483 CONNECTOR; A/C PRESS SW
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97174-883-0 01 1 0110- ● ● ● ● ● ● ● ●
103 02.483 TERMINAL; JOINT,A/C PRESS SW
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804-9909 ● ● ● ● ● ● ● ●
103 02.483 TERMINAL; JOINT,A/C PRESS SW
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9910-0109 ● ● ● ● ● ● ● ●
103 02.483 TERMINAL; JOINT,A/C PRESS SW
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 0110- ● ● ● ● ● ● ● ●
130 02.483 CONNECTOR; A/C CYCLING SW
22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97175-446-0 01 1 9804- ● ● ● ● ● ● ●
131 02.483 TERMINAL; JOINT,A/C CYCLING SW
22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804- ● ● ● ● ● ● ●
132 02.483 CONNECTOR; A/C FAN
22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97175-447-0 01 1 9804- ● ● ● ● ● ● ●
133 02.483 TERMINAL; JOINT,A/C FAN
22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 AR 1 9804- ● ● ● ● ● ● ●
133 02.483 TERMINAL; JOINT,A/C FAN
22LE/C22NE ENG(RJT) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) WIRE SIZE=2.0 USE TIN PLATE 		8-97169-475-0 AR 1 9804- ● ● ● ● ● ● ●
142 02.483 CONNECTOR; QOS SW
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 2P FEMALE BLACK 		8-97169-948-0 01 1 9804-9909 ● ● ● ●
142 02.483 CONNECTOR; QOS SW
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 2P FEMALE BLACK 		8-97169-948-0 01 1 9910- ● ● ● ● ●
143 02.483 TERMINAL; JOINT,QOS SW
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804-9909 ● ● ● ●
143 02.483 TERMINAL; JOINT,QOS SW
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9910- ● ● ● ● ●

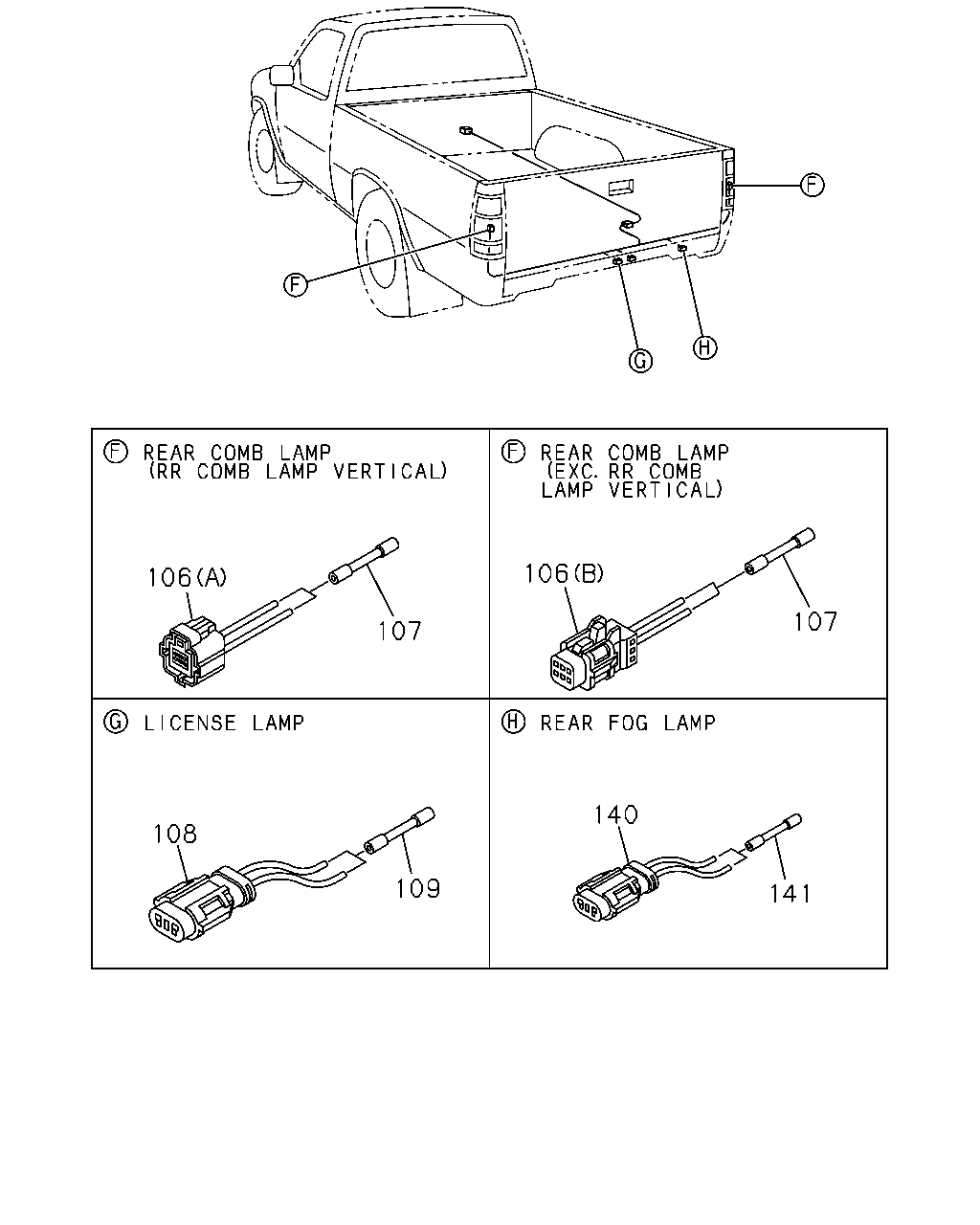

çizim 74277
106 106 107 107 140 108 109 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
106 02.483 CONNECTOR; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (A) 		8-97200-209-0 01 1 9804-0108 ● ● ● ● ● ● ● ●
106 02.483 CONNECTOR; RR COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), RR COMB LAMP VERTICAL<T98> (B) 		8-97200-215-0 01 1 9804-0108 ● ● ● ● ● ● ● ●
106 02.483 CONNECTOR; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		8-97200-215-0 01 1 0109- ● ● ● ● ● ● ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804- ● ● ● ● ● ● ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
RR COMB LAMP VERTICAL<T98> WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 AR 1 9804- ● ● ● ● ● ● ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), RR COMB LAMP VERTICAL<T98> WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804- ● ● ● ● ● ● ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), RR COMB LAMP VERTICAL<T98> WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 AR 1 9804- ● ● ● ● ● ● ● ●
108 02.483 CONNECTOR; LICENSE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 2P FEMALE BLACK 		8-97169-948-0 01 1 9804- ● ● ● ● ● ● ● ●
108 02.483 CONNECTOR; LICENSE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 2P FEMALE BLACK 		8-97169-948-0 02 1 9804- ● ● ● ● ● ●
109 02.483 TERMINAL; JOINT,LICENSE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804- ● ● ● ● ● ● ● ●
109 02.483 TERMINAL; JOINT,LICENSE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804- ● ● ● ● ● ●
140 02.483 CONNECTOR; RR FOG LAMP
RR FOG LAMP<T79> 2P FEMALE BLACK 		8-97169-948-0 01 1 9804-9909 ● ● ● ●
140 02.483 CONNECTOR; RR FOG LAMP
RR FOG LAMP<T79> 2P FEMALE BLACK 		8-97169-948-0 01 1 9910- ● ● ● ● ●
141 02.483 TERMINAL; JOINT,RR FOG LAMP
RR FOG LAMP<T79> WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9804-9909 ● ● ● ●
141 02.483 TERMINAL; JOINT,RR FOG LAMP
RR FOG LAMP<T79> WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 AR 1 9910- ● ● ● ● ●
