◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#45755) — 654 parça

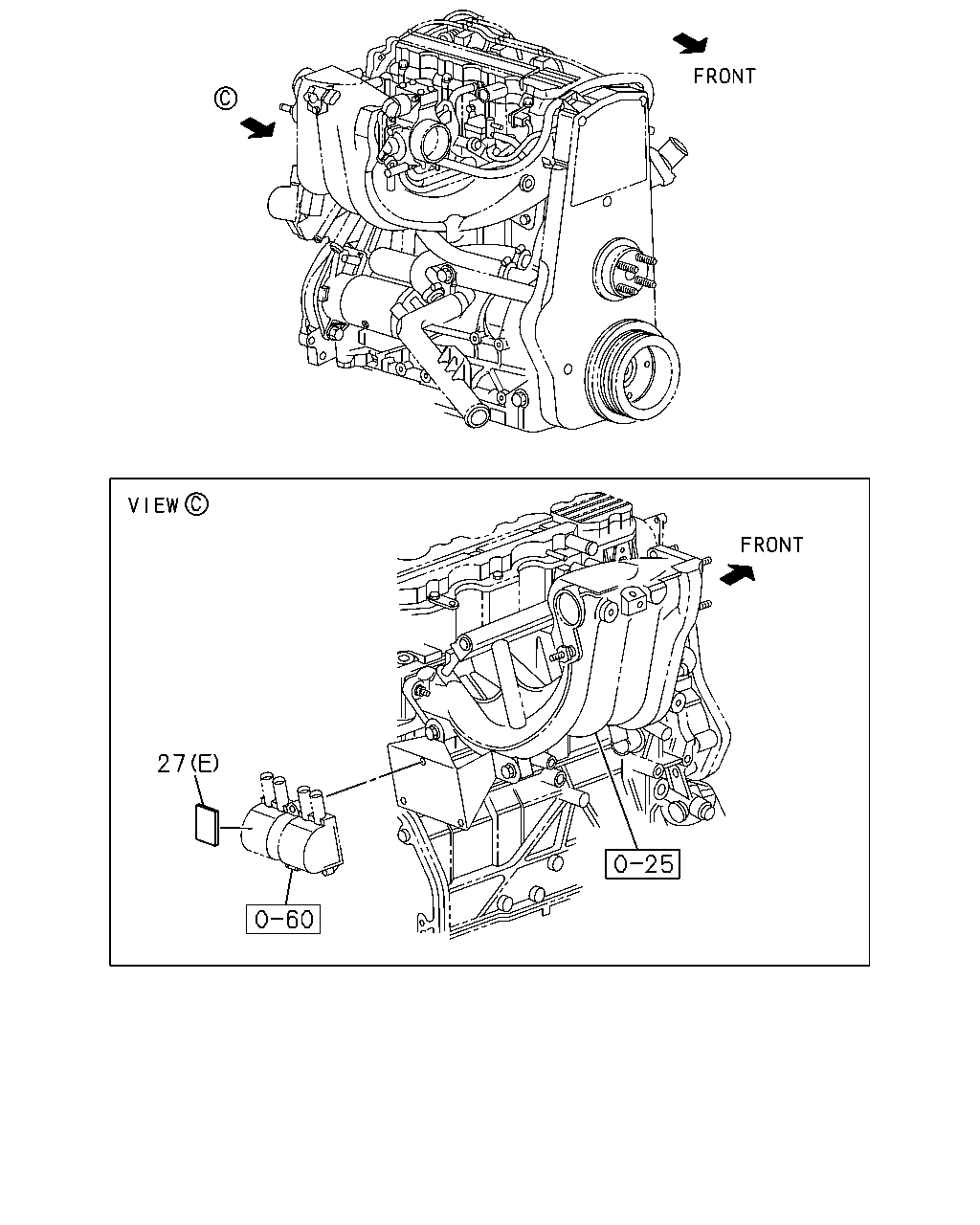

çizim 17574
27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 9804- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) L=88 		8-97069-335-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0101-0207 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
22LE/C22NE ENG(RJT) (E) 		8-97263-384-0 01 1 0008- ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
CHARGE AIR COOLER<6PL> (F) 		1-76679-007-0 02 1 0110-0202 ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
(F) 		1-76679-007-0 02 1 0203- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 9910-0012 ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 0101- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9910-0009 ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 0010-0012 ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) EXC. FRT BUMPER DARK GRAY(EQ9) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 0101-0109 ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) EXC. FRT BUMPER DARK GRAY(EQ9) 04.785 (C) L=200 		8-97096-423-0 01 1 0110- ● ● ● ● ●

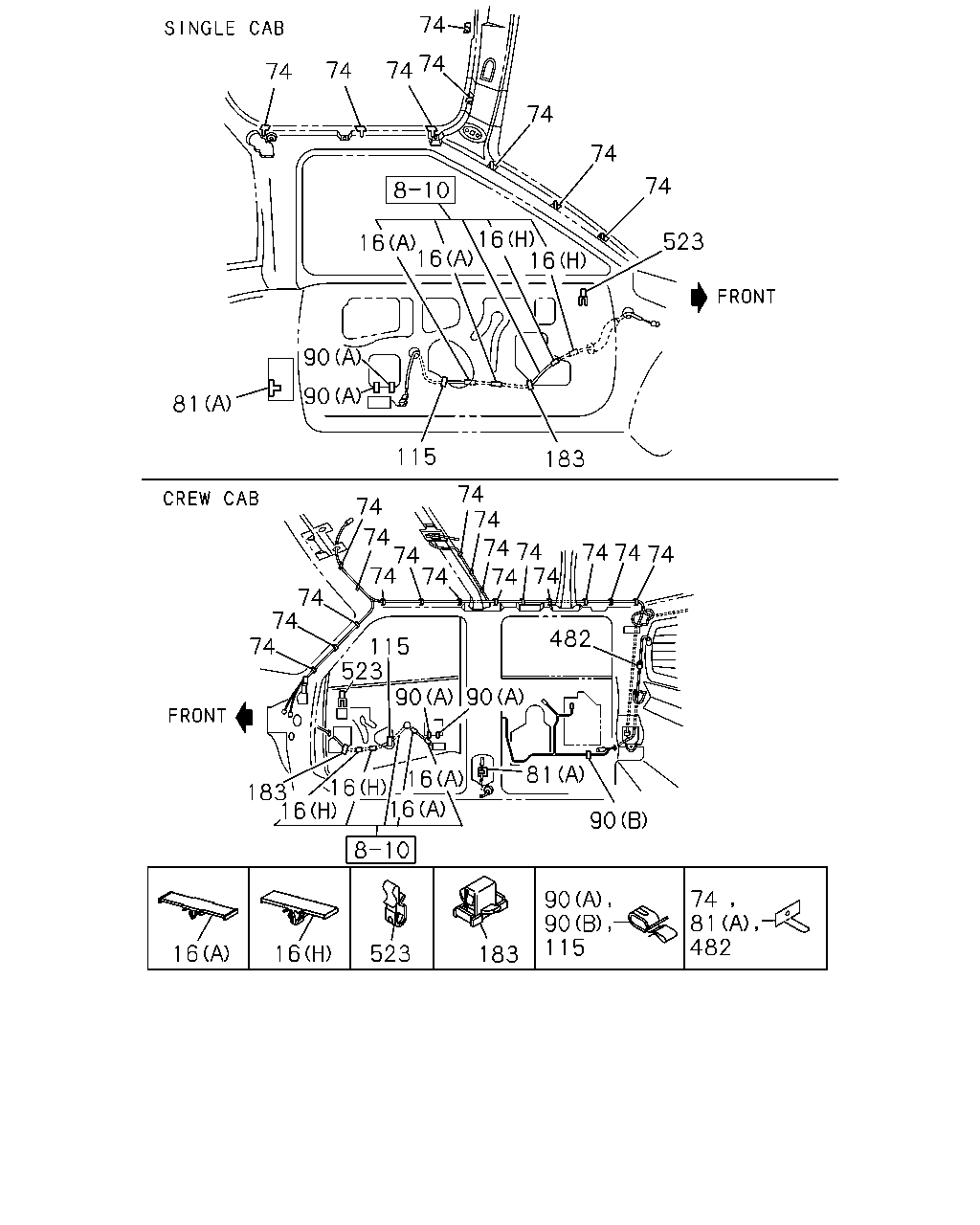

çizim 18908
74 74 74 74 74 74 74 74 16 16 523 16 16 90 90 81 115 183 74 74 74 74 74 74 74 74 74 74 74 74 482 115 523 90 90 16 183 16 16 16 81 90 74 81 482 90 90 115 16 16 523 183 74 74 74 74 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0101-0102 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0103-0109 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0103-0109 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX) A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-1 05 1 0110- ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0107- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0110-0211 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0110-0211 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0212- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 		8-94457-053-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 		8-94457-053-0 02 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-94457-053-0 02 1 9804- ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9804-9909 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9910-0102 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9910-0102 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0103-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0103-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (F) L=100 		5-09707-036-1 01 1 9804-0012 ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) A/T AISIN(RMD) (I) L=250 		5-09707-030-1 01 1 0110- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-94138-987-0 13 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 11 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-94138-987-0 11 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 09 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9804-9909 ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9910- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9804-9909 ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 06 1 9804-9909 ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9910- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 17 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 17 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 15 1 9804- ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
22LE/C22NE ENG(RJT) 04.661 (C) ID=14.5 & 6 		8-94312-791-0 01 1 9804- ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9909 ● ● ● ●
81 02.483 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9910-0109 ● ● ● ●
81 02.483 CLIP; HARNESS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0110- ● ● ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 13.090 (A) ID=9 		8-94177-914-0 04 1 9804-9909 ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 13.090 (A) ID=9 		8-94177-914-0 04 1 9910- ● ● ● ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> (B) ID=12 		8-94423-045-0 02 1 9804- ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 9804- ● ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
POWER WINDOW<A30> L=15 		8-94315-436-1 02 1 9804- ● ● ● ● ● ●
482 02.559 CLIP; RR DEFOGGER HARNESS
REAR DEFOGGER<C49> 02.480 		8-94138-987-0 02 1 9804- ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9804-9909 ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9804-9909 ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELECTRIC CONT BRIG HT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9910- ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9910- ● ● ● ● ● ●

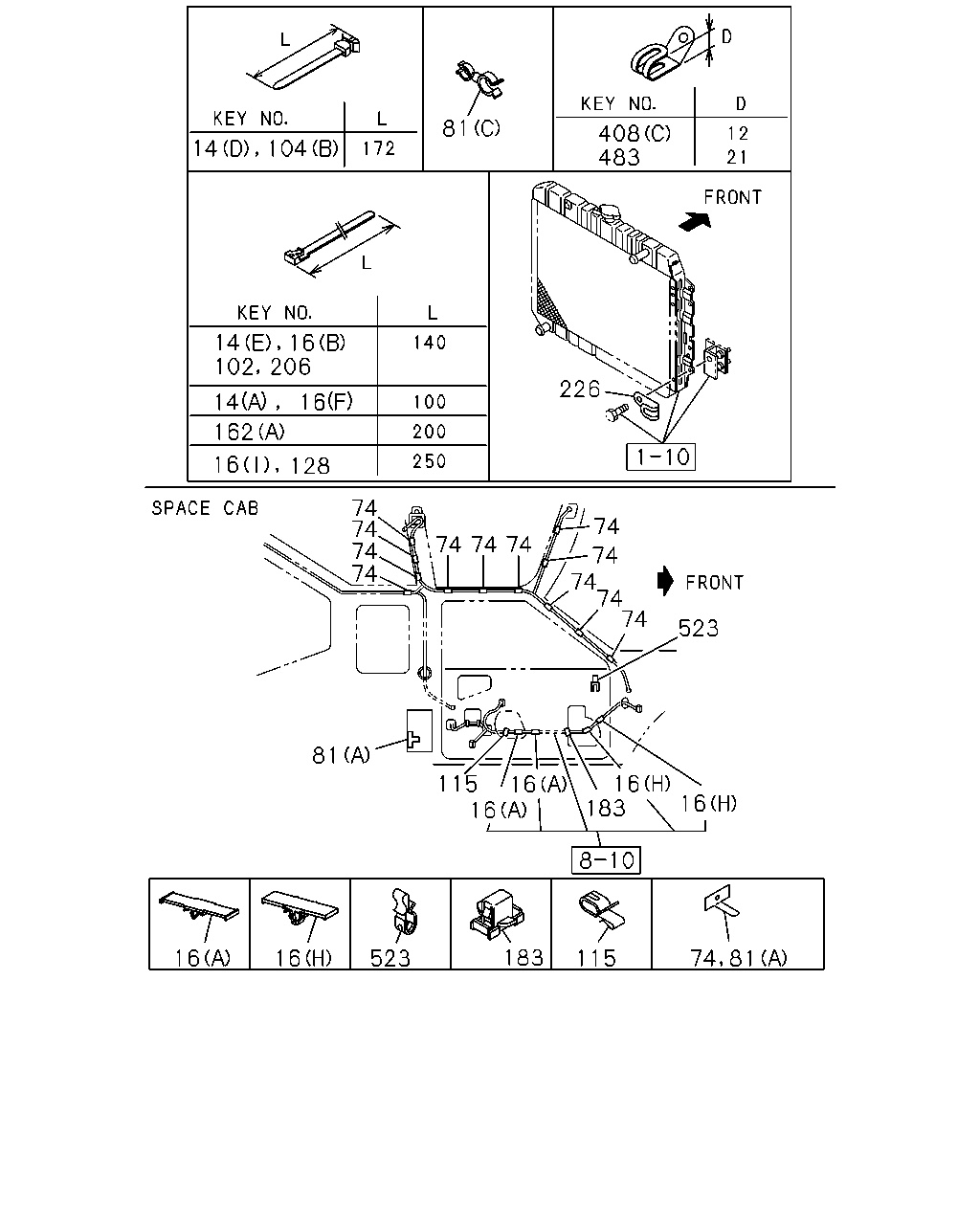

çizim 18964
81 408 483 14 104 14 16 226 16 14 162 16 128 74 74 74 74 74 74 74 74 74 523 16 183 81 115 16 16 16 183 16 16 523 115 102 206 74 74 74 74 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 02 1 9804- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) 02.587 (D) L=172 		8-94232-620-0 01 1 0003- ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9804- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9804-9909 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9910-0012 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9910-0012 ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0101-0109 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0101-0109 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0110-0112 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0110-0112 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0201- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0201- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (E) L=140 		5-09707-031-1 03 1 0110- ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (E) L=140 		5-09707-031-1 02 1 0110- ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (E) L=140 		5-09707-031-1 01 1 0110- ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 01 1 9804- ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0101-0102 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0103-0109 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0103-0109 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX) A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-1 05 1 0110- ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0107- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0110-0211 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0110-0211 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0212- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 		8-94457-053-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 		8-94457-053-0 02 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-94457-053-0 02 1 9804- ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9804-9909 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9910-0102 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9910-0102 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0103-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0103-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (F) L=100 		5-09707-036-1 01 1 9804-0012 ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) A/T AISIN(RMD) (I) L=250 		5-09707-030-1 01 1 0110- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-94138-987-0 13 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 11 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-94138-987-0 11 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 09 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9804-9909 ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9910- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9804-9909 ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 06 1 9804-9909 ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9910- ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 17 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 17 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 15 1 9804- ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
22LE/C22NE ENG(RJT) 04.661 (C) ID=14.5 & 6 		8-94312-791-0 01 1 9804- ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9909 ● ● ● ●
81 02.483 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9910-0109 ● ● ● ●
81 02.483 CLIP; HARNESS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0110- ● ● ● ●
102 02.559 CLIP; BAND
INST PANEL FOR DIN E SIZE AUDIO(7QL) 03.162 L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ●
102 02.559 CLIP; BAND
INST PANEL FOR DIN E SIZE AUDIO(7QL) 03.162 L=140 		5-09707-031-1 01 1 9910- ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (B) L=172 		8-94232-620-0 02 1 9804- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.587 (A) L=112 		8-94232-618-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.587 (A) L=112 		8-94232-618-0 01 1 0110-0112 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.587 (A) L=112 		8-94232-618-0 01 1 0201- ● ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 9804- ● ● ● ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),R R BODY DBL WALL CTR PULL INNER & OU TER HOOK(7TN) L=250 		5-09707-030-1 01 1 9804- ● ● ● ● ● ● ● ●
162 02.559 CLIP; SW HARNESS
A/T THM(RMQ) 01.152 (B) ID=8.5 		5-09700-275-0 02 1 9804-0012 ● ● ●
162 02.559 CLIP; SW HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 01.152 (B) ID=8.5 		5-09700-275-0 02 1 0101-0109 ● ● ● ● ● ●
162 02.559 CLIP; SW HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 01.152 (B) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ● ● ● ●
162 02.559 CLIP; SW HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) A/T AISIN(RMD) 01.152 (B) ID=8.5 		5-09700-275-0 02 1 0110- ● ●
162 02.559 CLIP; SW HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.430 (A) L=200 		8-94464-835-0 01 1 9804-0012 ● ● ●
162 02.559 CLIP; SW HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.430 (A) L=200 		8-94464-835-0 01 1 0101- ● ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
POWER WINDOW<A30> L=15 		8-94315-436-1 02 1 9804- ● ● ● ● ● ●
206 02.559 CLIP; FUEL TANK HARNESS
03.162 L=140 		5-09707-031-1 01 1 9804- ● ● ● ● ● ● ● ●
226 02.559 CLIP; RAD HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 ID=18 L=44 		8-94225-185-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
226 02.559 CLIP; RAD HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 01.152 ID=18 L=44 		8-94225-185-0 01 1 0110- ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9806 ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9806 ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9806 ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (A) 		8-97022-809-0 01 1 9804-9810 ● ● ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (A) 		8-97180-221-0 01 1 9811-0012 ● ● ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (A) 		8-97180-221-0 01 1 0101- ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 00.785 (B) ID=16 		9-09525-522-0 01 1 9804-0012 ● ● ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 00.785 (B) ID=16 		9-09525-522-0 01 1 0101- ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT),4JB1 ENG(RLF), 6VD1 ENG(RLV) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9804-9806 ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9804-9806 ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9807- ● ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1 ENG(RLF) ID=21 L=47.5 		8-94178-108-0 01 1 9804- ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9804-9909 ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9804-9909 ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELECTRIC CONT BRIG HT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9910- ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9910- ● ● ● ● ● ●

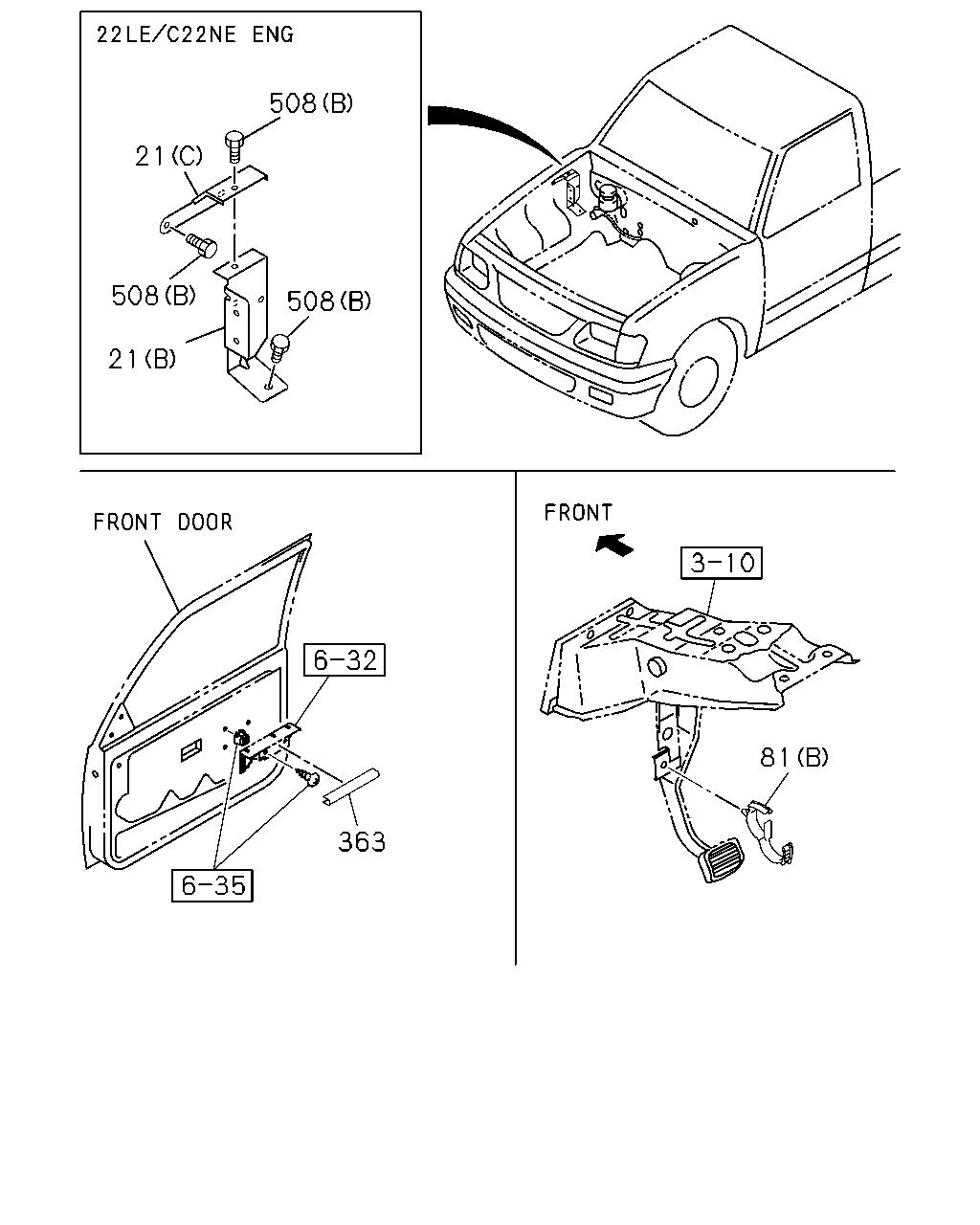

çizim 18965
508 21 508 508 21 81 363
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) 03.671 (B) 		8-94475-021-2 01 1 9804- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) 02.510 (C) 		8-94479-552-2 01 1 9804- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) (D) 		8-97127-268-0 02 1 9804-0202 ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) (D) 		8-97127-268-0 01 1 0203- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (D) 		8-97127-268-0 01 1 0203- ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
6VD1 ENG(RLV) (A) 		8-97108-281-1 01 1 9804- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (D) UPPER 		8-97127-268-0 01 1 0110-0202 ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (D) LOWER 		8-97313-463-1 01 1 0110-0202 ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) (D) 		8-97313-463-1 01 1 0203- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (D) 		8-97313-463-1 01 1 0203- ● ● ● ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
22LE/C22NE ENG(RJT) 04.661 (C) ID=14.5 & 6 		8-94312-791-0 01 1 9804- ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9909 ● ● ● ●
81 02.483 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9910-0109 ● ● ● ●
81 02.483 CLIP; HARNESS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0110- ● ● ● ●
363 16.085 FINISHER; PROTECTOR
POWER WINDOW<A30> 16.570 SERVICED BY L=190 		1-71998-300-0 02 1 9804- ● ● ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
22LE/C22NE ENG(RJT) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 04 1 9804- ● ● ● ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
6VD1 ENG(RLV) 03.670 (A) M6X20 FLANGE 		0-28080-620-0 01 1 9804-0102 ● ● ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
6VD1 ENG(RLV) 04.930 (A) M6X20 FLANGE 		0-28680-620-0 01 1 0103- ● ● ● ● ● ●

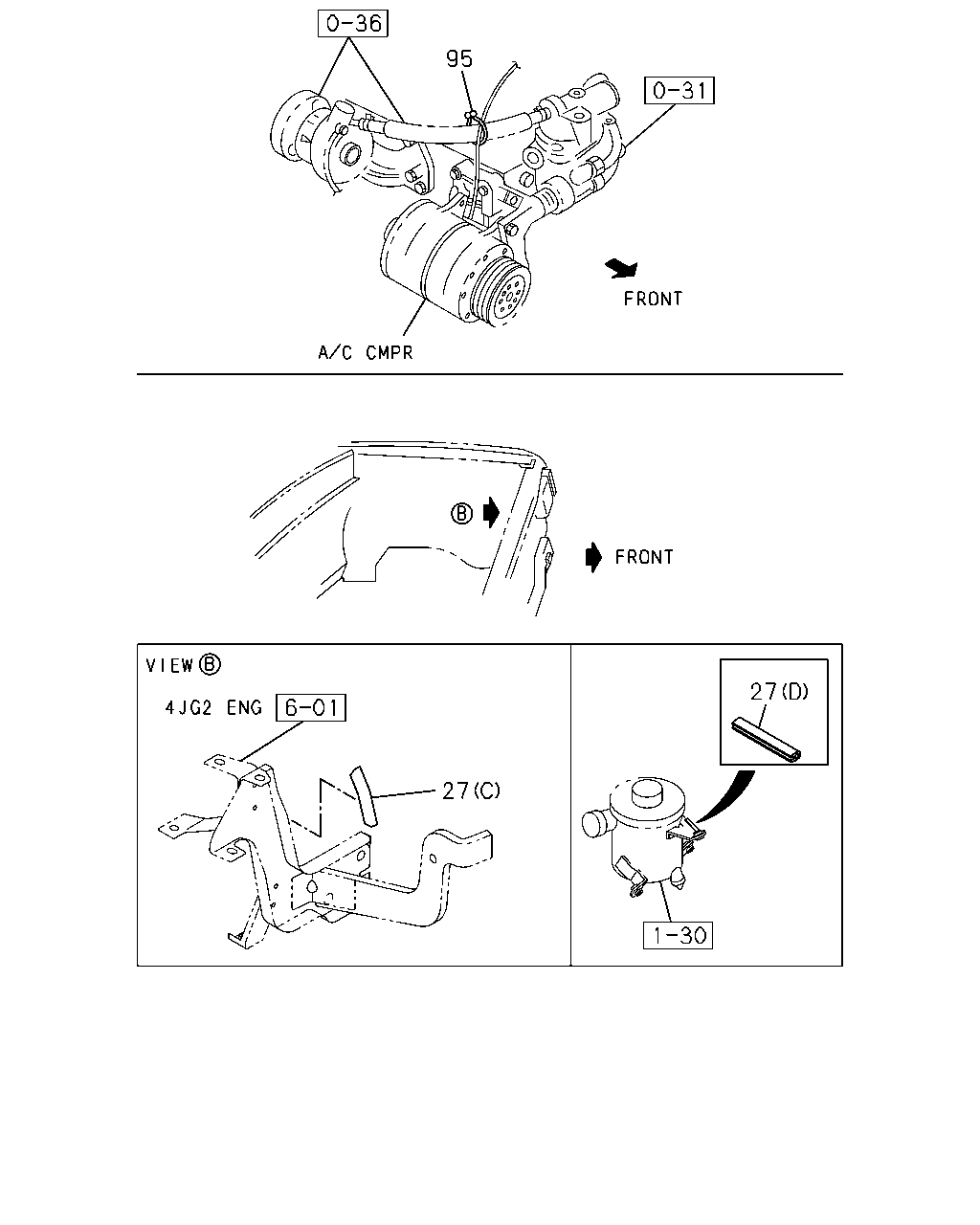

çizim 19051
95 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 9804- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) L=88 		8-97069-335-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0101-0207 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
22LE/C22NE ENG(RJT) (E) 		8-97263-384-0 01 1 0008- ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
CHARGE AIR COOLER<6PL> (F) 		1-76679-007-0 02 1 0110-0202 ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
(F) 		1-76679-007-0 02 1 0203- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 9910-0012 ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 0101- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9910-0009 ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 0010-0012 ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) EXC. FRT BUMPER DARK GRAY(EQ9) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 0101-0109 ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) EXC. FRT BUMPER DARK GRAY(EQ9) 04.785 (C) L=200 		8-97096-423-0 01 1 0110- ● ● ● ● ●
95 02.559 CLIP; CABLE
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) EXC. GENERATOR 12V80A(K97) 02.480 ID=25 		8-94120-831-0 01 1 9910-0006 ● ● ● ● ●
95 02.559 CLIP; CABLE
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.480 ID=25 		8-94120-831-0 01 1 9910-0006 ● ● ●
95 02.559 CLIP; CABLE
4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.480 ID=25 		8-94120-831-0 01 1 0007- ● ● ● ● ●

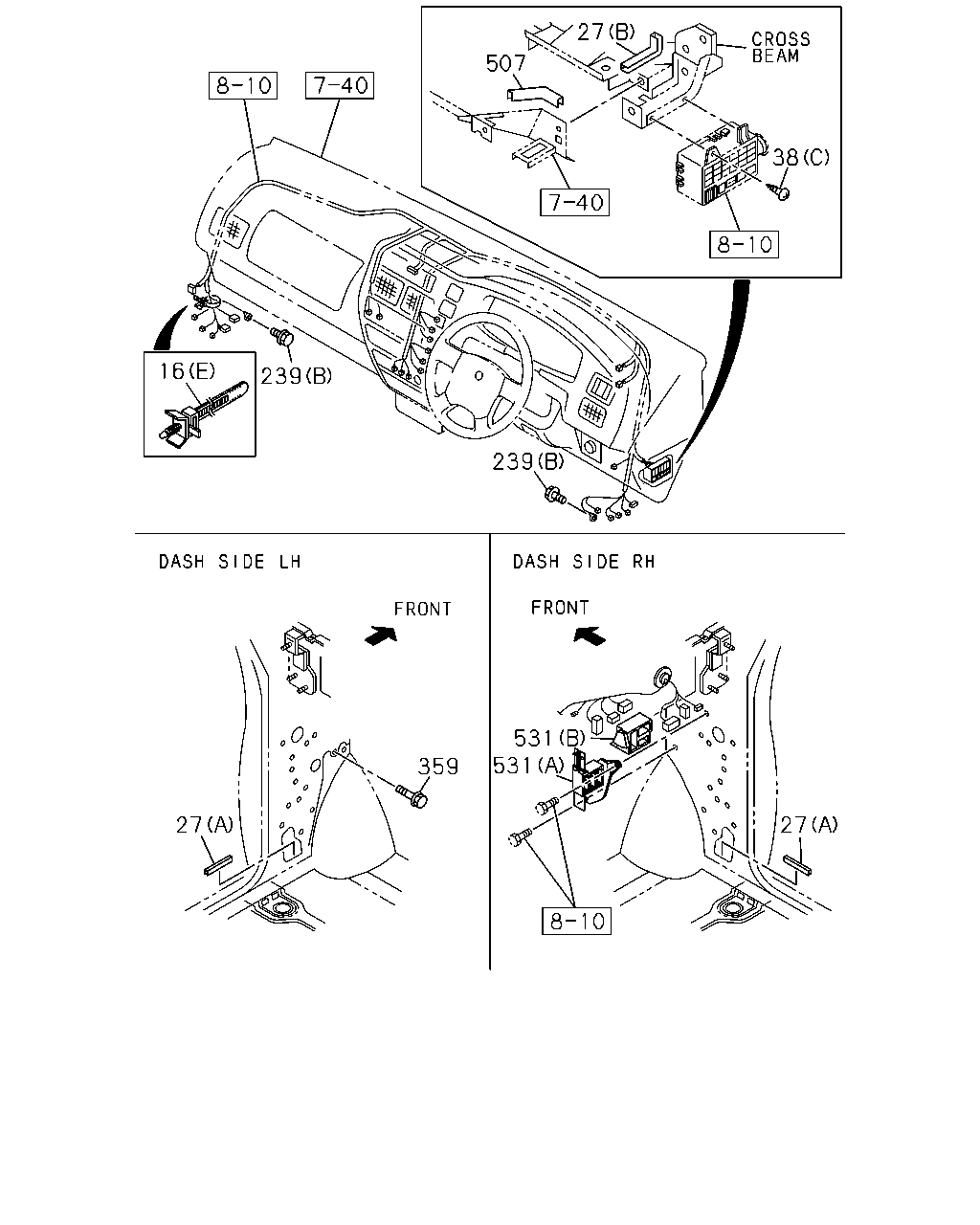

çizim 69313
27 507 38 16 239 239 531 531 359 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0101-0102 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0103-0109 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0103-0109 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX) A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-1 05 1 0110- ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0107- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0110-0211 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0110-0211 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0212- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 		8-94457-053-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 		8-94457-053-0 02 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-94457-053-0 02 1 9804- ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9804-9909 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9910-0102 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9910-0102 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0103-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0103-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (F) L=100 		5-09707-036-1 01 1 9804-0012 ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) A/T AISIN(RMD) (I) L=250 		5-09707-030-1 01 1 0110- ● ●
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 9804- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) L=88 		8-97069-335-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0101-0207 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
22LE/C22NE ENG(RJT) (E) 		8-97263-384-0 01 1 0008- ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
CHARGE AIR COOLER<6PL> (F) 		1-76679-007-0 02 1 0110-0202 ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
(F) 		1-76679-007-0 02 1 0203- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 9910-0012 ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 0101- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9910-0009 ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 0010-0012 ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) EXC. FRT BUMPER DARK GRAY(EQ9) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 0101-0109 ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) EXC. FRT BUMPER DARK GRAY(EQ9) 04.785 (C) L=200 		8-97096-423-0 01 1 0110- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9804-9909 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9910-0109 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 0110- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9804-0012 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 0101- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 9804-9909 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 9910-0109 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 0110- ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9804-0012 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 05 1 0101- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
4JA1 ENG(RLE),4JB1 ENG(RLF) 02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9910-0004 ● ● ● ● ● ● ● ●
359 02.559 BOLT; HOLDER
03.342 M6X16 		8-97012-496-0 01 1 9804- ● ● ● ● ● ● ● ●
507 02.559 FINISHER
08.228 L=80 		1-71998-400-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
507 02.559 FINISHER
L=80 		5-71997-133-0 01 1 9910-0103 ● ● ● ● ● ● ● ●
507 02.559 FINISHER
L=80 		5-71997-133-0 02 1 0104- ● ● ● ● ● ● ● ●
531 02.559 HOLDER
(A) 		8-97110-110-1 01 1 9804- ● ● ● ● ● ● ● ●
531 02.559 HOLDER
(B) 		8-97132-324-1 01 1 9804- ● ● ● ● ● ● ● ●
çizim 69321
27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 9804- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) L=88 		8-97069-335-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0101-0207 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
22LE/C22NE ENG(RJT) (E) 		8-97263-384-0 01 1 0008- ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
CHARGE AIR COOLER<6PL> (F) 		1-76679-007-0 02 1 0110-0202 ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
(F) 		1-76679-007-0 02 1 0203- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 9910-0012 ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 0101- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9910-0009 ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 0010-0012 ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) EXC. FRT BUMPER DARK GRAY(EQ9) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 0101-0109 ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) EXC. FRT BUMPER DARK GRAY(EQ9) 04.785 (C) L=200 		8-97096-423-0 01 1 0110- ● ● ● ● ●

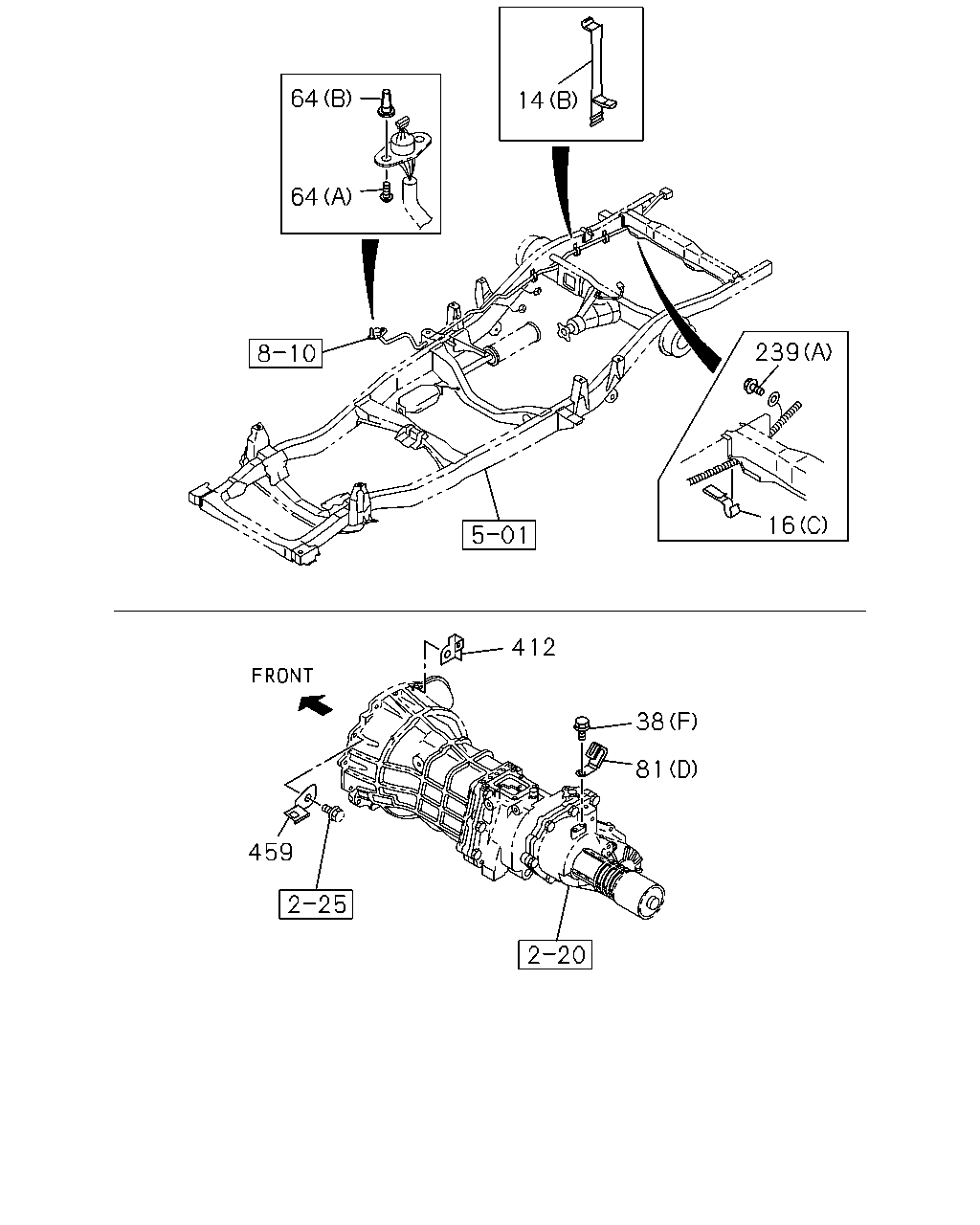

çizim 69833
64 14 64 239 16 412 38 81 459
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 02 1 9804- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) 02.587 (D) L=172 		8-94232-620-0 01 1 0003- ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9804- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9804-9909 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9910-0012 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9910-0012 ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0101-0109 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0101-0109 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0110-0112 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0110-0112 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0201- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0201- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (E) L=140 		5-09707-031-1 03 1 0110- ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (E) L=140 		5-09707-031-1 02 1 0110- ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (E) L=140 		5-09707-031-1 01 1 0110- ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 01 1 9804- ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0101-0102 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0103-0109 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0103-0109 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX) A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-1 05 1 0110- ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0107- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0110-0211 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0110-0211 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0212- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 		8-94457-053-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 		8-94457-053-0 02 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-94457-053-0 02 1 9804- ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9804-9909 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9910-0102 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9910-0102 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0103-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0103-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (F) L=100 		5-09707-036-1 01 1 9804-0012 ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) A/T AISIN(RMD) (I) L=250 		5-09707-030-1 01 1 0110- ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9804-9909 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9910-0109 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 0110- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9804-0012 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 0101- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 9804-9909 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 9910-0109 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 0110- ● ● ● ●
64 02.559 SCREW; CLIP
10.240 (A) M5X14 		8-94120-095-0 02 1 9804- ● ● ● ● ● ● ● ●
64 02.559 SCREW; CLIP
02.679 (B) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
(B) ID=21 & 21 		8-97136-392-0 01 1 9804- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
22LE/C22NE ENG(RJT) 04.661 (C) ID=14.5 & 6 		8-94312-791-0 01 1 9804- ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9909 ● ● ● ●
81 02.483 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9910-0109 ● ● ● ●
81 02.483 CLIP; HARNESS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0110- ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9804-0012 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 05 1 0101- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
4JA1 ENG(RLE),4JB1 ENG(RLF) 02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9910-0004 ● ● ● ● ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
22LE/C22NE ENG(RJT) 		8-97210-945-0 01 1 9808- ● ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1 ENG(RLE) TURBOCHARGER<K51> 		8-94315-284-0 01 1 9804-0012 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) TURBOCHARGER<K51> 		8-94315-284-0 01 1 0101-0109 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> 		8-94315-284-0 01 1 0110- ● ● ● ● ● ●

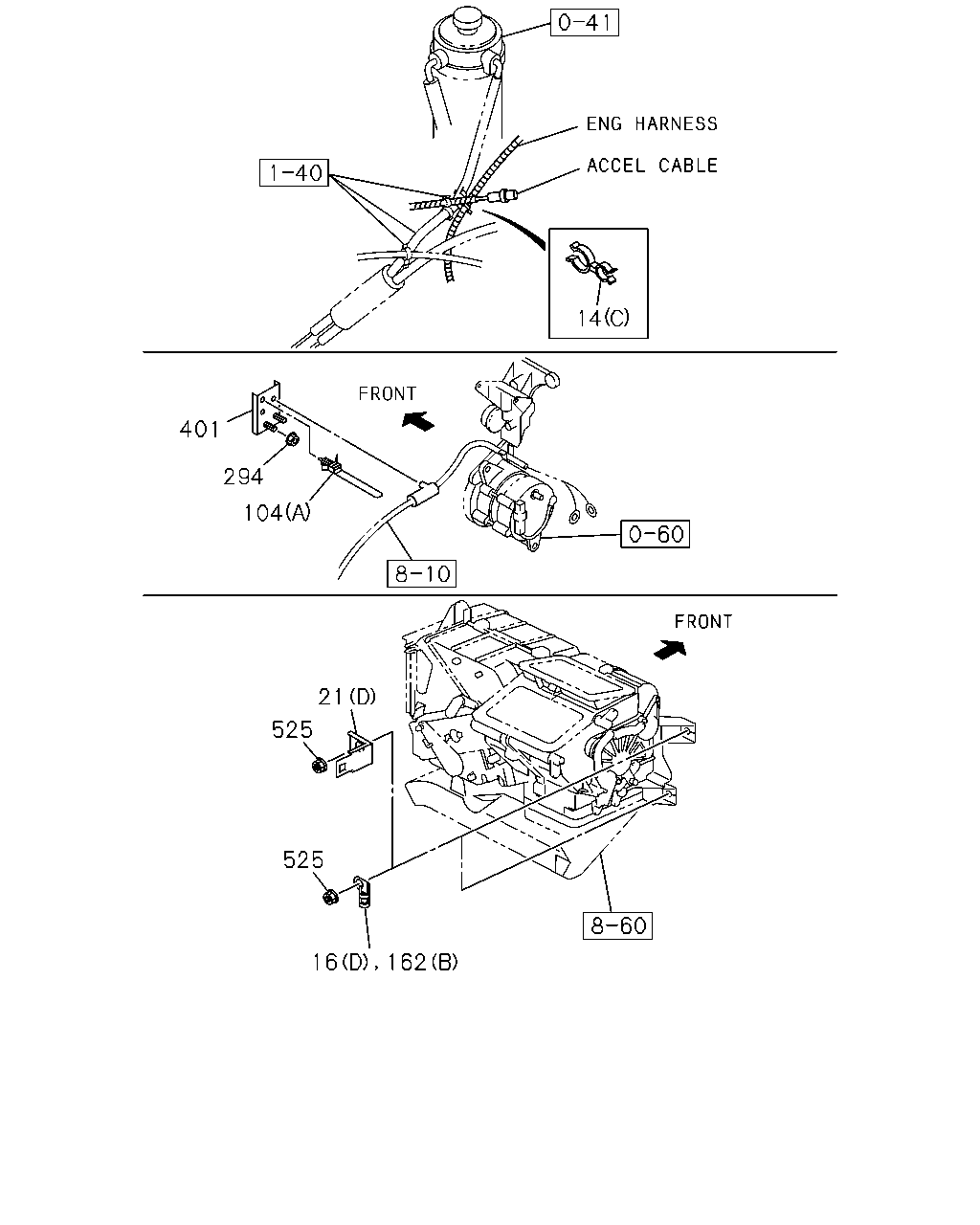

çizim 69834
14 401 294 104 21 525 525 16 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 02 1 9804- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) 02.587 (D) L=172 		8-94232-620-0 01 1 0003- ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9804- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9804-9909 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9910-0012 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 9910-0012 ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0101-0109 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0101-0109 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0110-0112 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0110-0112 ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0201- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.483 (C) ID=20.2 & 6 		8-94472-577-0 01 1 0201- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (E) L=140 		5-09707-031-1 03 1 0110- ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (E) L=140 		5-09707-031-1 02 1 0110- ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) A/T AISIN(RMD) 03.162 (E) L=140 		5-09707-031-1 01 1 0110- ● ●
14 02.559 CLIP; BAND,HARNESS
22LE/C22NE ENG(RJT) 04.594 (A) L=100 		5-09707-036-1 01 1 9804- ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0101-0102 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0103-0109 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0103-0109 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX) A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-1 05 1 0110- ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0107- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0110-0211 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0110-0211 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0212- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 		8-94457-053-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 		8-94457-053-0 02 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-94457-053-0 02 1 9804- ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9804-9909 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9910-0102 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9910-0102 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0103-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0103-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (F) L=100 		5-09707-036-1 01 1 9804-0012 ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) A/T AISIN(RMD) (I) L=250 		5-09707-030-1 01 1 0110- ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) 03.671 (B) 		8-94475-021-2 01 1 9804- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) 02.510 (C) 		8-94479-552-2 01 1 9804- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) (D) 		8-97127-268-0 02 1 9804-0202 ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) (D) 		8-97127-268-0 01 1 0203- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (D) 		8-97127-268-0 01 1 0203- ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
6VD1 ENG(RLV) (A) 		8-97108-281-1 01 1 9804- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (D) UPPER 		8-97127-268-0 01 1 0110-0202 ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (D) LOWER 		8-97313-463-1 01 1 0110-0202 ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) (D) 		8-97313-463-1 01 1 0203- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (D) 		8-97313-463-1 01 1 0203- ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (B) L=172 		8-94232-620-0 02 1 9804- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.587 (A) L=112 		8-94232-618-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.587 (A) L=112 		8-94232-618-0 01 1 0110-0112 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.587 (A) L=112 		8-94232-618-0 01 1 0201- ● ● ● ● ● ● ● ●
162 02.559 CLIP; SW HARNESS
A/T THM(RMQ) 01.152 (B) ID=8.5 		5-09700-275-0 02 1 9804-0012 ● ● ●
162 02.559 CLIP; SW HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 01.152 (B) ID=8.5 		5-09700-275-0 02 1 0101-0109 ● ● ● ● ● ●
162 02.559 CLIP; SW HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 01.152 (B) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ● ● ● ●
162 02.559 CLIP; SW HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) A/T AISIN(RMD) 01.152 (B) ID=8.5 		5-09700-275-0 02 1 0110- ● ●
162 02.559 CLIP; SW HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.430 (A) L=200 		8-94464-835-0 01 1 9804-0012 ● ● ●
162 02.559 CLIP; SW HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.430 (A) L=200 		8-94464-835-0 01 1 0101- ● ● ● ● ● ●
294 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9804-0109 ● ● ● ● ● ● ● ●
294 02.559 NUT
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE 		5-09440-004-0 02 1 0110-0112 ● ● ● ● ● ● ● ●
294 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE 		5-09440-004-0 02 1 0201- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94330-360-1 01 1 9804- ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER W O/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9804-9909 ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
6VD1 ENG(RLV) A/T THM(RMQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER W O/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9804-9909 ● ● ●
525 02.559 NUT; CLIP
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER W O/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9910-0012 ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
6VD1 ENG(RLV) A/T THM(RMQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER W O/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9910-0012 ● ● ●
525 02.559 NUT; CLIP
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER W O/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 0101-0109 ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
6VD1 ENG(RLV) A/T THM(RMQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER W O/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 0101-0109 ● ● ● ● ● ●
525 02.559 NUT; CLIP
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER W O/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 0110- ● ● ● ● ● ● ● ●
525 02.559 NUT; CLIP
6VD1 ENG(RLV) A/T THM(RMQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER W O/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 02 1 0110- ● ● ● ● ● ●
çizim 71678
358 516 21 508 484 16 38 16 38 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 9804-9909 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 9910-0006 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0007-0011 ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0012-0012 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0101-0102 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0103-0109 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0103-0109 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX) A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-1 05 1 0110- ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804-0106 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0107- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.162 (B) L=140 		5-09707-031-1 01 1 0110-0211 ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 03.162 (B) L=140 		5-09707-031-1 01 1 0110-0211 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0212- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ● ●
16 02.559 CLIP; HARNESS
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 9804-0109 ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ● ● ●
16 02.559 CLIP; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 01.152 (D) ID=8.5 		5-09700-275-0 02 1 0110- ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (H) L=60 		8-94457-053-0 04 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (H) L=60 		8-94457-053-0 02 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(H) L=60 		8-94457-053-0 02 1 9804- ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9804-9909 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9910-0102 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 9910-0102 ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0103-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0103-0109 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 01.152 (G) ID=18 L=44 		8-94225-185-0 03 1 0110-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.313 (G) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.594 (F) L=100 		5-09707-036-1 01 1 9804-0012 ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) A/T AISIN(RMD) (I) L=250 		5-09707-030-1 01 1 0110- ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) 03.671 (B) 		8-94475-021-2 01 1 9804- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) 02.510 (C) 		8-94479-552-2 01 1 9804- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) (D) 		8-97127-268-0 02 1 9804-0202 ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) (D) 		8-97127-268-0 01 1 0203- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (D) 		8-97127-268-0 01 1 0203- ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
6VD1 ENG(RLV) (A) 		8-97108-281-1 01 1 9804- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (D) UPPER 		8-97127-268-0 01 1 0110-0202 ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (D) LOWER 		8-97313-463-1 01 1 0110-0202 ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
22LE/C22NE ENG(RJT) (D) 		8-97313-463-1 01 1 0203- ● ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (D) 		8-97313-463-1 01 1 0203- ● ● ● ● ●
24 02.559 NUT; HARNESS
6VD1 ENG(RLV) 07.833 M8 W/LK WASHER 		8-94327-073-0 01 1 9804- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9804-9909 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9910-0109 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 0110- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9804-0012 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 0101- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 9804-9909 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 9910-0109 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 0110- ● ● ● ●
358 02.480 BOLT; EARTH
6VD1 ENG(RLV) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9804- ● ● ● ● ● ●
484 02.559 CLIP; ECGI HARNESS TO C/MBR
6VD1 ENG(RLV) 04.594 L=100 		5-09707-036-0 03 1 9804-9806 ● ● ● ● ● ●
484 02.559 CLIP; ECGI HARNESS TO C/MBR
6VD1 ENG(RLV) 04.594 L=100 		5-09707-036-1 01 1 9807- ● ● ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
22LE/C22NE ENG(RJT) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 04 1 9804- ● ● ● ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
6VD1 ENG(RLV) 03.670 (A) M6X20 FLANGE 		0-28080-620-0 01 1 9804-0102 ● ● ● ● ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
6VD1 ENG(RLV) 04.930 (A) M6X20 FLANGE 		0-28680-620-0 01 1 0103- ● ● ● ● ● ●
516 02.559 BOLT; HARNESS
6VD1 ENG(RLV) 08.155 M8X16 FLANGE 		0-28480-816-0 01 1 9804- ● ● ● ● ● ●
çizim 72810
408 408 38 465 466 466 465 312 313
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9804-9909 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9910-0109 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 0110- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9804-0012 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 0101- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 9804-9909 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 9910-0109 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 0110- ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-94359-008-1 01 1 9804- ● ● ● ● ● ●
313 02.559 BOLT; BRKT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 01.271 M8X40 FLANGE 		0-28080-840-0 01 1 9804- ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9806 ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9806 ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9806 ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (A) 		8-97022-809-0 01 1 9804-9810 ● ● ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (A) 		8-97180-221-0 01 1 9811-0012 ● ● ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (A) 		8-97180-221-0 01 1 0101- ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 00.785 (B) ID=16 		9-09525-522-0 01 1 9804-0012 ● ● ●
408 02.559 CLIP; TRANS HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) 00.785 (B) ID=16 		9-09525-522-0 01 1 0101- ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
22LE/C22NE ENG(RJT),4JB1 ENG(RLF), 6VD1 ENG(RLV) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9804-9806 ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9804-9806 ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (C) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9807- ● ● ● ● ● ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) 		8-97169-910-0 01 1 9804-0012 ● ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) 		8-97169-910-1 01 1 0101- ● ● ● ● ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (A) 		8-97108-280-0 01 1 9804-9812 ● ● ● ● ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (A) 		8-97809-116-1 01 1 9901- ● ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
6VD1 ENG(RLV) A/T THM(RMQ) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 02 1 9804-0012 ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
6VD1 ENG(RLV) A/T THM(RMQ) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 02 1 0101- ● ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 03 1 9804-0102 ● ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 02.500 (A) M6X10 FLANGE 		0-28080-610-0 03 1 0103- ● ● ● ● ● ●
çizim 73687
256 38 38 529 38 256 22 104 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
22 02.559 CLIP; ENG HARNESS
22LE/C22NE ENG(RJT) EXC. POWER STEERING<N40> 02.587 L=172 		8-94232-620-0 01 1 9806- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9804- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9804-9909 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9910-0109 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 0110- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 9804-0012 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
6VD1 ENG(RLV) A/T THM(RMQ) (B) M4X12 W/LK WASHER 		8-97066-403-1 01 1 0101- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 9804-9909 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 9910-0109 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (F) M8X12 FLANGE 		0-28080-812-0 01 1 0110- ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (B) L=172 		8-94232-620-0 02 1 9804- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.587 (A) L=112 		8-94232-618-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.587 (A) L=112 		8-94232-618-0 01 1 0110-0112 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.587 (A) L=112 		8-94232-618-0 01 1 0201- ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AIR CONDITIONER MANUAL CONT(C60) 16.550 OD=12 		9-09956-122-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
6VD1 ENG(RLV) 16.550 OD=12 		9-09956-122-0 01 1 9804-9909 ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AIR CONDITIONER MANUAL CONT(C60) 16.550 OD=12 		9-09956-122-0 01 1 9910-0109 ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JG2 ENG(RJC),6VD1 ENG(RLV) 16.550 OD=12 		9-09956-122-0 01 1 9910-0109 ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 16.550 OD=12 		9-09956-122-0 01 1 9910-0109 ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AIR CONDITIONER MANUAL CONT(C60) 16.550 OD=12 		9-09956-122-0 01 1 0110-0301 ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JG2 ENG(RJC),6VD1 ENG(RLV) 16.550 OD=12 		9-09956-122-0 01 1 0110-0301 ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 16.550 OD=12 		9-09956-122-0 01 1 0110-0301 ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.550 OD=12 		9-09956-122-0 01 1 0302- ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JG2 ENG(RJC),6VD1 ENG(RLV) 16.550 OD=12 		9-09956-122-0 01 1 0302- ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 16.550 OD=12 		9-09956-122-0 01 1 0302- ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) L=135 		8-94473-399-0 02 1 9804- ● ● ● ● ● ● ● ●
529 02.559 BOLT; RELAY BOX
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
529 02.559 BOLT; RELAY BOX
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9910- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
