Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#45754) — 347 parça

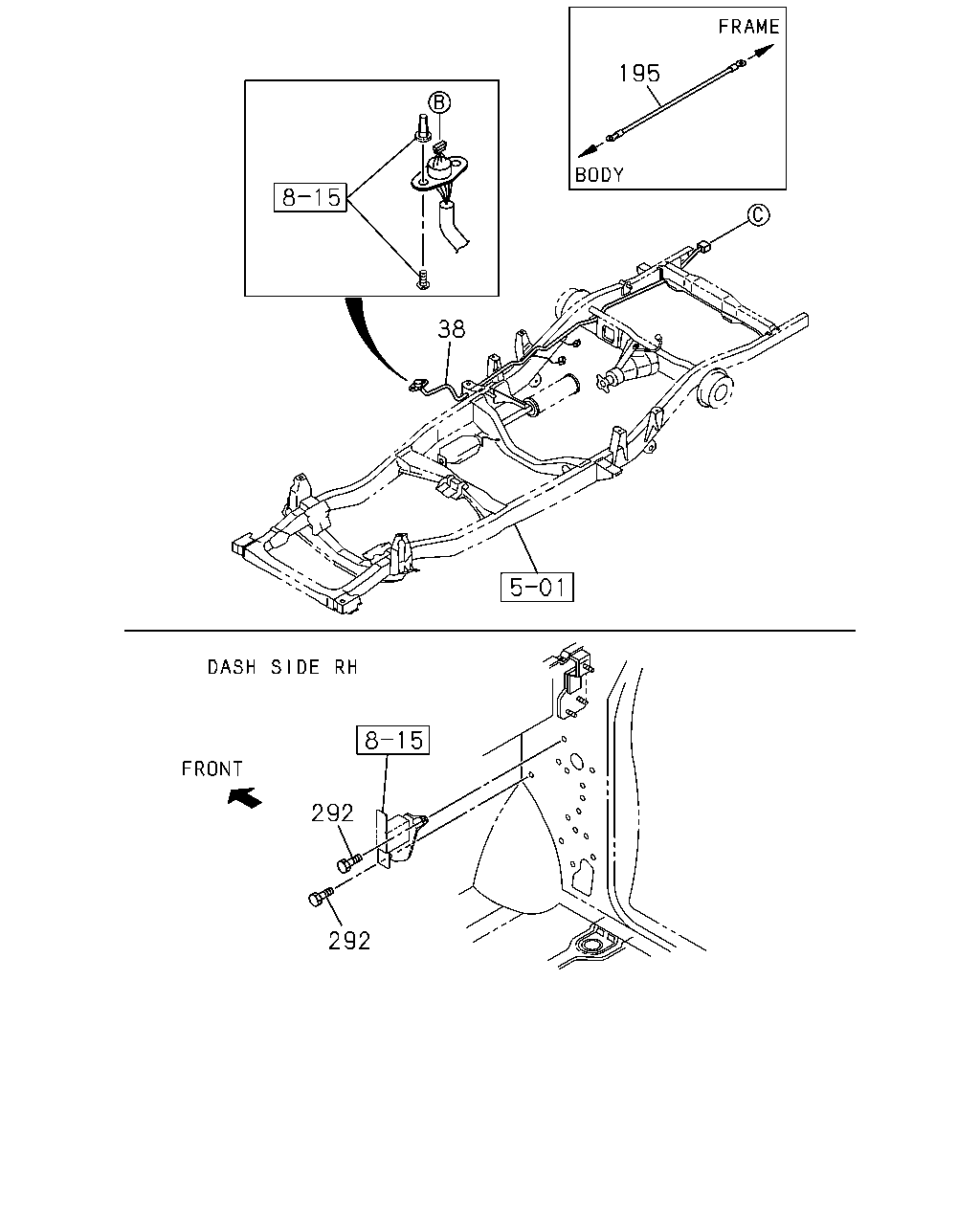

195 38 292 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
38	02.480 HARNESS; CHAS EXC. UNITED KINGDOM EQUIPMENT(EK3), ELECTRIC FUEL INJECTION<6GG>	8-97139-745-2	01	1	9804-9909	●	●	●	●	●	●
38	02.480 HARNESS; CHAS HONG KONG EQUIPMENT(PQ1)	8-97139-745-2	01	1	9804-9909		●			●	●
38	02.480 HARNESS; CHAS EXC. UNITED KINGDOM EQUIPMENT(EK3), ELECTRIC FUEL INJECTION<6GG>	8-97217-407-0	01	1	9910-0102	●	●	●	●	●	●
38	02.480 HARNESS; CHAS EXC. UNITED KINGDOM EQUIPMENT(EK3), ELECTRIC FUEL INJECTION<6GG>	8-97217-407-0	01	1	0103-	●	●	●	●	●	●
38	02.480 HARNESS; CHAS UNITED KINGDOM EQUIPMENT(EK3) EXC. RR FOG LAMP<T79>	8-97217-407-0	01	1	0103-		●	●	●	●	●
38	02.480 HARNESS; CHAS 22LE/C22NE ENG(RJT),6VD1 ENG(RLV)	8-97178-830-0	01	1	9804-9909	●	●	●	●	●	●
38	02.480 HARNESS; CHAS 22LE/C22NE ENG(RJT),6VD1 ENG(RLV)	8-97217-410-0	01	1	9910-	●	●	●	●	●	●
38	02.480 HARNESS; CHAS EXC. ELECTRIC FUEL INJECTION<6GG>	8-97139-744-2	01	1	9804-9909							●	●
38	02.480 HARNESS; CHAS EXC. ELECTRIC FUEL INJECTION<6GG>	8-97217-411-0	01	1	9910-							●	●
38	02.480 HARNESS; CHAS 22LE/C22NE ENG(RJT)	8-97178-831-0	01	1	9804-9909							●	●
38	02.480 HARNESS; CHAS 22LE/C22NE ENG(RJT)	8-97217-412-0	01	1	9910-							●	●
38	02.480 HARNESS; CHAS UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1)	8-97139-746-2	01	1	9804-9909		●	●		●	●
38	02.480 HARNESS; CHAS UNITED KINGDOM EQUIPMENT(EK3)	8-97217-408-0	01	1	9910-0102		●	●	●	●	●
38	02.480 HARNESS; CHAS UNITED KINGDOM EQUIPMENT(EK3) RR FOG LAMP<T79>	8-97217-408-0	01	1	0103-		●	●	●	●	●
195	01.150 HARNESS; EXT 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU)	8-97088-658-1	01	1	9804-9909		●	●			●
292	02.483 BOLT; BOX 09.190 M6X30 FLANGE	0-28680-630-0	02	1	9804-	●	●	●	●	●	●	●	●

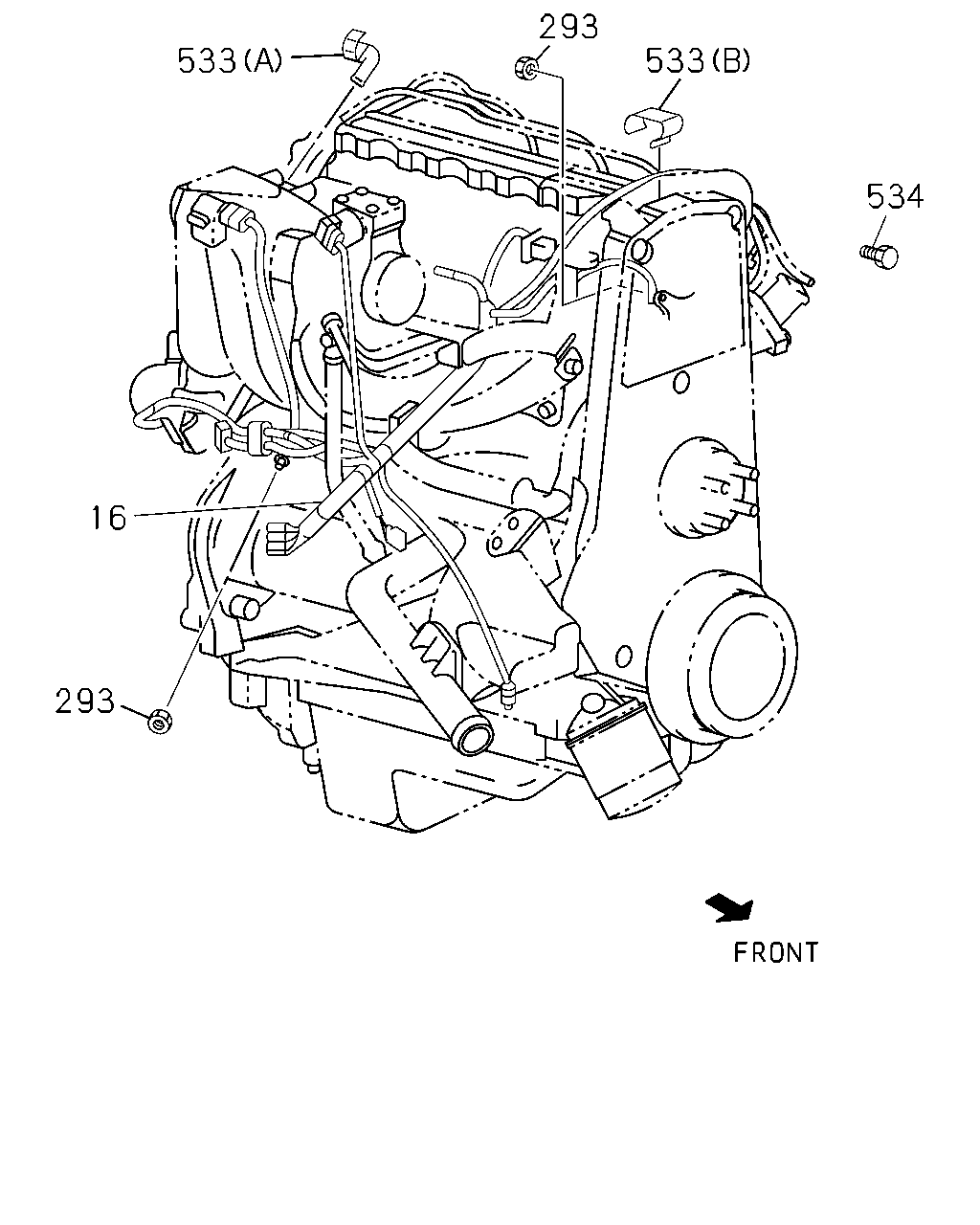

293 533 533 534 16 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
16	02.525 HARNESS; ENG,ECGI 22LE/C22NE ENG(RJT)	8-92063-679-0	01	1	9804-	●	●	●		●	●	●	●
16	02.525 HARNESS; ENG,ECGI 6VD1 ENG(RLV) A/T THM(RMQ)	8-97180-303-4	01	1	9804-0012	●	●	●
16	02.525 HARNESS; ENG,ECGI 6VD1 ENG(RLV) A/T THM(RMQ)	8-97180-303-7	01	1	0101-	●	●	●	●	●	●
16	02.525 HARNESS; ENG,ECGI 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97180-043-7	01	1	9804-	●	●	●	●	●	●
293	02.559 NUT 22LE/C22NE ENG(RJT) 00.004	8-11014-038-0	02	1	9804-	●	●	●		●	●	●	●
533	02.559 CLIP 22LE/C22NE ENG(RJT) (A)	8-92063-709-0	02	1	9804-	●	●	●		●	●	●	●
533	02.559 CLIP 22LE/C22NE ENG(RJT) (B)	8-92063-863-0	01	1	9804-	●	●	●		●	●	●	●
534	02.483 BOLT 22LE/C22NE ENG(RJT)	8-90412-680-0	01	1	9804-	●	●	●		●	●	●	●

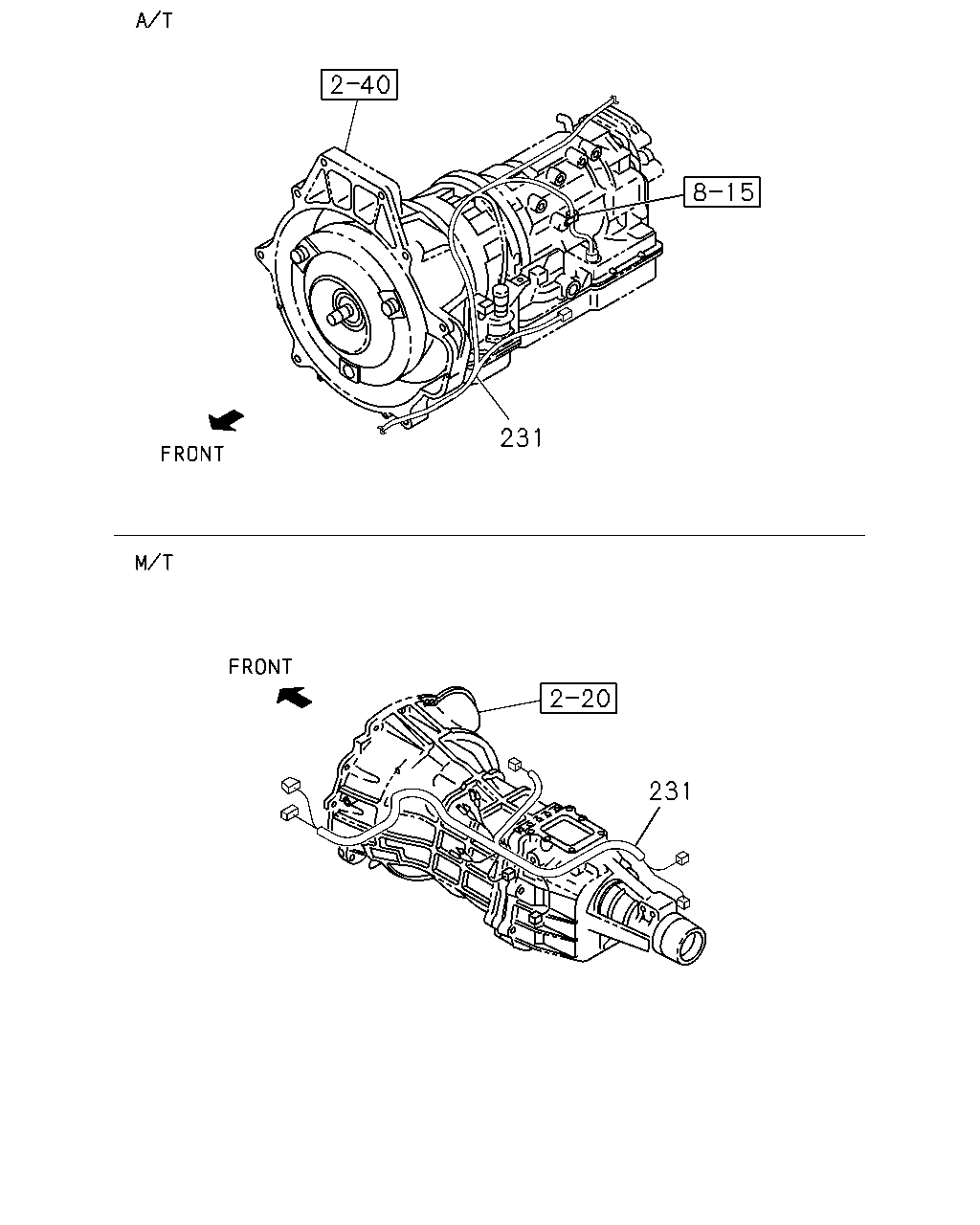

231 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
231	02.480 HARNESS; TRANS 22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75)	8-97178-832-1	01	1	9804-9807	●	●	●				●
231	02.480 HARNESS; TRANS 22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75)	8-97210-948-1	01	1	9808-	●	●	●				●
231	02.480 HARNESS; TRANS 22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN)	8-97166-003-0	01	1	9804-9807	●	●	●
231	02.480 HARNESS; TRANS 22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN)	8-97210-952-0	01	1	9808-0103	●	●	●
231	02.480 HARNESS; TRANS 22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN)	8-97210-952-1	01	1	0104-	●	●	●				●
231	02.480 HARNESS; TRANS 6VD1 ENG(RLV) A/T THM(RMQ)	8-97203-083-1	01	1	9804-	●	●	●
231	02.480 HARNESS; TRANS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) AUSTRALIAN EQUIPMENT(RR3)	8-97186-416-0	01	1	9804-9909	●	●	●	●	●	●
231	02.480 HARNESS; TRANS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX)	8-97186-416-1	01	1	9910-	●	●	●	●	●	●
231	02.480 HARNESS; TRANS 6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIAN EQUIPMENT(RR3) SHIFT ON THE FLY(7EX)	8-97261-144-3	01	1	0101-				●	●	●
231	02.480 HARNESS; TRANS 6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX)	8-97261-581-4	01	1	0101-				●	●	●
231	02.480 HARNESS; TRANS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) AUSTRALIAN EQUIPMENT(RR3) SHIFT ON THE FLY(7EX)	8-97217-414-2	01	1	9910-0012				●	●	●
231	02.480 HARNESS; TRANS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX)	8-97217-414-3	01	1	0101-				●	●	●
231	02.480 HARNESS; TRANS 22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75)	8-97178-833-0	01	1	9804-9807					●	●		●
231	02.480 HARNESS; TRANS 22LE/C22NE ENG(RJT) M/T MSG 5 SPEED(M75)	8-97210-949-1	01	1	9808-					●	●		●
231	02.480 HARNESS; TRANS 22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN)	8-97166-002-0	01	1	9804-9807					●	●		●
231	02.480 HARNESS; TRANS 22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN)	8-97210-951-1	01	1	9808-					●	●		●

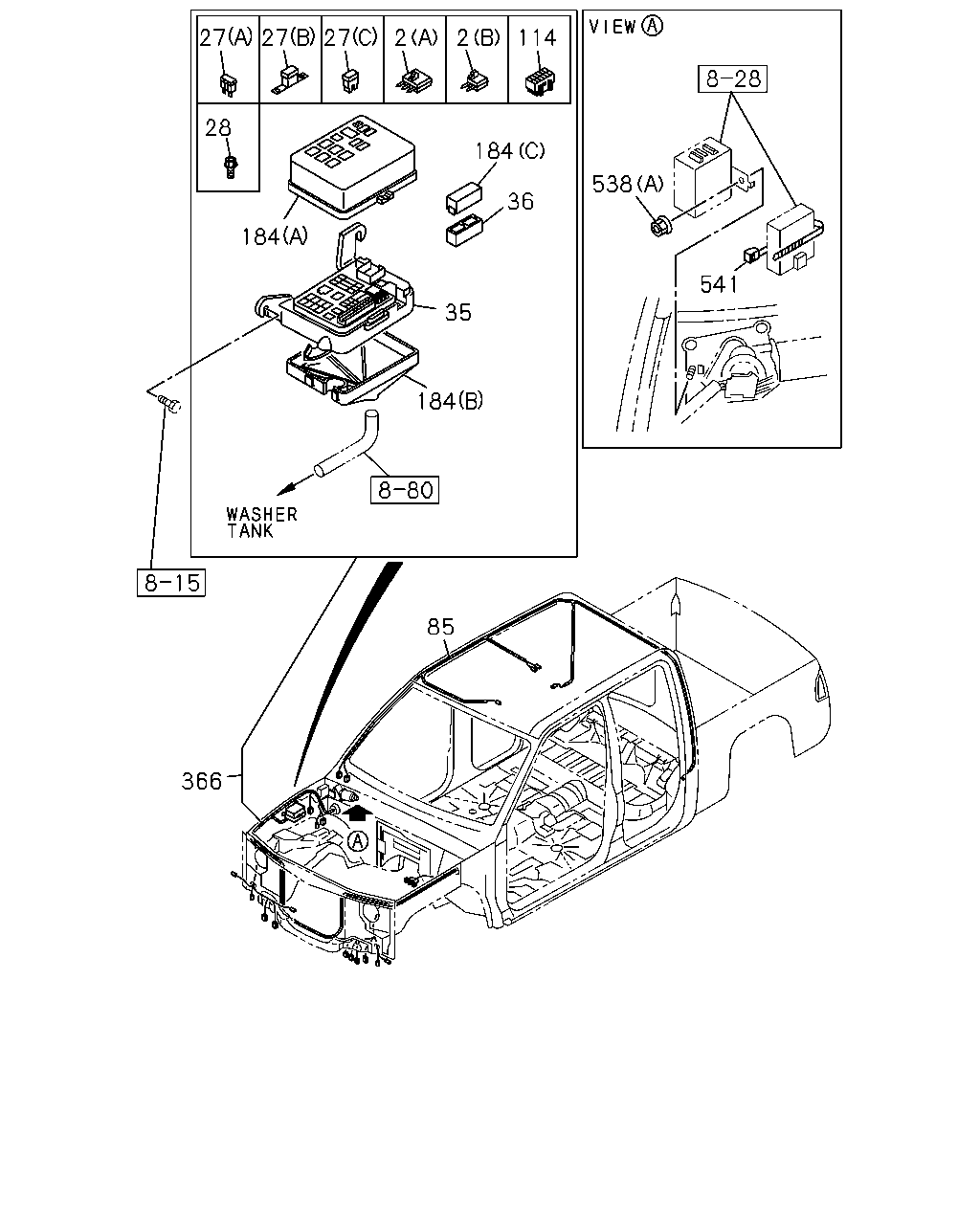

2 2 114 28 184 538 36 184 541 35 184 85 366 27 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	02.483 DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	9804-	●	●	●	●	●	●	●	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	9804-	●	●	●	●	●	●	●	●
2	02.483 DIODE; CABLE HARNESS (C) BLACK 2P-2.0A	8-97138-524-0	AR	1	9804-	●	●	●	●	●	●	●	●
27	08.965 FUSE UNIT (B) 30A PINK	8-94388-300-0	AR	1	9804-	●	●	●	●	●	●	●	●
27	08.965 FUSE UNIT (B) 40A GREEN	8-94388-301-0	AR	1	9804-	●	●	●	●	●	●	●	●
27	08.965 FUSE UNIT (B) 100A BLUE	8-94388-306-0	AR	1	9804-	●	●	●	●	●	●	●	●
27	08.965 FUSE UNIT (B) 40A GREEN	8-94468-662-0	AR	1	9804-9909	●	●	●	●	●	●	●	●
27	08.965 FUSE UNIT 02.483 (B) 50A RED	8-94468-663-0	AR	1	9804-9909	●	●	●	●	●	●	●	●
27	08.965 FUSE UNIT (A) 10A MINI RED	8-97062-022-0	AR	1	9804-	●	●	●	●	●	●	●	●
27	08.965 FUSE UNIT (A) 15A MINI BLUE	8-97062-023-0	AR	1	9804-	●	●	●	●	●	●	●	●
27	08.965 FUSE UNIT (A) 20A MINI YELLOW	8-97062-024-0	AR	1	9804-	●	●	●	●	●	●	●	●
27	08.965 FUSE UNIT (C) 30A PINK	8-97183-643-0	AR	1	9804-	●	●	●	●	●	●	●	●
27	08.965 FUSE UNIT (C) 40A GREEN	8-97183-644-0	AR	1	9804-	●	●	●	●	●	●	●	●
27	08.965 FUSE UNIT (C) 60A YELLOW	8-97219-407-0	AR	1	9804-	●	●	●	●	●	●	●	●
27	08.965 FUSE UNIT (C) 50A RED	8-97183-645-0	AR	1	9910-	●	●	●	●	●	●	●	●
28	02.483 SCREW; FUSE BOX	8-97249-192-0	AR	1	9804-	●	●	●	●	●	●	●	●
35	02.530 BOX; RELAY & FUSE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV)	8-97940-316-0	01	1	9804-9909	●	●	●	●	●	●	●	●
35	02.530 BOX; RELAY & FUSE	8-97940-316-1	01	1	9910-	●	●	●	●	●	●	●	●
35	02.530 BOX; RELAY & FUSE 4JA1 ENG(RLE),4JB1 ENG(RLF)	8-97104-108-2	01	1	9804-9909	●	●	●	●	●	●	●	●
36	02.530 BOX; RELAY 4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3)	8-97104-122-1	01	1	9910-		●	●	●	●	●
85	06.495 HARNESS; ROOM LAMP EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3>	8-97132-666-0	01	1	9804-9806	●	●		●	●		●	●
85	06.495 HARNESS; ROOM LAMP EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3>	8-97132-666-1	01	1	9807-	●			●
85	06.495 HARNESS; ROOM LAMP MAP LAMP<UF3> EXC. REAR DEFOGGER<C49>	8-97132-558-0	01	1	9804-9909	●	●		●	●		●
85	06.495 HARNESS; ROOM LAMP MAP LAMP<UF3> EXC. REAR DEFOGGER<C49>	8-97132-558-1	01	1	9910-	●			●
85	06.495 HARNESS; ROOM LAMP MAP LAMP<UF3>	8-97132-558-1	01	1	9910-		●			●		●	●
85	06.495 HARNESS; ROOM LAMP REAR DEFOGGER<C49> MAP LAMP<UF3>	8-97132-560-1	01	1	9804-	●			●
85	06.495 HARNESS; ROOM LAMP REAR DEFOGGER<C49> EXC. MAP LAMP<UF3>	8-97132-559-1	01	1	9804-	●			●
85	06.495 HARNESS; ROOM LAMP EXC. MAP LAMP<UF3>	8-97912-648-1	01	1	9807-9909		●			●		●
85	06.495 HARNESS; ROOM LAMP	8-97912-648-1	01	1	9807-9909								●
85	06.495 HARNESS; ROOM LAMP EXC. MAP LAMP<UF3>	8-97912-648-1	01	1	9910-		●			●		●	●
85	06.495 HARNESS; ROOM LAMP MAP LAMP<UF3> EXC. REAR DEFOGGER<C49>	8-97160-428-1	01	1	9804-			●			●
85	06.495 HARNESS; ROOM LAMP REAR DEFOGGER<C49>	8-97160-429-2	01	1	9804-			●			●
85	06.495 HARNESS; ROOM LAMP EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3>	8-97139-705-1	01	1	9804-			●			●
114	02.483 BOX ASM; FUSE 4JA1 ENG(RLE),4JB1 ENG(RLF)	8-97104-121-0	01	1	9804-9909	●	●	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX (B)	8-97104-115-1	01	1	9804-	●	●	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JG2 ENG(RJC) EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-97222-255-0	01	1	0110-		●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97226-282-0	01	1	9910-0012	●	●	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JB1 ENG(RLF) (A)	8-97226-282-0	01	1	9910-0012	●	●	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97226-282-0	01	1	0101-	●	●	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-97226-282-0	01	1	0101-		●	●	●		●
184	02.559 COVER; RELAY & FUSE BOX 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97142-801-1	01	1	9804-9909	●	●	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97222-255-0	01	1	9910-0012		●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97261-555-1	01	1	0101-0109		●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (A)	8-97261-555-1	01	1	0110-0305		●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(EK3) IMMOBILIZER SYSTEM<7KC> (A)	8-97261-555-1	01	1	0306-		●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 22LE/C22NE ENG(RJT) (A)	8-97182-315-1	01	1	9804-0012	●	●	●		●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (A)	8-97182-315-1	01	1	0101-	●	●	●		●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JB1 ENG(RLF) IMMOBILIZER SYSTEM<7KC> (A)	8-97261-554-0	01	1	0101-	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JB1 ENG(RLF) EXC. EAST MALAYSIA EQUIPMENT(PM6), AUSTRALIAN EQUIPMENT(RR3),WEST MALAY SIA EQUIPMENT(S3D) (A)	8-97261-554-0	01	1	0101-	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 6VD1 ENG(RLV) (A)	8-97180-242-1	01	1	9804-9909	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 6VD1 ENG(RLV) (A)	8-97226-900-0	01	1	9910-0012	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) (A)	8-97261-557-1	01	1	0101-	●	●	●		●	●
184	02.559 COVER; RELAY & FUSE BOX 6VD1 ENG(RLV) (A)	8-97261-553-1	01	1	0101-	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> IMMOBILIZER SYSTEM<7KC> (A)	8-97300-903-1	01	1	0110-		●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JH1 ENG(RJX) (A)	8-97315-993-0	01	1	0110-		●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97142-799-1	01	1	9804-9909		●	●		●	●
184	02.559 COVER; RELAY & FUSE BOX 4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97104-131-0	01	1	9910-		●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97165-608-2	01	1	9804-9909	●	●	●	●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97217-342-4	01	1	9910-0305	●	●	●	●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97318-130-0	01	1	0306-	●	●	●	●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 22LE/C22NE ENG(RJT)	8-97200-735-1	01	1	9804-9909	●	●	●		●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 22LE/C22NE ENG(RJT)	8-97217-360-2	01	1	9910-0012	●	●	●		●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97217-360-2	01	1	0101-0305	●	●	●		●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97318-137-1	01	1	0306-	●	●	●		●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 6VD1 ENG(RLV) A/T THM(RMQ)	8-97203-081-0	01	1	9804-9909	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 6VD1 ENG(RLV) A/T THM(RMQ)	8-97217-367-2	01	1	9910-0012	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 6VD1 ENG(RLV) A/T THM(RMQ) EXC. SHIFT ON THE FLY(7EX)	8-97260-161-2	01	1	0101-	●	●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) EXC. EAST MALAYSIA EQUIPMENT(PM6), AUSTRALIAN EQUIPMENT(RR3),WEST MALAY SIA EQUIPMENT(S3D),SHIFT ON THE FLY(7EX)	8-97260-153-1	01	1	0101-	●	●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97165-609-2	01	1	9804-9909	●	●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D),SHIFT O N THE FLY(7EX)	8-97217-351-3	01	1	9910-0008				●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D),SHIFT O N THE FLY(7EX)	8-97217-351-3	01	1	0009-0012	●	●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3)	8-97260-284-3	01	1	0101-	●	●	●		●	●
366	02.525 HARNESS; CABLE,ENG ROOM 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97189-632-0	01	1	9804-9909	●	●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. SHIFT ON THE FLY(7EX)	8-97217-365-1	01	1	9910-0012	●	●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. SHIFT ON THE FLY(7EX)	8-97260-159-2	01	1	0101-	●	●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ENG QUICK WARM UP SYSTEM<6JZ>, SHIFT ON THE FLY(7EX)	8-97311-400-2	01	1	0110-		●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) IMMOBILIZER SYSTEM<7KC> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. ROAD SIDE ASSIST PACK(7LU)	8-97305-056-0	01	1	0101-0108		●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(EK3) IMMOBILIZER SYSTEM<7KC> HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW>	8-97305-059-0	01	1	0101-0102		●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(EK3) EXC. IMMOBILIZER SYSTEM<7KC>	8-97311-484-1	01	1	0103-0109		●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. IMMOBILIZER SYSTEM<7KC>	8-97319-559-3	01	1	0110-		●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3)	8-97188-196-2	01	1	9804-9902		●	●		●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU)	8-97188-196-2	01	1	9903-9909		●	●			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3)	8-97188-196-2	01	1	9903-9909					●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU)	8-97217-344-3	01	1	9910-0012		●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) IMMOBILIZER SYSTEM<7KC> EXC. ROAD SIDE ASSIST PACK(7LU), HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW>	8-97260-149-1	01	1	0101-0109		●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ENG QUICK WARM UP SYSTEM<6JZ> EXC. SHIFT ON THE FLY(7EX)	8-97300-710-3	01	1	0110-		●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU)	8-97226-675-0	01	1	9903-9909		●	●			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU)	8-97226-676-2	01	1	9910-0012		●	●			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) IMMOBILIZER SYSTEM<7KC> ROAD SIDE ASSIST PACK(7LU) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW>	8-97260-150-1	01	1	0101-0109		●	●			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JH1 ENG(RJX) M/T MUA 5 SPEED(RMN) EXC. SHIFT ON THE FLY(7EX)	8-97302-783-3	01	1	0110-		●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97172-585-2	01	1	9804-9909		●		●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D),SHIFT ON THE FLY(7EX)	8-97217-352-4	01	1	9910-0008				●		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) EXC. SHIFT ON THE FLY(7EX)	8-97217-352-4	01	1	0009-0305		●	●	●		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) EXC. SHIFT ON THE FLY(7EX)	8-97318-132-0	01	1	0306-		●	●	●		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JH1 ENG(RJX) A/T AISIN(RMD) EXC. SHIFT ON THE FLY(7EX)	8-97302-785-3	01	1	0110-			●			●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ENG QUICK WARM UP SYSTEM<6JZ> SHIFT ON THE FLY(7EX)	8-97300-711-3	01	1	0110-				●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) SHIFT ON THE FLY(7EX) EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97311-401-2	01	1	0110-				●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) SHIFT ON THE FLY(7EX)	8-97260-152-2	01	1	0101-				●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) EXC. EAST MALAYSIA EQUIPMENT(PM6), AUSTRALIAN EQUIPMENT(RR3),WEST MALAY SIA EQUIPMENT(S3D)	8-97260-151-1	01	1	0101-				●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97217-349-3	01	1	9910-0012				●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX)	8-97260-154-2	01	1	0101-	●	●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC)	8-97217-357-4	01	1	9910-0012				●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(EK3) IMMOBILIZER SYSTEM<7KC> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW>	8-97260-157-2	01	1	0101-0109		●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW>	8-97319-564-0	01	1	0110-0305		●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(EK3) IMMOBILIZER SYSTEM<7KC>	8-97319-564-3	01	1	0306-		●	●	●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JH1 ENG(RJX) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX)	8-97302-784-3	01	1	0110-				●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 6VD1 ENG(RLV) A/T THM(RMQ) SHIFT ON THE FLY(7EX)	8-97260-160-2	01	1	0101-				●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX)	8-97217-364-1	01	1	9910-0012				●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX)	8-97260-158-2	01	1	0101-				●	●	●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) SHIFT ON THE FLY(7EX)	8-97217-350-4	01	1	9910-0305				●		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) SHIFT ON THE FLY(7EX)	8-97318-131-0	01	1	0306-				●		●
366	02.525 HARNESS; CABLE,ENG ROOM 4JH1 ENG(RJX) A/T AISIN(RMD) SHIFT ON THE FLY(7EX)	8-97302-786-3	01	1	0110-						●
538	02.483 NUT 22LE/C22NE ENG(RJT) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9804-	●	●	●		●	●	●	●
538	02.483 NUT 10.147 (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	9804-9909	●			●
538	02.483 NUT INTERMITTENT WIPER<C13> 10.147 (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	9804-9909		●	●		●	●	●	●
538	02.483 NUT 10.147 (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	9910-	●
538	02.483 NUT INTERMITTENT WIPER<C13> 10.147 (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	9910-		●	●	●	●	●	●	●
541	02.483 CLIP EXC. INTERMITTENT WIPER<C13> 02.559 L=219.5	1-09987-136-0	01	1	9804-9909		●	●		●	●	●	●
541	02.483 CLIP EXC. INTERMITTENT WIPER<C13> 02.559 L=219.5	1-09987-136-0	01	1	9910-		●	●	●	●	●	●	●

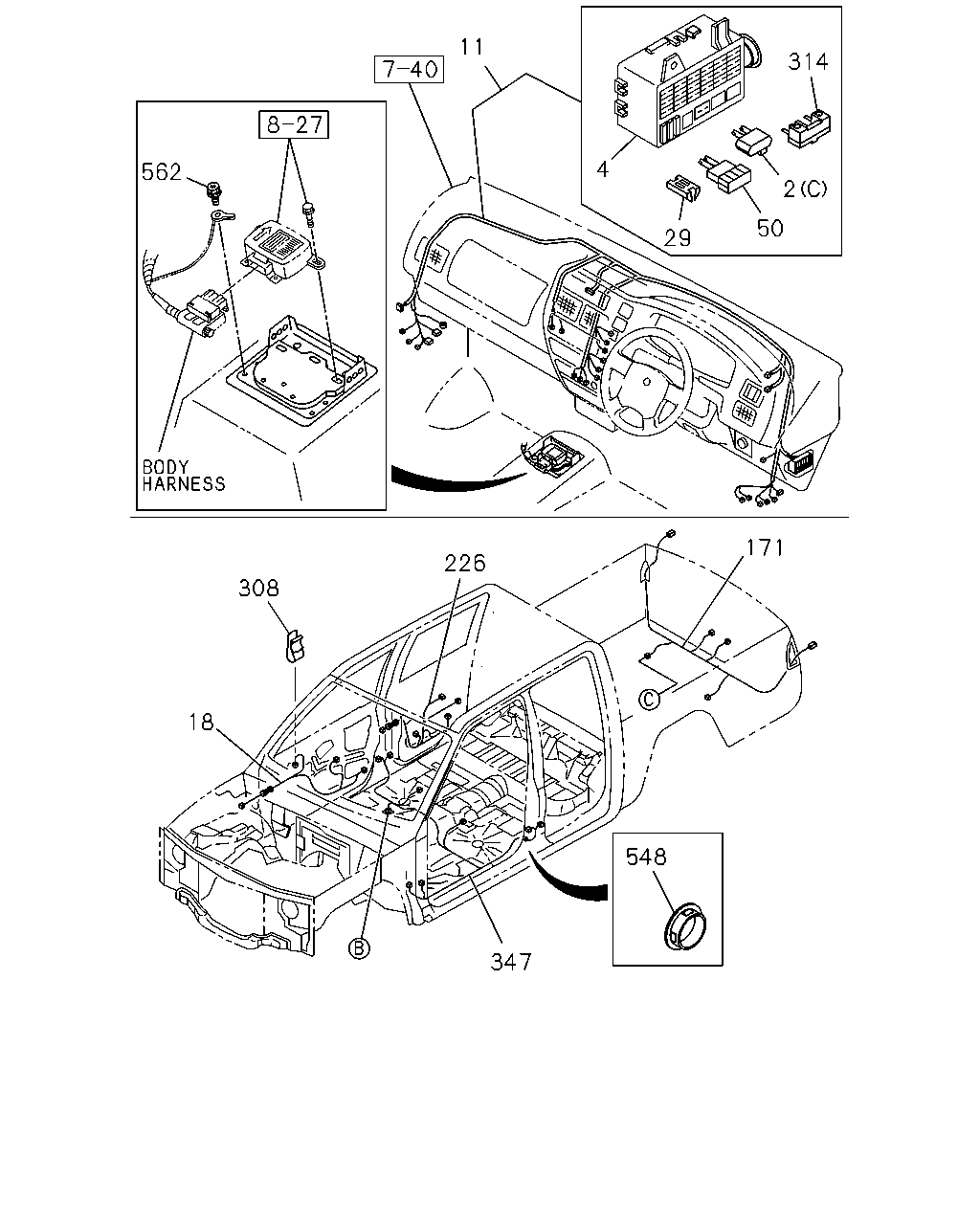

11 314 4 562 2 50 29 171 226 308 18 548 347

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	02.483 DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	9804-	●	●	●	●	●	●	●	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	9804-	●	●	●	●	●	●	●	●
2	02.483 DIODE; CABLE HARNESS (C) BLACK 2P-2.0A	8-97138-524-0	AR	1	9804-	●	●	●	●	●	●	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-97110-111-3	01	1	9804-	●	●	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE LS(RBD) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,AUSTRALIAN EQUIPMENT(RR3)	8-97165-631-0	01	1	9804-9909	●	●	●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) GRADE LS(RBD) EXC. POWER WINDOW<A30>,AUSTRALIAN EQUIPMENT(RR3)	8-97178-678-2	01	1	9804-9908	●	●	●		●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) GRADE LS(RBD) EXC. POWER WINDOW<A30>,AUSTRALIAN EQUIPMENT(RR3)	8-97238-768-0	01	1	9909-9909	●	●	●		●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) GRADE LS(RBD) EXC. POWER WINDOW<A30>,AUSTRALIAN EQUIPMENT(RR3)	8-97178-678-3	01	1	9910-	●	●	●		●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. POWER WINDOW<A30>	8-97178-675-1	01	1	9804-9807	●	●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. POWER WINDOW<A30>	8-97178-675-2	01	1	9808-9902	●	●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) GRADE S(RBA) REAR DEFOGGER<C49> AUSTRALIAN EQUIPMENT(RR3)	8-97178-675-2	01	1	9808-9902			●			●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. POWER WINDOW<A30>	8-97178-675-3	01	1	9903-9908	●	●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. POWER WINDOW<A30>	8-97238-762-0	01	1	9909-9909	●	●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>	8-97178-675-3	01	1	9910-0012	●	●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) REAR DEFOGGER<C49> AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>	8-97260-810-1	01	1	0101-0101	●		●	●		●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>	8-97260-810-1	01	1	0101-	●	●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) GRADE S(RBA) REAR DEFOGGER<C49> AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>	8-97260-810-1	01	1	0101-			●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> AUSTRALIAN EQUIPMENT(RR3)	8-97178-674-4	01	1	9804-9908	●	●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> AUSTRALIAN EQUIPMENT(RR3)	8-97238-761-0	01	1	9909-9909	●	●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3)	8-97178-674-4	01	1	9910-0012	●	●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30> AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3)	8-97260-809-1	01	1	0101-	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE LS(RBD) EXC. POWER WINDOW<A30>,UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIP MENT(PK5),AUSTRALIAN EQUIPMENT(RR3)	8-97217-378-1	01	1	9910-0101	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) NEW ZEALAND EQUIPMENT(PK5) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>	8-97217-378-1	01	1	9910-0101	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. POWER WINDOW<A30>,UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIP MENT(PK5),AUSTRALIAN EQUIPMENT(RR3)	8-97217-378-2	01	1	0102-	●	●	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) NEW ZEALAND EQUIPMENT(PK5) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>	8-97217-378-2	01	1	0102-	●	●	●			●
11	02.480 HARNESS; BODY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97165-630-0	01	1	9804-9909	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3) EXC. POWER WINDOW<A30>	8-97217-386-1	01	1	9910-0012	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3) EXC. POWER WINDOW<A30>	8-97260-819-1	01	1	0101-0109	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JH1 ENG(RJX),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3) EXC. POWER WINDOW<A30>	8-97260-819-1	01	1	0110-	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. POWER WINDOW<A30>	8-97165-628-1	01	1	9804-9909	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) POWER WINDOW<A30> AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3)	8-97217-387-2	01	1	9910-0012	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) POWER WINDOW<A30> AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3)	8-97260-820-1	01	1	0101-0109	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JH1 ENG(RJX),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) POWER WINDOW<A30> AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3)	8-97260-820-1	01	1	0110-	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) POWER WINDOW<A30> AUSTRALIAN EQUIPMENT(RR3)	8-97165-627-1	01	1	9804-9909	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> AUSTRALIAN EQUIPMENT(RR3)	8-97217-385-2	01	1	9910-0012	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> AUSTRALIAN EQUIPMENT(RR3)	8-97260-818-1	01	1	0101-0109	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JH1 ENG(RJX),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> AUSTRALIAN EQUIPMENT(RR3)	8-97260-818-1	01	1	0110-	●	●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) POWER WINDOW<A30> EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97178-677-2	01	1	9804-9908	●	●	●		●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) POWER WINDOW<A30> EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97238-765-0	01	1	9909-9909	●	●	●		●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) POWER WINDOW<A30> EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97178-677-2	01	1	9910-0012	●	●	●		●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) POWER WINDOW<A30> EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97260-831-1	01	1	0101-	●	●	●		●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>,AUSTRALIAN EQUIPMENT(RR3)	8-97178-680-1	01	1	9804-9908	●		●	●		●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>,AUSTRALIAN EQUIPMENT(RR3)	8-97238-772-0	01	1	9909-9909	●		●	●		●
11	02.480 HARNESS; BODY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3)	8-97217-377-2	01	1	9910-	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) POWER WINDOW<A30> NEW ZEALAND EQUIPMENT(PK5) EXC. REAR DEFOGGER<C49>	8-97217-377-2	01	1	9910-	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) POWER WINDOW<A30> REAR DEFOGGER<C49> NEW ZEALAND EQUIPMENT(PK5)	8-97217-389-2	01	1	9910-	●		●			●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) REAR DEFOGGER<C49> NEW ZEALAND EQUIPMENT(PK5) EXC. POWER WINDOW<A30>	8-97165-635-0	01	1	9804-9909	●		●			●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) REAR DEFOGGER<C49> NEW ZEALAND EQUIPMENT(PK5) EXC. POWER WINDOW<A30>	8-97217-390-2	01	1	9910-	●		●			●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) GRADE S(RBA) EXC. POWER WINDOW<A30>,AUSTRALIAN EQUIPMENT(RR3)	8-97178-679-2	01	1	9804-9908		●	●		●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) GRADE S(RBA) EXC. POWER WINDOW<A30>,AUSTRALIAN EQUIPMENT(RR3)	8-97238-769-0	01	1	9909-9909		●	●		●	●	●	●
11	02.480 HARNESS; BODY 6VD1 ENG(RLV) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW<A30>	8-97217-392-2	01	1	9910-0012	●	●	●	●	●	●
11	02.480 HARNESS; BODY 6VD1 ENG(RLV) AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3) EXC. POWER WINDOW<A30>	8-97260-814-1	01	1	0101-	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97165-632-0	01	1	9804-9909		●	●		●	●	●	●
11	02.480 HARNESS; BODY 4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97217-370-1	01	1	9910-0001		●	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JA1 ENG(RLE),4JB1 ENG(RLF) GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3), EAST MALAYSIA EQUIPMENT(PM6), AUSTRALIAN EQUIPMENT(RR3),WEST MALAYSIA E QUIPMENT(S3D)	8-97217-370-1	01	1	0002-0012		●	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. POWER WINDOW<A30>,UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQU IPMENT(PM6),AUSTRALIAN EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-97217-370-1	01	1	0101-0101	●	●	●	●	●	●	●	●
11	02.480 HARNESS; BODY AIR BAG DRIVER(AJ3) POWER WINDOW<A30> UNITED KINGDOM EQUIPMENT(EK3) AIR BAG PASSENGER(7FA)	8-97227-325-2	01	1	9910-0012		●	●	●	●	●
11	02.480 HARNESS; BODY AIR BAG DRIVER(AJ3) POWER WINDOW<A30> UNITED KINGDOM EQUIPMENT(EK3) AIR BAG PASSENGER(7FA)	8-97260-828-1	01	1	0101-		●	●	●	●	●
11	02.480 HARNESS; BODY AIR BAG DRIVER(AJ3) POWER WINDOW<A30> UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA)	8-97227-326-2	01	1	9910-0012		●	●	●	●	●
11	02.480 HARNESS; BODY AIR BAG DRIVER(AJ3) POWER WINDOW<A30> UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA)	8-97260-829-1	01	1	0101-		●	●	●	●	●
11	02.480 HARNESS; BODY AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) EXC. POWER WINDOW<A30>, TACHOMETER<U16>,AIR BAG PASSENGER(7FA)	8-97227-323-2	01	1	9910-0012		●	●	●	●	●
11	02.480 HARNESS; BODY POWER WINDOW<A30> UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3)	8-97260-827-1	01	1	0101-		●	●	●	●	●
11	02.480 HARNESS; BODY AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. POWER WINDOW<A30>,AIR BAG PASSENGER(7FA)	8-97231-075-1	01	1	9910-0012		●	●	●	●	●
11	02.480 HARNESS; BODY AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. POWER WINDOW<A30>,AIR BAG PASSENGER(7FA)	8-97260-823-1	01	1	0101-		●	●	●	●	●
11	02.480 HARNESS; BODY UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,TACHOMETER<U16>,AIR BAG PAS SENGER(7FA)	8-97227-324-2	01	1	9910-0012		●	●	●	●	●
11	02.480 HARNESS; BODY UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,TACHOMETER<U16>,AIR BAG PAS SENGER(7FA)	8-97260-824-1	01	1	0101-		●	●	●	●	●
11	02.480 HARNESS; BODY UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,AIR BAG PASSENGER(7FA)	8-97231-076-1	01	1	9910-0012		●	●	●	●	●
11	02.480 HARNESS; BODY UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,AIR BAG PASSENGER(7FA)	8-97260-825-1	01	1	0101-		●	●	●	●	●
11	02.480 HARNESS; BODY UNITED KINGDOM EQUIPMENT(EK3)	8-97165-626-2	01	1	9804-9909		●	●		●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>	8-97217-388-1	01	1	9910-9910	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>	8-97217-388-1	01	1	9911-0012	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>	8-97260-821-1	01	1	0101-0109	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JH1 ENG(RJX),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>	8-97260-821-1	01	1	0110-	●	●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) GRADE S(RBA) AUSTRALIAN EQUIPMENT(RR3) EXC. POWER WINDOW<A30>	8-97178-676-2	01	1	9804-9908		●	●		●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) GRADE S(RBA) AUSTRALIAN EQUIPMENT(RR3) EXC. POWER WINDOW<A30>	8-97238-764-0	01	1	9909-9909		●	●		●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) GRADE S(RBA) EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97178-679-2	01	1	9910-0012		●	●		●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) EXC. POWER WINDOW<A30>,AUSTRALIAN EQUIPMENT(RR3)	8-97178-679-3	01	1	0101-	●	●	●		●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) GRADE S(RBA) AUSTRALIAN EQUIPMENT(RR3) EXC. REAR DEFOGGER<C49>	8-97178-676-2	01	1	9910-0012		●	●		●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,REAR DEFOGGER<C49>	8-97260-811-1	01	1	0101-0101	●	●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) GRADE S(RBA) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,REAR DEFOGGER<C49>	8-97260-811-1	01	1	0101-0109		●	●	●	●	●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT) GRADE S(RBA) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,REAR DEFOGGER<C49>	8-97260-811-1	01	1	0110-		●	●		●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) GRADE S(RBA) AUSTRALIAN EQUIPMENT(RR3) EXC. POWER WINDOW<A30>	8-97165-629-0	01	1	9804-9909		●	●		●	●
11	02.480 HARNESS; BODY 6VD1 ENG(RLV) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> AUSTRALIAN EQUIPMENT(RR3)	8-97217-391-2	01	1	9910-0012	●	●	●	●	●	●
11	02.480 HARNESS; BODY 6VD1 ENG(RLV) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> AUSTRALIAN EQUIPMENT(RR3)	8-97260-813-1	01	1	0101-	●	●	●	●	●	●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) GRADE S(RBA) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97253-981-0	01	1	0002-0008		●	●			●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) GRADE S(RBA) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97253-981-0	01	1	0009-0012		●	●	●		●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) GRADE S(RBA) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) EXC. POWER WINDOW<A30>	8-97253-981-1	01	1	0101-		●	●	●		●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) GRADE S(RBA) REAR DEFOGGER<C49> AUSTRALIAN EQUIPMENT(RR3)	8-97227-594-1	01	1	9903-9908			●			●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) GRADE S(RBA) REAR DEFOGGER<C49> AUSTRALIAN EQUIPMENT(RR3)	8-97238-801-0	01	1	9909-9909			●			●
11	02.480 HARNESS; BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) GRADE S(RBA) AUSTRALIAN EQUIPMENT(RR3) REAR DEFOGGER<C49>	8-97227-594-1	01	1	9910-0012			●	●		●
11	02.480 HARNESS; BODY POWER WINDOW<A30> UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>	8-97260-826-1	01	1	0101-0203		●	●	●	●	●
11	02.480 HARNESS; BODY POWER WINDOW<A30> UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>	8-97351-696-0	01	1	0204-		●	●	●	●	●
11	02.480 HARNESS; BODY 4JH1 ENG(RJX) A/T AISIN(RMD) AIR BAG DRIVER(AJ3) POWER WINDOW<A30>	8-97307-233-0	01	1	0110-			●			●
11	02.480 HARNESS; BODY 4JH1 ENG(RJX) A/T AISIN(RMD) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW<A30>	8-97307-234-0	01	1	0110-			●			●
11	02.480 HARNESS; BODY 4JH1 ENG(RJX) A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>	8-97307-236-0	01	1	0110-			●			●
11	02.480 HARNESS; BODY 4JH1 ENG(RJX) A/T AISIN(RMD) POWER WINDOW<A30> EXC. AIR BAG DRIVER(AJ3)	8-97307-235-0	01	1	0110-			●			●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) GRADE S(RBA) AUSTRALIAN EQUIPMENT(RR3)	8-97217-376-1	01	1	9910-0012					●
11	02.480 HARNESS; BODY 4JB1 ENG(RLF) GRADE S(RBA) AUSTRALIAN EQUIPMENT(RR3)	8-97260-817-1	01	1	0101-					●
18	02.480 HARNESS; DOOR POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>	8-97149-916-2	01	1	9804-	●	●	●	●	●	●
18	02.480 HARNESS; DOOR POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4>	8-97149-915-2	01	1	9804-	●	●	●	●	●	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW<A30>	8-97181-137-1	02	1	9804-	●	●	●	●	●	●
18	02.480 HARNESS; DOOR	8-97181-137-1	02	1	9804-							●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW<A30>	8-97166-696-0	01	1	9804-9909			●			●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW<A30>	8-97166-696-2	01	1	9910-		●	●	●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW<A30>	8-97132-569-1	01	1	9804-9909			●			●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW<A30>	8-97132-569-3	01	1	9910-		●	●	●	●	●
29	02.483 COVER; FUSE BOX 4JB1 ENG(RLF),6VD1 ENG(RLV) AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3)	8-97103-389-1	01	1	9910-0012	●	●	●	●	●	●
29	02.483 COVER; FUSE BOX AIR BAG DRIVER(AJ3) POWER WINDOW<A30> UNITED KINGDOM EQUIPMENT(EK3)	8-97103-389-1	01	1	9910-0012		●	●	●	●	●
29	02.483 COVER; FUSE BOX AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) EXC. POWER WINDOW<A30>,AIR BAG PASSENGER(7FA)	8-97103-389-1	01	1	9910-0012		●	●	●	●	●
29	02.483 COVER; FUSE BOX 4JB1 ENG(RLF),6VD1 ENG(RLV) AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3)	8-97103-389-1	01	1	0101-0109	●	●	●	●	●	●
29	02.483 COVER; FUSE BOX AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. POWER WINDOW<A30>,AIR BAG PASSENGER(7FA)	8-97103-389-1	01	1	0101-0109		●	●	●	●	●
29	02.483 COVER; FUSE BOX AIR BAG DRIVER(AJ3) POWER WINDOW<A30> UNITED KINGDOM EQUIPMENT(EK3)	8-97103-389-1	01	1	0101-0109		●	●	●	●	●
29	02.483 COVER; FUSE BOX 4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3)	8-97103-389-1	01	1	0110-	●	●	●	●	●	●
29	02.483 COVER; FUSE BOX AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. POWER WINDOW<A30>,AIR BAG PASSENGER(7FA)	8-97103-389-1	01	1	0110-		●	●	●	●	●
29	02.483 COVER; FUSE BOX AIR BAG DRIVER(AJ3) POWER WINDOW<A30> UNITED KINGDOM EQUIPMENT(EK3)	8-97103-389-1	01	1	0110-		●	●	●	●	●
50	08.965 FUSE; BODY HARNESS 10A MINI RED	8-97062-022-0	AR	1	9804-	●	●	●	●	●	●	●	●
50	08.965 FUSE; BODY HARNESS 15A MINI BLUE	8-97062-023-0	AR	1	9804-	●	●	●	●	●	●	●	●
50	08.965 FUSE; BODY HARNESS 20A MINI YELLOW	8-97062-024-0	AR	1	9804-	●	●	●	●	●	●	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP RR COMB LAMP VERTICAL<T98> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97147-709-0	01	1	9804-	●	●	●	●	●	●	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),RR COMB LAMP VERTICAL<T98>	8-97147-714-0	01	1	9804-	●	●	●	●	●	●	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP RR BODY FLAT BED<RS6>	8-97147-714-0	01	1	9804-		●
171	02.596 HARNESS; CABLE,TAIL LAMP AUSTRALIAN EQUIPMENT(RR3) EXC. HONG KONG EQUIPMENT(PQ1),RR BODY FLAT BED<RS6>,RR COMB LAMP VERTI CAL<T98>	8-97147-712-0	01	1	9804-9909	●	●	●	●	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP HONG KONG EQUIPMENT(PQ1) EXC. RR BODY FLAT BED<RS6>,RR COMB LAMP VERTICAL<T98>	8-97147-712-0	01	1	9804-9909		●			●	●
171	02.596 HARNESS; CABLE,TAIL LAMP UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR COMB LAMP VERTICAL<T98>	8-97147-712-0	01	1	9910-	●	●	●	●	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP AUSTRALIAN EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98> EXC. HONG KONG EQUIPMENT(PQ1)	8-97147-711-0	01	1	9804-9909	●	●	●	●	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP HONG KONG EQUIPMENT(PQ1) RR COMB LAMP VERTICAL<T98>	8-97147-711-0	01	1	9804-9909		●			●	●
171	02.596 HARNESS; CABLE,TAIL LAMP UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) RR COMB LAMP VERTICAL<T98>	8-97147-711-0	01	1	9910-	●	●	●	●	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP UNITED KINGDOM EQUIPMENT(EK3) RR COMB LAMP VERTICAL<T98> EXC. HONG KONG EQUIPMENT(PQ1)	8-97149-570-0	01	1	9804-9909		●	●		●	●
171	02.596 HARNESS; CABLE,TAIL LAMP UNITED KINGDOM EQUIPMENT(EK3) EXC. RR COMB LAMP VERTICAL<T98>	8-97147-715-0	01	1	9804-9909		●	●		●	●
226	02.480 HARNESS; RR DOOR CONVENIENT PACKAGE<6QZ>	8-97188-858-0	02	1	9804-9909			●			●
226	02.480 HARNESS; RR DOOR POWER WINDOW<A30>	8-97188-858-1	02	1	9910-			●			●
308	02.559 BRACKET; CONNECTOR POWER WINDOW<A30>	8-97102-552-0	02	1	9804-	●	●	●	●	●	●
314	02.510 RESISTOR; HARNESS AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA)	8-97133-042-0	01	1	9910-0012		●	●	●	●	●
314	02.510 RESISTOR; HARNESS AIR BAG DRIVER(AJ3) POWER WINDOW<A30> UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA)	8-97133-042-0	01	1	0101-		●	●	●	●	●
314	02.510 RESISTOR; HARNESS AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. POWER WINDOW<A30>,AIR BAG PASSENGER(7FA)	8-97133-042-0	01	1	0101-		●	●	●	●	●
347	02.480 HARNESS; CABLE,RR BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. POWER WINDOW<A30>	8-97178-682-2	01	1	9804-9909	●	●	●	●	●	●	●	●
347	02.480 HARNESS; CABLE,RR BODY EXC. POWER WINDOW<A30>,AUSTRALIAN EQUIPMENT(RR3)	8-97178-682-3	01	1	9910-	●
347	02.480 HARNESS; CABLE,RR BODY	8-97178-682-3	01	1	9910-							●	●
347	02.480 HARNESS; CABLE,RR BODY EXC. POWER WINDOW<A30>,UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIAN EQUIPMENT(RR3)	8-97178-682-3	01	1	9910-		●	●	●	●	●
347	02.480 HARNESS; CABLE,RR BODY 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97142-240-1	01	1	9804-9909	●	●		●	●		●	●
347	02.480 HARNESS; CABLE,RR BODY 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. POWER WINDOW<A30>,UNITED KINGDOM EQUIPMENT(EK3)	8-97142-240-1	01	1	9804-9909			●			●
347	02.480 HARNESS; CABLE,RR BODY POWER WINDOW<A30>	8-97231-009-1	01	1	9910-			●			●
347	02.480 HARNESS; CABLE,RR BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30>	8-97178-684-1	01	1	9804-9909	●	●		●	●
347	02.480 HARNESS; CABLE,RR BODY POWER WINDOW<A30>	8-97217-472-1	01	1	9910-	●	●		●	●
347	02.480 HARNESS; CABLE,RR BODY UNITED KINGDOM EQUIPMENT(EK3)	8-97141-738-1	01	1	9804-9909		●	●		●	●
347	02.480 HARNESS; CABLE,RR BODY AUSTRALIAN EQUIPMENT(RR3) EXC. POWER WINDOW<A30>	8-97178-681-3	01	1	9910-	●	●	●	●	●	●
347	02.480 HARNESS; CABLE,RR BODY 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER WINDOW<A30>	8-97188-857-0	01	1	9804-9909			●			●
347	02.480 HARNESS; CABLE,RR BODY 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30>	8-97188-855-0	01	1	9804-9909			●			●
347	02.480 HARNESS; CABLE,RR BODY UNITED KINGDOM EQUIPMENT(EK3) EXC. POWER WINDOW<A30>	8-97217-424-2	01	1	9910-		●	●	●	●	●
548	02.483 GROMMET EXC. POWER WINDOW<A30> 04.785	8-94126-868-0	02	1	9804-			●			●
562	02.559 BOLT; GRAND,SRS AIR BAG DRIVER(AJ3) M6X14 W/LK&PL WASHER	8-97119-479-0	01	1	9910-	●	●	●	●	●	●

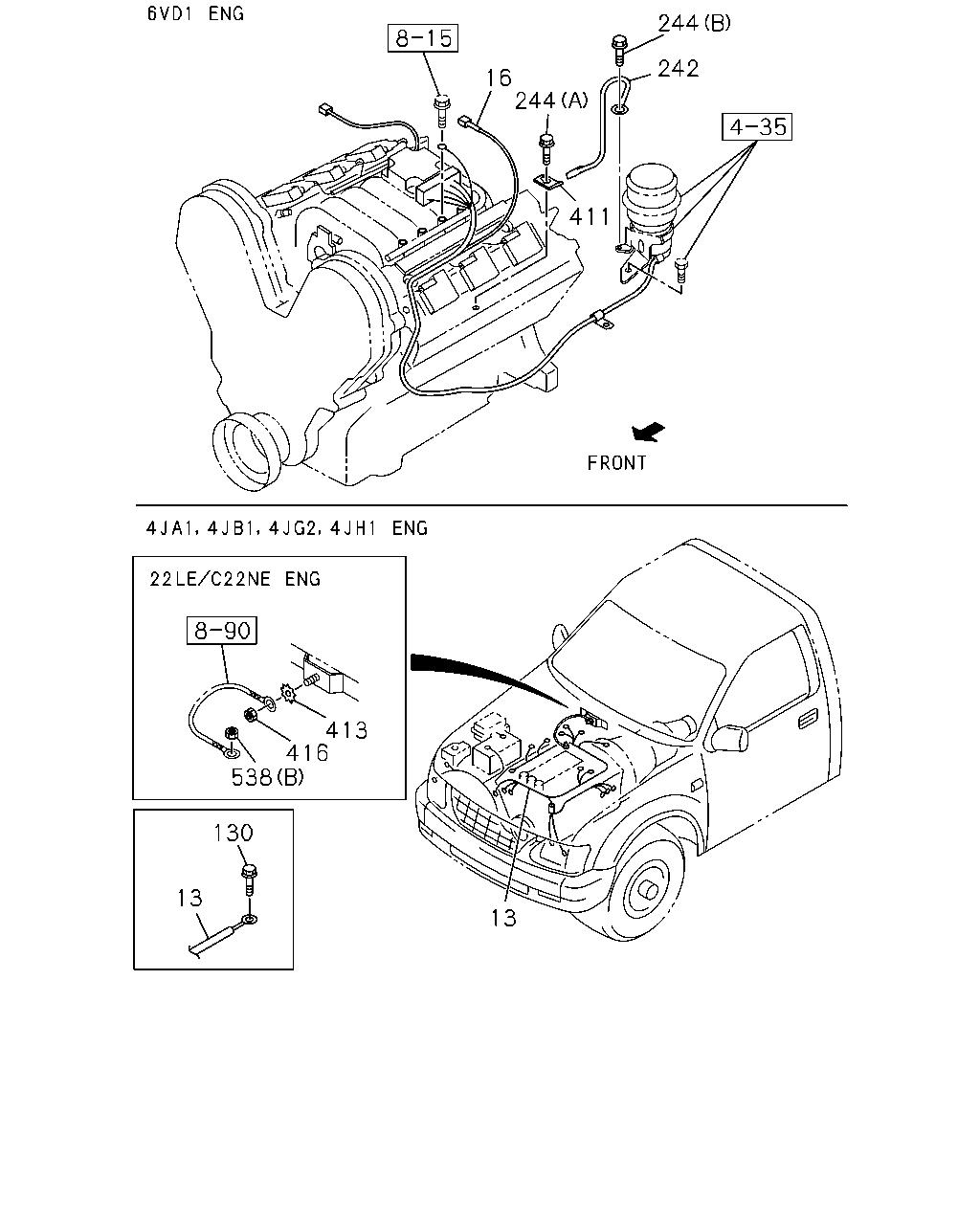

244 242 16 244 411 413 416 538 130 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	02.525 HARNESS; ENG 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97165-597-3	01	1	9804-	●	●	●	●	●	●	●	●
13	02.525 HARNESS; ENG 4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97165-646-2	01	1	9804-9909	●	●	●	●	●	●	●	●
13	02.525 HARNESS; ENG 4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN)	8-97165-646-2	01	1	9910-0005	●	●	●	●	●	●	●	●
13	02.525 HARNESS; ENG 4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97165-646-2	01	1	9910-0005	●	●	●	●	●	●
13	02.525 HARNESS; ENG 4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97165-646-2	01	1	0006-0012	●	●	●	●	●	●	●	●
13	02.525 HARNESS; ENG 4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6), AUSTRALIAN EQUIPMENT(RR3),WEST MALAY SIA EQUIPMENT(S3D)	8-97165-646-3	01	1	0101-	●	●	●	●	●	●	●	●
13	02.525 HARNESS; ENG 4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41) TURBOCHARGER<K51> AUSTRALIAN EQUIPMENT(RR3)	8-97228-713-3	01	1	0101-	●	●	●	●	●	●
13	02.525 HARNESS; ENG 4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97249-213-5	01	1	0110-		●	●	●	●	●
13	02.525 HARNESS; ENG 4JH1 ENG(RJX) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97255-015-5	01	1	0110-		●	●	●	●	●
13	02.525 HARNESS; ENG 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3)	8-97165-596-1	01	1	9804-0012		●	●		●	●
13	02.525 HARNESS; ENG 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3)	8-97261-563-1	01	1	0101-0109		●	●		●	●
13	02.525 HARNESS; ENG 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) EXC. GENERATOR 12V80A(K97),HONG KONG EQUIPMENT(PQ1),CHARGE AIR COOLER<6PL>	8-97261-563-1	01	1	0110-		●	●	●	●	●
13	02.525 HARNESS; ENG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) SINGAPORE EQUIPMENT(S9Y)	8-97160-415-2	01	1	0103-		●	●		●	●
13	02.525 HARNESS; ENG 4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97172-586-2	01	1	9804-9909		●		●	●	●
13	02.525 HARNESS; ENG 4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97172-586-2	01	1	9910-0008		●		●		●
13	02.525 HARNESS; ENG 4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97172-586-2	01	1	0009-		●	●	●		●
13	02.525 HARNESS; ENG 4JH1 ENG(RJX) A/T AISIN(RMD) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97255-016-6	01	1	0110-			●			●
13	02.525 HARNESS; ENG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97160-415-2	01	1	9910-0012				●	●	●
13	02.525 HARNESS; ENG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97261-551-0	01	1	0101-0102		●	●	●	●	●
13	02.525 HARNESS; ENG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. SINGAPORE EQUIPMENT(S9Y)	8-97261-551-1	01	1	0103-		●	●	●	●	●
16	02.525 HARNESS; ENG,ECGI 22LE/C22NE ENG(RJT)	8-92063-679-0	01	1	9804-	●	●	●		●	●	●	●
16	02.525 HARNESS; ENG,ECGI 6VD1 ENG(RLV) A/T THM(RMQ)	8-97180-303-4	01	1	9804-0012	●	●	●
16	02.525 HARNESS; ENG,ECGI 6VD1 ENG(RLV) A/T THM(RMQ)	8-97180-303-7	01	1	0101-	●	●	●	●	●	●
16	02.525 HARNESS; ENG,ECGI 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97180-043-7	01	1	9804-	●	●	●	●	●	●
130	02.559 BOLT; HARNESS EARTH 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 00.662 M8X14 FLANGE	0-28080-814-0	01	1	0110-		●	●	●	●	●
130	02.559 BOLT; HARNESS EARTH 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.662 M8X14 FLANGE	0-28080-814-0	01	1	0110-		●	●	●	●	●
242	02.559 CABLE; BONDING,ENG TO BODY 6VD1 ENG(RLV)	8-97091-683-0	01	1	9804-	●	●	●	●	●	●
244	02.559 BOLT; GRAND BONDING CABLE 6VD1 ENG(RLV) 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9804-	●	●	●	●	●	●
244	02.559 BOLT; GRAND BONDING CABLE 6VD1 ENG(RLV) (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9804-	●	●	●	●	●	●
411	02.559 TERMINAL; MALE,EARTH BONDING CAB 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 02.530	8-94102-644-0	01	1	9804-	●	●	●	●	●	●	●	●
413	02.559 WASHER; LK,TERMINAL 22LE/C22NE ENG(RJT) 00.002 ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	01	1	9804-	●	●	●		●	●	●	●
416	02.559 NUT; TERMINAL 22LE/C22NE ENG(RJT) 07.829 M6 FLANGE	5-09440-004-0	01	1	9804-	●	●	●		●	●	●	●
538	02.483 NUT 22LE/C22NE ENG(RJT) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9804-	●	●	●		●	●	●	●
538	02.483 NUT 10.147 (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	9804-9909	●			●
538	02.483 NUT INTERMITTENT WIPER<C13> 10.147 (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	9804-9909		●	●		●	●	●	●
538	02.483 NUT 10.147 (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	9910-	●
538	02.483 NUT INTERMITTENT WIPER<C13> 10.147 (A) M6 W/DISHED WASHER	8-94423-325-0	01	1	9910-		●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
