◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#45753) — 36 parça

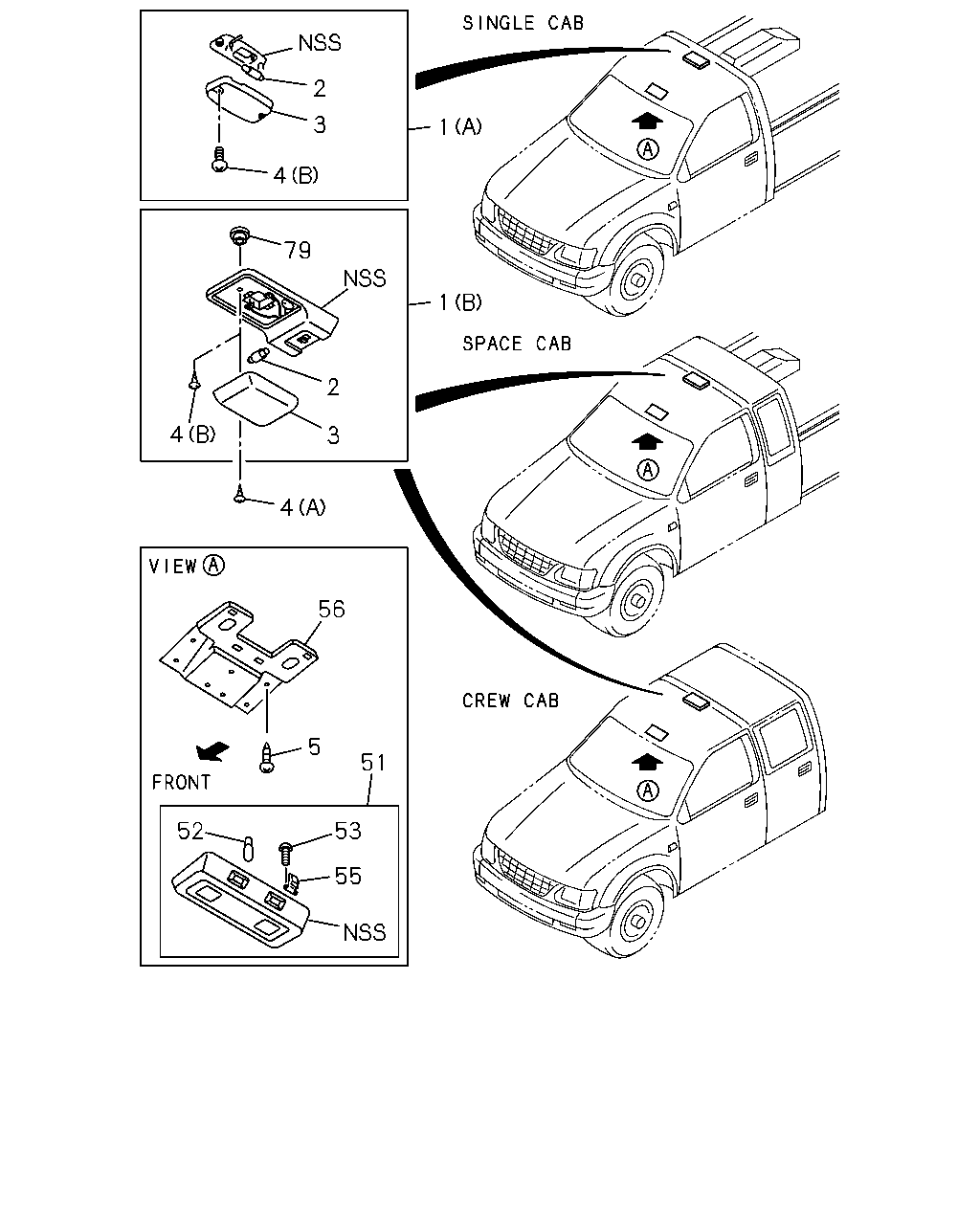

çizim 72840
2 3 1 4 79 1 2 4 3 4 56 5 51 52 53 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.494 LAMP ASM; ROOM
HEAD LINING FOR KD<6PJ> (B) 		8-94340-754-2 01 1 9804-0005 ● ●
1 16.494 LAMP ASM; ROOM
(B) 		8-94340-754-2 01 1 9804-0005 ● ●
1 16.494 LAMP ASM; ROOM
HEAD LINING FOR KD<6PJ> (B) BLACK 		8-97296-577-0 01 1 0006- ● ●
1 16.494 LAMP ASM; ROOM
(B) BLACK 		8-97296-577-0 01 1 0006- ● ●
1 16.494 LAMP ASM; ROOM
EXC. HEAD LINING FOR KD<6PJ> (B) 		8-97128-353-1 01 1 9804- ● ●
1 16.494 LAMP ASM; ROOM
(A) 		8-97128-354-0 01 1 9804- ● ● ● ●
2 08.991 BULB; ROOM LAMP
HEAD LINING FOR KD<6PJ> 12V 10W 		5-82194-015-0 01 1 9804-0005 ● ●
2 08.991 BULB; ROOM LAMP
12V 10W 		5-82194-015-0 01 1 9804-0005 ● ●
2 08.991 BULB; ROOM LAMP
EXC. HEAD LINING FOR KD<6PJ> 12V 10W 		8-97128-771-0 01 1 9804-0005 ● ●
2 08.991 BULB; ROOM LAMP
12V 10W 		8-97128-771-0 01 1 9804-0005 ● ● ● ●
2 08.991 BULB; ROOM LAMP
12V 10W 		8-97128-771-0 01 1 0006- ● ● ● ● ● ● ● ●
3 16.495 LENS; ROOM LAMP
HEAD LINING FOR KD<6PJ> 		8-97044-784-0 01 1 9804- ● ●
3 16.495 LENS; ROOM LAMP 8-97044-784-0 01 1 9804- ● ●
3 16.495 LENS; ROOM LAMP
EXC. HEAD LINING FOR KD<6PJ> 11.928 		8-94206-208-0 01 1 9804- ● ●
3 16.495 LENS; ROOM LAMP 8-94289-167-1 01 1 9804- ● ● ● ●
4 16.495 SCREW; ROOM LAMP
HEAD LINING FOR KD<6PJ> 08.010 (A) M5X12 TAPPING 		9-07066-512-0 03 1 9804- ● ●
4 16.495 SCREW; ROOM LAMP
08.010 (A) M5X12 TAPPING 		9-07066-512-0 03 1 9804- ● ●
4 16.495 SCREW; ROOM LAMP
EXC. HEAD LINING FOR KD<6PJ> (B) 		8-97136-057-0 03 1 9804- ● ●
4 16.495 SCREW; ROOM LAMP
11.928 (B) 		8-94334-545-0 02 1 9804- ● ● ● ●
5 16.545 SCREW; SPOT LAMP
MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> 08.913 M5X12 		8-94120-094-0 02 1 9804-9909 ● ● ● ● ● ● ●
5 16.545 SCREW; SPOT LAMP
MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> 08.913 M5X12 		8-94120-094-0 02 1 9910- ● ● ● ● ● ● ● ●
51 16.494 LAMP ASM; SPOT
MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97152-775-0 01 1 9804-9909 ● ● ● ● ● ● ●
51 16.494 LAMP ASM; SPOT
MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> GRAY 		8-97152-775-1 01 1 9910- ● ● ● ● ● ● ● ●
52 08.991 BULB; SPOT LAMP
MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> 12V 5W 		8-94124-595-0 02 1 9804-9909 ● ● ● ● ● ● ●
52 08.991 BULB; SPOT LAMP
MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> 12V 5W 		8-94124-595-0 02 1 9910-0202 ● ● ● ● ● ● ● ●
52 08.991 BULB; SPOT LAMP
MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> 12V 5W 		8-97330-503-0 02 1 0203- ● ● ● ● ● ● ● ●
53 16.495 SCREW; SPRING,SPOT LAMP
MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> 		8-94323-992-0 10 1 9804-9909 ● ● ● ● ● ● ●
53 16.495 SCREW; SPRING,SPOT LAMP
MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> 		8-94323-992-0 10 1 9910- ● ● ● ● ● ● ● ●
55 16.495 SPRING; SPOT LAMP
MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> 		8-94323-991-0 04 1 9804-9909 ● ● ● ● ● ● ●
55 16.495 SPRING; SPOT LAMP
MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> 		8-94323-991-0 04 1 9910- ● ● ● ● ● ● ● ●
56 16.494 BRACKET; LAMP
MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> 		8-94481-848-3 01 1 9804-9909 ● ● ● ● ● ● ●
56 16.494 BRACKET; LAMP
MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> 		8-94481-848-3 01 1 9910- ● ● ● ● ● ● ● ●
79 16.495 SPACER; ROOM LAMP,SCREW
EXC. HEAD LINING FOR KD<6PJ> 		8-97136-058-0 03 1 9804- ● ●

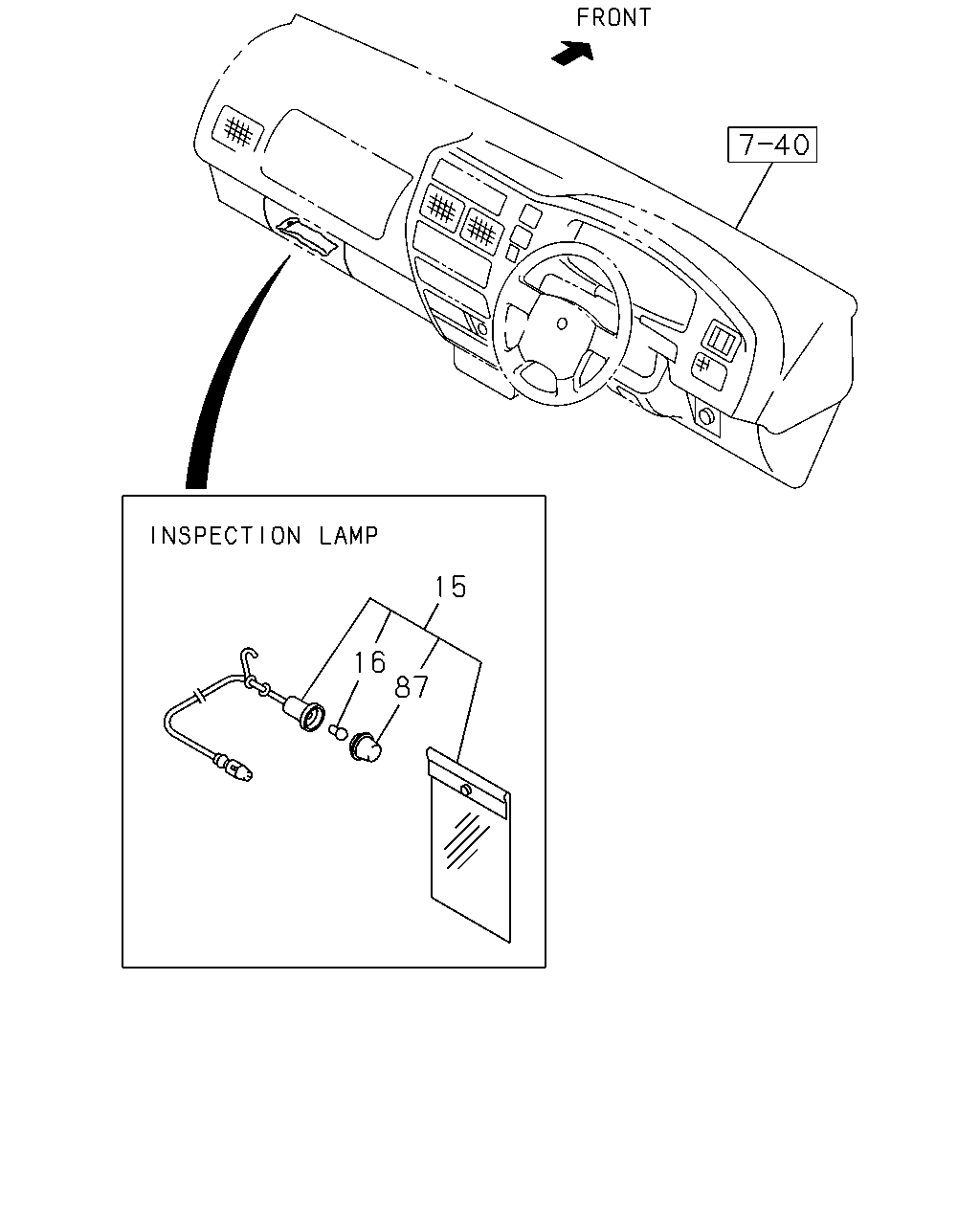

çizim 73962
15 16 87
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
15 02.490 LAMP; INSPECTION
INSPECTION LAMP<T95> 		8-94473-422-1 01 1 9804- ● ● ● ● ● ● ● ●
16 08.991 BULB; INSPECTION LAMP
INSPECTION LAMP<T95> 12V 5W 		8-94124-075-0 01 1 9804- ● ● ● ● ● ● ● ●
87 08.991 LENS; INSPECTION LAMP
INSPECTION LAMP<T95> 		8-97092-066-0 01 1 9804- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
