◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#45752) — 89 parça

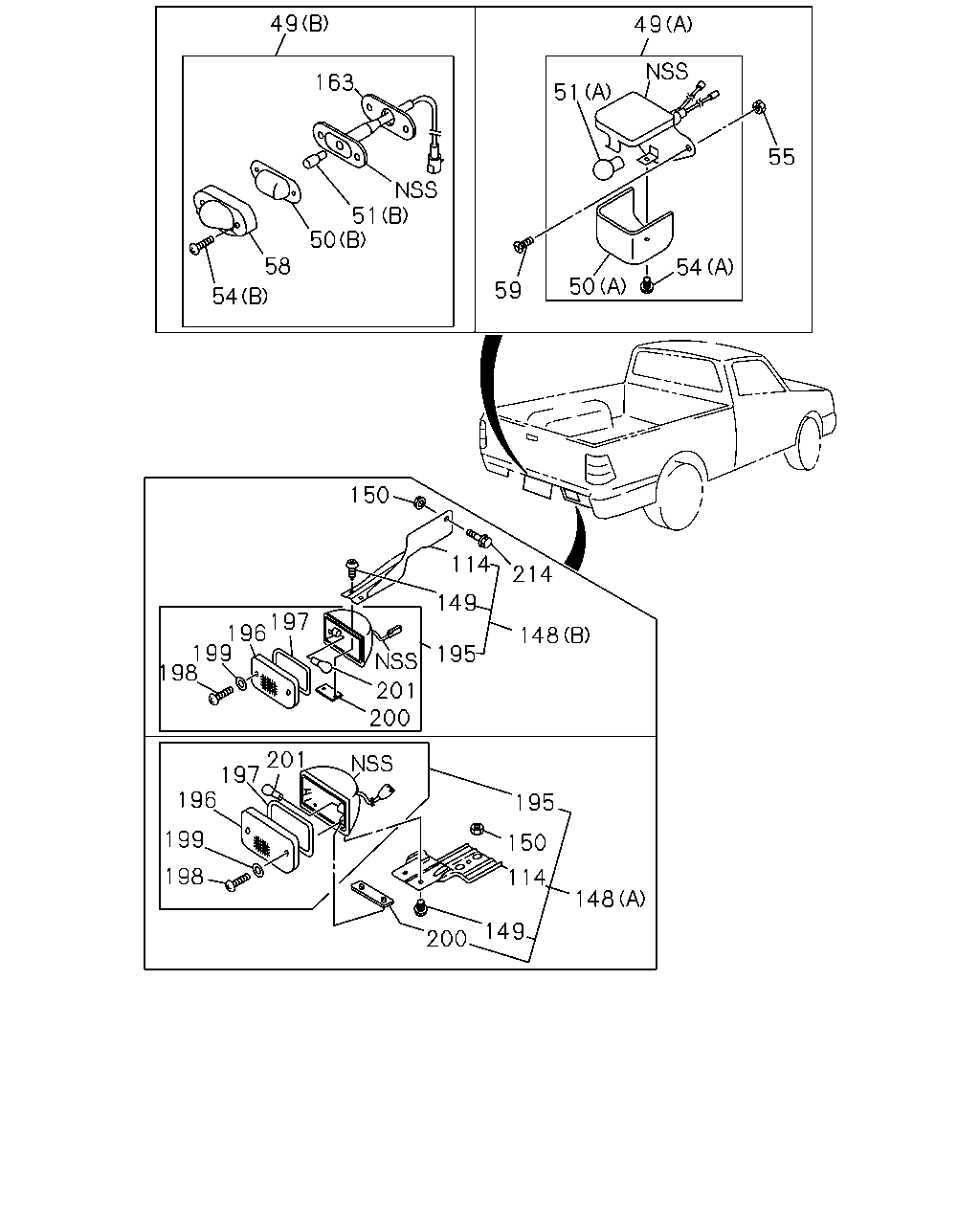

çizim 19053
49 49 163 51 55 51 50 58 54 50 59 54 150 114 214 149 197 196 199 198 148 195 201 200 201 197 196 195 199 150 198 114 148 149 200
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
49 02.700 LAMP; LICENSE PLATE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),RR BODY FLAT BED<RS6> (B) 		8-94443-186-2 01 1 9804- ● ● ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6> (B) 		8-94443-186-2 02 1 9804- ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
RR BODY FLAT BED<RS6> (A) 		8-94479-603-1 01 1 9804- ●
50 02.709 LENS; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),RR BODY FLAT BED<RS6> (B) 		8-94135-878-2 01 1 9804- ● ● ● ● ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6> (B) 		8-94135-878-2 02 1 9804- ● ● ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> (A) 		5-82125-004-0 01 1 9804- ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),RR BODY FLAT BED<RS6> (B) 12V 5W 		8-94124-595-0 01 1 9804- ● ● ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6> (B) 12V 5W 		8-94124-595-0 02 1 9804- ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> (A) 12V 7.5W 		9-82692-128-0 01 1 9804- ●
54 02.708 SCREW; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),RR BODY FLAT BED<RS6> 08.977 (B) M4X20 TAPPING STAINLESS 		0-71190-420-0 02 1 9804- ● ● ● ● ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6> 08.977 (B) M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9804- ● ● ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 02.709 (A) M4X8 		8-94419-312-0 01 1 9804- ●
55 02.708 NUT; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 09.744 M5 FLANGE 		5-09440-003-0 02 1 9804- ●
58 02.705 COVER; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),RR BODY FLAT BED<RS6> BLACK 		8-94323-724-0 01 1 9804- ● ● ● ● ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6> BLACK 		8-94323-724-0 02 1 9804- ● ● ● ● ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
RR BODY FLAT BED<RS6> 02.726 M5X12 		9-93490-512-0 02 1 9804- ●
114 02.679 BRACKET; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-330-0 01 1 9804-9909 ● ● ● ●
114 02.679 BRACKET; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-330-0 01 1 9910- ● ● ● ● ●
114 02.679 BRACKET; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-328-0 01 1 9804-9909 ● ● ● ●
114 02.679 BRACKET; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-328-0 01 1 9910- ● ● ● ● ●
148 02.679 LAMP ASM; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> (A) 		8-94313-111-1 01 1 9804-9909 ● ● ● ●
148 02.679 LAMP ASM; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> (A) 		8-94313-111-2 01 1 9910- ● ● ● ● ●
148 02.679 LAMP ASM; RR FOG
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) (B) 		8-94334-657-2 01 1 9804-9909 ● ● ● ●
148 02.679 LAMP ASM; RR FOG
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) (B) 		8-94334-657-4 01 1 9910- ● ● ● ● ●
149 02.689 SCREW; BRKT TO LAMP BODY
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 		8-94336-327-0 02 1 9804-9909 ● ● ● ●
149 02.689 SCREW; BRKT TO LAMP BODY
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 		8-94336-327-0 02 1 9910- ● ● ● ● ●
150 02.664 NUT; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9804-9909 ● ● ● ●
150 02.664 NUT; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9910- ● ● ● ● ●
150 02.664 NUT; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 09.011 M12 FLANGE 		8-97028-764-0 02 1 9804-9909 ● ● ● ●
150 02.664 NUT; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 09.011 M12 FLANGE 		8-97028-764-0 02 1 9910- ● ● ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),RR BODY FLAT BED<RS6> 		8-94232-866-0 01 1 9804- ● ● ● ● ● ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6> 		8-94232-866-0 02 1 9804- ● ● ● ● ● ●
195 02.679 LAMP UNIT; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-332-0 01 1 9804-9909 ● ● ● ●
195 02.679 LAMP UNIT; RR FOG
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-332-0 01 1 9910- ● ● ● ● ●
195 02.679 LAMP UNIT; RR FOG
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-322-0 01 1 9804-9909 ● ● ● ●
195 02.679 LAMP UNIT; RR FOG
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-322-0 01 1 9910- ● ● ● ● ●
196 02.679 LENS; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-331-0 01 1 9804-9909 ● ● ● ●
196 02.679 LENS; RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-331-0 01 1 9910- ● ● ● ● ●
196 02.679 LENS; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-325-0 01 1 9804-9909 ● ● ● ●
196 02.679 LENS; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-325-0 01 1 9910- ● ● ● ● ●
197 02.679 GASKET; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 		8-94336-324-0 01 1 9804-9909 ● ● ● ●
197 02.679 GASKET; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 		8-94336-324-0 01 1 9910- ● ● ● ● ●
198 02.688 SCREW; LENS TO BODY
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 		0-71190-416-0 02 1 9804-9909 ● ● ● ●
198 02.688 SCREW; LENS TO BODY
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 		0-71190-416-0 02 1 9910- ● ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 		8-94336-326-0 02 1 9804-9909 ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 		8-94336-326-0 02 1 9910- ● ● ● ● ●
200 02.679 PLATE; SET,RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-329-0 01 1 9804-9909 ● ● ● ●
200 02.679 PLATE; SET,RR FOG LAMP
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) RR FOG LAMP<T79> 		8-94336-329-0 01 1 9910- ● ● ● ● ●
200 02.679 PLATE; SET,RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-323-0 01 1 9804-9909 ● ● ● ●
200 02.679 PLATE; SET,RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 		8-94336-323-0 01 1 9910- ● ● ● ● ●
201 08.991 BULB; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 12V 21W 		8-94124-074-0 01 1 9804-9909 ● ● ● ●
201 08.991 BULB; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR STEP BUMPER BLACK(S2Z), REAR STEP BUMPER CHROME(VB3) 12V 21W 		8-94124-074-0 01 1 9910- ● ● ● ● ●
214 02.679 BOLT; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 07.874 M12X30 FLANGE 		0-28691-230-0 02 1 9804-9909 ● ● ● ●
214 02.679 BOLT; RR FOG LAMP
RR FOG LAMP<T79> EXC. REAR BUMPER BLACK(EY1),REAR STEP BUMPER BLACK(S2Z),REAR STEP BUMP ER CHROME(VB3),REAR BUMPER CHROME(VF1) 07.874 M12X30 FLANGE 		0-28691-230-0 02 1 9910- ● ● ● ● ●

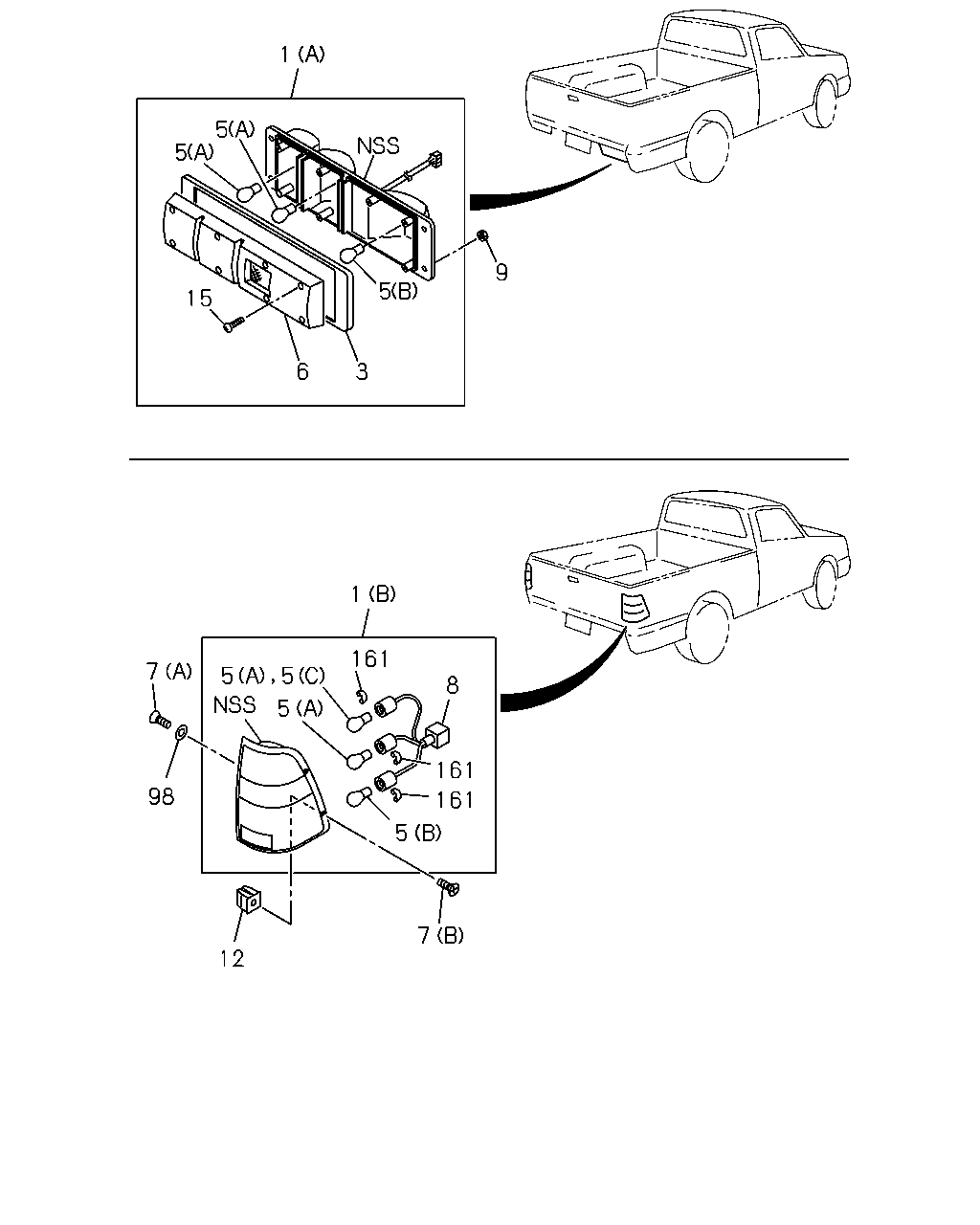

çizim 73964
1 5 5 5 9 15 6 3 1 161 7 5 8 161 161 58 98 7 12 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97137-732-0 01 1 9804- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97137-731-0 01 1 9804- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97114-450-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97228-846-0 01 1 0101- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97114-449-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97228-845-0 01 1 0101- ● ● ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 02.689 		5-82236-002-0 01 1 9804- ● ● ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 02.689 		5-82236-001-0 01 1 9804- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PU LL INNER & OUTER HOOK(7TN) (A) 12V 21W 		8-94124-074-0 04 1 9804-0008 ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) RR COMB LAMP VERTICAL<T98> (A) 12V 21W 		8-94124-074-0 04 1 9804-0008 ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (A) 12V 21W 		8-94124-074-0 04 1 0009-0012 ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 12V 21W 		8-94124-074-0 04 1 0009-0012 ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (A) 12V 21W 		8-94124-074-0 02 1 0101- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PU LL INNER & OUTER HOOK(7TN) (B) 12V 21/5W 		8-94125-959-0 02 1 9804-0008 ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) RR COMB LAMP VERTICAL<T98> (B) 12V 21/5W 		8-94125-959-0 02 1 9804-0008 ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (B) 12V 21/5W 		8-94125-959-0 02 1 0009-0012 ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 12V 21/5W 		8-94125-959-0 02 1 0009-0012 ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PU LL INNER & OUTER HOOK(7TN) (B) 12V 21/5W 		8-94125-959-0 02 1 0101- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) RR COMB LAMP VERTICAL<T98> (B) 12V 21/5W 		8-94125-959-0 02 1 0101- ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 12V 21W 		8-94124-074-0 04 1 0101- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (C) 12V 21W 		8-97179-967-0 02 1 0101- ● ● ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		5-82235-002-0 01 1 9804- ● ● ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		5-82235-001-0 01 1 9804- ● ● ● ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 09.744 (A) M5X14 TAPPING 		1-72548-072-0 04 1 9804- ● ● ● ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (B) M5X20 		8-97811-082-0 04 1 9804- ● ● ● ● ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-97166-176-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-97263-535-0 02 1 0101- ● ● ● ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 09.744 M5 FLANGE 		5-09440-003-0 08 1 9804- ● ● ● ● ● ● ● ●
12 02.664 GROMMET; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 16.588 D=7X7 L=7.5 		5-09983-007-0 04 1 9804- ● ● ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 9804- ● ● ● ● ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),RR BODY FLAT BED<RS6> BLACK 		8-94323-724-0 01 1 9804- ● ● ● ● ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6> BLACK 		8-94323-724-0 02 1 9804- ● ● ● ● ● ●
98 02.708 WASHER
RR COMB LAMP VERTICAL<T98> 16.225 ID=6 		8-94126-642-0 04 1 9804-9903 ● ● ● ● ● ● ● ●
98 02.708 WASHER
RR COMB LAMP VERTICAL<T98> 08.054 D=16 		8-94427-941-0 04 1 9904- ● ● ● ● ● ● ● ●
161 02.689 TUBE; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-97166-174-0 06 1 9804- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
