◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶

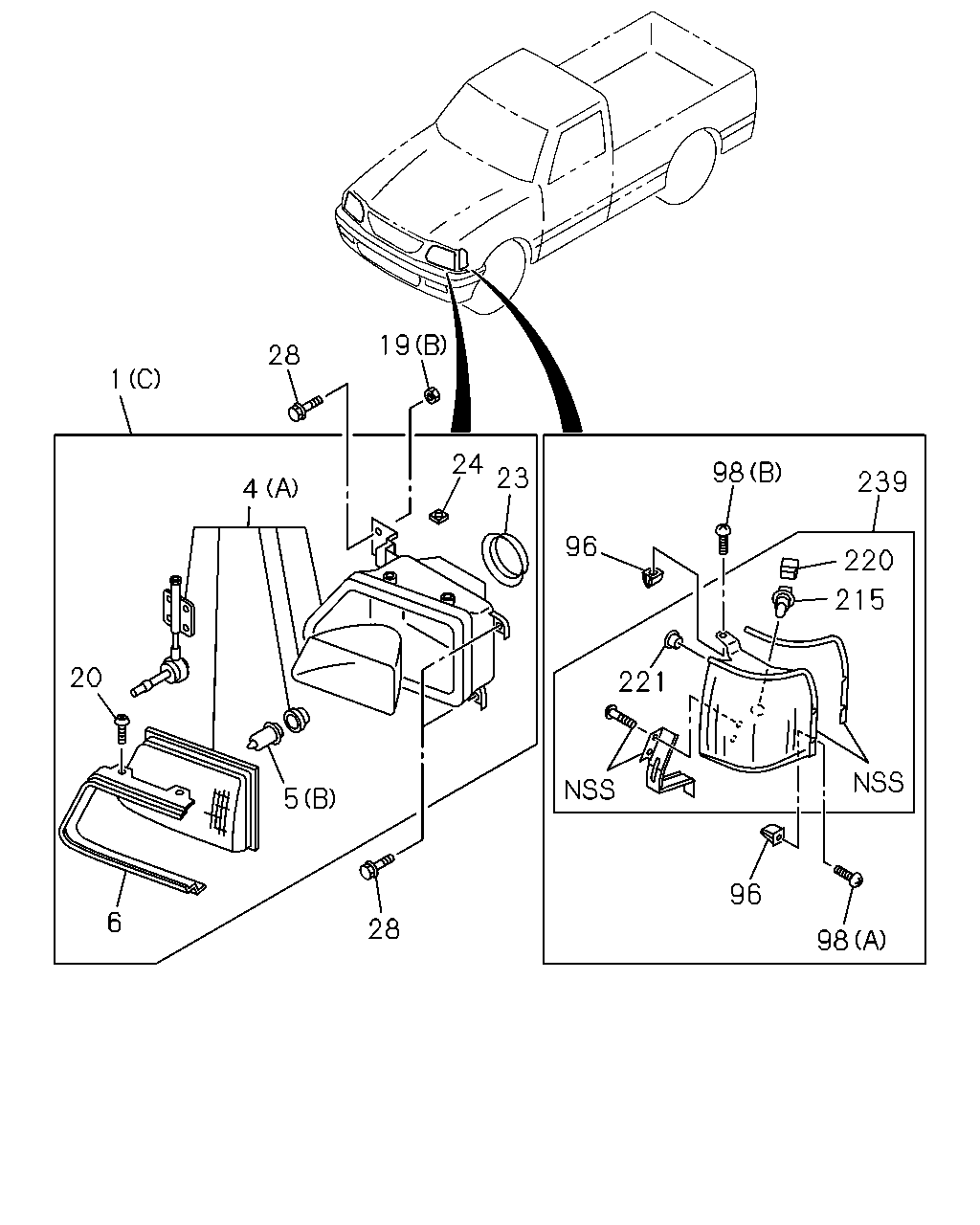

8-01 — LAMP; FRONT AND FRONT SIDE (#45751) — 261 parça

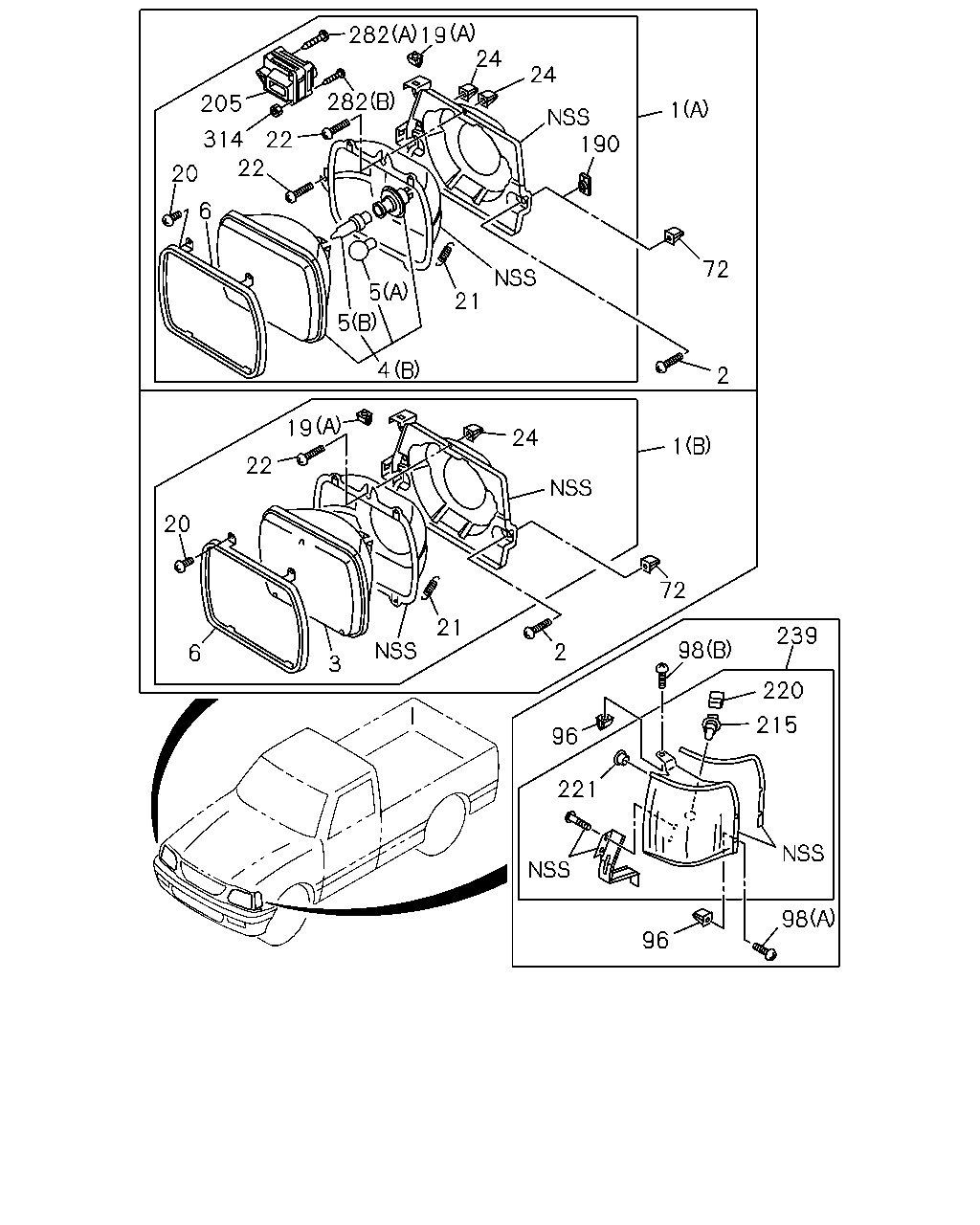

çizim 17885
24 24 22 282 205 1 190 20 6 72 5 5 21 4 2 19 24 1 22 20 72 21 239 98 2 6 3 220 215 96 221 98 96 282 19 314 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) (B) 		8-94434-562-3 01 1 9804- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) (B) 		8-94434-561-3 01 1 9804- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN H EAD LAMP<TT5> (B) 		8-94434-560-3 01 1 9804-0012 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MU LTI REFLECTOR<7YW> (B) 		8-94434-560-3 01 1 0101- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN H EAD LAMP<TT5> (B) 		8-94434-559-3 01 1 9804-0012 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MU LTI REFLECTOR<7YW> (B) 		8-94434-559-3 01 1 0101- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97162-160-0 01 1 9804-9808 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97213-006-0 01 1 9809-0012 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-505-1 01 1 0101-0108 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97310-998-1 01 1 0109- ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97162-159-0 01 1 9804-9808 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97213-005-0 01 1 9809-0012 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-504-1 01 1 0101-0108 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97310-999-1 01 1 0109- ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
AUSTRALIAN EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (A) 		8-94434-564-4 01 1 9804- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
AUSTRALIAN EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (A) 		8-94434-563-5 01 1 9804- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5> (A) 		8-97039-809-2 01 1 9804-9909 ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5> (A) 		8-97039-809-2 01 1 9910-0012 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5>, HALOGENHEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97039-809-2 01 1 0101- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5> (A) 		8-97039-808-3 01 1 9804-9909 ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5> (A) 		8-97039-808-3 01 1 9910-0012 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5>, HALOGENHEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97039-808-3 01 1 0101- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) HALOGEN HEAD LAMP<TT5> (A) 		8-97149-116-0 01 1 9804-9909 ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) HALOGEN HEAD LAMP<TT5> (A) 		8-97149-116-0 01 1 9910- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) HALOGEN HEAD LAMP<TT5> (A) 		8-97149-115-0 01 1 9804-9909 ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) HALOGEN HEAD LAMP<TT5> (A) 		8-97149-115-0 01 1 9910- ● ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.890 M5X16 TAPPING 		9-07076-516-0 06 1 9804-0012 ● ● ● ● ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 03.890 M5X16 TAPPING 		9-07076-516-0 06 1 0101- ● ● ● ● ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.890 M5X16 TAPPING 		9-07076-516-0 08 1 9804-9909 ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.890 M5X16 TAPPING 		9-07076-516-0 08 1 9910-0012 ● ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 03.890 M5X16 TAPPING 		9-07076-516-0 08 1 0101- ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
HALOGEN HEAD LAMP<TT5> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 		8-94165-479-0 02 1 9804- ● ● ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN H EAD LAMP<TT5> 		8-94165-478-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MU LTI REFLECTOR<7YW> 		8-94165-478-0 02 1 0101- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97190-777-0 01 1 9804-0012 ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97190-776-0 01 1 9804-0012 ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (B) 		8-94334-631-1 02 1 9804- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5> (B) 		8-94334-629-1 02 1 9804-9909 ● ● ● ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5> (B) 		8-94334-629-1 02 1 9910-0012 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5>, HALOGENHEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-94334-629-1 02 1 0101- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W 		8-94217-817-0 02 1 9804-0012 ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (B) 12V 60/55W 		8-94217-817-0 02 1 9804-0012 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 12V 60/55W 		8-94217-817-0 02 1 0101- ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (B) 12V 60/55W 		8-94217-817-0 02 1 0101- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 9804-9909 ● ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 9910-0012 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5>, HALOGENHEAD LAMPS MULTI REFLECTOR<7YW> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 0101- ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.731 		8-94228-905-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 02.731 		8-94228-905-0 02 1 0101- ● ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-340-0 01 1 9804-0012 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-340-0 01 1 0101- ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-339-0 01 1 9804-0012 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-339-0 01 1 0101- ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-94324-115-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (A) 		8-94324-115-0 02 1 0101- ● ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) EXC. KD PREPARATORY PACK<6HF> 02.343 (C) M5 FLANGE 		8-97068-819-0 04 1 0010-0109 ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 02.343 (C) M5 FLANGE 		8-97068-819-0 04 1 0110- ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9804-0012 ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0101- ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94324-114-0 08 1 9804-0012 ● ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 02.737 		8-94324-114-0 08 1 0101- ● ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-336-0 10 1 9804-0012 ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 10 1 0101-0202 ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 08 1 0203- ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94324-114-0 12 1 9804-9909 ● ● ● ●
20 02.736 SCREW; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 02.737 		8-94324-114-0 12 1 9910-0012 ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 02.737 		8-94324-114-0 12 1 0101- ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94153-168-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-94153-168-0 02 1 0101- ● ● ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97042-577-0 04 1 9804-9909 ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 		8-97042-577-0 04 1 9910-0012 ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 		8-97042-577-0 04 1 0101- ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-97023-135-0 04 1 9804-0012 ● ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 02.737 		8-97023-135-0 04 1 0101- ● ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-97042-612-0 04 1 9804-9909 ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 02.737 		8-97042-612-0 04 1 9910-0012 ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 02.737 		8-97042-612-0 04 1 0101- ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 		5-09470-004-0 04 1 9804-0012 ● ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 02.726 		5-09470-004-0 04 1 0101- ● ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-491-0 02 1 9804-0012 ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-491-0 02 1 0101- ● ● ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMP RECTANGULAR<TR4> D=7X7 L=7.5 		8-94291-927-0 06 1 9804-0012 ● ● ● ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> D=7X7 L=7.5 		8-94291-927-0 06 1 0101- ● ● ● ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> D=7X7 L=7.5 		8-94291-927-0 08 1 9804-9909 ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> D=7X7 L=7.5 		8-94291-927-0 08 1 9910-0012 ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> D=7X7 L=7.5 		8-94291-927-0 08 1 0101- ● ● ● ● ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.708 M4 		5-09470-002-0 04 1 9804- ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(B) M4X16 		8-97090-762-0 02 1 9804-9903 ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
02.587 (B) M4X16 W/WASHER 		8-97809-122-0 02 1 9904- ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(A) M4X25 		8-97165-952-0 04 1 9804- ● ● ● ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97042-578-0 02 1 9804-9909 ● ● ● ●
190 02.727 RETAINER; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 		8-97042-578-0 02 1 9910-0012 ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 		8-97042-578-0 02 1 0101- ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97113-326-0 02 1 9804-9909 ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 		8-97113-326-0 02 1 9910-0012 ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 		8-97113-326-0 02 1 0101- ● ● ● ● ●
215 08.991 BULB; FRT CLEARANCE LAMP
12V 5W 		8-94124-595-0 02 1 9804- ● ● ● ● ● ● ● ●
220 02.586 SOCKET; CLEARANCE LAMP 8-97167-687-0 02 1 9804- ● ● ● ● ● ● ● ●
221 02.586 TUBE; COVER,CLEARANCE LAMP
02.689 		8-97166-174-0 02 1 9804- ● ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 02.585 		8-97111-855-0 01 1 0101- ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 0101- ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 02.585 		8-97111-854-0 01 1 0101- ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 0101- ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-039-0 01 1 0101- ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-038-0 01 1 0101- ● ● ● ● ● ● ●
282 02.726 SCREW; ACTUATOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97015-555-0 02 1 9804-9909 ● ● ● ●
282 02.726 SCREW; ACTUATOR
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97015-555-0 02 1 9910-0012 ● ● ● ● ●
282 02.726 SCREW; ACTUATOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (A) 		8-97015-555-0 02 1 0101- ● ● ● ● ●
282 02.726 SCREW; ACTUATOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) M4X35 		8-97042-611-0 04 1 9804-9909 ● ● ● ●
282 02.726 SCREW; ACTUATOR
UNITED KINGDOM EQUIPMENT(EK3) (B) M4X35 		8-97042-611-0 04 1 9910-0012 ● ● ● ● ●
282 02.726 SCREW; ACTUATOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (B) M4X35 		8-97042-611-0 04 1 0101- ● ● ● ● ●
314 02.727 NUT; ACTUATOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 09.262 M4 		9-99111-404-0 04 1 9804-9909 ● ● ● ●
314 02.727 NUT; ACTUATOR
UNITED KINGDOM EQUIPMENT(EK3) 09.262 M4 		9-99111-404-0 04 1 9910-0012 ● ● ● ● ●
314 02.727 NUT; ACTUATOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 09.262 M4 		9-99111-404-0 04 1 0101- ● ● ● ● ●

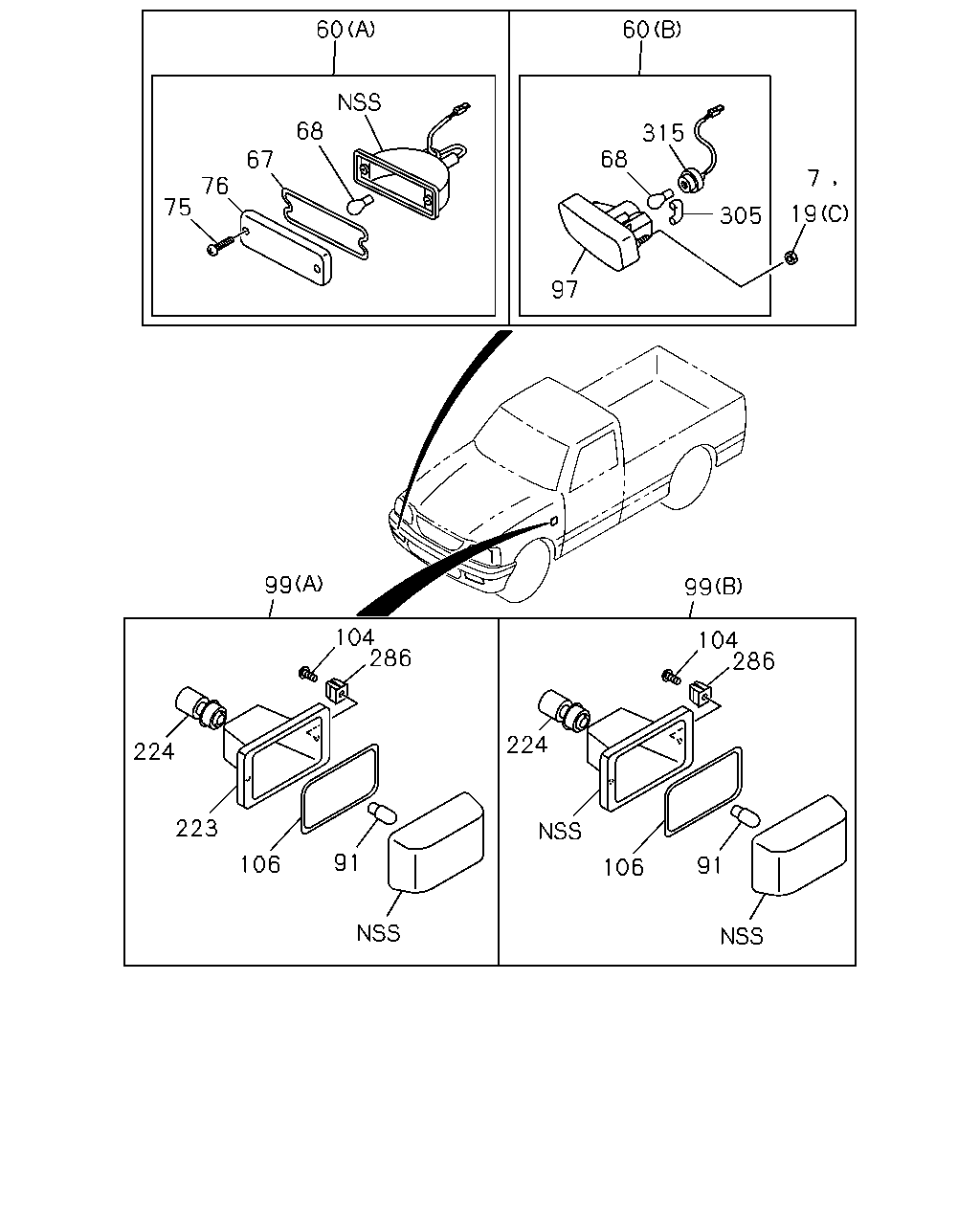

çizim 69342
60 60 68 315 68 67 7 76 75 19 305 97 99 99 104 286 104 286 224 224 223 91 106 91 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
7 02.587 NUT; FRT COMB LAMP
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 02.343 M5 FLANGE 		8-97068-819-0 04 1 9804-0009 ● ● ● ● ● ● ●
7 02.587 NUT; FRT COMB LAMP
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> 02.343 M5 FLANGE 		8-97068-819-0 04 1 0010-0109 ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-94324-115-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (A) 		8-94324-115-0 02 1 0101- ● ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) EXC. KD PREPARATORY PACK<6HF> 02.343 (C) M5 FLANGE 		8-97068-819-0 04 1 0010-0109 ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 02.343 (C) M5 FLANGE 		8-97068-819-0 04 1 0110- ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9804-0012 ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0101- ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), FRT BUMPER DARK GRAY(EQ9), AUSTRALIAN EQUIPMENT(RR3),COLOR KEYED BUMPER(S4H) (A) 		8-97173-536-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. UNITED KINGDOM EQUIPMENT(EK3), FRT BUMPER DARK GRAY(EQ9), AUSTRALIAN EQUIPMENT(RR3),COLOR KEYED BUMPER(S4H) (A) 		8-97173-535-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) (B) 		8-97180-903-0 01 1 9804-9910 ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) (B) 		8-97248-150-0 01 1 9911-0009 ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) (B) 		8-97248-150-0 01 1 0010-0012 ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) (B) 		8-97228-271-0 01 1 0101- ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) (B) 		8-97180-902-0 01 1 9804-9910 ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) (B) 		8-97248-149-0 01 1 9911-0009 ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) (B) 		8-97248-149-0 01 1 0010-0012 ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) (B) 		8-97228-270-0 01 1 0101- ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) (A) 		8-97173-534-0 01 1 9804-0012 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) (A) 		8-97228-267-0 01 1 0101- ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
(A) 		8-97228-267-0 01 1 0101- ●
60 02.585 LAMP ASM; FRT COMB
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) (A) 		8-97173-533-0 01 1 9804-0012 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) (A) 		8-97228-266-0 01 1 0101- ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
(A) 		8-97228-266-0 01 1 0101- ●
67 02.590 GASKET; FRT COMB LAMP
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 		8-94334-881-0 02 1 9804-0009 ● ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-94334-881-0 02 1 9804-0009 ●
67 02.590 GASKET; FRT COMB LAMP
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 		8-94334-881-0 02 1 0010- ● ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-94334-881-0 02 1 0010- ●
68 08.991 BULB; FRT COMB LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), FRT BUMPER DARK GRAY(EQ9), AUSTRALIAN EQUIPMENT(RR3),COLOR KEYED BUMPER(S4H) 12V 23W 		9-82692-131-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 12V 21W 		8-94124-074-0 02 1 9804-0012 ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 12V 21W 		8-94124-074-0 02 1 9804-0012 ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
12V 21W 		8-97304-590-0 02 1 0101- ● ● ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 08.977 		0-91190-435-0 04 1 9804-0009 ● ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 		0-91190-435-0 04 1 9804-0009 ●
75 02.587 SCREW; FRT COMB LAMP
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 08.977 		0-91190-435-0 04 1 0010- ● ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 		0-91190-435-0 04 1 0010- ●
76 02.589 LENS; FRT COMB LAMP
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 		8-94117-030-0 01 1 9804-0012 ● ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-94117-030-0 01 1 9804-0012 ●
76 02.589 LENS; FRT COMB LAMP
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 		8-97304-592-0 01 1 0101- ● ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97304-592-0 01 1 0101- ●
76 02.589 LENS; FRT COMB LAMP
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 		8-94112-723-0 01 1 9804-0012 ● ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-94112-723-0 01 1 9804-0012 ●
76 02.589 LENS; FRT COMB LAMP
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 		8-97304-591-0 01 1 0101- ● ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97304-591-0 01 1 0101- ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-94124-595-0 02 1 9804- ● ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97201-878-0 01 1 9804-0012 ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97304-594-0 01 1 0101- ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97201-877-0 01 1 9804-0012 ● ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97304-593-0 01 1 0101- ● ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
(A) 		8-97131-931-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
(B) 		8-97228-275-0 02 1 0101- ● ● ● ● ● ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
06.514 M3X10 TAPPING 		9-07076-310-0 02 1 9804- ● ● ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97032-884-0 02 1 9804- ● ● ● ● ● ● ● ●
223 02.575 UNIT; LAMP,SIDE FLASHER 8-97162-067-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97162-068-0 02 1 9804- ● ● ● ● ● ● ● ●
286 02.587 CLIP; SIDE TURN SIGNAL 8-97032-883-0 02 1 9804- ● ● ● ● ● ● ● ●
305 02.596 COVER; FRT COMB LAMP
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97201-881-0 02 1 9804- ● ● ● ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97201-882-0 02 1 9804-0012 ● ● ● ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97304-595-0 02 1 0101- ● ● ● ● ● ● ●
çizim 73942
19 28 1 24 23 98 239 4 96 220 215 20 221 5 96 6 28 98
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) (B) 		8-94434-562-3 01 1 9804- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) (B) 		8-94434-561-3 01 1 9804- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN H EAD LAMP<TT5> (B) 		8-94434-560-3 01 1 9804-0012 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MU LTI REFLECTOR<7YW> (B) 		8-94434-560-3 01 1 0101- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN H EAD LAMP<TT5> (B) 		8-94434-559-3 01 1 9804-0012 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MU LTI REFLECTOR<7YW> (B) 		8-94434-559-3 01 1 0101- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97162-160-0 01 1 9804-9808 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97213-006-0 01 1 9809-0012 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-505-1 01 1 0101-0108 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97310-998-1 01 1 0109- ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97162-159-0 01 1 9804-9808 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97213-005-0 01 1 9809-0012 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-504-1 01 1 0101-0108 ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97310-999-1 01 1 0109- ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
AUSTRALIAN EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (A) 		8-94434-564-4 01 1 9804- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
AUSTRALIAN EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (A) 		8-94434-563-5 01 1 9804- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5> (A) 		8-97039-809-2 01 1 9804-9909 ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5> (A) 		8-97039-809-2 01 1 9910-0012 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5>, HALOGENHEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97039-809-2 01 1 0101- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5> (A) 		8-97039-808-3 01 1 9804-9909 ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5> (A) 		8-97039-808-3 01 1 9910-0012 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5>, HALOGENHEAD LAMPS MULTI REFLECTOR<7YW> (A) 		8-97039-808-3 01 1 0101- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) HALOGEN HEAD LAMP<TT5> (A) 		8-97149-116-0 01 1 9804-9909 ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) HALOGEN HEAD LAMP<TT5> (A) 		8-97149-116-0 01 1 9910- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) HALOGEN HEAD LAMP<TT5> (A) 		8-97149-115-0 01 1 9804-9909 ● ● ● ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(EK3) HALOGEN HEAD LAMP<TT5> (A) 		8-97149-115-0 01 1 9910- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97190-777-0 01 1 9804-0012 ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97190-776-0 01 1 9804-0012 ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (B) 		8-94334-631-1 02 1 9804- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5> (B) 		8-94334-629-1 02 1 9804-9909 ● ● ● ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5> (B) 		8-94334-629-1 02 1 9910-0012 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5>, HALOGENHEAD LAMPS MULTI REFLECTOR<7YW> (B) 		8-94334-629-1 02 1 0101- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W 		8-94217-817-0 02 1 9804-0012 ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (B) 12V 60/55W 		8-94217-817-0 02 1 9804-0012 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (B) 12V 60/55W 		8-94217-817-0 02 1 0101- ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> (B) 12V 60/55W 		8-94217-817-0 02 1 0101- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 9804-9909 ● ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 9910-0012 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP<TT5>, HALOGENHEAD LAMPS MULTI REFLECTOR<7YW> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 0101- ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.731 		8-94228-905-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 02.731 		8-94228-905-0 02 1 0101- ● ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-340-0 01 1 9804-0012 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-340-0 01 1 0101- ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-339-0 01 1 9804-0012 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-339-0 01 1 0101- ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-94324-115-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> (A) 		8-94324-115-0 02 1 0101- ● ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) EXC. KD PREPARATORY PACK<6HF> 02.343 (C) M5 FLANGE 		8-97068-819-0 04 1 0010-0109 ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 02.343 (C) M5 FLANGE 		8-97068-819-0 04 1 0110- ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9804-0012 ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0101- ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94324-114-0 08 1 9804-0012 ● ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 02.737 		8-94324-114-0 08 1 0101- ● ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-336-0 10 1 9804-0012 ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 10 1 0101-0202 ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 08 1 0203- ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94324-114-0 12 1 9804-9909 ● ● ● ●
20 02.736 SCREW; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) 02.737 		8-94324-114-0 12 1 9910-0012 ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 02.737 		8-94324-114-0 12 1 0101- ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-335-0 02 1 9804-0012 ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-335-0 02 1 0101- ● ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
AUSTRALIAN EQUIPMENT(RR3) HALOGEN HEAD LAMP<TT5> 		8-97320-358-0 02 1 0101- ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 		5-09470-004-0 04 1 9804-0012 ● ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 02.726 		5-09470-004-0 04 1 0101- ● ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-491-0 02 1 9804-0012 ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-491-0 02 1 0101- ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 9804-0002 ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 07 1 0003-0012 ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 07 1 0101- ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0003-0012 ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0101- ● ● ● ● ● ● ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.708 M4 		5-09470-002-0 04 1 9804- ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(B) M4X16 		8-97090-762-0 02 1 9804-9903 ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
02.587 (B) M4X16 W/WASHER 		8-97809-122-0 02 1 9904- ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(A) M4X25 		8-97165-952-0 04 1 9804- ● ● ● ● ● ● ● ●
215 08.991 BULB; FRT CLEARANCE LAMP
12V 5W 		8-94124-595-0 02 1 9804- ● ● ● ● ● ● ● ●
220 02.586 SOCKET; CLEARANCE LAMP 8-97167-687-0 02 1 9804- ● ● ● ● ● ● ● ●
221 02.586 TUBE; COVER,CLEARANCE LAMP
02.689 		8-97166-174-0 02 1 9804- ● ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 02.585 		8-97111-855-0 01 1 0101- ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 0101- ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLE CTOR<7YW> 02.585 		8-97111-854-0 01 1 0101- ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 0101- ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-039-0 01 1 0101- ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-038-0 01 1 0101- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
