◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#45750) — 328 parça

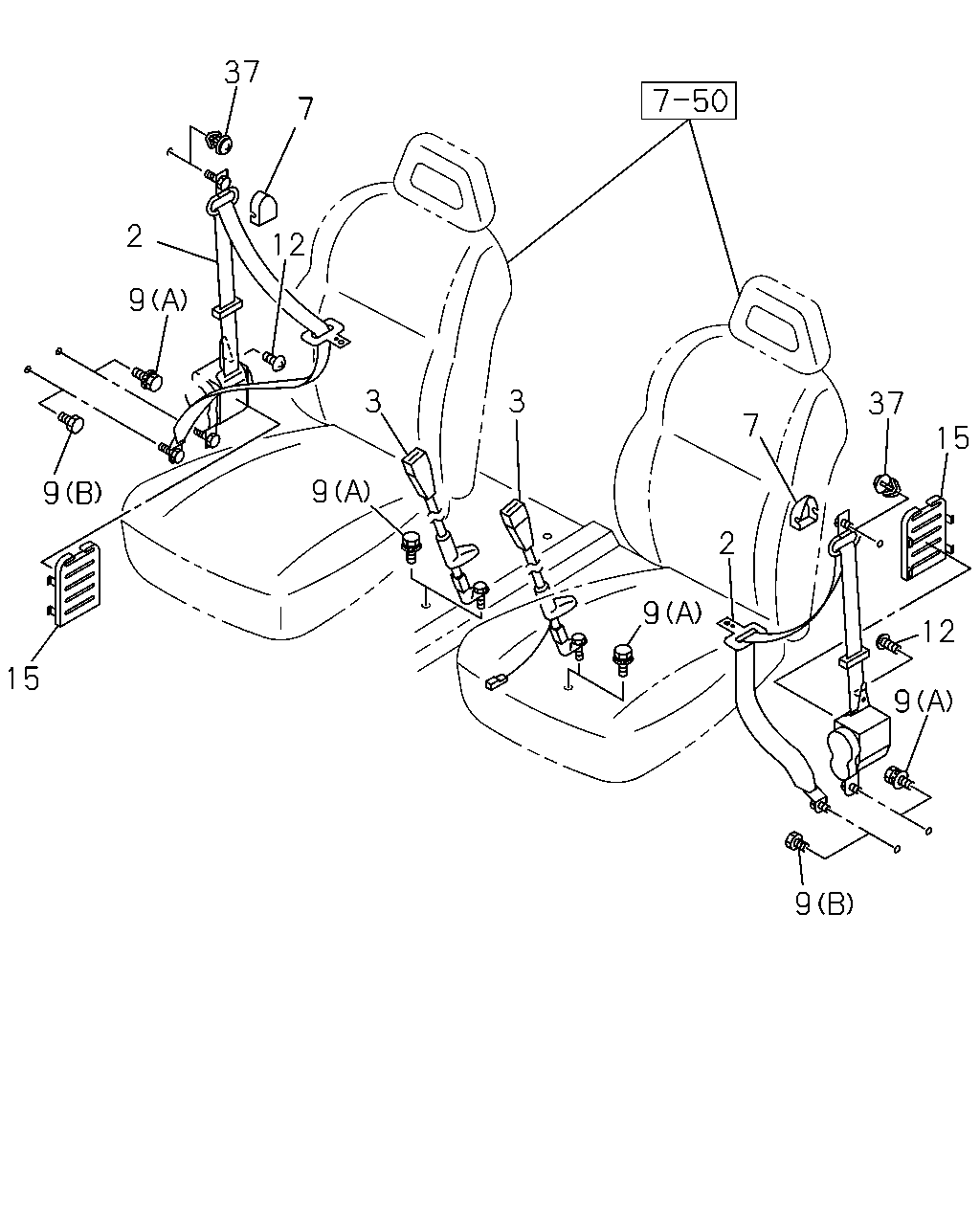

çizim 69349
37 7 2 12 9 3 3 37 7 15 9 9 2 9 12 15 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-791-1 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-791-1 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97158-619-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97158-619-2 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97158-619-2 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-074-3 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-074-4 02 1 9910- ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-074-4 02 1 9910- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-076-2 02 1 9804-9909 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-076-3 02 1 9910- ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-076-3 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97156-076-3 02 1 9910- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-073-2 02 1 9804-9909 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-073-3 02 1 9910- ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-073-3 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97156-070-3 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-790-1 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-790-1 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97158-618-1 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97158-618-1 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97158-618-1 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-070-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
UNITED KINGDOM EQUIPMENT(EK3) BUCKET SEAT W/RECLINING(S3B) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97156-070-3 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-078-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-078-3 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97156-069-3 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-789-1 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-789-1 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97158-620-1 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97158-620-1 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97158-620-1 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-072-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-072-3 02 1 9910-0109 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97295-952-0 02 1 0110- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-069-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
UNITED KINGDOM EQUIPMENT(EK3) BUCKET SEAT W/RECLINING(S3B) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97156-069-3 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-077-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-077-3 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-075-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-075-3 02 1 9910-0010 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97295-953-0 02 1 0011- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97156-071-4 01 1 9910- ●
2 16.714 BELT; SEAT,TONGUE SIDE
UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97156-071-4 02 1 9911- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
RR CONSOLE<D63> GRAY 		8-97157-997-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-997-0 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-997-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-997-0 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97157-997-0 01 1 9910- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
RR CONSOLE<D63> GRAY 		8-97157-996-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-996-0 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-996-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-996-0 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97157-996-0 01 1 9910- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. RR CONSOLE<D63> GRAY 		8-97156-086-1 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63> GRAY 		8-97156-086-1 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97156-086-1 01 1 9910- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. RR CONSOLE<D63> GRAY 		8-97156-081-1 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63> GRAY 		8-97156-081-1 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. AIR BAG DRIVER(AJ3),FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOL E ONE PIECE TYPE<7WG> GRAY 		8-97156-081-1 01 1 9910- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97199-877-0 01 1 0007- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER(AJ3) BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97199-878-0 01 1 9910- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 9804-9909 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 9910- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97156-085-1 01 1 9910- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 9804-9909 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 9910- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97156-079-1 01 1 9910- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 9910- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 9910- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) AIR BAG PASSENGER(7FA) GRAY 		8-97152-754-1 02 1 9910- ● ● ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97152-754-1 02 1 9910- ● ● ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-97152-754-1 02 1 9804-9909 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97152-754-1 02 1 9804-9909 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA) GRAY 		8-97152-754-1 01 1 9910- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97154-700-0 02 1 9910- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97154-700-0 02 1 9804-9909 ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA) GRAY 		8-97154-700-0 01 1 9910- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9804-9909 ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9804-9909 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9910- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9910- ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
AUSTRALIAN EQUIPMENT(RR3) BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),SEAT BELTCENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9909 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9909 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D>,PARKING BRAKEFLOOR<7XW> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9910- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) (C) REAR 		8-97039-649-0 04 1 9910- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> (B) FRONT 7/16"X14 UNF 		8-97039-648-0 02 1 9804-9909 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) FRONT 		8-97039-649-0 02 1 9804-9805 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) FRONT 		8-97039-649-0 02 1 9806-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (C) FRONT 		8-97039-649-0 02 1 9910- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. PARKING BRAKE FLOOR<7XW> (C) FRONT 		8-97039-649-0 02 1 9910- ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9804-9909 ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M8X10 		9-03800-810-0 02 1 9804-9909 ● ● ● ● ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9910- ● ● ● ● ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97154-701-3 02 1 9804-9909 ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97154-701-3 02 1 9804-9909 ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) GRAY 		8-97154-701-4 02 1 9910- ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRAY 		8-97154-701-4 02 1 9910- ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97154-702-3 02 1 9804-9909 ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97154-702-3 02 1 9804-9909 ●
37 16.714 PLUG; SEAT BELT ANCHOR
GRADE S(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 		8-94433-190-0 02 1 9804-9909 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 		8-94433-190-0 02 1 9804-9909 ●

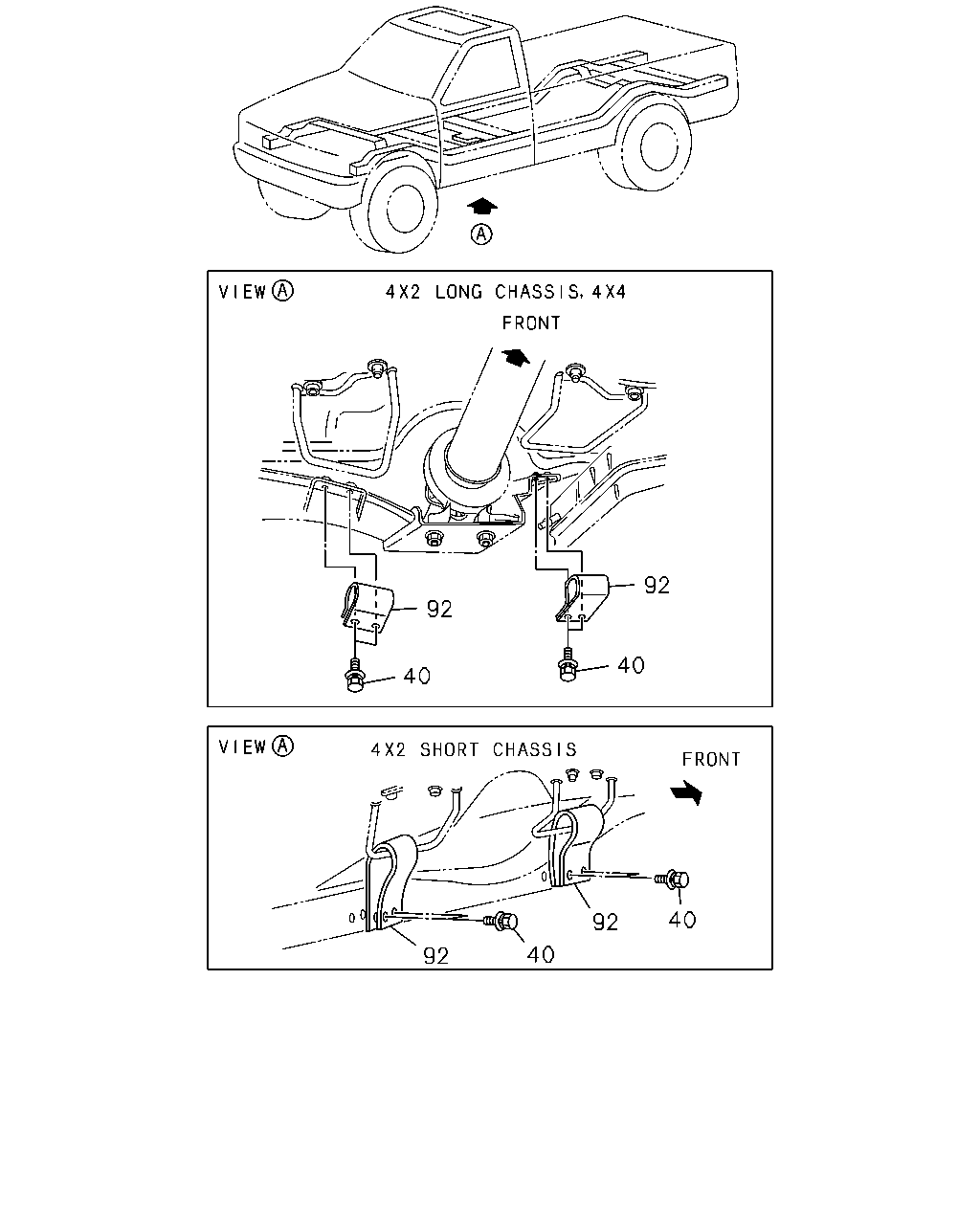

çizim 69755
92 92 40 40 40 92 40 92
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
40 16.545 BOLT; BRKT,ANCHOR
M8X30 W/LK&PL WASHER 		8-94320-540-1 04 1 9804-0201 ● ● ● ● ● ● ● ●
40 16.545 BOLT; BRKT,ANCHOR
01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0202- ● ● ● ● ● ● ● ●
92 16.714 BRACKET; SEAT BELT ANCHOR 8-94473-965-3 02 1 9804- ● ● ● ● ●
92 16.714 BRACKET; SEAT BELT ANCHOR
16.545 		8-94471-108-2 02 1 9804- ●
92 16.714 BRACKET; SEAT BELT ANCHOR 8-97146-231-0 02 1 9804- ● ●

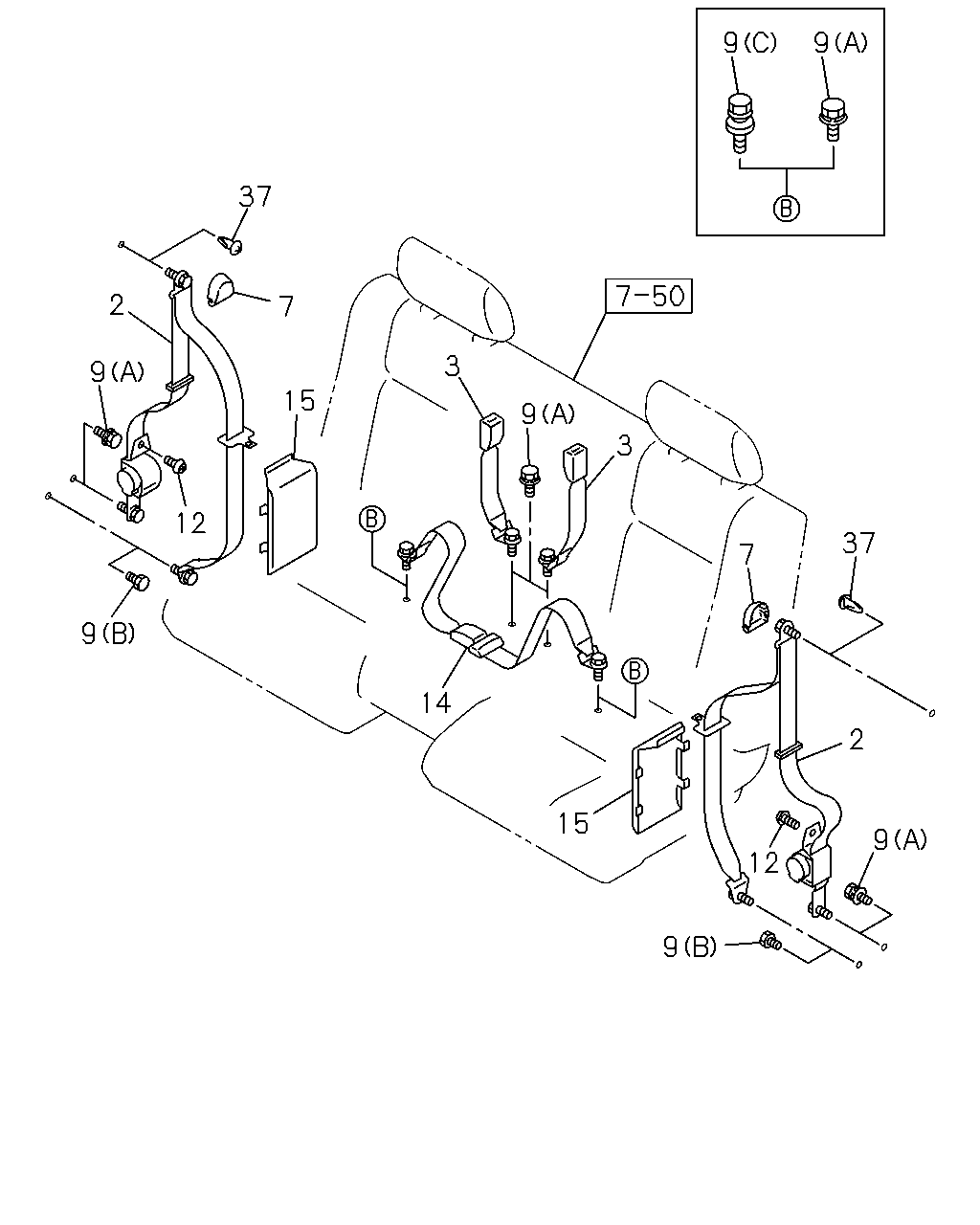

çizim 71516
9 9 37 2 7 3 9 15 9 3 12 37 7 9 14 2 15 9 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-791-1 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-791-1 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97158-619-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97158-619-2 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97158-619-2 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-074-3 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-074-4 02 1 9910- ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-074-4 02 1 9910- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-076-2 02 1 9804-9909 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-076-3 02 1 9910- ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-076-3 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97156-076-3 02 1 9910- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-073-2 02 1 9804-9909 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-073-3 02 1 9910- ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-073-3 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97156-070-3 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-790-1 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-790-1 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97158-618-1 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97158-618-1 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97158-618-1 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-070-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
UNITED KINGDOM EQUIPMENT(EK3) BUCKET SEAT W/RECLINING(S3B) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97156-070-3 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-078-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-078-3 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97156-069-3 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-789-1 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97199-789-1 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97158-620-1 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97158-620-1 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97158-620-1 01 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-072-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-072-3 02 1 9910-0109 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97295-952-0 02 1 0110- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-069-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
UNITED KINGDOM EQUIPMENT(EK3) BUCKET SEAT W/RECLINING(S3B) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97156-069-3 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-077-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-077-3 02 1 9910- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-075-2 02 1 9804-9909 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-075-3 02 1 9910-0010 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97295-953-0 02 1 0011- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA) DARK GRAY 		8-97156-071-4 01 1 9910- ●
2 16.714 BELT; SEAT,TONGUE SIDE
UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG DRIVER(AJ3) DARK GRAY 		8-97156-071-4 02 1 9911- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
RR CONSOLE<D63> GRAY 		8-97157-997-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-997-0 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-997-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-997-0 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97157-997-0 01 1 9910- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
RR CONSOLE<D63> GRAY 		8-97157-996-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-996-0 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-996-0 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-996-0 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97157-996-0 01 1 9910- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. RR CONSOLE<D63> GRAY 		8-97156-086-1 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63> GRAY 		8-97156-086-1 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97156-086-1 01 1 9910- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. RR CONSOLE<D63> GRAY 		8-97156-081-1 01 1 9804-9909 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63> GRAY 		8-97156-081-1 01 1 9804-9909 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BUCKET SEAT W/RECLINING(S3B) EXC. AIR BAG DRIVER(AJ3),FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOL E ONE PIECE TYPE<7WG> GRAY 		8-97156-081-1 01 1 9910- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER(AJ3) AUSTRALIAN EQUIPMENT(RR3) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97199-877-0 01 1 0007- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER(AJ3) BUCKET SEAT W/RECLINING(S3B) FLOOR CONSOLE SEPARATE TYPE<7WF>, FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97199-878-0 01 1 9910- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 9804-9909 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 9910- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97156-085-1 01 1 9910- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 9804-9909 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 9910- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97156-079-1 01 1 9910- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 9910- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 9804-9909 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 9910- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) AIR BAG PASSENGER(7FA) GRAY 		8-97152-754-1 02 1 9910- ● ● ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97152-754-1 02 1 9910- ● ● ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-97152-754-1 02 1 9804-9909 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97152-754-1 02 1 9804-9909 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA) GRAY 		8-97152-754-1 01 1 9910- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97154-700-0 02 1 9910- ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97154-700-0 02 1 9804-9909 ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
AIR BAG DRIVER(AJ3) UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR BAG PASSENGER(7FA) GRAY 		8-97154-700-0 01 1 9910- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9804-9909 ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9804-9909 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9910- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9910- ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
AUSTRALIAN EQUIPMENT(RR3) BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),SEAT BELTCENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9909 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9909 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D>,PARKING BRAKEFLOOR<7XW> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9910- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) (C) REAR 		8-97039-649-0 04 1 9910- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> (B) FRONT 7/16"X14 UNF 		8-97039-648-0 02 1 9804-9909 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) FRONT 		8-97039-649-0 02 1 9804-9805 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) FRONT 		8-97039-649-0 02 1 9806-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (C) FRONT 		8-97039-649-0 02 1 9910- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. PARKING BRAKE FLOOR<7XW> (C) FRONT 		8-97039-649-0 02 1 9910- ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9804-9909 ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M8X10 		9-03800-810-0 02 1 9804-9909 ● ● ● ● ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9910- ● ● ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT CENTER<S4D> DARK GRAY 		8-97156-068-0 01 1 9804-9909 ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT CENTER<S4D> DARK GRAY 		8-97156-068-0 01 1 9910- ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT CENTER<S4D> EXC. AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-068-0 01 1 9910- ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIAN EQUIPMENT(RR3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97195-766-0 01 1 9804-9805 ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIAN EQUIPMENT(RR3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97198-629-0 01 1 9806-9909 ● ● ● ●
14 16.714 BELT; SEAT,CENTER
AUSTRALIAN EQUIPMENT(RR3) SEAT BELT CENTER<S4D> DARK GRAY 		8-97198-629-0 01 1 9910- ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97154-701-3 02 1 9804-9909 ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97154-701-3 02 1 9804-9909 ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) GRAY 		8-97154-701-4 02 1 9910- ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRAY 		8-97154-701-4 02 1 9910- ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE S(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97154-702-3 02 1 9804-9909 ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97154-702-3 02 1 9804-9909 ●
37 16.714 PLUG; SEAT BELT ANCHOR
GRADE S(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 		8-94433-190-0 02 1 9804-9909 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 		8-94433-190-0 02 1 9804-9909 ●

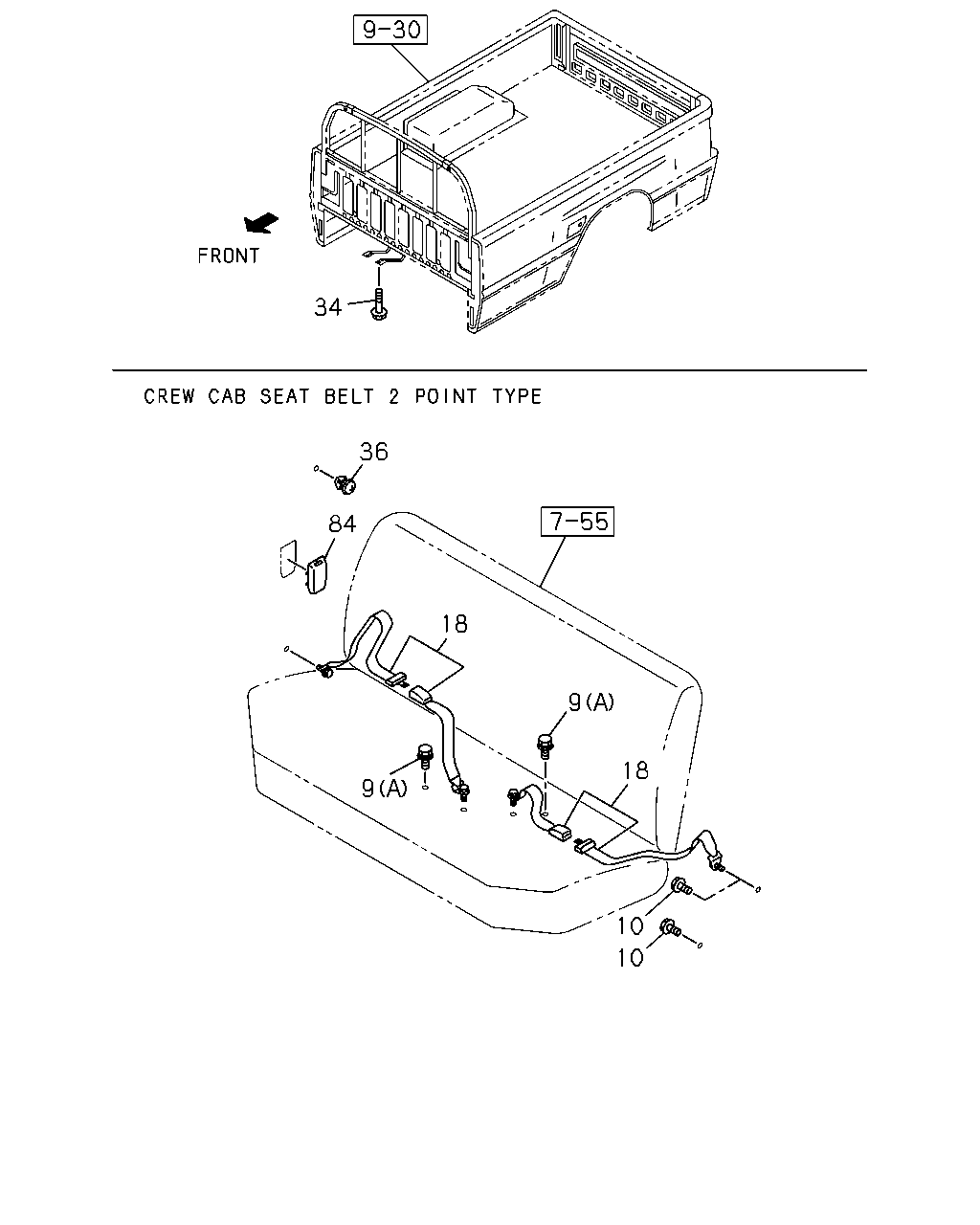

çizim 71707
34 36 84 18 9 18 9 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9804-9909 ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9804-9909 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9910- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9910- ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
AUSTRALIAN EQUIPMENT(RR3) BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),SEAT BELTCENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9909 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9909 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D>,PARKING BRAKEFLOOR<7XW> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9910- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) (C) REAR 		8-97039-649-0 04 1 9910- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> (B) FRONT 7/16"X14 UNF 		8-97039-648-0 02 1 9804-9909 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) FRONT 		8-97039-649-0 02 1 9804-9805 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) FRONT 		8-97039-649-0 02 1 9806-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (C) FRONT 		8-97039-649-0 02 1 9910- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. PARKING BRAKE FLOOR<7XW> (C) FRONT 		8-97039-649-0 02 1 9910- ●
10 16.714 BOLT; RETRACTOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ●
10 16.714 BOLT; RETRACTOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ●
10 16.714 BOLT; RETRACTOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9910-0012 ● ●
10 16.714 BOLT; RETRACTOR
EXC. REAR 3 POINT SEAT BELT<AK9> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 0101- ● ●
18 16.714 BELT; SEAT,RR
JUMP SEAT<AJ2> NEW ZEALAND EQUIPMENT(PK5) DARK GRAY 		8-97156-091-2 02 1 9804- ●
18 16.714 BELT; SEAT,RR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-092-0 02 1 9804-9909 ● ●
18 16.714 BELT; SEAT,RR
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-092-1 02 1 9910-0011 ● ●
18 16.714 BELT; SEAT,RR
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97295-954-0 02 1 0012-0012 ● ●
18 16.714 BELT; SEAT,RR
EXC. REAR 3 POINT SEAT BELT<AK9>, UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUI PMENT(RR3) DARK GRAY 		8-97295-954-0 02 1 0101- ● ●
34 16.714 BOLT; SEAT BELT ROD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-94198-549-0 04 1 9804- ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 16.714 		8-94433-190-0 02 1 9804-0012 ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. REAR 3 POINT SEAT BELT<AK9> 16.714 		8-94433-190-0 02 1 0101- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) GRAY 		8-97153-655-5 02 1 9804-9909 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97153-655-5 02 1 9910-0012 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
REAR 3 POINT SEAT BELT<AK9> GRAY 		8-97153-655-6 02 1 0101- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97153-656-5 02 1 9804-9909 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97153-656-5 02 1 9804-9909 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97153-656-5 02 1 9910-0012 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. REAR 3 POINT SEAT BELT<AK9> GRAY 		8-97153-656-6 02 1 0101- ● ●

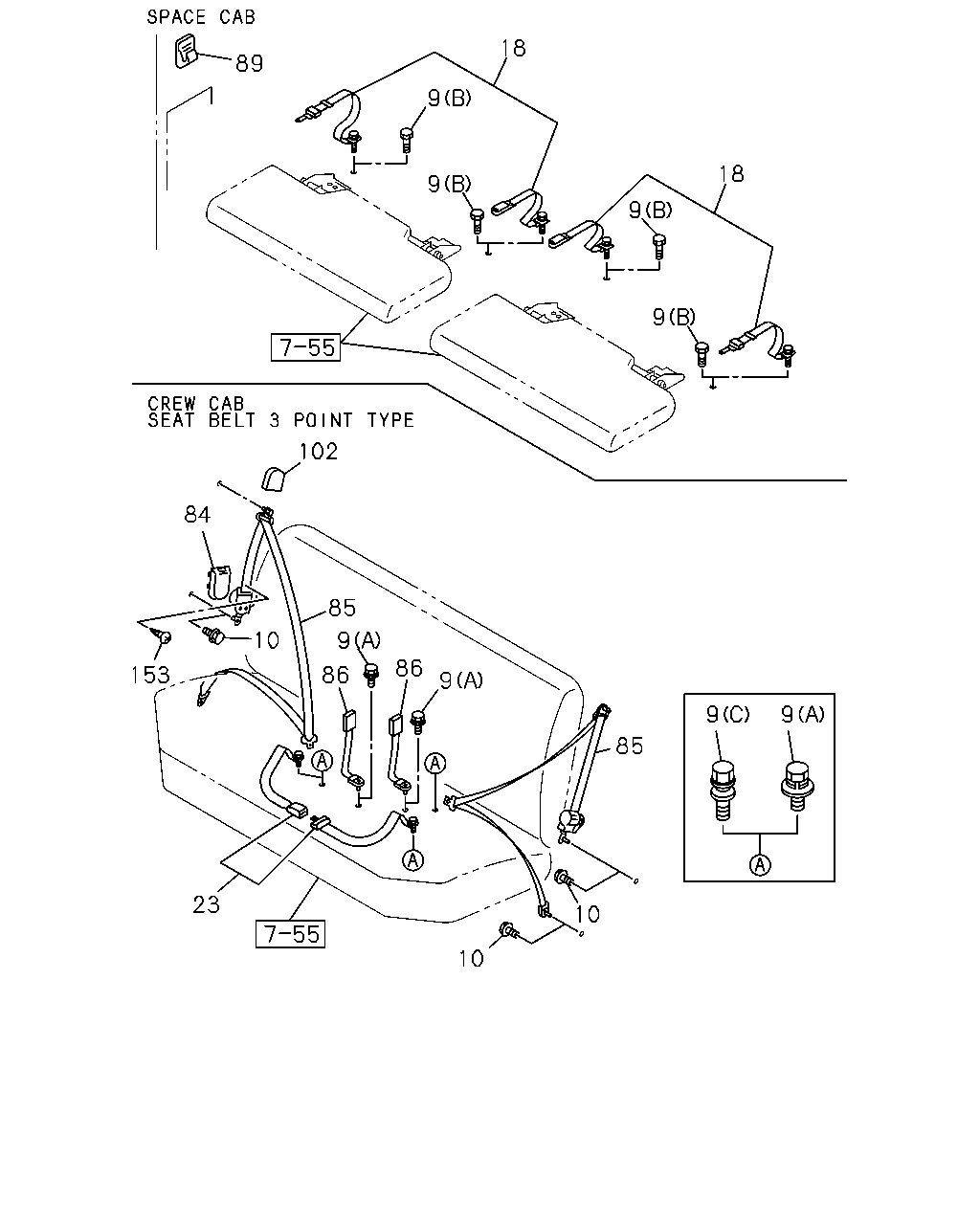

çizim 71798
18 89 9 18 9 9 9 102 84 85 9 86 86 10 153 9 9 9 85 23 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9804-9909 ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9804-9909 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9910- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) REAR 7/16"X14 UNF 		8-97039-648-0 04 1 9910- ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
AUSTRALIAN EQUIPMENT(RR3) BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),SEAT BELTCENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9804-9805 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9909 ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) EXC. SEAT BELT CENTER<S4D> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9806-9909 ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D>,PARKING BRAKEFLOOR<7XW> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 02 1 9910- ● ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) FRONT 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) (C) REAR 		8-97039-649-0 04 1 9910- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> (B) FRONT 7/16"X14 UNF 		8-97039-648-0 02 1 9804-9909 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) FRONT 		8-97039-649-0 02 1 9804-9805 ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) FRONT 		8-97039-649-0 02 1 9806-9909 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D>,PARKING BRAKE FLOOR<7XW> (C) FRONT 		8-97039-649-0 02 1 9910- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. PARKING BRAKE FLOOR<7XW> (C) FRONT 		8-97039-649-0 02 1 9910- ●
10 16.714 BOLT; RETRACTOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ●
10 16.714 BOLT; RETRACTOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9804-9909 ● ●
10 16.714 BOLT; RETRACTOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9910-0012 ● ●
10 16.714 BOLT; RETRACTOR
EXC. REAR 3 POINT SEAT BELT<AK9> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 0101- ● ●
18 16.714 BELT; SEAT,RR
JUMP SEAT<AJ2> NEW ZEALAND EQUIPMENT(PK5) DARK GRAY 		8-97156-091-2 02 1 9804- ●
18 16.714 BELT; SEAT,RR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-092-0 02 1 9804-9909 ● ●
18 16.714 BELT; SEAT,RR
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-092-1 02 1 9910-0011 ● ●
18 16.714 BELT; SEAT,RR
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97295-954-0 02 1 0012-0012 ● ●
18 16.714 BELT; SEAT,RR
EXC. REAR 3 POINT SEAT BELT<AK9>, UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUI PMENT(RR3) DARK GRAY 		8-97295-954-0 02 1 0101- ● ●
23 16.714 BELT; SEAT,CENTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) DARK GRAY 		8-97156-092-0 01 1 9804-9909 ● ●
23 16.714 BELT; SEAT,CENTER
UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-092-1 01 1 9910-0011 ● ●
23 16.714 BELT; SEAT,CENTER
UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97295-954-0 01 1 0012-0012 ● ●
23 16.714 BELT; SEAT,CENTER
REAR 3 POINT SEAT BELT<AK9> DARK GRAY 		8-97295-954-0 01 1 0101- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) GRAY 		8-97153-655-5 02 1 9804-9909 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97153-655-5 02 1 9910-0012 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
REAR 3 POINT SEAT BELT<AK9> GRAY 		8-97153-655-6 02 1 0101- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97153-656-5 02 1 9804-9909 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97153-656-5 02 1 9804-9909 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97153-656-5 02 1 9910-0012 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. REAR 3 POINT SEAT BELT<AK9> GRAY 		8-97153-656-6 02 1 0101- ● ●
85 16.714 BELT; SEAT,RR OUTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-088-2 02 1 9804-9909 ● ●
85 16.714 BELT; SEAT,RR OUTER
NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-088-4 02 1 9910-0012 ● ●
85 16.714 BELT; SEAT,RR OUTER
REAR 3 POINT SEAT BELT<AK9> NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-088-4 02 1 0101- ● ●
85 16.714 BELT; SEAT,RR OUTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) DARK GRAY 		8-97156-089-2 02 1 9804-9909 ● ●
85 16.714 BELT; SEAT,RR OUTER
UNITED KINGDOM EQUIPMENT(EK3) DARK GRAY 		8-97156-089-4 02 1 9910-0012 ● ●
85 16.714 BELT; SEAT,RR OUTER
REAR 3 POINT SEAT BELT<AK9> EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) DARK GRAY 		8-97156-089-4 02 1 0101- ● ●
86 16.714 BELT; SEAT,RR INNER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) GRAY 		8-97156-090-0 02 1 9804-9909 ● ●
86 16.714 BELT; SEAT,RR INNER
UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97156-090-0 02 1 9910-0012 ● ●
86 16.714 BELT; SEAT,RR INNER
REAR 3 POINT SEAT BELT<AK9> GRAY 		8-97156-090-0 02 1 0101- ● ●
89 16.714 HOOK; LATCH PLATE,SEAT BELT
GRAY 		8-97154-708-2 02 1 9804- ● ●
102 16.714 COVER; SHOULDER ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97152-754-1 02 1 9804-9909 ● ●
102 16.714 COVER; SHOULDER ANCHOR
NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97152-754-1 02 1 9910-0012 ● ●
102 16.714 COVER; SHOULDER ANCHOR
REAR 3 POINT SEAT BELT<AK9> NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97152-754-1 02 1 0101- ● ●
102 16.714 COVER; SHOULDER ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97154-700-0 02 1 9804-0012 ●
102 16.714 COVER; SHOULDER ANCHOR
REAR 3 POINT SEAT BELT<AK9> EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97154-700-0 02 1 0101- ● ●
153 16.714 SCREW; RETRACTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) M8X10 		9-03800-810-0 02 1 9804-9909 ● ●
153 16.714 SCREW; RETRACTOR
UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) M8X10 		9-03800-810-0 02 1 9910-0012 ● ●
153 16.714 SCREW; RETRACTOR
REAR 3 POINT SEAT BELT<AK9> M8X10 		9-03800-810-0 02 1 0101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
