3-46 — AIR DRYER
(#4575) — 31 parça
◀

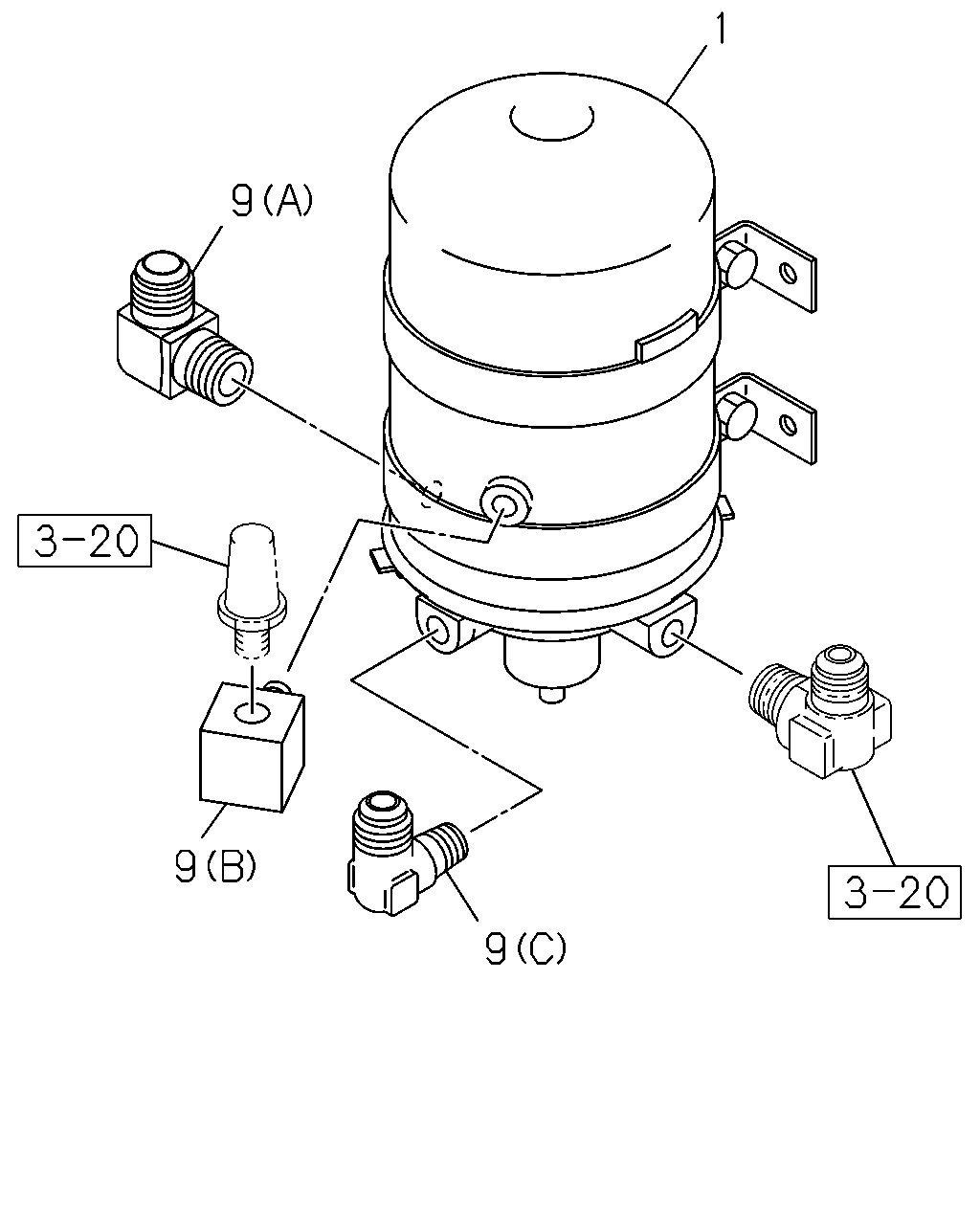

[346A] NO.1 (7 parça)

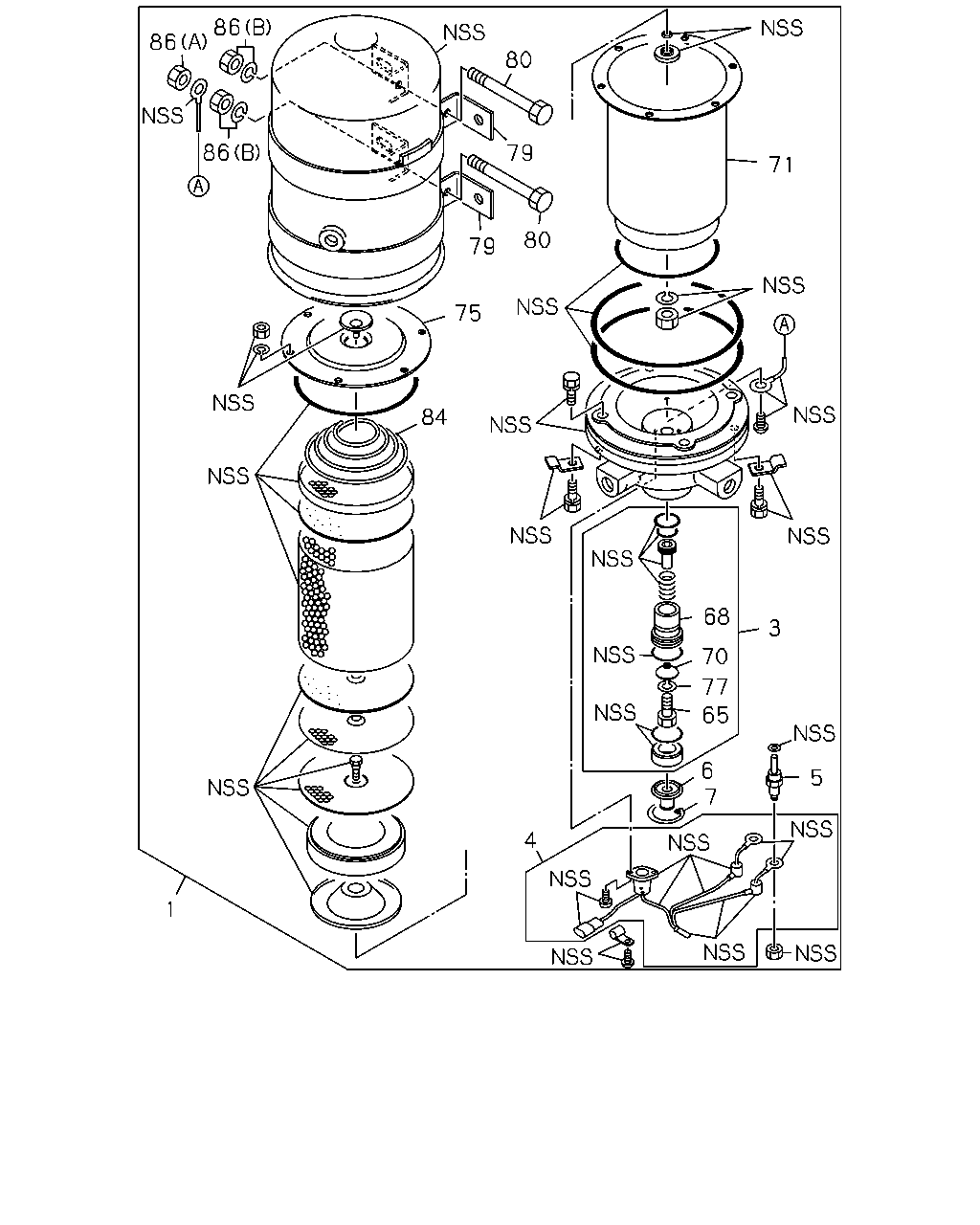

[346A] NO.2 (20 parça)

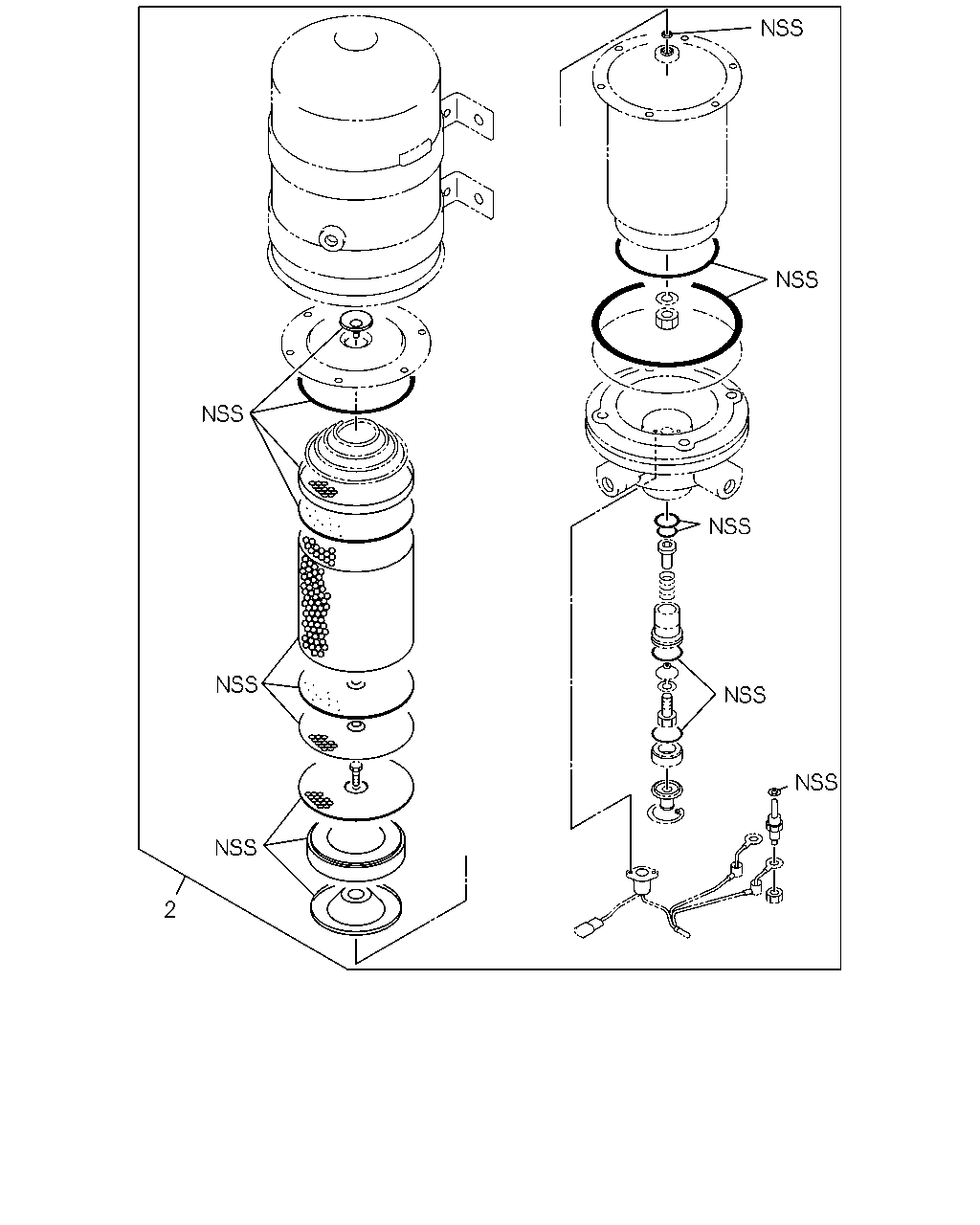

[346A] NO.3 REPAIR KIT (4 parça)
▶
1
9
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-144-2
01
1
9712-
9
CONNECTOR; PIPE,AIR DRYER
(C) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
9712-
9
CONNECTOR; PIPE,AIR DRYER
(A) M22 & PT1/2 ELBOW
1-09650-444-0
01
1
9712-
9
CONNECTOR; PIPE,AIR DRYER
(B) R1/4 & RC1/4 ELBOW
1-09660-501-0
01
1
9712-
81
BOLT; CASE,AIR DRYER
1-48199-177-0
02
1
9712-
88
PLATE; STOPPER
(A)
1-48199-178-0
01
1
9712-
88
PLATE; STOPPER
(B)
1-48199-179-0
01
1
9712-
86
86
80
86
79
71
80
79
75
84
68
3
70
77
65
6
7
5
4
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-144-2
01
1
9712-
3
PISTON KIT; AIR DRYER
1-85576-057-1
01
1
9712-
4
THERMOSTAT KIT; AIR DRYER
1-85576-129-0
01
1
9712-
5
HEATER ASM; AIR DRYER
1-48199-085-0
02
1
9712-
6
COVER; EXH,AIR DRYER
1-48199-101-0
01
1
9712-
7
RING; SNAP,AIR DRYER
1-48199-154-0
01
1
9712-
65
BOLT; PURGE VLV
1-48199-102-0
01
1
9712-
68
BODY; VALVE
1-48199-216-0
01
1
9712-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
9712-
71
CASE; INNER,AIR DRYER
1-48199-156-1
01
1
9712-
75
COVER; CASE,AIR DRYER
1-48199-167-0
01
1
9712-
77
WASHER; LK,VALVE
1-48199-103-0
01
1
9712-
79
BRACKET; AIR DRYER
1-48199-189-0
02
1
9712-
80
BOLT; BRKT
1-48199-190-0
02
1
9712-
81
BOLT; CASE,AIR DRYER
1-48199-177-0
02
1
9712-
84
SPRING; AIR DRYER
1-48199-166-0
01
1
9712-
86
NUT; BRKT
(A)
1-48199-194-0
01
1
9712-
86
NUT; BRKT
(B)
1-48199-320-0
02
1
9712-
88
PLATE; STOPPER
(A)
1-48199-178-0
01
1
9712-
88
PLATE; STOPPER
(B)
1-48199-179-0
01
1
9712-
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-055-1
01
1
9712-
81
BOLT; CASE,AIR DRYER
1-48199-177-0
02
1
9712-
88
PLATE; STOPPER
(A)
1-48199-178-0
01
1
9712-
88
PLATE; STOPPER
(B)
1-48199-179-0
01
1
9712-
