◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#45744) — 246 parça

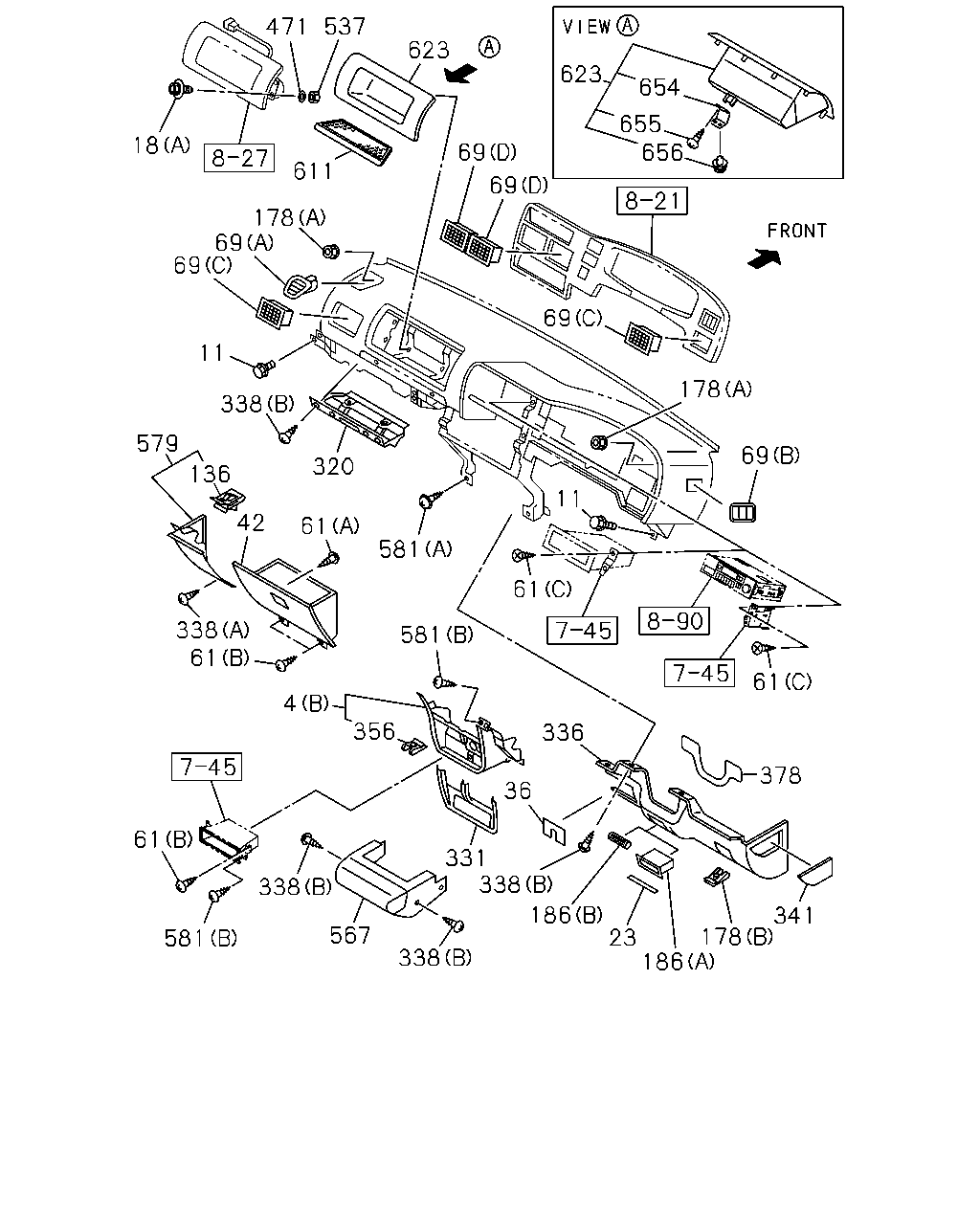

çizim 17264
471 537 623 623 654 655 656 18 69 611 69 178 69 69 69 11 178 338 579 69 320 136 11 42 61 581 61 338 61 581 61 4 356 336 378 36 61 331 338 338 186 341 23 178 186 567 581 338
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 16.080 COVER; INST PNL
(B) GRAY 		8-97154-484-2 01 1 9804- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
VENTILATION RAM AIR(6TN) (A) 		8-97142-696-0 01 1 9804- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
EXC. VENTILATION RAM AIR(6TN) (A) 		8-97101-621-3 01 1 9804-0112 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
EXC. VENTILATION RAM AIR(6TN) (A) 		8-97327-855-0 01 1 0201- ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 M6X20 W/WASHER 		8-94112-987-1 08 1 9804-9910 ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG PASSENGER(7FA) 08.015 M6X20 W/WASHER 		8-94112-987-1 08 1 9911- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
EXC. AIR BAG PASSENGER(7FA) 08.015 M6X20 W/WASHER 		8-94112-987-1 07 1 9911- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 M6X20 W/WASHER 		8-94112-987-1 07 1 9911- ● ●
18 16.085 BOLT; BRKT
08.080 (B) M6X16 FLANGE 		8-97803-298-0 04 1 9804-0111 ● ● ● ● ● ● ● ●
18 16.085 BOLT; BRKT
16.325 (B) M6X16 FLANGE 		8-97808-792-1 04 1 0112- ● ● ● ● ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG PASSENGER(7FA) 16.328 (A) M6X18 W/LK&PL WASHER 		8-97060-719-0 04 1 9910- ● ● ● ● ● ●
23 16.085 CUSHION; INST,PANEL 8-97185-832-0 02 1 9804- ● ● ● ● ● ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) GRAY 		8-97156-098-0 01 1 9804-9909 ● ● ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97156-098-0 01 1 9804-9909 ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97156-098-0 01 1 9804-9909 ●
36 09.743 BEZEL; INST SIDE CLUSTER
EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97156-098-0 01 1 9910- ● ● ● ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRAY 		8-97156-098-0 01 1 9910- ● ●
42 16.100 BOX; GLOVE,INST PNL
GRAY 		8-97152-826-2 01 1 9804- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0212- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0212- ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9804-9909 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 16.115 (B) M5X16 		8-94279-312-0 02 1 9804-9909 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 16.115 (B) M5X16 		8-94279-312-0 02 1 9804-9909 ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9910-0012 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 16.115 (B) M5X16 		8-94279-312-0 02 1 9910-0012 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 16.115 (B) M5X16 		8-94279-312-0 02 1 9910-0012 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9910-0012 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 0101-0109 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 16.115 (B) M5X16 		8-94279-312-0 02 1 0101-0109 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 16.115 (B) M5X16 		8-94279-312-0 02 1 0101-0109 ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 0110-0211 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 16.115 (B) M5X16 		8-94279-312-0 02 1 0110-0211 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 16.115 (B) M5X16 		8-94279-312-0 02 1 0110-0211 ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 M5X16 		8-94279-312-0 02 1 0212- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
(A) M4X14 TAPPING 		8-97111-555-0 02 1 9804- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9909 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. INST PANEL FOR DIN E SIZE AUDI O(7QL) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9909 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9910- ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. INST PANEL FOR DIN E SIZE AUDI O(7QL) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9910- ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-97152-702-3 01 1 9804-0109 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) BLACK 		8-97154-868-3 01 1 0110- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) GRAY 		8-97152-703-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) BLACK 		8-97154-870-0 01 1 0110- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
VENTILATION RAM AIR(6TN) 16.070 (C) BLACK 		8-94388-773-3 02 1 9804- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
VENTILATION RAM AIR(6TN) (D) BLACK 		8-97152-701-1 02 1 9804- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. VENTILATION RAM AIR(6TN) (C),(D) BLACK 		8-97152-701-1 04 1 9804- ● ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9804- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
07.833 (A) M6 W/DISHED WASHER 		8-94170-192-0 03 1 9804- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
09.262 (B) M5 SPIRE NUT 		8-94217-271-0 02 1 9804- ● ● ● ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (A) BLACK 		8-97806-851-2 01 1 9804-9909 ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) BLACK 		8-97806-851-2 01 1 9804-9909 ● ●
186 09.264 GRILLE; LAP VENTILATOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) (A) BLACK 		8-97806-851-2 01 1 9804-9909 ●
186 09.264 GRILLE; LAP VENTILATOR
EXC. PARKING BRAKE FLOOR<7XW> (A) BLACK 		8-97806-851-2 01 1 9910-0206 ● ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
(A) BLACK 		8-97806-851-2 01 1 9910-0206 ● ●
186 09.264 GRILLE; LAP VENTILATOR
EXC. PARKING BRAKE FLOOR<7XW> (B) BLACK 		8-97394-945-0 01 1 0207- ● ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
(B) BLACK 		8-97394-945-0 01 1 0207- ● ●
186 09.264 GRILLE; LAP VENTILATOR
6VD1 ENG(RLV) (B) BLACK 		8-97123-442-0 01 1 9804-9909 ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) (B) BLACK 		8-97123-442-0 01 1 9804-9909 ● ●
186 09.264 GRILLE; LAP VENTILATOR
UNITED KINGDOM EQUIPMENT(EK3) (B) BLACK 		8-97123-442-0 01 1 9804-9909 ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) BLACK 		8-97123-442-0 01 1 9804-9909 ●
186 09.264 GRILLE; LAP VENTILATOR
PARKING BRAKE FLOOR<7XW> (B) BLACK 		8-97123-442-0 01 1 9910-0109 ● ● ● ● ● ●
320 16.081 COVER; GLOVE BOX
GRAY 		8-97150-599-4 01 1 9804- ● ● ● ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE
22LE/C22NE ENG(RJT) EXC. FLOOR REMOTE SHIFT<M11> 		8-97180-787-0 01 1 9804-0012 ● ● ● ●
331 09.743 CLUSTER; INST SIDE
22LE/C22NE ENG(RJT) EXC. FLOOR REMOTE SHIFT<M11> 		8-97180-787-0 01 1 0101- ● ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 		8-97133-025-2 01 1 9804-9909 ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97133-025-2 01 1 9804-9909 ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE 8-97133-025-2 01 1 9804-9909 ● ●
331 09.743 CLUSTER; INST SIDE
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 		8-97133-025-2 01 1 9910-0109 ● ● ● ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97133-025-2 01 1 9910-0109 ● ● ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 		8-97133-025-2 01 1 0110- ● ● ● ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97133-025-2 01 1 0110- ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) GRAY 		8-97156-096-2 01 1 9804-9909 ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97156-096-2 01 1 9804-9909 ● ●
336 16.081 COVER; INST PANEL SIDE
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97156-096-2 01 1 9804-9909 ●
336 16.081 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97156-096-2 01 1 9910- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRAY 		8-97156-096-2 01 1 9910- ● ●
336 16.081 COVER; INST PANEL SIDE
6VD1 ENG(RLV) GRAY 		8-97153-941-2 01 1 9804-9909 ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) GRAY 		8-97153-941-2 01 1 9804-9909 ● ●
336 16.081 COVER; INST PANEL SIDE
UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97153-941-2 01 1 9804-9909 ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) EXC. AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97153-941-2 01 1 9804-9909 ●
336 16.081 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> GRAY 		8-97153-941-2 01 1 9910- ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.115 (A) M5X16 		8-94279-312-0 01 1 9804-0211 ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.085 (B) M5X16 TAPPING 		9-09829-323-1 12 1 9804-0211 ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.085 M5X16 TAPPING 		9-09829-323-1 13 1 0212- ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9909 ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 9910-0012 ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
AIR BAG DRIVER(AJ3) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 9910-0012 ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> EXC. AIR BAG DRIVER(AJ3) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 0101-0109 ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
AIR BAG DRIVER(AJ3) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 0101-0109 ● ● ● ● ● ●
338 16.081 SCREW; COVER
22LE/C22NE ENG(RJT),4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. AIR BAG DRIVER(AJ3) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 0110- ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
AIR BAG DRIVER(AJ3) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 0110- ● ● ● ● ● ●
338 16.081 SCREW; COVER
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 0110- ● ● ● ● ●
338 16.081 SCREW; COVER
4JH1 ENG(RJX) A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 0110- ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97153-942-2 01 1 9804- ● ● ● ● ● ● ● ●
356 16.085 NUT; COVER
09.262 M5 SPIRE NUT 		8-94217-271-0 01 1 9804- ● ● ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
6VD1 ENG(RLV) 		8-97120-129-0 01 1 9804-9909 ● ● ● ●
378 09.743 SEAL; INST PANEL
GRADE LS(RBD) 		8-97120-129-0 01 1 9804-9909 ● ●
378 09.743 SEAL; INST PANEL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97120-129-0 01 1 9804-9909 ● ●
378 09.743 SEAL; INST PANEL
GRADE LS(RBD) EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-97120-129-0 01 1 9804-9909 ●
378 09.743 SEAL; INST PANEL
PARKING BRAKE FLOOR<7XW> 		8-97120-129-0 01 1 9910-0010 ● ● ● ● ● ●
471 16.115 WASHER; PL
AIR BAG PASSENGER(7FA) 06.760 		1-09503-075-0 02 1 9910- ● ● ● ● ● ●
537 16.085 NUT; BRKT
AIR BAG PASSENGER(7FA) 07.833 M6 W/DISHED WASHER 		8-94170-192-0 02 1 9910- ● ● ● ● ● ●
567 16.081 COVER; CONT UNIT
22LE/C22NE ENG(RJT) GRAY 		8-97150-597-6 01 1 9804-9909 ● ● ● ● ● ● ● ●
567 16.081 COVER; CONT UNIT
22LE/C22NE ENG(RJT) EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97150-597-6 01 1 9910-0012 ● ● ● ● ● ● ● ●
567 16.081 COVER; CONT UNIT
AIR BAG DRIVER(AJ3) GRAY 		8-97150-597-6 01 1 9910-0012 ● ● ● ● ● ● ● ●
567 16.081 COVER; CONT UNIT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97150-597-6 01 1 0101-0109 ● ● ● ● ● ● ●
567 16.081 COVER; CONT UNIT
AIR BAG DRIVER(AJ3) GRAY 		8-97150-597-6 01 1 0101-0109 ● ● ● ● ● ●
567 16.081 COVER; CONT UNIT
22LE/C22NE ENG(RJT),4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97150-597-6 01 1 0110- ● ● ● ● ● ● ● ●
567 16.081 COVER; CONT UNIT
AIR BAG DRIVER(AJ3) GRAY 		8-97150-597-6 01 1 0110- ● ● ● ● ● ●
567 16.081 COVER; CONT UNIT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97150-597-6 01 1 0110- ● ● ● ● ●
567 16.081 COVER; CONT UNIT
4JH1 ENG(RJX) A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97150-597-6 01 1 0110- ● ●
579 16.080 COVER; INST PNL
GRAY 		8-97152-705-1 01 1 9804- ● ● ● ● ● ● ● ●
581 09.744 SCREW
15.100 (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 02 1 9804- ● ● ● ● ● ● ● ●
581 09.744 SCREW
16.115 (B) M5X16 		8-94279-312-0 07 1 9804- ● ● ● ● ● ● ● ●
611 16.081 SHEET
GRAY 		8-97154-848-0 01 1 9804-9804 ● ●
611 16.081 SHEET
GRADE LS(RBD) GRAY 		8-97154-848-0 01 1 9804-9804 ● ● ● ● ●
611 16.081 SHEET
BLACK 		8-97198-544-0 01 1 9805-9909 ● ●
611 16.081 SHEET
GRADE LS(RBD) BLACK 		8-97198-544-0 01 1 9805-9909 ● ● ● ● ●
611 16.081 SHEET
GRADE LS(RBD) EXC. AIR BAG PASSENGER(7FA) BLACK 		8-97198-544-0 01 1 9910- ● ● ● ● ● ● ● ●
623 16.100 BOX; UTILITY
GRAY 		8-97154-858-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
623 16.100 BOX; UTILITY
GRAY 		8-97199-868-0 01 1 9903-9909 ● ● ● ● ● ● ● ●
623 16.100 BOX; UTILITY
EXC. AIR BAG PASSENGER(7FA) GRAY 		8-97199-868-1 01 1 9910- ● ● ● ● ● ●
623 16.100 BOX; UTILITY
GRAY 		8-97199-868-1 01 1 9910- ● ●
654 16.100 BRACKET; UTILITY BOX 8-97218-109-0 01 1 9903-9909 ● ● ● ● ● ● ● ●
654 16.100 BRACKET; UTILITY BOX
EXC. AIR BAG PASSENGER(7FA) 		8-97218-109-0 01 1 9910- ● ● ● ● ● ●
654 16.100 BRACKET; UTILITY BOX 8-97218-109-0 01 1 9910- ● ●
655 16.100 SCREW; BRKT,UTILITY BOX
09.787 M5X14 TAPPING 		9-07066-514-0 02 1 9903-9909 ● ● ● ● ● ● ● ●
655 16.100 SCREW; BRKT,UTILITY BOX
EXC. AIR BAG PASSENGER(7FA) 09.787 M5X14 TAPPING 		9-07066-514-0 02 1 9910- ● ● ● ● ● ●
655 16.100 SCREW; BRKT,UTILITY BOX
09.787 M5X14 TAPPING 		9-07066-514-0 02 1 9910- ● ●
656 16.100 CLIP; TRIM
16.165 H=16.7 		8-97022-017-0 01 1 9903-9909 ● ● ● ● ● ● ● ●
656 16.100 CLIP; TRIM
EXC. AIR BAG PASSENGER(7FA) 16.165 H=16.7 		8-97022-017-0 01 1 9910- ● ● ● ● ● ●
656 16.100 CLIP; TRIM
16.165 H=16.7 		8-97022-017-0 01 1 9910- ● ●

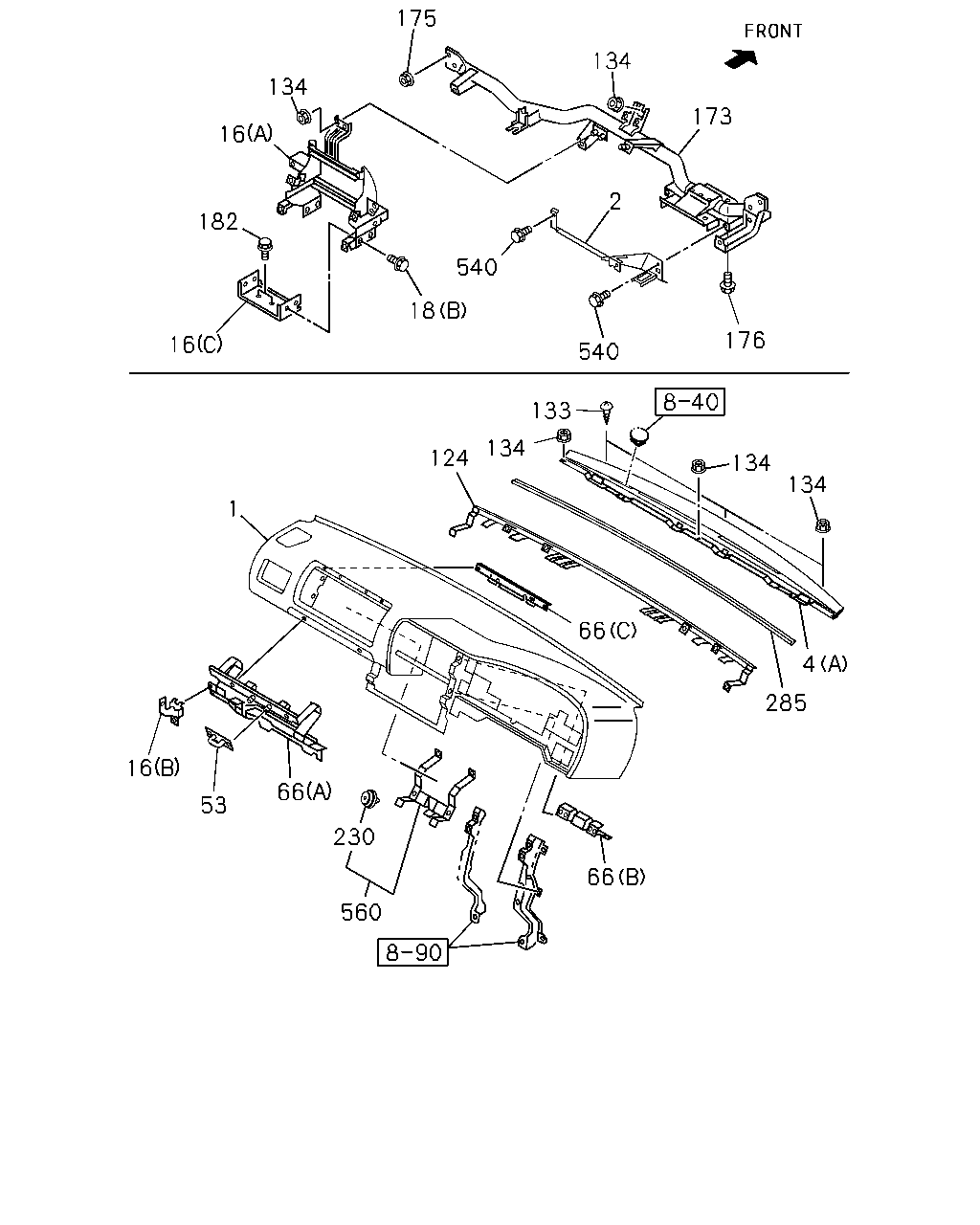

çizim 74184
175 134 134 173 16 2 182 540 18 176 16 540 133 134 124 134 134 1 66 4 285 16 66 53 230 66 560
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.080 PANEL; INST
GRAY 		8-97154-859-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
1 16.080 PANEL; INST
EXC. AIR BAG PASSENGER(7FA) GRAY 		8-97154-859-1 01 1 9910- ● ● ● ● ● ●
1 16.080 PANEL; INST
GRAY 		8-97154-859-1 01 1 9910- ● ●
1 16.080 PANEL; INST
AIR BAG PASSENGER(7FA) GRAY 		8-97153-944-4 01 1 9910- ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 		8-97101-851-5 01 1 9804-9909 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 		8-97101-851-5 01 1 9910-9910 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 		8-97101-851-5 01 1 9910-9910 ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
22LE/C22NE ENG(RJT),4JB1 ENG(RLF), 6VD1 ENG(RLV) EXC. UNITED KINGDOM EQUIPMENT(EK3), EAST MALAYSIA EQUIPMENT(PM6), AUSTRALIAN EQUIPMENT(RR3),WEST MALAYSIA E QUIPMENT(S3D) 		8-97101-851-6 01 1 9911-0008 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 		8-97101-851-6 01 1 9911-0008 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
22LE/C22NE ENG(RJT),4JB1 ENG(RLF), 6VD1 ENG(RLV) EXC. UNITED KINGDOM EQUIPMENT(EK3), EAST MALAYSIA EQUIPMENT(PM6), AUSTRALIAN EQUIPMENT(RR3),WEST MALAYSIA E QUIPMENT(S3D) 		8-97101-851-6 01 1 0009- ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 		8-97101-851-6 01 1 0009- ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97187-498-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 		8-97187-498-0 01 1 9910-9910 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 		8-97187-498-1 01 1 9911-0008 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97187-498-1 01 1 9911-0008 ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 		8-97187-498-1 01 1 0009- ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97187-498-1 01 1 0009- ● ● ● ●
4 16.080 COVER; INST PNL
(B) GRAY 		8-97154-484-2 01 1 9804- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
VENTILATION RAM AIR(6TN) (A) 		8-97142-696-0 01 1 9804- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
EXC. VENTILATION RAM AIR(6TN) (A) 		8-97101-621-3 01 1 9804-0112 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
EXC. VENTILATION RAM AIR(6TN) (A) 		8-97327-855-0 01 1 0201- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR REMOTE SHIFT<M11> (C) 		8-97180-785-0 01 1 9804-0012 ● ● ● ●
16 16.085 BRACKET; INST PNL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR REMOTE SHIFT<M11> (C) 		8-97180-785-0 01 1 0101-0104 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-97180-785-0 01 1 0105-0105 ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
FLOOR REMOTE SHIFT<M11> EXC. PARKING BRAKE FLOOR<7XW> (C) 		8-97180-785-0 01 1 0106- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR REMOTE SHIFT<M11> (C) 		8-97180-785-0 01 1 0106- ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
22LE/C22NE ENG(RJT) EXC. FLOOR REMOTE SHIFT<M11> (A) 		8-97180-783-1 01 1 9804-0012 ● ● ● ●
16 16.085 BRACKET; INST PNL
22LE/C22NE ENG(RJT) EXC. AIR BAG DRIVER(AJ3),FLOOR REMOTE SHIFT<M11> (A) 		8-97180-783-1 01 1 0101-0109 ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
22LE/C22NE ENG(RJT) EXC. AIR BAG DRIVER(AJ3),FLOOR REMOTE SHIFT<M11> (A) 		8-97180-783-1 01 1 0110- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3),FLOOR REMOTE SHIFT<M11> (A) 		8-97180-783-1 01 1 0110- ● ● ● ● ●
16 16.085 BRACKET; INST PNL
02.510 (B) 		8-97120-886-0 01 1 9804- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) FLOOR REMOTE SHIFT<M11> (C) 		8-97112-446-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
A/T THM(RMQ) (C) 		8-97112-446-1 01 1 9804-9909 ● ● ●
16 16.085 BRACKET; INST PNL
FLOOR REMOTE SHIFT<M11> EXC. PARKING BRAKE FLOOR<7XW> (C) 		8-97112-446-1 01 1 9910-0104 ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) (A) 		8-97132-076-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. AIR BAG DRIVER(AJ3) (A) 		8-97132-076-0 01 1 9910-0109 ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. AIR BAG DRIVER(AJ3),CHARGE AIRCOOLER<6PL> (A) 		8-97132-076-0 01 1 0110- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> (A) 		8-97101-611-4 01 1 9804-9909 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> (A) 		8-97101-611-4 01 1 9910-0012 ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
AIR BAG DRIVER(AJ3) (A) 		8-97101-611-4 01 1 9910-0012 ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> EXC. AIR BAG DRIVER(AJ3) (A) 		8-97101-611-4 01 1 0101-0109 ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
AIR BAG DRIVER(AJ3) (A) 		8-97101-611-4 01 1 0101-0109 ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
22LE/C22NE ENG(RJT),4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. AIR BAG DRIVER(AJ3) (A) 		8-97101-611-4 01 1 0110- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
AIR BAG DRIVER(AJ3) (A) 		8-97101-611-4 01 1 0110- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3) (A) 		8-97101-611-4 01 1 0110- ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JH1 ENG(RJX) A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) (A) 		8-97101-611-4 01 1 0110- ● ●
18 16.085 BOLT; BRKT
08.080 (B) M6X16 FLANGE 		8-97803-298-0 04 1 9804-0111 ● ● ● ● ● ● ● ●
18 16.085 BOLT; BRKT
16.325 (B) M6X16 FLANGE 		8-97808-792-1 04 1 0112- ● ● ● ● ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG PASSENGER(7FA) 16.328 (A) M6X18 W/LK&PL WASHER 		8-97060-719-0 04 1 9910- ● ● ● ● ● ●
53 16.115 STRIKER; GLOVE BOX 8-97125-756-0 01 1 9804- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97114-725-0 01 1 9804- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-97134-475-1 01 1 9804-9902 ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-97217-989-0 01 1 9903-9909 ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG PASSENGER(7FA) (A) 		8-97217-989-0 01 1 9910-0012 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-97217-989-0 01 1 9910-0012 ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG PASSENGER(7FA) (A) 		8-97217-989-1 01 1 0101- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG PASSENGER(7FA) (A) 		8-97112-209-3 01 1 9910-0012 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG PASSENGER(7FA) (A) 		8-97112-209-4 01 1 0101- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG PASSENGER(7FA) (C) 		8-97114-724-1 01 1 9910-0012 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG PASSENGER(7FA) (C) 		8-97114-724-1 01 1 0101- ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-97134-515-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-97218-068-0 01 1 9903-9909 ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
EXC. AIR BAG PASSENGER(7FA) 		8-97218-068-1 01 1 9910- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-97218-068-1 01 1 9910- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG PASSENGER(7FA) 		8-97112-346-1 01 1 9910- ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
08.155 M6X16 		8-94479-534-0 05 1 9804- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9804- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9804- ● ● ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97187-519-0 01 1 9804-9901 ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97187-519-0 01 1 9804-9901 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 		8-97187-519-0 01 1 9804-9901 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97219-002-0 01 1 9902-9909 ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE S(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97219-002-0 01 1 9902-9909 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIAN EQUIPMENT(RR3) 		8-97219-002-0 01 1 9902-9909 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> 		8-97219-002-0 01 1 9910-0007 ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97219-002-0 01 1 9910-0007 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. AIR BAG PASSENGER(7FA), PARKINGBRAKE FLOOR<7XW> 		8-97219-002-0 01 1 0008-0012 ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97219-002-0 01 1 0008-0012 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. AIR BAG PASSENGER(7FA), PARKINGBRAKE FLOOR<7XW> 		8-97228-822-1 01 1 0101-0101 ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97228-822-1 01 1 0101-0101 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. AIR BAG DRIVER(AJ3),PARKING BRAKE FLOOR<7XW> 		8-97228-822-1 01 1 0102-0102 ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97228-822-1 01 1 0102-0102 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. AIR BAG PASSENGER(7FA), PARKINGBRAKE FLOOR<7XW> 		8-97228-822-1 01 1 0103- ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97228-822-1 01 1 0103- ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG PASSENGER(7FA) PARKING BRAKE FLOOR<7XW> 		8-97187-555-0 01 1 9910-0012 ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG PASSENGER(7FA) PARKING BRAKE FLOOR<7XW> 		8-97228-673-1 01 1 0101-0101 ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG DRIVER(AJ3) PARKING BRAKE FLOOR<7XW> 		8-97228-673-1 01 1 0102-0102 ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) PARKING BRAKE FLOOR<7XW> 		8-97228-673-1 01 1 0103- ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG PASSENGER(7FA) EXC. PARKING BRAKE FLOOR<7XW> 		8-97263-270-0 01 1 0008-0012 ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG PASSENGER(7FA) EXC. PARKING BRAKE FLOOR<7XW> 		8-97261-829-0 01 1 0101-0101 ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG DRIVER(AJ3) EXC. PARKING BRAKE FLOOR<7XW> 		8-97261-829-0 01 1 0102-0102 ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) EXC. PARKING BRAKE FLOOR<7XW> 		8-97261-829-0 01 1 0103- ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
6VD1 ENG(RLV) 		8-97187-555-0 01 1 9804-9901 ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) 		8-97187-555-0 01 1 9804-9901 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97187-555-0 01 1 9804-9901 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-97187-555-0 01 1 9804-9901 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
6VD1 ENG(RLV) 		8-97218-270-0 01 1 9902-9909 ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) 		8-97218-270-0 01 1 9902-9909 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97218-270-0 01 1 9902-9909 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-97218-270-0 01 1 9902-9909 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
PARKING BRAKE FLOOR<7XW> EXC. AIR BAG PASSENGER(7FA) 		8-97218-270-0 01 1 9910-0012 ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
PARKING BRAKE FLOOR<7XW> EXC. AIR BAG PASSENGER(7FA) 		8-97228-674-1 01 1 0101-0101 ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
PARKING BRAKE FLOOR<7XW> EXC. AIR BAG DRIVER(AJ3) 		8-97228-674-1 01 1 0102-0102 ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
PARKING BRAKE FLOOR<7XW> EXC. AIR BAG PASSENGER(7FA) 		8-97228-674-1 01 1 0103- ● ● ● ● ● ●
175 16.085 NUT; CROSS BEAM
09.011 M8 W/LK WASHER 		8-97065-435-0 04 1 9804- ● ● ● ● ● ● ● ●
176 16.085 BOLT; CROSS BEAM
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804- ● ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
08.080 M6X16 FLANGE 		8-97803-298-0 02 1 9804-9909 ● ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> 08.080 M6X16 FLANGE 		8-97803-298-0 02 1 9910- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
08.080 M6X16 FLANGE 		8-97803-298-0 02 1 9910- ● ●
230 09.744 CLIP; INST
AIR BAG PASSENGER(7FA) 16.165 H=16.7 		8-97022-017-0 02 1 9910- ● ● ● ● ● ●
285 16.085 FINISHER; INST PANEL 8-97142-524-0 01 1 9804- ● ● ● ● ● ● ● ●
540 16.085 BOLT; REINFORCEMENT
08.015 M6X20 W/WASHER 		8-94112-987-1 02 1 9804- ● ● ● ● ● ● ● ●
560 16.085 BRACKET 8-97166-913-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
560 16.085 BRACKET
AIR BAG PASSENGER(7FA) 06.870 		8-97107-572-1 01 1 9910- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
