◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#45742) — 48 parça

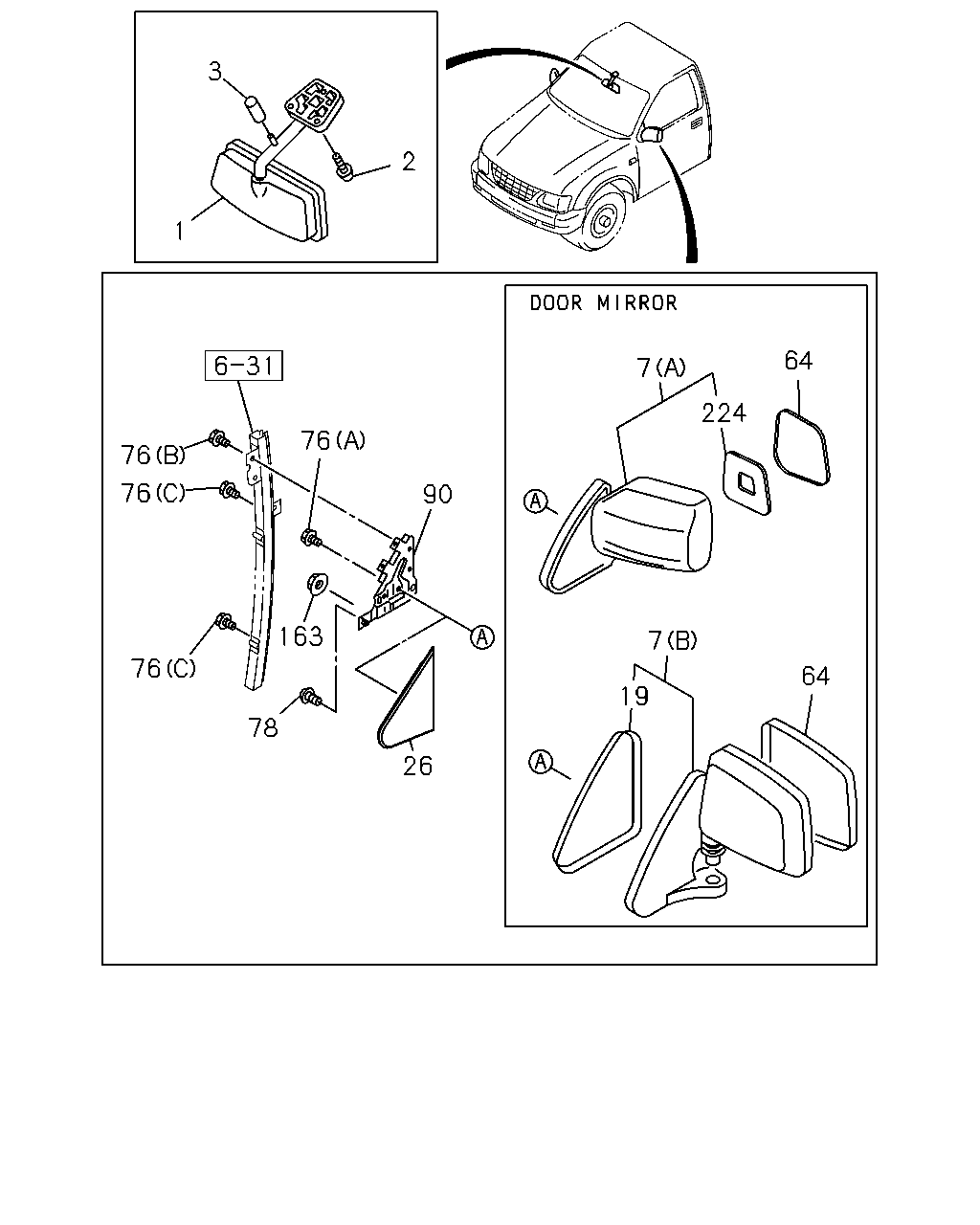

çizim 71810
3 2 1 64 7 224 76 76 76 90 163 7 76 64 19 78 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.068 MIRROR; ROOM
RR VIEW MIRROR DAY & NIGHT<D43> GRAY 		8-97158-659-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
1 16.068 MIRROR; ROOM
GRAY 		8-97158-659-0 01 1 9910- ● ● ● ● ● ● ● ●
1 16.068 MIRROR; ROOM
EXC. RR VIEW MIRROR DAY & NIGHT<D43>,UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97154-620-3 01 1 9804-9909 ● ● ● ● ● ● ● ●
1 16.068 MIRROR; ROOM
UNITED KINGDOM EQUIPMENT(EK3) EXC. RR VIEW MIRROR DAY & NIGHT<D43> GRAY 		8-97154-621-4 01 1 9804-9909 ● ● ● ●
2 16.069 SCREW; MIRROR TO BODY
08.977 M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 03 1 9804- ● ● ● ● ● ● ● ●
3 16.069 STOPPER; RR VIEW MIRROR 8-94239-390-0 01 1 9804- ● ● ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9> (B) 		8-97112-266-0 01 1 9804- ● ● ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9> EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97115-700-0 01 1 9804- ● ● ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
BRIGHT MIRROR<6LY> (B) 		8-97112-267-0 01 1 9804-0012 ● ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
BRIGHT MIRROR<6LY> (B) 		8-97112-267-0 01 1 0101- ● ● ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
BRIGHT MIRROR<6LY> EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97115-701-0 01 1 9804-0012 ● ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
BRIGHT MIRROR<6LY> EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97115-701-0 01 1 0101- ● ● ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
AUSTRALIAN EQUIPMENT(RR3) BRIGHT MIRROR<6LY> (B) 		8-97112-269-0 01 1 9804- ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
AUSTRALIAN EQUIPMENT(RR3) DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) 		8-97240-476-0 01 1 0002-0109 ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
AUSTRALIAN EQUIPMENT(RR3) DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) 		8-97314-038-1 01 1 0110- ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
AUSTRALIAN EQUIPMENT(RR3) DOOR MIRROR<RT9> (B) 		8-97112-268-0 01 1 9804- ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT<DG2> (A) 		8-97079-431-6 01 1 9804-9909 ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT<DG2> (A) 		8-97079-430-6 01 1 9804-9909 ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) 		8-97112-271-0 01 1 9804-9909 ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) 		8-97214-963-2 01 1 9910-0109 ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) 		8-97314-031-1 01 1 0110- ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) 		8-97112-270-0 01 1 9804-9909 ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (A) 		8-97214-964-2 01 1 9910-0001 ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97214-964-2 01 1 0002-0109 ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97314-032-1 01 1 0110- ● ● ● ● ● ●
19 10.186 GASKET; MIRROR
DOOR MIRROR<RT9>,BRIGHT MIRROR<6LY> 		8-97165-412-0 01 1 9804- ● ● ● ● ● ● ● ●
19 10.186 GASKET; MIRROR
DOOR MIRROR<RT9>,BRIGHT MIRROR<6LY> 		8-97165-411-0 01 1 9804- ● ● ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR<RT9>,BRIGHT MIRROR<6LY>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97096-060-0 01 1 9804-9909 ● ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR<RT9>,BRIGHT MIRROR<6LY>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97096-059-0 01 1 9804-9909 ● ● ● ● ● ● ●
64 16.069 SEAL; MIRROR 8-97085-132-1 02 1 9804- ● ● ● ● ● ● ● ●
76 16.069 BOLT; STAY BRKT
10.701 (B) M6X8 		8-94155-893-0 04 1 9804- ● ● ● ● ● ● ● ●
76 16.069 BOLT; STAY BRKT
16.585 (A) M6X14 FLANGE 		8-94327-380-0 06 1 9804- ● ● ● ● ● ● ● ●
76 16.069 BOLT; STAY BRKT
07.833 (C) M6X14 W/LK&PL WASHER 		8-94382-066-1 04 1 9804- ● ● ● ● ● ● ● ●
78 16.069 SCREW; BRKT FIX
16.175 M6X14 		8-94113-240-1 02 1 9804- ● ● ● ● ● ● ● ●
78 16.069 SCREW; BRKT FIX
16.173 M4X12 OVAL-HEAD 		9-93297-412-0 04 1 9804- ● ● ● ● ● ● ● ●
90 16.069 BRACKET; MIRROR STAY
EXC. KD PREPARATORY PACK<6HF> 		8-97081-414-3 01 1 0505- ● ● ● ● ● ● ● ●
90 16.069 BRACKET; MIRROR STAY
EXC. KD PREPARATORY PACK<6HF> 		8-97081-415-3 01 1 0505- ● ● ● ● ● ● ● ●
90 16.069 BRACKET; MIRROR STAY 8-97081-415-3 01 1 9804-0504 ● ● ● ● ● ● ● ●
90 16.069 BRACKET; MIRROR STAY
KD PREPARATORY PACK<6HF> 		8-97081-415-3 01 1 0505- ● ● ● ● ● ● ● ●
90 16.069 BRACKET; MIRROR STAY 8-97081-414-3 01 1 9804-0504 ● ● ● ● ● ● ● ●
90 16.069 BRACKET; MIRROR STAY
KD PREPARATORY PACK<6HF> 		8-97081-414-3 01 1 0505- ● ● ● ● ● ● ● ●
163 06.069 NUT; MIRROR BRKT
07.829 M6 FLANGE 		5-09440-004-0 02 1 9804- ● ● ● ● ● ● ● ●
224 16.068 MIRROR; DOOR
AUSTRALIAN EQUIPMENT(RR3) DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97249-277-0 01 1 0002- ● ● ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97102-913-0 01 1 9804-9909 ● ● ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97228-243-0 01 1 9910- ● ● ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97102-912-0 01 1 9804-9909 ● ● ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97228-244-0 01 1 9910-0001 ● ● ● ● ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-97228-244-0 01 1 0002- ● ● ● ● ● ●
