◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶

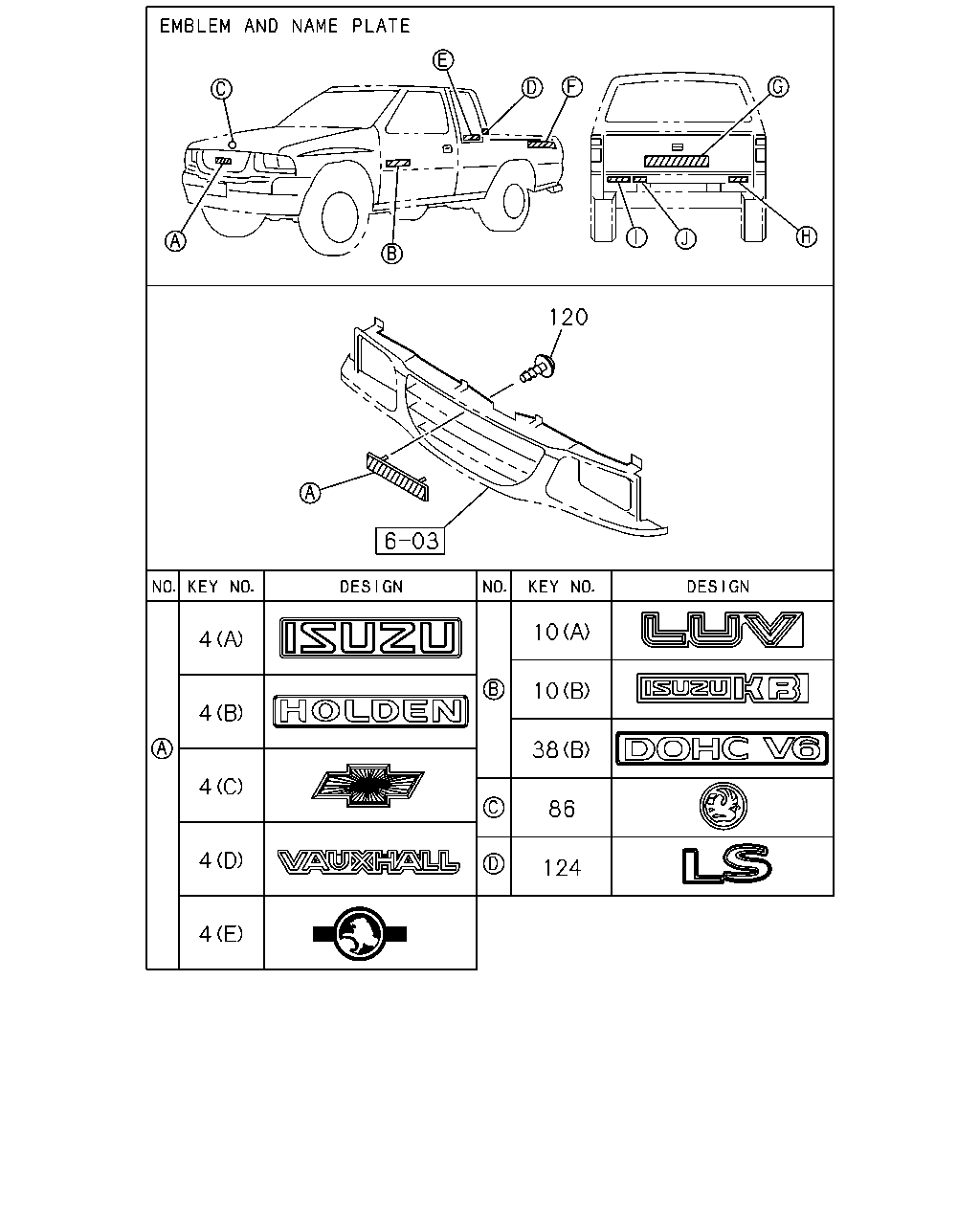

7-01 — EMBLEM AND NAME PLATE (#45740) — 170 parça

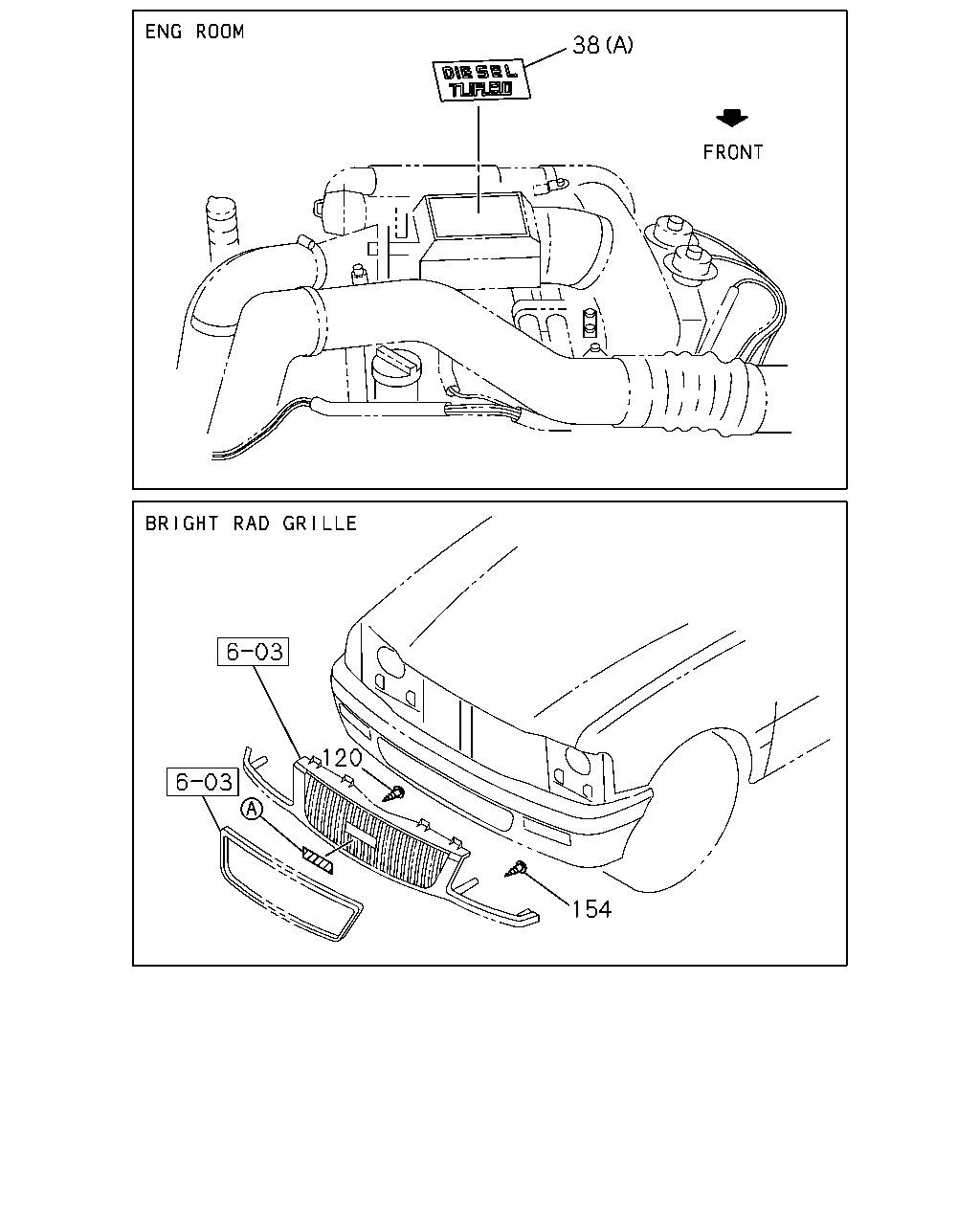

çizim 19170
38 120 154
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 01.303 PLATE; NAME
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97115-470-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JB1 ENG(RLF) (A) 		8-97115-470-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97115-470-0 01 1 9910-0008 ● ● ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97115-470-0 01 1 9910-0008 ● ● ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97115-470-0 01 1 0009- ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97115-470-0 01 1 0009- ● ● ● ● ●
38 01.303 PLATE; NAME
6VD1 ENG(RLV) (B) 		8-97179-790-0 02 1 9804-9905 ● ● ● ● ● ● ● ●
38 01.303 PLATE; NAME
6VD1 ENG(RLV) EXC. NAME PLATE ISUZU KB<6PU> (B) 		8-97179-790-0 02 1 9906- ● ● ● ● ● ●
120 01.303 SCREW; MARK
08.900 M5X16 		8-94380-268-0 04 1 9804-0012 ● ● ● ● ● ● ● ●
120 01.303 SCREW; MARK
EXC. BRIGHT RAD GRILLE<V22> 08.900 M5X16 		8-94380-268-0 04 1 0101- ● ● ● ● ● ● ●
120 01.303 SCREW; MARK
08.900 M5X16 		8-94380-268-0 04 1 0101- ●
120 01.303 SCREW; MARK
BRIGHT RAD GRILLE<V22> 08.900 M5X16 		8-94380-268-0 02 1 0101- ● ● ● ● ● ● ●
154 01.303 SCREW
BRIGHT RAD GRILLE<V22> 02.587 M4X14 TAPPING 		9-07066-414-0 13 1 0101- ● ● ● ● ● ● ●

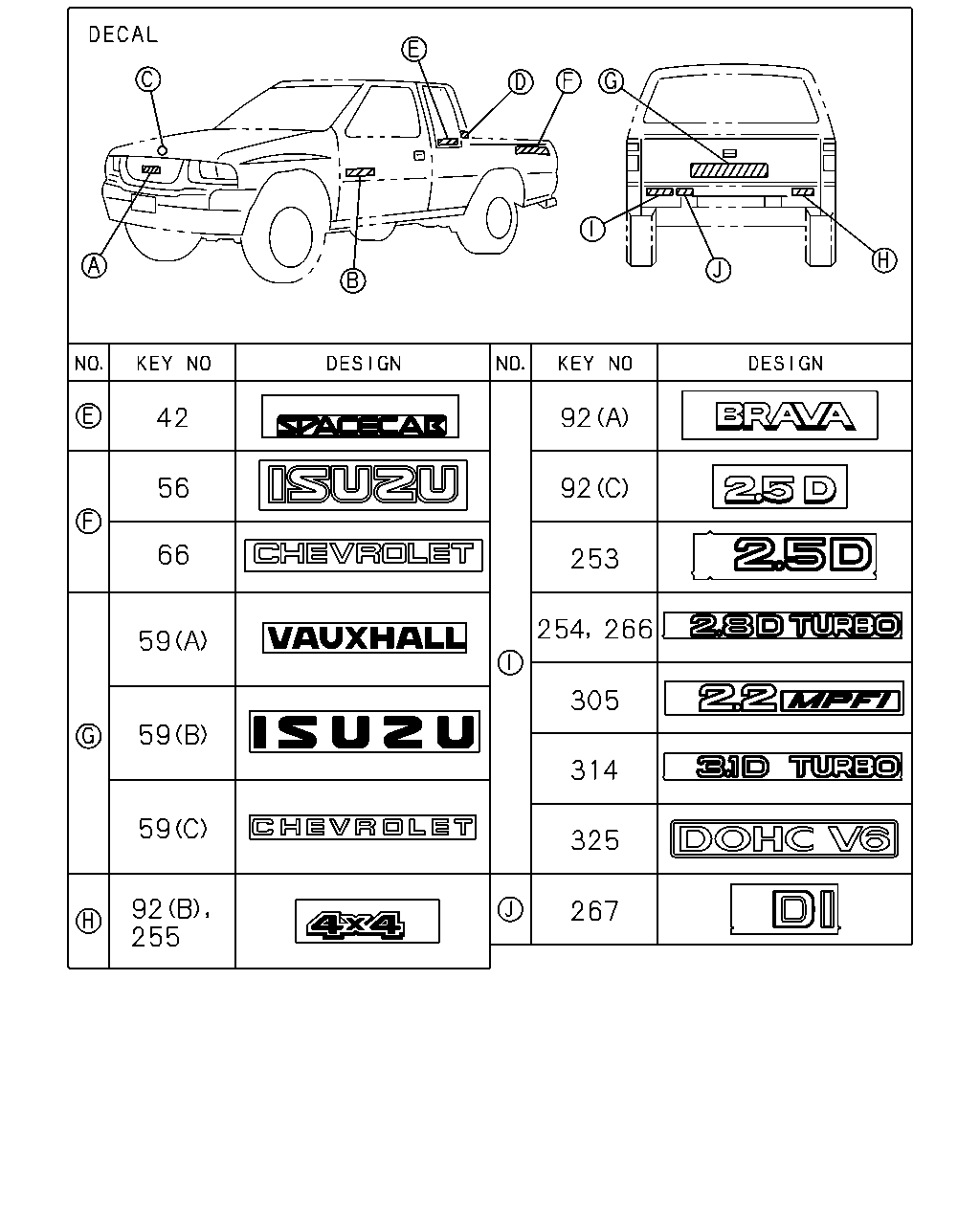

çizim 71851
42 92 56 92 66 253 254 266 59 305 59 314 59 325 92 255 267
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
42 16.507 DECAL; RR QUARTER 8-97135-089-0 02 1 9804-0012 ● ●
42 16.507 DECAL; RR QUARTER
EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 		8-97135-089-0 02 1 0101- ● ●
56 08.147 DECAL; BODY SIDE
LETTERING ISUZU RED(6FS) 		8-97022-699-0 02 1 9804- ● ● ● ● ● ● ● ●
56 08.147 DECAL; BODY SIDE
LETTERING ISUZU WHITE(S5N) 		8-97022-698-0 02 1 9804- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR AA YELLOW(804),BODY COLOR A LPINE WHITE(877),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINE WHITE/KAISER SILVER MET(887) DECAL-CHEVROLET TAIL GATE(X82) (C) DARK SILVER 		8-94476-923-0 01 1 9804-9810 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR LT.SILVER MET(753),BODY COL OR AA YELLOW(804),BODY COLOR FORESTGREEN MICA(863),BODY COLOR ALPINE WHITE(877),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINE WHITE/KAISER SILVER MET(887) DECAL-CHEVROLET TAIL GATE(X82) (C) DARK SILVER 		8-94476-923-0 01 1 9811-9901 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR LT.SILVER MET(753),BODY COL OR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR TRITON BLUE MICA/KA ISER SILVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BO DY COLOR AA YELLOW(804),BODY COLOR FOREST GREEN MICA(863),BODY COLOR ALPINE WHITE(877),BODY COLOR RANGERGREEN(880),BODY COLOR ALPINE WHITE/ KAISER SILVER MET(887) DECAL-CHEVROLET TAIL GATE(X82) (C) DARK SILVER 		8-94476-923-0 01 1 9902-9909 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR TRITON BLUE MI CA/KAISER SILVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BODY COLOR AA YELLOW(804),BODY C OLOR ALPINE WHITE(877),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINEWHITE/KAISER SILVER MET(887) DECAL-CHEVROLET TAIL GATE(X82) (C) DARK SILVER 		8-94476-923-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR SATIN GOLD MET(613), BODYCOLOR CYPRESS GREEN MICA/LT.SILVER MET(615),BODY COLOR SATIN GOLD MET /LIGHT SILVER MET(616),BODY COLOR ASTRAL SILVER MET(718),BODY COLOR AL PINE WHITE/LT.SILVER MET(740),BODY COLOR ASTRAL SILVER/KAISER SILVER M ET(778),BODY COLOR AA YELLOW(804), BODY COLOR ALPINE WHITE(877) DECAL-CHEVROLET TAIL GATE(X82) (C) DARK SILVER 		8-94476-923-0 01 1 0101-0109 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR SATIN GOLD MET(613), BODYCOLOR CYPRESS GREEN MICA/LT.SILVER MET(615),BODY COLOR SATIN GOLD MET /LIGHT SILVER MET(616),BODY COLOR ASTRAL SILVER MET(718),BODY COLOR AL PINE WHITE/LT.SILVER MET(740),BODY COLOR ASTRAL SILVER/KAISER SILVER M ET(778),BODY COLOR ALPINE WHITE(877) DECAL-CHEVROLET TAIL GATE(X82) (C) DARK SILVER 		8-94476-923-0 01 1 0110- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR AA YELLOW(804),BODY COLOR A LPINE WHITE(877),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINE WHITE/KAISER SILVER MET(887) DECAL-ISUZU TAIL GATE(EX9) (B) DARK SILVER 		8-97001-858-1 01 1 9804-9810 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR LT.SILVER MET(753),BODY COL OR AA YELLOW(804),BODY COLOR FORESTGREEN MICA(863),BODY COLOR ALPINE WHITE(877),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINE WHITE/KAISER SILVER MET(887) DECAL-ISUZU TAIL GATE(EX9) (B) DARK SILVER 		8-97001-858-1 01 1 9811-9901 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR LT.SILVER MET(753),BODY COL OR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR TRITON BLUE MICA/KA ISER SILVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BO DY COLOR AA YELLOW(804),BODY COLOR FOREST GREEN MICA(863),BODY COLOR ALPINE WHITE(877),BODY COLOR RANGERGREEN(880),BODY COLOR ALPINE WHITE/ KAISER SILVER MET(887) DECAL-ISUZU TAIL GATE(EX9) (B) DARK SILVER 		8-97001-858-1 01 1 9902-9909 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR TRITON BLUE MI CA/KAISER SILVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BODY COLOR AA YELLOW(804),BODY C OLOR ALPINE WHITE(877),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINEWHITE/KAISER SILVER MET(887) DECAL-ISUZU TAIL GATE(EX9) (B) DARK SILVER 		8-97001-858-1 01 1 9910-0012 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR SATIN GOLD MET(613), BODYCOLOR CYPRESS GREEN MICA/LT.SILVER MET(615),BODY COLOR SATIN GOLD MET /LIGHT SILVER MET(616),BODY COLOR ASTRAL SILVER MET(718),BODY COLOR AL PINE WHITE/LT.SILVER MET(740),BODY COLOR ASTRAL SILVER/KAISER SILVER M ET(778),BODY COLOR AA YELLOW(804), BODY COLOR ALPINE WHITE(877) DECAL-ISUZU TAIL GATE(EX9) (B) DARK SILVER 		8-97001-858-1 01 1 0101-0109 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR SATIN GOLD MET(613), BODYCOLOR CYPRESS GREEN MICA/LT.SILVER MET(615),BODY COLOR SATIN GOLD MET /LIGHT SILVER MET(616),BODY COLOR ASTRAL SILVER MET(718),BODY COLOR AL PINE WHITE/LT.SILVER MET(740),BODY COLOR ASTRAL SILVER/KAISER SILVER M ET(778),BODY COLOR ALPINE WHITE(877) DECAL-ISUZU TAIL GATE(EX9) (B) DARK SILVER 		8-97001-858-1 01 1 0110- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR KAISER SILVER MET(878),BODY COLOR RADI ANT RED/KAISER SILVER MET(888), BODYCOLOR MARINA BLUE/KAISER SILVER ME T(889) DECAL-CHEVROLET TAIL GATE(X82) (C) LIGHT SILVER 		8-94476-922-0 01 1 9804-9810 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR REDROCK MICA(872),BODY COLOR KAISER S ILVER MET(878),BODY COLOR RADIANT RED/KAISER SILVER MET(888),BODY COLO R MARINA BLUE/KAISER SILVER MET(889) DECAL-CHEVROLET TAIL GATE(X82) (C) LIGHT SILVER 		8-94476-922-0 01 1 9811-9909 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR KAISER SILVER MET(878),BODY COLOR RADI ANT RED/KAISER SILVER MET(888), BODYCOLOR MARINA BLUE/KAISER SILVER ME T(889) DECAL-CHEVROLET TAIL GATE(X82) (C) LIGHT SILVER 		8-94476-922-0 01 1 9910-0012 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER M ET(614),BODY COLOR RADIANT RED(756) ,BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR KAISER SILVER ME T(878) DECAL-CHEVROLET TAIL GATE(X82) (C) LIGHT SILVER 		8-94476-922-0 01 1 0101- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR KAISER SILVER MET(878),BODY COLOR RADI ANT RED/KAISER SILVER MET(888), BODYCOLOR MARINA BLUE/KAISER SILVER ME T(889) DECAL-ISUZU TAIL GATE(EX9) (B) LIGHT SILVER 		8-97001-857-1 01 1 9804-9810 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR REDROCK MICA(872),BODY COLOR KAISER S ILVER MET(878),BODY COLOR RADIANT RED/KAISER SILVER MET(888),BODY COLO R MARINA BLUE/KAISER SILVER MET(889) DECAL-ISUZU TAIL GATE(EX9) (B) LIGHT SILVER 		8-97001-857-1 01 1 9811-9909 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR KAISER SILVER MET(878),BODY COLOR RADI ANT RED/KAISER SILVER MET(888), BODYCOLOR MARINA BLUE/KAISER SILVER ME T(889) DECAL-ISUZU TAIL GATE(EX9) (B) LIGHT SILVER 		8-97001-857-1 01 1 9910-0012 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER M ET(614),BODY COLOR RADIANT RED(756) ,BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR KAISER SILVER ME T(878) DECAL-ISUZU TAIL GATE(EX9) (B) LIGHT SILVER 		8-97001-857-1 01 1 0101- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
GRADE S(RBA) BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725),BOD Y COLOR AA YELLOW(804),BODY COLOR ALPINE WHITE(877),BODY COLOR RANGERGREEN(880),BODY COLOR ALPINE WHITE/ KAISER SILVER MET(887) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. HONG KONG EQUIPMENT(PQ1) (A) DARK SILVER 		8-97082-225-0 01 1 9804-9805 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR AA YELLOW(804),BODY COLOR A LPINE WHITE(877),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINE WHITE/KAISER SILVER MET(887) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. HONG KONG EQUIPMENT(PQ1) (A) DARK SILVER 		8-97082-225-0 01 1 9806-9807 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR AA YELLOW(804),BODY COLOR A LPINE WHITE(877),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINE WHITE/KAISER SILVER MET(887) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. HONG KONG EQUIPMENT(PQ1), IRISHEQUIPMENT(6CU) (A) DARK SILVER 		8-97082-225-0 01 1 9808-9901 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR TRITON BLUE MI CA/KAISER SILVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BODY COLOR AA YELLOW(804),BODY C OLOR ALPINE WHITE(877),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINEWHITE/KAISER SILVER MET(887) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. HONG KONG EQUIPMENT(PQ1), IRISHEQUIPMENT(6CU) (A) DARK SILVER 		8-97082-225-0 01 1 9902-9909 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR TRITON BLUE MI CA/KAISER SILVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BODY COLOR AA YELLOW(804),BODY C OLOR ALPINE WHITE(877),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINEWHITE/KAISER SILVER MET(887) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. CYPRUS EQUIPMENT(R4G) (A) DARK SILVER 		8-97082-225-0 01 1 9910-0006 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR ASTRAL SILVER MET(718), BODY COLOR TRITON BLUE MICA(725), BODY COLOR ASTRAL SILVER/KAISER SILVER MET(778),BODY COLOR TRITON BLUE MI CA/KAISER SILVER MET(788),BODY COLOR RANGER GREEN/KAISER SILVER MET(792),BODY COLOR AA YELLOW(804),BODY C OLOR ALPINE WHITE(877),BODY COLOR RANGER GREEN(880),BODY COLOR ALPINEWHITE/KAISER SILVER MET(887) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. HONG KONG EQUIPMENT(PQ1), CYPRUS EQUIPMENT(R4G) (A) DARK SILVER 		8-97082-225-0 01 1 0007-0012 ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR SATIN GOLD MET(613), BODYCOLOR CYPRESS GREEN MICA/LT.SILVER MET(615),BODY COLOR SATIN GOLD MET /LIGHT SILVER MET(616),BODY COLOR ASTRAL SILVER MET(718),BODY COLOR AL PINE WHITE/LT.SILVER MET(740),BODY COLOR ASTRAL SILVER/KAISER SILVER M ET(778),BODY COLOR AA YELLOW(804), BODY COLOR ALPINE WHITE(877) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) VAUXHALL BRAND<8DT> (A) DARK SILVER 		8-97082-225-0 01 1 0101-0109 ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CYPRESS GREEN MICA(611), BODY COLOR SATIN GOLD MET(613), BODYCOLOR CYPRESS GREEN MICA/LT.SILVER MET(615),BODY COLOR SATIN GOLD MET /LIGHT SILVER MET(616),BODY COLOR ASTRAL SILVER MET(718),BODY COLOR AL PINE WHITE/LT.SILVER MET(740),BODY COLOR ASTRAL SILVER/KAISER SILVER M ET(778),BODY COLOR ALPINE WHITE(877) VAUXHALL BRAND<8DT> (A) DARK SILVER 		8-97082-225-0 01 1 0110-0201 ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
GRADE S(RBA) BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR KAI SER SILVER MET(878),BODY COLOR RADIANT RED/KAISER SILVER MET(888),BODY COLOR MARINA BLUE/KAISER SILVER ME T(889) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. HONG KONG EQUIPMENT(PQ1) (A) GRAY 		8-97082-224-0 01 1 9804-9805 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR KAISER SILVER MET(878),BODY COLOR RADI ANT RED/KAISER SILVER MET(888), BODYCOLOR MARINA BLUE/KAISER SILVER ME T(889) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. HONG KONG EQUIPMENT(PQ1) (A) GRAY 		8-97082-224-0 01 1 9806-9807 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR KAISER SILVER MET(878),BODY COLOR RADI ANT RED/KAISER SILVER MET(888), BODYCOLOR MARINA BLUE/KAISER SILVER ME T(889) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. HONG KONG EQUIPMENT(PQ1), IRISHEQUIPMENT(6CU) (A) GRAY 		8-97082-224-0 01 1 9808-9909 ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR KAISER SILVER MET(878),BODY COLOR RADI ANT RED/KAISER SILVER MET(888), BODYCOLOR MARINA BLUE/KAISER SILVER ME T(889) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. CYPRUS EQUIPMENT(R4G) (A) GRAY 		8-97082-224-0 01 1 9910-0006 ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINA BLUE(722),BODY COLOR RADIANT RED(756),BODY COLOR KAISER SILVER MET(878),BODY COLOR RADI ANT RED/KAISER SILVER MET(888), BODYCOLOR MARINA BLUE/KAISER SILVER ME T(889) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. HONG KONG EQUIPMENT(PQ1), CYPRUS EQUIPMENT(R4G) (A) GRAY 		8-97082-224-0 01 1 0007-0012 ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER M ET(614),BODY COLOR RADIANT RED(756) ,BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR KAISER SILVER ME T(878) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) VAUXHALL BRAND<8DT> (A) GRAY 		8-97082-224-0 01 1 0101-0109 ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR CAPE BLUE MET(612),BODY COLOR CAPE BLUE MET/KAISER SILVER M ET(614),BODY COLOR RADIANT RED(756) ,BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR KAISER SILVER ME T(878) VAUXHALL BRAND<8DT> (A) GRAY 		8-97082-224-0 01 1 0110-0201 ● ● ● ● ●
66 17.505 DECAL; SIDE PANEL
LETTERING CHEVROLET WHITE(S7E) 		8-94318-467-0 02 1 9804- ● ● ● ● ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) 01.303 (C) 		8-97139-234-1 01 1 9804-9909 ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) 01.303 (C) 		8-97139-234-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) CYPRUS EQUIPMENT(R4G) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),R R BODY DBL WALL CTR PULL INNER & OU TER HOOK(7TN) 01.303 (C) 		8-97139-234-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) 01.303 (C) 		8-97139-234-1 01 1 0007-0012 ● ● ● ● ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),R R BODY DBL WALL CTR PULL INNER & OU TER HOOK(7TN) 01.303 (C) 		8-97139-234-1 01 1 0007-0012 ● ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),R R BODY DBL WALL CTR PULL INNER & OU TER HOOK(7TN),VAUXHALL BRAND<8DT> 01.303 (C) 		8-97139-234-1 01 1 0101-0201 ● ● ● ● ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),R R BODY DBL WALL CTR PULL INNER & OU TER HOOK(7TN) 01.303 (C) 		8-97139-234-1 01 1 0202- ● ● ● ● ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. HONG KONG EQUIPMENT(PQ1) (A) 		8-97149-382-1 01 1 9804-9807 ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. HONG KONG EQUIPMENT(PQ1), IRISHEQUIPMENT(6CU) (A) 		8-97149-382-1 01 1 9808-9909 ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. CYPRUS EQUIPMENT(R4G) (A) 		8-97149-382-1 01 1 9910-0006 ● ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. HONG KONG EQUIPMENT(PQ1), CYPRUS EQUIPMENT(R4G) (A) 		8-97149-382-1 01 1 0007-0012 ● ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) VAUXHALL BRAND<8DT> (A) 		8-97149-382-1 01 1 0101-0201 ● ● ● ● ●
92 08.147 DECAL; RR END
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),R R BODY DBL WALL CTR PULL INNER & OU TER HOOK(7TN) 01.303 (B) 		8-97141-969-0 01 1 9804-9809 ● ● ● ●
92 08.147 DECAL; RR END
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 01.303 (B) 		8-97141-969-0 01 1 9804-9809 ● ●
92 08.147 DECAL; RR END
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1) 01.303 (B) 		8-97141-969-0 01 1 9804-9809 ● ●
92 08.147 DECAL; RR END
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3),RR BODY DOUBLE WA LL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DB L WALL CTR PULL INNER & OUTER HOOK(7TN) 01.303 (B) 		8-97141-969-0 01 1 9810-9909 ● ● ● ●
92 08.147 DECAL; RR END
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 01.303 (B) 		8-97141-969-0 01 1 9810-9909 ● ●
92 08.147 DECAL; RR END
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1) 01.303 (B) 		8-97141-969-0 01 1 9810-9909 ● ●
92 08.147 DECAL; RR END
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3),RR BODY DOUBLE WA LL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DB L WALL CTR PULL INNER & OUTER HOOK(7TN) 01.303 (B) 		8-97141-969-0 01 1 9910-0006 ● ● ● ●
92 08.147 DECAL; RR END
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1) 01.303 (B) 		8-97141-969-0 01 1 9910-0006 ● ● ●
92 08.147 DECAL; RR END
UNITED KINGDOM EQUIPMENT(EK3) CYPRUS EQUIPMENT(R4G) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 01.303 (B) 		8-97141-969-0 01 1 9910-0006 ● ●
92 08.147 DECAL; RR END
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3),RR BODY DOUBLE WA LL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DB L WALL CTR PULL INNER & OUTER HOOK(7TN) 01.303 (B) 		8-97141-969-0 01 1 0007-0012 ● ● ● ●
92 08.147 DECAL; RR END
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), CYPRUS EQUIPMENT(R4G) 01.303 (B) 		8-97141-969-0 01 1 0007-0012 ● ● ●
92 08.147 DECAL; RR END
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 01.303 (B) 		8-97141-969-0 01 1 0007-0012 ● ● ●
92 08.147 DECAL; RR END
VAUXHALL BRAND<8DT> 01.303 (B) 		8-97141-969-0 01 1 0101-0201 ● ● ●
92 08.147 DECAL; RR END
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PU LL INNER & OUTER HOOK(7TN), VAUXHALLBRAND<8DT>,HOLDEN BRAND<8DU> 01.303 (B) 		8-97141-969-0 01 1 0101-0201 ● ● ●
92 08.147 DECAL; RR END
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 01.303 (B) 		8-97141-969-0 01 1 0101-0201 ●
92 08.147 DECAL; RR END
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PU LL INNER & OUTER HOOK(7TN),HOLDEN BRAND<8DU> 01.303 (B) 		8-97141-969-0 01 1 0202- ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97139-234-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) CYPRUS EQUIPMENT(R4G) 		8-97139-234-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97139-234-1 01 1 9910-0006 ● ● ● ● ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97139-234-1 01 1 0007-0007 ● ● ● ● ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) CYPRUS EQUIPMENT(R4G) 		8-97139-234-1 01 1 0007-0007 ● ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97139-234-1 01 1 0007-0010 ● ● ● ● ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G) 		8-97139-234-1 01 1 0007-0010 ● ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97139-234-1 01 1 0011-0012 ● ● ● ● ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) 		8-97139-234-1 01 1 0011-0012 ● ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) EXC. VAUXHALL BRAND<8DT>,HOLDEN BRAND<8DU> 		8-97139-234-1 01 1 0101-0109 ● ● ● ● ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) EXC. VAUXHALL BRAND<8DT> 		8-97139-234-1 01 1 0110- ● ● ● ● ● ● ● ●
254 01.303 DECAL; 2.8D TURBO
4JB1 ENG(RLF) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 		8-97139-236-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
254 01.303 DECAL; 2.8D TURBO
4JB1 ENG(RLF) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 		8-97139-236-0 01 1 9910-0010 ● ● ● ● ● ● ● ●
254 01.303 DECAL; 2.8D TURBO
4JB1 ENG(RLF) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BOD Y DBL WALL CTR PULL INNER & OUTER H OOK(7TN) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 		8-97139-236-0 01 1 0011- ● ● ● ● ● ●
255 01.303 DECAL; "4X4"
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97141-969-0 01 1 9804-9909 ● ● ● ●
255 01.303 DECAL; "4X4"
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 		8-97141-969-0 01 1 9804-9909 ● ● ● ●
255 01.303 DECAL; "4X4"
UNITED KINGDOM EQUIPMENT(EK3) CYPRUS EQUIPMENT(R4G) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97141-969-0 01 1 9910-0006 ● ● ● ●
255 01.303 DECAL; "4X4"
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 		8-97141-969-0 01 1 9910-0006 ● ● ● ●
255 01.303 DECAL; "4X4"
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 		8-97141-969-0 01 1 0007-0010 ● ● ● ●
255 01.303 DECAL; "4X4"
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97141-969-0 01 1 0007-0010 ● ● ●
255 01.303 DECAL; "4X4"
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 		8-97141-969-0 01 1 0011-0012 ● ● ● ●
255 01.303 DECAL; "4X4"
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97141-969-0 01 1 0011-0012 ● ● ●
255 01.303 DECAL; "4X4"
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) EXC. VAUXHALL BRAND<8DT>,HOLDEN BRAND<8DU> 		8-97141-969-0 01 1 0101-0201 ● ● ● ●
255 01.303 DECAL; "4X4"
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) EXC. HOLDEN BRAND<8DU> 		8-97141-969-0 01 1 0202- ● ● ● ●
266 01.303 DECAL; "2.8D TURBO"
4JB1 ENG(RLF) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),R R BODY DBL WALL CTR PULL INNER & OU TER HOOK(7TN) 		8-97139-236-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
266 01.303 DECAL; "2.8D TURBO"
4JB1 ENG(RLF) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL C TR PULL INNER & OUTER HOOK(7TN) 		8-97139-236-0 01 1 9910- ● ● ● ● ● ● ● ●
267 01.303 DECAL; "DI"
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. HONG KONG EQUIPMENT(PQ1) 		8-97149-384-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
267 01.303 DECAL; "DI"
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. CYPRUS EQUIPMENT(R4G) 		8-97149-384-1 01 1 9910-0006 ● ● ● ● ●
267 01.303 DECAL; "DI"
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) EXC. HONG KONG EQUIPMENT(PQ1), CYPRUS EQUIPMENT(R4G) 		8-97149-384-1 01 1 0007-0012 ● ● ● ● ●
267 01.303 DECAL; "DI"
4JA1 ENG(RLE) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) VAUXHALL BRAND<8DT> 		8-97149-384-1 01 1 0101-0109 ● ● ● ● ●
305 01.303 DECAL; 2.2L MPFI
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97181-660-0 01 1 9804-0009 ● ● ● ● ● ● ● ●
305 01.303 DECAL; 2.2L MPFI
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3), LABEL DELETE<8EY> 		8-97181-660-0 01 1 0010- ● ● ● ● ● ● ●
314 01.303 DECAL; "3.1D TURBO"
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(EK3) CYPRUS EQUIPMENT(R4G) 		8-97216-837-0 01 1 9910-0012 ● ● ●
314 01.303 DECAL; "3.1D TURBO"
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(EK3) EXC. VAUXHALL BRAND<8DT> 		8-97216-837-0 01 1 0101-0201 ● ● ● ● ●
314 01.303 DECAL; "3.1D TURBO"
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(EK3) 		8-97216-837-0 01 1 0202- ● ● ● ● ●
325 17.215 PLATE; NAME,V6
6VD1 ENG(RLV) NAME PLATE ISUZU KB<6PU> 01.303 		8-97179-790-0 01 1 9906- ● ● ● ● ● ●
çizim 73715
120 10 4 10 4 38 4 86 4 124 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 01.303 EMBLEM; RAD GRILLE
CHEVROLET MARK<YL6> (C) 		8-97177-255-1 01 1 9804-0012 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
CHEVROLET BRAND<RWE> EXC. BRIGHT RAD GRILLE<V22> (C) 		8-97177-255-1 01 1 0101- ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
CHEVROLET BRAND<RWE> (C) 		8-97177-255-1 01 1 0101- ●
4 01.303 EMBLEM; RAD GRILLE
NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97201-927-1 01 1 9804-0012 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
HOLDEN BRAND<8DU> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-97201-927-1 01 1 0101-0109 ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
HOLDEN BRAND<8DU> EXC. BRIGHT RAD GRILLE<V22> (E) 		8-97302-722-1 01 1 0110- ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3),CHEVROLET MARK<YL6> (A) 		8-97203-475-2 01 1 9804-9807 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) (A) 		8-97203-475-2 01 1 9804-9807 ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3),CHEVROLET MARK<YL6> (A) 		8-97203-475-2 01 1 9808-9909 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1),IRISH EQUIPMENT(6CU) (A) 		8-97203-475-2 01 1 9808-9909 ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3),CHEVROLET MARK<YL6> (A) 		8-97203-475-2 01 1 9910-0006 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
UNITED KINGDOM EQUIPMENT(EK3) CYPRUS EQUIPMENT(R4G) EXC. CHEVROLET MARK<YL6> (A) 		8-97203-475-2 01 1 9910-0006 ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3),CHEVROLET MARK<YL6> (A) 		8-97203-475-2 01 1 0007-0012 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G) EXC. CHEVROLET MARK<YL6> (A) 		8-97203-475-2 01 1 0007-0012 ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. CHEVROLET BRAND<RWE>,BRIGHT RAD GRILLE<V22>,VAUXHALL BRAND<8DT>, HOLDEN BRAND<8DU> (A) 		8-97203-475-2 01 1 0101-0201 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. CHEVROLET BRAND<RWE>,BRIGHT RAD GRILLE<V22>,HOLDEN BRAND<8DU> (A) 		8-97203-475-2 01 1 0202- ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
BRIGHT RAD GRILLE<V22> EXC. CHEVROLET BRAND<RWE>,VAUXHALL BRAND<8DT>,HOLDEN BRAND<8DU> (A) 		8-97110-163-0 01 1 0101-0201 ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
BRIGHT RAD GRILLE<V22> EXC. CHEVROLET BRAND<RWE>,HOLDEN BRAND<8DU> (A) 		8-97110-163-0 01 1 0202-0304 ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
BRIGHT RAD GRILLE<V22> EXC. CHEVROLET BRAND<RWE>,HOLDEN BRAND<8DU> (A) 		8-97910-948-0 01 1 0305- ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
CHEVROLET BRAND<RWE> BRIGHT RAD GRILLE<V22> (C) 		8-97176-327-0 01 1 0101-0109 ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1) (D) 		8-97147-754-3 01 1 9804-9807 ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), IRISHEQUIPMENT(6CU) (D) 		8-97147-754-3 01 1 9808-9909 ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
UNITED KINGDOM EQUIPMENT(EK3) EXC. CYPRUS EQUIPMENT(R4G) (D) 		8-97147-754-3 01 1 9910-0006 ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), CYPRUS EQUIPMENT(R4G) (D) 		8-97147-754-3 01 1 0007-0012 ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
VAUXHALL BRAND<8DT> EXC. BRIGHT RAD GRILLE<V22> (D) 		8-97147-754-3 01 1 0101-0201 ● ● ● ● ●
10 01.303 EMBLEM; DOOR
CHEVROLET MARK<YL6> 08.147 (A) 		8-94233-256-2 02 1 9804-0012 ● ● ● ● ● ● ● ●
10 01.303 EMBLEM; DOOR
CHEVROLET BRAND<RWE> 08.147 (A) 		8-94233-256-2 02 1 0101- ● ● ● ● ● ● ● ●
10 01.303 EMBLEM; DOOR
NAME PLATE ISUZU KB<6PU> (B) 		8-97022-693-1 02 1 9804- ● ● ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97115-470-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JB1 ENG(RLF) (A) 		8-97115-470-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97115-470-0 01 1 9910-0008 ● ● ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97115-470-0 01 1 9910-0008 ● ● ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97115-470-0 01 1 0009- ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97115-470-0 01 1 0009- ● ● ● ● ●
38 01.303 PLATE; NAME
6VD1 ENG(RLV) (B) 		8-97179-790-0 02 1 9804-9905 ● ● ● ● ● ● ● ●
38 01.303 PLATE; NAME
6VD1 ENG(RLV) EXC. NAME PLATE ISUZU KB<6PU> (B) 		8-97179-790-0 02 1 9906- ● ● ● ● ● ●
86 08.808 EMBLEM; SYMBOL,BODY FRT
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1) 		8-97147-801-0 01 1 9804-9807 ● ● ● ●
86 08.808 EMBLEM; SYMBOL,BODY FRT
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), IRISHEQUIPMENT(6CU) 		8-97147-801-0 01 1 9808-9909 ● ● ● ●
86 08.808 EMBLEM; SYMBOL,BODY FRT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CYPRUS EQUIPMENT(R4G) 		8-97147-801-0 01 1 9910-0006 ● ● ● ● ●
86 08.808 EMBLEM; SYMBOL,BODY FRT
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), CYPRUS EQUIPMENT(R4G) 		8-97147-801-0 01 1 0007-0012 ● ● ● ● ●
86 08.808 EMBLEM; SYMBOL,BODY FRT
VAUXHALL BRAND<8DT> 		8-97147-801-0 01 1 0101-0201 ● ● ● ● ●
120 01.303 SCREW; MARK
08.900 M5X16 		8-94380-268-0 04 1 9804-0012 ● ● ● ● ● ● ● ●
120 01.303 SCREW; MARK
EXC. BRIGHT RAD GRILLE<V22> 08.900 M5X16 		8-94380-268-0 04 1 0101- ● ● ● ● ● ● ●
120 01.303 SCREW; MARK
08.900 M5X16 		8-94380-268-0 04 1 0101- ●
120 01.303 SCREW; MARK
BRIGHT RAD GRILLE<V22> 08.900 M5X16 		8-94380-268-0 02 1 0101- ● ● ● ● ● ● ●
124 08.147 PLATE; NAME
GRADE LS(RBD) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 16.507 		8-97805-215-2 02 1 9804-9909 ● ● ● ● ● ● ●
124 08.147 PLATE; NAME
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),HALOGEN HEAD LAMP RECTANGULAR<TR4> 16.507 		8-97805-215-2 02 1 9910-0006 ● ● ● ● ● ● ● ●
124 08.147 PLATE; NAME
GRADE LS(RBD) EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAN EQUIPMENT(RR3) 16.507 		8-97805-215-2 02 1 0007-0012 ● ● ● ● ● ● ●
124 08.147 PLATE; NAME
GRADE LS(RBD) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G),ROAD SIDE ASSIST PACK(7LU) 16.507 		8-97805-215-2 02 1 0007-0012 ● ● ● ● ●
124 08.147 PLATE; NAME
GRADE LS(RBD) EXC. VAUXHALL BRAND<8DT>,HOLDEN BRAND<8DU> 16.507 		8-97805-215-2 02 1 0101-0201 ● ● ● ● ● ● ●
124 08.147 PLATE; NAME
GRADE LS(RBD) EXC. HOLDEN BRAND<8DU> 16.507 		8-97805-215-2 02 1 0202-0202 ● ● ● ● ● ● ●
124 08.147 PLATE; NAME
GRADE LS(RBD) EXC. HOLDEN BRAND<8DU> 16.507 		8-97805-215-2 02 1 0203- ● ● ● ● ● ● ●
124 08.147 PLATE; NAME
GRADE LS(RBD) UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G),SINGAPORE EQUIPMENT(S9Y) 16.507 		8-97805-215-2 02 1 0203- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
