10695 - LV233(THAI)
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶

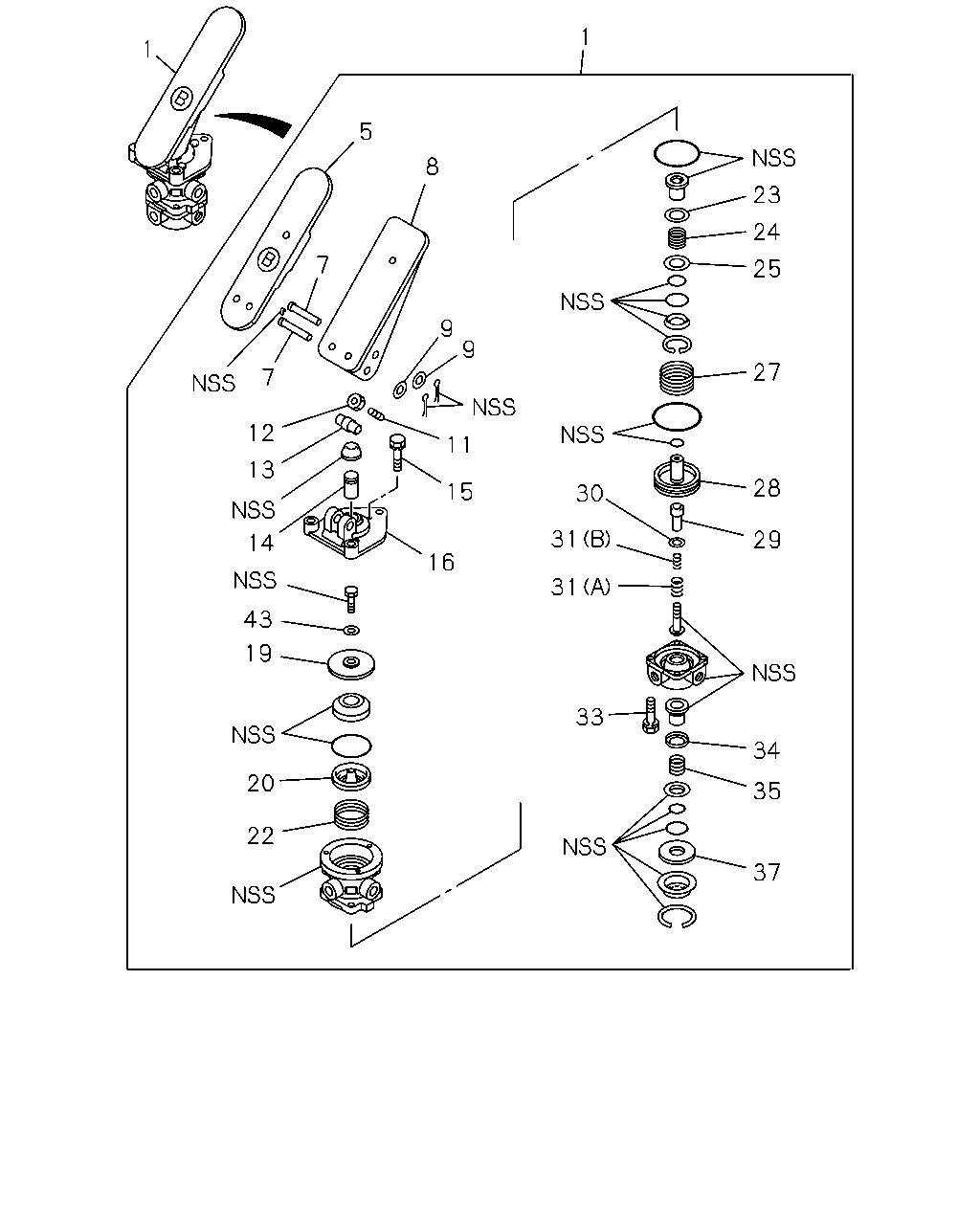

3-34 — BRAKE VALVE; AIR
(#4574) — 40 parça
◀
[334A] NO.2 REPAIR KIT (2 parça)
[334A] NO.1 (38 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; BRK VLV
1-85576-183-0
01
1
9712-0101
2
REPAIR KIT; BRK VLV
1-85576-287-0
01
1
0102-
1
1
5
8
23
24
7
25
9
9
27
7
12
11
13
28
15
30
29
14
16
43
19
33
34
20
35
22
37
31
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
1-48100-671-1
01
1
9712-0101
1
VALVE; BRK
1-48100-840-0
01
1
0102-
5
COVER; PEDAL,BRK VLV
1-48119-333-0
01
1
9712-0101
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
0102-
7
PIN; PEDAL,BRK VLV
1-48119-244-0
02
1
9712-0101
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
0102-
8
PEDAL; BRK VLV
1-48119-332-0
01
1
9712-0101
8
PEDAL; BRK VLV
1-48119-429-0
01
1
0102-
9
WASHER; PIN,BRK VLV
1-48119-106-0
02
1
9712-0101
11
SCREW; SET,BRK VLV
1-48119-245-0
01
1
9712-0101
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
0102-
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
9712-
13
ROLLER; PEDAL,BRK VLV
1-48119-243-0
01
1
9712-0101
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
0102-
14
PLUNGER; BRK VLV
1-48119-386-0
01
1
9712-0101
14
PLUNGER; BRK VLV
1-48119-554-0
01
1
0102-
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
9712-
16
PLATE; MTG,BRKT VLV
1-48119-268-0
01
1
9712-0101
16
PLATE; MTG,BRKT VLV
1-48119-547-0
01
1
0102-
19
SEAT; SPRING,BRK VLV
1-48123-058-0
01
1
9712-
20
PISTON; UPR,BRK VLV
1-48119-379-0
01
1
9712-0101
20
PISTON; UPR,BRK VLV
1-48119-551-0
01
1
0102-
22
SPRING; PISTON,LWR,BRK VLV
1-48123-071-0
01
1
9712-
23
WASHER; UPR,BRK VLV
1-48129-145-0
01
1
9712-
24
SPRING; UPR,BRK VLV
1-48123-018-0
01
1
9712-
25
WASHER; PISTON,BRK VLV
1-48129-138-0
01
1
9712-
27
SPRING; PISTON,LWR,BRK VLV
1-48123-055-0
01
1
9712-
28
PISTON; LWR,BRK VLV
1-48129-140-0
01
1
9712-0101
28
PISTON; LWR,BRK VLV
1-48129-313-0
01
1
0102-
29
SLEEVE; VLV,BRK VLV
1-48129-083-1
01
1
9712-
30
WASHER; SLEEVE,BRK VLV
1-48129-082-0
01
1
9712-
31
SPRING; VLV,BRK VLV
(A)
1-48123-032-0
01
1
9712-
31
SPRING; VLV,BRK VLV
(B)
1-48123-033-0
01
1
9712-
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
9712-
34
RETAINER; VLV,BRK VLV
1-48129-144-0
01
1
9712-
35
SPRING; VLV,BRK VLV
1-48123-019-0
01
1
9712-
37
WASHER; VLV LWR,BRK VLV
1-48129-080-0
01
1
9712-
43
WASHER; SPR SEAT,BRK VLV
1-48419-002-0
01
1
9712-
