◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-86 - TRUNK OPENER AND FUEL LID ▶
6-86 — TRUNK OPENER AND FUEL LID (#45738) — 38 parça

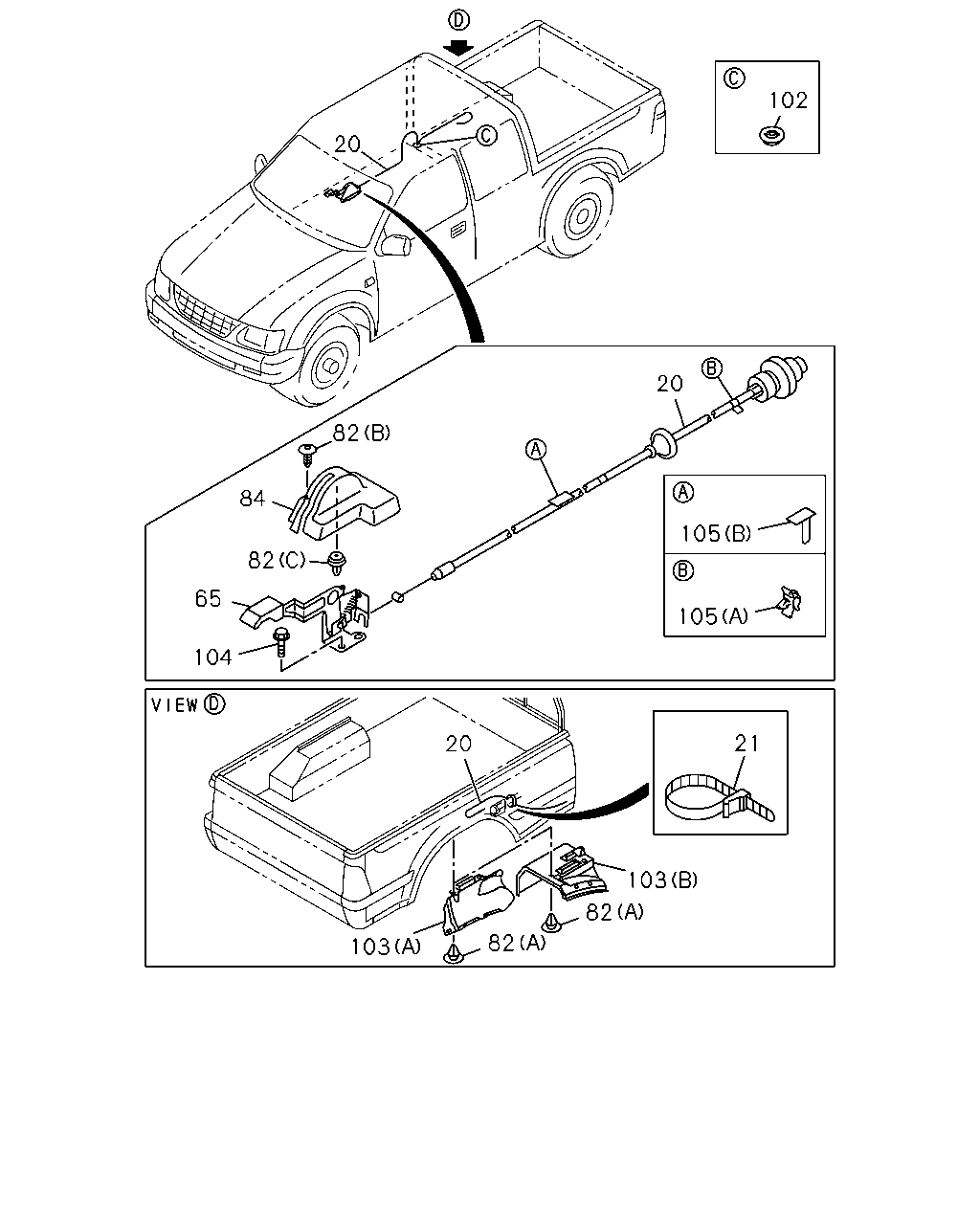

çizim 71839
102 20 20 82 84 105 82 65 105 104 20 21 103 82 82 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
20 17.505 CABLE; TRUNK LID & FUEL FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97260-606-1 01 1 0101- ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97260-933-0 01 1 0101- ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97260-604-2 01 1 0101- ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97217-262-2 01 1 9910- ● ●
21 17.090 CLIP; CABLE,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 03.008 L=330 		5-09709-118-0 01 1 0101-0209 ● ● ● ● ● ●
21 17.090 CLIP; CABLE,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 03.008 L=330 		5-09709-118-0 01 1 0210- ● ● ● ● ● ●
21 17.090 CLIP; CABLE,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 03.008 L=330 		5-09709-118-0 01 1 0210- ● ●
21 17.090 CLIP; CABLE,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 02.559 L=250 		5-09707-030-1 01 1 9910-0209 ● ●
65 17.505 KNOB; FUEL FILLER DOOR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-94351-222-1 01 1 9910-0012 ● ●
65 17.505 KNOB; FUEL FILLER DOOR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-94351-222-1 01 1 0101- ● ● ● ● ● ●
65 17.505 KNOB; FUEL FILLER DOOR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94351-222-1 01 1 0101- ● ●
82 16.345 CLIP; COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		1-09987-203-0 05 1 0101- ● ● ● ● ● ●
82 16.345 CLIP; COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		1-09987-203-0 03 1 9910- ● ●
82 16.345 CLIP; COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 08.155 (B) OD=16 L=11 		1-76378-155-0 01 1 9910-0012 ● ●
82 16.345 CLIP; COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 08.155 (B) OD=16 L=11 		1-76378-155-0 01 1 0101- ● ● ● ● ● ●
82 16.345 CLIP; COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 08.155 (B) OD=16 L=11 		1-76378-155-0 01 1 0101- ● ●
82 16.345 CLIP; COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 16.166 (C) 		8-97019-200-0 01 1 9910-0012 ● ●
82 16.345 CLIP; COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 16.166 (C) 		8-97019-200-0 01 1 0101-0101 ● ● ● ● ● ●
82 16.345 CLIP; COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 16.166 (C) 		8-97019-200-0 01 1 0101-0101 ● ●
82 16.345 CLIP; COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 14.683 (C) H=19.1 		8-94385-553-0 01 1 0102- ● ● ● ● ● ●
82 16.345 CLIP; COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 14.683 (C) H=19.1 		8-94385-553-0 01 1 0102- ● ●
84 17.185 COVER; BRKT
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) GRAY 		8-97152-721-2 01 1 9910-0012 ● ●
84 17.185 COVER; BRKT
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) GRAY 		8-97152-721-2 01 1 0101- ● ● ● ● ● ●
84 17.185 COVER; BRKT
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) GRAY 		8-97152-721-2 01 1 0101- ● ●
102 17.505 GROMMET
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PU LL INNER & OUTER HOOK(7TN) 		8-97287-711-0 01 1 0101- ● ●
102 17.505 GROMMET
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PU LL INNER & OUTER HOOK(7TN) 12.491 OD=24 		8-94119-796-0 01 1 9910-0010 ● ●
102 17.505 GROMMET
12.491 OD=24 		8-94119-796-0 01 1 0011-0012 ● ● ● ●
102 17.505 GROMMET
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PU LL INNER & OUTER HOOK(7TN) 12.491 OD=24 		8-94119-796-0 01 1 0011-0012 ● ●
102 17.505 GROMMET
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PU LL INNER & OUTER HOOK(7TN) 12.491 OD=24 		8-94119-796-0 01 1 0101-0109 ● ● ● ●
102 17.505 GROMMET
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PU LL INNER & OUTER HOOK(7TN) 12.491 OD=24 		8-94119-796-0 01 1 0110- ● ● ● ● ● ●
103 17.505 COVER; CABLE,FUEL LID OPENER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97260-602-0 01 1 0101- ● ● ● ● ● ●
103 17.505 COVER; CABLE,FUEL LID OPENER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97221-217-3 01 1 9910- ● ●
104 17.505 BOLT; KNOB
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9910-0012 ● ●
104 17.505 BOLT; KNOB
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0101- ● ● ● ● ● ●
104 17.505 BOLT; KNOB
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0101- ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 09.647 (A) ID=4.8 		8-94128-483-0 03 1 0101- ● ● ● ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 09.647 (A) ID=4.8 		8-94128-483-0 01 1 9910- ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 02.480 (B) 		8-94138-987-0 02 1 9910- ● ●
