◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#45735) — 12 parça

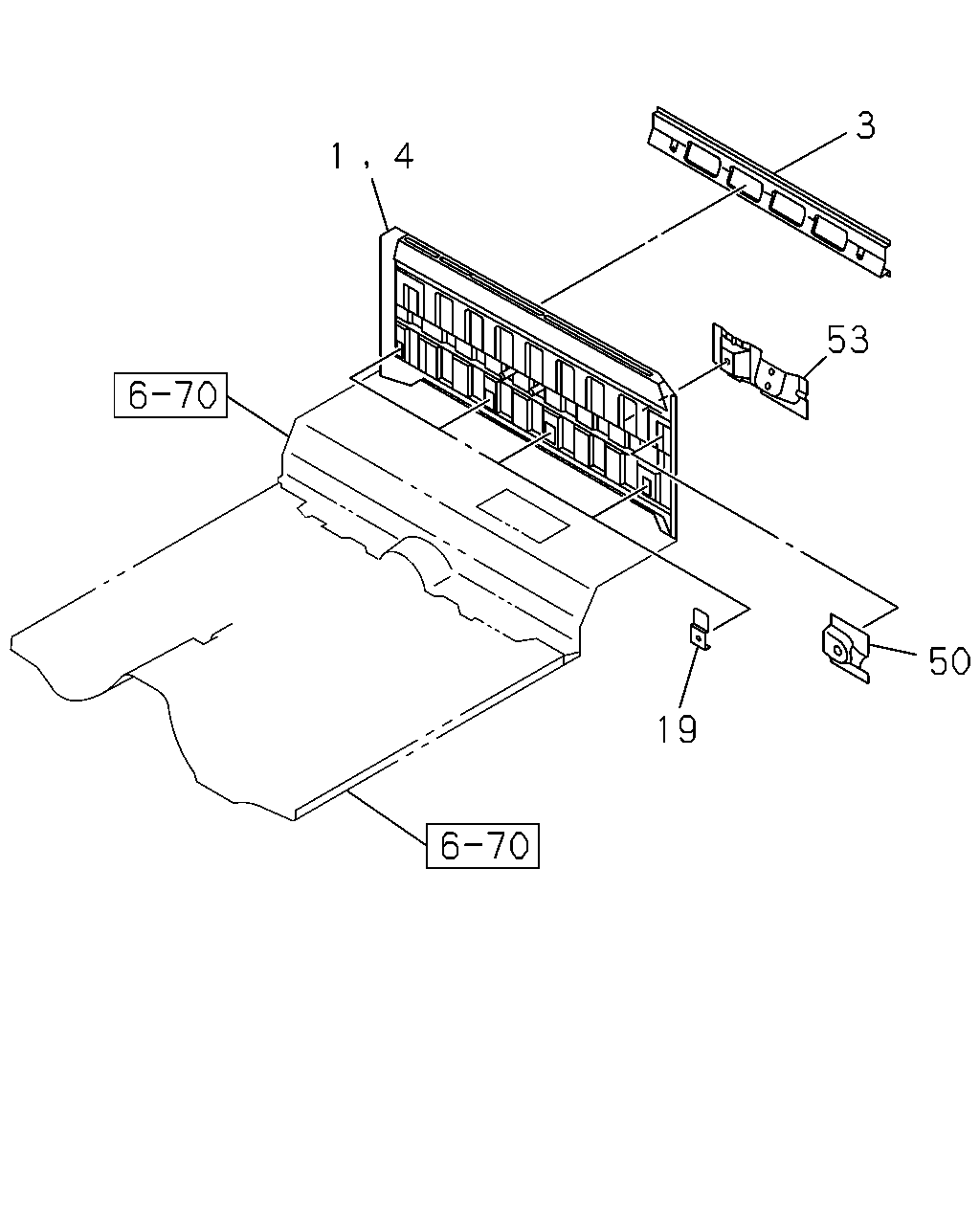

çizim 19167
3 1 4 53 50 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.587 PANEL; BACK OUTER 8-97013-012-0 01 1 9804-9905 ● ●
3 16.588 BAR; BACKLIGHT,LWR 8-94455-296-3 01 1 9804- ● ● ● ● ● ● ● ●
4 16.575 PANEL; CAB BACK LWR 8-97225-399-0 01 1 9906- ● ●
4 16.575 PANEL; CAB BACK LWR 8-97013-010-0 01 1 9804-0010 ● ● ● ●
4 16.575 PANEL; CAB BACK LWR 8-97225-892-0 01 1 0011-0101 ● ● ● ●
4 16.575 PANEL; CAB BACK LWR 8-97247-156-0 01 1 0102- ● ● ● ●
4 16.575 PANEL; CAB BACK LWR 8-94471-162-1 01 1 9804-9909 ● ●
4 16.575 PANEL; CAB BACK LWR 8-97216-008-0 01 1 9910- ● ●
19 16.587 BRACKET; TRIM COVER,CAB BACK 8-94473-851-0 04 1 9804- ● ● ● ● ● ●
50 16.583 BRACKET; TONNEAU COVER
16.565 		8-94483-212-1 02 1 9804- ● ●
53 16.588 BRACKET; STRIKER & ANCHOR
AUSTRALIAN EQUIPMENT(RR3) 		8-97216-727-0 01 1 9910- ● ●
53 16.588 BRACKET; STRIKER & ANCHOR
AUSTRALIAN EQUIPMENT(RR3) 		8-97216-716-0 01 1 9910- ● ●
