◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#45730) — 166 parça

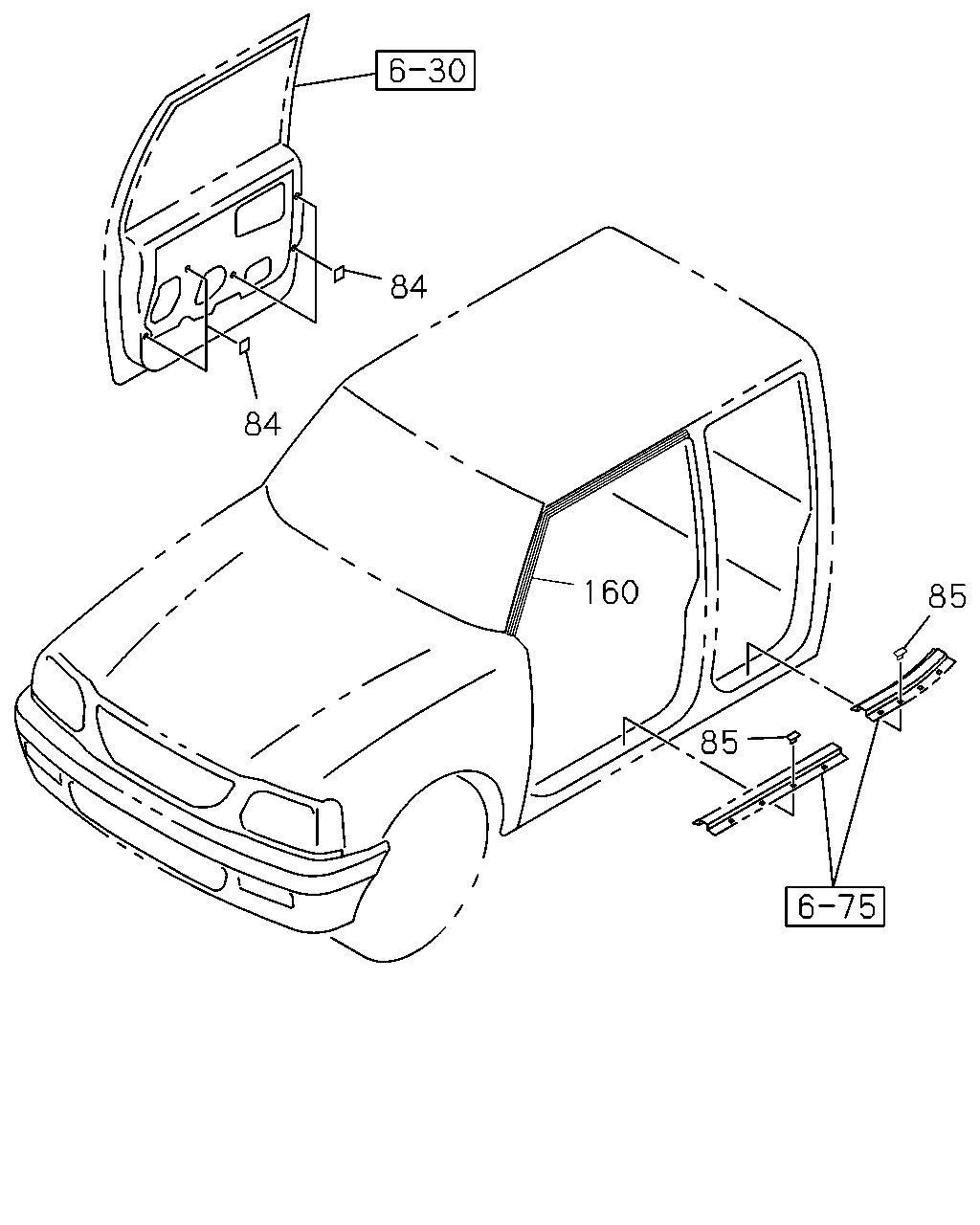

çizim 18324
84 84 160 85 85
BalonParca AdiParca NoAdetTipApplied Date A B
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(TF***F) POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 06 1 9804- ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(TF***F) POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> 45X45 T=0.08 		8-94238-288-1 02 1 9804-9909 ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
CREW CAB(TF**W*) 45X45 T=0.08 		8-94238-288-1 02 1 9804-9909 ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
CREW CAB(TF**W*) AUTO DOOR LOCK<AU4> 45X45 T=0.08 		8-94238-288-1 02 1 9804-9909 ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(TF***F) POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> 45X45 T=0.08 		8-94238-288-1 02 1 9910- ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(TF***F) AUTO DOOR LOCK<AU4> 45X45 T=0.08 		8-94238-288-1 02 1 9910- ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(TF***F) 45X45 T=0.08 		8-94238-288-1 02 1 9910- ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
LONG(TF***F) EXC. POWER WINDOW<A30> 45X45 T=0.08 		8-94238-288-1 04 1 9804- ● ●
84 16.165 PATCH; WATER PROOF SHEET,DOOR
SHORT(TF***C) 45X45 T=0.08 		8-94238-288-1 04 1 9804- ● ●
85 16.603 PIN; SILL TREAD PLATE
GRAY 		8-97152-690-0 08 1 9804- ● ●
85 16.603 PIN; SILL TREAD PLATE
CREW CAB(TF**W*) GRAY 		8-97152-690-0 04 1 9804- ● ●
160 16.165 SEAL; DRIP
CREW CAB(TF**W*) 		8-97081-265-4 01 1 9804- ● ●
160 16.165 SEAL; DRIP
CREW CAB(TF**W*) 		8-97081-264-4 01 1 9804- ● ●
160 16.165 SEAL; DRIP
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 		8-97081-278-3 01 1 9804- ● ●
160 16.165 SEAL; DRIP
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 		8-97081-277-3 01 1 9804- ● ●

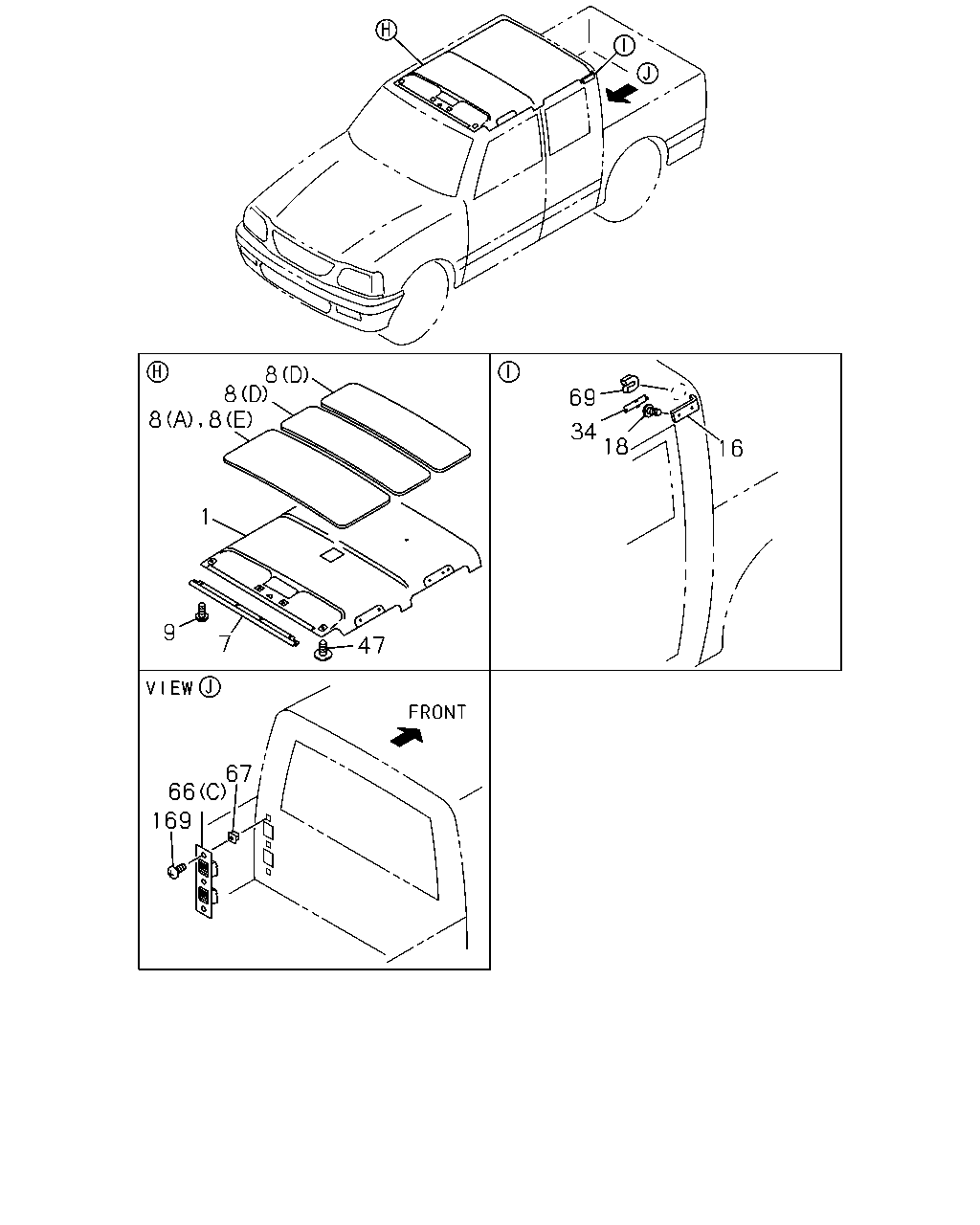

çizim 69293
8 8 8 69 8 34 18 16 1 9 7 47 67 66 169
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97154-623-1 01 1 9804- ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-644-1 01 1 9804- ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-643-1 01 1 9804- ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97154-622-1 01 1 9804- ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97154-624-2 01 1 9804- ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97157-438-4 01 1 9804- ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-104-5 01 1 9804- ● ●
1 16.742 LINING; HD
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-646-0 01 1 9804-9804 ● ●
1 16.742 LINING; HD
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-694-0 01 1 9805-9909 ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-694-1 01 1 9910- ● ●
1 16.742 LINING; HD
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-645-0 01 1 9804-9804 ● ●
1 16.742 LINING; HD
4X4 SHORT(TFS**C) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-645-0 01 1 9804-9804 ● ●
1 16.742 LINING; HD
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-692-0 01 1 9805-9909 ● ●
1 16.742 LINING; HD
4X4 SHORT(TFS**C) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-692-0 01 1 9805-9909 ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-692-1 01 1 9910- ● ●
7 16.742 RETAINER; HEADLINING RAIL
HEAD LINING FOR KD<6PJ> 		8-94435-472-2 01 1 9804- ● ●
8 16.742 PAD; HEADLINING
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> (A) 		8-94463-641-2 01 1 9804-0202 ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) (A) 		8-94463-641-2 01 1 9804-0202 ● ●
8 16.742 PAD; HEADLINING
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> (B) 		8-94463-642-2 01 1 9804- ● ●
8 16.742 PAD; HEADLINING
SINGLE CAB(TF**S*) (C) 		8-94328-215-3 01 1 9804-0202 ● ●
8 16.742 PAD; HEADLINING
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> (E) 		8-97334-108-0 01 1 0203- ● ●
8 16.742 PAD; HEADLINING
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (E) 		8-97334-108-0 01 1 0203- ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) (D) 		8-94463-643-2 02 1 9804-0202 ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) (D) 		8-97334-106-0 02 1 0203- ● ●
9 16.742 SCREW; HOLE COVER,HD LINING
HEAD LINING FOR KD<6PJ> M4X10 TAPPING W/PL WASHER 		0-74300-410-0 04 1 9804- ● ●
16 15.530 FINISHER; HEADLINING,FRT
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) HEAD LINING FOR KD<6PJ> GRAY 		8-97153-635-0 01 1 9804- ● ●
16 15.530 FINISHER; HEADLINING,FRT
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) HEAD LINING FOR KD<6PJ> GRAY 		8-97153-634-0 01 1 9804- ● ●
18 16.742 SCREW; FINISHER TO BODY
HEAD LINING FOR KD<6PJ> M5X12 TAPPING 		9-09829-186-0 04 1 9804- ● ●
34 16.742 BEZEL; FINISHER,HEADLINING
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) HEAD LINING FOR KD<6PJ> GRAY 		8-97153-633-0 02 1 9804- ● ●
47 16.742 CLIP; HEADLINING
SPACE CAB(TF**C*) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 08 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) ASSIST GRIP PASSENGER<EG5> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 04 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X4 SINGLE CAB(TFS*S*) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 04 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) EXC. ASSIST GRIP PASSENGER<EG5>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 06 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X2 CREW CAB(TFB*W*) ASSIST GRIP PASSENGER<EG5> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 06 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X4 CREW CAB(TFS*W*) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 06 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X2 CREW CAB(TFB*W*) EXC. ASSIST GRIP PASSENGER<EG5>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 12 1 9804- ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (A) 		8-94460-142-1 02 1 9804- ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (B) 		8-94480-425-3 01 1 9804- ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (B) 		8-94480-424-3 01 1 9804- ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) 		8-94387-009-1 01 1 9804-0012 ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) 		8-97223-554-0 01 1 0101- ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) 		8-94387-008-1 01 1 9804-0012 ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) 		8-97223-553-0 01 1 0101- ● ●
67 16.576 GROMMET; SCREW
SPACE CAB(TF**C*) 02.726 D=7X7 L=7.5 		8-94291-927-0 04 1 9804- ● ●
67 16.576 GROMMET; SCREW
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 02.726 D=7X7 L=7.5 		8-94291-927-0 06 1 9804- ● ●
69 16.576 SEAL; AIR OUTLET DUCT
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 		8-94312-626-1 01 1 9804- ● ●
169 16.576 SCREW; GRILLE,AIR OUTLET
SPACE CAB(TF**C*) 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9804- ● ●
169 16.576 SCREW; GRILLE,AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 16.085 M5X16 TAPPING 		9-09829-323-1 06 1 9804- ● ●

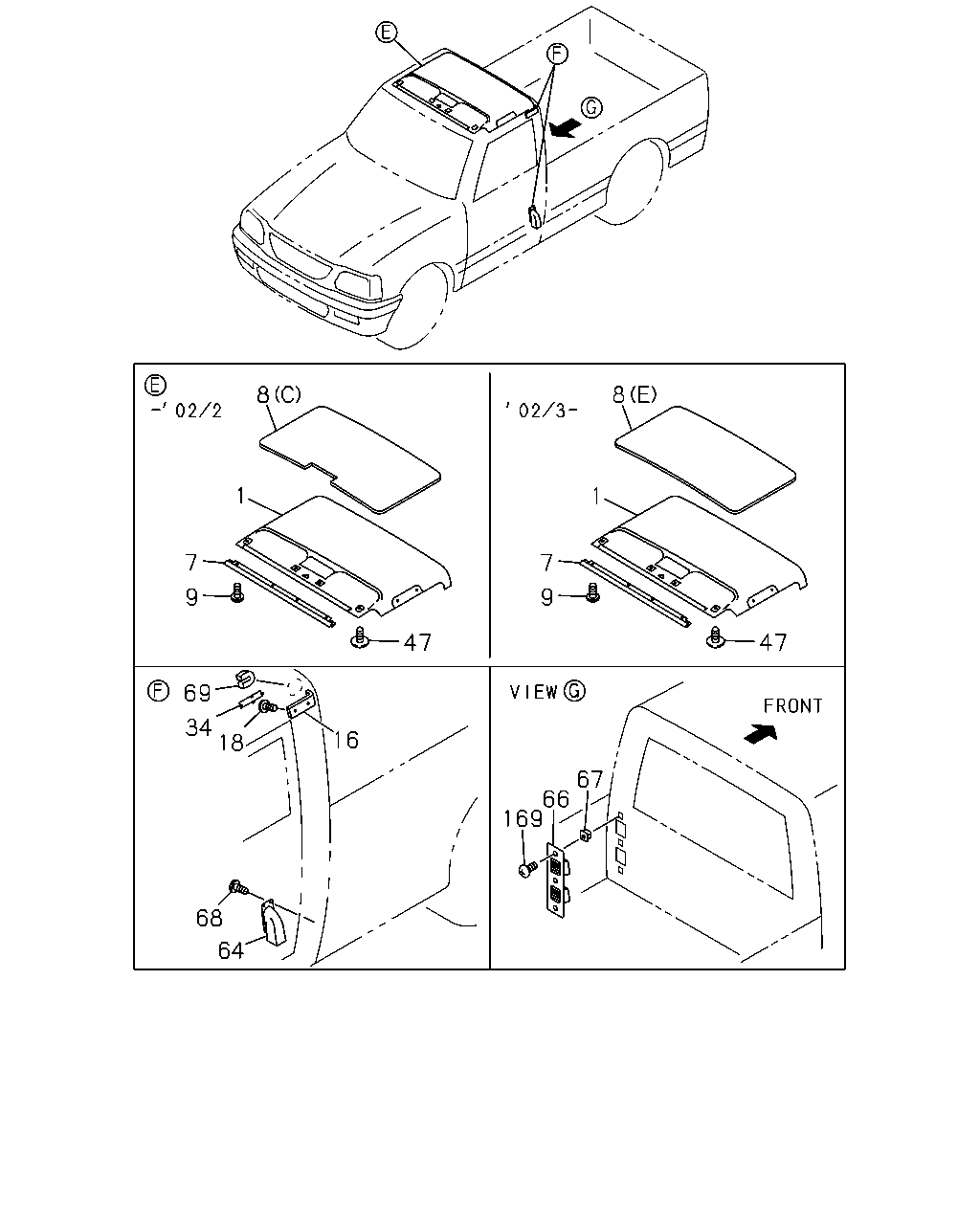

çizim 71356
8 8 1 1 7 7 9 9 47 47 69 34 18 16 67 66 169 68 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97154-623-1 01 1 9804- ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-644-1 01 1 9804- ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-643-1 01 1 9804- ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97154-622-1 01 1 9804- ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97154-624-2 01 1 9804- ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97157-438-4 01 1 9804- ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-104-5 01 1 9804- ● ●
1 16.742 LINING; HD
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-646-0 01 1 9804-9804 ● ●
1 16.742 LINING; HD
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-694-0 01 1 9805-9909 ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-694-1 01 1 9910- ● ●
1 16.742 LINING; HD
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-645-0 01 1 9804-9804 ● ●
1 16.742 LINING; HD
4X4 SHORT(TFS**C) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-645-0 01 1 9804-9804 ● ●
1 16.742 LINING; HD
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-692-0 01 1 9805-9909 ● ●
1 16.742 LINING; HD
4X4 SHORT(TFS**C) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-692-0 01 1 9805-9909 ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-692-1 01 1 9910- ● ●
7 16.742 RETAINER; HEADLINING RAIL
HEAD LINING FOR KD<6PJ> 		8-94435-472-2 01 1 9804- ● ●
8 16.742 PAD; HEADLINING
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> (A) 		8-94463-641-2 01 1 9804-0202 ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) (A) 		8-94463-641-2 01 1 9804-0202 ● ●
8 16.742 PAD; HEADLINING
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> (B) 		8-94463-642-2 01 1 9804- ● ●
8 16.742 PAD; HEADLINING
SINGLE CAB(TF**S*) (C) 		8-94328-215-3 01 1 9804-0202 ● ●
8 16.742 PAD; HEADLINING
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> (E) 		8-97334-108-0 01 1 0203- ● ●
8 16.742 PAD; HEADLINING
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (E) 		8-97334-108-0 01 1 0203- ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) (D) 		8-94463-643-2 02 1 9804-0202 ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) (D) 		8-97334-106-0 02 1 0203- ● ●
9 16.742 SCREW; HOLE COVER,HD LINING
HEAD LINING FOR KD<6PJ> M4X10 TAPPING W/PL WASHER 		0-74300-410-0 04 1 9804- ● ●
16 15.530 FINISHER; HEADLINING,FRT
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) HEAD LINING FOR KD<6PJ> GRAY 		8-97153-635-0 01 1 9804- ● ●
16 15.530 FINISHER; HEADLINING,FRT
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) HEAD LINING FOR KD<6PJ> GRAY 		8-97153-634-0 01 1 9804- ● ●
18 16.742 SCREW; FINISHER TO BODY
HEAD LINING FOR KD<6PJ> M5X12 TAPPING 		9-09829-186-0 04 1 9804- ● ●
34 16.742 BEZEL; FINISHER,HEADLINING
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) HEAD LINING FOR KD<6PJ> GRAY 		8-97153-633-0 02 1 9804- ● ●
47 16.742 CLIP; HEADLINING
SPACE CAB(TF**C*) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 08 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) ASSIST GRIP PASSENGER<EG5> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 04 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X4 SINGLE CAB(TFS*S*) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 04 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) EXC. ASSIST GRIP PASSENGER<EG5>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 06 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X2 CREW CAB(TFB*W*) ASSIST GRIP PASSENGER<EG5> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 06 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X4 CREW CAB(TFS*W*) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 06 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X2 CREW CAB(TFB*W*) EXC. ASSIST GRIP PASSENGER<EG5>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 12 1 9804- ● ●
64 12.940 DUCT; AIR OUTLET
SINGLE CAB(TF**S*) 09.264 		8-94310-952-0 02 1 9804- ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (A) 		8-94460-142-1 02 1 9804- ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (B) 		8-94480-425-3 01 1 9804- ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (B) 		8-94480-424-3 01 1 9804- ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) 		8-94387-009-1 01 1 9804-0012 ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) 		8-97223-554-0 01 1 0101- ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) 		8-94387-008-1 01 1 9804-0012 ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) 		8-97223-553-0 01 1 0101- ● ●
67 16.576 GROMMET; SCREW
SPACE CAB(TF**C*) 02.726 D=7X7 L=7.5 		8-94291-927-0 04 1 9804- ● ●
67 16.576 GROMMET; SCREW
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 02.726 D=7X7 L=7.5 		8-94291-927-0 06 1 9804- ● ●
68 16.576 SCREW; DUCT
SINGLE CAB(TF**S*) M5X8 		9-09829-319-1 06 1 9804- ● ●
69 16.576 SEAL; AIR OUTLET DUCT
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 		8-94312-626-1 01 1 9804- ● ●
169 16.576 SCREW; GRILLE,AIR OUTLET
SPACE CAB(TF**C*) 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9804- ● ●
169 16.576 SCREW; GRILLE,AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 16.085 M5X16 TAPPING 		9-09829-323-1 06 1 9804- ● ●

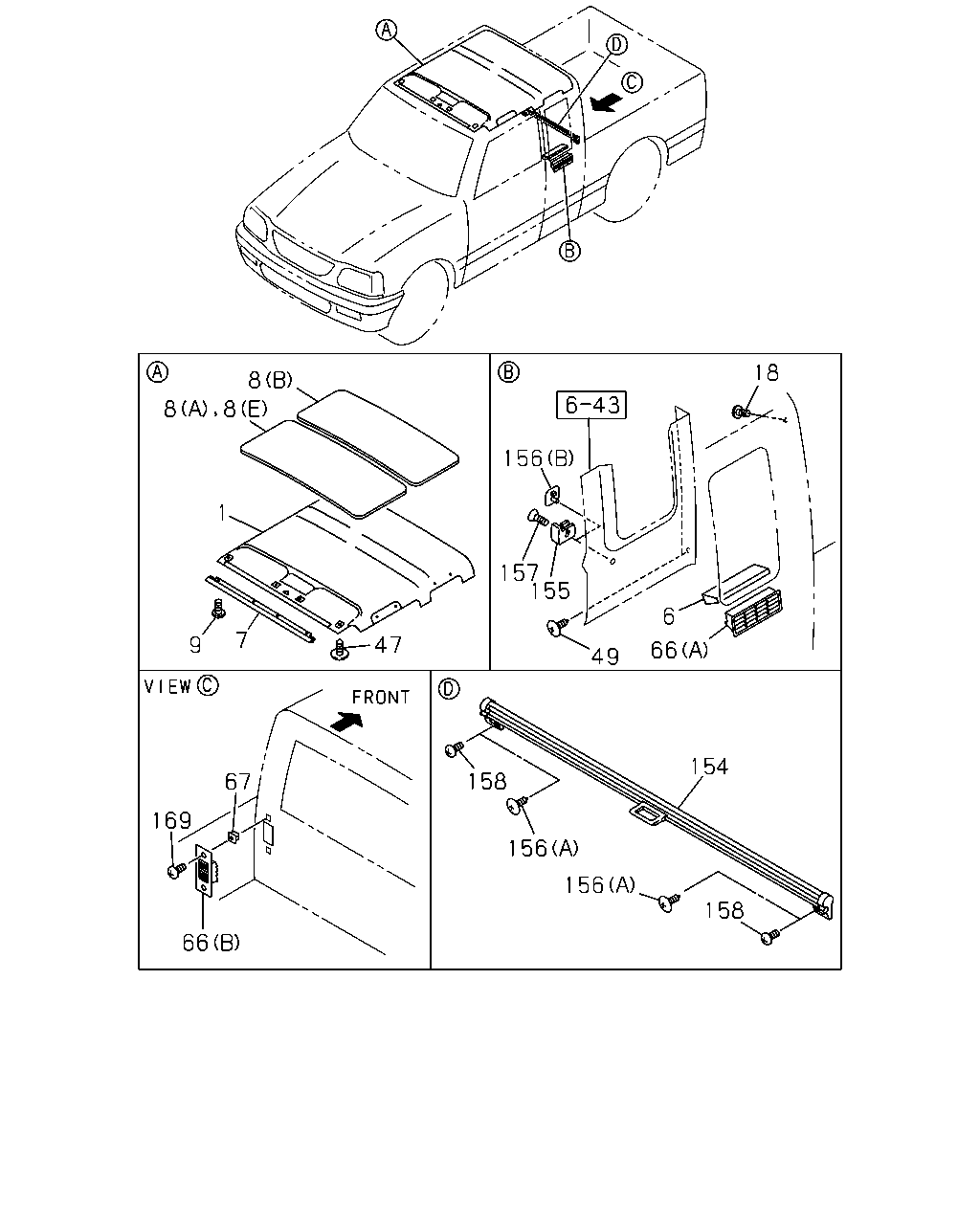

çizim 74219
18 8 8 8 156 1 157 155 6 7 47 9 66 49 154 67 158 169 156 156 158 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97154-623-1 01 1 9804- ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-644-1 01 1 9804- ● ●
1 16.742 LINING; HD
SPACE CAB(TF**C*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-643-1 01 1 9804- ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97154-622-1 01 1 9804- ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97154-624-2 01 1 9804- ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97157-438-4 01 1 9804- ● ●
1 16.742 LINING; HD
CREW CAB(TF**W*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-104-5 01 1 9804- ● ●
1 16.742 LINING; HD
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-646-0 01 1 9804-9804 ● ●
1 16.742 LINING; HD
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-694-0 01 1 9805-9909 ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) MAP LAMP<UF3> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-694-1 01 1 9910- ● ●
1 16.742 LINING; HD
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-645-0 01 1 9804-9804 ● ●
1 16.742 LINING; HD
4X4 SHORT(TFS**C) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97156-645-0 01 1 9804-9804 ● ●
1 16.742 LINING; HD
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-692-0 01 1 9805-9909 ● ●
1 16.742 LINING; HD
4X4 SHORT(TFS**C) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-692-0 01 1 9805-9909 ● ●
1 16.742 LINING; HD
SINGLE CAB(TF**S*) EXC. MAP LAMP<UF3>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97198-692-1 01 1 9910- ● ●
6 16.742 SPACER; HD LINING
SPACE CAB(TF**C*) 16.570 		8-94323-995-0 02 1 9804- ● ●
7 16.742 RETAINER; HEADLINING RAIL
HEAD LINING FOR KD<6PJ> 		8-94435-472-2 01 1 9804- ● ●
8 16.742 PAD; HEADLINING
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> (A) 		8-94463-641-2 01 1 9804-0202 ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) (A) 		8-94463-641-2 01 1 9804-0202 ● ●
8 16.742 PAD; HEADLINING
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> (B) 		8-94463-642-2 01 1 9804- ● ●
8 16.742 PAD; HEADLINING
SINGLE CAB(TF**S*) (C) 		8-94328-215-3 01 1 9804-0202 ● ●
8 16.742 PAD; HEADLINING
SPACE CAB(TF**C*) HEAD LINING FOR KD<6PJ> (E) 		8-97334-108-0 01 1 0203- ● ●
8 16.742 PAD; HEADLINING
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (E) 		8-97334-108-0 01 1 0203- ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) (D) 		8-94463-643-2 02 1 9804-0202 ● ●
8 16.742 PAD; HEADLINING
CREW CAB(TF**W*) (D) 		8-97334-106-0 02 1 0203- ● ●
9 16.742 SCREW; HOLE COVER,HD LINING
HEAD LINING FOR KD<6PJ> M4X10 TAPPING W/PL WASHER 		0-74300-410-0 04 1 9804- ● ●
18 16.742 SCREW; FINISHER TO BODY
HEAD LINING FOR KD<6PJ> M5X12 TAPPING 		9-09829-186-0 04 1 9804- ● ●
47 16.742 CLIP; HEADLINING
SPACE CAB(TF**C*) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 08 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) ASSIST GRIP PASSENGER<EG5> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 04 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X4 SINGLE CAB(TFS*S*) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 04 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X2 SINGLE CAB(TFB*S*) EXC. ASSIST GRIP PASSENGER<EG5>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 06 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X2 CREW CAB(TFB*W*) ASSIST GRIP PASSENGER<EG5> EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 06 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X4 CREW CAB(TFS*W*) EXC. HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 06 1 9804- ● ●
47 16.742 CLIP; HEADLINING
4X2 CREW CAB(TFB*W*) EXC. ASSIST GRIP PASSENGER<EG5>,HEAD LINING FOR KD<6PJ> LIGHT GRAY 		8-97153-254-0 12 1 9804- ● ●
49 16.742 CLIP; TRIM COVER
SPACE CAB(TF**C*) 16.587 GRAY 		8-97153-648-0 02 1 9804- ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (A) 		8-94460-142-1 02 1 9804- ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (B) 		8-94480-425-3 01 1 9804- ● ●
66 16.576 GRILLE; AIR OUTLET
SPACE CAB(TF**C*) (B) 		8-94480-424-3 01 1 9804- ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) 		8-94387-009-1 01 1 9804-0012 ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) 		8-97223-554-0 01 1 0101- ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) 		8-94387-008-1 01 1 9804-0012 ● ●
66 16.576 GRILLE; AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) 		8-97223-553-0 01 1 0101- ● ●
67 16.576 GROMMET; SCREW
SPACE CAB(TF**C*) 02.726 D=7X7 L=7.5 		8-94291-927-0 04 1 9804- ● ●
67 16.576 GROMMET; SCREW
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 02.726 D=7X7 L=7.5 		8-94291-927-0 06 1 9804- ● ●
154 16.578 COVER; TONNEAU
COVER TONNEAU SNAP ON<E86> GRAY 		8-97154-644-2 01 1 9804- ●
155 16.565 SUPPORT; TONNEAU COVER
COVER TONNEAU SNAP ON<E86> GRAY 		8-97154-646-2 01 1 9804- ●
155 16.565 SUPPORT; TONNEAU COVER
COVER TONNEAU SNAP ON<E86> GRAY 		8-97154-645-2 01 1 9804- ●
156 16.578 CLIP; HOLE COVER
SPACE CAB(TF**C*) EXC. COVER TONNEAU SNAP ON<E86> (A) GRAY 		8-97152-733-0 02 1 9804- ● ●
156 16.578 CLIP; HOLE COVER
SPACE CAB(TF**C*) EXC. COVER TONNEAU SNAP ON<E86> (B) GRAY 		8-97154-647-0 02 1 9804- ● ●
157 16.575 SCREW; SUPPORT,TONNEAU COVER
COVER TONNEAU SNAP ON<E86> M6X16 TAPPING CK-HEAD 		0-70180-616-0 02 1 9804- ●
158 16.800 SCREW; TONNEAU COVER
COVER TONNEAU SNAP ON<E86> M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9804- ●
169 16.576 SCREW; GRILLE,AIR OUTLET
SPACE CAB(TF**C*) 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9804- ● ●
169 16.576 SCREW; GRILLE,AIR OUTLET
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 16.085 M5X16 TAPPING 		9-09829-323-1 06 1 9804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
