◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#45728) — 67 parça

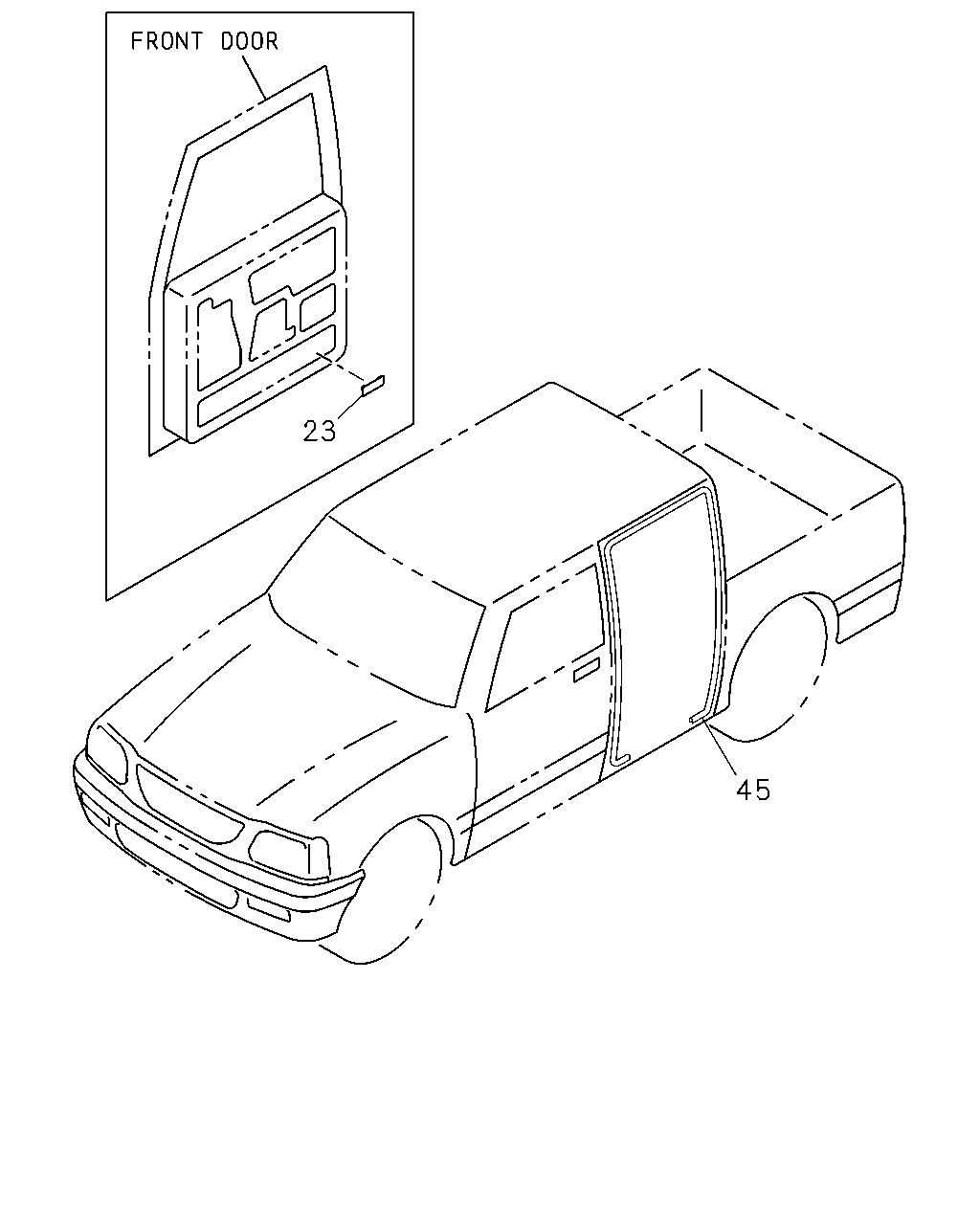

çizim 18778
23 45
BalonParca AdiParca NoAdetTipApplied Date A B
23 16.165 VALVE; DRAIN HOLE,DOOR
CREW CAB(TF**W*) AUSTRALIAN EQUIPMENT(RR3) 		8-94319-162-0 10 1 9804-0107 ● ●
23 16.165 VALVE; DRAIN HOLE,DOOR
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIAN EQUIPMENT(RR3) 		8-94319-162-0 06 1 9804-0107 ● ●
45 16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97159-205-0 02 1 9804-9907 ● ●
45 16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97293-032-0 02 1 9908-9909 ● ●
45 16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) AUSTRALIAN EQUIPMENT(RR3) EXC. ANTI WIND NOISE<7MD> GRAY 		8-97293-032-0 02 1 9910- ● ●
45 16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) ANTI WIND NOISE<7MD> GRAY 		8-97293-032-0 02 1 9910- ● ●
45 16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) EXC. AUSTRALIAN EQUIPMENT(RR3) GRAY 		8-97153-685-0 02 1 9804-9909 ● ●
45 16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) EXC. AUSTRALIAN EQUIPMENT(RR3),ANTI WIND NOISE<7MD> GRAY 		8-97153-685-0 02 1 9910- ● ●

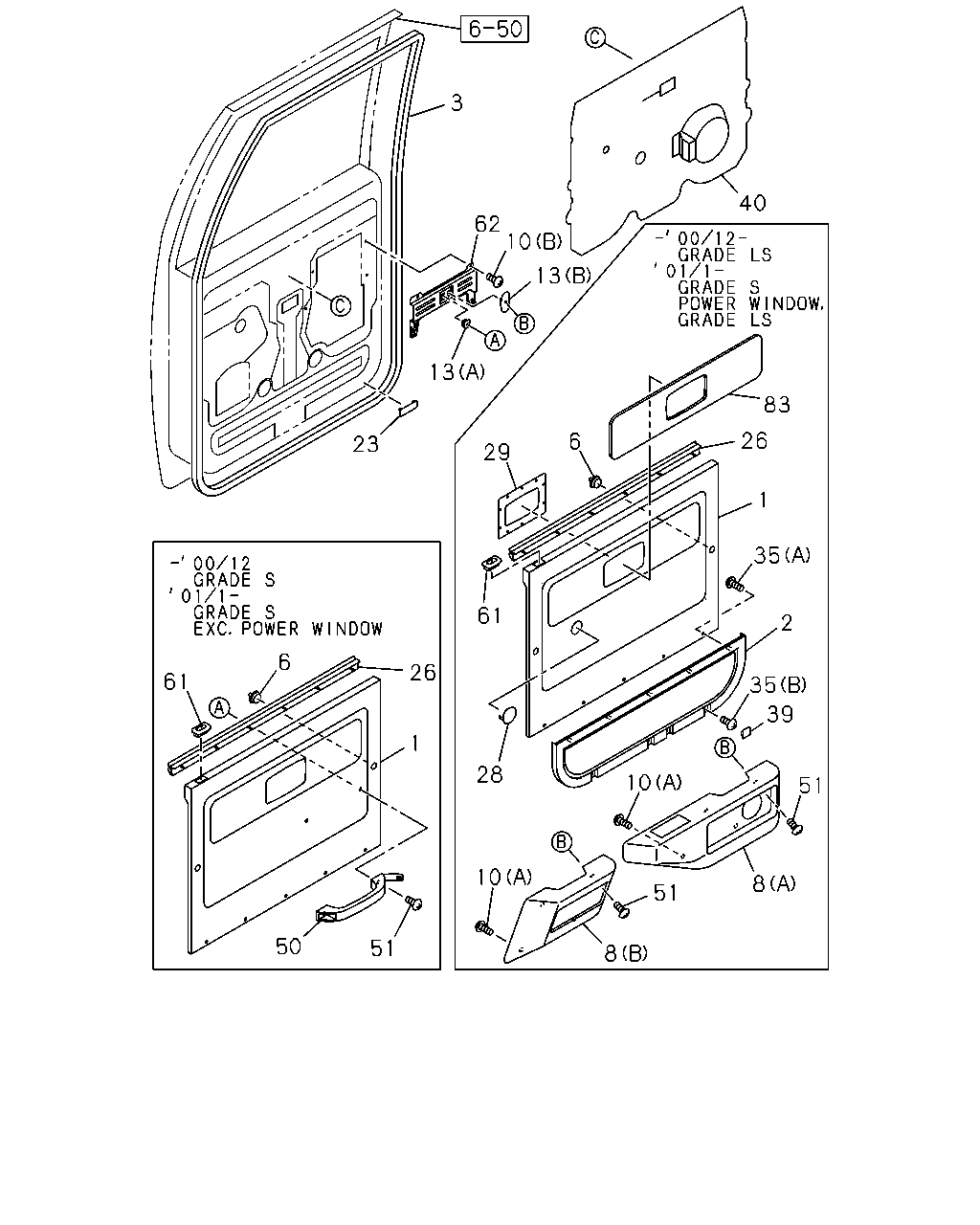

çizim 69727
3 40 62 10 13 13 83 26 6 23 29 1 35 61 2 6 26 61 35 39 1 28 10 51 10 8 51 50 51 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) GRAY 		8-97155-089-0 01 1 9804-0012 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> GRAY 		8-97155-089-0 01 1 0101- ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) GRAY 		8-97155-088-0 01 1 9804-0012 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> GRAY 		8-97155-088-0 01 1 0101- ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97155-653-3 01 1 9804-0012 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97155-653-3 01 1 0101- ● ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97155-652-3 01 1 9804-0012 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97155-652-3 01 1 0101- ● ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> GRAY 		8-97155-651-3 01 1 9804- ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> GRAY 		8-97155-650-3 01 1 9804- ●
2 16.165 PLATE; RR DOOR LWR
CREW CAB(TF**W*) GRAY 		8-97154-026-2 02 1 9804-0012 ●
2 16.165 PLATE; RR DOOR LWR
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97154-026-2 02 1 0101- ●
2 16.165 PLATE; RR DOOR LWR
CREW CAB(TF**W*) GRAY 		8-97154-026-2 02 1 0101- ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) 		8-94449-880-4 01 1 9804- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) 		8-94449-879-4 01 1 9804- ● ●
6 16.165 CLIP; DOOR PAD
CREW CAB(TF**W*) 14.683 H=16 		8-94318-803-1 16 1 9804- ● ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> (A) GRAY 		8-97154-677-3 01 1 9804-0012 ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> (A) GRAY 		8-97154-677-3 01 1 0101- ● ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> (A) GRAY 		8-97154-676-3 01 1 9804-0012 ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> (A) GRAY 		8-97154-676-3 01 1 0101- ● ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> (B) GRAY 		8-97153-659-5 01 1 9804- ●
8 16.155 REST; ARM,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> (B) GRAY 		8-97153-658-5 01 1 9804- ●
10 16.155 SCREW; ARM REST
CREW CAB(TF**W*) 08.913 (B) M5X12 		8-94120-094-0 08 1 9804- ● ●
10 16.155 SCREW; ARM REST
CREW CAB(TF**W*) POWER WINDOW<A30> 16.165 (A) M4X14 		8-94318-550-0 12 1 9804-0012 ●
10 16.155 SCREW; ARM REST
CREW CAB(TF**W*) POWER WINDOW<A30> 16.165 (A) M4X14 		8-94318-550-0 12 1 0101- ● ●
10 16.155 SCREW; ARM REST
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> 16.165 (A) M4X14 		8-94318-550-0 08 1 9804- ●
13 16.165 GROMMET; SCREW,ARM REST
CREW CAB(TF**W*) 16.450 (A) 		5-09470-001-0 04 1 9804-0012 ●
13 16.165 GROMMET; SCREW,ARM REST
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> 16.450 (A) 		5-09470-001-0 04 1 0101- ●
13 16.165 GROMMET; SCREW,ARM REST
CREW CAB(TF**W*) 14.686 (B) SCREW GROMMET 		8-06698-938-1 04 1 9804-0012 ●
13 16.165 GROMMET; SCREW,ARM REST
CREW CAB(TF**W*) POWER WINDOW<A30> 14.686 (B) SCREW GROMMET 		8-06698-938-1 04 1 0101- ●
13 16.165 GROMMET; SCREW,ARM REST
CREW CAB(TF**W*) 14.686 (B) SCREW GROMMET 		8-06698-938-1 04 1 0101- ●
23 16.165 VALVE; DRAIN HOLE,DOOR
CREW CAB(TF**W*) AUSTRALIAN EQUIPMENT(RR3) 		8-94319-162-0 10 1 9804-0107 ● ●
23 16.165 VALVE; DRAIN HOLE,DOOR
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIAN EQUIPMENT(RR3) 		8-94319-162-0 06 1 9804-0107 ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER
CREW CAB(TF**W*) 		8-97160-986-1 02 1 9804- ● ●
28 16.165 CAP; DOOR TRIM PAD
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> 		8-94457-752-2 02 1 9804- ●
29 16.165 REINFORCEMENT; DOOR PAD
CREW CAB(TF**W*) 		8-94447-731-1 02 1 9804-0012 ●
29 16.165 REINFORCEMENT; DOOR PAD
CREW CAB(TF**W*) POWER WINDOW<A30> 		8-94447-731-1 02 1 0101- ●
29 16.165 REINFORCEMENT; DOOR PAD
CREW CAB(TF**W*) 		8-94447-731-1 02 1 0101- ●
35 16.166 SCREW; TRIM PAD
CREW CAB(TF**W*) 16.165 (A) M4X8 		8-94363-204-0 10 1 9804-0012 ●
35 16.166 SCREW; TRIM PAD
CREW CAB(TF**W*) POWER WINDOW<A30> 16.165 (A) M4X8 		8-94363-204-0 10 1 0101- ●
35 16.166 SCREW; TRIM PAD
CREW CAB(TF**W*) 16.165 (A) M4X8 		8-94363-204-0 10 1 0101- ●
35 16.166 SCREW; TRIM PAD
CREW CAB(TF**W*) 16.165 (B) M4X13 TAPPING 		8-97104-883-0 06 1 9804-0012 ●
35 16.166 SCREW; TRIM PAD
CREW CAB(TF**W*) POWER WINDOW<A30> 16.165 (B) M4X13 TAPPING 		8-97104-883-0 06 1 0101- ●
35 16.166 SCREW; TRIM PAD
CREW CAB(TF**W*) 16.165 (B) M4X13 TAPPING 		8-97104-883-0 06 1 0101- ●
39 16.165 COVER; DOOR TRIM
CREW CAB(TF**W*) GRAY 		8-97152-745-3 06 1 9804-0012 ●
39 16.165 COVER; DOOR TRIM
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97152-745-3 06 1 0101- ●
39 16.165 COVER; DOOR TRIM
CREW CAB(TF**W*) GRAY 		8-97152-745-3 06 1 0101- ●
40 16.165 SHEET; WATER PROOF,RR DOOR
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> 		8-97118-492-0 02 1 9804- ● ●
40 16.165 SHEET; WATER PROOF,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> 		8-97161-055-2 01 1 9804- ●
40 16.165 SHEET; WATER PROOF,RR DOOR
CREW CAB(TF**W*) POWER WINDOW<A30> 		8-97112-388-3 01 1 9804- ●
50 16.450 GRIP; ASSIST,RR DOOR TRIM
CREW CAB(TF**W*) GRAY 		8-97152-650-2 02 1 9804-0012 ●
50 16.450 GRIP; ASSIST,RR DOOR TRIM
CREW CAB(TF**W*) EXC. POWER WINDOW<A30> GRAY 		8-97152-650-2 02 1 0101- ●
51 16.450 SCREW; ASSIST GRIP,RR DOOR TRIM
CREW CAB(TF**W*) M6X30 		8-94361-891-0 04 1 9804- ● ●
61 16.165 GUIDE; HOLE
CREW CAB(TF**W*) GRAY 		8-97152-748-3 02 1 9804- ● ●
62 16.165 BRACKET
CREW CAB(TF**W*) 		8-97176-379-0 01 1 9804- ● ●
62 16.165 BRACKET
CREW CAB(TF**W*) 		8-97176-378-0 01 1 9804- ● ●
83 16.165 TRIM; CENTER CLOTH
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97196-083-1 02 1 0101- ●
83 16.165 TRIM; CENTER CLOTH
CREW CAB(TF**W*) GRAY 		8-97196-083-0 02 1 9804-0012 ●
83 16.165 TRIM; CENTER CLOTH
CREW CAB(TF**W*) GRAY 		8-97296-768-1 02 1 0101- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
