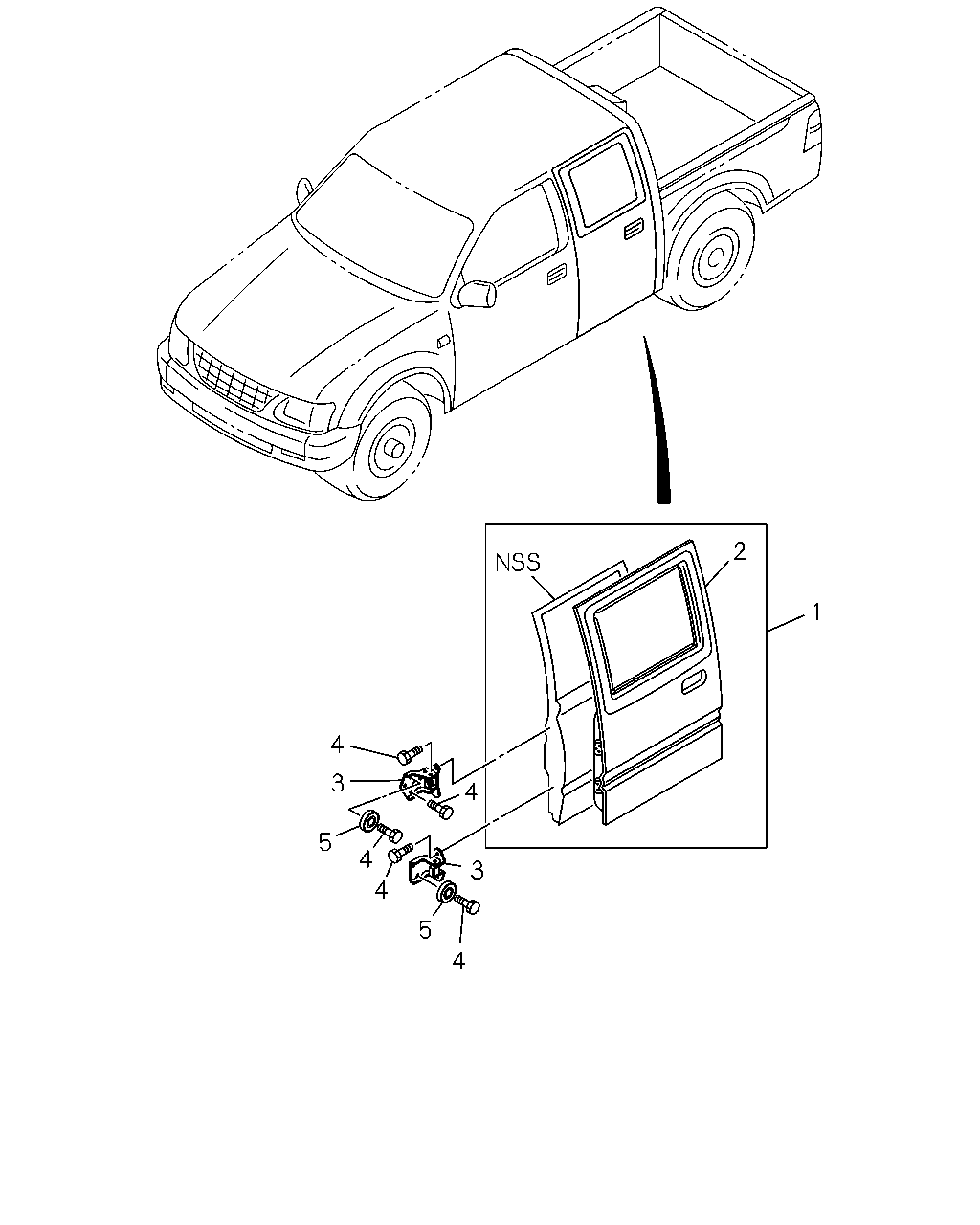

6-50 — REAR DOOR AND HINGE (#45725) — 29 parça

2 1 4 3 4 5 4 3 4 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.150 DOOR ASM; REAR AUSTRALIAN EQUIPMENT(RR3)	8-97146-834-0	01	1	9804-9903	●	●
1	16.150 DOOR ASM; REAR AUSTRALIAN EQUIPMENT(RR3)	8-97146-834-0	01	1	9904-9909	●	●
1	16.150 DOOR ASM; REAR DOOR BEAM<7YD>	8-97146-834-0	01	1	9904-9909	●	●
1	16.150 DOOR ASM; REAR DOOR BEAM<7YD>	8-97146-834-1	01	1	9910-0301	●	●
1	16.150 DOOR ASM; REAR DOOR BEAM<7YD>	8-97364-853-0	01	1	0302-	●	●
1	16.150 DOOR ASM; REAR AUSTRALIAN EQUIPMENT(RR3)	8-97146-833-0	01	1	9804-9903	●	●
1	16.150 DOOR ASM; REAR AUSTRALIAN EQUIPMENT(RR3)	8-97146-833-0	01	1	9904-9909	●	●
1	16.150 DOOR ASM; REAR DOOR BEAM<7YD>	8-97146-833-0	01	1	9904-9909	●	●
1	16.150 DOOR ASM; REAR DOOR BEAM<7YD>	8-97146-833-1	01	1	9910-0301	●	●
1	16.150 DOOR ASM; REAR DOOR BEAM<7YD>	8-97364-852-0	01	1	0302-	●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97112-215-0	01	1	9804-9903	●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIAN EQUIPMENT(RR3), DOORBEAM<7YD>	8-97112-215-0	01	1	9904-9909	●	●
1	16.150 DOOR ASM; REAR EXC. DOOR BEAM<7YD>	8-97112-215-1	01	1	9910-0301	●	●
1	16.150 DOOR ASM; REAR EXC. DOOR BEAM<7YD>	8-97364-851-0	01	1	0302-	●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97112-214-0	01	1	9804-9903	●	●
1	16.150 DOOR ASM; REAR EXC. AUSTRALIAN EQUIPMENT(RR3), DOORBEAM<7YD>	8-97112-214-0	01	1	9904-9909	●	●
1	16.150 DOOR ASM; REAR EXC. DOOR BEAM<7YD>	8-97112-214-1	01	1	9910-0301	●	●
1	16.150 DOOR ASM; REAR EXC. DOOR BEAM<7YD>	8-97364-850-0	01	1	0302-	●	●
2	16.152 PANEL; RR DOOR OUTER	8-94472-546-1	01	1	9804-	●	●
2	16.152 PANEL; RR DOOR OUTER	8-94472-545-1	01	1	9804-	●	●
3	16.335 HINGE; RR DOOR LOWER	8-94183-176-2	01	1	9804-	●	●
3	16.335 HINGE; RR DOOR 16.320 UPPER	8-94474-102-1	01	1	9804-	●	●
3	16.335 HINGE; RR DOOR LOWER	8-94183-175-2	01	1	9804-	●	●
3	16.335 HINGE; RR DOOR 16.320 UPPER	8-94474-101-1	01	1	9804-	●	●
4	16.335 BOLT; HINGE 10.463 M8X23 FLANGE	8-94174-559-2	08	1	9804-	●	●
4	16.335 BOLT; HINGE 10.463 M8X23 FLANGE	8-94174-559-2	10	1	9804-0109	●	●
4	16.335 BOLT; HINGE 10.463 M8X23 FLANGE	8-94174-559-2	20	1	0110-	●	●
5	16.320 WASHER; PL,HINGE TO DOOR ID=8.1 W/PL WASHER	8-97173-691-0	04	1	9804-0106	●	●
5	16.320 WASHER; PL,HINGE TO DOOR	8-97308-583-0	04	1	0107-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
