6-43 — SIDE TRIM (#45722) — 76 parça

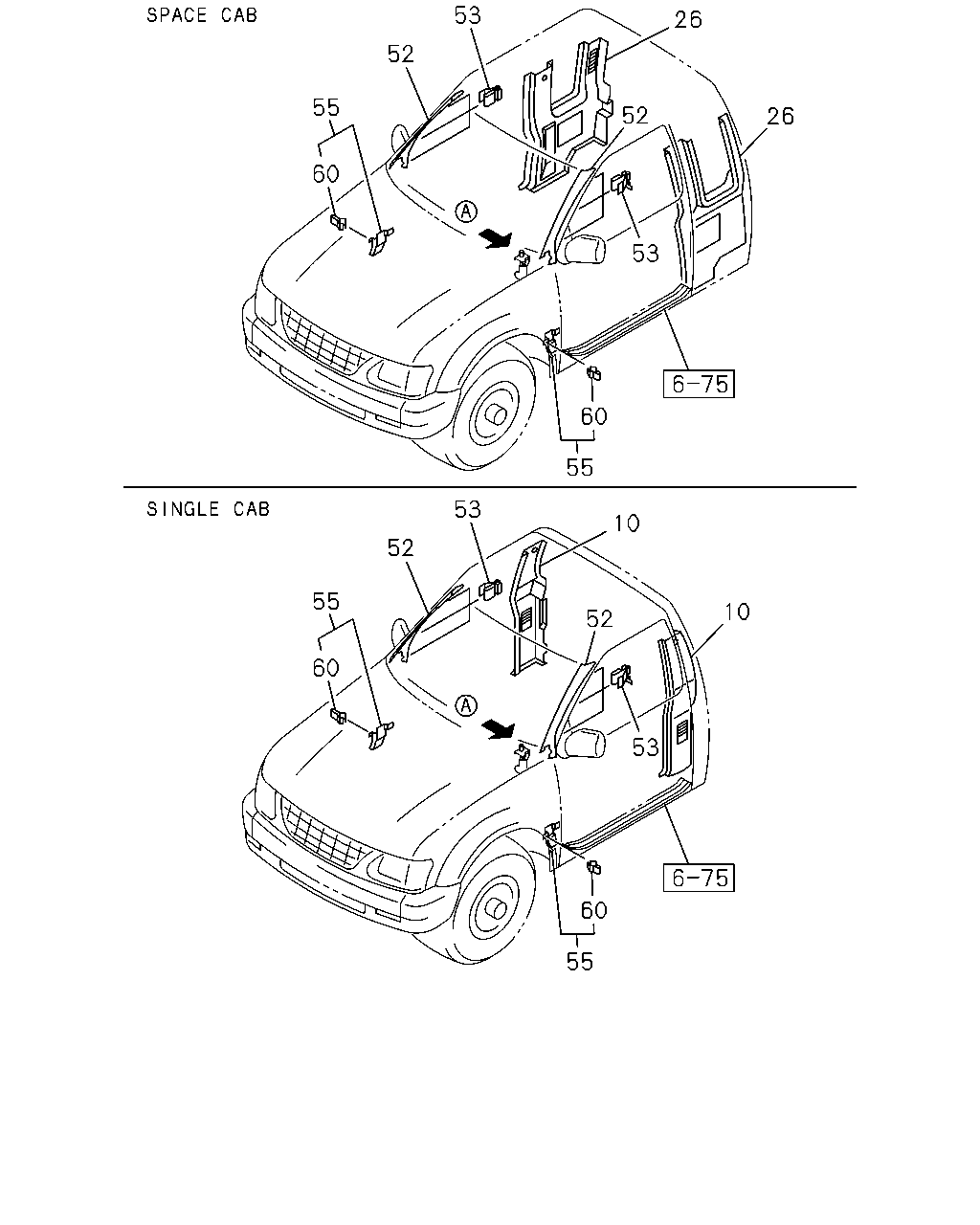

53 26 52 55 52 26 60 53 60 55 53 10 52 55 10 52 60 53 60 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	16.578 TRIM; B-POST 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW),RR BO DY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) GRAY	8-97297-845-0	01	1	0101-	●	●
10	16.578 TRIM; B-POST 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) GRAY	8-97154-634-2	01	1	9804-		●
10	16.578 TRIM; B-POST 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) GRAY	8-97154-633-4	01	1	9804-0012		●
10	16.578 TRIM; B-POST 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW), RR BODY DBL WALL CTR PULL INNER & OUTER H OOK(7TN) GRAY	8-97154-633-4	01	1	0101-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49>, NOISE INSULATION PACK 2<7MW> GRAY	8-97154-649-3	01	1	9804-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49>, NOISE INSULATION PACK 2<7MW> GRAY	8-97154-648-4	01	1	9804-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49> GRAY	8-97156-055-0	01	1	9804-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49> GRAY	8-97156-054-1	01	1	9804-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) REAR DEFOGGER<C49> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> GRAY	8-97154-653-0	01	1	9804-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) REAR DEFOGGER<C49> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> GRAY	8-97154-655-1	01	1	9804-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> GRAY	8-97156-059-0	01	1	9804-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> GRAY	8-97156-058-1	01	1	9804-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> GRAY	8-97156-053-0	01	1	9804-		●
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> GRAY	8-97156-052-1	01	1	9804-		●
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> GRAY	8-97156-057-0	01	1	9804-		●
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> GRAY	8-97156-056-1	01	1	9804-		●
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> REAR DEFOGGER<C49> EXC. NOISE INSULATION PACK 2<7MW> GRAY	8-97154-652-0	01	1	9804-		●
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> REAR DEFOGGER<C49> EXC. NOISE INSULATION PACK 2<7MW> GRAY	8-97154-654-1	01	1	9804-		●
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> EXC. REAR DEFOGGER<C49>,NOISE INSULATION PACK 2<7MW> GRAY	8-97154-651-3	01	1	9804-		●
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> EXC. REAR DEFOGGER<C49>,NOISE INSULATION PACK 2<7MW> GRAY	8-97154-650-4	01	1	9804-		●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-700-0	01	1	9804-9811	●	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97199-830-0	01	1	9812-	●	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-699-0	01	1	9804-9811	●	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97199-829-0	01	1	9812-	●	●
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	06	1	9804-9901	●	●
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	04	1	9902-	●	●
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-608-0	01	1	9804-	●	●
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97155-005-0	01	1	9804-	●	●
60	16.166 CLIP; ANCHOR,TRIM PAD	8-94321-034-0	04	1	9804-	●	●

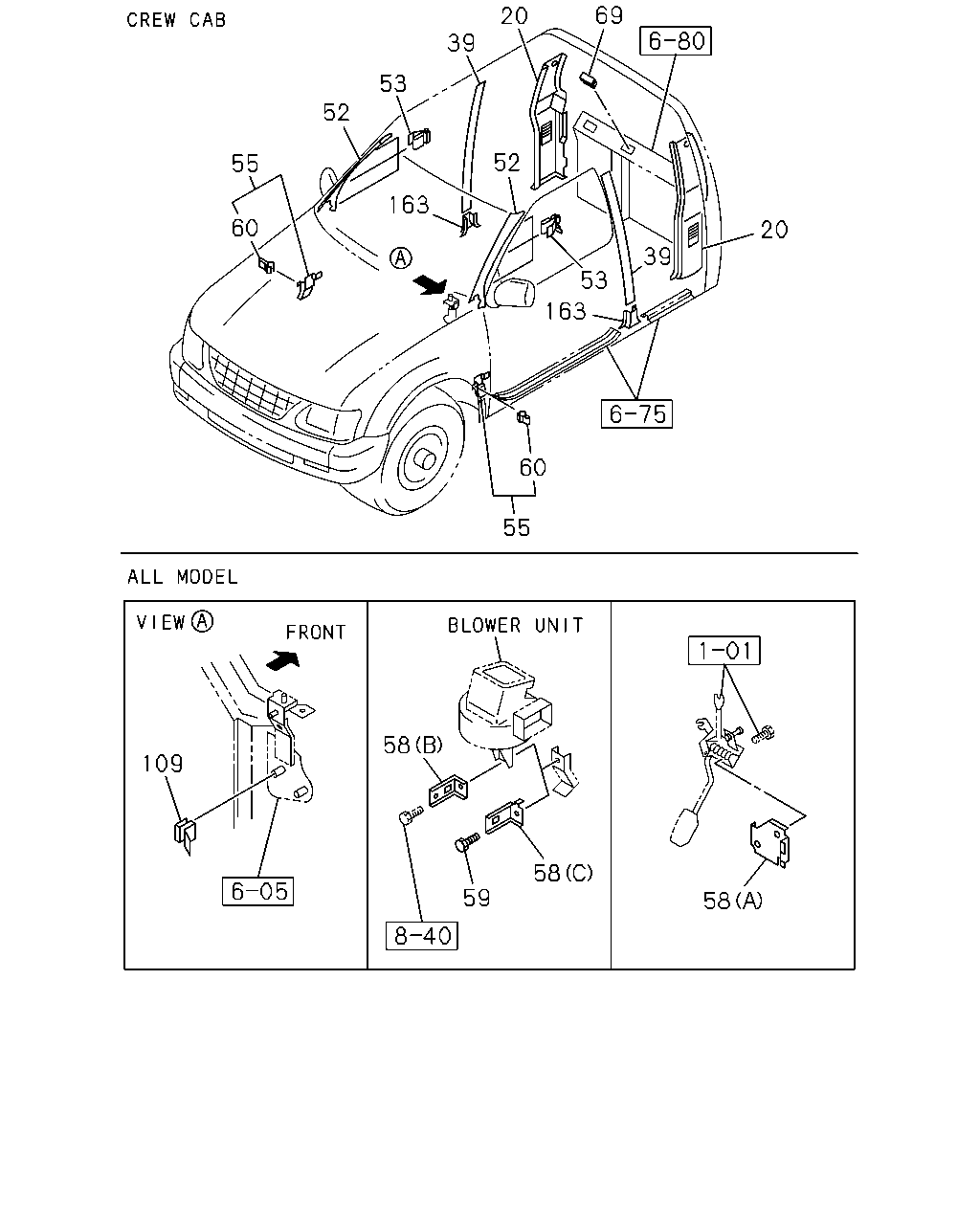

69 20 39 53 52 52 55 163 60 20 39 53 163 60 55 58 109 58 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALANDEQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) GRAY	8-97158-334-0	01	1	9804-0011	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALANDEQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) GRAY	8-97158-334-0	01	1	0012-0012	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR 3 POINT SEAT BELT<AK9> REAR DEFOGGER<C49> GRAY	8-97158-334-0	01	1	0101-	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALANDEQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) GRAY	8-97158-333-0	01	1	9804-0011	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALANDEQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) GRAY	8-97158-333-0	01	1	0012-0012	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR 3 POINT SEAT BELT<AK9> REAR DEFOGGER<C49> GRAY	8-97158-333-0	01	1	0101-	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALANDEQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) EXC. REAR DEFOGGER<C49> GRAY	8-97158-330-0	01	1	9804-0012	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR 3 POINT SEAT BELT<AK9> UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIAN EQUIPMENT(RR3) EXC. REAR DEFOGGER<C49> GRAY	8-97158-330-0	01	1	0101-	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR 3 POINT SEAT BELT<AK9> EXC. REAR DEFOGGER<C49> GRAY	8-97158-330-0	01	1	0101-		●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALANDEQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) EXC. REAR DEFOGGER<C49> GRAY	8-97158-329-0	01	1	9804-0012	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR 3 POINT SEAT BELT<AK9> UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIAN EQUIPMENT(RR3) EXC. REAR DEFOGGER<C49> GRAY	8-97158-329-0	01	1	0101-	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR 3 POINT SEAT BELT<AK9> EXC. REAR DEFOGGER<C49> GRAY	8-97158-329-0	01	1	0101-		●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> EXC. UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUIPMENT (RR3) GRAY	8-97158-336-0	01	1	9910-0011		●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> EXC. UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUIPMENT (RR3) GRAY	8-97158-336-0	01	1	0012-0012	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> EXC. REAR 3 POINT SEAT BELT<AK9> GRAY	8-97158-336-0	01	1	0101-	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> EXC. UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUIPMENT (RR3) GRAY	8-97158-335-0	01	1	9910-0011		●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> EXC. UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUIPMENT (RR3) GRAY	8-97158-335-0	01	1	0012-0012	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> EXC. REAR 3 POINT SEAT BELT<AK9> GRAY	8-97158-335-0	01	1	0101-	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) EXC. REAR DEFOGGER<C49>,NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) GRAY	8-97158-332-0	01	1	9804-9909		●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) EXC. REAR DEFOGGER<C49>,UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),A USTRALIAN EQUIPMENT(RR3) GRAY	8-97158-332-0	01	1	9910-0012		●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) EXC. REAR 3 POINT SEAT BELT<AK9>,REAR DEFOGGER<C49>,UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) GRAY	8-97158-332-0	01	1	0101-		●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) EXC. REAR DEFOGGER<C49>,NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQUIPMENT(RR3) GRAY	8-97158-331-0	01	1	9804-9909		●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) EXC. REAR DEFOGGER<C49>,UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),A USTRALIAN EQUIPMENT(RR3) GRAY	8-97158-331-0	01	1	9910-0012		●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) EXC. REAR 3 POINT SEAT BELT<AK9>,REAR DEFOGGER<C49>,UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) GRAY	8-97158-331-0	01	1	0101-		●
39	16.575 COVER; TRIM,CENTER PILLAR CREW CAB(TF*W) AUSTRALIAN EQUIPMENT(RR3) GRAY	8-97154-629-0	02	1	9804-	●
39	16.575 COVER; TRIM,CENTER PILLAR CREW CAB(TF*W) GRAY	8-97154-629-0	02	1	9804-		●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-700-0	01	1	9804-9811	●	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97199-830-0	01	1	9812-	●	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-699-0	01	1	9804-9811	●	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97199-829-0	01	1	9812-	●	●
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	06	1	9804-9901	●	●
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	04	1	9902-	●	●
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-608-0	01	1	9804-	●	●
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97155-005-0	01	1	9804-	●	●
58	16.551 BRACKET (A)	8-97135-482-1	01	1	9804-	●	●
58	16.551 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97132-075-0	01	1	9804-	●	●
58	16.551 BRACKET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97132-074-0	01	1	9804-	●	●
59	16.560 BOLT; DASH SIDE TRIM BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.085 M6X16	8-94220-097-0	01	1	9804-0112	●	●
59	16.560 BOLT; DASH SIDE TRIM BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 10.701 M6X16	8-94206-784-0	01	1	0201-	●	●
60	16.166 CLIP; ANCHOR,TRIM PAD	8-94321-034-0	04	1	9804-	●	●
69	16.585 PLUG; HOLE CREW CAB(TF*W) EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97012-841-1	03	1	9804-	●
109	16.225 CLIP; DOOR FINISHER	8-97175-995-0	01	1	9804-	●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR CREW CAB(TF*W) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97154-631-1	01	1	9804-9909	●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR CREW CAB(TF*W) GRAY	8-97154-631-1	01	1	9910-	●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR CREW CAB(TF*W) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97154-630-1	01	1	9804-9909	●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR CREW CAB(TF*W) GRAY	8-97154-630-1	01	1	9910-	●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR CREW CAB(TF*W) EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97154-632-1	02	1	9804-9909	●	●
