6-14 — DASH PANEL AND FENDER SKIRT (#45715) — 20 parça

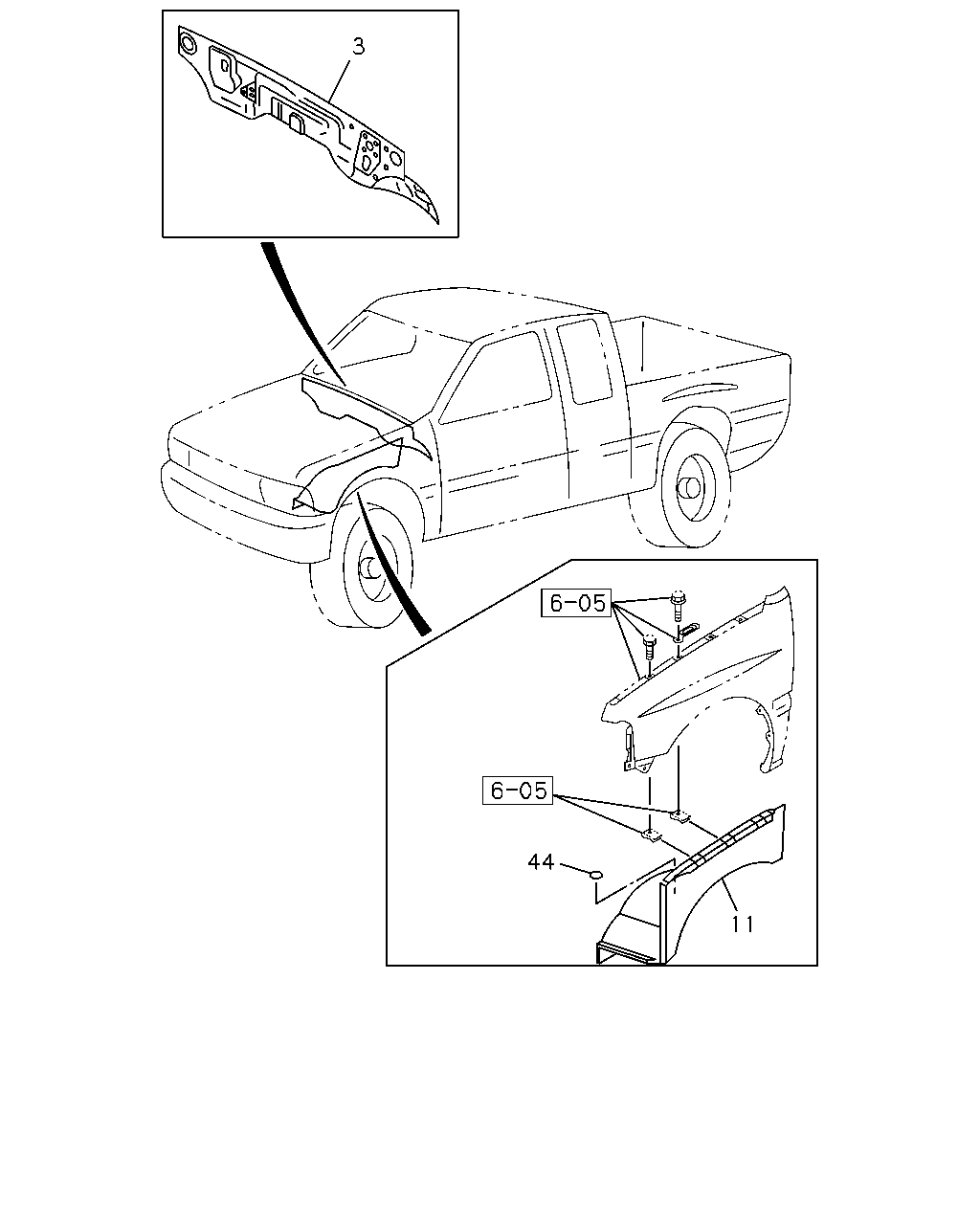

çizim 18181
3 44 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 16.550 PANEL; SUB,DASH LWR
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AUSTRALIAN EQUIPMENT(RR3), NOISE INSULATION PACK 2<7MW> 		8-97065-583-6 01 1 9804-9909 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
NOISE INSULATION PACK 2<7MW> EXC. DRIVER SIDE FOOT REST<7NU> 		8-97065-583-6 01 1 9804-9909 ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AUSTRALIAN EQUIPMENT(RR3), NOISE INSULATION PACK 2<7MW> 		8-97065-583-6 01 1 9910- ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
NOISE INSULATION PACK 2<7MW> EXC. DRIVER SIDE FOOT REST<7NU> 		8-97065-583-6 01 1 9910- ● ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3), NOISE INSULATION PACK 2<7MW> 		8-97065-581-4 01 1 9804- ● ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97162-170-1 01 1 9804- ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 		8-97079-418-4 01 1 9804-0109 ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) NOISE INSULATION PACK 2<7MW> 		8-97079-418-4 01 1 9804-0109 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) NOISE INSULATION PACK 2<7MW> 		8-97079-418-4 01 1 0110- ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 		8-97079-418-4 01 1 0110- ●
3 16.550 PANEL; SUB,DASH LWR
4JH1 ENG(RJX),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 		8-97079-418-4 01 1 0110- ● ● ●
3 16.550 PANEL; SUB,DASH LWR
22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN) AUSTRALIAN EQUIPMENT(RR3) EXC. NOISE INSULATION PACK 2<7MW> 		8-97088-141-1 01 1 9804- ● ● ●
3 16.550 PANEL; SUB,DASH LWR
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) NOISE INSULATION PACK 2<7MW> 		8-97089-267-1 01 1 9804-0109 ● ●
3 16.550 PANEL; SUB,DASH LWR
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 		8-97089-267-1 01 1 9804-0109 ● ●
3 16.550 PANEL; SUB,DASH LWR
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) NOISE INSULATION PACK 2<7MW> 		8-97089-267-1 01 1 0110- ● ●
3 16.550 PANEL; SUB,DASH LWR
4JH1 ENG(RJX),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 		8-97089-267-1 01 1 0110- ● ●
3 16.550 PANEL; SUB,DASH LWR
22LE/C22NE ENG(RJT) M/T MUA 5 SPEED(RMN) AUSTRALIAN EQUIPMENT(RR3) EXC. NOISE INSULATION PACK 2<7MW> 		8-97089-266-0 01 1 9804- ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97038-160-0 01 1 9804- ● ● ● ● ● ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97130-526-0 01 1 9804- ● ● ● ● ● ● ● ●
44 08.154 SEAL; HOLE,FENDER SKIRT
15.222 OD=16 		8-94111-207-1 01 1 9811- ● ● ● ● ● ● ● ●
