6-10 — ENGINE HOOD AND LOCK (#45714) — 39 parça

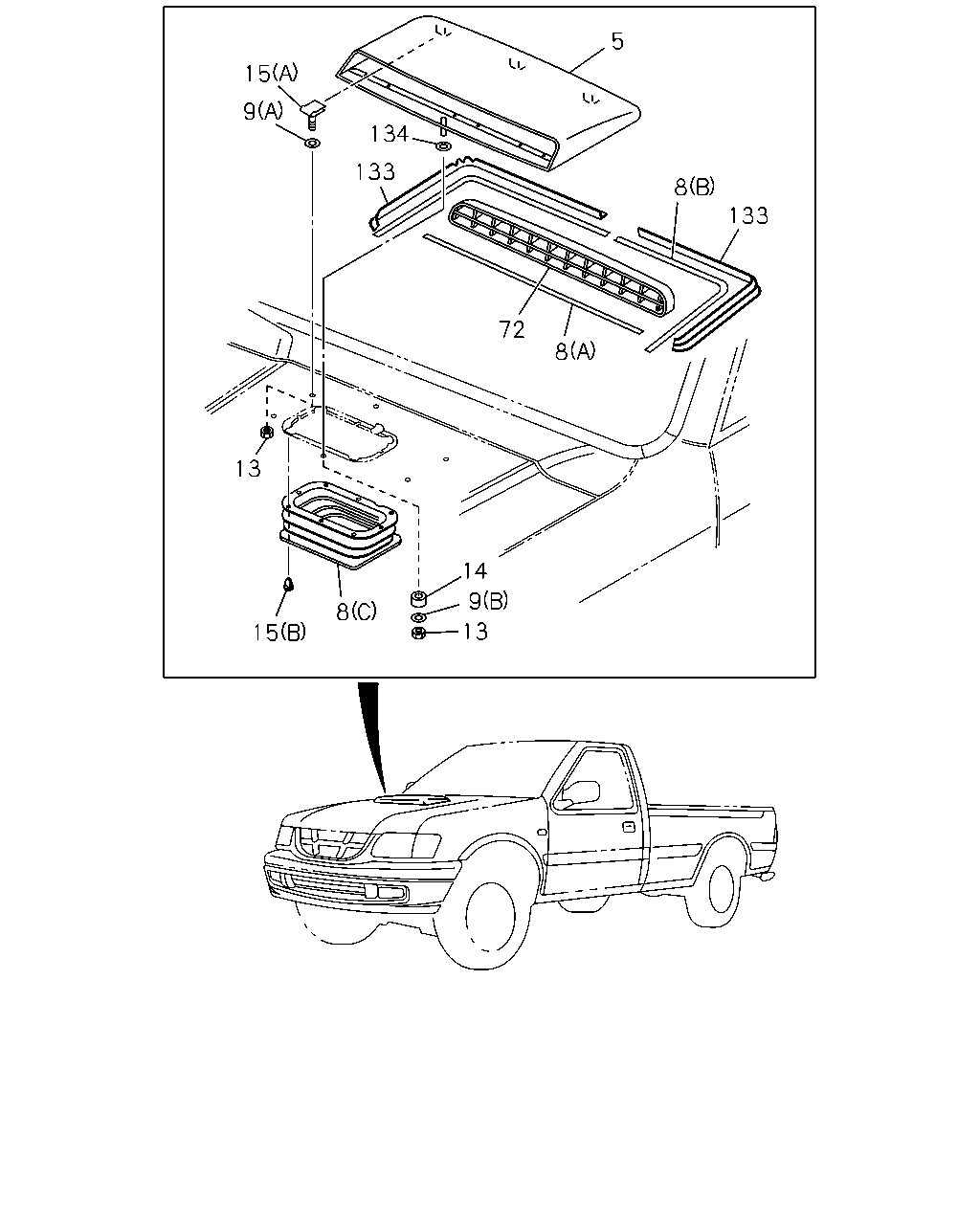

çizim 71731
5 15 9 134 133 8 133 72 8 13 14 9 8 13 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
5 08.054 SCOOP; AIR,CHARGE AIR COOLER,ENG
CHARGE AIR COOLER<6PL> 		8-97289-074-1 01 1 0110- ● ● ● ● ●
8 08.054 SEAL; AIR SCOOP
CHARGE AIR COOLER<6PL> (C) 		8-97289-000-1 01 1 0110- ● ● ● ● ●
8 08.054 SEAL; AIR SCOOP
CHARGE AIR COOLER<6PL> (A) 		8-97810-476-0 01 1 0110- ● ● ● ● ●
8 08.054 SEAL; AIR SCOOP
CHARGE AIR COOLER<6PL> (B) 		8-97810-866-0 01 1 0110- ● ● ● ● ●
9 08.054 WASHER; PL,AIR SCOOP
CHARGE AIR COOLER<6PL> 08.131 (B) D=22 		8-94358-648-0 01 1 0110- ● ● ● ● ●
9 08.054 WASHER; PL,AIR SCOOP
CHARGE AIR COOLER<6PL> (A) D=16 		8-94427-941-0 AR 1 0110- ● ● ● ● ●
9 08.054 WASHER; PL,AIR SCOOP
CHARGE AIR COOLER<6PL> (A) D=16 		8-94427-941-0 05 1 0110- ● ● ● ● ●
13 08.054 NUT; AIR SCOOP
CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 06 1 0110- ● ● ● ● ●
14 08.054 SPACER; AIR SCOOP,ENG HOOD
CHARGE AIR COOLER<6PL> 		8-97810-466-0 01 1 0110- ● ● ● ● ●
15 08.054 CLIP; AIR SCOOP
CHARGE AIR COOLER<6PL> (B) L=13.5 		8-97031-931-0 06 1 0110- ● ● ● ● ●
15 08.054 CLIP; AIR SCOOP
CHARGE AIR COOLER<6PL> (A) 		8-97806-845-2 05 1 0110- ● ● ● ● ●
72 08.054 STRAINER; AIR SCOOP
CHARGE AIR COOLER<6PL> 		8-97811-204-0 01 1 0110- ● ● ● ● ●
133 08.054 FINISHER; AIR SCOOP
CHARGE AIR COOLER<6PL> 		8-97162-066-1 02 1 0110- ● ● ● ● ●
134 08.007 WASHER; BULGE
CHARGE AIR COOLER<6PL> 11.377 D=22 T=1 		8-94425-158-0 01 1 0110- ● ● ● ● ●

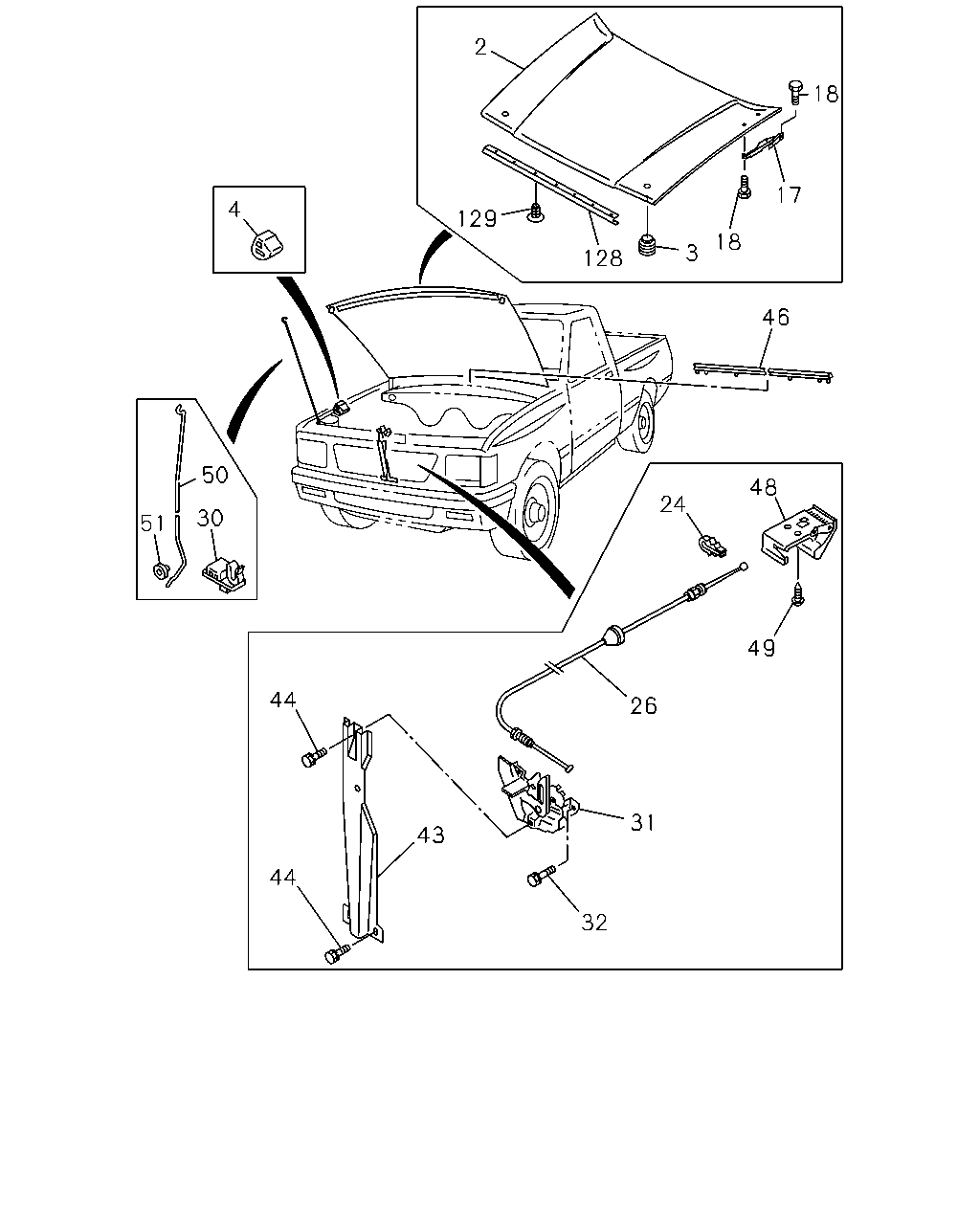

çizim 71858
2 18 17 4 129 18 3 128 46 50 48 24 30 51 49 44 26 31 43 44 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 08.000 PANEL; ENG HOOD 8-97111-807-4 01 1 9804-0109 ● ● ● ● ● ● ● ●
2 08.000 PANEL; ENG HOOD 8-97111-807-4 01 1 0110- ● ● ●
2 08.000 PANEL; ENG HOOD
EXC. CHARGE AIR COOLER<6PL> 		8-97111-807-4 01 1 0110- ● ● ● ● ●
2 08.000 PANEL; ENG HOOD
CHARGE AIR COOLER<6PL> 		8-97258-702-1 01 1 0110- ● ● ● ● ●
3 08.077 BUFFER; ENG HOOD,FRT
08.024 		8-94237-385-0 02 1 9804- ● ● ● ● ● ● ● ●
4 08.024 REST; SIDE 8-94442-966-0 02 1 9804- ● ● ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-94388-235-4 01 1 9804- ● ● ● ● ● ● ● ●
17 08.015 HINGE; ENG HOOD 8-94388-234-4 01 1 9804- ● ● ● ● ● ● ● ●
18 08.015 BOLT; HINGE
M8X16 		8-94139-492-0 08 1 9804- ● ● ● ● ● ● ● ●
24 08.077 CLIP; CONT CABLE
09.647 ID=4.8 		8-94128-483-0 02 1 9804- ● ● ● ● ● ● ● ●
26 08.075 CABLE; ENG HOOD CONT 8-97106-131-0 01 1 9804- ● ● ● ● ● ● ● ●
30 08.077 CLIP; SUPPORT ROD,HOOD 8-97104-427-0 01 1 9804- ● ● ● ● ● ● ● ●
31 08.083 LOCK; ENG HOOD 8-97111-963-0 01 1 9804- ● ● ● ● ● ● ● ●
32 08.077 BOLT; HOOD LK
M6X18 		8-97071-681-0 02 1 9804- ● ● ● ● ● ● ● ●
43 08.077 STAY; ENG HOOD,FRT END 8-94434-818-3 01 1 9804-0101 ● ● ● ● ● ● ● ●
43 08.077 STAY; ENG HOOD,FRT END 8-97289-265-0 01 1 0102- ● ● ● ● ● ● ● ●
44 08.077 BOLT; STAY,HOOD
M6X18 		8-97071-681-0 03 1 9804- ● ● ● ● ● ● ● ●
46 01.272 SEAL; ENG HOOD 8-97147-261-0 01 1 9804- ● ● ● ● ● ● ● ●
48 08.083 LEVER; ENG HOOD
BLACK 		8-97150-583-0 01 1 9804-0201 ● ● ● ● ● ● ● ●
48 08.083 LEVER; ENG HOOD
BLACK 		8-97808-822-0 01 1 0202- ● ● ● ● ● ● ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
08.077 M5X10 		9-09829-185-0 02 1 9804- ● ● ● ● ● ● ● ●
50 08.015 ROD; SUPPORT,ENG HOOD 8-97073-612-2 01 1 9804- ● ● ● ● ● ● ● ●
51 08.080 GROMMET; SUPPORT ROD 8-94220-508-2 01 1 9804- ● ● ● ● ● ● ● ●
128 08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97139-188-0 01 1 9804- ● ● ● ● ● ● ● ●
129 08.010 CLIP; ENG HOOD SEAL
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 15.100 BLACK 		8-94104-935-0 07 1 9804- ● ● ● ● ● ● ● ●
